Hyundai Elantra Hybrid (2023 year). Manual in english - page 15

Driver Assistance System

Reverse Parking Distance

Reverse Parking Distance

Warning Operation

Warning Malfunction and

Reverse Parking Distance Warning

Precautions

ś Reverse Parking Distance Warning

Reverse Parking Distance Warning

will operate when the gear is in R

malfunction

(Reverse).

After starting the engine, a beep will

ś Reverse Parking Distance Warning

sound when the gear is shifted to R

helps detect a person, animal or

(Reverse) to indicate the system is

REMHFW LQ WKH UHDU ZKHQ WKH YHKLFOHŔV

operating properly.

rearward speed is below 6 mph (10

However, if one or more of the following

km/h).

occurs, first check whether the ultrasonic

sensor is damaged or whether the

Warning

system is in a non operating condition.

indicator

If it still does not work properly, have

Distance

Warning

When

the vehicle inspected by an authorized

from object

sound

driving

HYUNDAI dealer.

backward

ś

The audible warning does not sound.

24~48 in.

Buzzer beeps

ś

The buzzer sounds intermittently.

(60~120 cm)

intermittently

ś

7KH œ3DUNLQJ VHQVRU HUURU RU EORFNDJHŔ

warning message appears on the

cluster.

12~24 in.

Beeps more

(30~60 cm)

frequently

12 in. (within

Beeps

30 cm)

continuously

ś The corresponding indicator will

illuminate whenever each ultrasonic

senor detects a person, animal or

object in its sensing range. Also an

audible warning will sound.

ś When more than two objects are

OCN7070066L

detected at the same time, the closest

one will be warned with an audible

warning.

ś The shape of the indicator in the

illustration may differ from the actual

vehicle.

7-114

Driver Assistance System

5(9

(56(3

$5.,1* &2//,6,21ǘ$92,'$1&( $66,67 ǣ3&$Ǥ

ǣ,) (48,33('Ǥ

Reverse Parking Collision-Avoidance

Detecting sensor

Assist can warn the driver or can

assist with braking to help reduce the

possibility of collision with a pedestrian

or an object when backing up.

WARNING

ś ALWAYS look around your vehicle to

make sure there are no pedestrians

or objects before moving the vehicle.

ś Do not solely rely on the system.

Doing so may lead to vehicle damage

OCN7H071051L

or injuries.

ś Some objects may not be detected

by the rear ultrasonic sensors due

to the objects distance, size or

material, all of which can limit the

effectiveness of the sensor.

OCN7H070024

[1] : Rear view camera,

[2] : Rear ultrasonic sensors

Refer to the picture above for the

detailed location of the detecting

sensors.

7-116

07

Reverse Parking Collision-

CAUTION

Avoidance Assist Settings

Take the following precautions to

Setting features

maintain optimal performance of the

detecting sensors:

ś

Always keep the rear view camera

and rear ultrasonic sensors clean.

ś

Do not use any cleanser containing

acid or alkaline detergents when

cleaning the rear view camera lens.

Use only a mild soap or neutral

detergent, and rinse thoroughly with

water.

ś

Never disassemble or strike the rear

view camera or the rear ultrasonic

OCN7070110N

sensors components.

Parking Safety

ś

Do not apply unnecessary force on

ś

With the Engine Start/Stop button in

the rear view camera or the rear

the ON position, select or deselect

ultrasonic sensors. The system may

œ'ULYHU $VVLVWDQFH Ɵ 3DUNLQJ 6DIHW\Ŕ

not operate properly if the rear

from the Settings menu to set

view camera or the rear ultrasonic

whether to use each function.

sensor(s) is forcibly moved out of

proper alignment. Have the vehicle

-

,I œ5HDU $FWLYH $VVLVWŔ LV VHOHFWHG

inspected by an authorized HYUNDAI

the function will warn the driver and

dealer.

assist with braking when a collision

with a pedestrian or an object is

ś

Do not spray the rear view camera or

imminent.

the rear ultrasonic sensors or their

surrounding area directly with a

-

,I œ5HDU :DUQLQJ 2QO\Ŕ LV VHOHFWHG

high pressure washer. It may cause

the function will warn the driver

the rear view camera or the rear

when a collision with a pedestrian

ultrasonic sensors to malfunction.

or an object is imminent. Braking

will not be assisted.

ś

The function may not work properly

if the bumper has been damaged,

-

,I œ2IIŔ LV VHOHFWHG WKH IXQFWLRQ ZLOO

replaced or repaired.

turn off.

ś

Do not apply objects, such as a

ś

If Parking Safety (

) button is

bumper sticker or a bumper guard,

pressed more than 2 seconds, ‘Rear

near the rear view camera or rear

$FWLYH $VVLVWŔ RU œ5HDU :DUQLQJ 2QO\Ŕ

ultrasonic sensors or apply paint to

can be turned on or off.

the bumper. Doing so may adversely

affect the performance of the

function.

ś

Reverse Parking Collision-Avoidance

Assist may not operate properly if

interfered by strong electromagnetic

waves.

7-117

Driver Assistance System

OTM070140N

OTM070141N

Warning Timing

Warning Volume

With the Engine Start/Stop button in the

With the Engine Start/Stop button in the

21 SRVLWLRQ VHOHFW œ'ULYHU $VVLVWDQFH Ɵ

21 SRVLWLRQ VHOHFW œ'ULYHU $VVLVWDQFH Ɵ

:DUQLQJ 7LPLQJŔ IURP WKH 6HWWLQJV PHQX

:DUQLQJ 9ROXPHŔ IURP WKH 6HWWLQJV PHQX

to change the initial warning activation

WR FKDQJH WKH :DUQLQJ 9ROXPH WR œ+LJKŔ

time for Reverse Parking Collision-

œ0HGLXPŔ œ/RZŔ RU œ2IIŔ IRU 5HYHUVH

Avoidance Assist.

Parking Collision-Avoidance Assist.

If you change the Warning Timing,

However, when Warning Volume is

the Warning Timing of other Driver

turned off, the steering wheel vibration

Assistance systems may change.

function will turn on if it was turned off.

If you change the Warning Volume,

the Warning Volume of other Driver

Assistance systems may change.

7-118

Driver Assistance System

WARNING

Information

ś

Reverse Parking Collision-Avoidance

The function can detect a pedestrian or an

Assist may not operate properly

object when:

or may operate unnecessarily

- A pedestrian is standing behind the

depending on the road conditions

vehicle

and the surroundings.

- A large obstacle, such as a vehicle,

ś

Always exercise extreme caution

is parked in the rear center of your

while driving. The driver is

vehicle

responsible for braking and safe

driving.

Reverse Parking Collision-

ś

Always pay attention to road and

Avoidance Assist Malfunction

traffic conditions while driving,

and Limitations

whether or not there is a warning.

Reverse Parking Collision-Avoidance

Assist malfunction

CAUTION

ś

Playing the vehicle audio system at

high volume may prevent passengers

from hearing Reverse Parking

Collision-Avoidance Assist warning

sounds.

ś

Noise may be heard when sudden

braking occurs to avoid a collision.

ś

If any other warning sound such

as the seat belt warning chime is

already generated, Reverse Parking

OCN7060108N

Collision-Avoidance Assist warning

may not sound.

When Reverse Parking Collision-

Avoidance Assist or other related

ś

The performance of Reverse Parking

function are not working properly, the

Collision-Avoidance Assist may

‘Check Parking Collision-Avoidance

vary under certain conditions. If

$VVLVW V\VWHPŔ ZDUQLQJ PHVVDJH ZLOO

vehicle speed is above 2 mph (4

appear on the cluster, and the system

km/h), the system will provide

will turn off automatically. Have the

collision avoidance assist only when

vehicle inspected by an authorized

pedestrians are detected. Always

HYUNDAI dealer.

look around and pay attention when

backing up your vehicle.

7-120

07

Function disabled

„ Rear view camera

„ Rear ultrasonic

sensor

OCN7060127N

OCN7060128N

OCN7H071050L

7KH œ5HDU FDPHUD HUURU RU EORFNDJHŔ

The rear view camera is used as a

RU œ3DUNLQJ VHQVRU HUURU RU EORFNDJHŔ

detecting sensor to detect pedestrians. If

warning message will appear on the

the camera lens is covered with foreign

cluster if the following situations occur:

material, such as snow or rain, it may

- The rear view camera is covered with

adversely affect camera performance

foreign material, such as snow or rain,

and Reverse Parking Collision-Avoidance

etc.

Assist may not operate properly. Always

keep the camera lens clean.

- There is inclement weather, such as

heavy snow, heavy rain, etc.

If this occurs, Reverse Parking Collision-

Avoidance Assist may turn off or may not

operate properly. Check whether the rear

view camera and rear ultrasonic sensors

are clean.

OCN7H070009

The rear ultrasonic sensors are located

inside the rear bumper to detect objects

in the rear area. If the sensors are

covered with foreign material, such as

snow or rain, it may adversely affect

sensor performance and Reverse Parking

Collision-Avoidance Assist may not

operate properly. Always keep the rear

bumper clean.

7-121

Driver Assistance System

'(&/$5$7,21 2) &21)250,7< ǣ,) (48,33('Ǥ

The radio frequency components complies:

Front Radar

Rear Corner Radar

OANATEL124

OANATEL231

7-124

8. Emergency Situations

Hazard Warning Flasher

8-2

In Case of an Emergency While Driving

8-2

If the Engine Stalls While Driving

8-2

If the Engine Stalls at a Crossroad or Crossing

8-2

If you Have a Flat Tire While Driving

8-3

If the Engine Will Not Start

8-3

If the 12 Volt Battery Is Discharged

8-4

Before Jump Starting

8-4

Jump Starting

8-5

If the Engine Overheats

8-7

Tire Pressure Monitoring System (TPMS)

8-9

Check Tire Pressure

8-9

Tire Pressure Monitoring System

8-10

Low Tire Pressure Telltale

8-11

Low Tire Pressure Position and Tire Pressure Telltale

8-11

Tpms (Tire Pressure Monitoring System) Malfunction Indicator

8-13

Changing a Tire with TPMS

8-13

If you Have a Flat Tire (With spare tire)

8-15

Jack and Tools

8-15

Changing Tires

8-16

Towing

8-21

Towing Service

8-21

Emergency Towing

8-22

Removable Towing Hook

8-22

Emergency Towing

8-23

8

Emergency Situations

HAZARD WARNING FLASHER

IN CASE OF AN EMERGENCY

WHILE DRIVING

If the Engine Stalls While Driving

ś Reduce your speed gradually, keeping

a straight line. Move cautiously off the

road to a safe place.

ś Turn on your hazard warning flasher.

ś Try to start the engine again. If your

vehicle will not start, contact an

authorized HYUNDAI dealer or seek

other qualified assistance.

OCN7070001

The hazard warning flasher serves as

If the Engine Stalls at a Crossroad

a warning to other drivers to exercise

or Crossing

extreme caution when approaching,

overtaking, or passing your vehicle.

If the engine stalls at a crossroads or

crossing, if safe to do so, move the shift

It should be used whenever emergency

lever to the N (Neutral) position and then

repairs are being made or when the

push the vehicle to a safe location.

vehicle is stopped near the edge of a

roadway.

To turn the hazard warning flasher

on or off, press the hazard warning

flasher button. The button is located

in the center fascia panel. Both the left

and right turn signal lights will flash

simultaneously.

ś The hazard warning flasher operates

whether your vehicle is running or not.

ś The turn signals do not work when the

hazard flasher is on.

8-2

Emergency Situations

IF THE 12 VOLT BATTERY IS DISCHARGED

Before Jump Starting

If you do not start the vehicle

immediately after pressing the 12V

This vehicle does not have a regular 12V

Battery Reset switch, the power of 12V

battery that needs periodic replacement.

battery is automatically disconnected

It is lithium ion polymer type integrated

after few seconds to save the 12V battery

into the HEV high voltage battery. The

from additional discharge. If the 12V

vehicle has a 12V battery protection

battery is disconnected prior to starting

system that cuts 12V battery from vehicle

the vehicle, press the 12V Battery Reset

draw to prevent full discharge.

switch again and then immediately start

the vehicle as explained.

Using the 12V battery reset switch

Repeated use of the 12V Battery Reset

switch without a sufficient engine

ON cycle (30 Min+) may cause over

discharge of the 12V battery, which will

prevent the vehicle from starting. If the

12V battery is over discharged to a point

that the reset does not work, try to jump-

start the vehicle.

Information

After starting the vehicle (

indicator

OCN7HQ010003N

on), the 12V battery is being charged

1. Press the 12V Battery Reset switch to

whether the engine is running or not.

reconnect the 12V battery.

Although there is no engine sound, it is

2. Start the vehicle within 15 seconds of

unnecessary to depress the accelerator

pedal.

pressing the 12V Battery Reset switch.

3. After starting the vehicle (

The following items may need to be reset

indicator on), operate the vehicle

after the battery has been discharged or

safely outdoors in ready mode

the battery has been disconnected.

stopped and/or drive it for 30 minutes

total to charge the 12V battery fully.

4FF DIBQUFS BOE GPS

ś Power Windows

ś Trip Computer

ś Climate Control System

ś Clock

ś Audio System

ś Sunroof

8-4

08

NOTICE

External power source using 12V battery

The use of external power accessories

may reduce performance and function

of the vehicle. Especially, the use of

dash cameras may shut off the power of

the vehicle prior to the dash camera’s

automatic shut-down.

If the power of the vehicle is shut off,

start the vehicle as explained. (refer to

“Using the 12V Battery Reset Switch”)

OCN7H070001

3. Connect the jumper cables in

Jump Starting

the exact sequence shown in the

In the event vehicle still does not have a

illustration. First connect one jumper

functional 12V battery (check if interior

cable to the red, charging terminal

lights will not turn on) then you can try

inside the engine compartment fuse

a jump start to the engine compartment

panel (1).

jumper terminals using a 12V booster

4. Connect the other end of the jumper

pack or jumper cables from another

cable to the red, positive (+) battery/

vehicle’s 12V battery according to the

jumper terminal of the assisting

following instructions.

vehicle (2).

5. Connect the second jumper cable to

the black, negative (-) battery/chassis

CAUTION

ground of the assisting vehicle (3).

Jump starting can be dangerous if

6. Connect the other end of the second

done incorrectly. Follow the jump

jumper cable to the black, negative (-)

starting procedure in this section to

chassis ground of your vehicle (4).

avoid serious injury or damage to

your vehicle. If in doubt about how to

Do not allow the jumper cables to

properly jump start your vehicle, we

contact anything except the correct

strongly recommend that you have a

battery or jumper terminals or the

service technician or towing service do

correct ground. Do not lean over the

it for you.

battery when making connections.

1. Position the vehicles close enough

that the jumper cables will reach, but

do not allow the vehicles to touch.

Avoid fans or any moving parts in the

engine compartment at all times, even

when the vehicles are turned off.

2. Turn off all electrical devices such as

radios, lights, air conditioning, etc.

Put the vehicles in P (Park) and set the

parking brake. Turn both vehicles OFF.

8-5

Emergency Situations

Information

The voltage range of the charger should be

13.3~14V and its current range should be

less than 60A. (13.8V is recommended).

CAUTION

ś The use of an improper charger

with a voltage and current range

higher than specified may cause

OCN7HQ010003N

overheating and damage to the 12V

battery.

7. Press the 12V Battery Reset switch.

ś The use of an incorrect charger will

8. Start the engine of the assisting

lead to a power shut-off to save the

vehicle and let it run for a few

12V battery. Stop using the incorrect

minutes.

charger once the power of the

9. Start your vehicle as soon as possible.

vehicle is shut off.

After starting the vehicle

(

indicator on), operate the vehicle

safely outdoors in ready mode

Information

stopped and/or drive it for 30 minutes

An inappropriately disposed

total to charge the 12V battery fully.

battery can be harmful to

If your vehicle will not start after a few

the environment and human

attempts, it probably requires service.

health. Dispose of the battery

In this event please seek qualified

according to your local law(s) or

assistance. If the cause of your battery

regulations.

discharging is not apparent, have your

vehicle checked by an authorized

NOTICE

HYUNDAI dealer.

To prevent damage to your vehicle:

Disconnect the jumper cables in the

ś Only use a 12-volt power supply

exact reverse order you connected them:

(battery or jumper system) to jump

1. Disconnect the jumper cable from the

start your vehicle.

black, negative (-) chassis ground of

ś Do not attempt to jump start your

your vehicle (4).

vehicle by push-starting.

2. Disconnect the other end of the

jumper cable from the black, negative

CAUTION

(-) battery/chassis ground of the

assisting vehicle (3).

Do not jump start another vehicle with

your hybrid vehicle. Jump starting

3. Disconnect the second jumper cable

another vehicle will damage the

from the red, positive (+) battery/

hybrid vehicle’s 12 volt battery (lithium

jumper terminal of the assisting

polymer type).

vehicle (2).

4. Disconnect the other end of

the jumper cable from the red,

charging terminal inside the engine

compartment fuse panel (1).

8-6

08

IF THE ENGINE OVERHEATS

If your temperature gauge indicates

5. Cool down the engine sufficiently

overheating, you experience a loss of

and check the coolant level. When it

power, or hear loud pinging or knocking,

is insufficient, check its connection

the engine may be overheating. If this

with the radiator, the heater hose,

happens, you should:

and the water pump for any leakage.

When there is no leakage, add the

1. Pull off the road and stop as soon as it

coolant. However, if the problems

is safe to do so.

persists, such as the coolant leakages,

2. Shift the gear to P (Park) and set the

the cooling-fan malfunction or the

parking brake

water pump drive belt damages,

3. Turn off the air conditioner.

immediately stop the engine, and

4. When the coolant or hot steams

have your vehicle checked by an

gush out of the reservoir, stop the

authorized HYUNDAI dealer.

engine and we recommend that

ś

You should mix antifreeze and water in

you call an authorized HYUNDAI

a proper ratio to make coolant. If the

dealer for assistance. If the coolant

antifreeze ratio is too high or low, it

does not flow out, leave the engine

may cause overheating due to the lack

compartment opened, while running

of cooling function.

the engine. Check the coolant

(Refer to the Mix Ratio in “Checking

temperature gauge on the instrument

the coolant level” in chapter 9.)

cluster and turn off the engine to

ś

If overheating happens repeatedly,

make sure the coolant temperature is

we recommend that you have

sufficiently cooled down.

your vehicle to be checked by an

authorized HYUNDAI dealer.

WARNING

While the engine is running,

keep hands, clothing and tools

away from the moving parts

such as the cooling fan and

drive belt to prevent serious

injury.

8-7

Emergency Situations

WARNING

CAUTION

Never remove the engine

ś Serious loss of coolant indicates a

coolant cap and/or inverter

leak in the cooling system and should

coolant cap or the drain plug

be checked as soon as possible by an

while the engine and radiator

authorized HYUNDAI dealer.

are hot.

ś When the engine overheats from

Hot coolant and steam may blow out

low engine coolant, suddenly adding

under pressure, causing serious injury.

engine coolant may cause cracks

in the engine. To prevent damage,

Turn the hybrid system off and wait until

add engine coolant slowly in small

the engine cools down. Use extreme

quantities.

care when removing the engine coolant

cap and/or inverter coolant cap. Wrap

a thick towel around it, and turn it

counterclockwise slowly to the first

stop. Step back while the pressure is

released from the cooling system. When

you are sure all the pressure has been

released, press down on the cap, using

a thick towel, and continue turning

counterclockwise to remove it.

8-8

08

7,5( 35(6685( 021,725,1* 6<67(0 ǣ7306Ǥ

Check Tire Pressure

OCN7070020

OCN7080056N

ś

You can check the tire pressure in the

Assist mode on the cluster.

ś

Refer to the “LCD Display Modes” in

chapter 4.

ś

Tire pressure is displayed after a few

minutes of driving after initial engine

start up.

ś

If tire pressure is not displayed when

the vehicle is stopped, “Drive to

OCN7080055L

display” message will appear. After

(1) Low Tire Pressure Telltale/TPMS

driving, check the tire pressure.

Malfunction Indicator

ś

The displayed tire pressure values may

(2) Low Tire Pressure Position Telltale

differ from those measured with a tire

and Tire Pressure Telltale (Shown on

pressure gauge.

the LCD display)

ś

You can change the tire pressure unit

in the User Settings Mode on the

cluster.

- psi, kpa, bar (Refer to the “User

Settings Mode” section in chapter

4).

8-9

08

NOTICE

Low Tire Pressure Telltale

If any of the below happens, have

the system checked by an authorized

HYUNDAI dealer.

Low Tire Pressure Position and

1. The Low Tire Pressure Telltale/ TPMS

Tire Pressure Telltale

Malfunction Indicator does not

illuminate for 3 seconds when the

ignition switch is placed to the ON

position or engine is running.

2. The TPMS Malfunction Indicator

remains illuminated after blinking for

approximately 1 minute.

3. The Low Tire Pressure Position

Telltale remains illuminated.

OCN7080057L

When the tire pressure monitoring

system warning indicators are

illuminated and a warning message

displayed on the cluster LCD display,

one or more of your tires is significantly

under-inflated. The Low Tire Pressure

Position Telltale will indicate which

tire is significantly underinflated by

illuminating the corresponding position

light.

8-11

Emergency Situations

If either telltale illuminates, immediately

CAUTION

reduce your speed, avoid hard cornering

and anticipate increased stopping

In winter or cold weather, the Low Tire

distances. You should stop and check

Pressure Telltale may be illuminated if

your tires as soon as possible. Inflate the

the tire pressure was adjusted to the

tires to the proper pressure as indicated

recommended tire inflation pressure

on the vehicle’s placard or tire inflation

in warm weather. It does not mean

pressure label located on the driver’s

your TPMS is malfunctioning because

side center pillar outer panel.

the decreased temperature leads to a

proportional lowering of tire pressure.

If you cannot reach a service station or

if the tire cannot hold the newly added

When you drive your vehicle from a

air, replace the low pressure tire with the

warm area to a cold area or from a cold

spare tire.

area to a warm area, or the outside

temperature is greatly higher or lower,

The Low Tire Pressure Telltale will remain

you should check the tire inflation

on and the TPMS Malfunction Indicator

pressure and adjust the tires to the

may blink for one minute and then

recommended tire inflation pressure.

remain illuminated (when the vehicle

is driven approximately 10 minutes at

speed above 15.5 mph (25km/h)) until

WARNING

you have the low pressure tire repaired

and replaced on the vehicle.

Low pressure damage

Significantly low tire pressure makes

the vehicle unstable and can contribute

Information

to loss of vehicle control and increased

The spare tire is not equipped with a tire

braking distances.

pressure sensor.

Continued driving on low pressure tires

can cause the tires to overheat and fail.

8-12

08

TPMS (Tire Pressure

Changing a Tire with TPMS

Monitoring System)

If you have a flat tire, the Low Tire

Malfunction Indicator

Pressure and Position telltales will come

on. We recommend that the flat tire be

The TPMS Malfunction Indicator

repaired by an authorized HYUNDAI

will illuminate after it blinks for

dealer as soon as possible or replace the

approximately one minute when there

flat tire with the spare tire.

is a problem with the Tire Pressure

Monitoring System.

We recommend that the system be

NOTICE

checked by an authorized HYUNDAI

It is recommended that you do not use a

dealer.

puncture-repairing agent not approved

by a HYUNDAI dealer to repair and/or

NOTICE

inflate a low pressure tire. Tire sealant

not approved by a HYUNDAI dealer may

If there is a malfunction with the TPMS,

damage the tire pressure sensor.

the Low Tire Pressure Position Telltale

will not be displayed even though the

vehicle has an under-inflated tire.

The spare tire (if equipped) does not

come with a tire pressure monitoring

sensor. When the low pressure tire or

NOTICE

the flat tire is replaced with the spare

The TPMS Malfunction Indicator may

tire, the Low Tire Pressure Telltale will

illuminate after blinking for one minute

remain on. Also, the TPMS Malfunction

if the vehicle is near electric power

Indicator will illuminate after blinking

supply cables or radio transmitters

for one minute if the vehicle is driven

such as police stations, government

at speed above 15.5 mph (25km/h) for

and public offices, broadcasting

approximately 10 minutes.

stations, military installations, airports,

Once the original tire equipped with

transmitting towers, etc.

a tire pressure monitoring sensor is

Additionally, the TPMS Malfunction

reinflated to the recommended pressure

Indicator may illuminate if snow chains

and reinstalled on the vehicle, the

are used or electronic devices such as

Low Tire Pressure Telltale and TPMS

computers, chargers, remote starters,

Malfunction Indicator will go off within a

navigation, etc. This may interfere with

few minutes of driving.

normal operation of the TPMS.

If the indicators do not extinguish after a

few minutes, please visit an authorized

HYUNDAI dealer.

8-13

Emergency Situations

Each wheel is equipped with a tire

WARNING

pressure sensor mounted inside the tire

behind the valve stem (except for the

Tampering with, modifying, or disabling

spare tire). You must use TPMS specific

the Tire Pressure Monitoring System

wheels. It is recommended that you

(TPMS) components may interfere

always have your tires serviced by an

with the system’s ability to warn the

authorized HYUNDAI dealer.

driver of low tire pressure conditions

and/or TPMS malfunctions. Tampering

You may not be able to identify a tire

with, modifying, or disabling the Tire

with low pressure by simply looking at it.

Pressure Monitoring System (TPMS)

Always use a good quality tire pressure

components may void the warranty for

gauge to measure the tire’s inflation

that portion of the vehicle.

pressure. Please note that a tire that is

hot (from being driven) will have a higher

pressure measurement than a tire that is

Information

cold.

This device complies with Part 15 of the

A cold tire means the vehicle has been

FCC rules.

sitting for 3 hours and driven for less

Operation is subject to the following three

than 1 mile (1.6 km) in that 3 hour period.

conditions:

Allow the tire to cool before measuring

1. This device may not cause harmful

the inflation pressure. Always be sure

the tire is cold before inflating to the

interference.

recommended pressure.

2. This device must accept any

interference received, including

interference that may cause undesired

WARNING

operation.

ś The TPMS cannot alert you to severe

3. Changes or modifications not expressly

and sudden tire damage caused by

approved by the party responsible

external factors such as nails or road

for compliance could void the user’s

debris.

authority to operate the equipment.

ś If you feel any vehicle instability,

immediately take your foot off

the accelerator, apply the brakes

gradually with light force, and slowly

move to a safe position off the road.

8-14

08

,) <28 +$9( $ )/$7 7,5( ǣ:,7+ 63$5

( 7,5(Ǥ

WARNING

Changing a tire can be dangerous.

Follow the instructions in this section

when changing a tire to reduce the risk

of serious injury or death.

CAUTION

Be careful as you use the jack handle to

stay clear of the flat end. The flat end

has sharp edges that could cause cuts.

OLF064031N

Turn the winged hold down bolt

Jack and Tools

counterclockwise to remove the spare

tire.

Store the spare tire in the same

compartment by turning the winged hold

down bolt clockwise.

To prevent the spare tire and tools from

“rattling”, store them in their proper

location.

OLF064004N

(1) Jack handle

(2) Jack

(3) Wheel lug nut wrench

The jack, jack handle, and wheel lug

nut wrench are stored in the luggage

compartment under the luggage box

OLF064005

cover.

If it is hard to loosen the tire hold-down

The jack is provided for emergency tire

wing bolt by hand, you can loosen it

changing only.

easily using the jack handle.

1. Put the jack handle (1) inside of the

tire hold-down wing bolt.

2. Turn the tire hold-down wing bolt

counterclockwise with the jack

handle.

8-15

Emergency Situations

Changing Tires

Follow these steps to change your

vehicle’s tire:

WARNING

1. Park on a level, firm surface.

A vehicle can slip or roll off of a jack

2. Shift the shift lever into P (Park).

causing serious injury or death to you or

3. Press the hazard warning flasher

those nearby. Take the following safety

button.

precautions:

4. Remove the wheel lug nut wrench,

ś

Never place any portion of your body

jack, jack handle, and spare tire from

under a vehicle that is supported by

the vehicle.

a jack.

ś

NEVER attempt to change a tire in

the lane of traffic. ALWAYS move the

vehicle completely off the road on

level, firm ground away from traffic

before trying to change a tire. If you

cannot find a level, firm place off

the road, call a towing service for

assistance.

ś

Be sure to use the jack provided with

the vehicle.

ś

ALWAYS place the jack on the

OCN7080058L

designated jacking positions on the

[A] : Block

vehicle and NEVER on the bumpers

or any other part of the vehicle for

5. Block both the front and rear of the

jacking support.

tire diagonally opposite of the tire you

are changing.

ś

Do not start or run the engine while

the vehicle is on the jack.

ś

Do not allow anyone to remain in the

vehicle while it is on the jack.

ś

Keep children away from the road

and the vehicle.

OCN7080059L

6. Loosen the wheel lug nuts

counterclockwise one turn each in

the order shown above, but do not

remove any lug nuts until the tire has

been raised off of the ground.

8-16

08

11. Tighten the lug nuts with your fingers

onto the studs with the smaller end of

the lug nuts closest to the wheel.

12. Lower the vehicle to the ground

by turning the jack handle

counterclockwise.

OCN7080060L

7. Place the jack at the designated

jacking position under the frame

closest to the tire you are changing.

The jacking positions are plates

welded to the frame with two

notches. Never jack at any other

position or part of the vehicle. Doing

OCN7080062L

so may damage the side sill molding

13. Use the wheel lug nut wrench to

or other parts of the vehicle.

tighten the lug nuts in the order

shown. Double-check each lug nut

until they are tight. After changing

tires, have an authorized HYUNDAI

dealer tighten the lug nuts to their

proper torque as soon as possible. The

wheel lug nut should be tightened to

79~94 lbf·ft (11~13 kgf·m).

OCN7080061L

8. Insert the jack handle into the jack

and turn it clockwise, raising the

vehicle until the tire clears the ground.

Make sure the vehicle is stable on the

jack.

9. Loosen the lug nuts with the wheel

lug nut wrench and remove them with

your fingers. Remove the wheel from

the studs and lay it flat on the ground

out of the way. Remove any dirt or

debris from the studs, mounting

surfaces, and wheel.

10. Install the spare tire onto the studs of

the hub.

8-17

Emergency Situations

If you have a tire gauge, check the tire

CAUTION

pressure (see “Tires and Wheels” in

chapter 2 for tire pressure instructions.).

Your vehicle has metric threads on the

If the pressure is lower or higher than

studs and lug nuts. Make certain during

recommended, drive slowly to the

tire changing that the same nuts that

nearest service station and adjust it to

were removed are reinstalled. If you

the recommended pressure. Always

have to replace your lug nuts make

reinstall the valve cap after checking

sure they have metric threads to avoid

or adjusting tire pressure. If the cap

damaging the studs and ensure the

is not replaced, air may leak from the

wheel is properly secured to the hub.

tire. If you lose a valve cap, buy another

Consult an authorized HYUNDAI dealer

and install it as soon as possible. After

for assistance.

changing tires, secure the flat tire and

return the jack and tools to their proper

If any of the equipment such as the jack,

storage locations. If it is hard to secure

lug nuts, studs, or other equipment is

the flat tire, put the flat tire in the

damaged or in poor condition, do not

luggage compartment.

attempt to change the tire and call for

assistance.

NOTICE

Use of compact spare tires (if equipped)

ś

Check the tire pressure as soon

Compact spare tires are designed for

as possible after installing a spare

emergency use only. Drive carefully on

tire. Adjust it to the recommended

the compact spare tire and always follow

pressure.

the safety precautions.

ś

Check and tighten the wheel lug

nuts after driving over 30 miles (50

km), after the spare tire is installed.

WARNING

Recheck the tire wheel lug nuts after

To prevent compact spare tire failure

driving over 620 miles (1,000 km)

and loss of control possibly resulting in

after the replaced tire is reinstalled.

an accident:

ś Use the compact spare tire only in an

emergency.

ś NEVER operate your vehicle over 50

mph (80 km/h).

ś Do not exceed the vehicle’s

maximum load rating or the load

carrying capacity shown on the

sidewall of the compact spare tire.

ś Do not use the compact spare tire

continuously. Repair or replace the

original tire as soon as possible to

avoid failure of the compact spare

tire.

8-18

Emergency Situations

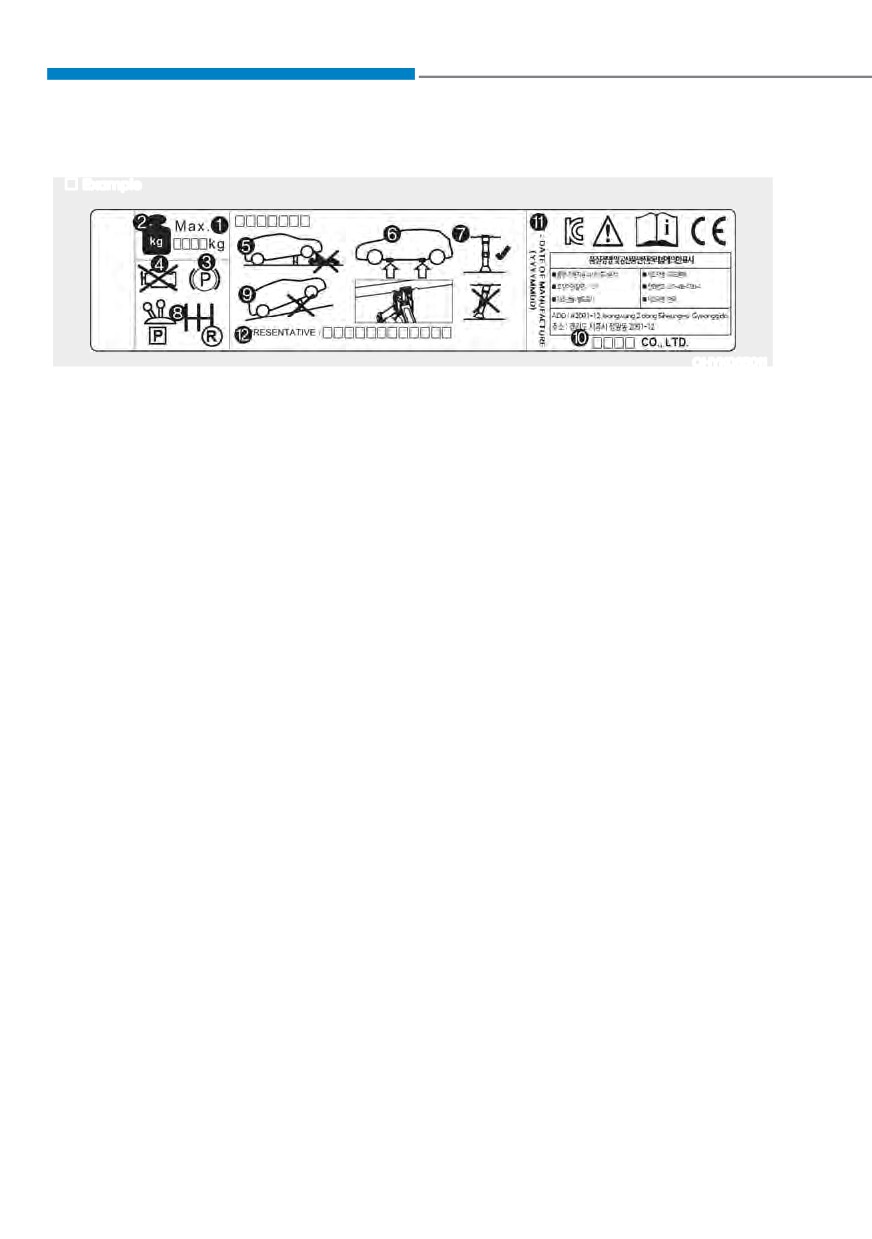

Jack label

„ Example

OHYK065011

The actual Jack label in the vehicle may differ from the illustration.

For more detailed specifications, refer to the label attached to the jack.

1. Model Name

8. Shift into Reverse gear on vehicles

with manual transmission or move the

2. Maximum allowable load

shift lever to the P (Park) position on

3. When using the jack, set your parking

vehicles with automatic transmission.

brake.

9. The jack should be used on firm level

4. When using the jack, stop the engine.

ground.

5. Do not get under a vehicle that is

10. Jack manufacture

supported by a jack.

11. Production date

6. The designated locations under the

12. Representative company and address

frame

7. When supporting the vehicle, the base

plate of jack must be vertical under

the lifting point.

8-20

Content      ..     13      14      15      16     ..
