Hyundai ix20 (2017 year). Instruction - part 6
Features of your vehicle
WINDOWS

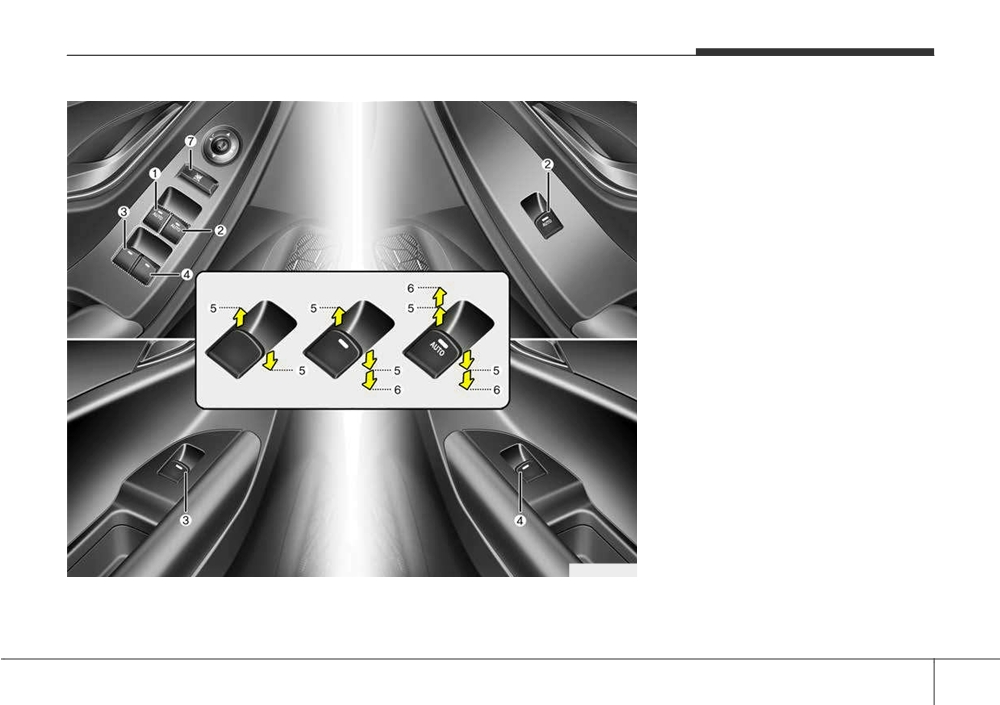

(1) Driver’s door power window switch
(2) Front passenger’s door power win-
dow switch
(3) Rear door (left) power window
switch*
(4) Rear door (right) power window
switch*
(5) Window opening and closing
(6) Automatic power window*
(7) Power window lock switch*
* if equipped
✽ NOTICE
In cold and wet climates, power win-
dows may not work properly due to
freezing conditions.
OJC043013
4 19
Features of your vehicle
Power windows
✽ NOTICE
■ Type A
The ignition switch must be in the ON
•
In cold and wet climates, power win-
position for power windows to operate.
dows may not work properly due to
Each door has a power window switch
freezing conditions.
that controls the door's window. The driv-
•
While driving with the rear windows
er has a master power window switch
down or with the sunroof (if equipped)
that controls all the windows in the vehi-
opened (or partially opened), your
cle. Also, a power window lock switch
vehicle may demonstrate a wind buf-
which that can block the operation of rear
feting or pulsation noise. This noise is
passenger windows. The power windows
a normal occurrence and can be
can be operated for approximately 30
reduced or eliminated by taking the
seconds after the ignition key is removed
following actions. If the noise occurs
with one or both of the rear windows
OYN049136
or turned to the ACC or LOCK position.
However, if the front doors are opened,
down, partially lower both front win-
Window opening and closing
the power windows cannot be operated
dows approximately one inch. If you
Type A
within the 30 seconds period.
experience the noise with the sunroof
To open or close a window, press down
open, slightly reduce the size of the
or pull up the front portion of the corre-
sunroof opening
sponding switch to the first detent posi-
WARNING
tion (5).
To avoid serious injury or death, do
not extend your head, arms or body
outside the windows while driving.
WARNING
Do not install any accessories in
the area of windows. It may impact
jam protection.
4 20
Features of your vehicle
■ Type B
■ Type C
OYN049137
OYN049138
OUN026013
Type B - Auto down window (if equipped)
Type C - Auto up/down window
Automatic reversal (if equipped)
Pressing the power window switch
(if equipped)
If the upward movement of the window is
momentarily to the second detent posi-
Pressing or pulling up the power window
blocked by an object or part of the body,
tion
(6) completely lowers the window
switch momentarily to the second detent
the window will detect the resistance and
even when the switch is released. To stop
position (6) completely lowers or lifts the
will stop upward movement. The window
the window at the desired position while
window even when the switch is
will then lower approximately 30 cm (11.8
the window is in operation, pull up the
released. To stop the window at the
in.) to allow the object to be cleared.
switch momentarily to the opposite direc-
desired position while the window is in
If the window detects the resistance
tion of the window movement.
operation, pull up or press down and
while the power window switch is pulled
release the switch.
up continuously, the window will stop
If the power window does not operate
upward movement then lower approxi-
normally, the automatic power window
mately 2.5 cm (1 in.). And if the power
system must be reset as follows:
window switch is pulled up continuously
1. Turn the ignition switch to the ON posi-
again within 5 seconds after the window
tion.
is lowered by the automatic window
2. Close the window and continue pulling
reversal feature, the automatic window
reversal will not operate.
up the power window switch for at
least
1 second after the window is
completely closed.
4
21
Features of your vehicle
✽ NOTICE
CAUTION
The automatic reverse feature for the
window is only active when the “auto
•
To prevent possible damage to
up” feature is used by fully pulling up
the power window system, do not
the switch. The automatic reverse fea-
open or close two windows or
ture will not operate if the window is
more at the same time. This will
raised using the halfway position on the
also ensure the longevity of the
power window switch.
fuse.
•
Never try to operate the main
switch on the driver's door and
WARNING
the individual door window
Always check for obstructions
switch in opposite directions at
before raising any window to avoid
OJC040017
the same time. If this is done, the
injuries or vehicle damage. If an
window will stop and cannot be
Power window lock button
object less than 4 mm (0.16 in.) in
opened or closed.
The driver can disable the power window
diameter is caught between the
switches on the rear passengers' doors
window glass and the upper win-
by pressing the power window lock
dow channel, the automatic reverse
switch to the lock position (pressed).
window may not detect the resist-
When the power window lock switch is
ance and will not stop and reverse
pressed:
direction.
• The driver's master control can oper-
ate all the power windows.
• The front passenger's control can
WARNING
operate the front passenger's power
The automatic reverse feature
window.
doesn’t activate while resetting
• The rear passenger's control cannot
power window system. Make sure
operate the rear passenger's power
body parts or other objects are
window.
safely out of the way before closing
the windows to avoid injuries or
vehicle damage.
4 22
Features of your vehicle
WARNING - Windows
•
NEVER leave the keys in your
vehicle with unsupervised chil-
dren, when the Engine is running.
•
NEVER leave any child unattend-
ed in the vehicle. Even very
young children may inadvertently
cause the vehicle to move, entan-
gle themselves in the windows,
or otherwise injure themselves or
others.
OED036088
•
Always double check to make
sure all arms, hands, head and
Manual windows (if equipped)
other obstructions are safely out
To raise or lower the window, turn the
of the way before closing a win-
window regulator handle clockwise or
dow.
counterclockwise.
•
Do not allow children to play with
the power windows. Keep the dri-
ver’s door power window lock
WARNING
switch in the LOCK position
When opening or closing the win-
(pressed). Serious injury can
dows, make sure your passenger's
result from unintentional window
arms, hands and body are safely
operation by the child.
out of the way.
•
Do not extend face or arms out-
side the window opening while
driving.
4 23
Features of your vehicle
HOOD
OYN049018
OJC046019
OYN049020
Opening the hood
2. Go to the front of the vehicle, raise the
3. Pull out the support rod from the hood.
1. Pull the release lever to unlatch the
hood slightly, push the secondary latch
4. Hold the hood opened with the support
hood. The hood should pop open
inside of the hood center and lift the
rod.
hood.
slightly.
WARNING - Hot parts
WARNING
Be very careful not to touch the
Open the hood after turning off the
support rod when the engine and
engine on a flat surface, shifting
parts are hot. You could get burned
the shift lever to the P(Park) posi-
or get seriously injured.
tion for automatic transaxle and to
the 1st(First) gear or R(Reverse) for
manual transaxle, and setting the
parking brake.
4 24
Features of your vehicle
Closing the hood
1. Before closing the hood, check the fol-
WARNING
WARNING
lowing:
•
Before closing the hood, ensure
•
Always double check to be sure
• All filler caps in engine compartment
that all obstructions are removed
that the hood is firmly latched
must be correctly installed.
from the hood opening. Closing
before driving away. Check there
• Gloves, rags or any other com-
the hood with an obstruction
is no hood open warning light or
bustible material must be removed
present in the hood opening may
message displayed on the instru-
from the engine compartment.
result in property damage or
ment cluster. If the hood is not
severe personal injury.
latched while the vehicle is mov-
2. Return the support rod to its clip to
•
Do not leave gloves, rags or any
ing, the chime will sound to warn
prevent it from rattling.
other combustible material in the
the driver the hood is not fully
3. Lower the hood halfway (lifted approxi-
engine compartment. Doing so
latched. Driving with the hood
mately 30cm from the closed position)
may cause a heat-induced fire.
opened may cause a total loss of
and push down to securely lock in place.
visibility, which might result in an
Then double check to be sure the hood
accident.
is secure.
•
The support rod must be inserted
completely into the hole provided
whenever you inspect the engine
compartment. This will prevent
the hood from falling and possi-
bly injuring you.
•
Do not move the vehicle with the
hood raised. The view will be
blocked and the hood could fall
or get damaged.
4 25
Features of your vehicle
FUEL FILLER LID
Closing the fuel filler lid
1. To install the cap, turn it clockwise until
it
“clicks” once. This indicates that the
cap is securely tightened.
2. Close the fuel filler lid and push it light-
ly and make sure that it is securely
closed.
WARNING - Refueling
•
If pressurized fuel sprays out, it
can cover your clothes or skin
OYN040141
OYN049021
and thus subject you to the risk
Opening the fuel filler lid
1. Stop the engine.
of fire and burns. Always remove
The fuel filler lid must be opened from
2. To open the fuel filler lid, pull the fuel
the fuel cap carefully and slowly.
inside the vehicle by pulling up the fuel
filler lid opener up.
If the cap is venting fuel or if you
filler lid opener.
3. Pull open the fuel filler lid (1).
hear a hissing sound, wait until
the condition stops before com-
4. To remove the cap (2), turn the fuel
pletely removing the cap.
✽ NOTICE
filler cap counterclockwise.
•
Do not "top off" after the nozzle
If the fuel filler lid does not open
5. Refuel as needed.
automatically shuts off when
because ice has formed around it, tap
refueling.
lightly or push on the lid to break the ice
•
Always check that the fuel cap is
and release the lid. Do not pry on the lid.
installed securely to prevent fuel
If necessary, spray around the lid with
spillage in the event of an acci-
an approved de-icer fluid (do not use
dent.
radiator anti-freeze) or move the vehicle
to a warm place and allow the ice to
melt.
4 26
Features of your vehicle
(Continued)
(Continued)
WARNING - Refueling dan-
•
Do not get back into a vehicle
Use only approved portable plas-
gers
once you have begun refueling
tic fuel containers designed to
Automotive fuels are flammable
since you can generate static
carry and store gasoline.
materials. When refueling, please
electricity by touching, rubbing
•
Do not use cellular phones while
note the following guidelines care-
or sliding against any item or fab-
refueling. Electric current and/or
fully. Failure to follow these guide-
ric
(polyester, satin, nylon, etc.)
electronic interference from cel-
lines may result in severe personal
capable of producing static elec-
lular phones can potentially
injury, severe burns or death by fire
tricity. Static electricity discharge
ignite fuel vapors causing a fire.
or explosion.
can ignite fuel vapors resulting in
•
When refueling, always shut the
•
Read and follow all warning at the
rapid burning. If you must re-
engine off. Sparks produced by
gas station facility.
enter the vehicle, you should
electrical components related to
•
Before refueling note the location
once again eliminate potentially
the engine can ignite fuel vapors
of the Emergency Gasoline Shut-
dangerous static electricity dis-
causing a fire. Once refueling is
Off, if available, at the gas station
complete, check to make sure the
charge by touching a metal part
facility.
filler cap and filler door are
of the vehicle, away from the fuel
•
Before touching the fuel nozzle,
securely closed, before starting
filler neck, nozzle or other gaso-
you should eliminate potentially
the engine.
dangerous static electricity dis-
line source.
•
DO NOT use matches or a lighter
charge by touching another metal
•
When using an approved
and DO NOT SMOKE or leave a lit
part of the vehicle, a safe dis-
portable fuel container, be sure to
cigarette in your vehicle while at
tance away from the fuel filler
place the container on the
a gas station especially during
neck, nozzle, or other gas source.
ground prior to refueling. Static
refueling. Automotive fuel is
(Continued)
electricity discharge from the
highly flammable and can, when
container can ignite fuel vapors
ignited, result in fire.
causing a fire. Once refueling has
(Continued)
begun, contact with the vehicle
should be maintained until the
filling is complete.
(Continued)
4 27
Features of your vehicle
(Continued)
CAUTION
•
If a fire breaks out during refuel-
•
Make sure to refuel your vehicle
ing, leave the vicinity of the vehi-
according to the “Fuel require-
cle, and immediately contact the
ments” suggested in section 1.
manager of the gas station and
•
If the fuel filler cap requires
then contact the local fire depart-
replacement, we recommend that
ment. Follow any safety instruc-
you use parts for replacement
tions they provide.
from an authorized HYUNDAI
dealer. An incorrect fuel filler cap
can result in a serious malfunc-
tion of the fuel system or emis-
sion control system.
•
Do not spill fuel on the exterior
surfaces of the vehicle. Any type
of fuel spilled on painted surfaces
may damage the paint.
•
After refueling, make sure the fuel
cap is installed securely to pre-
vent fuel spillage in the event of
an accident.
4 28
Features of your vehicle
PANORAMA SUNROOF (IF EQUIPPED)
Sunroof open warning chime
✽ NOTICE
(if equipped)
• In cold and wet climates, the sunroof
If the driver turns off the engine and
may not work properly due to freez-
opens the driver-side door when the sun-
ing conditions.
roof is not fully closed, the warning chime
• After a vehicle is washed or in a rain-
will sound for approximately 7 seconds.
storm be sure to wipe off any water
Close the sunroof securely when leaving
that is on the sunroof before operating
your vehicle.
it.
CAUTION
•
Do not continue to move the sun-
OYN049022
roof control lever after the sun-
roof is fully opened, closed, or tilt-
If your vehicle is equipped with a sunroof,
ed. Damage to the motor or sys-
you can slide or tilt your sunroof with the
tem components could occur.
sunroof control lever located on the over-
•
Make sure the sunroof is closed
head console.
fully when leaving your vehicle. If
the sunroof is open, rain or snow
The sunroof can only be opened, closed,
may leak through the sunroof and
or tilted when the ignition switch is in the
wet the interior as well as cause
ON position.
theft.
WARNING
A panorama sunroof is made of
glass, therefore it may break in an
accident. If you do not have your
seat belt on, you may go through
the broken glass and get injured or
killed. For all passengers safety,
have an appropriate protection on
(ex. seat belt, CRS, etc.).
4 29
Features of your vehicle
✽ NOTICE
To open the sunroof automatically:
Pull the sunroof control lever backward
The sunroof cannot tilt when it is in the
for more than
0.4 second and then
slide position but can slide while in a tilt
release it. The sunroof will automatically
position.
slide open all the way.
To stop the sunroof sliding at any point,
WARNING
pull or push the sunroof control lever
•
Never adjust the sunroof or roller
momentarily.
blind while driving. This could
result in loss of control and an
To close the sunroof automatically:
accident that may cause death,
Push the sunroof control lever forward for
serious injury, or property dam-
more than 0.4 second and then release
age.
OJC040023
it. The sunroof will close automatically
•
If you would like to carry items on
Sliding the sunroof
but will not close all the way. If you desire
the roof rack using a cross bar,
Before opening or closing the sunroof,
to completely close the sunroof, push the
do not operate the sunroof.
open the roller blind.
lever once more until the sunroof is
•
When carrying cargo on the roof
closed.
To open or close the sunroof (manual
rack, do not load heavy items
slide feature), pull or push the sunroof
To stop the sunroof sliding at any point,
above the sunroof or glass roof.
control lever backward or forward for less
pull or push the sunroof control lever
•
All occupants of the vehicle must
than 0.4 second.
momentarily.
wear their seat belts at all times.
Seat belts and child restraints
reduce serious or fatal injuries
CAUTION
for all occupants in the event of a
To prevent damage to the sunroof
collision or sudden stop.
and the motor, do not continue to
press the sunroof control lever after
the sunroof is in the fully open,
closed or tile position(s).
4 30
Features of your vehicle
WARNING
WARNING
Objects less than 4 mm (0.16 inch)
•
Make sure heads, other body
in diameter caught between the
parts or other objects are safely
sunroof glass and the front glass
out of the way before closing the
channel may not be detected by the
sunroof to avoid injuries or vehi-
automatic reverse glass and the
cle damage.
glass will not stop and reverse
•
Never adjust the sunroof or sun-
direction.
shade while driving. This may
cause loss of vehicle control
resulting in an accident.
•
To avoid serious injury or death,
OYN049026
do not extend your head, arms or
Automatic reversal
body outside the sunroof while
If an object or part of the body is detect-
driving.
ed while the sunroof is closing automati-
•
In order to prevent accidental
cally, it will reverse the direction, and then
operation of the sunroof, espe-
stop.
cially by a child, do not let a child
The auto reverse function does not work
operate the sunroof.
if a tiny obstacle is between the sliding
•
Do not sit on the top of the vehi-
glass and the sunroof sash. You should
cle. It may cause vehicle damage.
always check that all passengers and
objects are away from the sunroof before
OJC040025
closing it.
Tilting the sunroof
Before opening or closing the sunroof,
open the roller blind.
To open the sunroof, push the sunroof
control lever upward.
To close the sunroof, push the sunroof
control lever forward until the sunroof
moves to the desired position.
4 31
Features of your vehicle
Resetting the sunroof
CAUTION
Sunroof needs to be reset if (in the fol-
•
Periodically remove any dirt that
lowings)
may accumulate on the sunroof
- Battery is discharged or disconnected
guide rail of between the sunroof
or the related fuse has been replaced
and roof panel, which can make a
or disconnected.
noise.
- The one-touch sliding function of the
•
Do not try to open the sunroof
sunroof does not normally operate.
when the temperature is below
freezing or when the sunroof is
1. Turn the ignition switch to the ON
covered with snow or ice, the
position.
motor could be damaged. In cold
2. Open the roller blind.
and wet climates, the sunroof
OYN049027
3. Close the sunroof.
may not work properly.
Roller blind
4. Release the sunroof control lever.
The roller blinds are installed inside of
5. Push the sunroof control lever forward
the sunroof and glass roof.
in the direction of close (about 10 sec-
Open or close it manually when you need
onds) until the sunroof moves a little.
✽ NOTICE
to.
Then, release the lever.
After washing the vehicle or after a rain,
Before opening or closing the sunroof,
6. Push the sunroof control lever forward
be sure to wipe off the water on the sun-
open the roller blind.
in the direction of close until the sun-
roof before operating the sunroof.
roof operates as follows:
TILT OPEN
→ SLIDE OPEN →
✽ NOTICE
SLIDE CLOSE
It is normal for wrinkles to form on the
blind because of its material character-
Then, release the lever.
istic.
When this is complete, the sunroof sys-
tem has been reset.
✽ NOTICE
If you do not reset the sunroof, it may
not work properly.
4 32
Features of your vehicle
STEERING WHEEL
Electric power steering (EPS)
(Continued)
Tilt steering
•
The steering effort is high immediate-
Power steering uses the motor to assist
Tilt steering allows you to adjust the
ly after turning the ignition switch on.
you in steering the vehicle. If the engine is
steering wheel before you drive. You can
This happens as the EPS system per-
off or if the power steering system
also raise it to give your legs more room
forms the diagnostics. When the diag-
becomes inoperative, the vehicle may still
when you exit and enter the vehicle.
nostics is completed, the steering
be steered, but it will require increased
effort will return to its normal condi-
steering effort.
The steering wheel should be positioned
tion.
The motor driven power steering is con-
so that it is comfortable for you to drive,
•
A click noise may be heard from the
trolled by the power steering control unit
while permitting you to see the instru-
EPS relay after the ignition switch is
which senses the steering wheel torque
ment panel warning lights and gauges.
turned to the ON or LOCK position.
and vehicle speed to command the motor.
•
Motor noise may be heard when the
The steering effort becomes heavier as
vehicle is at a stop or at a low driving
the vehicle’s speed increases and
WARNING
speed.
becomes lighter as the vehicle’s speed
•
Never adjust the angle of the
•
If the Electric Power Steering System
decreases for better control of the steering
steering wheel while driving. You
does not operate normally, the warn-
wheel.
may lose steering control and
ing light will illuminate on the instru-
Should you notice any change in the effort
cause severe personal injury,
ment cluster. The steering wheel may
death or accidents.
required to steering during normal vehicle
become difficult to control or operate
operation, we recommend that the system
•
After adjusting, push the steering
abnormally. We recommend that the
be checked by an authorized HYUNDAI
wheel both up and down to be
system be checked by an authorized
dealer.
certain it is locked in position.
HYUNDAI dealer.
•
The steering effort increases if the
✽ NOTICE
steering wheel is rotated continuously
when the vehicle is not in motion.
The following symptoms may occur dur-
However, after a few minutes, it will
ing normal vehicle operation:
return to its normal conditions.
• The EPS warning light does not illu-
•
When you operate the steering wheel
minate.
in low temperature, abnormal noise
(Continued)
could occur. If temperature rises, the
noise will disappear. This is a normal
condition.
4 33
Features of your vehicle
■ Left-hand drive
To turn the heated steering wheel off,
press the button again. The indicator on
the button will turn off.
The heated steering wheel will automati-
cally turn off after approximately 30 min-
utes.
CAUTION
Do not install any cover or accesso-
ry on the steering wheel. The cover
OJC045186
or accessory could cause damage
■ Right-hand drive
to the heated steering wheel system.
OJC040028
To change the steering wheel angle,
push down the lock release lever (1),
adjust the steering wheel to the desired
angle (2) and height (3), then pull up the
lock-release lever to lock the steering
wheel in place. Be sure to adjust the
steering wheel to the desired position
before driving.
OJC045186R
Heated steering wheel
(if equipped)
When the ignition switch is in the ON
position or when the engine is running,
press the heated steering wheel button
to warm the steering wheel. The indicator
on the button will illuminate.
4 34
Features of your vehicle
CAUTION
Do not strike the horn severely to
operate it, or hit it with your fist.
Do not press on the horn with a
sharp-pointed object.
OJC040029
Horn
To sound the horn, press the horn sym-
bol on your steering wheel.
Check the horn regularly to be sure it
operates properly.
✽ NOTICE
To sound the horn, press the area indi-
cated by the horn symbol on your steer-
ing wheel (see illustration). The horn will
operate only when this area is pressed.
4 35
