Hyundai i800 (2016 year). Instruction

Features of your vehicle

Using the Bluetooth® Wireless

Technology audio features

• Play / Pause

Press the

TUNE knob to play and

pause the current song.

❈ The title / artist info may not be sup-

ported in some mobile phone.

When it is not supported, no title / no

artist will be displayed.

• Previous / Next song

SEEK

Press

TRACK

to play

previous or next song.

❈ The previous song / next song / play /

pause functions may not be supported

in some mobile phones.

4 159

Features of your vehicle

PHONE (If equipped)

Making a call using the Steering

• Check call history and making call

wheel remote controller

➀ Shortly press (under 0.8 seconds) the

key on the steering remote con-

Before using the Bluetooth® Wireless

troller.

Technology phone features

➁ The call history list will be displayed

on the screen.

• In order to use Bluetooth® Wireless

➂ Press the

key again to connect a

Technology phone, you must first pair

call to the selected number.

and connect the Bluetooth® Wireless

Technology mobile phone.

• Redialing the most recently called num-

• If the mobile phone is not paired or con-

ber

nected, it is not possible to enter Phone

mode. Once a phone is paired or con-

➀ Press and hold (over 0.8 seconds) the

nected, the guidance screen will be dis-

key on the steering remote con-

played.

troller.

• If Priority is set upon vehicle ignition

➁ The most recently called number is

(IGN/ACC ON), the Bluetooth® Wireless

redialed.

❈ The actual feature in the vehicle may

Technology phone will be automatically

differ from the illustration.

connected. Even if you are outside, the

Bluetooth® Wireless Technology phone

VOLUME button : Raises or lowers

will be automatically connected once

speaker volume.

you are in the vicinity of the vehicle. If

MUTE button : Mutes the microphone

you do not want automatic Bluetooth®

during a call.

Wireless Technology phone connec-

tion, set the Bluetooth® Wireless

button : Places and transfers calls.

Technology power to OFF.

button : Ends calls or cancels fun-

tions.

4 160

Features of your vehicle

Phone MENU (For EUROPE)

Phone Book

Phone Setup

Press the

PHONE

key to display three

Press the

PHONE

key Set [ P. Book]

Press the

PHONE

key Set [

Setup]

menus (Call History, Phone Book, Phone

through the

TUNE knob or

2 RDM

through the TUNE knob or

key.

Setup).

key.

The Bluetooth® Wireless Technology

The phone book is displayed and can be

mobile phone setup screen is displayed.

used to select a number and make a call.

For more information, refer to

“Phone

❈ If more than one number is saved to

Setup”.

one contact, then a screen showing

the mobile phone number, Home and

office number is displayed. Select the

desired number to make the call.

❈ If phone book do not exist, a screen ask-

Call History

ing whether to download phone book is

displayed. (The download feature may

Press the

PHONE

key Set [ History]

not be supported in some mobile

through the

TUNE knob or

1 RPT

phones)

key.

The call history is displayed and can be

used to select a number and make a call.

If call history does not exist, a screen ask-

ing whether to download call history is

displayed. (The download feature may not

be supported in some mobile phones)

4 161

Features of your vehicle

Phone MENU (Except EUROPE)

Contacts

Phone Setup

Press the

PHONE

key to display three

Press the

PHONE

key Set [ Contacts]

Press the

PHONE

key Set [

Setup]

menus (Call History, Contacts, Phone

through the

TUNE knob or

2 RDM

through the TUNE knob or

key.

Setup).

key.

The Bluetooth® Wireless Technology

The Contacts are displayed and can be

mobile phone setup screen is displayed.

used to select a number and make a call.

For more information, refer to

“Phone

❈ If more than one number is saved to

Setup”.

one contact, then a screen showing

the mobile phone number, Home and

office number is displayed. Select the

desired number to make the call.

❈ If Contacts do not exist, a screen ask-

ing whether to download Contacts is

Call History

displayed. (The download feature may

Press the

PHONE

key Set [ History]

not be supported in some mobile

through the

TUNE knob or

1 RPT

phones)

key.

The call history is displayed and can be

used to select a number and make a call.

If call history does not exist, a screen ask-

ing whether to download call history is

displayed. (The download feature may not

be supported in some mobile phones)

4 162

Features of your vehicle

SYSTEM CONTROLLERS AND

Button

POWER

Button &

VOLUME

Knob

FUNCTIONS

Pressing the

button selects the

• Turns the audio system on/off when the

AM band. AM Mode is displayed on the

ignition switch is on ACC or ON.

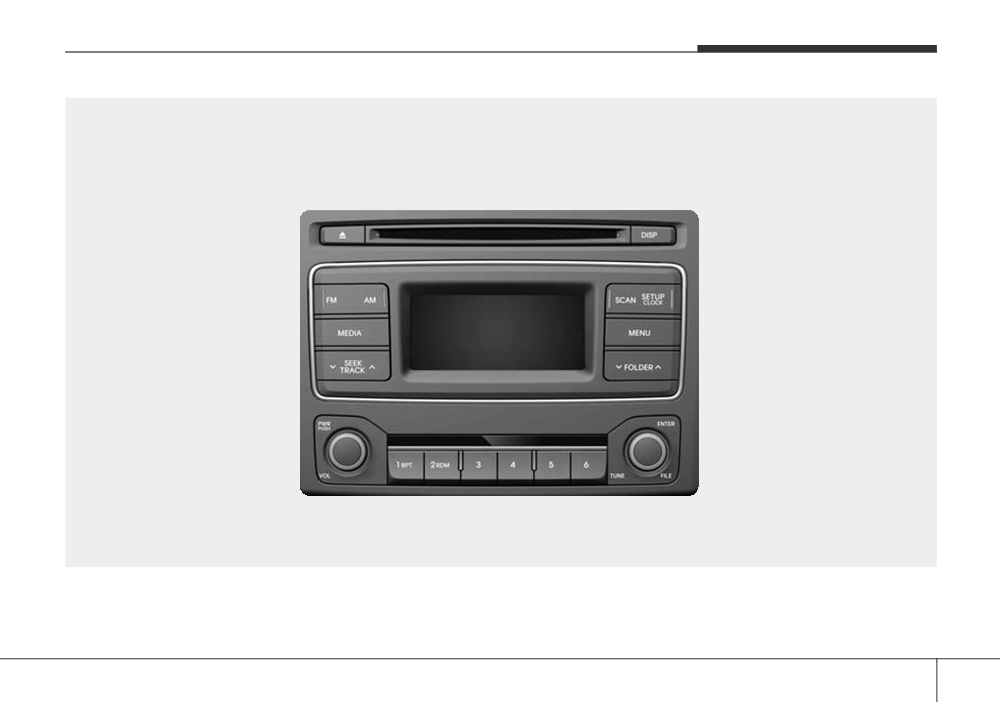

Audio Head Unit

LCD.

• If the knob is turned clockwise/counter-

clockwise, the volume will increase

MEDIA

Button

/decrease.

• Changes to USB(iPod®), AUX mode.

• Each time the key is pressed, the mode

is changed in order of USB(iPod®),

AUX.

SEEK

TRACK

Button

SEEK

• When the

TRACK

button is pressed,

it increases the band frequency to auto-

matically select channel. Stops at the

previous frequency if no channel is

found.

SEEK

• When the

TRACK

button is pressed, it

decreases the band frequency to auto-

(EJECT)

matically select channel. Stops at the

Eject the CD

previous frequency if no channel is

found.

Button

Turns to FM mode and toggles FM1 and

FM2 when the button is pressed each

time

4 164

Features of your vehicle

SCAN

Button

SETUP

CLOCK

Button (For Van)

• Radio Mode

Shortly press the key (under 0.8 sec-

- Press the key (under 0.8 seconds) :

onds) : Moves to the Scroll, Media, Audio

Previews each broadcast for 5 seconds

setting modes.

each.

•

Scroll : Scroll (On/Off)

- Press and hold the key (over 0.8 sec-

•

Media

: MP3 playing information

onds) : Previews the broadcasts saved

(Folder /File, Artist/Title)

in Preset

for

5 sec-

•

Audio

: Audio setup control

(Bass/

onds each.

Treble/Balance)

❈ Press the

SCAN

key again to contin-

BASS Control : To increase the BASS,

ue listening to the currently selected

rotate the knob clockwise, whilst to

channel.

decrease the BASS, rotate the knob

• USB, iPod mode

counterclockwise.

- Press the key (under 0.8 seconds) :

TREBLE Control : To increase the

Previews each song (file) for 10 sec-

TREBLE, rotate the knob clockwise,

onds each

7. PRESET Buttons

whilst to decrease the TREBLE, rotate

❈ Press the

SCAN

key again to contin-

the knob counterclockwise.

• Press

buttons less

ue listening to the current song (file).

than 0.8 seconds to play the station

BALANCE Control : Rotate the knob

saved in each button.

clockwise to emphasize right speaker

sound(left speaker sound will be atten-

• Press

buttons more

uated). When the control knob is

than 0.8 seconds or longer to save the

turned counter clockwise, left speaker

current station to the respective button

sound will be emphasized(right speak-

with a beep.

er sound will be attenuated).

Press and hold the key (over 0.8 sec-

onds) : Move to the Time setting screen.

4 165

Features of your vehicle

Press and hold the key (over 0.8 sec-

SETUP

Button (For Wagon)

CLOCK

onds) : Move to the Time setting screen.

Shortly press the key (under 0.8 sec-

onds) : Moves to the Scroll, Media, Audio

10.

Button

setting modes.

Displays menus for A.Store (Auto Store)

• Scroll : Scroll (On/Off)

mode.

• Media : MP3 playing information (Folder/

• A.Store (Auto Store) : Turn on auto seek

File, Artist/Title)

and store the Frequencies.

• Audio : Audio setup control (Bass/Treble/

Fader/Balance)

11.

FOLDER

Button

- BASS Control : To increase the BASS,

rotate the knob clockwise, whilst to

• Search and move between folders

decrease the BASS, rotate the knob

counterclockwise.

12.

TUNE

Knob

- TREBLE Control : To increase the TRE-

Turn this control whilst listening to a radio

BLE, rotate the knob clockwise, whilst

channel to manually adjust frequency.

to decrease the TREBLE, rotate the

Turn clockwise to increase frequency

knob counterclockwise.

and counterclockwise to decrease fre-

- FADER Control : Turn the knob clock-

quency.

wise to emphasize rear speaker

sound(front speaker sound will be

attenuated). When the control knob is

turned counterclockwise, front speaker

sound will be emphasized(rear speaker

sound will be attenuated).

- BALANCE Control : Rotate the knob

clockwise to emphasize right speaker

sound(left speaker sound will be atten-

uated). When the control knob is turned

counter clockwise, left speaker sound

will be emphasized(right speaker sound

will be attenuated).

4 166

Features of your vehicle

BASIC METHOD OF USE : CD

SEEK

TRACK

2 RDM

Button (RANDOM)

Button

SEEK

Press this key for less than 0.8 seconds

• Press

TRACK

key for less than 0.8

to activate ‘RDM’ mode and more than

seconds to play from the beginning of

0.8 seconds to activate ‘ALL RDM’ mode.

current song.

SEEK

• FLD.RDM : Only files/tracks in a fold-

• Press

TRACK

key for less than 0.8

er/disc are played back in a random

seconds and press again within 1 sec-

sequence.

ond to play the previous song.

SEEK

• A.RDM (MP3/WMA Only) : All files in a

• Press

TRACK

key for 0.8 seconds or

disc are played back in the random

longer to initiate reverse direction high

sequence.

speed sound search of current song.

SEEK

• Press

TRACK

key for less than 0.8

seconds to play the next song.

SEEK

• Press

TRACK

key for 0.8 seconds or

longer to initiate forward direction high

MEDIA

Button

speed sound search of current song.

If the CD is loaded, turns to CD mode. If

no CD, it displays “No Media” for 3 sec-

1 RPT

Button (REPEAT)

onds and returns to the previous mode.

Press this key for less than 0.8 seconds

to activate 'RPT' mode and more than

0.8 seconds to activate 'FLD RPT' mode.

• RPT : Only a track (file) is repeatedly

played back.

• FLD RPT (MP3/WMA Only) : Only files

in a folder are repeatedly played back.

4 167

Features of your vehicle

FOLDER

Button

• Press

FOLDER

key to move to child

folder of the current folder and display

the first song in the folder.

• Press

FOLDER

key to move to parent

folder of the current folder and display

the first song in the folder.

ENTER

Button

Press the

ENTER

key to play the select

song.

SCAN

Button

Play each song in the CD for 10 seconds.

To cancel SCAN Play, press this key

again.

Button

Displays menus for the current mode.

• RPT : Repeats the current song.

• F.RDM : Plays all song within current

Folder in random order.

• F.RPT : Repeats all song within current

Folder.

• A.RDM : Plays all song within all Folders

in random order.

• Info : Displays information of the current

song.

4 168

Features of your vehicle

BASIC METHOD OF USE : USB

1 RPT

Button (REPEAT)

Press this button for less than 0.8 sec-

onds to activate ‘RPT’ mode and more

than 0.8 seconds to activate ‘FLD.RPT’

mode.

• RPT : Only a file is repeatedly played

back.

• ‘FLD.RPT’ : All files in a folder are

repeatedly played back.

2 RDM

Button (RANDOM)

FOLDER

Button

Press this button for less than 0.8 sec-

onds to activate ‘FLD.RDM’ mode and

• Press

FOLDER

button to move to

more than

0.8 seconds to activate

child folder of the current folder and dis-

‘A.RDM’ mode.

TRACK

Button

play the folder.

SEEK

• FLD.RDM : Only files in a folder are

Press

TUNE

/ ENTER

knob to move to

• Press the

TRACK

button for less

played back in a random sequence.

the folder displayed. It will play the first

than

0.8 seconds to play from the

• A.RDM : All files in a USB memory are

song in the folder.

beginning of the current song.

played back in the random sequence.

• Press

FOLDER

button to move to

Press the button for less than 0.8 sec

parent folder display the folder. Press

onds and press it again within 2 second

to move to and play the previous song.

TUNE

ENTER

knob to move to the

folder displayed.

Press the button for

0.8 seconds or

longer to play the song in reverse direc-

tion in fast speed.

SEEK

• Press the

TRACK

button for less

than 0.8 seconds to move to the next

song. Press the button for 0.8 seconds

or longer to play the song in forward

direction in fast speed.

4 169

Features of your vehicle

Button

Displays menus for the current mode.

• RPT : Repeats the current song.

• F.RDM : Plays all song within current

Folder in random order.

• F.RPT : Repeats all song within current

Folder.

• A.RDM : Plays all song within all Folders

in random order.

• Info : Displays information of the current

song.

SCAN

Button

Plays each song in the USB device for 10

seconds.

To cancel SCAN Play, press this button

again.

TUNE

Knob &

ENTER

Button

• Turn this knob clockwise to browse

songs after current song, or counter

clockwise to browse songs before cur-

rent song. To play the displayed song,

press the knob.

4 170

Features of your vehicle

BASIC METHOD OF USE : iPod

SEEK

• Press the

TRACK

button for less

than 0.8 seconds to move to the next

track.

Press the button for

0.8 seconds or

longer to play the song in forward direc-

tion in fast speed.

1 RPT

Button (RAPEAT)

Repeats the song currently played.

Button (MENU)

2 RDM

Button (RANDOM)

• RPT : Repeats the current song.

• Press this button to shuffle order of all

• RDM : Plays all songs within the cur-

songs in current category.

rently playing category in random order.

❋ iPod is a trademark of Apple Inc.

• To cancel RANDOM Play, press this

• INFO : Displays information of the cur-

button again.

rent song.

TRACK

Button

• Search : Moves to the upper category

SEEK

• Press the

TRACK

button for less

from currently played category of the

than

0.8 seconds to play from the

iPod. To move to (play) the category

beginning of the song currently played.

(song) displayed, press

TUNE

knob.

Press the button for less than 0.8 sec-

You will be able to search through the

onds and press it again within 3 second

lower category of the selected category.

to move to and play the previous track.

The order of iPod’s category is Playlist,

Artist,

Albums, Genres, Songs,

Press the button for

0.8 seconds or

Composers.

longer to play the song in reverse direc-

tion in fast speed.

4 171

Features of your vehicle

TUNE

Knob &

ENTER

Button

When you rotate the knob clockwise, it

will display the songs (category) ahead

of the song currently played (category in

the same level).

Also, when you rotate the knob counter-

clockwise, it will display the songs (cate-

gory) before the song currently played

(category in the same level).

To listen to the song displayed in the

song category, press the button to play

the selected song.

AUX

This feature is used to play external

MEDIA currently connected with the AUX

terminal.

AUX mode will automatically start when

an external device becomes connected.

If an external device is already connect-

ed, you can also press the

AUX

key to

change to AUX mode.

❈ AUX mode cannot be started unless

there is an external device connected

to the AUX terminal.

4 172

Driving your vehicle

WARNING - ENGINE EXHAUST CAN BE DANGEROUS!

Engine exhaust gases are potentially lethal. If at any time engine exhaust gas is detected within the passenger compartment,

move the vehicle to an open area and open all windows.

• Never inhale exhaust gas.

Exhaust gases contain Carbon Monoxide which is colourless and odourless. Carbon Monoxide is poisonous and can cause

unconsciousness and death by asphyxiation.

• Exhaust System Maintenance.

Ensure that the exhaust system is maintained in good condition and is free from excessive corrosion and damage which may

result in leakage. If you hear a change in the sound of the exhaust or if you drive over something that strikes the underneath

side of the car, we recommend that the system be checked by a HYUNDAI authorised repairer.

• Confined Areas.

Do not run the engine in confined spaces, allowing the engine to idle in a garage, even when the doors are open is danger-

ous practice. Only start the engine immediately prior to moving the vehicle out of the garage.

• Prolonged Idling.

If it is necessary to allow the vehicle to idle for prolonged periods, ensure that the heating system air intake control is set to

the "Fresh" position, the blower is set to high speed operation and that the vehicle is standing in an open area.

To ensure correct operation of the heater system, the air intake grilles at the base of the windscreen must not be obstructed by

snow leaves etc..

5 2

Driving your vehicle

BEFORE DRIVING

Before entering vehicle

Necessary inspections

Before starting

•

Ensure that all windows, mirrors and

Fluid levels, such as engine oil, engine

• Close and lock all doors.

lamps are clean.

coolant, brake fluid, and washer fluid

• Position the seat so that all controls are

•

Check condition of all tyres.

should be checked on a regular basis,

easily reached.

with the exact interval depending on the

•

Ensure that no fluid leaks are evident.

• Adjust the inside and outside rearview

fluid. Further details are provided in

•

Ensure that the area around the vehi-

mirrors.

Section 7, “Maintenance”.

cle is clear before driving off.

• Be sure that all lights work.

• Check all gauges.

• Check the operation of warning lights

WARNING

when the ignition switch is turned to

Driving whilst distracted can result

the ON position.

in a loss of vehicle control, that

• Release the parking brake and make

may lead to an accident, severe

sure the brake warning light goes out.

personal injury, and death. The dri-

For safe operation, be sure you are famil-

ver’s primary responsibility is in

iar with your vehicle and its equipment.

the safe and legal operation of a

vehicle, and use of any handheld

WARNING

devices, other equipment, or vehi-

cle systems which take the driver’s

All passengers must be properly

eyes, attention and focus away

belted whenever the vehicle is mov-

from the safe operation of a vehicle

ing. Refer to “Seat belts” in section

or which are not permissible by law

3 for more information on their

should never be used during oper-

proper use.

ation of the vehicle.

WARNING

Always check the surrounding

areas near your vehicle for people,

especially children, before putting a

car into D (Drive) or R (Reverse).

5 3

Hyundai i800 (2016 year). Instruction - part 14
