Hyundai H350 (2016 year). Instruction - part 7

Convenient features of your vehicle

MULTI-DISPLAY (IF EQUIPPED)

Main display

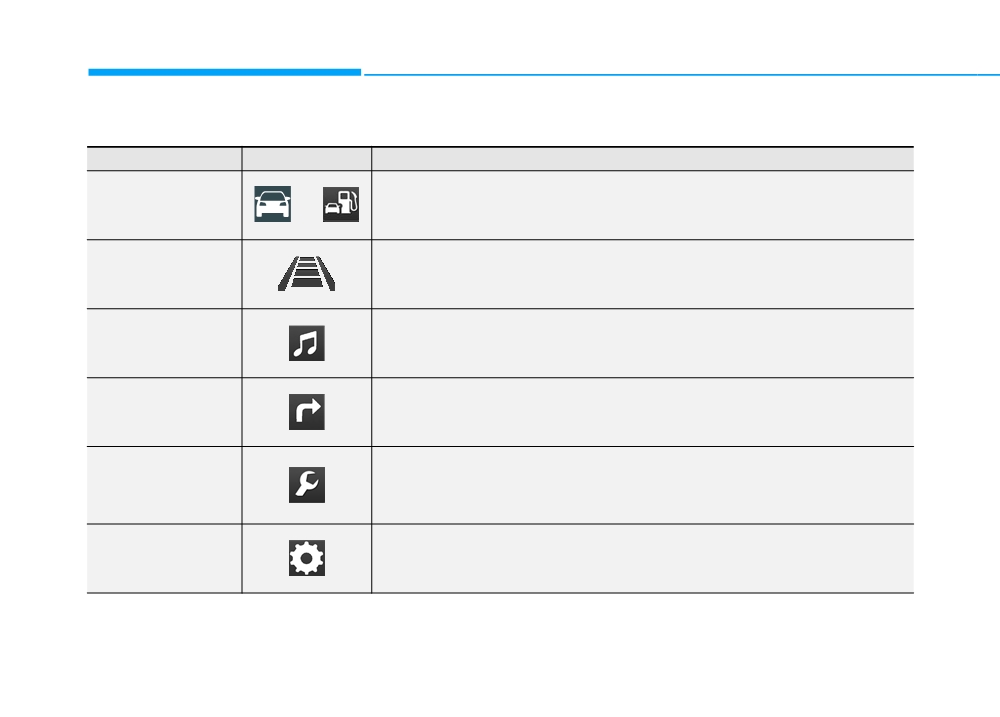

Modes

Symbol

Explanation

This mode displays driving information like the tripmeter, fuel economy, and so on.

Trip Computer

For more details, refer to “Trip Computer” in this chapter.

or

Drive Info.

This mode displays the state of Cruise Control System (CC) or the Lane Departure

(if equipped)

Warning System (LDWS). For more details, refer to the chapter 5.

AVN

This mode displays the state of the A/V (Radio, CD USB, AUX, etc.) system.

(if equipped)

Turn By Turn (TBT)

This mode displays the state of the navigation.

(if equipped)

• This mode informs of service interval and warning messages related the lamp dis-

connection.

Information

• It indicates system failures, such as fuel consumption, engine-idling hour and major

ECUs.

User Settings

On this mode, you can change settings of the doors, lamps, and so on.

❈ For controlling the LCD modes, refer to "LCD Display Control" in this chapter.

3-50

Function description

Sub menu

Main menu

Type A

Type B

Trip A

Range / Ave. Fuel Eco. / Inst. Fuel Eco.

Trip B

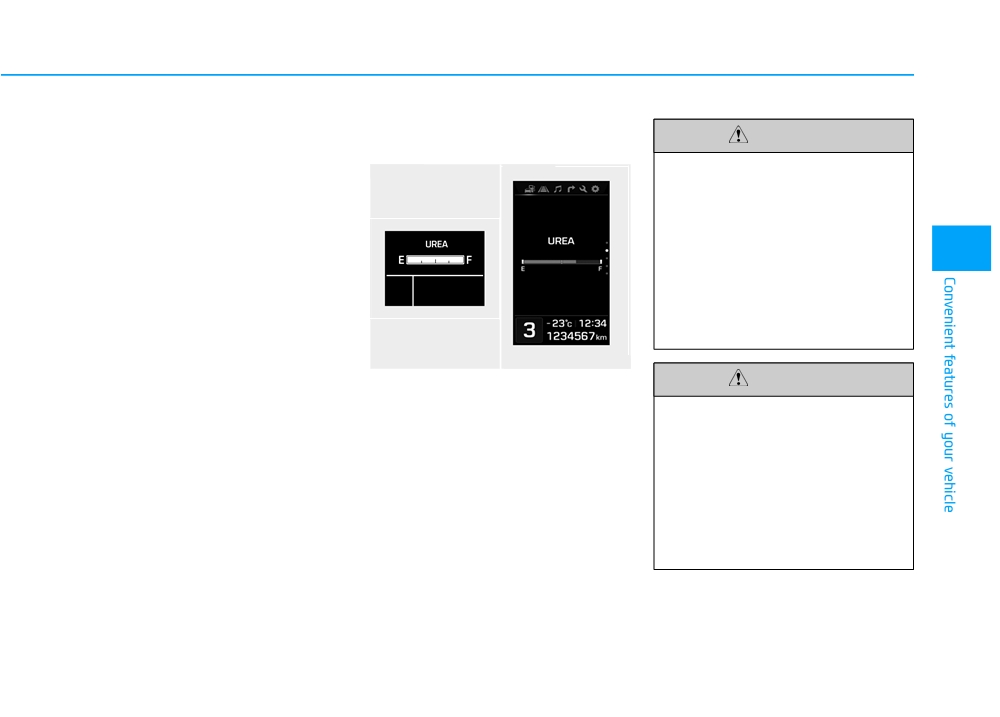

UREA gauge

Range

Trip computer

Trip A / Average speed / Elapsed Time

Avg. Fuel Eco.

3

Trip B / Average speed / Elapsed Time

Inst. Fuel Eco.

AUTO STOP

UREA gauge

LDWS (Lane Departure Warning System)

Drive Info

-

CC (Cruise control)

AVN

-

AVN

TBT

-

TBT NAVI

Warning message

Warning message

Service

Service notifications

Service notifications

Total Fuel Consumption (T.F.C)

Total Idle RPM Time (T.I.T)

Total Fuel Consumption (T.F.C)

Drive Info.

Average Speed

Total Idle RPM Time (T.I.T)

Elapsed Time

Information

AUTO STOP

ABS/VDC

ABS/VDC

CM

CM

SJB

SJB

Diagnostics

CLUSTER

CLUSTER

LDWS

LDWS

ACU

ACU

3-51

Convenient features of your vehicle

Sub menu

Main menu

Type A

Type B

Automatic door lock (Enable on speed)

Door

Automatic door unlock (On Key Out (power off), Drive door unlock)

Head Lamp delay

Welcome Light

Light

Auto Triple Turn

External Lamp Check*

Sound

Sound Settings (Level1~3, OFF)

Shift Indicator (ON/OFF)

Set

Unit Settings (Time-12hour or 24 hour, Temperature unit-°C or °F)

AFC Settings (Auto reset, Manual reset)

Cluster

Language Settings (English, Deutsch, etc.)

Current Time (00:00)

Alarm (Alarm time, Idle RPM, Break Time-ON/OFF)

Engine Oil (OFF, ON, Distance setting)

Equipment Cycle

Fuel Filter(OFF, ON, Distance setting)

(Maintenance)

User Menu (OFF, ON, Distance setting)

* It monitors all external lights, except the back-up lights.

3-52

Trip computer

Drive info. mode (If equipped)

AV information (If equipped)

■ Type A

■ Type B

3

OEU044123/OEU044124/

OEU044212

OEU044213

OEU044125/OEU044148

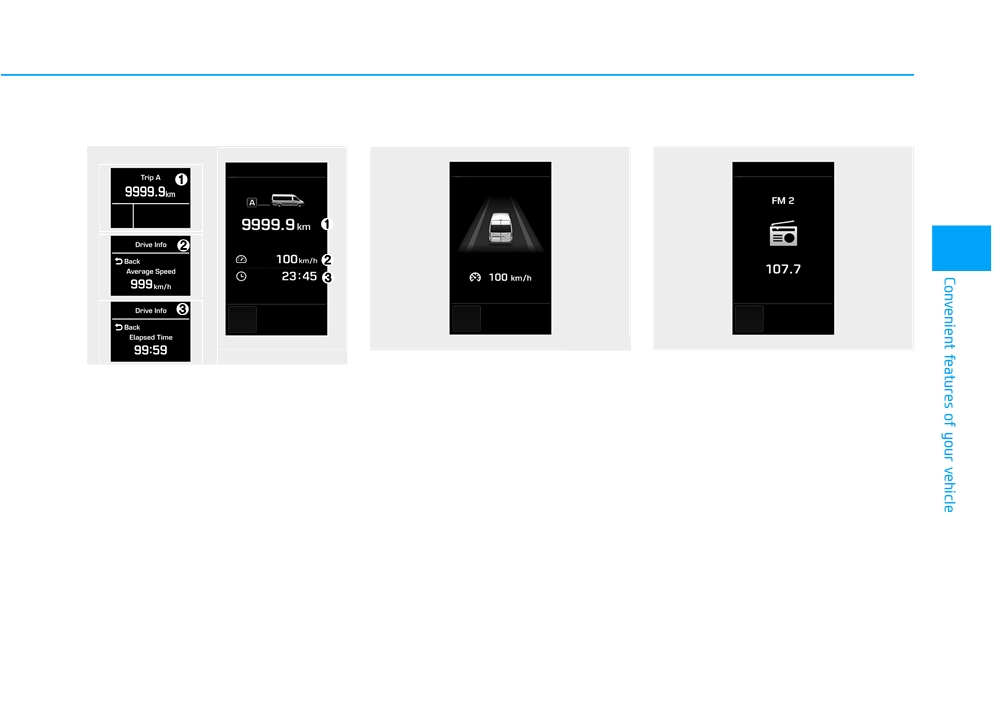

This mode displays the state of the

This mode displays the state of the

This displays the drive information

CC or LDWS. For more details, refer

AV (Radio, CD, USB, AUX etc.).

like as the driving distance, average

to the chapter 5.

fuel economy, etc. For detail, refer to

the “Trip computer” in the chapter 3.

3-53

Convenient features of your vehicle

Turn by turn navigation

Information Mode

NOTICE

(if equipped)

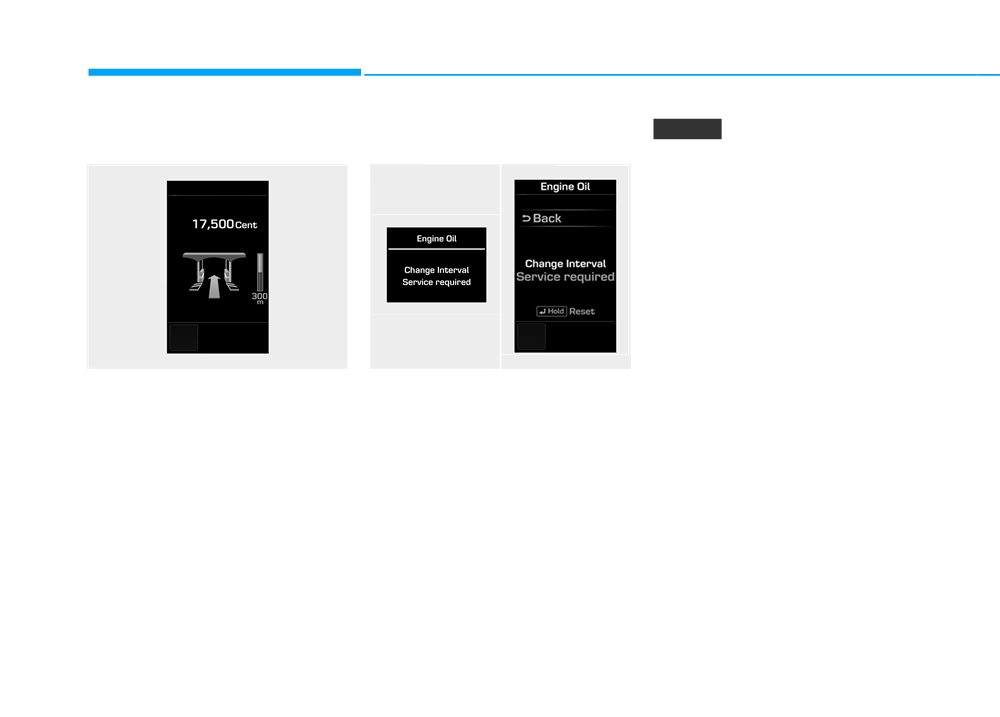

Service required

If any of the following conditions

■ Type A

■ Type B

occurs, the mileage may be incor-

rect.

- The battery cable is disconnect-

ed.

- The fuse switch is turned off.

- The battery is discharged.

OEU044211

OEU044214/OEU044215

This mode displays the information

If you do not have your vehicle serv-

of the navigation.

iced according to the already

inputted service interval,

“Service

required” message is displayed for

several seconds each time you set

the ignition switch to the ON position.

3-54

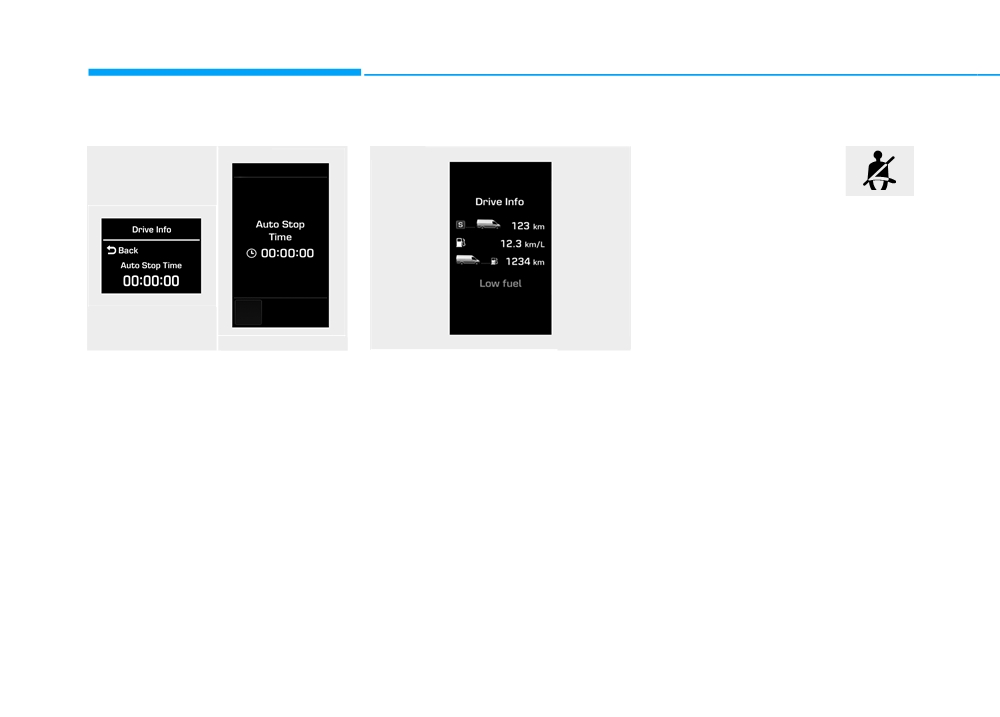

Drive Info

Diagnostics

User Settings Mode

■ Type A

■ Type A

■ Type B

Description

■ Type A

■ Type B

3

■ Type B

OEU044220/OEU044221

OEU044222/OEU044223

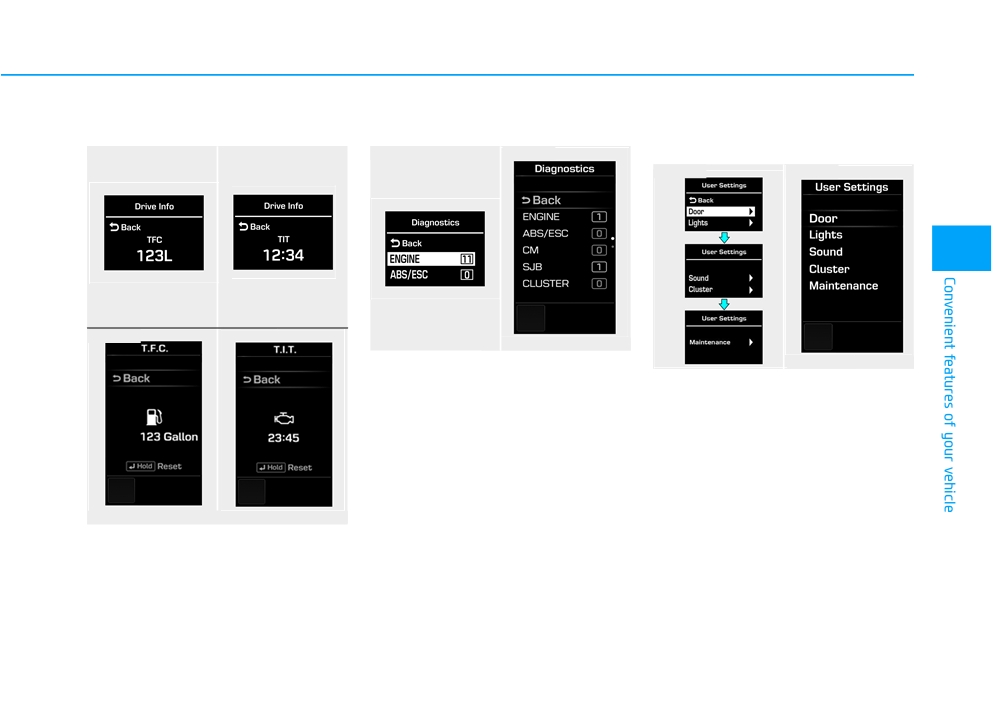

It monitors and diagnoses failures of

each vehicle unit, displaying the

On this mode, you can change set-

information, such as the number of

ting of the doors, lamps, and so on.

failures the failure code.

OEU044216/OEU044217/OEU044218/OEU044219

It indicates the accumulated fuel

consumption amounts as well as the

accumulated engine-idling hours.

3-55

AFC setting

Equipment cycle(Maintenance)

Warning Messages

It can be automatically or manually

Engine oil, fuel filter

In below cases, the warning mes-

reset to the default.

The maintenance alarm can be

sage displays for 10 seconds. Some

turned ON or OFF. Also, the driving

messages will be saved in the infor-

distance for an oil/filter maintenance

mation group after few seconds dis-

❇ AFC : Average Fuel Consumption

alarm can be set in.

playing for future reference.

Language setting

3

User Menu

A preferred language can be chosen

The maintenance alarm message

on the LCD display.

displays on the LCD display, as arbi-

trarily set in.

Current time

The time can be adjusted.

Alarm

The alarm, idle-rpm time, break time

can be set in.

3-57

Convenient features of your vehicle

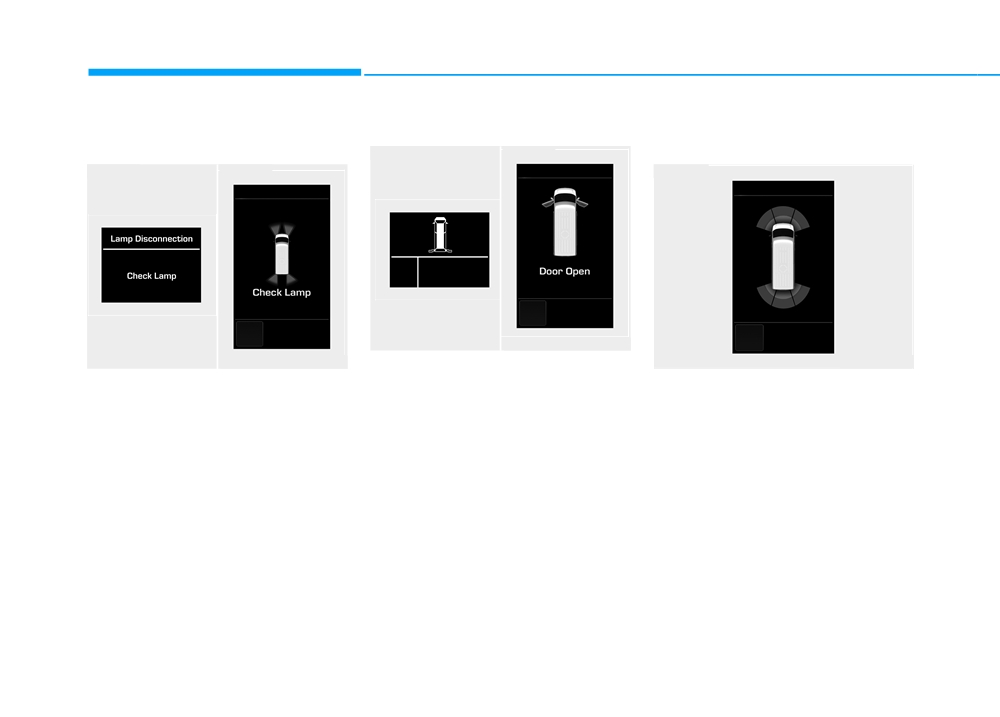

Lamp disconnection

Doors open

Parking Assist System (PAS)

(CHECK LAMP)

(if equipped)

■ Type A

■ Type B

■ Type A

■ Type B

■ Type B

OEU044114/OEU044139

OEU044118/OEU044143

OEU044141

This indicator displays which doors

This indicator displays which lamp is

are opened.

When the engine is turned ON, and

disconnected.

when the PAS sensor detects an

obstacle, while driving either for-

wards or backwards, the PAS

informs the driver of a location and a

distance of/with the obstacle.

For further information, refer to the

Parking Assist System in the chapter

3.

3-58

DPF Check (if equipped)

Illumination (if equipped)

Alarm time

■ Type A

■ Type B

■ Type A

■ Type B

■ Type A

■ Type B

3

OEU044119/OEU044144

OEU044116/OEU044140

OEU044120/OEU044145

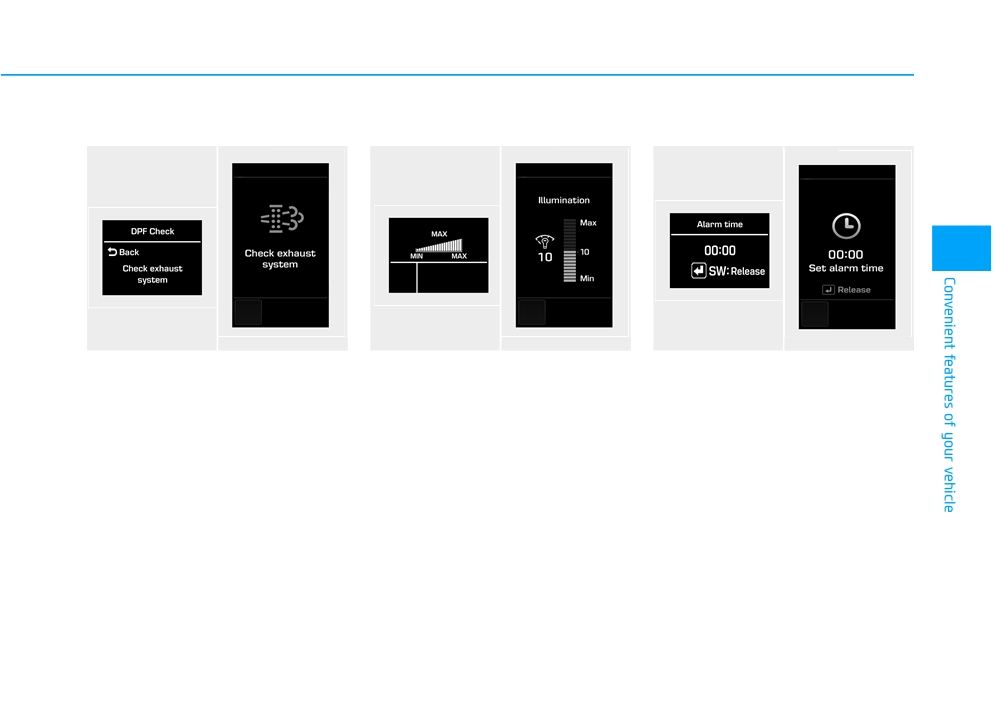

The warning message is displayed,

The illumination intensity of the

It display the alarm time, as set in the

as above, when there is a DPF prob-

instrument panel is shown when

user-setting mode.

lem with your diesel vehicle. In this

adjusting it with the illumination con-

case, have the DPF system checked

trol switch.

by an authorized HYUNDAI dealer.

❇ DPF: Diesel Particulate Filter

3-59

Convenient features of your vehicle

TRIP COMPUTER

Excessive Idle RPM

Brake time

(IF EQUIPPED)

■ Type A

■ Type B

■ Type A

■ Type B

Overview

Description

OEU044121/OEU044146

OEU044122/OEU044147

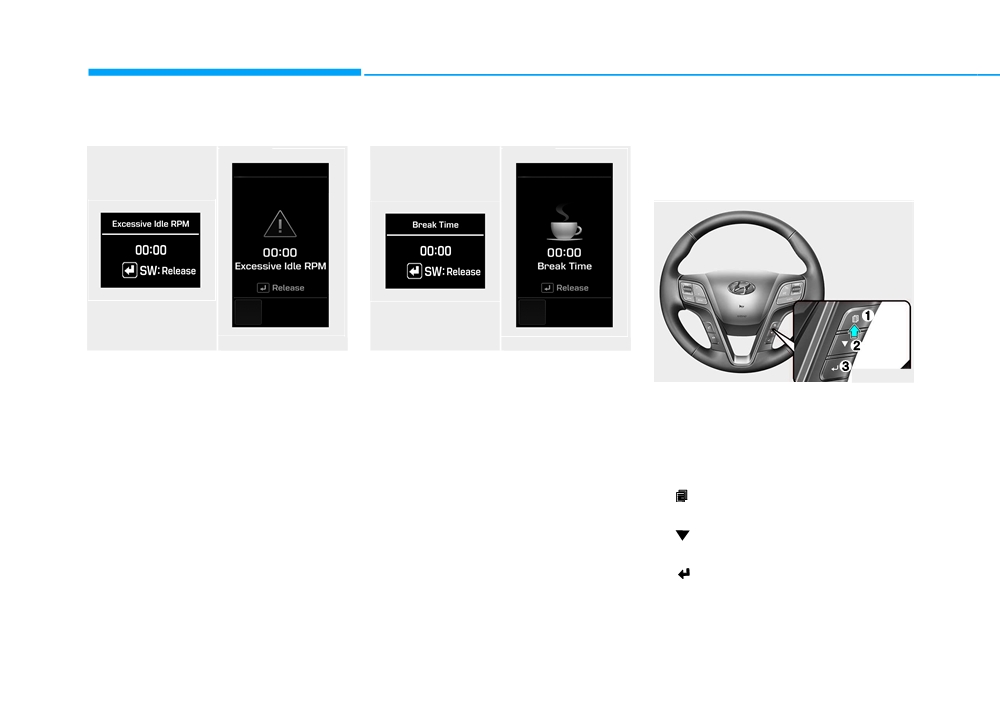

It displays the idle-rpm hour, as set in

It displays the breaking hour, as set

OEU044052

the user-setting mode.

in the user-setting mode.

The trip computer is a microcomput-

er-controlled driver information sys-

tem that displays information related

to driving.

1. (

) Mode button for changing

modes

2. (

) Move button for changing

items

3. (

) Select / Reset button

3-60

NOTICE

Trip Modes

• Trip mode (Standard Type))

Trip mode is changed as below

Some driving information stored

whenever pushing the button shortly.

Distance to empty A

in the trip computer (for example

Average Vehicle Speed) resets if

• Trip Mode (High-end Type)

the battery is disconnected.

Distance to empty/

Driving distance B

Average Fuel Economy/

3

Instant Fuel Economy

Distance to empty

Urea solution gauge*1

Average fuel economy

Distance to empty A/

Average vehicle speed A/

Elapsed time A

Instant fuel economy

Distance to empty B/

Average vehicle speed B/

Urea solution gauge*1

Elapsed time B

❈ You may check the average driv-

ing speed/Elapsed time/total

The total AUTO STOP time*2

AUTO STOP hours*2 in the infor-

mation group.

*1 : When applying the SCR system

*1: When applying the SCR system

*2 : When applying the ISG system

*2 : When applying the ISG system

3-61

Convenient features of your vehicle

In the trip computer mode on the

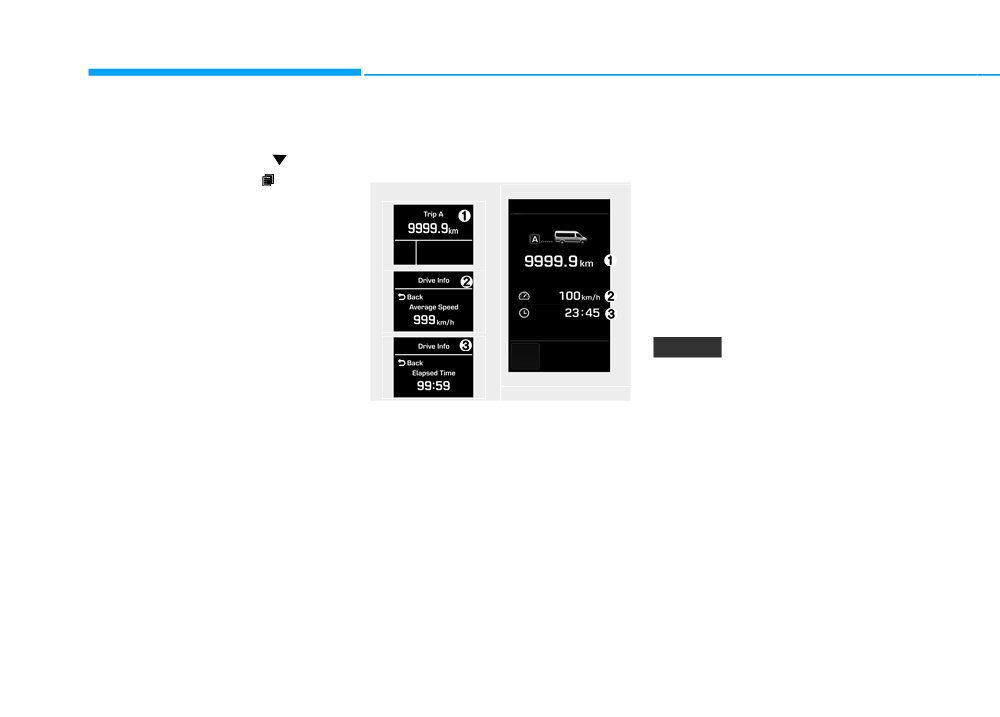

Driving distance / Average

Average Vehicle Speed (2)

LCD display, the trip mode can be

vehicle speed / Elapsed time

• The average vehicle speed is cal-

adjusted by pressing the (

) button.

Driving distance (1)

culated by the total driving dis-

By pressing the button (

), you can

tance and driving time since the

■ Type A

■ Type B

select the desired trip mode.

last average vehicle speed reset.

- Speed range: 0 ~ 999 km/h

❈ For controlling the LCD modes,

• To reset the average vehicle

refer to "LCD Display Control" in

speed, press the SET button for

this chapter.

more than

1 second when the

average vehicle speed is dis-

played.

NOTICE

Even if the vehicle is not in

OEU044123/OEU044124/

motion, the average vehicle speed

OEU044125/OEU044148

keeps going while the engine is

This displays the total driving dis-

running.

tance from the default setting (0.0)

• Pressing the “Select” button for 1

second or over, when the driving

distance is displayed, resets the

driving distance. This also resets

the driving hours and the average

speed (Type B).

• Distance range: 0 .0 ~ 9999.9 km

3-62

Elapsed Time (3)

Fuel Economy

NOTICE

• The elapsed time is the total driv-

Distance To Empty (1)

•

If the vehicle is not on level

ing time since the last elapsed time

■ Type A

■ Type B

ground or the battery power has

reset.

been interrupted, the distance to

- Time range

(hh:mm): 00:00

~

empty function may not operate

99:59

correctly.

• To reset the elapsed time, press

•

The distance to empty may differ

3

the SET button for more than 1

from the actual driving distance

second when the elapsed time is

as it is an estimate of the avail-

displayed.

able driving distance.

•

The trip computer may not regis-

NOTICE

ter additional fuel if less than 6

Even if the vehicle is not in

liters

(1.6 gallons) of fuel are

OEU044126/OEU044127/

added to the vehicle.

motion, the elapsed time keeps

OEU044128/OEU044149

going while the engine is running.

•

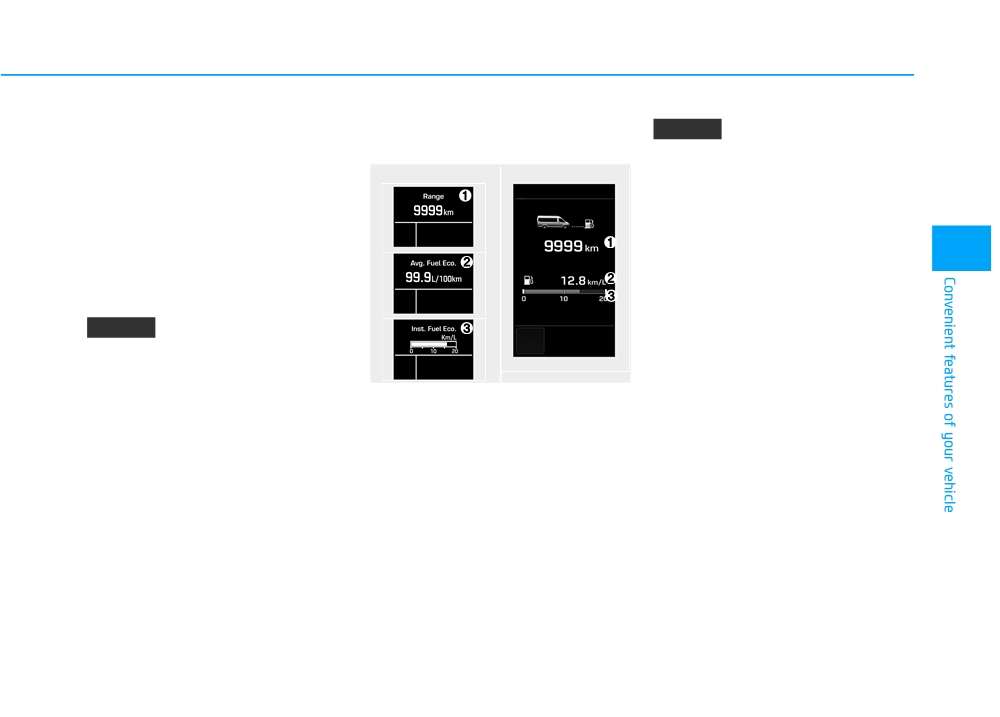

The fuel economy and distance

•

The distance to empty is the esti-

to empty may vary significantly

mated distance the vehicle can be

based on driving conditions,

driven with the remaining fuel.

driving habits, and condition of

the vehicle.

- Distance range: 50 ~ 9999 km or

30 ~ 9999 mi.

•

If the estimated distance is below

50 km (30 mi.), the trip computer

will display

“---” as distance to

empty.

3-63

Convenient features of your vehicle

Average Fuel Economy (2)

Automatic reset

i

Information

• The average fuel economy is cal-

The average fuel economy will be

When the average fuel efficiency

culated by the total driving dis-

cleared to zero (---) when the vehicle

is set to be automatically reset in

tance and fuel consumption since

speed exceeds 1 km/h after refueling

the user-setting mode, the aver-

the last average fuel economy

more than 6 liters (1.6 gallons).

age fuel efficiency and the fuel

reset.

gauge may automatically reset to

- Fuel economy range: 0.0 ~ 99.9

NOTICE

the default, while driving on a

km/L (L/100km)

slope or going down/up on a flat

The average fuel economy is not

• The average fuel economy can be

road from a slope. Such situations

displayed for more accurate cal-

reset both manually and automati-

make the fuels in a tank abruptly

culation if the vehicle does not

cally.

fluctuate and cause the system to

drive more than 300 meters since

misrecognize it as the refueling.

the ignition switch is turned to

Thus, it is automatically reset to

Manual reset

ON.

the default. This is not a system

To clear the average fuel economy

failure.

manually, press the SET button for

When the automatic reset function

more than 1 second when the aver-

is cancelled in the user-setting

age fuel economy is displayed.

mode, the average fuel efficiency

will not be automatically reset, any

longer.

3-64

Instant fuel economy (3)

Urea Solution Gauge

CAUTION

•

This mode displays the instant fuel

(if equipped)

economy during the last few sec-

■ Type A

■ Type B

•

If the vehicle is driven with

onds when the vehicle speed is

urea solution volume less

more than 10 km/h (6.2 MPH).

than 4%, engine output will be

- Fuel economy range:

limited.

0 ~ 20 km/L (L/100 km)

•

Liquid that are not recom-

3

mended such as diesel, gaso-

line, and alcohol shall never

be used other than the recom-

mended urea solution that

satisfy ISO22241 or DIN70070.

OEU044111/OEU044135

CAUTION

The urea solution gauge indicates

the approximate amount of urea

If defective urea solution or liq-

solution remaining in the urea tank.

uid that is not recommended is

supplied, there may be damage

on the parts of the vehicle such

as processing device. If defec-

tive fuel is used, foreign objects

will be accumulated to SCR cat-

alyst and cause catalyst pushed

away or breaking.

3-65

Convenient features of your vehicle

WARNING AND INDICATOR

Total AUTO STOP Hour

Driving Information

LIGHTS

■ Type A

■ Type B

■ Type B

Seat Belt Warning Light

This warning light informs the driver

that the seat belt is not fastened.

For more details, refer to the “Seat

Belts” in chapter 2.

OEU044129/OEU044150

OEU044151

When the AUTO STOP operates, the

The driving information may display

total AUTO STOP hour displays on

on the cluster for a few seconds after

the LCD display.

turning OFF the engine.

Stop Hour Range: 00:00~99:59:59

When the fuel is insufficient, "Low

Fuel" message will display. In this

Pressing the “Select” button for

1

case, immediately refuel the tank.

second or over resets the total AUTO

STOP hour.

For further information, refer to the

ISG (Idle stop and go) system in the

chapter 5.

3-66

Content   ..  5  6  7  8   ..
