Hyundai Grand Santa Fe (2016 year). Instruction - part 39

Maintenance

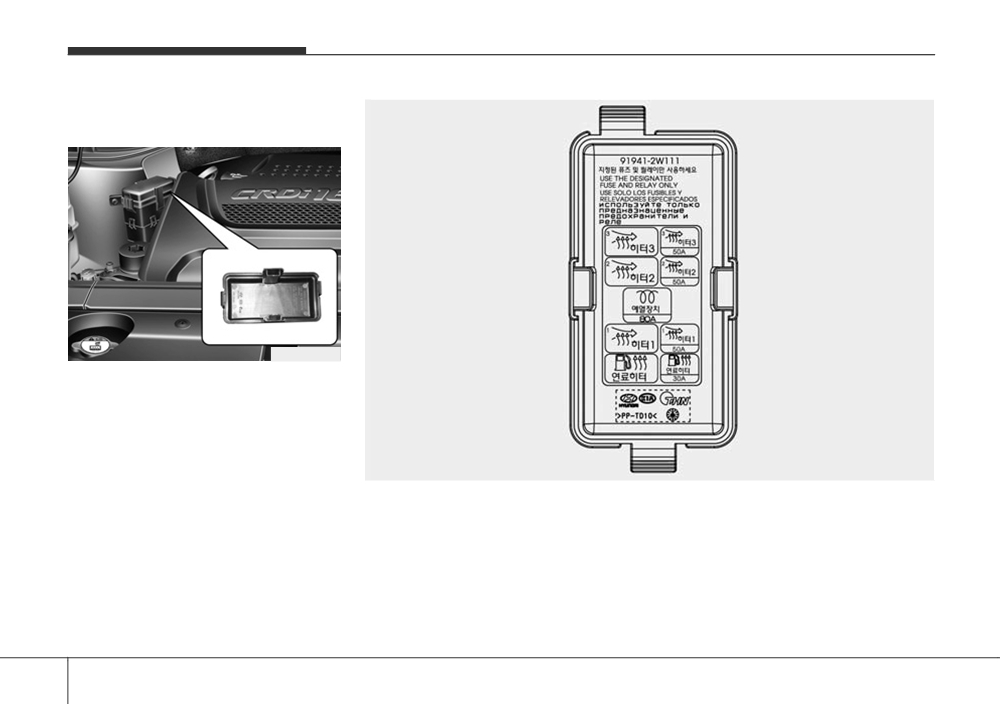

Engine compartment fuse panel

(Diesel engine only)

ODM072049

ODM074045

7 78

Maintenance

Circuit

Symbol

Fuse rating

Protected Component

30A

RLY. 1 (Fuel Filter Heater Relay)

50A

RLY. 2 (PTC Heater Relay #1)

50A

RLY. 3 (PTC Heater Relay #2)

50A

RLY. 4 (PTC Heater Relay #3)

80A

Glow Relay Unit

Relay Type

Relay NO.

Symbol

Relay Name

Relay Type

E44

RLY. 1 (Fuel Filter Heater Relay)

MICRO PLUG

E45

RLY. 2 (PTC Heater Relay #1)

MICRO PLUG

E46

RLY. 3 (PTC Heater Relay #2)

MICRO PLUG

E47

RLY. 4 (PTC Heater Relay #3)

MICRO PLUG

7 79

Maintenance

LIGHT BULBS

✽ NOTICE

WARNING - Working on

CAUTION

After heavy, driving rain or wash-

the lights

If you don’t have necessary

ing, headlight and taillight lenses

Prior to working on the light,

tools, the correct bulbs and the

could appear frosty. This condition

firmly apply the parking brake,

expertise, consult an authorized

is caused by the temperature differ-

ensure that the ignition switch

HYUNDAI dealer. In many cases,

ence between the lamp inside and

is turned to the “LOCK” position

it is difficult to replace vehicle

outside. This is similar to the con-

and turn off the lights to avoid

light bulbs because other parts

densation on your windows inside

sudden movement of the vehi-

of the vehicle must be removed

your vehicle during the rain and

cle and burning your fingers or

before you can get to the bulb.

doesn’t indicate a problem with

receiving an electric shock.

This is especially true if you

your vehicle. If the water leaks into

have to remove the headlight

the lamp bulb circuitry, we recom-

assembly to get to the bulb(s).

mend that the system be checked by

Use only the bulbs of the specified

Removing/installing the head-

an authorized HYUNDAI dealer.

wattage.

light assembly can result in

damage to the vehicle.

CAUTION

Be sure to replace the burned-

out bulb with one of the same

wattage rating. Otherwise, it

may cause damage to the fuse

or electric wiring system.

7 80

Maintenance

Headlamp, position lamp,

Headlamp bulb

(Continued)

Front turn signal lamp, front

Never touch the glass with

fog lamp bulb replacement

bare hands. Residual oil may

cause the bulb to overheat

and burst when lit. A bulb

should be operated only when

installed in a headlamp.

•

If a bulb becomes damaged or

cracked, replace it immediate-

ly and carefully dispose of it.

•

Wear eye protection when

changing a bulb. Allow the

OHD076046

bulb to cool down before han-

dling it.

ONCNMC2017

WARNING - Halogen

(1) Headlamp (High)

bulbs

(2) Headlamp (Low)

•

Halogen bulbs contain pres-

surized gas that will produce

(3) Position lamp (LED)

flying pieces of glass if bro-

(4) Front turn signal lamp

ken.

(5) Front fog lamp (if equipped)

•

Always handle them carefully,

(6) Daytime running lamp

and avoid scratches and abra-

(if equipped)

sions. If the bulbs are lit, avoid

contact with liquids.

(Continued)

7 81

Maintenance

6. Inset a new bulb by inserting it into

the socket.

7. Install the socket in the assembly

by aligning the tabs on the socket

with the slots in the assembly.

Push the socket into the assembly

and turn the socket clockwise.

Low

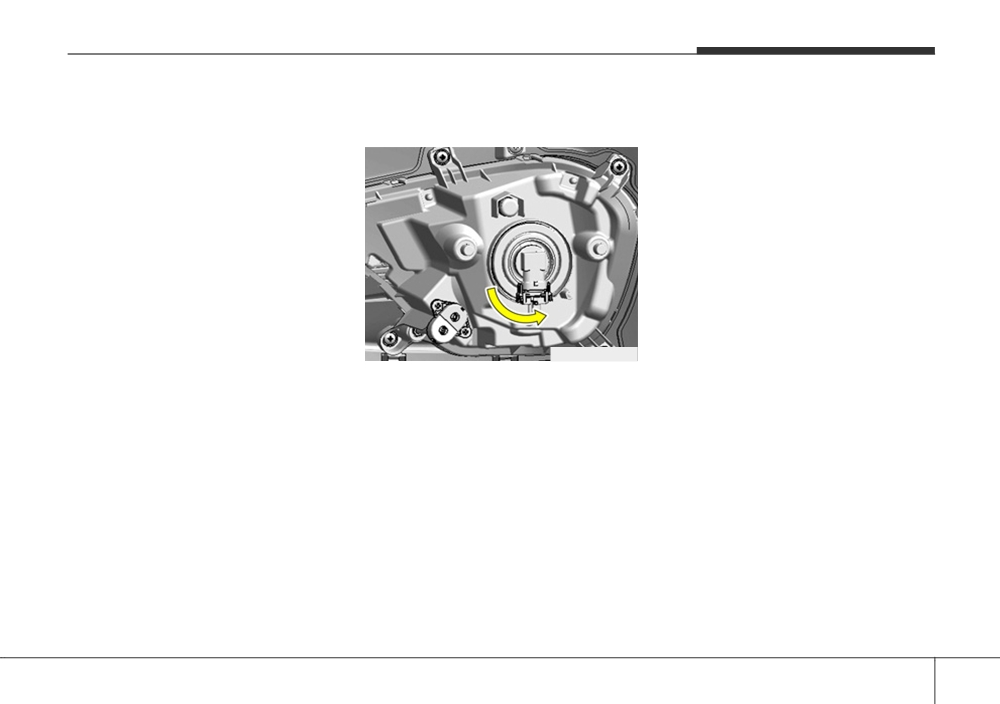

8. Install the headlamp bulb cover by

turning it clockwise.

Turn signal

Position

High

lamp

✽ NOTICE

ODMNMC2022

ODMEMC2006

We recommend that the headlight

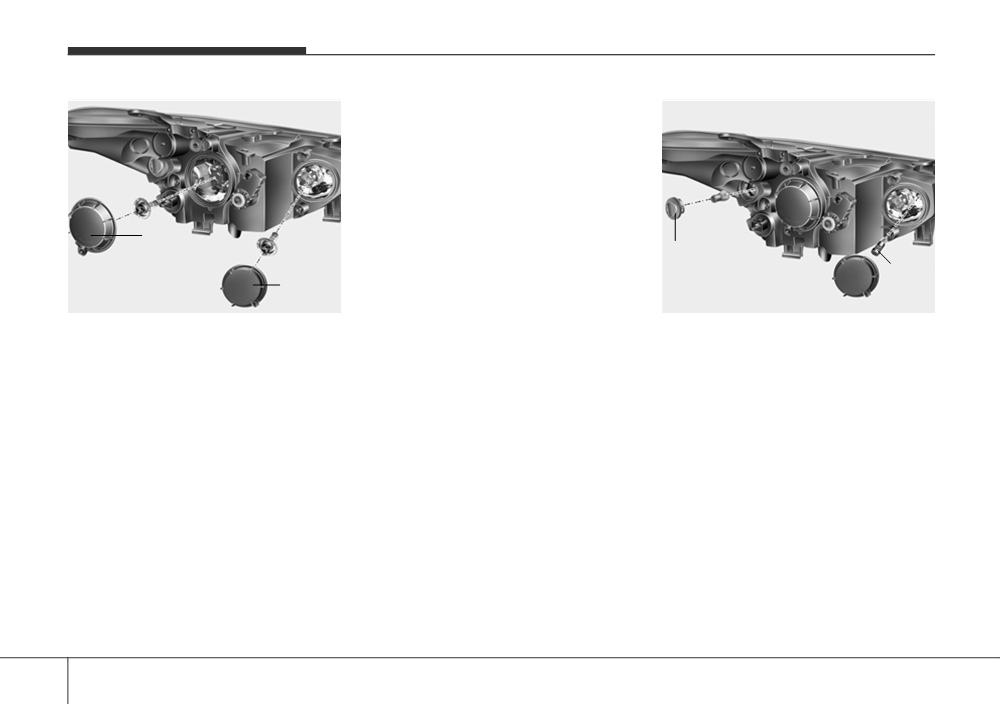

1. Open the hood.

aiming be adjusted after an accident

Turn signal lamp/Position lamp

or after the headlight assembly is

2. Remove the headlamp bulb cover

1. Remove the socket from the

reinstalled

a authorized

by turning it counterclockwise.

assembly by turning the socket

HYUNDAI dealer.

3. Disconnect the headlamp bulb

counterclockwise until the tabs on

socket-connector.

the socket align with the slots on

4. Remove the socket from the

the assembly.

assembly by turning the socket

2. Remove the bulb from the socket

counterclockwise until the tabs on

by pressing it in and rotating it

the socket align with the slots on

counterclockwise until the tabs on

the assembly.

the bulb align with the slots in the

5. Remove the bulb by pulling it out.

socket. Pull the bulb out of the

socket

7 82

Maintenance

3. Insert a new bulb by inserting it

Front fog lamp bulbs

5. Install the new bulb-socket into the

into the socket and rotating it until

(if equipped)

housing by aligning the tabs on

it locks into place.

the socket with the slots in the

housing. Push the socket into the

4. Install the socket in the assembly

housing and turn the socket clock-

by aligning the tabs on the socket

wise.

with the slots in the assembly.

6. Connect the power connector to

Push the socket into the assembly

the socket.

and turn the socket clockwise.

7. Reinstall the front bumper under

cover.

ONCEMC3211

1. Remove the front bumper under

cover.

2. Reach your hand into the back of

the front bumper.

3. Disconnect the power connector

from the socket.

4. Remove the bulb-socket from the

housing by turning the socket

counter clockwise until the tabs on

the socket align with the slots on

the housing.

7 83

Maintenance

Headlamp (HID type), position

✽ NOTICE

Headlight and front fog light

(LED) lamp, daytime running

aiming (for Europe)

HID lamps have superior perform-

lamp replacement

ance vs. halogen bulbs. HID lamps

Headlight aiming

If the light bulb does not operate, we

are estimated by the manufacturer

recommend that the system be

to last twice as long or longer than

checked by an authorized HYUNDAI

halogen bulbs depending on their

dealer.

frequency of use. They will probably

require replacement at some point

in the life of the vehicle. Cycling the

WARNING - HID

headlamps on and off more than

Headlamp low beam

typical use will shorten HID lamps

(if equipped)

life. HID lamps do not fail in the

same manner as halogen incandes-

Do not attempt to replace or

cent lamps. If a headlamp goes out

inspect the low beam (XENON

after a period of operation but will

bulb) due to electric shock dan-

ONCEMC3205

immediately relight when the head-

ger. If the low beam

(XENON

lamp switch is cycled it is likely the

bulb) is not working, we recom-

Without AFLS

HID lamp needs to be replaced. HID

mend that the system be

1. Inflate the tires to the specified

lighting components are more com-

checked by an authorized

pressure and remove any loads

plex than conventional halogen

HYUNDAI dealer.

from the vehicle except the driver,

bulbs thus have higher replacement

spare tire, and tools.

cost.

2. The vehicle should be placed on a

flat floor.

3. Draw vertical lines (Vertical lines

passing through respective head

lamp centers) and a horizontal line

(Horizontal line passing through

center of head lamps) on the

screen.

7 84

Maintenance

4. With the head lamp and battery in

With AFLS

9. To aim the low beam left or right,

normal condition, aim the head

turn the driver clockwise or coun-

1. Turn off the engine

lamps so the brightest portion falls

terclockwise. To aim the low beam

2. Turn the light switch to the low

on the horizontal and vertical

up or down, turn the driver clock-

beam position.

lines.

wise or counterclockwise. To aim

3. Position the tires straight ahead

the high beam up or down, turn

5. To aim the low/high beam left or

with the steering wheel.

the driver clockwise or counter-

right, turn the driver clockwise or

4. Turn on the engine.

clockwise.

counterclockwise. To aim the

5. Inflate the tires to the specified

low/high beam up or down, turn

pressure and remove any loads

the driver clockwise or counter-

from the vehicle except the driver,

clockwise.

spare tire, and tools.

6. The vehicle should be placed on a

flat floor.

7. Draw vertical lines (Vertical lines

passing through respective head

lamp centers) and a horizontal line

(Horizontal line passing through

center of head lamps) on the

screen.

8. With the head lamp and battery in

normal condition, aim the head

lamps so the brightest portion falls

on the horizontal and vertical lines

after 20 seconds for AFLS system

initialization.

7 85

Maintenance

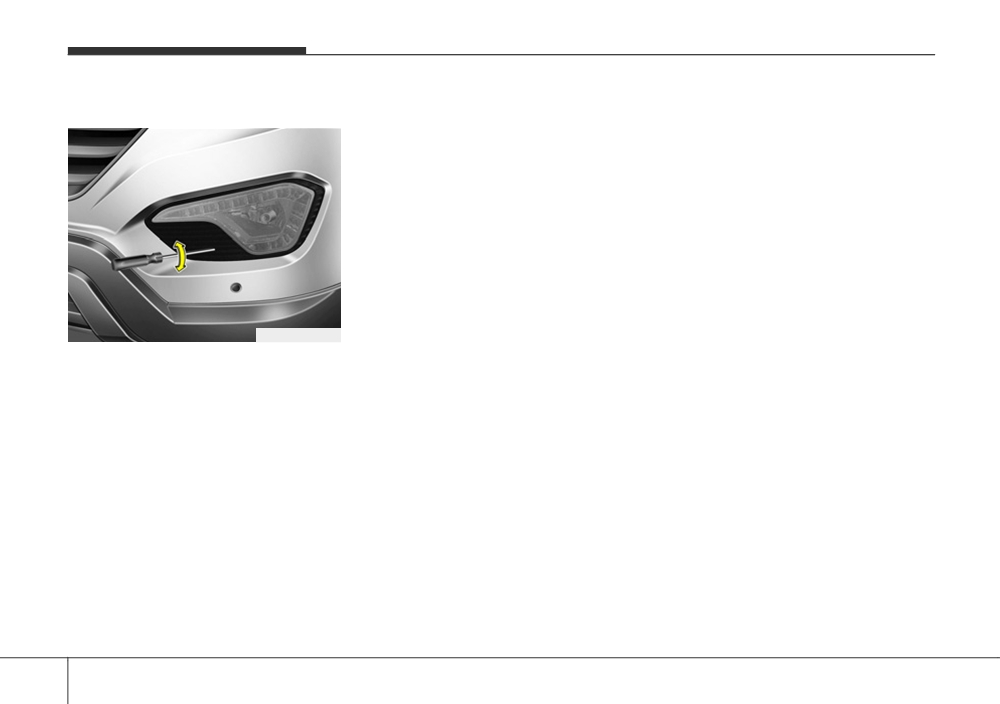

Front fog light aiming

ONCEMC3206

The front fog lamp can be aimed as

the same manner of the head lamps

aiming.

With the front fog lamps and battery

normal condition, aim the front fog

lamps. To aim the front fog lamp up

or down, turn the driver clockwise or

counterclockwise.

7 86

Maintenance

Aiming point

H1 : Height between the head lamp bulb center and ground (Low beam)

H2 : Height between the head lamp bulb center and ground (High beam)

H3 : Height between the fog lamp bulb center and ground

W1 : Distance between the two head lamp bulbs centers (Low beam)

W2 : Distance between the two head lamp bulbs centers (High beam)

W3 : Distance between the two fog lamp bulbs centers

ONCEMC3210

Unit: mm (in)

Vehicle condition

Fog

Fog+DRL

Fog

Fog+DRL

Without driver

888 (34.9)

868 (34.1)

584 (30)

1,420 (559)

1,193 (46.9)

1,544 (61)

With driver

883 (34.7)

863 (33.9)

579 (28)

7 87

Maintenance

■ Based on 3m screen

ONCEMC3207

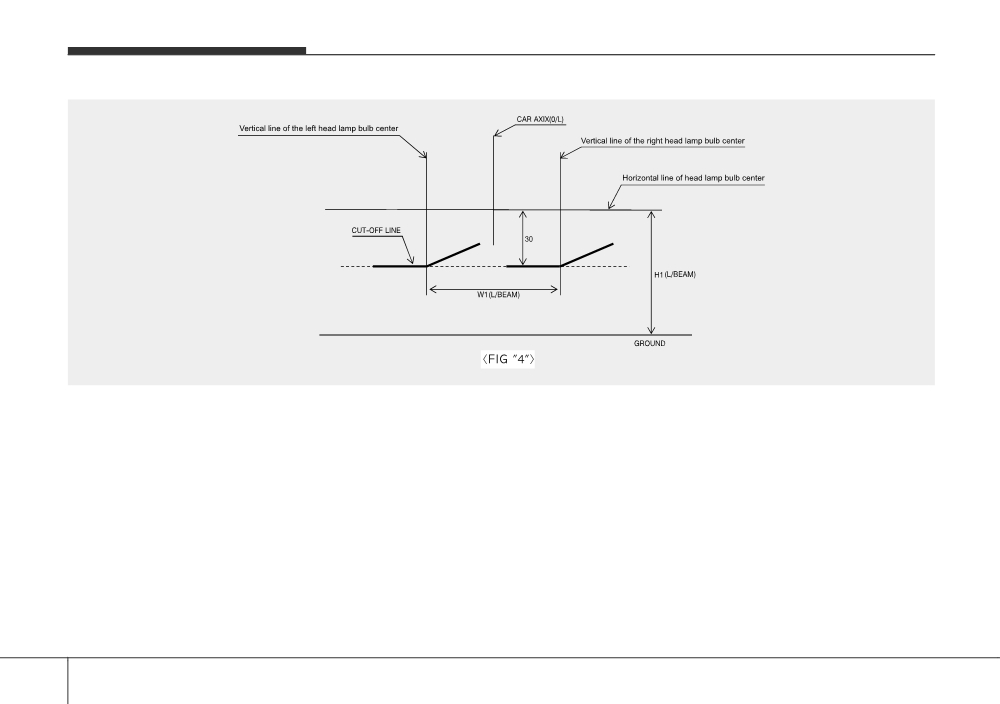

Head lamp low beam (LHD)

1. Turn the low beam on with the driver (75 kg) aboard.

2. The cut-off line should be projected in the cut-off line shown in the picture.

3. When aiming the low beam, vertical aiming should be adjusted after adjusting the horizontal aiming.

4. If head lamp leveling device is equipped, adjust the head lamp leveling device switch with 0 positions.

7 88

Maintenance

■ Based on 3m screen

ONCEMC3208

Head lamp low beam (RHD)

1. Turn the low beam on with the driver (75 kg) aboard.

2. The cut-off line should be projected in the cut-off line shown in the picture.

3. When aiming the low beam, vertical aiming should be adjusted after adjusting the horizontal aiming.

4. If head lamp leveling device is equipped, adjust the head lamp leveling device switch with 0 positions.

7 89

Maintenance

■ Based on 3m screen

ONCEMC3209

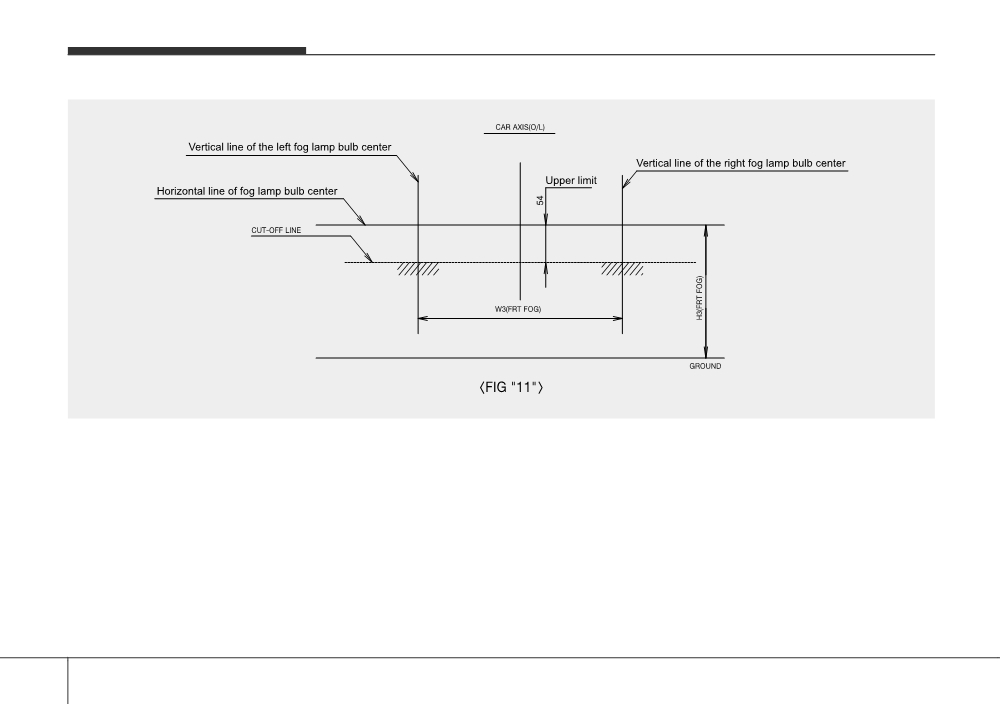

Front fog light

1. Turn the front fog lamp on with the driver (75 kg) aboard.

2. The cut-off line should be projected in the allowable range (shaded region).

7 90

Maintenance

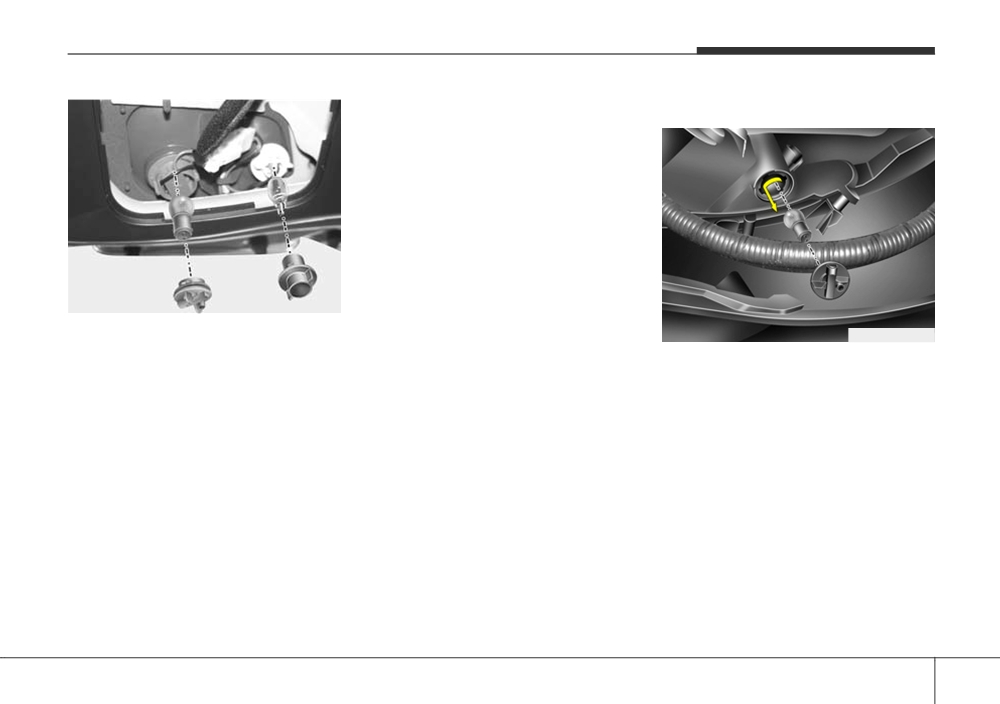

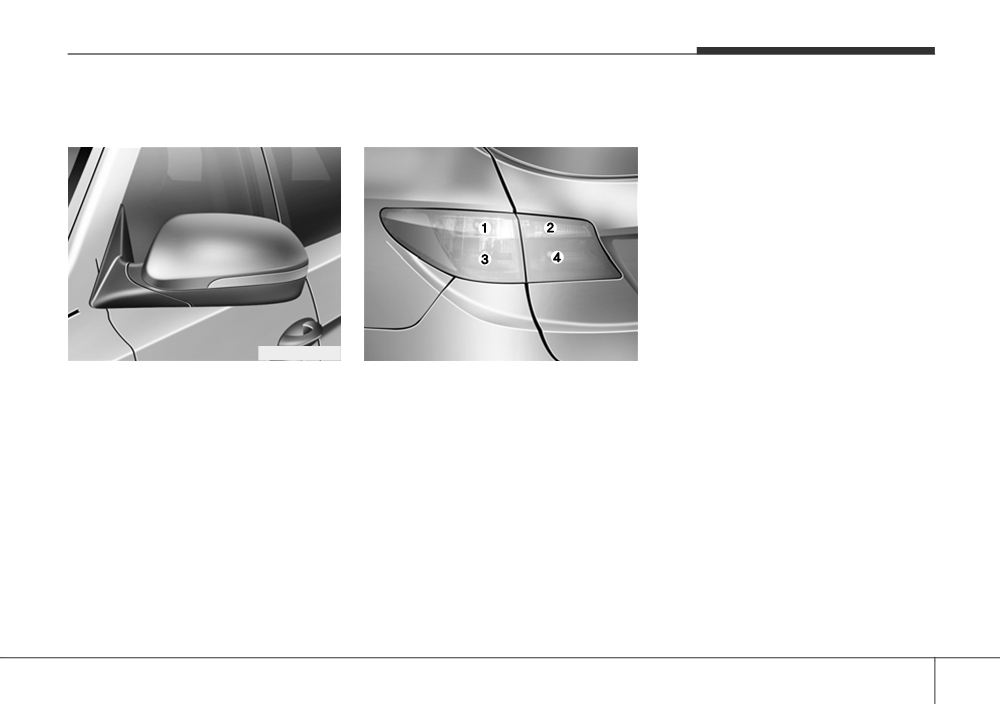

Side repeater lamp replace-

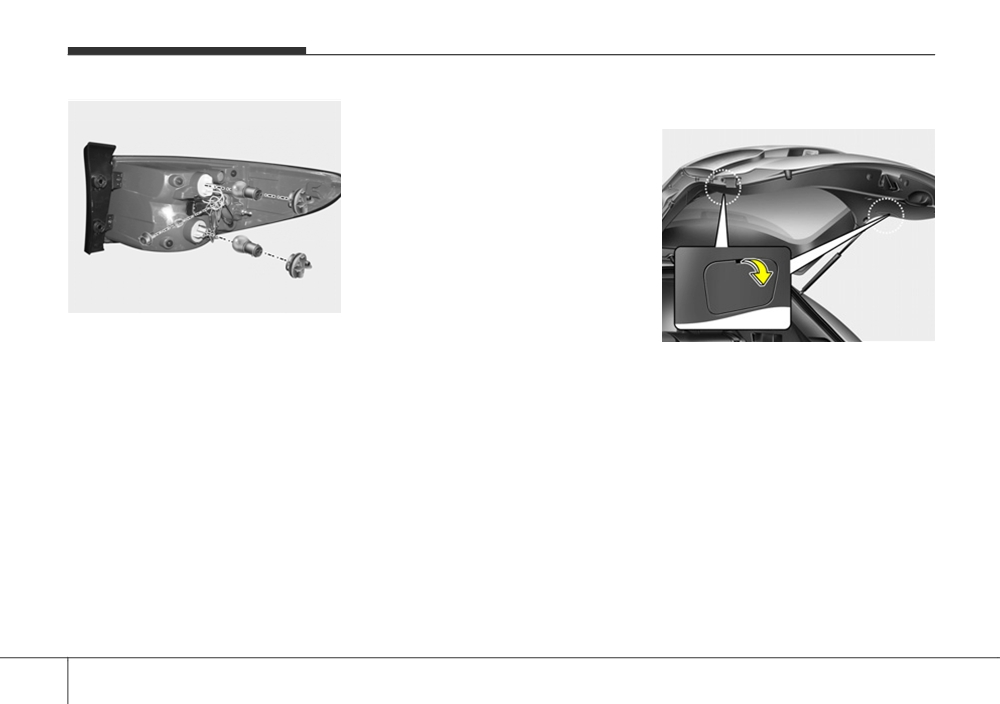

Rear combination lamp bulb

Outside lamp

ment

replacement

Rear turn signal lamp and stop/tail

lamp

1. Turn off the engine.

2. Open the tailgate.

3. Loosen the lamp assembly retain-

ing screws with a cross-tip screw-

driver.

4. Remove the rear combination

lamp assembly from the body of

the vehicle.

ONCEMC3214

ONCNMC2037

If the light bulb does not operate, we

(1) Rear turn signal lamp

recommend that the system be

(2) Back-up lamp

checked by an authorized HYUNDAI

(3) Tail/stop lamp

dealer.

(4) Tail lamp

(Bulb), Tail/stop lamp

(LED)

7 91

Maintenance

7. Insert a new bulb by inserting it

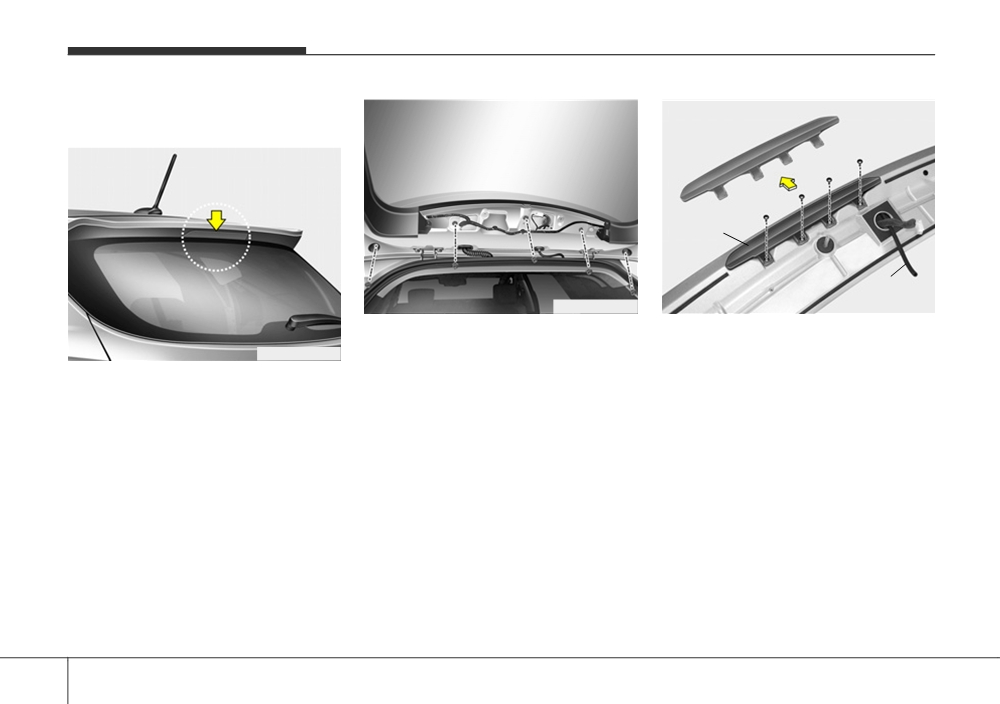

Inside lamp

into the socket and rotating it until

it locks into place.

8. Install the socket in the assembly

by aligning the tabs on the socket

with the slots in the assembly.

Push the socket into the assembly

and turn the socket clockwise.

9. Reinstall the lamp assembly to the

body of the vehicle.

ONCNMC2038

5. Remove the socket from the

ODM072036

assembly by turning the socket

1. Turn off the engine.

counterclockwise until the tabs on

the socket align with the slots on

2. Open the tailgate.

the assembly.

3. Remove the service cover using a

6. Remove the bulb from the socket

flat-blade screwdriver.

by pressing it in and rotating it

counterclockwise until the tabs on

the bulb align with the slots in the

socket. Pull the bulb out of the

socket.

7 92

Maintenance

7. Install the socket into the assem-

Rear fog lamp

bly by aligning the tabs on the

socket with the slots on the

assembly and turning the socket

clockwise.

8. Reinstall the lamp assembly to the

body of the vehicle

ONCNMC2039

Tail lamp/Back-up lamp (Bulb type)

ODMEMC2012

4. Remove the socket from the

1. Remove the socket from the

assembly by turning the socket

counterclockwise until the tabs on

the socket align with the slots on

the assembly.

5. Pull the bulb out of the socket.

2. Remove the bulb from the socket

6. Insert a new bulb into the socket.

by pressing it in and rotating it

counterclockwise until the tabs on

the bulb align with the slots in the

socket. Pull the bulb out of the

socket.

3. Insert a new bulb in the socket.

7 93

Maintenance

High mounted stop lamp

replacement

ODMEMC2022

ODMEMC2021

4.Loosen the retaining nuts and

5.Remove the high mounted stop

remove the spoiler.

lamp assembly (A) after loosening

OANNMC2037

the nuts and washer nozzle (B).

1.Open the tailgate.

6.Reinstall a new lamp assembly in

2.Gently remove the center cover of

the reverse order of removal.

the rear tailgate trim.

3.Disconnect the electrical connector.

7 94

Content .. 37 38 39 40 ..
