Hyundai Grand Santa Fe (2016 year). Instruction - part 13
Features of your vehicle
4. Search complete
■ Right side
■ Left side
- parallel mode
-parallel mode
50~150 cm
OLM041273
ODMEDR2103/ODMEDR2116
ODMEDR2104
✽ NOTICE
CAUTION
Slowly drive forward maintaining
the distance of approximately 50cm
While using the Smart Parking
~ 150cm (19.6in.~59.0in.) with the
Assist System if the Auto Hold
parked vehicles. If not within the
activates the above message
distance, the system may not be able
will appear. Turn the Auto Hold
to search for a parking space.
operation off. When you cancel
the Auto Hold operation by
depressing the accelerator
CAUTION
ODMEDR2145
pedal, always check the sur-
After searching for a parking
rounding area near your vehicle.
While driving forward to search for a
space is completed, continue
parking space, the above message
using the system after checking
will appear with a beep sound if the
the surrounding area.
search is complete. Stop the vehicle
and shift to the R (Reverse) position.
4 120
Features of your vehicle
5. Steering wheel control
CAUTION
WARNING
•
Always drive slowly with the
Do not put your hands between
brake pedal applied.
the steering wheel while it is
•
If the parking space is to small
being automatically controlled.
the system may be cancelled
at the Steering wheel control
stage. Do not park your vehi-
CAUTION
cle if the space is too small.
•
Always drive slowly with the
brake pedal applied.
•
Always check for objects
around your vehicle before
ODMEDR2105/ODMEDR2118
driving.
•
The above message will appear if
•
If the vehicle does not move
the shift lever is in R
(Reverse).
even though the brake pedal
The steering wheel will be con-
is not depressed, check the
trolled automatically.
surrounding before depress-
•
The system will be cancelled if you
ing the accelerator pedal. Be
firmly hold the steering wheel while
sure not to speed over 7km/h
it is controlled automatically.
(4.3mph).
•
The system will be cancelled if vehi-
cle speed is over 7km/h(4.3mph).
4 121
Features of your vehicle
✽ NOTICE
CAUTION
•
If you do not follow the instruc-
Always check the surrounding
tions provided, you may fail to
before releasing the brake pedal.
park your vehicle.
However, if the Parking Assist
System warning sound (distance
from object is within 30cm: con-
WARNING
tinuous beep) occurs, slowly drive
Always be careful while parking
the vehicle to the reverse direction
for other vehicles or pedestrians.
of the detected object after check-
ODMEDR2107/ODMEDR2108
ing the surrounding.
•
Always check the surrounding
before driving your vehicle if the
Parking Assist System warning
sound
(distance from object is
within 30cm: continuous beep) is
heard for the object is close to
your vehicle.
To cancel the system while parking
Press the Smart Parking Assist
ODMEDR2121/ODMEDR2122
System button or turn the steering
Gear shift while steering wheel control
wheel to the left or right.
When the above message appears
with a beep sound, shift the gear and
drive the vehicle with the brake pedal
depressed.
4 122
Features of your vehicle
6. Smart Parking Assist System
The system may be cancelled in the
Additional instructions
completed
below conditions:
(messages)
•
Ignoring the gear shift message
■ Type A
■ Type B
■ Type A
■ Type B
and drive the vehicle approximate-
ly 150cm (59in).
•
The front and rear Parking Assist
System warning sound (distance
from object is within 30cm: contin-
uous beep) is heard at the same
time.
•
6 minutes have passed since the
vehicle has been controlled by the
Smart Parking Assist System.
ODMEDR2109/ODMEDR2119
■ Type A
■ Type B
ODMEDR2110/ODMEDR2123
•
The shift lever is changed to the P
(Park) or R
(Reverse) position

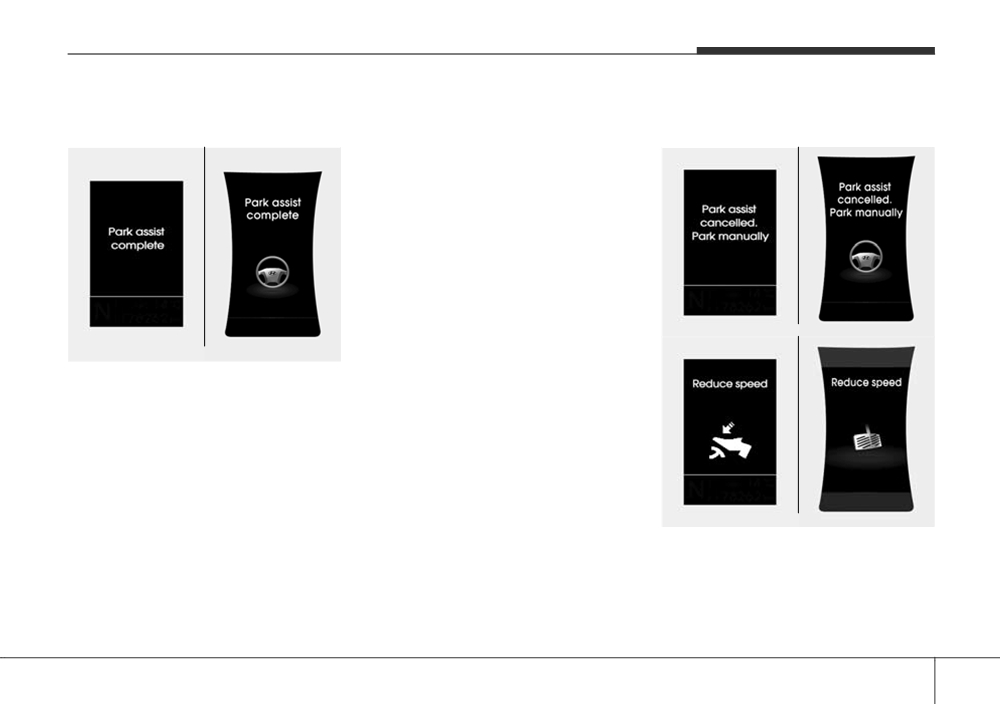

Complete parking your vehicle
while searching for parking space.
according to the instructions on the
LCD display. If required, manually
control the steering wheel and com-
plete parking your vehicle.
✽ NOTICE
The brake pedal must be depressed
ODMEDR2111/ODMEDR2124
by the driver while parking your
When the Smart Parking Assist
vehicle.
System is operating, a message may
appear regardless of the parking order.
4 123
Features of your vehicle
The messages will appear according
✽ NOTICE
System malfunction
to the circumstances. Follow the
In the below conditions the system
■ Type A
■ Type B
instructions provided while parking
will be cancelled. Park your vehicle
your vehicle with the Smart Parking
manually.
Assist System.
1. Search for parking space
- When the ABS/ESC is activated
- When the vehicle speed is over
40km/h (24.8mph)
- When you press the Smart
Parking Assist System button
(the front and rear Parking
Assist System operates)
- When you shift the shift lever to
ODMEDR2112/ODMEDR2125
R (Reverse)
2. Steering wheel control
•

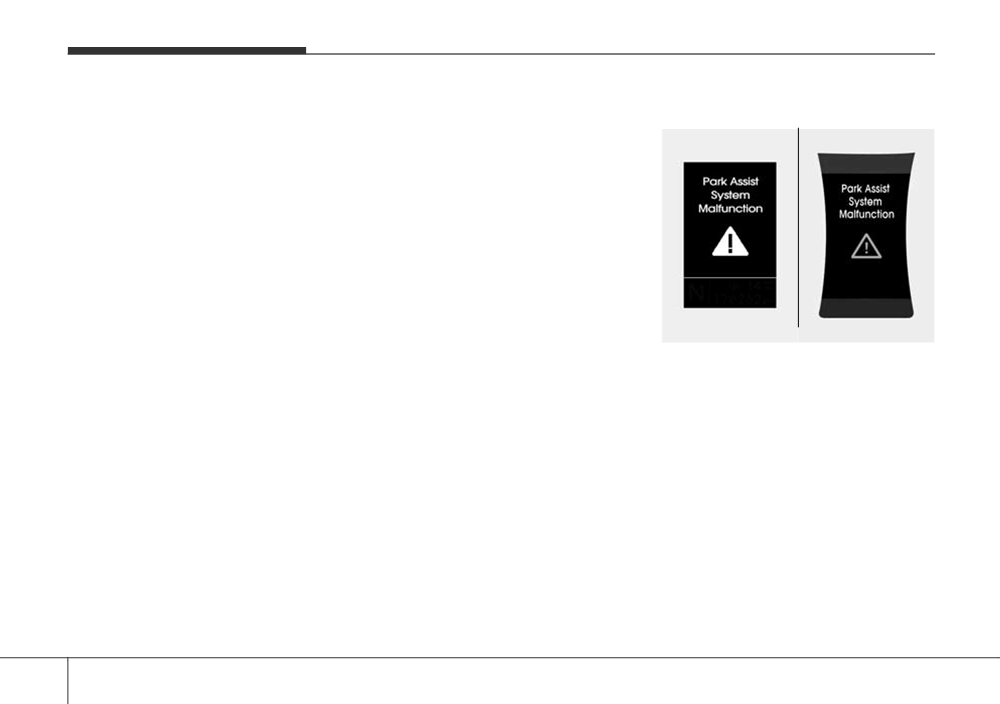

If there is a problem with the sys-
- When the ABS/ESC is activated
tem, when the system is turned on,
- When the vehicle speed is over
the above message will appear.
7km/h (4.3 mph)
Also, the indicator on the button
- When you press the Smart
will not light up and a beep sound
Parking Assist System button
will be heard 3 times.
(the front and rear Parking
•
If there is a problem with only the
Assist System operates)
Smart Parking Assist System, the
- When you shift the shift lever to
Parking Assist System will operate
D (Drive) before entering the
after 2 seconds.
parking space
If you notice any problem, we rec-
- When you hold the steering
ommend that the system be
wheel firmly
checked by an authorized
HYUNDAI dealer.
4 124
Features of your vehicle
REARVIEW CAMERA (IF EQUIPPED)
✽ NOTICE
The warning "Warning ! Check sur-
WARNING
roundings for safety" will appear on
•
This system is a supplemen-
the rearview display when the
tary function only. It is the
rearview camera is activated.
responsibility of the driver to
always check the inside/out-
side rearview mirror and the
area behind the vehicle before
and while backing up because
there is a dead zone that cannot
ODM042238
be seen through the camera.
•
Always keep the camera lens
clean. If the lens is covered
with foreign matter, the cam-
era may not operate normally.
ODM042239
The rearview camera will activate
when the back-up light is ON with the
ignition switch ON and the shift lever
in the R (Reverse) position.
4 125
Features of your vehicle

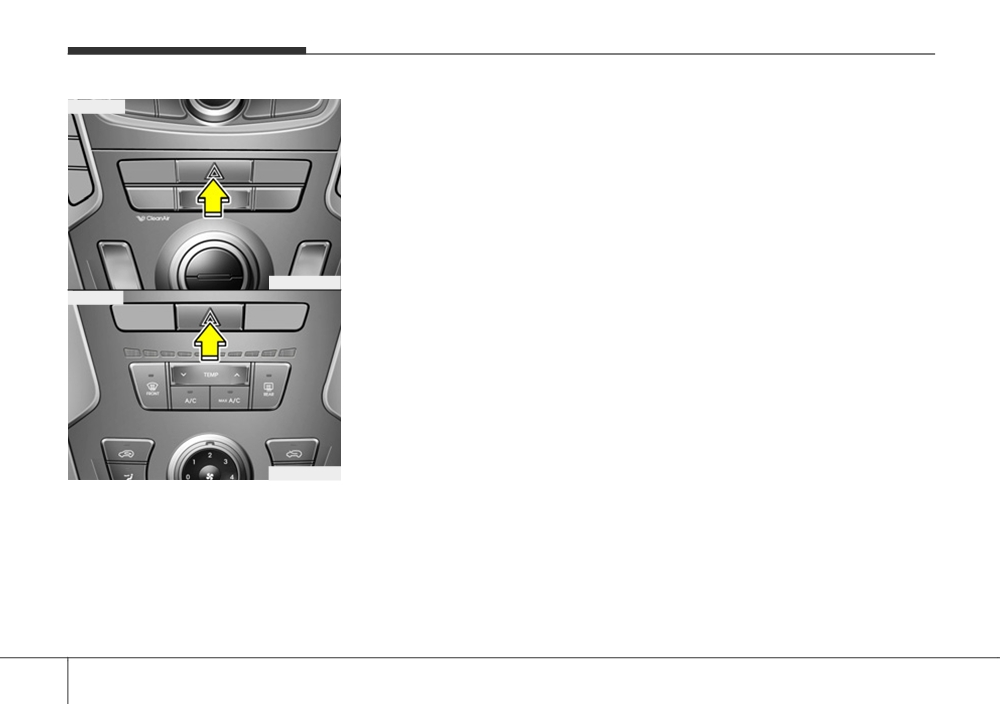

HAZARD WARNING FLASHER
■ Type A
The hazard warning lights are turned
on by pushing in the hazard switch.
This causes all turn signal lights to
blink. The hazard warning lights will
operate even though the key is not in
the ignition switch.
To turn the hazard warning lights off,
push the switch a second time.
ODM042242
■ Type B
ODM042243
The hazard warning flasher should
be used whenever you find it neces-
sary to stop the car in a hazardous
location. When you must make such
an emergency stop, always pull off
the road as far as possible.
4 126
Features of your vehicle
LIGHTING
Battery saver function
Headlight (Headlamp) escort
Lighting control
function (if equipped)
■ Type A
•
The purpose of this feature is to
prevent the battery from being dis-
The headlights
(and/or taillights)
charged. The system automatically
remain on for approximately 5 min-
turns off the parking lights when
utes after the ignition key is removed
the driver removes the ignition key
or turned to the ACC or LOCK posi-
and opens the driver- side door.
tion. However, if the driver’s door is
•
With this feature, the parking lights
opened and closed, the headlights
are turned off after 15 seconds.
will be turned off automatically if
the driver parks on the side of road
The headlights can be turned off by
ODMECO2004
at night.
pressing the lock button on the trans-
■ Type B
If necessary, to keep the lights on
mitter or smart key twice or turning
off the light switch from the headlight
when the ignition key is removed,
perform the following :
or Auto light position.
1) Open the driver-side door.
2) Turn the parking lights OFF and
ON again using the light switch
on the steering column.
ODMECO2005
CAUTION
The light switch has a Headlight and
a Parking light position.
If the driver gets out of the vehi-
cle through other doors (except

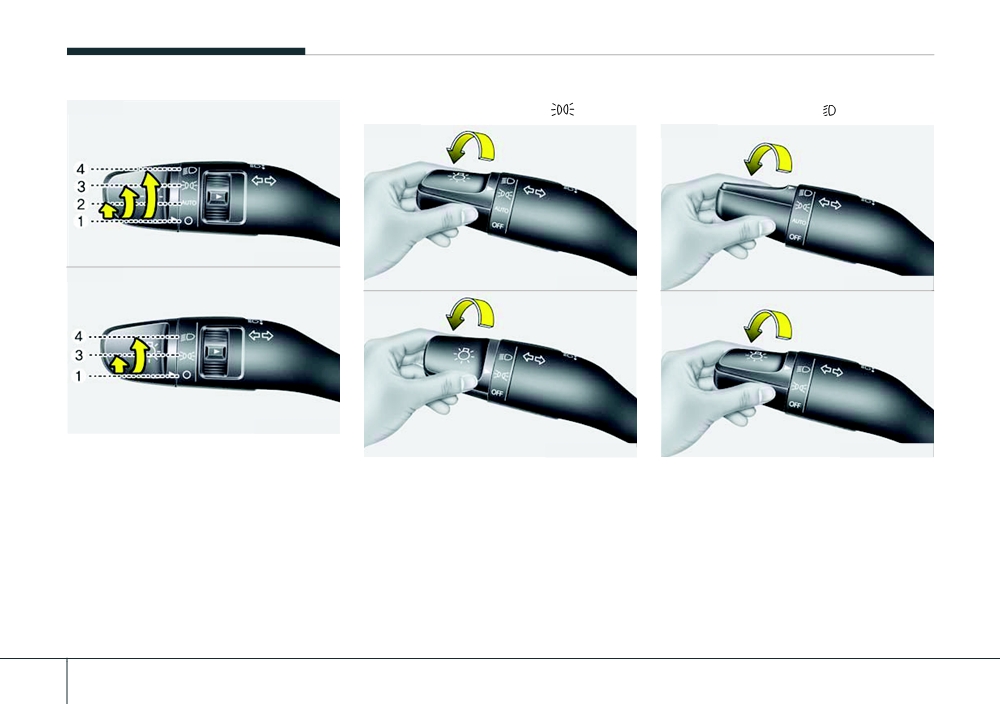

To operate the lights, turn the knob at
driver’s door), the battery saver
the end of the control lever to one of
function does not operate.
the following positions:
Therefore, it causes the battery
to be discharged. In this case,
make sure to turn off the lamp
before getting out of the vehicle.
4 127
Features of your vehicle
■ Type C
Parking light position (
)
Headlight position (
)
■ Type A
■ Type A
ODMECO2006
■ Type D
ODMECO2008
ODMECO2010
■ Type B
■ Type B
ODMECO2007
(1) OFF position
ODMECO2009
ODMECO2011
(2) Auto light position (if equipped)
When the light switch is in the park-
When the light switch is in the head-
(3) Parking light position
ing light position, the tail, position,
light position the head, tail, position,
license and instrument panel lights
(4) Headlight position
license and instrument panel lights
are ON.
are ON.
✽ NOTICE
The ignition switch must be in the
ON position to turn on the head-
lights.
4 128
Features of your vehicle
Auto light/AFLS position
Traffic change (for Europe)
CAUTION
(if equipped)
Use this function when you visit a
•
Never place anything over the
country with opposite traffic direction.
sensor
(1) located on the
If the traffic change is activated when
instrument panel, this will
you visit a country with opposite traf-
ensure better auto-light sys-
fic direction, it will decrease the daz-
tem control.
zle on oncoming vehicle drivers.
•
Don’t clean the sensor using a
Follow the below procedure.
window cleaner, the cleaner
may leave a light film which
could interfere with sensor
operation.
•
If your vehicle has window tint
or other types of coating on
ODMECO2012
the front windshield, the Auto
When the light switch is in the AUTO
light system may not work
light position, the taillights and head-
properly.
lights will be turned ON or OFF auto-
matically depending on the amount
of light outside the vehicle.
If your vehicle is equipped with the
adaptive front lighting system
(AFLS), it will also operate when the
headlamp is ON.
4 129
Features of your vehicle
■ Type A
■ Type B
■ Type A
■ Type B
■ Type A
■ Type B
ODMECO2072/ODMECO2073
ODMECO2074/ODMECO2075
OMDECO2040/ODMECO2041

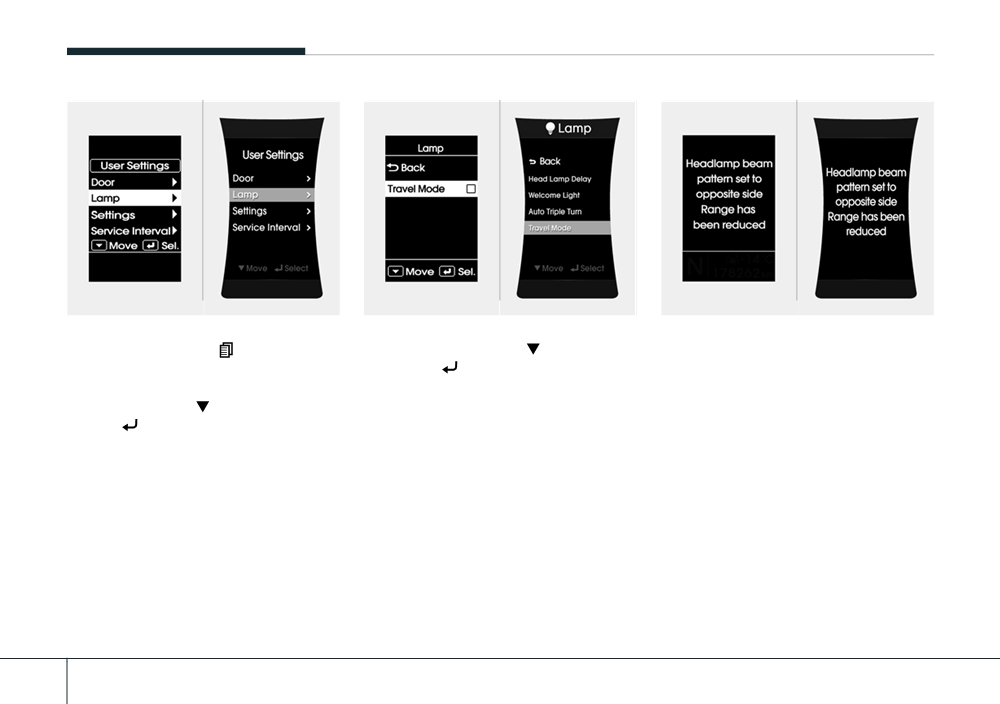

1. Select “User Settings” by pressing
3. Check “Travel Mode” by pressing
✽ NOTICE
the mode button (
) on the steer-
the move button (
) and select
If the engine is turned off with the
ing wheel.
button (
) on the steering wheel.
traffic change function activated,
2. Select
“Lamp” by pressing the
and the engine turned on again, the
move button (
) and select but-
above message will appear. It is to
ton (
) on the steering wheel.
notify the driver the function is acti-
vated.
4. To cancel the change, follow the
steps 1 to 3 from the previous page.
4 130
Features of your vehicle
High - beam operation
✽ NOTICE
Flashing headlights
• The high-beam indicator will light
when the headlight high beams are
switched on.
• To prevent the battery from being
discharged, do not leave the lights
on for a prolonged time while the
engine is not running.
WARNING
Do not use high beam when
there are other vehicles. Using
ODMECO2013
ODMECO2014
high beam could obstruct the
1. Turn the light switch to the head-
other driver's vision.
Pull the lever towards you. It will
light position.
return to the normal position when
2. Push the lever away from you.
released. The headlight switch does
not need to be on to use this flashing
feature.
4 131
Features of your vehicle
Turn signals and lane change
If an indicator stays on and does not
Front fog light (if equipped)
signals
flash or if it flashes abnormally, one of
the turn signal bulbs may be burned
out and will require replacement.
One-touch lane change function
(one touch turn signal)
(if equipped)
To activate an one-touch lane
change function, move the turn sig-
nal lever slightly and then release it.
The lane change signals will blink 3
ODMECO2015
(5 or 7, if equipped) times.
ODMECO2026
Fog lights are used to provide
The ignition switch must be on for the
You can activate/deactivate the One
improved visibility when visibility is
turn signals to function. To turn on
Touch Turn Signal function or choose
poor due to fog, rain or snow, etc.
the turn signals, move the lever up or
the number of blinking (3, 5, or 7)
1. Turn on the park light.
down (A). Green arrow indicators on
from the User Settings Mode on the
2. Turn the light switch (1) to the front
the instrument panel indicate which
LCD display (if equipped).
fog light position.
turn signal is operating.
3. To turn off the front fog light, turn
They will self-cancel after a turn is
✽ NOTICE
the light switch to the front fog light
completed. If the indicator continues
If an indicator flash is abnormally
position again or turn off the park
to flash after a turn, manually return
quick or slow, bulb may be burned
light.
the lever to the OFF position.
out or have a poor electrical connec-
To signal a lane change, move the
tion in the circuit.
turn signal lever slightly and hold it in
position (B). The lever will return to
the OFF position when released.
4 132
Features of your vehicle
Rear fog light (if equipped)
To turn the rear fog lights off, do one
CAUTION
of the following:
When in operation, the fog
• Turn off the headlight switch.
lights consume large amounts
• Turn the light switch to the rear fog
of vehicle electrical power. Only
light position again.
use the fog lights when visibility
• When the light switch in the park
is poor.
light, if you turn off the front fog
light, the rear fog light will also turn
off.
ODMECO2016
To turn on the rear fog lights, do one
of the following:
• Position the light switch in the
headlight position and then turn
the light switch (1) to the rear fog
light position.
• Position the light switch in the park
light, turn the light switch to the
front fog light (if equipped) position,
and then turn the light switch (1) to
the rear fog light position.
4 133
Features of your vehicle
Daytime running light
Headlight leveling device
Listed below are the examples of
(if equipped)
(if equipped)
proper switch settings. For loading
conditions other than those listed
Daytime Running Lights (DRL) can
Manual type
below, adjust the switch position so
make it easier for others to see the
that the beam level may be the near-
front of your vehicle during the day.
est as the condition obtained accord-
DRL can be helpful in many different
ing to the list.
driving conditions, and it is especial-
ly helpful after dawn and before sun-
Loading condition
Switch position
set.
Driver only
0
The DRL system will turn off the ded-
Driver + Front passenger
0
icated lamp when:
Full passengers
1
1. The front fog light or headlight (low
(including driver)
beam) switch is ON.
Full passengers (including
2. The engine is OFF.
driver) + Maximum permis-
2
ODMECO2017
sible loading
Driver + Maximum permis-
To adjust the headlight beam level
3
sible loading
according to the number of the pas-
sengers and the loading weight in
the luggage area, turn the beam lev-
eling switch.
The higher the number of the switch
is positioned, the lower the headlight
beam level. Always keep the head-
light beam at the proper leveling
position, or headlights may dazzle
other road users.
4 134
Features of your vehicle
Automatic type
Adaptive front lighting system
It automatically adjusts the headlight
(AFLS) (if equipped)
beam level according to the number
of passengers and loading weight in
the luggage area.
And it offers proper headlight beam
under various conditions.
WARNING
If it does not work properly even
though your car is inclined
ODMECO2018
backward according to passen-
If the AFLS malfunction indicator
ger's posture, or the headlight
comes on, the AFLS is not working
ODM042247
beam is irradiated to the high or
properly. Drive to the nearest safe
low position, we recommend
Adaptive front lighting system uses
location and restart the engine. If the
that you have your vehicle
the steering angle and vehicle
indicator continuously remains on,
inspected by an authorized
speed, to keep your field of vision
we recommend that you take your
HYUNDAI dealer.
wide by swiveling and leveling the
vehicle to an authorized HYUNDAI
headlamp.
Do not attempt to inspect or
dealer and have the system checked.
replace the wiring yourself.
Change the switch to the AUTO posi-
tion when the engine is running. The
adaptive front lighting system will
operate when the headlamp is ON.
To turn off the AFLS, change the
switch to other positions. After turn-
ing the AFLS off, headlamp swiveling
no longer occurs, but leveling oper-
ates continuously.
4 135
Features of your vehicle

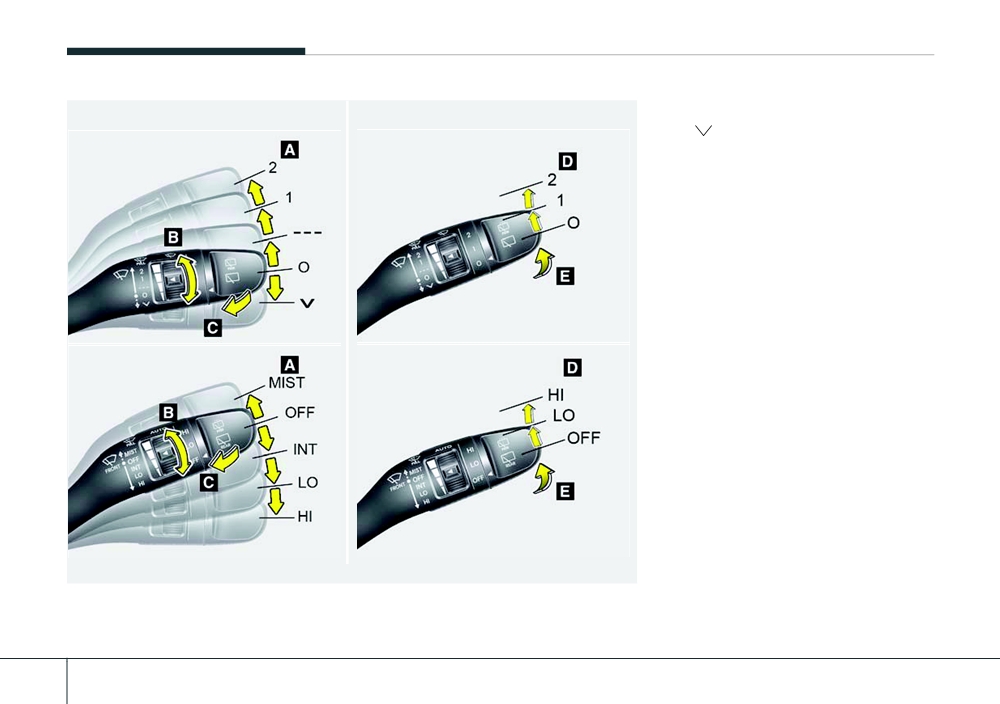

WIPERS AND WASHERS
A : Wiper speed control (front)
Windshield wiper/washer
Rear window wiper/washer
·
/ MIST - Single wipe
■ Type A
■ Type A
· O / OFF - Off
· --- / INT - Intermittent wipe
AUTO* - Auto control wipe
· 1 / LO- Low wiper speed
· 2 / HI - High wiper speed
B : Intermittent control wipe time
adjustment
C : Wash with brief wipes (front)*
■ Type B
■ Type B
D : Rear wiper/washer control*
· HI / 2 - High wiper speed
· LO / 1 - Low wiper speed
· OFF / O - Off
E : Wash with brief wipes•(rear)
* : if equipped
ODMECO2019/ODM042252/ODMECO2020/ODM042253
4 136
