IF YOU HAVE A FLAT TIRE (WITH TIRE MOBILITY KIT, IF EQUIPPED)
Introduction
CAUTION
When two or more tires are flat,
do not use the tire mobility kit
because the supported one
sealant of Tire Mobility Kit is
only used for one flat tire.
WARNING
OTL065033
Do not use the Tire Mobility Kit
For safe operation, carefully read
to repair punctures in the tire
OTL065034
and follow the instructions in this
walls. This can result in an acci-
manual before use.
dent due to tire failure.
With the Tire Mobility Kit you stay
mobile even after experiencing a tire
(1) Compressor
puncture.
(2) Sealant bottle
6
WARNING
The system of compressor and seal-
The Tire Mobility Kit is a temporary
ing compound effectively and com-
fix to the tire and we recommend that
Have your tire repaired as soon
fortably seals most punctures in a
the system be inspected by an
as possible. The tire may loose
passenger car tire caused by nails
authorized HYUNDAI dealer.
air pressure at any time after
or similar objects and reinflates the
inflating with the Tire Mobility Kit.
tire.
After you ensured that the tire is
properly sealed you can drive cau-
tiously on the tire (distance up to 200
km (120 miles)) at a max. speed of
80 km/h (50 mph) in order to reach a
service station or tire dealer to have
the tire replaced.
6-25
What to do in an emergency
It is possible that some tires, espe-
Notes on the safe use of the
•
Do not use the Tire Mobility Kit if a
cially with larger punctures or dam-
Tire Mobility Kit
tire is severely damaged by driving
age to the sidewall, cannot be sealed
run flat or with insufficient air pres-
•
Park your car at the side of the
completely.
sure.
road so that you can work with the
Air pressure loss in the tire may
•
Do not remove any foreign objects
Tire Mobility Kit away from moving
adversely affect tire performance.
traffic.
such as nails or screws that have
For this reason, you should avoid
penetrated the tire.
abrupt steering or other driving
•
To be sure your vehicle will not
move, even when you're on fairly
•
Provided the car is outdoors, leave
maneuvers, especially if the vehicle
the engine running. Otherwise
is heavily loaded or if a trailer is in
level ground, always set your park-
ing brake.
operating the compressor may
use.
eventually drain the car battery.
The Tire Mobility Kit is not designed
•
Only use the Tire Mobility Kit for
•
Never leave the Tire Mobility Kit
or intended as a permanent tire
sealing/inflation passenger car
repair method and is to be used for
tires. Only punctured areas located
unattended while it is being used.
one tire only. This instruction shows
within the tread region of the tire
•
Do not leave the compressor run-
you step by step how to temporarily
can be sealed using the tire mobil-
ning for more than 10 min. at a time
seal the puncture simply and reliably.
ity kit.
or it may overheat.
Read the section "Notes on the safe
•
Do not use on motorcycles, bicy-
•
Do not use the Tire Mobility Kit if
use of the Tire Mobility Kit".
cles or any other type of tires.
the ambient temperature is below
•
When the tire and wheel are dam-
-30°C (-22°F).
WARNING
aged, do not use Tire Mobility Kit
for your safety.
Do not use the TMK if a tire is
•
Use of the Tire Mobility Kit may not
severely damaged by driving run
be effective for tire damage larger
flat or with insufficient air pres-
than approximately 6 mm (0.24 in).
sure.
If the tire cannot be made roadwor-
Only punctured areas located
thy with the Tire Mobility Kit, we
within the tread region of the tire
recommend that you contact an
can be sealed using the TMK.
authorized HYUNDAI dealer.
6-26
Components of the Tire Mobility Kit
9. Hose to connect compressor and
sealant bottle or compressor and
wheel
Connectors, cable and connection
hose are stored in the compressor
housing.
WARNING
Expired sealant
Do not use the Tire sealant after
the sealant has expired
(i.e.
pasted the expiration date on
the sealant container). This can
increase the risk of tire failure.
6
WARNING
Sealant
OEL069020
• Keep out of reach of children.
0. Speed- restriction label
4. Holder for the sealant bottle
• Avoid contact with eyes.
1. Sealant bottle and label with
5. Compressor
• Do not swallow.
speed restriction
6. On/off switch
2. Filling hose from sealant bottle to
7. Pressure gauge for displaying the
wheel
tire inflation pressure
Strictly follow the specified sequence,
3. Connectors and cable for the
8. Button for reducing tire inflation
otherwise the sealant may escape
power outlet direct connection
under high pressure.
pressure
6-27
What to do in an emergency
Using the Tire Mobility Kit
1. Detach the speed restriction label
(0) from the sealant bottle (1), and
place it in a highly visible place
inside the vehicle such as on the
steering wheel to remind the driv-
er not to drive too fast.
2. Screw connection hose (9) onto
the connector of the sealant bot-
tle.
OTL065036
3. Ensure that button (8) on the com-
OTL065040
pressor is not pressed.
4. Unscrew the valve cap from the
CAUTION
valve of the defective wheel and
screw filling hose
(2) of the
Securely install the sealant fill-
sealant bottle onto the valve.
ing hose to the valve. If not,
5. Insert the sealant bottle into the
sealant may flow backward,
housing of the compressor (4) so
possibly clogging the filling
that the bottle is upright.
hose.
OLMF064105
6. Ensure that the compressor is
switched off, position 0.
6-28
8. With the engine start/stop button
9. Switch off the compressor.
position on or ignition switch posi-
10. Detach the hoses from the
tion on, switch on the compressor
sealant bottle connector and
and let it run for approximately
from the tire valve.
5~7 minutes to fill the sealant up
Return the Tire Mobility Kit to its stor-
to proper pressure. (refer to the
age location in the vehicle.
Tire and Wheels, chapter 8). The
inflation pressure of the tire after
filling is unimportant and will be
WARNING
checked/corrected later.
Be careful not to overinflate the
Carbon monoxide
OTL065037
tire and stay away from the tire
Do not leave your vehicle run-
when filling it.
7. Connect between compressor and
ning in a poorly ventilated area
the vehicle power outlet using the
for extended periods of time.
cable and connectors.
Carbon monoxide poisoning
CAUTION
and suffocation can occur.
WARNING
Tire pressure
6
Do not attempt to drive your
Only use the front passenger
vehicle if the tire pressure is
side power outlet when con-
below
29 PSI
(200kpa). This
necting the power cord.
could result in an accident due
to sudden tire failure.
6-29
What to do in an emergency
Distributing the sealant
Checking the tire inflation
CAUTION
pressure
Do not exceed a speed of 80
km/h (50 mph). If possible, do
not fall below a speed of
20
km/h (12 mph).
While driving, if you experience
any unusual vibration, ride dis-
turbance or noise, reduce your
speed and drive with caution
until you can safely pull off of
the side of the road.
OLMF064106
Call for road side service or
towing. When you use the Tire
OTL065038
11. Immediately drive approximately
Mobility Kit, the tire pressure
7~10 km (4~6 miles or, about
1. After driving approximately 7~10
10min) to evenly distribute the
sensors and wheel may be dam-
km (4~6 miles or about 10 min),
aged by sealant, remove the
sealant in the tire.
stop at a safety location.
sealant stained with tire pres-
2. Connect connection hose (9) of
sure sensors and wheel and
the compressor directly to the tire
inspect in authorized dealer.
valve.
3. Plug the compressor power cord
into the vehicle power outlet.
4. Adjust the tire inflation pressure to
the recomended tire inflation.
With the ignition swithched on,
proceed as follows.
6-30
- To increase the inflation pres-
CAUTION
CAUTION
sure : Switch on the compres-
sor, position I. To check the cur-
If the inflation pressure is not
Tire pressure sensor
rent inflation pressure setting,
maintained, drive the vehicle a
briefly switch off the compressor.
The sealant on the tire pressure
second time, refer to Distributing
sensor and wheel should be
the sealant. Then repeat steps 1
WARNING
removed when you replace the
to 4.
tire with a new one and inspect
Use of the TMK may be ineffec-
Do not let the compressor run
the tire pressure sensors in
for more than 10 minutes, other-
tual for tire damage larger than
authorized dealer.
approximately 4 mm (0.16 in).
wise the device will overheat
and may be damaged.
We recommend that you contact
an authorized HYUNDAI dealer if
the tire cannot be made road-
NOTICE
worthy with the Tire Mobility Kit.
The pressure gauge may show
higher than actual reading when
WARNING
6
the compressor is running. To get
an accurate tire reading, the com-
The tire inflation pressure must
pressor needs to be turned off.
be at least 220 kPa (32 psi). If it
is not, do not continue driving.
- To reduce the inflation pres-
Call for road side service or tow-
sure: Press the button 8 on the
ing.
compressor.
6-31
What to do in an emergency
❈ Sealant and spare parts can be
obtained and replaced at an author-
ized vehicle or tire dealer. Empty
sealant bottles may be disposed of
at home. Liquid residue from the
sealant should be disposed of by
your vehicle or tire dealer or in
accordance with local waste dispos-
al regulations.
6-32
TOWING
Towing service
On 4WD vehicles, your vehicle must
be towed with a wheel lift and dollies
or flatbed equipment with all the
wheels off the ground.
CAUTION
The 4WD vehicle should never
be towed with the wheels on the
OTL065028
ground. This can cause serious
damage to the transaxle or the
Dollies
4WD system.
On 2WD vehicles, it is acceptable to
tow the vehicle with the rear wheels
on the ground (without dollies) and
the front wheels off the ground.
Dollies
6
OTL065026
If any of the loaded wheels or sus-
OTL065027
pension components are damaged

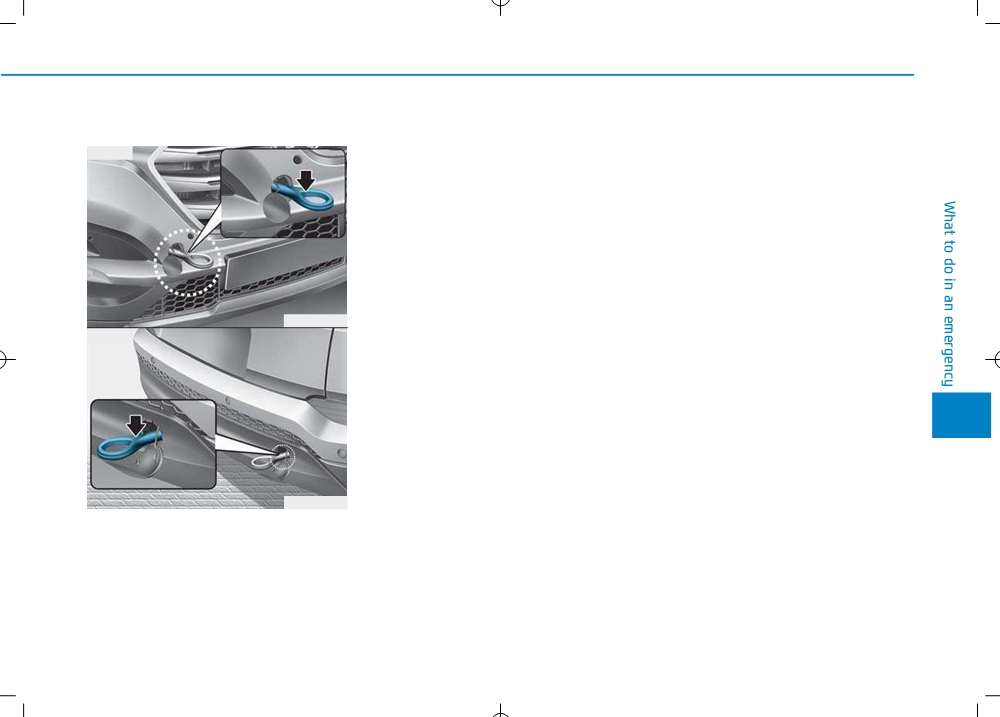

If emergency towing is necessary,
or the vehicle is being towed with the
we recommend having it done by an
front wheels on the ground, use a
CAUTION
authorized HYUNDAI dealer or a
towing dolly under the front wheels.
commercial tow-truck service.
•
Do not tow the vehicle with the
When being towed by a commercial
Proper lifting and towing procedures
tow truck and wheel dollies are not
front wheels on the ground as
are necessary to prevent damage to
used, the front of the vehicle should
this may cause damage to the
the vehicle. The use of wheel dollies
always be lifted, not the rear.
vehicle.
or flatbed is recommended.
•
Do not tow with sling-type
equipment. Use wheel lift or
flatbed equipment.
6-33
What to do in an emergency
Removable towing hook
■ Front
WARNING
If your vehicle is equipped with
a rollover sensor, place the igni-
tion switch in the LOCK/OFF or
ACC position when the vehicle
is being towed. The side impact
and curtain air bag may deploy
if the sensor detects the situa-
tion as a rollover.
OTL065022
■ Rear
When towing your vehicle in an
OTL065021
emergency without wheel dollies:
1. Open the tailgate, and remove the
1. Place the ignition switch in the
towing hook from the tool case.
ACC position.
2. Place the shift lever in N (Neutral).
3. Release the parking brake.
OTL065024
CAUTION
2. Remove the hole cover pressing
Failure to place the shift lever in
the lower part of the cover on the
N (Neutral) may cause internal
front bumper.
damage to the transaxle.
3. Install the towing hook by turning it
clockwise into the hole until it is
fully secured.
4. Remove the towing hook and
install the cover after use.
6-34
Emergency towing
If towing service is not available in an
Always follow these emergency tow-
emergency, your vehicle may be
ing precautions:
■ Front
temporarily towed using a cable or
•
Place the ignition switch in the ACC
chain secured to the emergency tow-
position so the steering wheel is not
ing hook at the front (or rear) of the
locked.
vehicle.
•
Place the shift lever in N (Neutral).
Use extreme caution when towing
•
Release the parking brake.
the vehicle with a cable or chain. A
driver must be in the vehicle to steer
•
Depress the brake pedal with more
it and operate the brakes.
force than normal since you will
have reduced braking perform-
Towing in this manner may be done
ance.
OTL065023
only on hard-surfaced roads for a
■ Rear
short distance and at low speeds.
•
More steering effort will be required
Also, the wheels, axles, power train,
because the power steering system
steering and brakes must all be in
will be disabled.
good condition.
•
Use a vehicle heavier than your
own to tow your vehicle.
6
•
The drivers of both vehicles should
communicate with each other fre-
quently.
•
Before emergency towing, check
that the hook is not broken or dam-
OTL065031
aged.
If towing is necessary, we recommend
•
Fasten the towing cable or chain
you have it done by an authorized
securely to the hook.
HYUNDAI dealer or a commercial tow
truck service.
•
Do not jerk the hook. Apply steady
and even force.
6-35
What to do in an emergency
CAUTION
To avoid damage to your vehicle
and vehicle components when
towing:
•
Always pull straight ahead
when using the towing hooks.
Do not pull from the side or at
a vertical angle.
•
Do not use the towing hooks
OTL065029
to pull a vehicle out of mud,
sand or other conditions from
•
Use a towing cable or chain less
which the vehicle cannot be
than 5 m (16 feet) long. Attach a
driven out under its own
white or red cloth (about 30 cm (12
power.
inches) wide) in the middle of the
cable or chain for easy visibility.
•
Limit the vehicle speed to
15 km/h (10 mph) and drive
•
Drive carefully so the towing cable
less than 1.5 km (1 mile) when
or chain remains tight during towing.
towing to avoid serious dam-
•
Before towing, check the automatic
age to the automatic transaxle.
transaxle/dual clutch transmission
for fluid leaks under your vehicle. If
the automatic transaxle fluid is
leaking, flatbed equipment or a
towing dolly must be used.
6-36
EMERGENCY COMMODITY (IF EQUIPPED)
Your vehicle is equipped with emer-
First aid kit
To check the tire pressure, take the
gency commodities to help you
following steps:
Supplies for use in giving first aid
respond to emergency situation.
such as scissors, bandage and
1. Unscrew the inflation valve cap
adhesive tape, etc. are provided.
that is located on the rim of the
tire.
Fire extinguisher
2. Press and hold the gauge against
If there is small fire and you know how
Triangle reflector
the tire valve. Some air will leak as
to use the fire extinguisher, follow
you begin and more will leak if you
these steps carefully.
Place the triangle reflector on the
don't press the gauge in firmly.
road to warn oncoming vehicles dur-
1. Pull out the safety pin at the top of
ing emergencies, such as when the
3. A firm non-leaking push will acti-
the extinguisher that keeps the han-
vehicle is parked by the roadside due
vate the gauge.
dle from being accidentally pressed.
to problems.
4. Read the tire pressure on the gauge
2. Aim the nozzle towards the base
to see whether the tire pressure is
of the fire.
low or high.
Tire pressure gauge
3. Stand approximately 2.5 m (8 ft)
(if equipped)
5. Adjust the tire pressure to the
away from the fire and squeeze
specified pressure. Refer to “Tires
the handle to discharge the extin-
Tires normally lose some air in day-
and Wheels” in chapter 8.
6
guisher. If you release the handle,
to-day use, and you may have to add
the discharge will stop.
a air periodically and usually it is not
6. Reinstall the inflation valve cap.
4. Sweep the nozzle back and forth
a sign of a leaking tire, but of normal
at the base of the fire. After the fire
wear. Always check tire pressure
appears to be out, watch carefully
when the tires are cold because tire
since it may re-ignite.
pressure increases with temperature.
6-37
What to do in an emergency
ERA-GLONASS EMERGENCY CALL (IF EQUIPPED)
The car is equipped with a device*
connected with the system ERA-
GLONASS for making emergency
call to response teams. The system
ERA-GLONASS is an automatic
emergency call service made in
event of a traffic accident or other**
accidents on the roads of Russian
Federation.
The system allows contacting with
an officer of the single duty dispatch
service in case of accidents on the
roads of Russian Federation. The
system ERA-GLONASS given condi-
tions, stated in the Owner’s Manual
as well as Warranty and Service
book transmits data to the single
duty dispatch service, including such
information as vehicle location, vehi-
ETL-001
cle type, VIN (vehicle identification

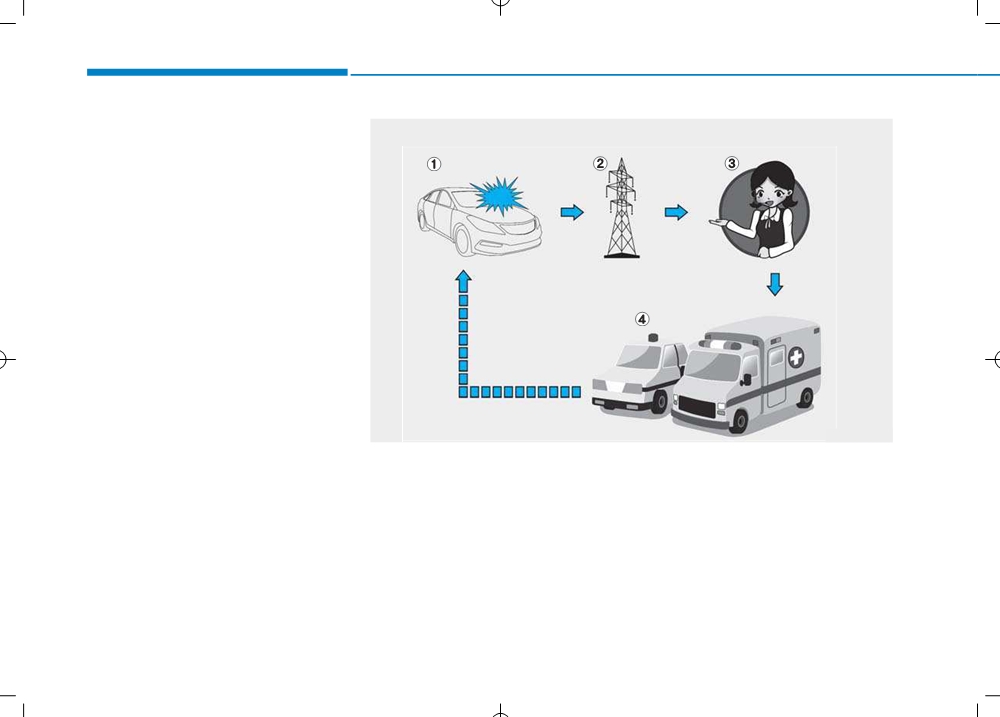

➀ Road accident
number of the car).
➁ Wireless network
➂ Single duty dispatch service (SDDS)
➃ Rescue
* ERA-GLONASS device in the Owner's Manual means equipment, installed in the car, which provides connection with the ERA-GLONASS system.
** "Other accidents' mean any accidents on the roads of Russian Federation resulted in injured people and/or necessity of provision of assistance.
In case of registration of any accident, it is necessary to stop a vehicle, press button SOS (location of the button is specified on the picture in the
chapter "ERA-GLONASS EMERGENCY CALL (IF EQUIPPED)") of the Owner’s Manual. When making a call, the system gathers information
about the car (from which a call was made), after which connects the car with an officer of the single duty dispatch service to tell about the rea-
son of the emergency call.
6-38
Once the data which stored in the
ERA-GLONASS system
SOS button: the driver/passenger
ERA-GLONASS system is delivered
makes an emergency call to the sin-
to the rescue center to assist the
gle duty dispatch service by pressing
driver and passengers with proper
the button.
rescue operations, the data will be
deleted after rescue operation is
SOS TEST button (test): the button
completed.
is to check working ability of the sys-
Operator of the system ERA-
tem in the official dealership of
GLONASS
(stock
company
Hyundai. The mode "SOS TEST" can
"GLONASS") is responsible for all
be activated strictly by the specialist
components of the system ERA-
of the authorized dealership of
GLONASS
(excluding equipment,
Hyundai. To avoid erroneous calls,
installed in the car) in accordance with
please, do not press this button and
ETL-004
the federal law "On state automated
do not activate the mode "SOS
information system ERA-GLONASS"

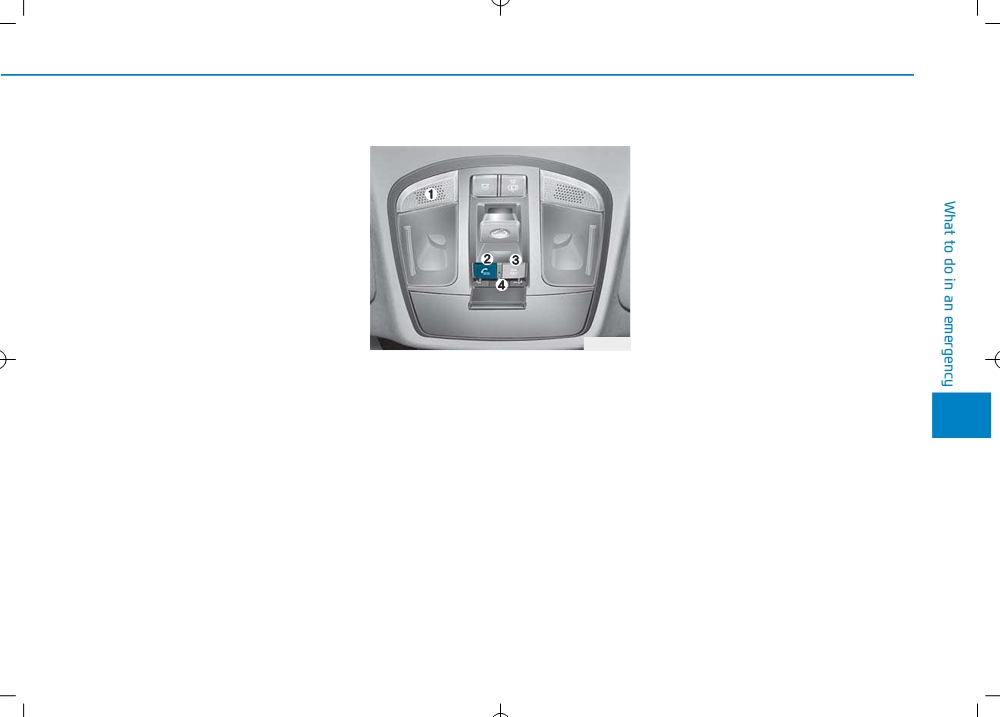

Elements of the system ERA-
TEST" by yourself.
# 395-FZ from 28.12.2013.
GLONASS, installed in passenger
compartment:
LED: The red and green LED illumi-
6
➀ Microphone
nates for 3 seconds when the ignition
➁ SOS button
switch is in the ON position. After that
➂ SOS TEST button
they will switch off at normal opera-
tion of the system.
➃ LED
If there are some problems in the
system, the LED remains in red.
6-39
What to do in an emergency
Automatic accident reporting
i
Information
System operation in the
Connection with the single
Emergency services
In even of minor traffic accidents the
event of a traffic accident
duty dispatch service
ERA-GLONASS system may not exe-
cute an emergency call. However, an
emergency call may be made manual-
ly by pressing the SOS button.
CAUTION
ETL-002
Operation of the system is
impossible in case of absence
The ERA-GLONASS device automatically makes an emergency call to the sin-
of mobile transmission and
gle duty dispatch service for proper rescuing operations in event of car acci-
GPS and GLONASS signals.
dent.
For proper emergency services and support the ERA-GLONASS system auto-
matically transmits the accident data to the single duty dispatch service when
a traffic accident is detected.
In this case, the emergency call cannot be hung up by pressing the SOS but-
ton and the ERA-GLONASS system remains connected until the emergency
service officer, receiving the call, disconnects the emergency call.
6-40
Manual accident reporting
1. Stop a car, after which in accor-
Connection with the single
dance with traffic rules to ensure
Pressing the SOS button
Emergency services
duty dispatch service
safety to yourself and other partic-
ipants of road traffic;
2. Press the SOS button, when
pressing the button SOS registra-
tion of the device in the wireless
telephonic communication net-
works is carried out, minimum
data set about car and its location
ETL-003
is collected in accordance with of
the technical requirements of the
Driver or passenger manually can make an emergency call in the single duty
device. After that connection with
dispatch service, by pressing SOS button to call the necessary emergency
the officer of the ERA-GLONASS
services.
system is made for clearing up
A call to the emergency services through the ERA-GLONASS system can be
reasons (conditions) of the emer-
cancelled by pressing the SOS button again only before the call connection.
6
gency call.
After activation of emergency call in the manual mode (for proper emergency
3. After clearing up reasons of the
services and support), the ERA-GLONASS system automatically transmits the
emergency call, the officer of the
road accident data / or data on other accident to the officer of the single duty
single duty dispatch service sends
dispatch service (during emergency call) by pressing the SOS button.
minimum data set to emergency
In case of road accident or other accident for activation of emergency call in
services and completes the emer-
manual mode it is necessary:
gency call.
If the emergency call is not carried
out in accordance with the proce-
dure, mentioned above, the emer-
gency call will be considered as erro-
neous.
6-41
