What to do in an emergency
IF THE ENGINE OVERHEATS
3. If engine coolant is running out
WARNING
under the vehicle or steam is com-
ing out from the hood, stop the
While the engine is
engine. Do not open the hood until
running, keep hands,
the coolant has stopped running
clothing and tools
or the steaming has stopped. If
away from the mov-
there is no visible loss of engine
ing parts such as the
coolant and no steam, leave the
cooling fan and drive
engine running and check to be
belt to prevent seri-
sure the engine cooling fan is
ous injury.
operating. If the fan is not running,
turn the engine off.
OTL065010
If your temperature gauge indicates
4. Check for coolant leaking from the
overheating, you experience a loss
radiator, hoses or under the vehi-
of power, or hear loud pinging or
cle. (If the air conditioning had been
knocking, the engine may be over-
in use, it is normal for cold water to
heating. If this happens, you should:
be draining from it when you stop.)
1. Pull off the road and stop as soon
5. If engine coolant is leaking out, stop
as it is safe to do so.
the engine immediately and we rec-
2. Place the shift lever in P (Park, for
ommend that you call an authorized
automatic transaxle/dual clutch
HYUNDAI dealer for assistance.
transmission vehicle) or neutral (for
manual transaxle/dual clutch trans-
mission vehicle) and set the park-
ing brake. If the air conditioning is
ON, turn it OFF.
6-8
6. If you cannot find the cause of the
WARNING
CAUTION
overheating, wait until the engine
temperature has returned to nor-
NEVER remove the
•
Serious loss of coolant indi-
mal. Then, if coolant has been
radiator cap or the
cates a leak in the cooling
lost, carefully add coolant to the
drain plug while the
system and we recommend
reservoir to bring the fluid level in
engine and radiator
the system be checked by an
the reservoir up to the halfway
are hot. Hot coolant
authorized HYUNDAI dealer.
mark.
and steam may blow out under
7. Proceed with caution, keeping
•
When the engine overheats
pressure, causing serious injury.
from low engine coolant, sud-
alert for further signs of overheat-
Turn the engine off and wait
denly adding engine coolant
ing. If overheating happens again,
until the engine cools down.
may cause cracks in the
we recommend that you call an
Use extreme care when remov-
engine. To prevent damage,
authorized HYUNDAI dealer for
ing the radiator cap. Wrap a
add engine coolant slowly in
assistance.
thick towel around it, and turn it
small quantities.
counterclockwise slowly to the
first stop. Step back while the
pressure is released from the
6
cooling system. When you are
sure all the pressure has been
released, press down on the
cap, using a thick towel, and
continue turning counterclock-
wise to remove it.
6-9
What to do in an emergency
TIRE PRESSURE MONITORING SYSTEM (TPMS) (IF EQUIPPED)

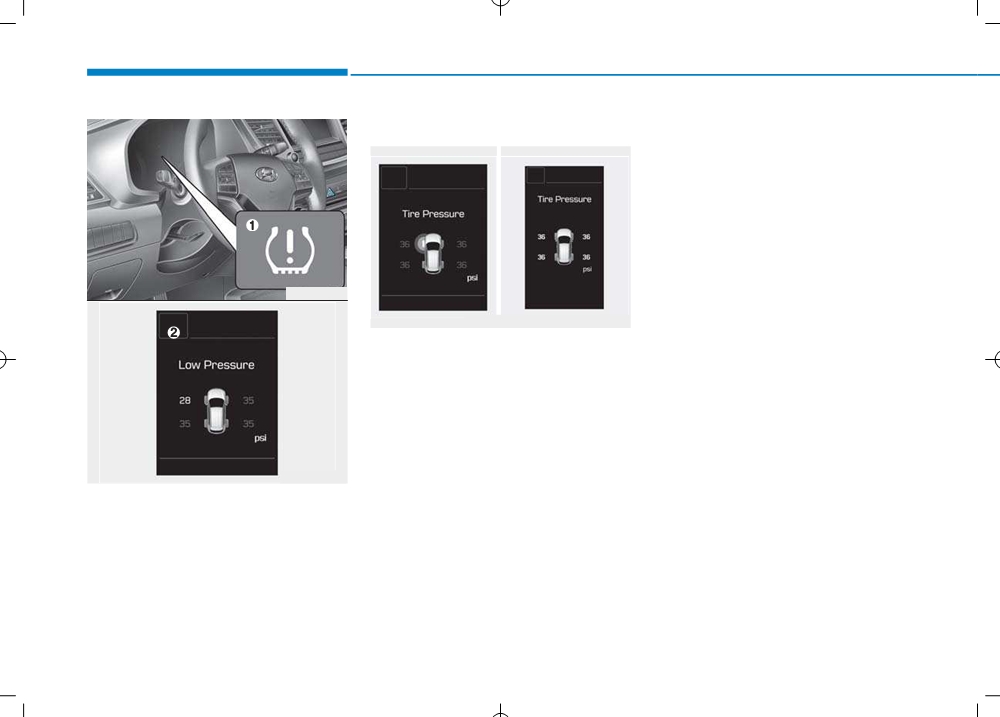

Check tire pressure
• You can change the tire pressure
unit in the User Settings mode on
■ Type A
■ Type B
the instrument cluster.
- psi, kpa, bar
(Refer to "User
Settings mode" in chapter 3).
OTL065003
OTLE065017/OTLE065018
•
You can check the tire pressure in the
information mode on the instrument
cluster.
Refer to "User Settings mode" in
chapter 3.
•
Tire pressure is displayed few min-
utes later after driving.
OTL045504L
•
If tire pressure is not displayed when
(1) Low Tire Pressure Telltale/
the vehicle is stopped, “Drive to dis-
TPMS Malfunction Indicator
play” message will appear. After driv-
(2) Low tire pressure position telltale
ing, check the tire pressure.
and tire pressure telltale
(Shown on the LCD display)
6-10
Tire pressure monitoring sys-
As an added safety feature, your
Your vehicle has also been equipped
tem
vehicle has been equipped with a tire
with a TPMS malfunction indicator to
pressure monitoring system (TPMS)
indicate when the system is not
that illuminates a low tire pressure
operating properly. The TPMS mal-
WARNING
telltale when one or more of your
function indicator is combined with
tires is significantly under-inflated.
the low tire pressure telltale. When
Over-inflation or under-inflation
Accordingly, when the low tire pres-
the system detects a malfunction,
can reduce tire life, adversely
sure telltale illuminates, you should
the telltale will flash for approximate-
affect vehicle handling, and
stop and check your tires as soon as
ly one minute and then remain con-
lead to sudden tire failure that
possible, and inflate them to the
tinuously illuminated. This sequence
may cause loss of vehicle con-
proper pressure. Driving on a signifi-
will continue upon subsequent vehi-
trol resulting in an accident.
cantly under-inflated tire causes the
cle start-ups as long as the malfunc-
tire to overheat and can lead to tire
tion exists. When the malfunction
Each tire, including the spare (if pro-
failure. Under-inflation also reduces
indicator is illuminated, the system
vided), should be checked monthly
fuel efficiency and tire tread life, and
may not be able to detect or signal
when cold and inflated to the inflation
may affect the vehicle’s handling and
low tire pressure as intended.
pressure recommended by the vehi-
stopping ability.
TPMS malfunctions may occur for a
cle manufacturer on the vehicle plac-
ard or tire inflation pressure label. (If
Please note that the TPMS is not a
variety of reasons, including the
6
substitute for proper tire mainte-
installation of replacement or alter-
your vehicle has tires of a different
size than the size indicated on the
nance, and it is the driver’s responsi-
nate tires or wheels on the vehicle
bility to maintain correct tire pres-
that prevent the TPMS from function-
vehicle placard or tire inflation pres-
sure label, you should determine the
sure, even if under-inflation has not
ing properly. Always check the TPMS
reached the level to trigger illumina-
malfunction telltale after replacing
proper tire inflation pressure for
those tires.)
tion of the TPMS low tire pressure
one or more tires or wheels on your
telltale.
vehicle to ensure that the replace-
ment or alternate tires and wheels
allow the TPMS to continue to func-
tion properly.
6-11
What to do in an emergency
NOTICE
Low tire pressure
If either telltale illuminates, immedi-
telltale
ately reduce your speed, avoid hard
If any of the below happens, we
cornering and anticipate increased
recommend that the system be
stopping distances. You should stop
checked by an authorized HYUNDAI
and check your tires as soon as pos-
dealer.
Low tire pressure
sible. Inflate the tires to the proper
1. The low tire pressure telltale/
position telltale
pressure as indicated on the vehi-
TPMS malfunction indicator
and tire pressure
cle’s placard or tire inflation pressure
does not illuminate for 3 sec-
label located on the driver’s side cen-
telltale
onds when Engine Start/Stop
ter pillar outer panel. If you cannot
button is turned to the ON or
reach a service station or if the tire
OTL045504L
engine is running.
cannot hold the newly added air,
replace the low pressure tire with a
2. The TPMS malfunction indicator
When the tire pressure monitoring
spare tire.
remains illuminated after blink-
system warning indicators are illumi-
ing for approximately 1 minute.
If you drive the vehicle for about 10
nated and warning message dis-
minutes at speeds above 25 km/h
3. The Low tire pressure position
played on the cluster LCD display,
after replacing the low pressure tire
telltale remains illuminated.
one or more of your tires is signifi-
with the spare tire, the below will
cantly under-inflated. The low tire
happen:
pressure position telltale light will
indicate which tire is significantly
• The TPMS malfunction indicator
under-inflated by illuminating the cor-
may blink for approximately 1 minute
responding position light.
and then remain continuously illumi-
nated because the TPMS sensor is
not mounted on the spare wheel.
6-12
NOTICE
TPMS (Tire Pressure
WARNING
Monitoring System)
The spare tire is not equipped with
malfunction indicator
a tire pressure sensor.
Low pressure damage
Significantly low tire pressure
The TPMS malfunction indicator will
makes the vehicle unstable and
CAUTION
illuminate after it blinks for approxi-
can contribute to loss of vehicle
mately one minute when there is a
In winter or cold weather, the low
control and increased braking
problem with the Tire Pressure
tire pressure telltale may illumi-
distances.
Monitoring System.
nate if the tire pressure was
Continued driving on low pres-
We recommend that the system be
adjusted to the recommended
sure tires can cause the tires to
checked by an authorized HYUNDAI
tire inflation pressure in warm
overheat and fail.
dealer.
weather. It does not mean your
TPMS is malfunctioning because
the decreased temperature leads
NOTICE
to a lowering of tire pressure.
If there is a malfunction with the
When you drive your vehicle
TPMS, the low tire pressure posi-
6
from a warm area to a cold area
tion telltale will not be displayed
or from a cold area to a warm
even though the vehicle has an
area, or the outside temperature
under-inflated tire.
is higher or lower, you should
check the tire inflation pressure
and adjust the tires to the recom-
mended tire inflation pressure.
6-13
What to do in an emergency
Changing a tire with TPMS
If you drive the vehicle for about 10
CAUTION
minutes at speeds above 25 km/h
If you have a flat tire, the low Tire
after replacing the low pressure tire
Pressure and Position telltales will
•
The TPMS malfunction indicator
with the spare tire, the below will
come on. We recommend that the
may blink for approximately 1
happen:
system be checked by an authorized
minute and then remain contin-
HYUNDAI dealer.
•
The TPMS malfunction indicator
uously illuminated if the vehicle
may blink for approximately 1 minute
is moving around electric power
and then remain continuously illumi-
supply cables or radios trans-
CAUTION
nated because the TPMS sensor is
mitter such as at police stations,
not mounted on the spare wheel.
government and public offices,
NEVER use a puncture-repair-
broadcasting stations, military
ing agent to repair and/or inflate
installations, airports, or trans-
a low pressure tire. The tire
mitting towers, etc. This can
sealant can damage the tire
interfere with normal operation
pressure sensor. If used, you
of the Tire Pressure Monitoring
will have to replace the tire
System (TPMS).
pressure sensor.
•
The TPMS malfunction indica-
tor may blink for approximate-
Each wheel is equipped with a tire
ly
1 minute and then remain
pressure sensor mounted inside the
continuously illuminated if
tire behind the valve stem. You must
snow chains are used or some
use TPMS specific wheels. It is rec-
separate electronic devices
ommended that you have your tires
such as notebook computer,
serviced by an authorized HYUNDAI
mobile charger, remote starter
dealer.
or navigation etc., are used in
the vehicle.
This can interfere with normal
operation of the Tire Pressure
Monitoring System (TPMS).
6-14
You may not be able identify a low
WARNING
WARNING
tire by simply looking at it. Always
use a good quality tire pressure
•
The TPMS cannot alert you to
Tampering with, modifying, or
gauge to measure the tire's inflation
severe and sudden tire dam-
disabling the Tire Pressure
pressure. Please note that a tire that
age caused by external factors
Monitoring System (TPMS) com-
is hot (from being driven) will have a
such as nails or road debris.
ponents may interfere with the
higher pressure measurement than a
tire that is cold (from sitting station-
•
If you feel any vehicle instabil-
system's ability to warn the driv-
er of low tire pressure condi-
ary for at least 3 hour and driven less
ity, immediately take your foot
than 1.6 km (1 mile) during that 3
off the accelerator, apply the
tions and/or TPMS malfunctions.
hour period).
brakes gradually and with
Tampering with, modifying, or
light force, and slowly move to
disabling the Tire Pressure
Allow the tire to cool before measur-
a safe position off the road.
Monitoring System (TPMS) com-
ing the inflation pressure. Always be
ponents may void the warranty
sure the tire is cold before inflating to
for that portion of the vehicle.
the recommended pressure.
A cold tire means the vehicle has
been sitting for 3 hours and driven for
6
less than 1.6 km (1 mile) in that 3
hour period.
6-15
What to do in an emergency
WARNING
(Continued)
❈All vehicles sold in the
For EUROPE
EUROPE market during below
period must be equipped with
•
Do not modify the vehicle; it
TPMS.
may interfere with the TPMS
function.
- New model vehicle :
Nov. 1, 2012 ~
•
The wheels on the market do
not have a TPMS sensor.
- Current model vehicle :
Nov. 1, 2014~ (Based on
For your safety, we recom-
vehicle registrations)
mend that you use parts for
replacement from an author-
ized HYUNDAI dealer.
•
If you use the wheels on the
market, use a TPMS sensor
approved by a HYUNDAI deal-
er. If your vehicle is not
equipped with a TPMS sensor
or TPMS does not work prop-
erly, you may fail the periodic
vehicle inspection conducted
in your country.
(Continued)
6-16
IF YOU HAVE A FLAT TIRE (WITH SPARE TIRE, IF EQUIPPED)
Jack and tools
WARNING
Changing a tire can be danger-
ous. Follow the instructions in
this section when changing a
tire to reduce the risk of serious
injury or death.
CAUTION
OTL065005
Be careful as you use the jack
Turn the winged hold down bolt
handle to stay clear of the flat
OTL065004
counterclockwise to remove the
end. The flat end has sharp
(1) Jack handle
spare tire.
edges that could cause cuts.
(2) Jack
Store the spare tire in the same com-
(3) Wheel nut wrench
partment by turning the winged hold
6
down bolt clockwise.
To prevent the spare tire and tools
The jack, jack handle, and wheel nut
from "rattling", store them in their
wrench are stored in the luggage
proper location.
compartment under the luggage box
cover.
The jack is provided for emergency
tire changing only.
6-17
What to do in an emergency
Changing tires
(Continued)
•
ALWAYS place the jack on the
WARNING
designated jacking positions
on the vehicle and NEVER on
A vehicle can slip or roll off of a
the bumpers or any other part
jack causing serious injury or
of the vehicle for jacking sup-
death to you or those nearby.
port.
Take the following safety pre-
•
Do not start or run the engine
cautions:
while the vehicle is on the
•
Do not get under a vehicle
jack.
that is supported by a jack.
OTLE065040
•
Do not allow anyone to remain
•
NEVER attempt to change a
in the vehicle while it is on the
If it is hard to loosen the tire hold-
tire in the lane of traffic.
jack.
down wing bolt by hand, you can
ALWAYS move the vehicle
loosen it easily using the jack handle.
completely off the road on
•
Keep children away from the
road and the vehicle.
1. Put the jack handle (1) inside of
level, firm ground away from
the tire hold-down wing bolt.
traffic before trying to change
a tire. If you cannot find a
2. Turn the tire hold-down wing bolt
level, firm place off the road,
counterclockwise with the jack
call a towing service for assis-
handle.
tance.
•
Be sure to use the jack pro-
vided with the vehicle.
(Continued)
6-18
Follow these steps to change your
vehicle’s tire:
1. Park on a level, firm surface.
2. Move the shift lever into P (Park,
for automatic transaxle/dual clutch
transmission vehicle) or neutral (for
manual transaxle vehicle), apply the
parking brake, and place the ignition
switch in the LOCK/OFF position.
3. Press the hazard warning flasher
button.
Block
OTL065012
OTL065013

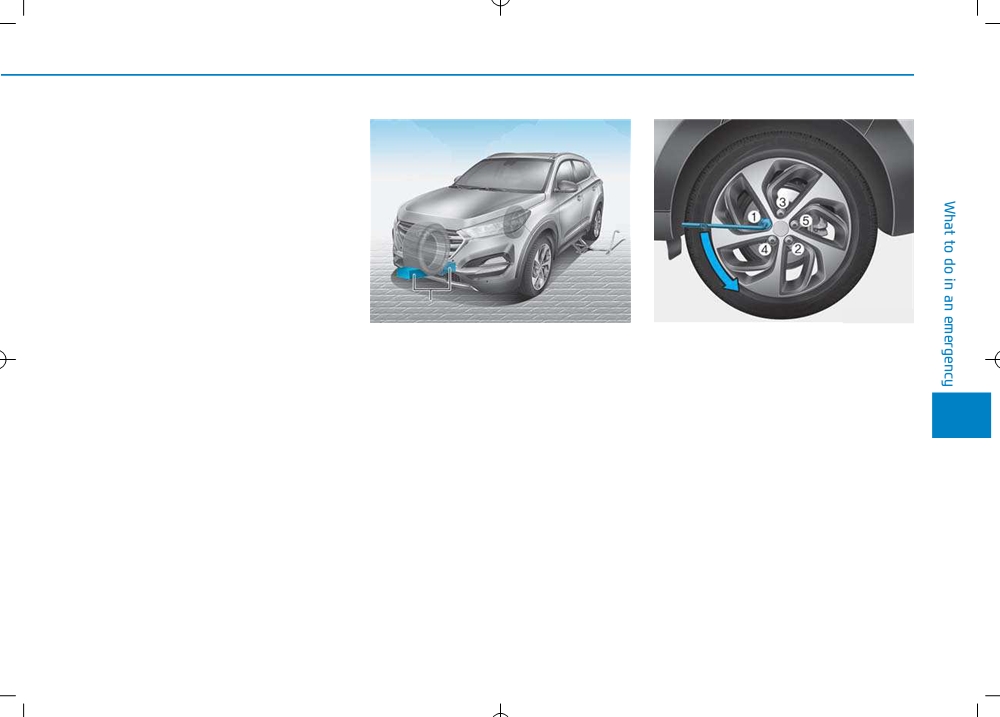

4. Remove the wheel lug nut wrench,
5. Block both the front and rear of the
6. Loosen the wheel lug nuts coun-
jack, jack handle, and spare tire
tire diagonally opposite of the tire
terclockwise one turn each in the
from the vehicle.
you are changing.
order shown above, but do not
remove any lug nuts until the tire
has been raised off of the ground.
6
6-19
What to do in an emergency
9. Loosen the lug nuts with the wheel
lug nut wrench and remove them
with your fingers. Remove the
wheel from the studs and lay it flat
on the ground out of the way.
Remove any dirt or debris from
the studs, mounting surfaces, and
■ Front
■ Rear
wheel.
10. Install the spare tire onto the
studs of the hub.
11. Tighten the lug nuts with your fin-
OTL065014
OTL065032
gers onto the studs with the

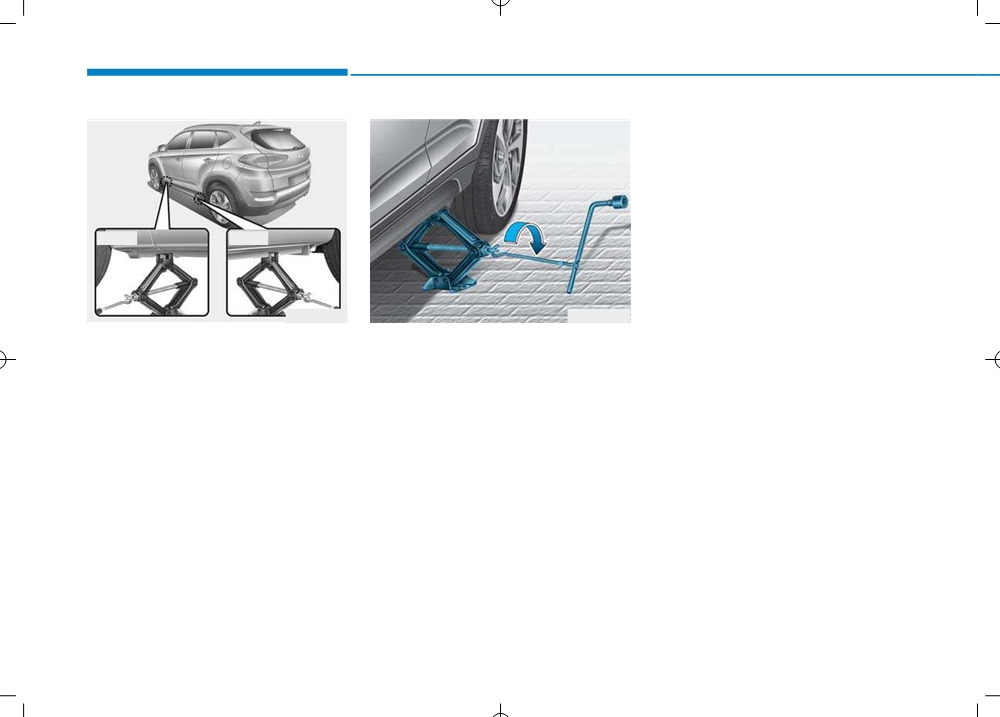

7. Place the jack at the designated
8. Insert the jack handle into the jack
smaller end of the lug nuts clos-
jacking position under the frame
and turn it clockwise, raising the
est to the wheel.
closest to the tire you are chang-
vehicle until the tire clears the
12. Lower the vehicle to the ground
ing. The jacking positions are
ground. Make sure the vehicle is
by turning the jack handle coun-
plates welded to the frame with
stable on the jack.
terclockwise.
two notches and two dimples.
Never jack any other position or
part of the vehicle. It may damage
to the side seal molding.
6-20
If you have a tire gauge, check the
CAUTION
tire pressure (see “Tires and Wheels”
in chapter 8 for tire pressure instruc-
Your vehicle has metric threads
tions.). If the pressure is lower or
on the studs and lug nuts. Make
higher than recommended, drive
certain during tire changing
slowly to the nearest service station
that the same nuts that were
and adjust it to the recommended
removed are reinstalled. If you
pressure. Always reinstall the valve
have to replace your lug nuts
cap after checking or adjusting tire
make sure they have metric
pressure. If the cap is not replaced,
threads to avoid damaging the
air may leak from the tire. If you lose
studs and ensure the wheel is
a valve cap, buy another and install it
OTL065007
properly secured to the hub. We
as soon as possible. After changing
13. Use the wheel lug nut wrench to
recommend that you consult an
tires, secure the flat tire and return
tighten the lug nuts in the order
authorized HYUNDAI dealer for
the jack and tools to their proper stor-
shown. Double-check each lug
assistance.
age locations.
nut until they are tight. After
changing tires, we recommend
NOTICE
6
that an authorized HYUNDAI
If any of the equipment such as the
dealer tighten the lug nuts to their
jack, lug nuts, studs, or other equip-
Check the tire pressure as soon
proper torque as soon as possi-
as possible after installing a spare
ment is damaged or in poor condi-
ble. The wheel lug nut should
tion, do not attempt to change the
tire. Adjust it to the recommended
be tightened to
9~11 kgf·m
pressure.
tire and call for assistance.
(65~79 lbf·ft).
6-21
What to do in an emergency
Use of compact spare tires
When driving with the compact spare
NOTICE
(if equipped)
tire mounted to your vehicle:
When the original tire and wheel
Compact spare tires are designed for
•
Check the tire pressure after
are repaired and reinstalled on the
emergency use only. Drive carefully
installing the compact spare tire.
vehicle, the lug nut torque must be
on the compact spare tire and
The compact spare tire should be
set correctly. The correct lug nut
always follow the safety precautions.
inflated to 420 kPa (60 psi).
tightening torque is
9-11 kgf·m
•
Do not take this vehicle through an
(65-79 lbf·ft).
automatic car wash while the com-
WARNING
pact spare tire is installed.
To prevent compact spare tire
•
Do not use the compact spare tire
failure and loss of control pos-
on any other vehicle because this
sibly resulting in an accident:
tire has been designed especially
for your vehicle.
• Use the compact spare tire
only in an emergency.
•
The compact spare tire’s tread life is
shorter than a regular tire. Inspect
• NEVER operate your vehicle
your compact spare tire regularly
over 80 km/h (50 mph).
and replace worn compact spare
• Do not exceed the vehicle’s
tires with the same size and design,
maximum load rating or the
mounted on the same wheel.
load carrying capacity shown
•
Do not use more than one compact
on the sidewall of the com-
spare tire at a time.
pact spare tire.
•
Do not tow a trailer while the com-
• Do not use the compact spare
pact spare tire is installed.
tire continuously. Repair or
replace the original tire as
soon as possible to avoid fail-
ure of the compact spare tire.
6-22
Jack label
CAUTION
■ Example
To prevent damaging the com-
pact spare tire and your vehicle:
•
Drive slowly enough for the
road conditions to avoid all
hazards, such as a potholes
or debris.
•
Avoid driving over obstacles.
The compact spare tire diame-
OHYK065011
ter is smaller than the diame-
The actual Jack label in the vehicle may differ from the illustration.
ter of a conventional tire and
For more detailed specifications, refer to the label attached to the jack.
reduces the ground clearance
approximately 25 mm (1 inch).
•
Do not use tire chains on the
1. Model Name
8. Shift into Reverse gear on vehicles
with manual transaxle or move the
compact spare tire. Because
2. Maximum allowable load
of the smaller size, a tire chain
shift lever to the P position on
6
3. When using the jack, set your
vehicles with automatic transaxle/
will not fit properly.
parking brake.
dual clutch transmission.
•
Do not use the compact spare
4. When using the jack, stop the
9. The jack should be used on firm
tire on any other wheels, nor
engine.
should standard tires, snow
level ground.
5. Do not get under a vehicle that is
tires, wheel covers or trim
10. Jack manufacture
supported by a jack.
rings be used with the com-
11. Production date
pact spare wheel.
6. The designated locations under
12. Representative company and
the frame
address
7. When supporting the vehicle, the
base plate of jack must be vertical
under the lifting point.
6-23
What to do in an emergency

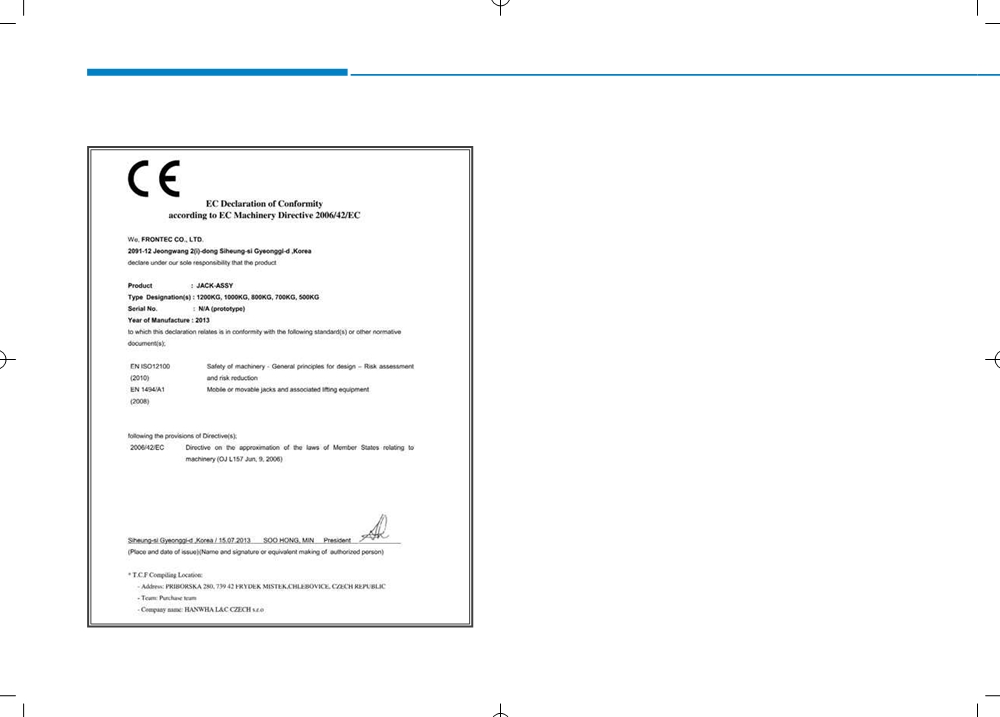

EC Declaration of conformity for Jack
JACKDOC14F
6-24
