Hyundai Tucson (2017 year). Instruction

CAUTION

• Never engage the parking

brake while performing the

test.

• When the vehicle is lifted up,

do not operate the front and

rear wheel separately. All four

wheels should be operated.

Temporary Free Roller

Roll Tester (Speedometer)

OTL055117

WARNING

A full-time 4WD vehicle should not

be tested on a 2WD roll tester. If a

Keep away from the front of the

2WD roll tester must be used, per-

vehicle while the vehicle is in

form the following procedure:

gear on the dynamometer. The

1.Check the tire pressures recom-

vehicle can jump forward and

mended for your vehicle.

cause serious injury or death.

2.Place the front wheels on the roll

tester for a speedometer test as

shown in the illustration.

3.Release the parking brake.

4.Place the rear wheels on the tem-

porary free roller as shown in the

illustration.

5-71

Driving your vehicle

ISG (IDLE STOP AND GO) SYSTEM (IF EQUIPPED)

The ISG system is to reduce the fuel

To activate the ISG system

Information

consumption by automatically shut-

Auto stop

ting down the engine, when the vehi-

The driving speed must reach at least

■ Type A

■ Type B

10 km/h (6 mph) after an idle stop.

cle is at a standstill (i.e. red stop light,

stop sign, and traffic jam).

The engine is automatically started

upon satisfying the starting condi-

tions.

The ISG system is always active,

when the engine is running.

Information

When the engine is automatically

OTL055072/OTL055073

started by the ISG system, some warn-

ing lights (i.e. ABS, ESC, ESC OFF,

To stop the engine in idle stop mode

EPS, and parking brake warning

1. Lower the driving speed under 5

light) may illuminate for a few sec-

km/h (3 mph).

onds due to the low battery voltage.

However, it does not indicate a mal-

2. Set the gear in N (Neutral).

function with the ISG system.

3. Release the clutch pedal.

The auto stop indicator (

) illumi-

nates in green on the instrument

cluster, when the engine stops.

5-72

■ Type A

■ Type B

Auto start

■ Type A

■ Type B

OTLE055007

OTLE055035/OTLE055036

When the driver unfastens the seat-

• The message, 'Auto Stop deacti-

OTLE055085/OTLE055037

belt or open the driver’s door (or the

vated. Start manually', appears on

To restart the engine in the auto

hood) in the auto stop mode, you will

the LCD display.

stop mode

experience the followings.

• Depress the clutch pedal with the

• The ISG system is deactivated.

gear in N (Neutral).

(The ISG OFF button indicator illu-

minates.)

• The message, "Press clutch pedal

for Auto Start", appears on the

LCD display.

• The auto stop indicator (

) goes

OFF on the instrument cluster,

when the engine is restarted.

5-73

Driving your vehicle

The engine is automatically restart-

■ Type A

Prerequisite for activation

ed in the following situations.

The ISG system operates in the fol-

The fan speed of the manual cli-

lowing situations.

mate control system is set above

- The driver’s seatbelt is fastened.

the 3rd position, with the air condi-

- The driver’s door and the hood are

tion ON.

closed.

The fan speed of the automatic cli-

- The brake vacuum pressure is

mate control system is set above

adequate.

the 6th position, with the air condi-

tion ON.

- The battery is sufficiently charged.

OTL055074

A certain period of time has been

■ Type B

- The outside temperature is between

elapsed with the air condition ON.

-2 °C and 35 °C (28.4 °F and 95 °F).

The defroster is activated.

- The engine coolant temperature is

not too low.

The brake vacuum pressure is low.

The battery is weak.

The driving speed exceeds 5 km/h

(3 mph).

OTL055075

The auto stop indicator (

) blinks

in green for 5 seconds on the instru-

ment cluster,

5-74

(Continued)

To deactivate the ISG system

• When the above indicator remains

ON, and when the above message

remains displayed, we recommend

you to have the IGS system checked

by an authorized HYUNDAI dealer.

OTLE055007

■ Type A

■ Type B

OTLE055004

•

Press the ISG OFF button to deac-

tivate the ISG system. Then, the

ISG OFF button indicator illumi-

nates, and the message, "Auto

Stop Off", appears on the LCD dis-

play.

OTLE055039/OTLE055038

•

Press the ISG OFF button again to

Information

reactivate the ISG system. Then,

the ISG OFF button indicator turns

• The ISG system is not activated,

OFF.

when the prerequisites to activate

the ISG system are unsatisfied. In

this case, the ISG OFF button indi-

cator illuminates, and the message,

"Auto Stop conditions not met",

appears on the LCD display.

(Continued)

5-75

Driving your vehicle

ISG system malfunction

(Continued)

The ISG system may not operate:

• You can turn off the ISG OFF but-

ton indicator by driving over

When there is a malfunction with the

km/h (50 mph) for up to 2 hours

ISG sensors or the ISG system.

with the fan speed below the 2nd

position. If the ISG OFF button

The followings occur, when there is

indicator remains ON, we recom-

a malfunction with the ISG system:

mend you to contact an authorized

HYUNDAI dealer.

The auto stop indicator (

) remains

ON in yellow after blinking for 5 sec-

onds.

WARNING

OTLE055007

• The light on the ISG OFF button

When the engine is in auto stop

will illuminate.

mode, the engine may restart.

Before leaving the vehicle or

Information

checking the engine compart-

ment, stop the engine by plac-

• When you cannot turn OFF the ISG

ing the ignition switch to the

OFF button indicator by pressing

LOCK/OFF position or remov-

the ISG OFF button, or when the

ing the ignition key.

malfunction with the ISG system

persists, we recommend you to con-

tact an authorized HYUNDAI deal-

er.

(Continued)

5-76

The battery sensor deactiva-

Prerequisites to reactivate the

NOTICE

tion

battery sensor

•

Use only the genuine HYUNDAI

Keep the engine in the OFF status

ISG battery for replacement. If

for 4 hours, and attempt to restart the

not, the ISG system may not nor-

engine 3 to 4 times for the battery-

mally operate.

sensor reactivation.

•

Do not recharge the ISG battery

Pay extreme caution not to connect

with a general battery charger. If

any accessories (i.e. navigation and

not, it may damage or explode

black box) to the vehicle with the

the ISG battery.

Battery sensor

engine in the OFF status. If not, the

•

Do not remove the battery cap. If

battery sensor may not be reactivat-

ed.

not, the battery electrolyte,

which is harmful to the human

body, may leak out.

OTL055025

Information

The battery sensor is deactivated,

The ISG system may not operate in

when the battery is disconnected

the following situations.

from the negative pole for mainte-

- There is a malfunction with the IGS

nance purpose.

system.

In this case, the ISG system is limit-

- The battery is weak.

edly operated due to the battery sen-

- The brake vacuum pressure is low.

sor deactivation. Thus, the driver

In those cases, we recommend you to

needs to take the following proce-

have the ISG system checked by an

dures to reactivate the battery sen-

authorized HYUNDAI dealer.

sor after disconnecting the battery.

5-77

Driving your vehicle

FLEX STEERING WHEEL (IF EQUIPPED)

■ Type A

If the steering mode button is not

pressed within 4 seconds, the LCD

display will change to the previous

screen.

OTL055125

■ Type B

OTL055123

The flex steering wheel controls the

steering effort in accordance with the

driver’s preference and road condi-

tions.

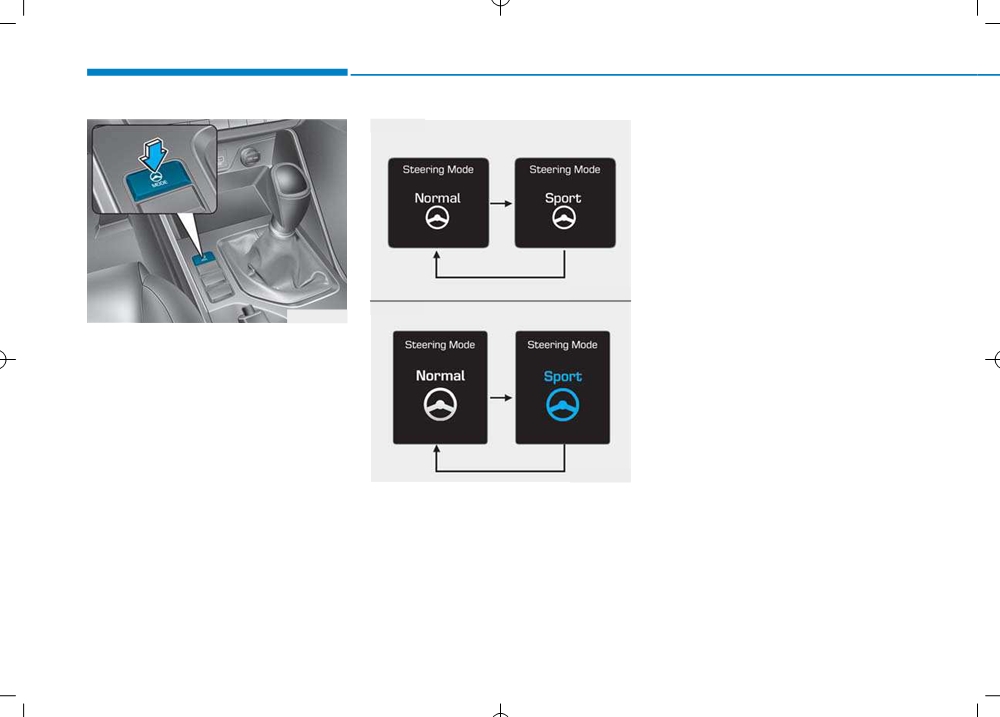

The driver can select a desired steer-

ing effort by pressing the steering

mode button.

OTL055124

The steering mode options appear

on the LCD display, when the driver

presses the steering mode button.

Press the steering mode button with-

4 seconds to scroll through the

steering mode options.

5-78

Normal mode

Sport mode

CAUTION

■ Type A

■ Type B

■ Type A

■ Type B

•

When the driver presses the

steering mode button while

driving, it changes the steering

mode option on the LCD dis-

play. However, it does not

immediately change the steer-

ing effort for your safety. Upon

completing the wheel steering,

the steering tension is automat-

ically set to the selected mode.

OTL055126/OTL055127

OTL055128/OTL055129

•

Pay great caution while chang-

ing through modes, when the

The normal steering mode offers

The sport steering mode offers high

vehicle is in motion.

normal steering effort.

steering effort, making the wheel

steering heavier. The sport steering

•

The flex steering wheel does not

mode is often used for driving on a

operate, when the Electric Power

highway.

Steering (EPS) does not properly

operate.

5-79

Driving your vehicle

DRIVE MODE INTEGRATED CONTROL SYSTEM (IF EQUIPPED)

■ Type A

The mode changes, as below,

Information

whenever the DRIVE MODE button

If there is a problem with the instru-

is pressed.

ment cluster, the drive mode will be in

NORMAL mode and may not change

to SPORT mode.

SPORT

NORMAL

When NORMAL mode is selected, it

is not displayed on the instrument

cluster.

OTL055130

■ Type B

OTLE055005

The drive mode may be selected

according to the driver’s preference

or road condition.

The system resets to be in the NOR-

MAL mode, when the engine is

restarted.

5-80

SPORT mode

Information

SPORT mode manages

In the SPORT mode, the fuel efficiency

the driving dynamics by

may decrease.

automatically adjusting the

steering wheel, engine

and transaxle system.

•

When the SPORT mode is select-

ed by pressing the DRIVE MODE

button, the SPORT indicator (yel-

low color) will illuminate.

•

Restarting of the engine in the

SPORT mode resets the DRIVE

mode to the NORMAL mode. Thus,

when necessary, reselect the

SPORT mode.

•

When the SPORT mode is activated:

- The RPM (revolutions per min-

utes) level is maintained over a

certain length of time, even after

releasing the accelerator.

- Up-shifting timing is delayed,

while accelerating.

5-81

Driving your vehicle

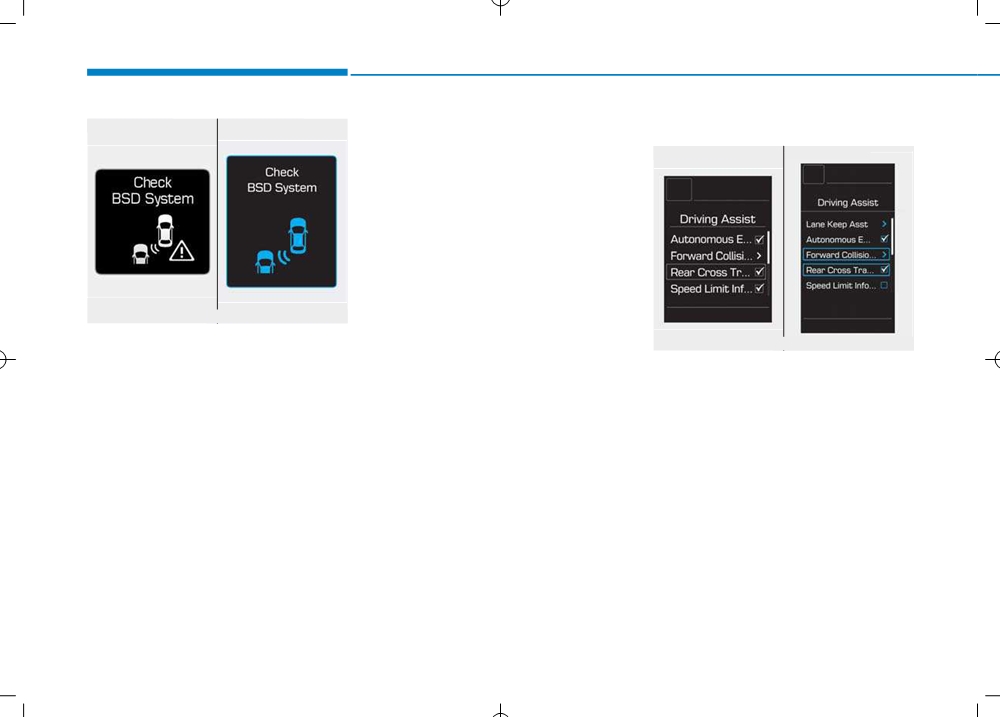

BLIND SPOT DETECTION SYSTEM (BSD) (IF EQUIPPED)

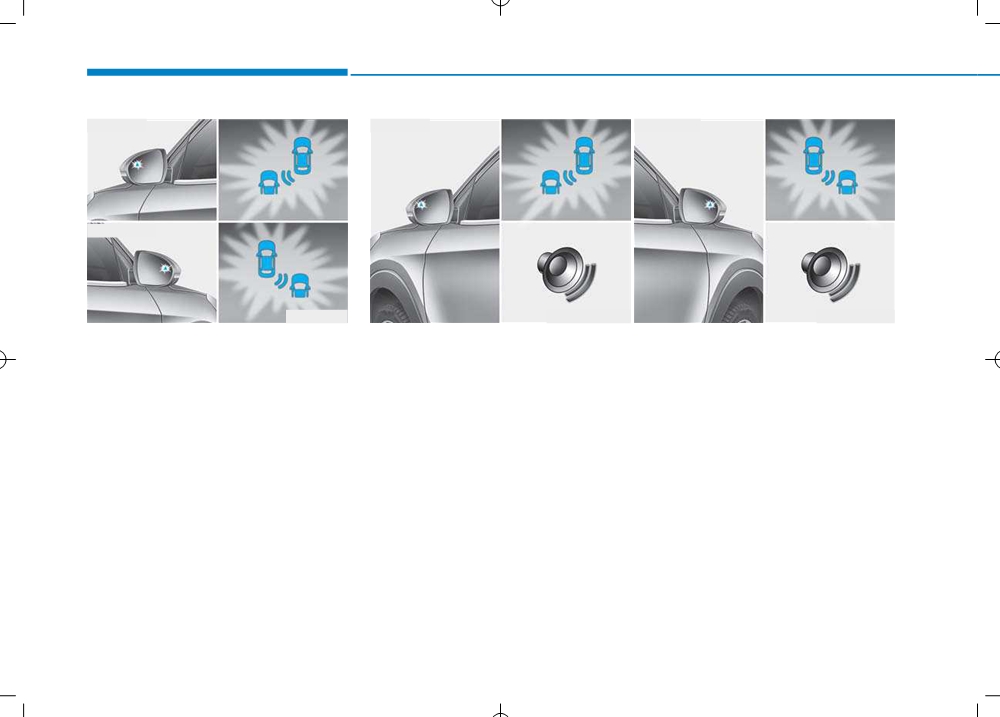

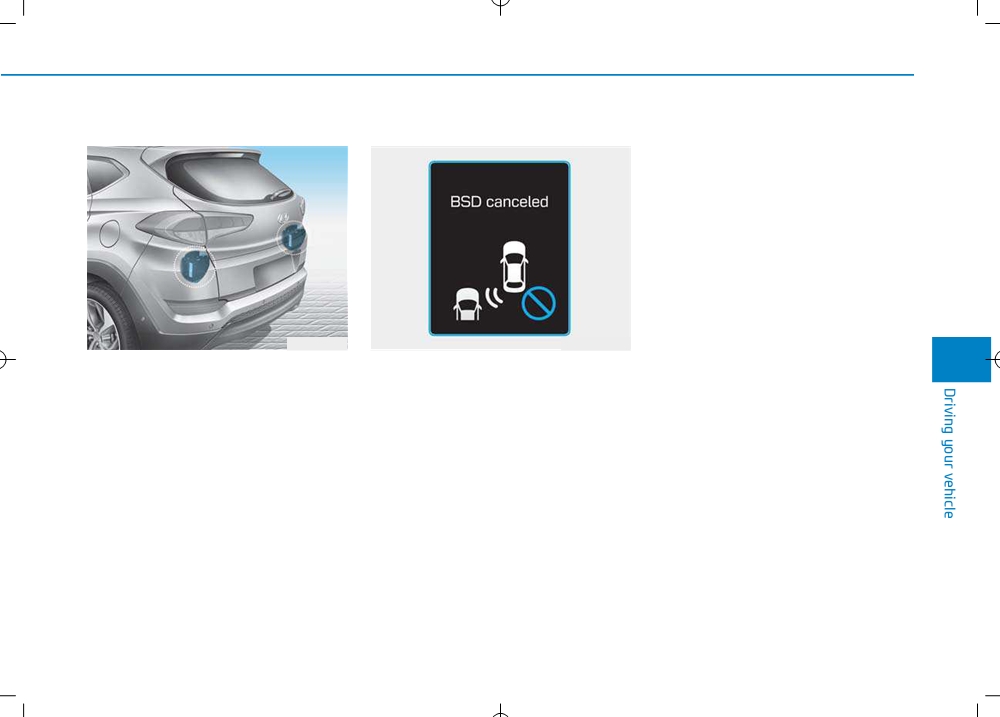

(1) BSD (Blind Spot Detection)

WARNING

The detection range varies in

accordance with a driving speed.

•

Always check the road condi-

Blind spot area

When your vehicle faster than the

tion while driving for unex-

other vehicles, the system will not

pected situations even though

warn you.

the Blind Spot Detection

(2) LCA (Lane Change Assist)

System (BSD) is operating.

When a vehicle approaches you

Closing at high speed

•

The Blind Spot Detection

at a high speed, the system will

System (BSD) is a supplemen-

warn you.

tal system to assist you. Do

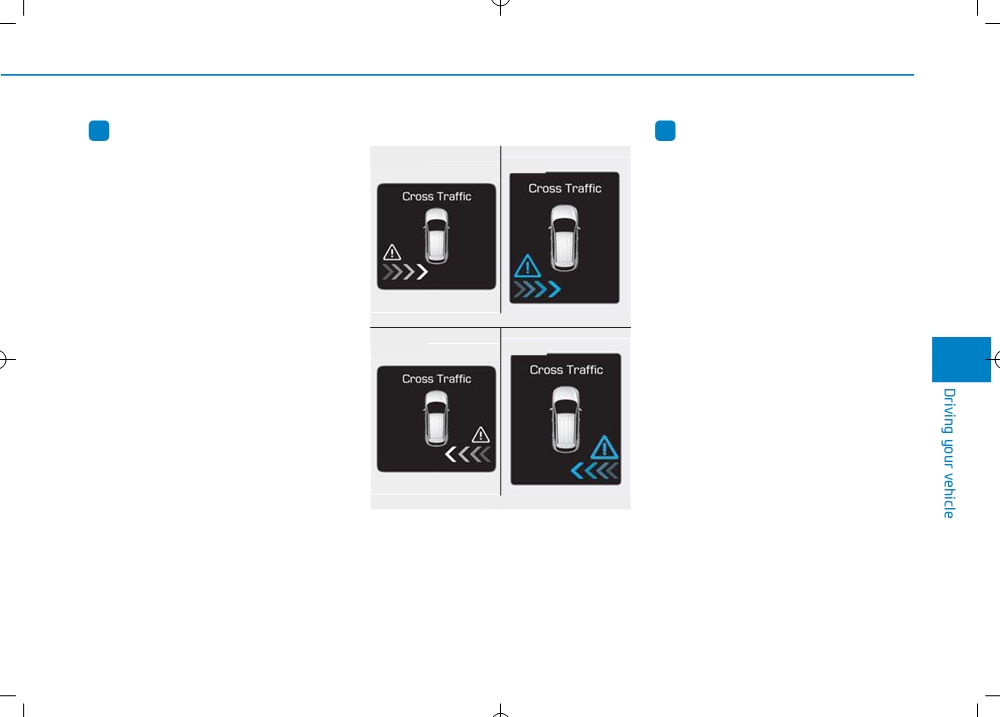

(3) RCTA (Rear Cross Traffic Alert)

not entirely rely on the sys-

tem. Always pay attention,

When your vehicle moves back-

while driving, for your safety.

wards, and when the sensor detects

the approaching vehicle in the left

•

The Blind Spot Detection

and right side, the system will warn

System (BSD) is not a substi-

you.

tute for proper and safe driving.

Always drive safely and use

OLF054067L

caution when changing lanes

The Blind Spot Detection System

or backing the vehicle up. The

(BSD) uses a radar sensor to alert

Blind Spot Detection System

the driver.

(BSD) may not detect every

It monitors the rear area of the vehi-

object alongside the vehicle.

cle and provides information to the

driver.

5-82

BSD (Blind Spot Detection) /

To cancel:

Warning type

LCA (Lane Change Assist)

Press the BSD switch again. The

The system will activate when:

(if equipped)

indicator on the switch will go off.

1. The system is on.

Operating conditions

When the system is not used, turn the

2. The vehicle speed is above about

system off by turning off the switch.

30 km/h (20 mph).

3. Vehicles behind are detected.

Information

•

If the engine is turned off then on

again, the BSD system returns to the

previous state.

•

When the system is turned on, the

warning light will illuminate for 3

seconds on the outside rearview

mirror.

OTL055028

To operate:

Press the BSD switch with the igni-

tion switch in the ON position.

The indicator illuminates on the

switch. If vehicle speed exceeds

30km/h (20 mph) the system will acti-

vate.

5-83

Driving your vehicle

■ Left side

■ Right side

OTL055039

OTL055029

OTL055030

First stage alert

Second stage alert

If a vehicle is detected within the

The second stage alarm will activate when:

boundary of the system, a warning

1. The first stage alert is on.

light will illuminate on the outside

2. The turn signal light is on to change a lane.

rearview mirror.

When the second stage alert is activated, a warning light will blink on the

If the detected vehicle is not in warn-

outside rearview mirror and the alarm will sound.

ing range, the warning will turn off

according to driving conditions.

If you turn off the turn signal light, the second stage alert will be deacti-

vated.

5-84

Detecting sensor

Warning message

When the message is displayed due

to a foreign substance, remove the

foreign substance on the rear

bumper. After the foreign substance

is removed, if you drive for approxi-

mately 10 minutes, the system will

work normally.

If the system does not operate nor-

mally after removing the substance

or is not in a situation mentioned

above, we recommend that you take

your vehicle to an authorized

HYUNDAI dealer and have the sys-

OTL055031

OLF054217N

tem checked.

The sensors are located inside the

•

This warning message may appear

rear bumper.

when :

Always keep the rear bumper clean

- There are foreign substances on

for proper operation of the system.

the rear bumper

- Driving in rural areas with little

traffic or open terrains such as

wide expanse of desert

- There is heavy snow or rain

The light on the switch and the sys-

tem will turn off automatically.

5-85

Driving your vehicle

■ Type A

■ Type B

RCTA (Rear Cross Traffic Alert)

Operating conditions

When your vehicle starts to move

■ Type A

■ Type B

backwards after parking, the sensor

detects any approaching vehicles

from the left and right sides and

warns the driver.

OLF054434N/OTLE055040

If there is a problem with the BSD

OTLE055144/OTLE055145

system, a warning message will

appear and the light on the switch

To operate:

will turn off. The system will turn off

Go to the User Settings mode (Driving

automatically. We recommend that

Assist) and select Rear Cross Traffic

you have your vehicle inspected by

Alert on the LCD display (For more

an authorized HYUNDAI dealer.

details, refer to "LCD Display" in

chapter 3.). The system will turn on

and standby to activate. The system

will activate when vehicle speed is

below 10km/h (6.2mph) with the shift

lever in R (Reverse).

5-86

Warning type

Information

The RCTA (Rear Cross Traffic Alert)

■ Left

• If the detected vehicle is out of the

• Type A

• Type B

detecting range is about 0.5m ~ 20m.

sensing range of your vehicle, move

A vehicle will be detected if the vehicle

the vehicle away from the detected

speed is 4km/h ~ 36km/h within the

object slowly; the warning will be

detecting range. However, the detect-

cancelled.

ing range may change under different

• The system may not operate proper-

conditions. Always pay attention to

ly due to other factors or circum-

the surroundings.

stances. Always pay attention to

your surrounding.

OTLE055041/OTLE055043

• If your vehicle's left or right side

■ Right

bumper is blinded by barrier or

• Type A

• Type B

vehicles, the system sensing ability

may be reduced.

OTLE055042/OTLE055044

If the vehicle detected by the sensors

approaches your vehicle, the warn-

ing chime will sound, the warning

light on the outside rearview mirror

will blink and a message will appear

on the LCD display.

5-87

Hyundai Tucson (2017 year). Instruction - part 19
