Safety system of your vehicle
■ Driver’s front air bag (2)
■ Driver’s front air bag (3)
WARNING
To prevent objects from becom-
ing dangerous projectiles when
the passenger's air bag inflates:
•
Do not install or place any
objects (drink holder, CD hold-
er, stickers, etc.) on the front
passenger's panel above the
OLMB033056
glove box where the passen-
■ Passenger’s front air bag
ger's air bag is located.
OLMB033055
•
Do not install a container of
Upon deployment, tear seams mold-
liquid air freshener near the
ed directly into the pad covers will
instrument cluster or on the
separate under pressure from the
instrument panel surface.
expansion of the air bags. Further
opening of the covers allows full
inflation of the air bags.
A fully inflated air bag, in combina-
tion with a properly worn seat belt,
slows the driver's or the front pas-
OLMB033057
senger's forward motion, reducing
After complete inflation, the air bag
the risk of head and chest injury.
immediately starts deflating, enabling
the driver to maintain forward visibili-
ty and the ability to steer or operate
other controls.
2-60
What to expect after an air bag
WARNING
(Continued)
inflates
•
Always wash exposed skin
After a frontal or side air bag inflates,
After an air bag inflates, take
areas thoroughly with cold
it will deflate very quickly. Air bag
the following precautions:
water and mild soap.
2
inflation will not prevent the driver
• Open your windows and doors
•
We recommend that an author-
from seeing out of the windshield or
as soon as possible after
ized HYUNDAI dealer replace
being able to steer. Curtain air bags
impact to reduce prolonged
the air bag immediately after
may remain partially inflated for
exposure to the smoke and
deployment. Air bags are
some time after they deploy.
powder released by the inflat-
designed to be used only once.
ing air bag.
• Do not touch the air bag stor-
age area’s internal compo-
nents immediately after an air
bag has inflated. The parts
that come into contact with an
inflating air bag may be very
hot.
(Continued)
2-61
Safety system of your vehicle
Noise and smoke from inflating
Do not install a Child Restraint
WARNING
air bag
System on the front passenger
When the air bags inflate, they make
seat
NEVER use a rearward facing
a loud noise and may produce smoke
■ Type A
Child Restraint System on a seat
and powder in the air inside of the
protected by an ACTIVE AIRBAG
vehicle. This is normal and is a result
in front of it, DEATH or SERIOUS
of the ignition of the air bag inflator.
INJURY to the CHILD can occur.
After the air bag inflates, you may feel
substantial discomfort in breathing
because of the contact of your chest
with both the seat belt and the air
bag, as well as from breathing the
smoke and powder. The powder may
aggravate asthma for some people. If
OYDESA2042
you experience breathing problems
■ Type B
after an air bag deployment, seek
medical attention immediately.
Though the smoke and powder are
nontoxic, they may cause irritation to
the skin, eyes, nose, throat, etc. If this
is the case, wash and rinse with cold
water immediately and seek medical
attention if the symptoms persist.
OLM034310
Never install a Child Restraint System
in the front passenger seat, unless the
air bag is deactivated
2-62
Why didn’t my air bag go off in
Air bag collision sensors
(Continued)
a collision?
•
Place the ignition switch to
There are certain types of accidents
WARNING
the LOCK/OFF or ACC posi-
in which the air bag would not be
tion, when the vehicle is being
2
expected to provide additional protec-
To reduce the risk of an air bag
towed to prevent inadvertent
tion. These include rear impacts, sec-
deploying unexpectedly and
air bag deployment.
ond or third collisions in multiple
causing serious injury or death:
•
We recommend that all air bag
impact accidents, as well as low
•
Do not hit or allow any objects to
repairs are conducted by an
speed impacts. Damage to the vehicle
impact the locations where air
authorized HYUNDAI dealer.
indicates a collision energy absorp-
bags or sensors are installed.
tion, and is not an indicator of whether
•
Do not perform maintenance
or not an air bag should have inflated.
on or around the air bag sen-
sors. If the location or angle of
the sensors is altered, the air
bags may deploy when they
should not or may not deploy
when they should.
•
Do not install bumper guards or
replace the bumper with a non-
genuine part.This may adverse-
ly affect the collision and air
bag deployment performance.
(Continued)
2-63
Safety system of your vehicle

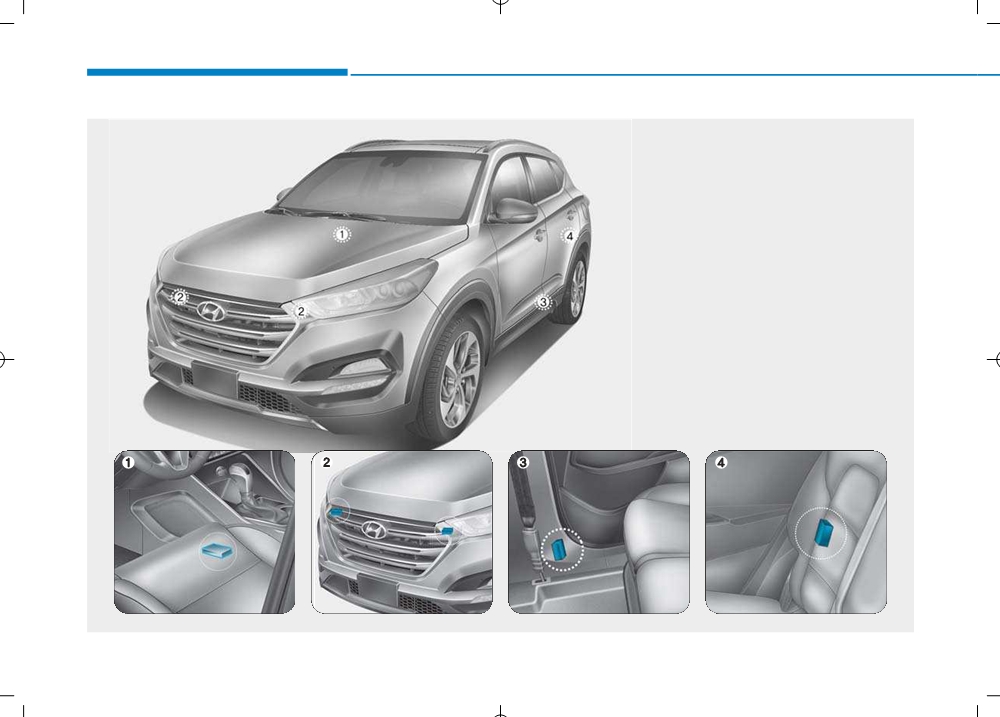

1. SRS control module
2. Front impact sensor
3. Side pressure sensor (front)
4. Side impact sensor (rear)
OTLE035044/OTL035045/OTLE035046/OTL035047/OTL035048
2-64
Air bag inflation conditions
Although the driver’s and front pas-
senger’s air bags are designed to
inflate in frontal collisions, they also
may inflate in other types of colli-
sions if the front impact sensors
2
detect a sufficient impact. Side and
curtain air bags are designed to
inflate in side impact collisions, but
they may inflate in other collisions if
the side impact sensors detect a suf-
OTL035071
ficient impact.
Also, the side and curtain air bags are
designed to inflate when a rollover is
OTL035070
detected by a rollover sensor.
(if
Front air bags
equipped with rollover sensor)
Front air bags are designed to inflate
If the vehicle chassis is impacted by
in a frontal collision depending on
bumps or objects on unimproved
the severity, speed or angles of
roads, the air bags may deploy. Drive
impact of the front collision.
carefully on unimproved roads or on
surfaces not designed for vehicle
traffic to prevent unintended air bag
OTL035074
deployment.
Side and curtain air bags
Side and curtain air bags are
designed to inflate when an impact is
detected by side collision sensors
depending on the severity, speed or
angles of impact resulting from a
side impact collision.
2-65
Safety system of your vehicle
Air bag non-inflation conditions
OTL035065
OTL035067
Front air bags are not designed to
Front air bags may not inflate in side
OTL035066
inflate in rear collisions, because
impact collisions, because occupants
In certain low-speed collisions the air
occupants are moved backward by
move in the direction of the collision,
bags may not deploy. The air bags
the force of the impact. In this case,
and thus in side impacts, front air bag
are designed not to deploy in such
inflated air bags would not provide
deployment would not provide addi-
cases because they may not provide
any additional benefit.
tional occupant protection.
benefits beyond the protection of the
However, side and curtain air bags
seat belts.
may inflate depending on the severity,
vehicle speed and angles of impact.
2-66
2
OTL035069
OTL035064
OTL035068

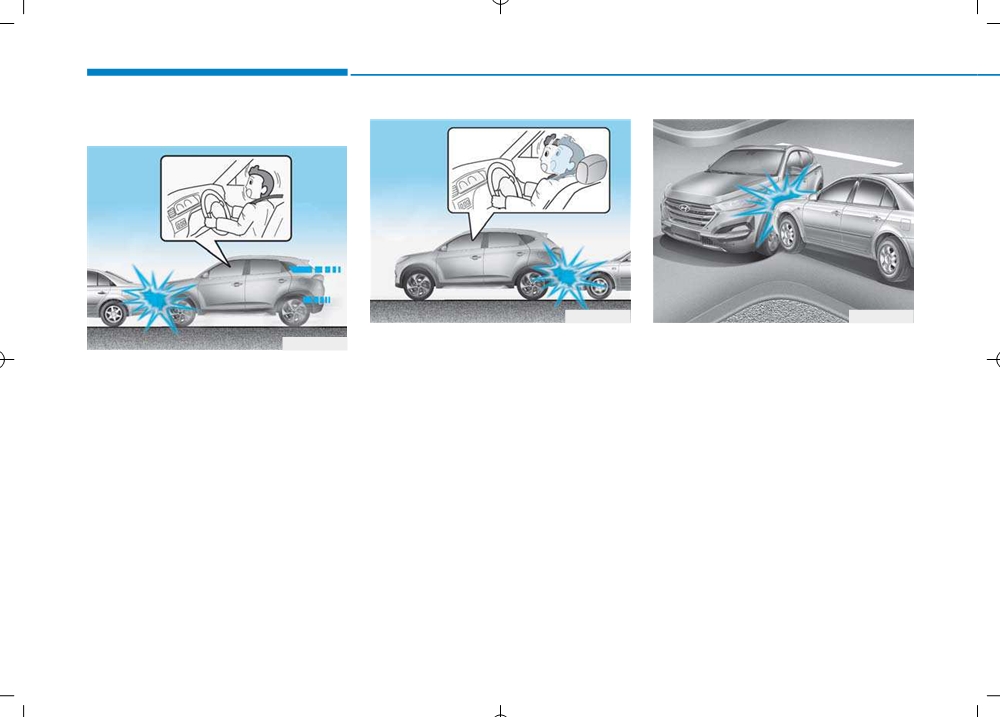

In an angled collision, the force of
Just before impact, drivers often
Front air bags may not inflate in
impact may direct the occupants in a
brake heavily. Such heavy braking
rollover accidents because front air
direction where the air bags would
lowers the front portion of the vehicle
bag deployment would not provide
not be able to provide any additional
causing it to “ride” under a vehicle
additional occupant protection.
benefit, and thus the sensors may
with a higher ground clearance. Air
not deploy any air bags.
bags may not inflate in this "under-
i
Information
ride" situation because deceleration
forces that are detected by sensors
• Vehicles equipped with rollover sensor
may be significantly reduced by such
The side and curtain air bags may
“underride” collisions.
inflate in a rollover situation, when it is
detected by the rollover sensor.
• Vehicles not equipped with rollover
sensor
The side and/or curtain air bags may
inflate when the vehicle is rolled over
by a side impact collision, if the vehicle
is equipped with side and/or curtain
air bags.
2-67
Safety system of your vehicle
SRS care
(Continued)
The SRS is virtually maintenance-
•
Do not place objects over or
free and there are no parts you can
near the air bag modules on the
safely service by yourself. If the SRS
steering wheel, instrument
air bag warning light does not illumi-
panel, and the front passenger's
nate when the ignition switch is in the
panel above the glove box.
ON position, or continuously remains
•
Clean the air bag pad covers
on, we recommend that the system
with a soft cloth moistened
be immediately inspected by an
with plain water. Solvents or
authorized HYUNDAI dealer.
cleaners could adversely affect
We recommend any work on the SRS
OTL035063
the air bag covers and proper
system, such as removing, installing,
deployment of the system.
Air bags may not inflate if the vehicle
repairing, or any work on the steering
•
We recommend that inflated
collides with objects such as utility
wheel, the front passenger's panel,
air bags be replaced by an
poles or trees, where the point of
front seats and roof rails be performed
authorized HYUNDAI dealer.
impact is concentrated and the colli-
by an authorized HYUNDAI dealer.
sion energy is absorbed by the vehi-
Improper handling of the SRS system
•
If components of the air bag
cle structure.
may result in serious personal injury.
system must be discarded, or if
the vehicle must be scrapped,
certain safety precautions must
WARNING
be observed. Consult an author-
ized HYUNDAI dealer for the
To reduce the risk of serious
necessary information. Failure
injury or death take the follow-
to follow these precautions
ing precautions:
could increase the risk of per-
• Do not attempt to modify or
sonal injury.
disconnect the SRS compo-
nents or wiring, including the
addition of any kind of badges
to the pad covers or modifica-
tions to the body structure.
(Continued)
2-68
Additional safety precautions
Adding equipment to or modify-
Air bag warning labels
ing your air bag equipped vehicle
Passengers should not move out of
or change seats while the vehicle is
If you modify your vehicle by changing
moving. A passenger who is not
your vehicle's frame, bumper system,
2
wearing a seat belt during a crash or
front end or side sheet metal or ride
emergency stop can be thrown
height, this may affect the operation of
against the inside of the vehicle,
your vehicle's air bag system.
against other occupants, or be ejected
from the vehicle.
Do not use any accessories on seat
belts. Devices claiming to improve
occupant comfort or reposition the
seat belt can reduce the protection
OTL035049L
provided by the seat belt and increase
Air bag warning labels are attached
the chance of serious injury in a crash
to alert the passengers of potential
Do not modify the front seats.
risks of the air bag system.
Modification of the front seats could
Be sure to read all of the information
interfere with the operation of the sup-
about the air bags that are installed on
plemental restraint system sensing
your vehicle in this Owner’s Manual.
components or side air bags.
Do not place items under the front
seats. Placing items under the front
seats could interfere with the opera-
tion of the supplemental restraint sys-
tem sensing components and wiring
harnesses.
Do not cause impact to the doors.
Impact to the doors when the ignition
switch is in the ON position may cause
the air bags to inflate.
2-69
Safety system of your vehicle
ACTIVE HOOD LIFT SYSTEM (IF EQUIPPED)
The active hood lift system can
Possible activation situations
i
Information
reduce a risk of injury to pedestrians
An impact may be detected in a
by raising the hood in certain acci-
frontal collision with animals, trash
dent situations. The active hood lift
cans or others, not with pedestrians.
system has the additional deforma-
tion space under the hood, which is
made available for subsequent head
impact.
The active hood lift system is activat-
ed in the following situations:
• The ignition switch is in the on posi-
tion and the vehicle speed is approx-
OTLE035091
imately between 25 km/h (15.5 mph)
and 50 km/h (31 mph).
• The active hood lift system is
designed to work in a frontal colli-
sion depending on the intensity,
speed or angles of impact of the
front collision.
i
Information
• Do not arbitrarily repair the active
OTLE035092
hood lift system after its activation.
We recommend you to have the sys-
•
The vehicle falls from a high loca-
tem repaired by an authorized
HYUNDAI dealer.
tion, such as falling into the gutter.
• If you change or repair the front
•
The vehicle is involved in a certain
bumper, we recommend that the
high-speed frontal/angled collision,
system be checked by an authorized
striking other vehicles or barriers.
HYUNDAI dealer.
2-70
Non-activation situations
2
OTLE035093
OTLE035096
OTLE035097
• The vehicle is involved in an
• The pedestrian lies on the road.
angled frontal collision, striking the
• The front bumper is damaged or
pedestrian.
modified.
• The pedestrian has an object to
absorb shocks, such as a suit
OTLE035094
case, a cart, or a stroller.
OTLE035095
• The vehicle is involved in a side/rear
collision or a rollover. The active
hood lift system activates only in a
frontal collision.
2-71
Safety system of your vehicle
System malfunction
NOTICE
■ Type A
■ Type B
The below situations may cause a
malfunction with the active hood
lift system.
•
Do not remove or change the
components and the wiring of
the active hood system.
•
Do not change the front bumper
or the body structure.
•
Do not install or assemble any
aftermarket accessory on the
front bumper or cover.
OTLE035098/OTLE035099
•
When replacing tires, make sure

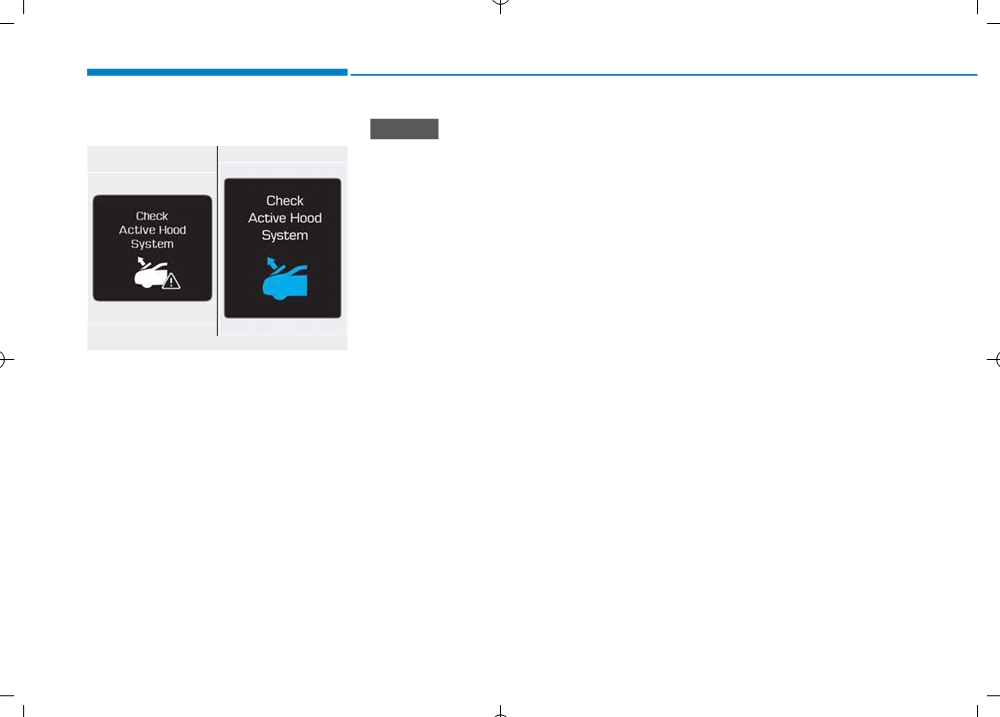

The warning message appears on the
they are the same size as your
LCD display, when there is a malfunc-
original tires. If you drive with
tion with the active hood lift system.
different tire or wheel sizes, the
The warning message indicates that
active hood lift system may not
the active hood lift system may not
work normally.
properly operate to protect the pedes-
trians.
In this case, we recommend you to
immediately have the system checked
by an authorized HYUNDAI dealer.
2-72
Convenient features of your vehicle
Accessing your vehicle
3-4
Panorama sunroof
3-37
Remote key
3-4
Sunshade
3-38
Smart key
3-8
Sliding the sunroof
3-38
Battery replacement
3-12
Tilting the sunroof
3-39
Immobilizer system
3-13
Closing the sunroof
3-39
Door locks
3-14
Resetting the sunroof
3-41
From outside the vehicle
3-14
Sunroof open warning
3-41
3
From inside the vehicle
3-16
Exterior features
3-42
Deadlocks
3-18
Hood
3-42
Auto door lock/unlock features
3-18
Fuel filler door
3-44
Child-protector rear door locks
3-19
Tailgate
3-47
Theft-alarm system
3-20
Non-power tailgate
3-47
Steering wheel
3-22
Power tailgate
3-49
Electric power steering (EPS)
3-22
Smart tailgate
3-56
Tilt steering / Telescope steering
3-23
Instrument cluster
3-60
Heated steering wheel
3-24
Instrument cluster control
3-62
Horn
3-24
Gauges
3-63
Mirrors
3-25
LCD display
3-69
Inside rearview mirror
3-25
LCD display control
3-69
Outside rearview mirror
3-29
LCD modes
3-69
Windows
3-32
User settings mode
3-74
Power windows
3-32
Warning messages
3-78
Trip computer
3-87
Trip modes
3-87
Warning and indicator lights
3-92
Automatic climate control system
3-165
Warning lights
3-92
Automatic heating and air conditioning
3-166
Indicator lights
3-102
Manual heating and air conditioning
3-167
Light
3-109
System operation
3-173
Exterior lights
3-109
System maintenance
3-175
Welcome system
3-116
Windshield defrosting and defogging
3-178
3
Interior lights
3-117
Manual climate control system
3-178
Wipers and washers
3-122
Automatic climate control system
3-179
Windshield wipers
3-123
Defogging logic
3-180
Windshield washers
3-124
Climate control additional features
3-182
Rear window wiper and washer switch
3-125
Cluster ionizer
3-182
Driver assist system
3-126
Automatic ventilation
3-182
Rear view camera
3-126
Sunroof inside air recirculation
3-182
Rear parking assist system
3-127
Storage compartment
3-183
Rear parking assist system precautions
3-130
Center console storage
3-183
Parking Assist System
3-131
Sliding armrest
3-183
Parking assist system precautions
3-133
Glove box
3-184
Smart Parking Assist System (SPAS)
3-134
Cool box
3-184
Defroster
3-152
Sunglass holder
3-184
Rear window defroster
3-152
Manual climate control system
3-154
Heating and air conditioning
3-155
System operation
3-159
System maintenance
3-162
Interior features
3-186
Ashtray
3-186
Cup holder
3-186
Sunvisor
3-188
Power outlet
3-188
Cigarette lighter
3-190
Clock
3-190
3
Clothes hanger
3-192
Floor mat anchor(s)
3-193
Luggage net (holder)
3-193
Cargo security screen
3-194
Luggage tray
3-197
Exterior features
3-198
Roof rack
3-198
Convenient features of your vehicle
ACCESSING YOUR VEHICLE
Remote key (if equipped)
Locking
Unlocking
To lock :
To unlock:
1. Close all doors, engine hood and
1. Press the Door Unlock button (2)
tailgate.
on the remote key.
2. Press the Door Lock button (1) on
2. The doors will unlock. The hazard
the remote key.
warning lights will blink two times.
Also, the outside rearview mirror
3. The doors will lock. The hazard
will unfold, if the outside rearview
warning lights will blink. Also, the
mirror folding switch is in the
outside rearview mirror will fold, if
AUTO position (if equipped).
the outside rearview mirror folding
switch is in the AUTO position (if
equipped).
i
Information
OTLE045001
4. Make sure the doors are locked by
After unlocking the doors, the doors
Your HYUNDAI uses a remote key,
checking the position of the door
will lock automatically after 30 sec-
which you can use to lock or unlock
lock button inside the vehicle.
onds unless a door is opened.
a door (and tailgate) and even start
the engine.
WARNING
1. Door Lock
Do not leave the keys in your
2. Door Unlock
vehicle with unsupervised chil-
3. Tailgate Unlock
dren. Unattended children could
place the key in the ignition
switch and may operate power
windows or other controls, or
even make the vehicle move,
which could result in serious
injury or death.
3-4
