6 DO-IT-YOURSELF MAINTENANCE

G270C01GK-AAT

G270G01GK-AAT

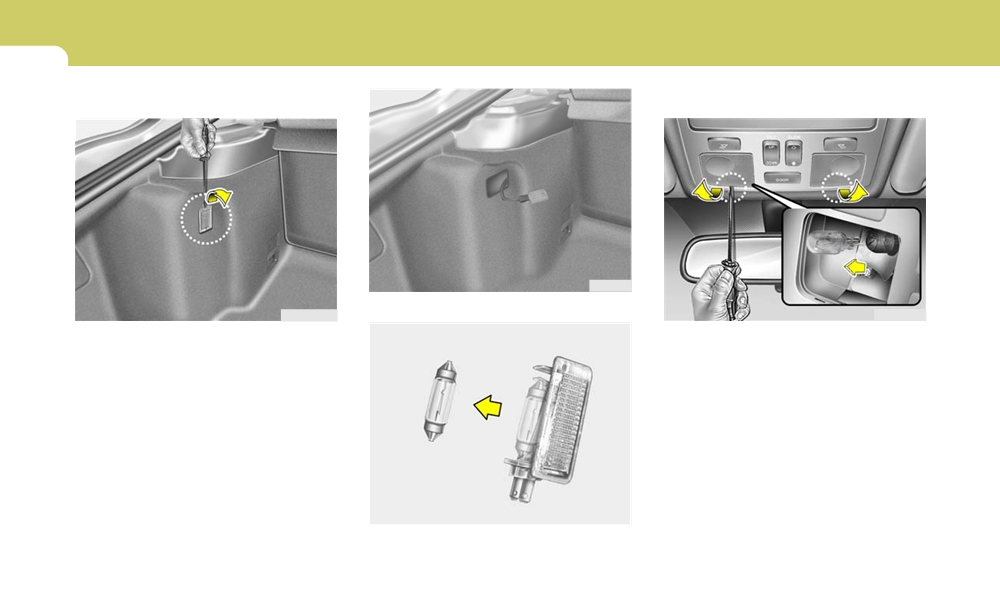

Luggage Compartment Light

Map Light

HGK5046

3. Disconnect the power cord.

OGK076035

OGK076046

1. Open the tail gate.

1. Remove the cover with a flat-blade screw-

2. Remove the cover with a flat-blade screw-

driver.

2. Replace with a new bulb.

OGK076032

4. Replace with a new bulb.

DO-IT-YOURSELF MAINTENANCE

G270H01GK-GAT

Glove Box Illuminated Light

OGK076021

OGK076022

2. Open the glove box and remove the mount-

3. Remove the glove box by pulling strongly.

OGK076020

ing screws on the upside of the glove box.

1. Remove the mounting screws on the down-

side of the glove box.

CAUTION:

Be careful not to damage the glove box

when pulling the glove box.

6 DO-IT-YOURSELF MAINTENANCE

G270E02A-GAT

Side Repeater (If Installed)

NOTE:

It is recommended that the side repeater

bulb be replaced by an authorized Hyundai

Power Cord

dealer.

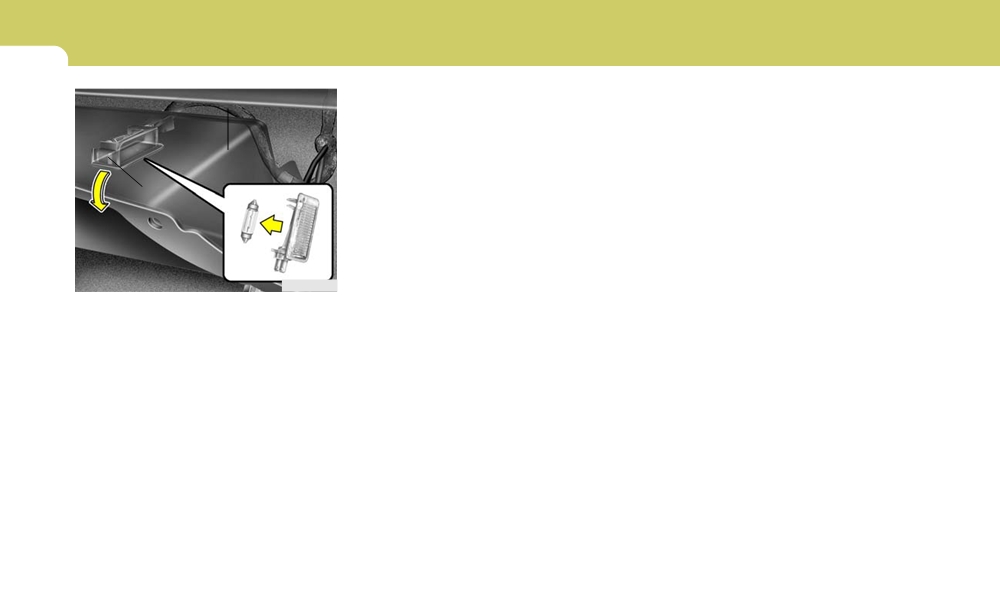

Clip

OGK076038

4. Disconnect the power cord.

5. Remove the glove box illuminated light by

pushing the clip.

6. Replace with a new bulb.

DO-IT-YOURSELF MAINTENANCE

BULB WATTAGE

G280A04GK-AAT

OGK066009N

No.

Part Name

Wattage

Socket type

No.

Part Name

Wattage

Socket type

Head Light (Low)

PGJ 19-2

Luggage Compartment Light

S8.5 / 8.5

Front Position Light

BAY15d

High Mounted Rear

With spoiler

2.4 (LED)

W2.1 X 9.5d

Map Light

W2.1 X 9.5D

Stop Light

Without spoiler

3.5 (LED)

Front Turn Signal Light

BAY15d

Rear

Back-up Light

W2.1 X 9.5d

Front Fog Light (If installed)

P22d

Combination

Rear Side Marker Light

BA15s

Head Light (High)

Px26d

Light

Turn Signal Light

BA15s

Front Side Marker Light

W2.1 X 9.5d

Stop/Tail Light

27/8

BAY15d

Side Repeater

W2.1 X 9.5d

License Plate Light

W2.1 X 9.6d

Front Door Edge Warning Light

W2.1 X 9.5d

6 DO-IT-YOURSELF MAINTENANCE

FUSE PANEL DESCRIPTION

G200C01GK-GAT

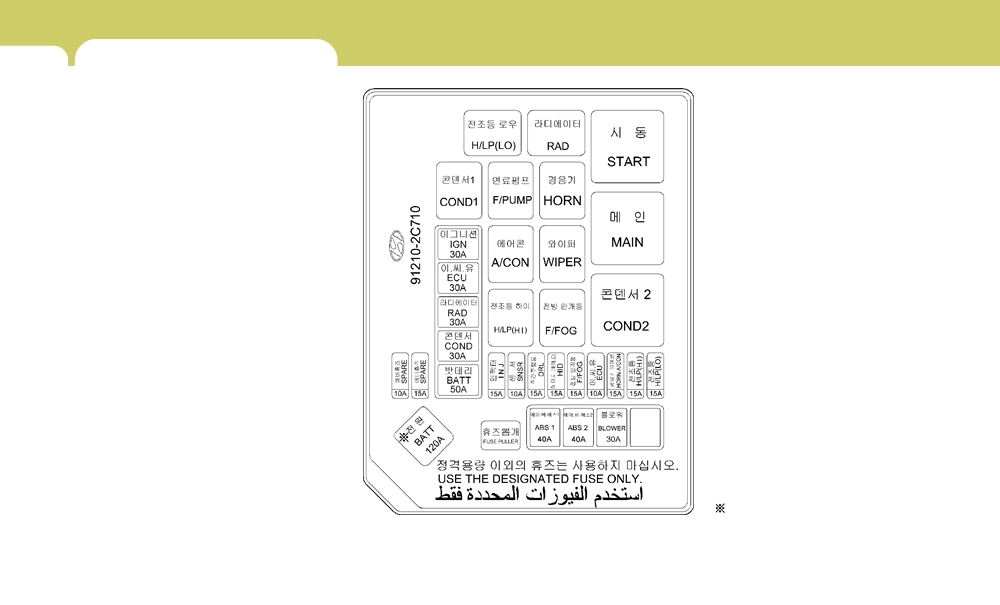

Engine Compartment

If installed

HGK4005

NOTE:

Not all fuse panel descriptions in this manual may be applicable to your vehicle. It is accurate at the time of printing. When you inspect the

fuse box on your vehicle, refer to the fuse box label.

DO-IT-YOURSELF MAINTENANCE

DESCRIPTION

FUSERATING

PROTECTED COMPONENTS

BATT

120A

Generator(2.0L)

BATT

50A

BCM BOX(Tail lamp relay,Power connector,Fuse(2,7,12,13,19,20,24)

COND

30A

Condenser fan relay

RAD

30A

Radiator fan relay

Engine control relay, Fuel pump relay, A/T control relay,

ECU

30A

Generator, PCM(2.0L)

IGN

30A

Ignition switch,Start relay

ABS 1

40A

ABS/ESC control module,ESC Air bleeding connector

ABS 2

40A

ABS/ESC control module,ESC Air bleeding connector

BLOWER

30A

Blower relay

INJ

15A

Injector

SNSR

10A

Oxygen sensor,Camshaft position sensor, Idle speed control actuator

DRL

15A

DRL control module

F/FOG

15A

Front fog lamp relay

ECU

10A

TCM(2.7L),ECM(2.7L)

HORN,A/CON

15A

Horn relay,A/C relay

H/LP (HI)

15A

Head lamp relay(High)

H/LP (LO)

15A

Head lamp relay(Low)

6 DO-IT-YOURSELF MAINTENANCE

G200D02GK-GAT

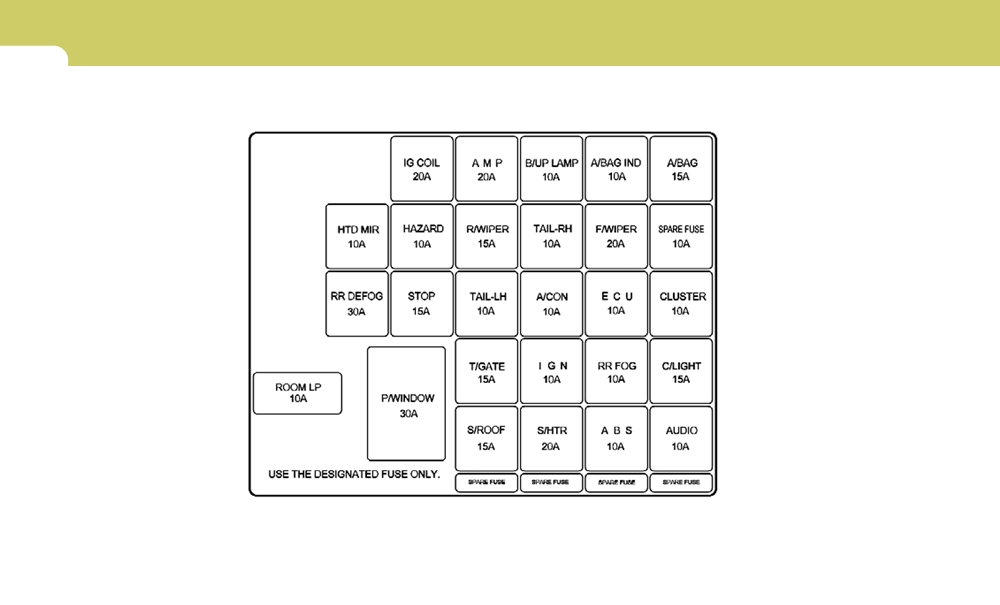

Inner Panel

OGK066010L

DO-IT-YOURSELF MAINTENANCE

DESCRIPTION

FUSERATING

PROTECTED COMPONENTS

IG COIL

20A

Ignition coil(2.7L), Electronic chrome mirror

AMP

20A

AMP

B/UP LAMP

10A

Back-up lamp switch,Transaxle range switch,Cruise control module,Cluster R postion

A/BAG IND

10A

Instrument cluster (A/BAG IND.)

A/BAG

15A

SRS control module, S/Buckle DRV, ASS

HTD MIR

10A

Mirror defogger

HAZARD

10A

Hazard relay

R/WIPER

15A

Rear wiper motor,Rear intermittent wiper relay

TAIL-RH

10A

Right tail lamps,Glove box lamp, Room lamp, C/Light tail

F/WIPER

20A

Front wiper motor,Front wiper relay

RR DEFOG

30A

Defogger relay

STOP

15A

Stop lamp switch,Burglar alarm horn relay,Folding/Unfolding rely, TPMS

TAIL-LH

10A

Left tail lamps

A/CON

10A

A/C control module, Blower relay, Sun roof, Ambieut Display

ECU

10A

ECM, Multi gauge unit, TCM, Vehicle speed sensor, TPMS

CLUSTER

10A

Instrument cluster (Power), Per-excitation resister, DRL Control module,Generator

ROOM LP

10A

Room lamp,Clock,Audio,Data link connector,Multi gauge unit, Cluster, A/Con

P/WINDOW

30A

Power window relay

T/GATE

15A

Trunk lid switch

IGN

10A

AQS sensor,Head lamp relay,DRL Control module

RR FOG

10A

Rear fog lamp

C/LIGHT

15A

Cigarette lighter,Outside mirror switch

S/ROOF

15A

Sunroof,Power door lock/Unlock relay

S/HTR

20A

Seat warmer

ABS

10A

ESC/ABS control module

AUDIO

10A

Audio,Digital clock

EMISSION CONTROL SYSTEMS

Emission Control System

7-2

Catalytic Converter

7-3

EMISSION CONTROL SYSTEMS

EMISSION CONTROL SYSTEM

H010A03GK-AAT

H010B01A-AAT

Canister

1. Crankcase Emission Control

Your Hyundai is equipped with an emission

Fuel vapors generated inside the fuel tank are

control system to meet all requirements of the

System

absorbed and stored in the onboard canister.

U.S. Environmental Protection Agency or Cali-

The Positive Crankcase Ventilation System is

When the engine is running, the fuel vapors

fornia Air Resources Board.

employed to prevent air pollution caused by

absorbed in the canister are drawn into the

There are three emission control systems which

blow-by gases being emitted from the crank-

induction system through the purge control

are as follows.

case. This system supplies fresh filtered air to

solenoid valve.

the crankcase through the air intake hose.

1) Crankcase Emission Control System

2) Evaporative Emission Control System

Inside the crankcase, the fresh air mixes with

Purge Control Solenoid Valve (PCSV)

blow-by gases, which then pass through the

3) Exhaust Emission Control System

PCV valve and into the induction system.

The purge control solenoid valve is controlled

by the Engine Control Module (ECM); when the

In order to ensure the proper function of the

engine coolant temperature is low during idling,

emission control systems, it is recommended

the PCSV closes so that evaporated fuel is not

that you have your car inspected and main-

H010C01S-AAT

taken into the engine. After the engine warms-

tained by an authorized Hyundai dealer in ac-

up during ordinary driving, the PCSV opens to

cordance with the maintenance schedule in this

2. Evaporative Emission Control (Includ-

introduce evaporated fuel to the engine.

manual.

ing ORVR: Onboard Refueling Vapor

Recovery) System

Caution for the Inspection and Maintenance

Test (Vehicle with Electronic Stability Con-

The Evaporative Emission Control System is

H010D01A-AAT

trol)

designed to prevent fuel vapors from escaping

3. Exhaust Emission Control System

into the atmosphere.

o To prevent the vehicle from misfiring

(The ORVR system is designed to allow the

The Exhaust Emission Control System is a

during dynamometer testing, discon-

vapors from the fuel tank to be loaded into a

highly effective system which controls exhaust

nect the ABS connector located inside

canister while refueling at the gas station, pre-

emissions while maintaining good vehicle per-

of the wheel guard (driver side).

venting the escape of fuel vapors into the

formance.

o For more information, see shop manual

atmosphere.)

(BR Group, Wheel Speed Sensor).

EMISSION CONTROL SYSTEMS

CATALYTIC CONVERTER

H020A01A-AAT

Remember that your Hyundai dealer is

your best source of assistance.

WARNING:

Do not stop your Hyundai over any com-

Use unleaded fuel only.

bustible material such as grass, paper,

Maintain the engine in good operating

leaves or rags. These materials might

condition. Extremely high catalytic con-

contact the hot catalytic converter and a

verter temperatures can result from im-

fire might result.

proper operation of the electrical, igni-

tion or multiport electronic fuel injec-

tion.

If your engine stalls, pings, knocks, or is

hard to start, have your Hyundai dealer

inspect and repair the problem as soon

as possible.

Catalytic Converter

OGK076501

Avoid driving with a very low fuel level.

All Hyundai vehicles are equipped with a mono-

Running out of gasoline may cause the

lith type three-way catalytic converter to re-

engine to misfire and result in damage to

duce the carbon monoxide, hydrocarbons and

the catalytic converter.

nitrogen oxides contained in the exhaust gas.

Avoid idling the engine for periods

Exhaust gases passing through the catalytic

longer than 10 minutes.

converter may cause it to operate at a very high

The vehicle should not be pushed or

temperature. The introduction of large amounts

pulled to get started. This may cause the

of unburned gasoline into the exhaust may

catalytic converter to overheat and cre-

cause the catalytic converter to overheat and

ate a fire hazard.

create a fire hazard. This risk may be reduced

Do not touch the catalytic converter or

by observing the following:

any other part of the exhaust system

while the catalytic converter is hot. Shut

off the engine, wait for at least one hour

before touching the catalytic converter

or any other part of the exhaust system.

CONSUMER INFORMATION, REPORTING

SAFETY DEFECTS & BINDING

ARBITRATION OF WARRANTY CLAIMS

Vehicle Identification Number (VIN)

8-2

Engine Number

8-2

Recommended Inflation Pressures

8-3

Tire Sidewall Labeling

8-5

Tire Terminology and Definitions

8-7

Snow Tires

8-9

Tire Chains

8-10

Tire Rotation

8-10

Tire Balancing

8-11

Tire Traction

8-11

When to Replace Tires

8-12

Spare Tire and Tools

8-13

Warranties for Your Hyundai Vehicle

8-13

Consumer Information

8-13

Reporting Safety Defects

8-17

Binding Arbitration of Warranty Claims

8-17

CONSUMER INFORMATION, REPORTING SAFETY DEFECTS & BINDING ARBITRATION OF WARRANTY CLAIMS

VEHICLE IDENTIFICATION

ENGINE NUMBER

TIRES

NUMBER (VIN)

I010A01A-AAT

I010B01A-AAT

I020A02A-AAT

Tire Information

2.0L

The tires supplied on your new Hyundai

are chosen to provide the best perfor-

mance for normal driving.

If you ever have questions about your

tire warranty and where to obtain ser-

vice, see the tire manufacture's booklet

included with your vehicle's Owner's

Manual Literature Kit.

HFO6003

OGK086100L

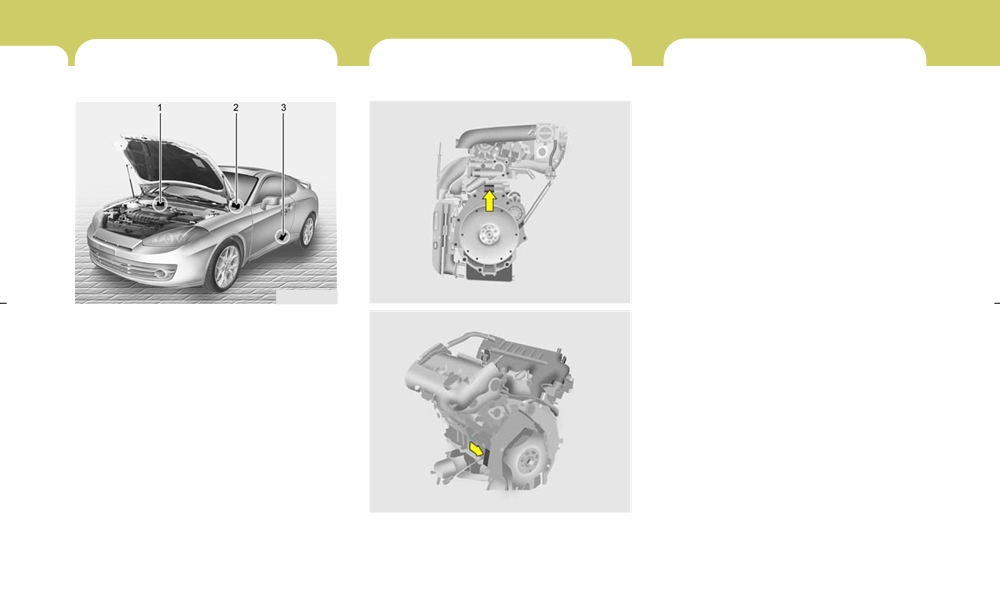

The vehicle identification number (VIN) is the

2.7L

number used in registering your car and in all

legal matters pertaining to its ownership, etc. It

can be found in three different places on your

car:

1. On the bulkhead between the engine and

passenger compartments.

2. On the left top side of the instrument panel

where it can be seen by looking down through

the windshield.

3. On the lower side of the center pillar outer

panel.

I010B01B

The engine number is stamped on the engine

block as shown in the drawing.

CONSUMER INFORMATION, REPORTING SAFETY DEFECTS & BINDING ARBITRATION OF WARRANTY CLAIMS

I030A03JM-AAT

Type A

Type C

Recommended Cold Tire Inflation

Pressures

I030A03GK1

I030A03GK3

These pressures were chosen to pro-

Type B

vide the most satisfactory combination

HGK6003

of ride comfort, tire wear and stability

Tire label located on the driver's side of

under normal conditions. Tire pressures

the center pillar outer panel gives the

should be checked at least monthly.

cold tire pressures recommended for

Proper tire inflation pressures should

your vehicle with the original tire size,

be maintained for these reasons:

the number of people that can be in your

vehicle and vehicle capacity weight.

I030A03GK2

8 CONSUMER INFORMATION, REPORTING SAFETY DEFECTS & BINDING ARBITRATION OF WARRANTY CLAIMS

NOTE:

o Underinflation also results in ex-

WARNING:

cessive wear, poor handling and

CAUTION:

o Inspect your tires frequently for

Always observe the following:

reduced fuel economy. Wheel de-

proper inflation as well as wear

formation also is possible. Keep

and damage. Always use a tire

o Check pressures when the tires

your tire pressures at the proper

pressure gauge.

are cold. (After the vehicle has

levels. If a tire frequently needs

o Tires with too much or too little

been parked for at least three hours

refilling, have it checked by your

pressure wear unevenly causing

or hasn't been driven more than 1

Hyundai Dealer.

poor handling, loss of vehicle

mile (1.6 km) since starting up.)

o Overinflation produces a harsh

control, and sudden tire failure

o Check the pressure of your spare

leading to accidents, injuries, and

ride, excessive wear at the center

tire each time you check the pres-

even death. The recommended

of the tire tread, and a greater

sure of other tires.

cold tire pressure for your vehicle

possibility of damage from road

can be found in this manual and

hazards.

o Worn, old tires can cause acci-

on the tire label located on the

dents. If your tread is badly worn,

driver's side of the center pillar.

or if your tires have been dam-

o Worn tires can cause accidents.

aged, replace them.

WARNING:

Replace tires that are worn, show

Overinflation or underinflation can

uneven wear, or are damaged.

reduce the tire life, adversely affect

o Remember to check the pressure

vehicle handling, and lead to sud-

of your spare tire. Hyundai recom-

den tire failure. This could rusult in

mends that you check the spare

every time you check the pressure

loss of vehicle control and potential

of the other tires on your vehicle.

injury.

CONSUMER INFORMATION, REPORTING SAFETY DEFECTS & BINDING ARBITRATION OF WARRANTY CLAIMS

I035A01JM-AAT

I030B01GK-GAT

sary. If the pressure is low, add air until

Checking Tire Inflation Pressure

Tire Sidewall Labeling

you reach the recommended amount.

Check your tires once a month or more.

If you overfill the tire, release air by

Also, check the tire pressure of the

pushing on the metal stem in the center

5, 6

spare tire.

of the tire valve. Recheck the tire pres-

sure with the tire gage. Be sure to put

How to Check

the valve caps back on the valve stems.

They help prevent leaks by keeping out

Use a good quality gage to check tire

dirt and moisture.

pressure. You can not tell if your tires

are properly inflated simply by looking

at them. Radial tires may look properly

inflated even when they're underinflated.

I030B04JM

Check the tire's inflation pressure when

Federal law requires tire manufacturers

the tires are cold. - "Cold" means your

to place standardized information on

vehicle has been sitting for at least

the sidewall of all tires. This information

three hours or driven no more than 1

identifies and describes the fundamen-

mile (1.6 km).

tal characteristics of the tire and also

Remove the valve cap from the tire

provides the tire identification number

valve stem. Press the tire gage firmly

(TIN) for safety standard certification.

onto the valve to get a pressure mea-

The TIN can be used to identify the tire

surement. If the cold tire inflation pres-

in case of a recall.

sure matches the recommended pres-

sure on the tire and loading information

label, no further adjustment is neces-

8 CONSUMER INFORMATION, REPORTING SAFETY DEFECTS & BINDING ARBITRATION OF WARRANTY CLAIMS

1. Manufacturer or Brand name

o V: Speed Rating. The speed rating

o Four numbers represent the week

o Manufacturer or Brand name is

denotes the speed at which a tire is

and year the tire was built. For

shown.

designed to be driven for extended

example, the numbers 3105 means

2. Tire size

periods of time. The ratings range

the 31st week of 2005.

(example: P215/45R17 87V)

from "A" to "Z" (98 to 186 MPH).

4. Tire ply composition and material

o The "P" indicates the tire is de-

3. TIN (Tire Identification Number) for

The number of layers or plies of

signed for passenger vehicles.

new tire (example: DOT XX XX XXX

rubbercoated fabric in the tire. Tire

A "T" is the designation for a tem-

XXXX)

manufacturers also must indicate

porary spare tire.

o DOT: Abbreviation for the "Depart-

the materials in the tire, which in-

o Three-digit number (215): This num-

ment of Transportation". The sym-

clude steel, nylon, polyester, and

ber gives the width in millimeters

bol can be placed above, below or

others. The letter "R" means radial

of the tire from sidewall edge to

to the left or right of the Tire Iden

ply construction; the letter "D" means

sidewall edge.

tification Number. Indicates tire is

diagonal or bias ply construction;

o Two-digit number (45): This num-

in compliance with the U.S. De-

and the letter "B" means belted-bias

ber, known as the aspect ratio,

partment of Transportation Motor

ply construction.

gives the tire's ratio of height to

Vehicle Safety Standards.

5. Maximum permissible inflation

width.

o 1st two-digit code: Manufacturer's

pressure

o R: The "R" stands for radial.

identification mark

This number is the greatest amount

o Two-digit number (17): This num-

o 2nd two-digit code: Tire size

of air pressure that should be put in

ber is the wheel or rim diameter in

o 3rd three-digit code: Tire type code

the tire. Do not exceed the maximum

inches.

(Optional)

permissible inflation pressure. Refer

o Two digit number (87): This num-

o 4th four-digit code: Date of Manu-

to the Tire and Loading Information

ber is the tire's load index. It is a

facture

label for recommended inflation pres-

measurement of how much weight

sure.

each tire can support.

Content .. 12 13 14 15 ..
