Driving your vehicle
When there is a vehicle ahead of
• If the vehicle ahead speeds up,
you in your lane:
your vehicle will travel at a steady
WARNING
cruising speed after accelerating to
the set speed.
ODM056111
Distance 4
Distance 3
When using the Smart Cruise
Control System:
The warning chime sounds
and the Vehicle-to Vehicle
Distance indicator blinks if
the vehicle is unable to main-
tain the selected distance
from the vehicle ahead.
If the warning chime sounds,
Distance 2
Distance 1
depress the accelerator or
ONC047126N/ONC047130N/
brake pedal to actively adjust
ONC047129N/ONC047128N
the vehicle speed, and the dis-
tance to the vehicle ahead.
Your vehicle speed will slow down
Even if the warning chime is
or speed up to maintain the select-
not activated, always pay
ed distance (A vehicle will appear
attention to the driving condi-
in front of your vehicle in the LCD
tions to prevent dangerous
display only when there is an actu-
situations from occurring.
al vehicle in front of you.).
5
80
Driving your vehicle
In traffic situation
Sensor to detect distance to
the vehicle ahead
■ Type A
■ Type B
ODM056064L
ODM056065L/OAN056065N
CAUTION
In traffic, your vehicle will stop if the
ONC056014
If the vehicle ahead
(vehicle
vehicle ahead of you stops. Also, if
The Smart Cruise Control uses a
speed: less than
20 mph
the vehicle ahead of you starts mov-
sensor to detect distance to the vehi-
(30km/h)) disappears to the next
ing, your vehicle will start as well.
cle ahead.
lane, the warning chime will
However, if the vehicle stops for more
If the sensor is covered with dirt or
sound and a message will
than 3 seconds, you must depress
other foreign matter, the vehicle to
appear. Adjust your vehicle
the accelerator pedal or push up the
vehicle distance control may not
speed for vehicles or objects
toggle switch (RES+) to start driving.
operate correctly.
that can suddenly appear in
If you push the advanced smart
front of you by depressing the
Always keep the area in front of the
cruise control toggle switch (RES+
sensor clean.
brake pedal.
or SET-) while Auto Hold and
Always pay attention to the road
advanced smart cruise control is
condition ahead.
operating (The green AUTO HOLD
indicator), Auto Hold will be
released regardless of accelerator
pedal operation and the vehicle will
start to move.
5 81
Driving your vehicle
Sensor warning message
SCC (Smart Cruise Control)
malfunction message
CAUTION
Do not install accessories
around the sensor and do not
replace the bumper by your-
self. It may interfere with the
sensor performance.
Always keep the sensor and
bumper clean.
To prevent sensor cover dam-
age from occurring, wash the
car with a clean soft cloth.
ODM056095L
Do not paint the sensor cover.
If the sensor or cover is dirty or
ODM046662L
Do not damage the sensor or
obscured with foreign material such
sensor area by a strong
The message will appear when the
as snow, this message will appear.
impact. If the sensor moves
vehicle to vehicle distance control
slightly off position, the Smart
In this case, the system may not
system is not functioning normally.
Cruise Control System will not
function temporarily, but it does not
Take your vehicle to an authorized
operate correctly. If this
indicate a malfunction of the Smart
HYUNDAI dealer and have the sys-
occurs, have the system
Cruise Control System.
tem checked.
checked by an authorized
Clean the sensor cover by using a
HYUNDAI dealer.
clean soft cloth.
Use only a genuine HYUNDAI
sensor cover for your vehicle.
5 82
Driving your vehicle

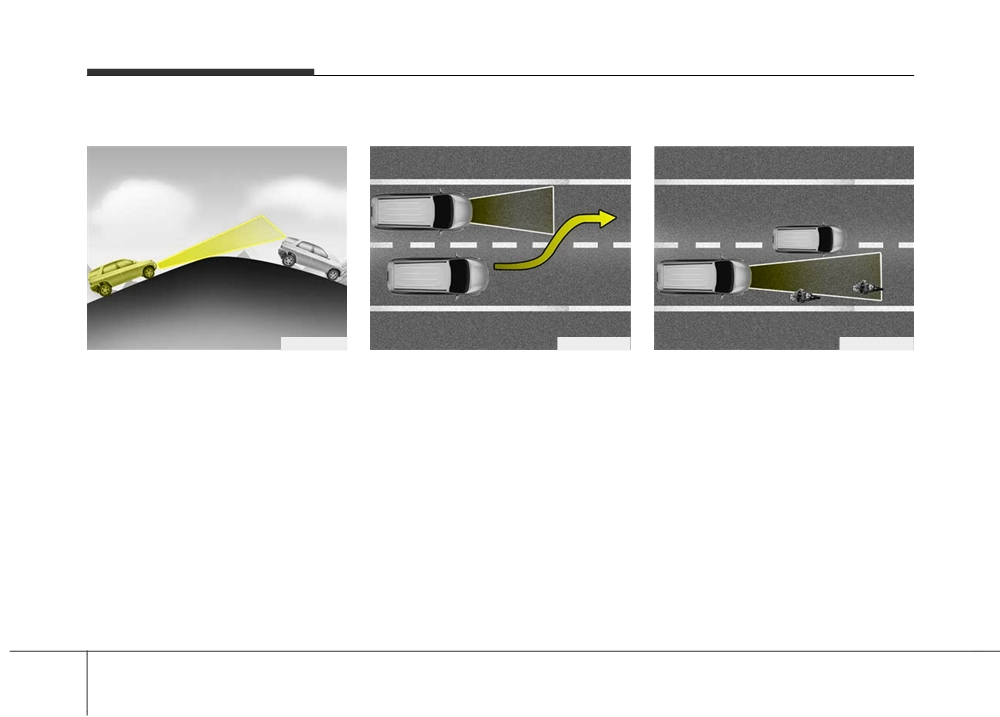

Limitations of the system

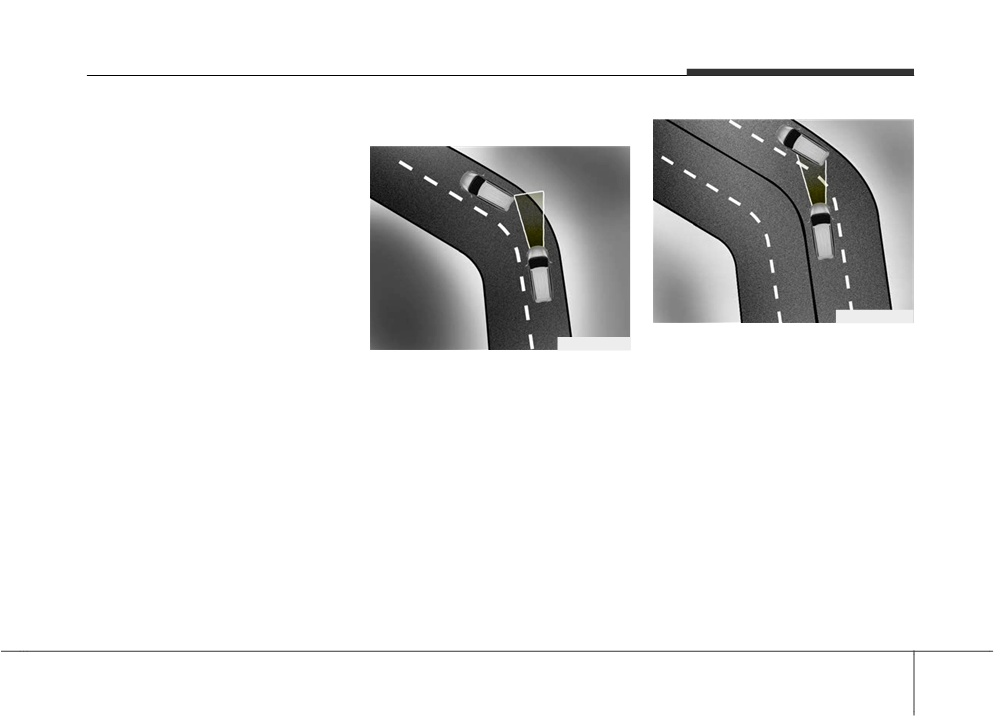

On curves
The Smart Cruise Control System
may have limits to its ability to detect
distance to the vehicle ahead due to
road and traffic conditions.
OUM054041L
Your vehicle speed can be reduced
OUM054040L
due to a vehicle in the adjacent lane.
• The Smart Cruise Control System
Apply the accelerator pedal and
may not detect a moving vehicle in
select the appropriate set speed.
your lane, and then your vehicle
Check to be sure that the road con-
could accelerate to the original set
ditions permit safe operation of the
speed. Also, the vehicle speed will
Smart Cruise Control.
decrease when the vehicle ahead
is recognized suddenly.
• Select the appropriate set speed
on curves and apply the brakes or
accelerator pedal if necessary.
5 83
Driving your vehicle
On inclines
Lane changing
Vehicle recognition
ODM055052
OUM054043L
OUM054045L
During uphill or downhill driving,
A vehicle which moves into your
Some vehicles in your lane cannot
the Smart Cruise Control System
lane from an adjacent lane cannot
be recognized by the sensor such
may not detect a moving vehicle in
be recognized by the sensor until it
as:
your lane, and cause your vehicle
is in the sensor's detection range.
- Narrow vehicles such as motorcy-
to accelerate to the original set
The sensor may not detect imme-
cles or bicycles
speed. Also, the vehicle speed will
diately when a vehicle cuts in sud-
- Vehicles offset to one side
rapidly decrease when the vehicle
denly. Always pay attention to the
ahead is recognized suddenly.
- Slow-moving vehicles or sudden-
traffic, road and driving conditions.
decelerating vehicles
Select the appropriate set speed
If a slower vehicle moves into your
on inclines and apply the brake or
- Stopped vehicles
lane, your speed may decrease to
accelerator pedal if necessary.
- Vehicles with small rear profile such
maintain the distance to the vehicle
ahead.
as trailers with no loads
If a faster vehicle which moves into
your lane, your vehicle will acceler-
ate to the set speed.
5 84
Driving your vehicle

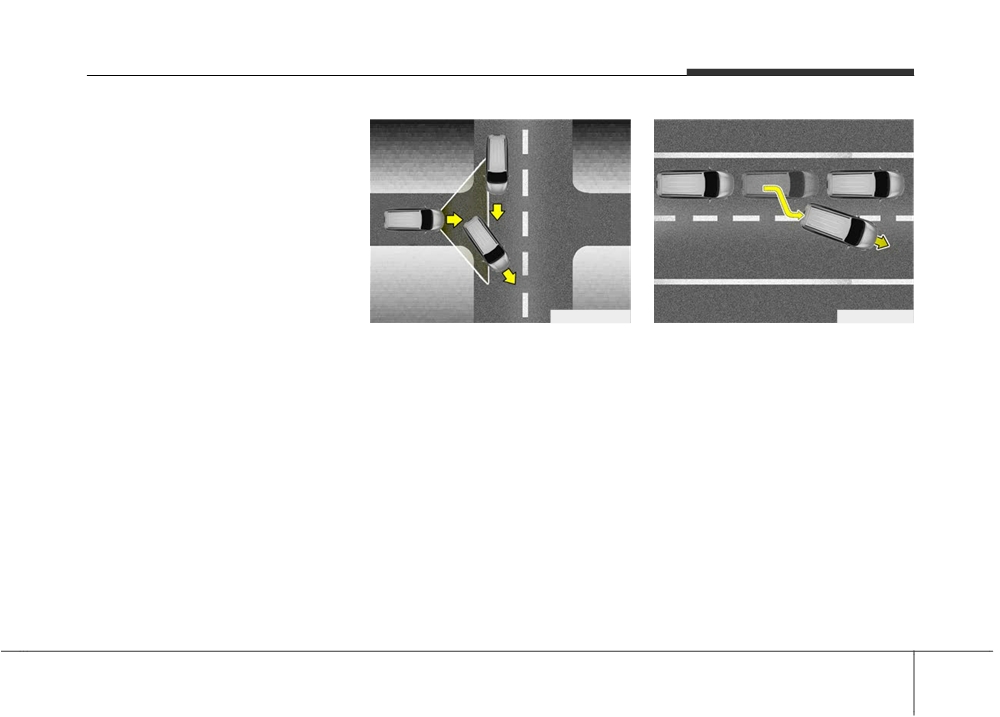

A vehicle ahead cannot be recog-
nized correctly by the sensor if any of
following occurs:
- When the vehicle is pointing
upwards due to overloading in the
trunk
- While the steering wheel is operat-
ing
- When driving to one side of the lane
- When driving on narrow lanes or on
curves
OUM054044L
OUM054046L
Apply the brake or accelerator pedal
Your vehicle may accelerate when
When vehicles are at a standstill
if necessary.
a vehicle ahead of you disappears.
and the vehicle in front of you
changes to the next lane, be care-
When you are warned that the
ful when your vehicle starts to
vehicle ahead of you is not detect-
move because it may not recog-
ed, drive with caution.
nize the stopped vehicle in front of
you.
5 85
Driving your vehicle
WARNING
When using the Smart Cruise
Control take the following pre-
cautions:
If an emergency stop is nec-
essary, you must apply the
brakes. The vehicle cannot be
stopped at every emergency
situation by using the Smart
Cruise Control System.
OUM054047L
ODM055053
Keep a safe distance accord-
Always look out for pedestrians
Always be cautious for vehicles
ing to road conditions and
when your vehicle is maintaining a
with higher height or vehicles car-
vehicle speed. If the vehicle to
distance with the vehicle ahead.
rying loads that sticks out from the
vehicle distance is too close
back of the vehicle.
during a high-speed driving, a
serious collision may result.
Always maintain sufficient
braking distance and deceler-
ate your vehicle by applying
the brakes if necessary.
(Continued)
5 86
Driving your vehicle
This device complies with Part 15
(Continued)
(Continued)
of the FCC rules.
The Smart Cruise Control
• The Smart Cruise Control
Operation is subject to the following
System cannot recognize a
System may not recognize
three conditions:
stopped vehicle, pedestrians
complex driving situations so
1. This device may not cause harm-
or an oncoming vehicle.
always pay attention to driv-
Always look ahead cautiously
ing conditions and control
ful interference, and
to prevent unexpected and
your vehicle speed.
2. This device must accept any inter-
sudden situations from occur-
ference received, including inter-
ring.
ference that may cause undesired
operation.
Vehicles moving in front of
CAUTION
you with a frequent lane
3. Changes or modifications not
The Smart Cruise Control
change may cause a delay in
expressly approved by the party
System may not operate tem-
the system's reaction or may
responsible for compliance could
porarily due to:
cause the system to react to a
void the user's authority to operate
vehicle actually in an adjacent
• Electrical interference
the device.
lane. Always drive cautiously
• Modifying the suspension
to prevent unexpected and
• Differences of tire abrasion or
sudden situations from occur-
tire pressure
ring.
• Installing different type of
Always be aware of the select-
tires
ed speed and vehicle to vehi-
cle distance.
(Continued)
5 87
Driving your vehicle
BLIND SPOT DETECTION SYSTEM (BSD) (IF EQUIPPED)
(1) BSD (Blind Spot Detection)
WARNING
The blind spot detection range
varies relative to vehicle speed.
Always check the road condi-
Blind spot area
Note that if your vehicle is travel-
tion while driving for unex-
ing much faster than the vehicles
pected situations
even
around you, the warning will not
though the Blind Spot
occur.
Detection System
(BSD) is
operating.

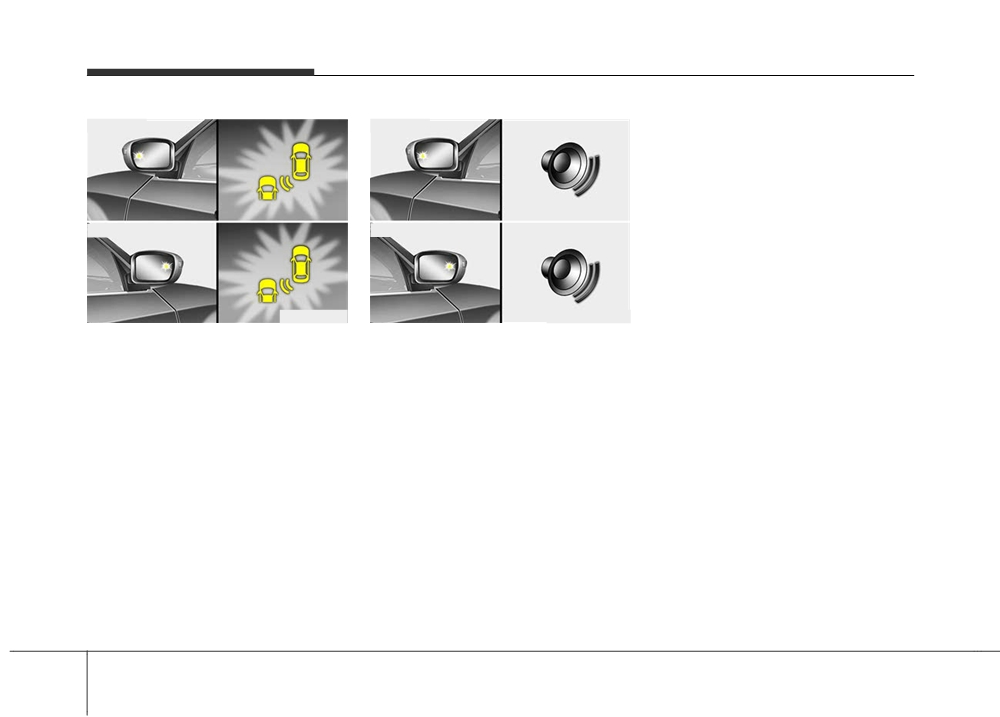

(2) LCA (Lane Change Assist)
Closing at high speed
The Blind Spot Detection
The Lane Change Assist feature
System (BSD) is a supplemen-
will alert you when a vehicle is
tal system to assist you. Do
approaching in an adjacent lane
not entirely rely on the sys-
at a high rate of speed. If the driv-
tem. Always pay attention,
er activates the turn signal when
while driving, for your safety.
the system detects an oncoming
vehicle, the system sounds an
The Blind Spot Detection
audible alert.
System (BSD) is not a substi-
tute for proper and safe driv-
(3) RCTA (Rear Cross Traffic Alert)
ODM056122L
ing. Always drive safely and
The Rear Cross Traffic Alert fea-
use caution when changing
The Blind Spot Detection System
ture monitors approaching cross
lanes or backing the vehicle
(BSD) uses radar sensors in the rear
traffic from the left and right side
up. The Blind Spot Detection
bumper to monitor and warn the driv-
of the vehicle when your vehicle is
System (BSD) may not detect
er of an approaching vehicle in the
moving in reverse. The feature will
every object alongside the
driver's blind spot area.
operate when the vehicle is mov-
vehicle.
The system monitors the rear area of
ing in reverse below about 6 mph
the vehicle and provides information
(10 km/h). If oncoming cross traf-
to the driver with an audible alert and
fic is detected, a warning chime
an indicator on the outside side view
will sound.
mirrors.
5 88
Driving your vehicle
BSD (Blind Spot Detection) /
To cancel:
Warning type
LCA (Lane Change Assist)
Press the BSD (LCA) switch again.
The system will activate when:
(if equipped)
The indicator on the switch will go off.
1. The system is on.
Operating conditions
When the system is not used, turn the
2. The vehicle speed is above about
system off by turning off the switch.
20 mph (30 km/h).
3. Vehicles behind are detected.
NOTICE
• If the engine is turned off then on
again, the BSD system returns to
the previous state.
• When the system is turned on, the
warning light will illuminate for 3
seconds on the side view mirror.
ODM056125
To operate:

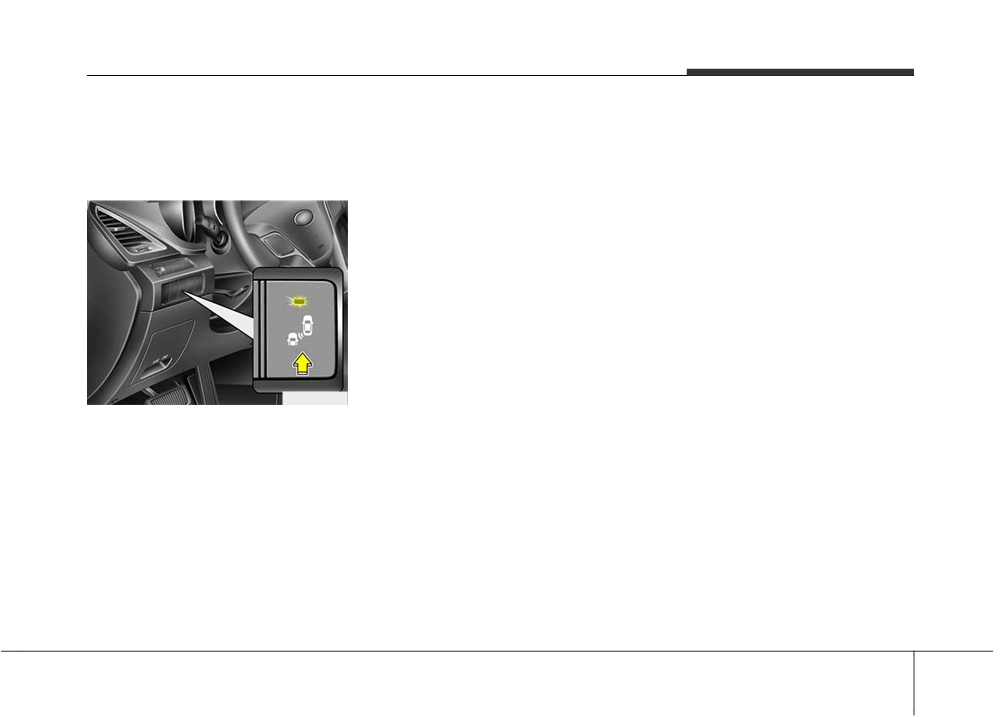

Press the BSD(LCA) switch with the
ignition switch in the ON position.
The indicator illuminates on the
switch. If vehicle speed exceeds
20 mph (30 km/h) the system will
activate.
5 89
Driving your vehicle
■ Left side
■ Left side
The second stage alarm may be
deactivated.
• To activate the alarm:
Go to the User Settings Mode
Sound and select "BSD" on the
LCD display.
■ Right side
■ Right side
• To deactivate the alarm:
Go to the User Settings Mode
Sound and deselect "BSD" on the
LCD display.
ODM056130
ONC055010
First stage alert
Second stage alert
NOTICE
If a vehicle is detected within the
The second stage alarm will activate
The alarm function helps alert the
boundary of the system, a warning
when:
driver. Deactivate this function only
light will illuminate on the side view
when it is necessary.
1. The first stage alert is on.
mirror.
2. The turn signal light is on to change
If the detected vehicle is not in warn-
a lane.
ing range, the warning will turn off
When the second stage alert is acti-
according to driving conditions.
vated, a warning light will blink on the
side view mirror and an alarm will
sound.
If you turn off the turn signal light, the
second stage alert will be deactivated.
5 90
Driving your vehicle
Detecting sensor

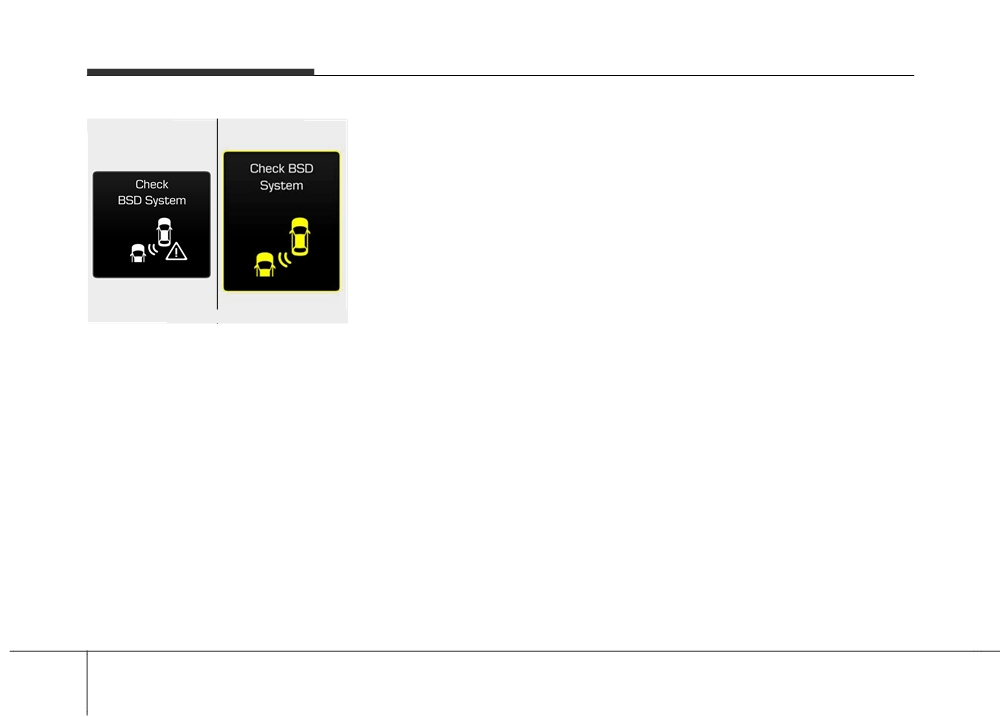

Warning message
When the message is displayed due
to a foreign substance, remove the
foreign substance on the rear
bumper. After the foreign substance
is removed, if you drive for approxi-
mately 10 minutes, the system will
work normally.
If the system does not operate nor-
mally after removing the substance
or is not in a situation mentioned
above, take your vehicle to an
authorized HYUNDAI dealer and
have the system checked.
ONC056017
ODM056069L
The sensors are located inside the
This warning message may appear
rear bumper.
when :
Always keep the rear bumper clean
- There are foreign substances on
for proper operation of the system.
the rear bumper.
- A trailer or carrier is installed.
- Driving in rural areas with little
traffic or open terrains such as
wide expanse of desert.
- There is heavy snow or rain.
The light on the switch and the sys-
tem will turn off automatically.
5 91
Driving your vehicle
■ Type A
■ Type B
RCTA (Rear Cross Traffic Alert)
NOTICE
When your vehicle starts to move
The RCTA (Rear Cross Traffic
backwards after parking, the sensor
Alert) detecting range is about 1 ft ~
detects any approaching vehicles
65 ft (0.5 m ~ 20 m). A vehicle will be
from the left and right sides and
detected if the vehicle speed is 2.5
warns the driver.
mph ~ 22 mph (4 km/h ~ 36 km/h)
within the detecting range. However,
the detecting range may change
Operating conditions
under different conditions. Always
To operate:
pay attention to the surroundings.
Go to the User Settings mode
ODM056070L/ODM056071L
(Driving Assist) and select Rear
If there is a problem with the BSD
Cross Traffic Alert on the LCD display
system, a warning message will
(For more details, refer to "LCD
appear and the light on the switch
Display" in chapter 4.). The system
will turn off. The system will turn off
will turn on and standby to activate.
automatically. You have your vehicle
The system will activate when vehicle
inspected by an authorized
speed is below 7 mph (10 km/h) with
HYUNDAI dealer.
the shift lever in R (Reverse).
5 92
Driving your vehicle
Warning type
NOTICE
WARNING
■ Left
■ Right
If the detected vehicle is out of the
sensing range of your vehicle,
The warning light on the side
move the vehicle away from the
view mirror will illuminate
detected object slowly; the warn-
whenever a vehicle is detect-
ing will be cancelled.
ed at the rear side by the sys-
The system may not operate prop-
tem.
erly due to other factors or cir-
To avoid accidents, do not
cumstances. Always pay attention
focus only on the warning
to your surrounding.
light and neglect to see the
If your vehicle's left or right side
surrounding of the vehicle.
bumper is blinded by barrier or
Drive safely even though the
vehicles, the system sensing ability
ODM056075L/ODM056073L
vehicle is equipped with a
may be reduced.
Blind Spot Detection System
If the vehicle detected by the sensors
(BSD) and Rear Cross Traffic
approaches your vehicle, the warn-
Alert
(RCTA). Do not solely
ing chime will sound, the warning
rely on the system but check
light on the side view mirror will blink
your surrounding before
and a message will appear on the
changing lanes or backing the
LCD display.
vehicle up.
The system may not alert the
driver in some conditions so
always check the surround-
ings while driving.
(Continued)
5 93
Driving your vehicle
Non-operating condition
DRIVER'S ATTENTION
(Continued)
Side view mirror may not alert the
The driver must be cautious in the
• The Blind Spot Detection
driver when:
below situations, because the system
System (BSD) and Rear Cross
- The side view mirror housing is
may not detect other vehicles or
Traffic Alert (RCTA) are not a
damaged or covered with debris.
objects in certain circumstances.
substitute for proper and safe
driving practices. Always
- The window is covered with debris.
-
The vehicle drives on a curved
drive safely and use caution
- The windows are severely tinted.
road or through a tollgate.
when changing lanes or back-
-
The sensor is polluted with rain,
ing the vehicles up. The Blind
snow, mud, etc.
Spot Detection System (BSD)
-
The rear bumper, in which the
may not detect every object
sensor is located, is covered or
alongside the vehicle.
blocked with a foreign matter such
as a sticker, a bumper guard, a
bicycle stand, etc.
NOTICE
-
The rear bumper is damaged, or
• The system may not properly
the sensor is out of the original
operate, when the bumper is
default position.
replaced, or when a repair work is
-
The vehicle height gets lower or
done near the sensor.
higher due to heavy loading in a
• The sensing range differs accord-
trunk, abnormal tire pressure, etc.
ing to the roads width. When the
-
The vehicle drives in a bad weath-
road is narrow, the system may
er such as heavy rain or snow.
detect other vehicles in the next
(Continued)
lane.
• The system may turn off due to
strong electromagnetic waves.
5 94
Driving your vehicle
(Continued)
(Continued)
This device complies with Part
-
There is a fixed object near the
-
When the sensors are blocked by
15 of the FCC rules.
vehicle, such as a guardrail.
other vehicles, walls or parking-lot
Operation is subject to the following
-
A big vehicle is near such as a bus
pillars.
two conditions:
or truck.
-
When the detected vehicle also
1. This device may not cause harm-
-
A motorcycle or bicycle is near.
moves back, as your vehicle drives
ful interference, and
-
A flat trailer is near.
back.
-
If the vehicle has started at the
-
If there are small things like shop-
2. This device must accept any inter-
same time as the vehicle next to
ping cart and baby carriage.
ference received, including inter-
you and has accelerated.
-
If there is low height vehicle like
ference that may cause undesired
-
When the other vehicle passes at a
sport vehicle.
operation.
very fast speed.
-
When other vehicles are close to
-
While changing lanes.
your vehicle.
-
While going down or up a steep
-
When the vehicle in the next lane
road where the height of the lane
moves two lanes away from you
is different.
OR when the vehicle two lanes
-
When the other vehicle approach-
away moves to the next lane from
es very close.
you.
-
When a trailer or carrier is
-
When driving through a narrow
installed.
road with many trees or bushes.
-
When the temperature near the
-
When driving on wet surface.
rear bumper area is high or low.
(Continued)
5 95
Driving your vehicle
LANE DEPARTURE WARNING SYSTEM (LDWS) (IF EQUIPPED)
(Continued)
WARNING
Do not let water or any kind of
The LDWS does not make the
liquid come in contact with
vehicle change lanes. It is the
the LDWS sensor.
driver's responsibility to
always check the road condi-
Do not remove any LDWS
tions.
parts and do not expose the
sensor to a strong impact.
Do not turn the steering wheel
suddenly when the LDWS
Do not place objects on the
warns you that your vehicle is
dashboard that reflects light
ONC056015
leaving the lane.
such as mirrors, white paper,
etc. The system may malfunc-
If the sensor cannot detect the
tion if the sunlight is reflected.
lane or if the vehicle speed
does not exceed 35 mph (60
Do not place any accessories
km/h), the LDWS won't warn
near the rearview mirror.
you even though vehicle
Always monitor road condi-
leaves the lane.
tions, because you may not
If your vehicle has window tint
hear the warning chime due to
or other types of coating or an
audio volume level and or
accessory on the front wind-
external conditions.
ODM052048
shield, the LDWS may not
This system detects the lane with a
work properly.
sensor at the front windshield and
(Continued)
warns you when your vehicle leaves
the lane.
5 96















Content   ..  20  21  22  23   ..
