Driving your vehicle
✽ NOTICE
Electronic Stability Control
CAUTION
(ESC)
When you jump start your vehicle
•
When the brakes are operated
because of a drained battery, the
continuously on a road having
engine may not run as smoothly and
poor traction, the ABS will be
the ABS warning light may turn on
active and the ABS warning
at the same time. This happens
light may illuminate. Pull your
because of the low battery voltage. It
vehicle over to a safe place
does not mean your ABS is malfunc-
and stop the engine.
tioning.
•
Restart the engine. If the ABS
•
Do not pump your brakes!
warning light is off, then your
•
Have the battery recharged before
ABS system is normal.
driving the vehicle.
Otherwise, you may have a
problem with the ABS. Contact
ODM052046
an authorized HYUNDAI dealer
as soon as possible.
The Electronic Stability Control
(ESC) system helps to stabilize the
vehicle during cornering maneuvers.
ESC checks where you are steering
and where the vehicle is actually
going. ESC applies braking pressure
to any one of the vehicle's brakes
and intervenes in the engine man-
agement system to assist the driver
with keeping the vehicle on the
intended path. It is not a substitute
for safe driving practices. Always
adjust your speed and driving to the
road conditions.
5 46
Driving your vehicle
ESC operation
When operating
WARNING
ESC ON condition
When the ESC is in opera-
Never drive too fast for the road
tion, the ESC indicator light
When the ignition switch is in the ON
conditions or too quickly when
blinks:
position, the ESC and the ESC OFF
cornering. The ESC system will
indicator lights illuminate for approxi-
• When you apply your
not
prevent
accidents.
mately three seconds and goes off,
brakes under conditions
Excessive speed in turns,
then the ESC is turned on.
which may lock the
abrupt
maneuvers,
and
wheels, you may hear
If this light stays on, your vehicle may
hydroplaning on wet surfaces
sounds from the brakes, or
have a malfunction with the ESC
can result in severe accidents.
feel a corresponding sen-
system. Have your vehicle checked
sation in the brake pedal.
by an authorized HYUNDAI dealer
This is normal and it
as soon as possible.
means your ESC is active.
• When the ESC activates,
the engine may not
respond to the accelerator
as it does under routine
conditions.
• If the Cruise Control was
in use when the ESC acti-
vates, the cruise control
automatically disengages.
The Cruise Control can be
reengaged when the road
conditions allow. See
"Cruise Control System"
later in this chapter.
5 47
Driving your vehicle
• When moving out of the
ESC OFF condition
• State 2
mud or driving on a slip-
Press the ESC OFF button for more
pery road, the engine rpm
than 3 seconds. ESC OFF indicator
(revolutions per minute)
light illuminates and ESC OFF warn-
may not increase even if
ing chime will sound. At this state,
you press the accelerator
To cancel ESC operation :
the engine control function and brake
pedal deeply. This is to
• State 1
control function does not operate. In
maintain the stability and
other words, the vehicle stability con-
Press the ESC OFF button shortly
traction of the vehicle and
trol function does not operate any
(ESC OFF indicator light illumi-
does not indicate a prob-
more.
nates). At this state, the engine con-
lem.
trol function does not operate. In
If the ignition switch is placed to the
other words, the traction control
LOCK/OFF position when ESC is off,
function does not operate but only
ESC remains off. Upon restarting the
the brake control function operates.
engine, the ESC will automatically
turn on again.
5 48
Driving your vehicle
Indicator lights
ESC OFF usage
WARNING
When driving
■ ESC indicator light
When the ESC is blinking, this
The ESC OFF mode should only be
indicates the ESC is active:
used briefly to help free the vehicle if
Drive slowly and NEVER
stuck in snow or mud by temporarily
attempt to accelerate. NEVER
stopping operation of the ESC to
press the ESC OFF button while
maintain wheel torque.
■ ESC OFF indicator light
the ESC indicator light is blink-
To turn ESC off while driving, press
ing or you may lose control of
the ESC OFF button while driving on
the vehicle resulting in an acci-
a flat road surface.
dent.
When the ignition switch is placed to
CAUTION
the ON position, the ESC indicator
light illuminates, then goes off if the
Driving with varying tire or
ESC system is operating normally.
wheel sizes may cause the ESC
system to malfunction. When
The ESC indicator light blinks when-
replacing tires, make sure they
ever the ESC is operating.
are the same size as your origi-
If ESC indicator light stays on, your
nal tires for this vehicle.
vehicle may have a malfunction with
the ESC system. When this warning
light illuminates have your vehicle
checked by an authorized HYUNDAI
dealer as soon as possible.
The ESC OFF indicator light comes
on when the ESC is turned off with
the button.
5 49
Driving your vehicle
Vehicle stability management
The VSM does not operate when:
CAUTION
(VSM) (if equipped)
• Driving on a banked road such as
To prevent damage to the
gradient or incline
This system provides further
transaxle:
enhancements to vehicle stability
• Driving rearward
•
Do not allow wheel(s) of one
and steering responses when a vehi-
• ESC OFF indicator light
(
)
axle to spin excessively while
cle is driving on a slippery road or a
remains on the instrument cluster
the ESC, ABS, and brake
vehicle detected changes in coeffi-
• EPS indicator light remains on the
warning lights are displayed.
cient of friction between right wheels
instrument cluster
The repairs would not be cov-
and left wheels when braking.
ered by the vehicle warranty.
Reduce engine power and do
VSM operation off
VSM operation
not spin the wheel(s) exces-
If you press the ESC OFF button to
sively while these lights are
When the VSM is in operation, ESC
turn off the ESC, the VSM will also
indicator light (
) blinks.
displayed.
cancel and the ESC OFF indicator
•
When operating the vehicle on
When the vehicle stability manage-
light (
) illuminates.
a dynamometer, ensure the
ment is operating properly, you can
To turn on the VSM, press the button
ESC is turned off (ESC OFF
feel a slight pulsation in the vehicle
again. The ESC OFF indicator light
light illuminated).
and/or abnormal steering responses
goes out.
(EPS). This is only the effect of brake
and EPS control and indicates noth-
✽ NOTICE
ing unusual.
Turning the ESC OFF does not
affect ABS or standard brake sys-
tem operation.
5 50
Driving your vehicle
Malfunction indicator
Downhill brake control (DBC)
WARNING
The VSM system will automatically
be deactivated if a malfunction has
•
The
Vehicle
Stability
been detected somewhere in the
Management system is not a
Electric Power Steering system or
substitute for safe driving
the VSM system. If a malfunction is
practices but a supplemen-
detected, the ESC indicator light will
tary function only. It is the
illuminate and remain on. If the ESC
responsibility of the driver to
indicator light (
) or EPS warning
always check the speed and
light remains on, take your vehicle to
the distance to the vehicle
an authorized HYUNDAI dealer and
ahead. Always hold the steer-
have the system checked.
ing wheel firmly while driving.
•
Your vehicle is designed to
ONC056016
✽ NOTICE
operate according to the dri-
ver's input through steering,
The Downhill Brake Control (DBC)
• The VSM is designed to function
acceleration, and braking,
assists the driver when descending a
above approximately 9 mph (15
even with the VSM opera-
steep hill without the driver depress-
km/h) on curves.
tional. Always follow all the
ing the brake pedal. It slows the vehi-
• The VSM is designed to function
normal precautions for driv-
cle to approximately
6.3 mph (10
above approximately 18 mph (30
ing at safe speeds for the con-
km/h) and lets the driver concentrate
km/h) when a vehicle is braking on
ditions - including driving in
on steering the vehicle.
a split-mu road. The split-mu road
inclement weather and on a
is made of surfaces which have dif-
DBC defaults to the OFF position
slippery road.
whenever the ignition is turned on.
ferent friction forces.
•
Driving with varying tire or
The DBC can be turned on or off by
wheel sizes may cause the
pushing the button.
VSM system to malfunction.
When replacing tires, make
sure they are the same size as
your original tires.
5 51
Driving your vehicle
Indicator
Mode
Description
light
Press the DBC button when the vehicle speed is under
Green light
25 mph (40 km/h). The DBC system will turn ON and enter the standby mode.
Standby
illuminated
The system maintains the standby mode when vehicle speed is under approximately
38 mph (60km/h).
In the standby mode, DBC will activate automatically under the following conditions:
Green light
Activated
• The incline is over a certain degree.
blink
• The brake pedal or accelerator pedal is not depressed.
The DBC will turn OFF under the following conditions:
Green light
OFF
• The DBC button is pressed again.
OFF
• The vehicle speed is over approximately 38 mph (60 km/h).
In the activated mode, the DBC will temporarily deactivate under the following conditions:
Temporarily
Green light
• The hill is not steep enough.
deactivated
illuminated
• The brake pedal or accelerator pedal is depressed.
When the above conditions are gone, the DBC will automatically activate again.
WARNING
If the DBC yellow indicator light illuminates, the system has overheated or there is an operational problem.
The DBC will not activate. If the DBC yellow indicator light illuminates even though the DBC system has
cooled, have the system checked by an authorized HYUNDAI dealer.
5 52
Driving your vehicle
✽ NOTICE
Hill-start assist control (HAC)
WARNING
•
The DBC does not turn ON in the
A vehicle has the tendency to roll
P (Park) position.
•
Unnecessary or unwanted
back on a steep hill when the driver
•
The DBC may not activate if the
DBC activation may result in
begins to accelerate after a stop. The
ESC (or ABS) is activated.
an accident.
Hill-start Assist Control
(HAC) pre-
•
Noise or vibration may occur from
•
On a very steep hill even
vents the vehicle from rolling back by
the brakes when the DBC is acti-
though the brake pedal or
operating the brakes automatically
vated.
accelerator pedal is depressed
for about 1.5 seconds. The brakes
•
The rear stop light comes on when
the DBC may not deactivate.
are released when the accelerator
the DBC is activated.
pedal is depressed or after about 1.5
•
Always turn OFF the DBC on nor-
seconds.
mal roads. The DBC might acti-
vate from the standby mode dur-
ing abrupt cornering or driving
WARNING
over speed bumps.
The HAC is activated only for
about 1.5 seconds, so always
depress the accelerator pedal to
begin accelerating after a stop.
5 53
Driving your vehicle
✽ NOTICE
Good braking practices
•
Driving through water may get the
brakes wet. They can also get wet
•
The HAC does not operate when
when the vehicle is washed. Wet
the transaxle shift lever is in the P
WARNING
brakes can be dangerous! Your
(Park) or N (Neutral) position.
•
Whenever you leave or park
vehicle will not stop as quickly if the
•
The HAC activates even though
your vehicle, always set the
brakes are wet. Wet brakes may
the ESC is off but it does not acti-
parking brake as far as possi-
cause the vehicle to pull to one side.
vate when the ESC has malfunc-
ble and fully engage the vehi-
tioned.
To dry the brakes, apply the brakes
cle's transaxle into the P (Park)
lightly until the braking action returns
position. If the parking brake is
to normal, taking care to keep the
not fully engaged, the vehicle
vehicle under control at all times. If
may move inadvertently and
the braking action does not return to
injure yourself and others.
normal, stop as soon as it is safe to
•
All vehicles should always
do so and call an authorized
have the parking brake fully
HYUNDAI dealer for assistance.
engaged when parking to
•
Don't coast down hills with the
avoid inadvertent movement
vehicle out of gear. This is extreme-
of the vehicle which can injure
ly hazardous. Keep the vehicle in
occupants or pedestrians.
gear at all times, use the brakes to
slow down, then shift to a lower
•
After being parked, check to be
gear so that engine braking will
sure the parking brake is not
help you maintain a safe speed.
engaged and that the parking
•
Don't "ride" the brake pedal.
brake indicator light is out before
Resting your foot on the brake
driving away.
pedal while driving can be danger-
ous because it can result in the
brakes overheating and losing their
effectiveness. It also increases the
wear of the brake components.
5 54
Driving your vehicle
•
If a tire goes flat while you are driv-
•
Under some conditions your park-
ing, apply the brakes gently and
ing brake can freeze in the
keep the vehicle pointed straight
engaged position. This is most like-
ahead while you slow down. When
ly to happen when there is an
you are moving slowly enough for it
accumulation of snow or ice
to be safe to do so, pull off the road
around or near the rear brakes or if
and stop in a safe place.
the brakes are wet. If there is a risk
that the parking brake may freeze,
•
If your vehicle is equipped with an
apply it only temporarily while you
automatic transaxle, don't let your
put the gear selector lever in P
vehicle creep forward. To avoid
(automatic transaxle) and block the
creeping forward, keep your foot
rear wheels so the vehicle cannot
firmly on the brake pedal when the
roll. Then release the parking
vehicle is stopped.
brake.
•
Use caution when parking on a hill.
•
Do not hold the vehicle on an
Firmly engage the parking brake
incline with the accelerator pedal.
and place the shift lever in P (auto-
This can cause the transaxle to
matic transaxle). If your vehicle is
overheat. Always use the brake
facing downhill, turn the front
pedal or parking brake.
wheels into the curb to help keep
the vehicle from rolling. If your vehi-
cle is facing uphill, turn the front
wheels away from the curb to help
keep the vehicle from rolling. If
there is no curb or if it is required
by other conditions to keep the
vehicle from rolling, block the
wheels.
5 55
Driving your vehicle
AUTOMATIC EMERGENCY BRAKING (AEB) (IF EQUIPPED)
The AEB system is to reduce or to
System setting and activation
avoid accident risk. It recognizes the
WARNING
System setting
distance from the vehicle ahead or
Take the following precautions
the pedestrian through the sensors
when using the Automatic
(i.e. radar and camera), and, if nec-
Emergency Braking (AEB):
essary, warns the driver of accident
•
This system is only a supple-
risk with the warning message or the
mental system and it is not
warning alarms.
intended to, nor does it
replace the need for extreme
care and attention of the driv-
er. The sensing range and
objects detectable by the sen-
sors are limited. Pay attention
to the road conditions at all
ODM056093L
times.
•
NEVER drive too fast in accor-
The driver can activate the AEB by
dance with the road condi-
placing the ignition switch to the ON
tions or while cornering.
position and by selecting 'User
•
Always drive cautiously to
Settings', 'Driving Assist', and 'AEB
(Automatic Braking System)'. The
prevent unexpected and sud-
den situations from occur-
AEB deactivates, when the driver
cancels the system setting.
ring. AEB does not stop the
vehicle completely and does
not avoid collisions.
5 56
Driving your vehicle
The warning light illumi-
• Even though, you may feel that the
nates on the LCD display,
fast alarming speed is still slow,
when you cancel the AEB
when the vehicle in front abruptly
system. The driver can
stops.
monitor the AEB ON/OFF status on
the LCD display. When the warning
light remains ON with the AEB acti-
vated, have the system checked by
an authorized HYUNDAI dealer.
ODM056094L

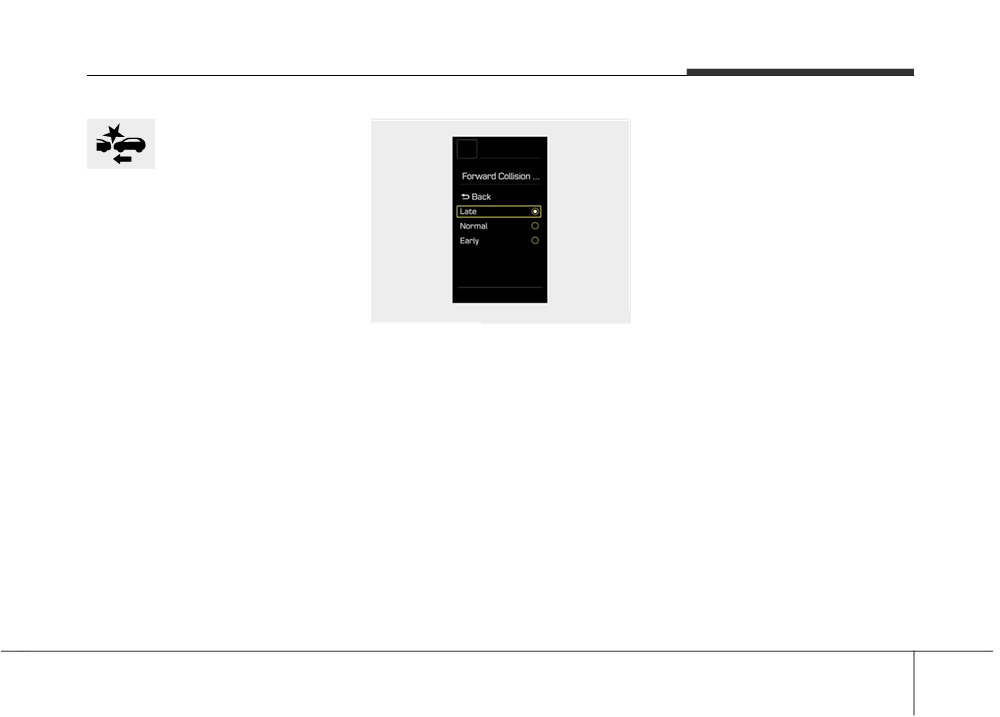

The driver can set the alarm speed
to Early, Normal, or Late by placing
the ignition switch to the ON position
and by selecting 'User Settings',
'Driving Assist', 'FCW
(Forward
Collision Warning)', and 'Early
/
Normal / Late'
• When the 'Early' speed is selected,
the warning alarm promptly
sounds upon getting the AEB sig-
nal. When it is too fast, select the
'Normal' speed.
• The 'Late' speed should be select-
ed only in uncrowded traffic at a
lower driving speed.
5 57
Driving your vehicle
The AEB can be successfully
AEB warning message and
activated
WARNING
system control
When the AEB is selected on the
•
The driver can either activate
The AEB produces warning mes-
LCD display, and when the following
or deactivate the AEB by
sages and warning alarms in accor-
prerequisites are satisfied.
selecting 'User Settings',
dance with the collision risk levels.
'Driving Assist' and enabling/
- The ESC (and TCS) is activated.
Also, it controls the brakes in accor-
disabling the feature.
dance with the collision risk levels.
- Driving speed exceeds approxi-
However, for your safety, oper-
mately 6mph (10km/h). (The AEB
ate the AEB after parking the
is only activated within a certain
vehicle on a safe location.
speed range.)
•
The AEB automatically acti-
- The system detects a pedestrian or
vates upon placing the igni-
a vehicle in front, which may collide
tion switch to the ON position.
with your vehicle. (The AEB may
The driver can deactivate the
not be activated or may sound a
AEB by canceling the system
warning alarm in accordance with
setting on the LCD display.
the driving situation or vehicle con-
dition.)
•
The AEB automatically deacti-
vates upon canceling the
ESC. When the ESC is can-
celed, the AEB cannot be acti-
vated on the LCD display.
5 58
Driving your vehicle

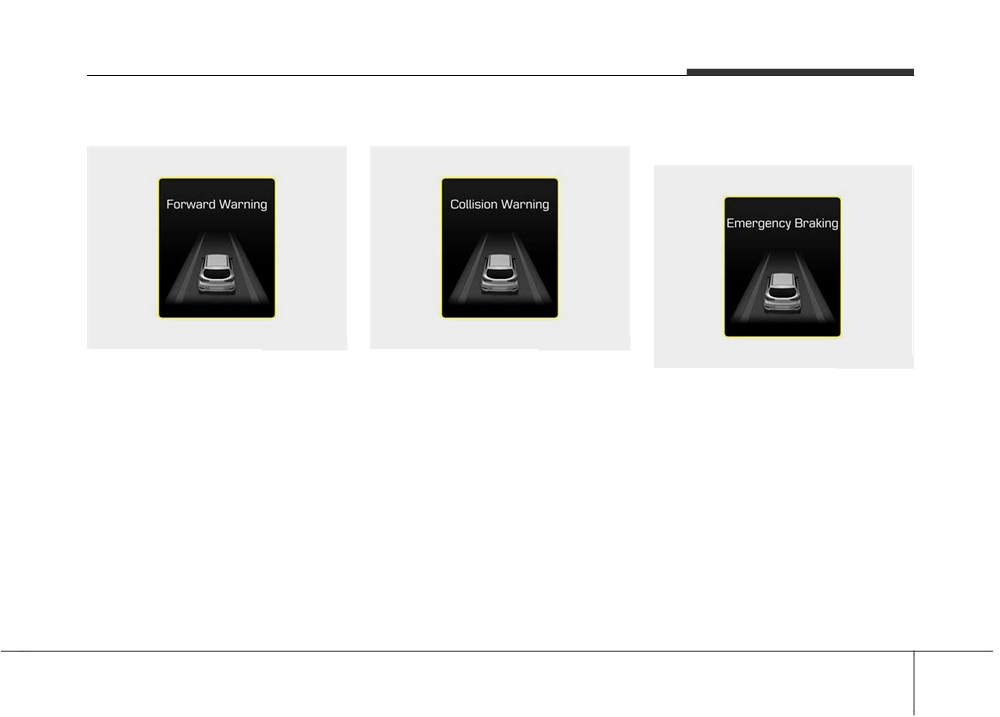

Forward Warning (1st warning)
Collision Warning (2nd warning)
Emergency braking
(3rd warning)
ODM056082L
ODM056083L
The warning message appears on
• This warning message appears on
ODM056084L
the LCD display with the warning
the LCD display with a warning
• This warning message appears on
alarms.
chime.
the LCD display with a warning
• The AEB system limitedly controls
alarm.
the brakes to preemptively mitigate
• The AEB system limitedly controls
impact in a collision.
the brakes to preemptively mitigate
impact in a collision.
- The brake control is maximized
just before a collision.
5 59
Driving your vehicle
Brake operation
CAUTION
WARNING
•
In an urgent situation, the braking
system enters into the ready status
The driver should always exer-
The AEB operates in accor-
for prompt reaction against the dri-
cise caution to vehicle opera-
dance with the risk levels, such
ver’s depressing the brake pedal.
tion, even when there is no
as the distance from the vehi-
warning message or warning
cle/passer-by in front, the speed
•
The AEB provides additional brak-
alarm.
of the vehicle/passer-by in front,
ing power for optimum braking per-
and the driver's vehicle opera-
formance, when the driver depress-
tion.
es the brake pedal.
WARNING
•
The braking control is automatically
deactivated, when the driver
The braking control cannot
sharply depresses the accelerator
completely stop the vehicle nor
pedal, or when the driver abruptly
avoid all collisions. The driver
operates the steering wheel.
should hold the responsibility
to safely drive and control the
•
The braking control is automatical-
vehicle.
ly canceled, when risk factors dis-
appear.
5 60
Driving your vehicle
Sensor to detect the distance
Warning message and warning
✽ NOTICE
from the vehicle in front
light
•
Do not install any accessories,
(front radar)
such as a license plate bracket or
bumper sticker near the sensor
area. Do not replace the bumper
by yourself. Doing so may
adversely affect the sensing per-
formance.
•
Always keep the sensor/bumper
area clean.
•
Use only a soft cloth to wash the
vehicle. Also, do not spray highly
pressurized water on the sensor
installed on the bumper.
ODM056096L
•
Be careful not to apply unneces-
ONC056014
sary force on the frontal sensor
When the sensor cover or the sensor
This sensor is designed to help
area. When the sensor moves out
lens is obscured by foreign sub-
maintain a certain distance from the
stances, such as snow or rain, the
of the correct position due to
vehicle in front. However, a smudged
external force, the system may not
AEB operation may temporarily stop.
sensor lens with foreign substances,
In this case, a warning message will
operate correctly even without the
such as snow and rain, adversely
warning light or message. In this
appear to notify the driver. This is not
affects the sensing performance. It
a malfunction with the AEB. To oper-
case, have the vehicle inspected by
may even temporarily cancel the
an authorized HYUNDAI dealer.
ate the AEB again, remove the for-
•
Use only the genuine HYUNDAI
AEB. Always keep the sensor lens
eign substances.
clean.
sensor cover. Do not apply paint
on the sensor cover.
5 61
Driving your vehicle
System malfunction
(Continued)
WARNING
•
The AEB operates only for the
•
The AEB is only a supplemen-
vehicle / pedestrian in front,
tal system for the driver's con-
while driving forward. It does
venience. The driver still
not operate for any animals or
maintains responsibility to
vehicles in the opposite direc-
control the vehicle. Do not
tion.
solely depend on the AEB
system. Rather, maintain a
•
The AEB can not recognize
safe braking distance, and, if
the side-profile of vehicles,
necessary, depress the brake
such as in the case of cross-
pedal to lower the driving
traffic at an intersection, or a
speed.
vehicle pulling out of a drive-
ODM046661L
way.
•
The AEB may unnecessarily
•
When the AEB is not working prop-
produce warning messages
erly, the AEB warning light (
)
and warning alarms. Due to
will illuminate and the warning
sensor limitations, the AEB
message will appear for a few sec-
may not produce warning
onds. After the message disap-
messages or the warning
pears, the master warning light
alarm at all.
(
) will illuminate. In this occurs,
•
When there is a malfunction
have the vehicle inspected by an
with the AEB, the braking con-
authorized HYUNDAI dealer.
trol does not operate upon
•
The AEB warning message may
detecting a collision risk even
appear along with the illumination
with other braking systems
of the ESC warning light.
normally operating.
(Continued)
5 62
