Safety features of your vehicle
ONCESA2015
ONCESA2016
OYFH034205
Forward and backward adjustment
Adjusting the height up and down
The headrest may be adjusted for-
To raise the headrest :
CAUTION
ward to 4 different positions by pulling
1. Pull it up to the desired position (1).
If you recline the seatback
the headrest forward to the desired
towards the front with the head-
detent. To adjust the headrest to
rest and seat cushion raised,
backwards position, press and hold
To lower the headrest :
the headrest may come in con-
the release button
(1), and adjust
1. Push and hold the release button
tact with the sunvisor or other
position of the headrest. Adjust the
(2) on the headrest support
parts of the vehicle.
headrest so that it properly supports
2. Lower the headrest to the desired
the head and neck.
position (3).
3 11
Safety features of your vehicle
■ Type A
■ Type A
WARNING
NEVER allow anyone to ride in a
seat with the headrest removed.
ONCNSA3150
ONCNSA3151
■ Type B
■ Type B
ONCNSA3152
ONCNSA3153
Removal/Reinstallation
To reinstall the headrest :
To remove the headrest:
1. Put the headrest poles (2) into the
holes while pressing the release
1. Recline the seatback (2) with the
recline lever or switch (1).
button (1).
2. Raise headrest as far as it can go.
2. Recline the seatback (4) with the
recline lever or switch (3).
3. Press the headrest release button
(3) while pulling the headrest up
3. Adjust the headrest to the appro-
priate height.
(4).
3 12
Safety features of your vehicle
Seat warmer (if equipped)
With the ignition switch in the ON
WARNING
position, push either of the switches
Type A
(red color) to warm the driver's seat
Always make sure the headrest
locks into position after rein-
or the front passenger's seat.
stalling and adjusting it properly.
During mild weather or under condi-
tions where the operation of the seat
warmer is not needed, keep the
switches in the OFF position.
• Each time you push the button, the
temperature setting of the seat is
changed as follows :
OFFHIGH(
)MIDDLE(
)LOW(
)
OANNSA2018
Type B
• The seat warmer defaults to the
OFF position whenever the ignition
switch is turned on.
• With the seat warmer switch in the
ON position, the heating system in
the seat turns off or on automati-
cally depending on the seat tem-
perature.
OANNSA2019
The seat warmer is provided to warm
the front seats during cold weather.
3 13
Safety features of your vehicle
Air ventilation seat (if equipped)
WARNING
WARNING
The seat warmers can cause a
NEVER place anything on the
SERIOUS BURN, even at low
seat that insulates against heat
temperatures and especially if
when the seat warmer is in
used for long periods of time.
operation, such as a blanket or
seat cushion. This may cause
Passengers must be able to feel
the seat warmer to overheat,
if the seat is becoming too
causing a burn or damage to
warm so they can turn it off, if
the seat.
needed.
People who cannot detect tem-
perature change or pain to the
skin should use extreme cau-
CAUTION
OANNSA2020
tion, especially the following
To prevent damage to the seat
The air ventilation seat is provided to
types of passengers:
warmers and seats:
cool the front seats during hot weath-
• Infants, children, elderly or
• Never use a solvent such as
er by blowing air through small vent
disabled persons, or hospital
paint thinner, benzene, alco-
holes on the surface of the seats.
outpatients.
hol or gasoline to clean the
While the engine is running, press
• People with sensitive skin or
seats.
the cooling portion (blue color) of the
who burn easily.
switch to cool the driver's seat or the
• Do not place heavy or sharp
front passenger's seat.
• Fatigued individuals.
objects on seats equipped
with seat warmers.
When the operation of the seat cool-
• Intoxicated individuals.
er is not needed, keep the switches
• Do not change the seat cover.
• People taking medication that
in the OFF position.
It may damage the seat
can cause drowsiness or
warmer.
sleepiness.
3 14
Safety features of your vehicle
• Each time you press the button, the
Seatback pocket
(Continued)
airflow will change as follows:
Avoid spilling liquids on the
OFFHIGH(
)MIDDLE(
)LOW(
)
surface of the front seats and
seatbacks; this may cause the
air vent holes to become
blocked and not work proper-
• The air ventilation seat defaults to
ly.
the OFF position whenever the igni-
tion switch is turned on.
Do not place materials such
as plastic bags or newspapers
under the seats. They may
CAUTION
block the air intake causing
To prevent damage to the air
the air vents to not work prop-
ventilation seat:
erly.
OCM030052
• Use the air ventilation seat
Do not change the seat cov-
ONLY when the climate con-
ers. It may damage the air ven-
WARNING - Seatback
trol system is on. Using the
tilation seat.
pockets
air ventilation seat for pro-
If the air vents do not operate,
Do not put heavy or sharp
longed periods of time with
restart the vehicle. If there is
objects in the seatback pocket.
the climate control system off
no change, you have your
An occupant could contact such
could cause the air ventilation
vehicle inspected by an
objects in a crash. Heavy objects
seat to malfunction.
authorized HYUNDAI dealer.
in the front passenger seatback
• Never use a solvent such as
could also interfere with the
paint thinner, benzene, alco-
occupant sensing system.
hol or gasoline to clean the
seats.
(Continued)
3 15
Safety features of your vehicle
Driver position memory system
WARNING
(for power seat, if equipped)
WARNING
For proper operation of the
Never attempt to operate the
occupant classification system:
driver position memory system
while the vehicle is moving.
• Do not place any items cumu-
latively weighing over 2.2 lbs
This could result in loss of con-
(1 kg) in the seatback pocket
trol, and an accident causing
or on the seat.
death, serious injury, or proper-
ty damage.
ODM042335
A driver position memory system is
provided to store and recall the driv-
er seat and side view mirror position
with a simple button operation. By
saving the desired position into the
system memory, different drivers can
reposition the driver seat based upon
their driving preference. If the battery
is disconnected, the position memory
will be erased and the driving position
should be restored in the system.
3 16
Safety features of your vehicle
Storing positions into memory
Recalling positions from memory
using the buttons on the door
WARNING
The position in memory will be
Storing driver’s seat positions
recalled when:
Use caution when recalling the
adjustment memory while sit-
1. Shift the shift lever into P while the
1. The shift lever is in P with one of
ting in the vehicle. Push the
engine start/stop button is ON or
the condition below:
seat position control switch to
ignition switch ON.
- The ignition switch in the ON
the desired position immediate-
2. Adjust the driver’s seat and side
position or engine running.
ly if the seat moves too far in
view mirror to a position that is
- The ignition switch in the
any direction.
comfortable for the driver.
LOCK/OFF or ACC position
3. Press SET button on the control
while the driver's door is opened.
panel. The system will beep once.
2. Press the desired memory button
4. Press one of the memory buttons
(1 or
2). The system will beep
(1 or
2) within
5 seconds after
once, then the driver's seat will
pressing the SET button. The sys-
automatically adjust to the stored
tem will beep twice when memory
position.
has been successfully stored.
Adjusting the control switch for the
driver’s seat while the system is
recalling the stored position will
cause the movement to stop and
move in the direction that the control
switch is moved.
3 17
Safety features of your vehicle
Easy access function
Rear seat adjustment
2. Slide the seat to the position you
(if equipped)
desire.
Forward and backward
The system will move the driver's
3. Release the lever and make sure
(if equipped)
seat automatically as follows:
the seat is locked in place.
7-seater
• Without smart key system
Adjust the seat before driving, and
- It will move the driver’s seat rear-
make sure the seat is locked secure-
ward when the ignition key is
ly by trying to move forward and
removed.
backward without using the lever. If
the seat moves, it is not locked prop-
- It will move the driver’s seat for-
erly.
ward when the ignition key is
inserted.
With smart key system
- It will move the driver’s seat rear-
OANNSA2021
ward when the engine start/stop
6-seater
button is changed to the OFF
position.
- It will move the driver’s seat for-
ward when the engine start/stop
button is changed to the ACC or
START position.
You can activate or deactivate this
feature. Refer to "User settings" in
ONCDSA2113
section 4.
To move the seat forward or back-
ward:
1. Pull the seat slide adjustment
lever up and hold it.
3 18
Safety features of your vehicle
Seatback angle
3. Release the lever and make sure
Headrest (for rear seat)
the seatback is locked in place.
7-seater
(The lever MUST return to its orig-
inal position for the seatback to
lock.)
OANNSA2022
6-seater
OHM038049N
The rear seat(s) is equipped with
headrests in all the seating positions
for the occupant's safety and com-
fort.
The headrest not only provides com-
fort for passengers, but also helps to
protect the head and neck in the
event of a collision.
ONCDSA3125
To recline the seatback:
1. Pull up the seatback recline lever.
2. Hold the lever and adjust the seat-
back of the seat to the position you
desire.
3 19
Safety features of your vehicle
(Continued)
WARNING - Headrest
Do not operate the vehicle
adjustment
with the headrests removed.
Severe injury to an occupant
may occur in the event of an
accident. Headrests may pro-
vide protection against severe
For maximum effectiveness in
neck injuries when properly
case of an accident, the head-
adjusted.
rest should be adjusted so the
middle of the headrest is at the
Do not adjust the headrest
same height as the center of
height while the vehicle is in
OANNSA2024
gravity of an occupant's head.
motion.
Adjusting the height up and down
Generally, the center of gravi-
- 2nd row
ty of most people's head is
To raise the headrest :
similar with the height of the
1. Pull it up to the desired position (1).
top of their eyes.
Also adjust the headrest as
close to your head as possi-
To lower the headrest :
ble. For this reason, the use of
1. Push and hold the release button
a cushion that holds the body
(2) on the headrest support
away from the seatback is not
2. Lower the headrest to the desired
recommended.
position (3).
(Continued)
3 20
Safety features of your vehicle
WARNING
Make sure the headrest locks
in position after adjusting it to
properly protect the occu-
pants.
After installing the headrest,
make sure that it is installed
in the right direction.
A headrest installed reversely
could increase whiplash
OANNSA2025
ONCESA2106
injury during rear impact.
Removal/Reinstallation
Fold the headrest - 3rd row
- 2nd row
To fold the headrest :
To remove the headrest :
Pull the strap.
1. Raise it as far as it can go then
press the release button (1) while
pulling the headrest up (2).
To reinstall the headrest :
1. Put the headrest poles (3) into the
holes while pressing the release
button (1).
2. Adjust it to the appropriate height.
3 21
Safety features of your vehicle
Armrest
Seat warmer (if equipped)
7-seater
ONCESA2107
OANNSA2028
6-seater
Unfold the headrest - 3rd row
ODM032026
To unfold the headrest :
The seat warmer is provided to warm
Raise the headrest manually.
the rear seats during cold weather.
With the ignition switch in the ON
position, push either of the switches
to warm the rear seats.
During mild weather or under condi-
tions where the operation of the seat
warmer is not needed, keep the
ONCESA2108
switches in the OFF position.
To use the armrest, pull it forward
from the seatback.
3 22
Safety features of your vehicle
• Each time you push the button, the
temperature setting of the seat is
WARNING
WARNING
changed as follows :
The seat warmers can cause a
NEVER place anything on the
SERIOUS BURN, even at low
seat that insulates against heat
OFF
HIGH(
)
LOW(
)
temperatures and especially if
when the seat warmer is in
used for long periods of time.
operation, such as a blanket or
seat cushion. This may cause
Passengers must be able to feel
The seat warmer defaults to the
the seat warmer to overheat,
if the seat is becoming too
OFF position whenever the ignition
causing a burn or damage to
warm so they can turn it off, if
switch is turned on.
the seat.
needed.
With the seat warmer switch in the
People who cannot detect tem-
ON position, the heating system in
perature change or pain to the
the seat turns off or on automati-
skin should use extreme cau-
CAUTION
cally depending on the seat tem-
tion, especially the following
To prevent damage to the seat
perature.
types of passengers:
warmers and seats:
• Infants, children, elderly or
• Never use a solvent such as
disabled persons, or hospital
paint thinner, benzene, alco-
outpatients.
hol or gasoline to clean the
• People with sensitive skin or
seats.
who burn easily.
• Do not place heavy or sharp
• Fatigued individuals.
objects on seats equipped
with seat warmers.
• Intoxicated individuals.
• Do not change the seat cover.
• People taking medication that
It may damage the seat
can cause drowsiness or
warmer.
sleepiness.
3 23
Safety features of your vehicle
Walk-in seat
Folding the rear seat
(2nd row seat, if equipped)
The rear seatbacks can be folded to
facilitate carrying long items or to
increase the luggage capacity of the
vehicle.
WARNING
Never allow passengers to sit
on top of the folded down
seatback while the vehicle is
ODM032027
ONCESA2109
moving. This is not a proper
seating position and no seat
3.The 2nd row seatback will be fold-
belts are available for use.
ed and push the seat to the far-
This could result in serious
thest forward position.
injury or death in case of an
After getting in or out, slide the 2nd
accident or sudden stop.
row seat to the farthest rearward
Objects carried on the folded
position and pull the seatback firm-
down seatback should not
ly backward until it clicks into
extend higher than the top of
place. Make sure that the seat is
the front seatbacks. Doing
locked in place.
this could allow cargo to slide
ONCESA2110
forward and cause injury or
To get in or out of the 3rd row seat,
WARNING
damage during sudden stops.
1.Route the seat belt webbing
Never attempt to adjust while
through the rear seat belt guide clip.
the vehicle is moving or while
After inserting the seat belt, tighten
the 2nd row seat is occupied as
the belt webbing by pulling it up.
the seat may suddenly move
2.Pull up the walk-in lever (1) on the
and cause the seated passen-
2nd row seatback.
ger to be injured.
3 24
Safety features of your vehicle
■ 2nd row seat

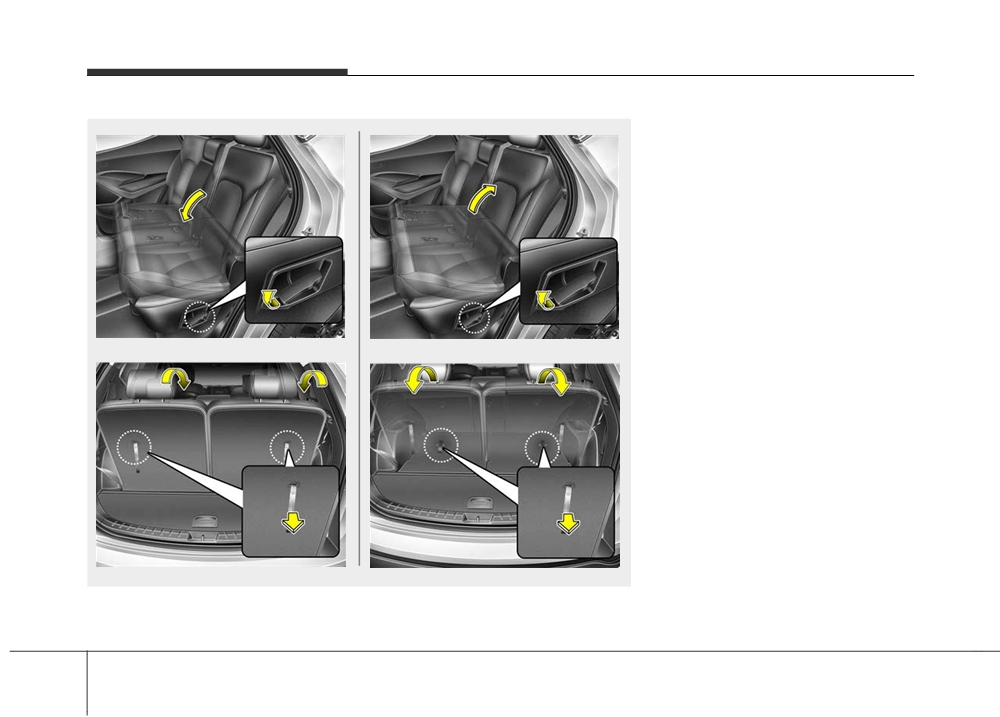

To fold down the rear seatback
1.Insert the rear seat belt buckle in
the pocket between the rear seat-
back and cushion, and insert the
rear seat belt webbing in the guide
to prevent the seat belt from being
damaged.
2.Set the front seatback to the
upright position and if necessary,
slide the front seat forward.
3.Lower the rear headrests to the
lowest position.
■ 3rd row seat
ODM032034/OXM039030/ODM032027/ODM032035
3 25
Safety features of your vehicle
■ 2nd row seat
4.Pull on the seatback folding lever,
then fold the seat toward the front
of the vehicle. When you return the
seatback to its upright position,
always be sure it has locked into
position by pushing on the top of
the seatback.
5.To use the rear seat, lift and pull
the seatback backward by pulling
on the folding lever (2nd row) or
strap (3rd row).
Pull the seatback firmly until it
clicks into place.
3rd row seat
Make sure the seatback is locked
in place.
6.Return the rear seat belt to the
proper position.
OANNSA2026/ONCESA2100/OANNSA2027/ONCESA2102
3 26
Safety features of your vehicle
2nd row seat folding
To fold down the rear center seat-
(from outside, if equipped)
WARNING - Rear seat
back (for 2nd row seat)
folding
Do not fold the rear seats (2nd &
3rd row seats), if passengers,
pets or luggage are in the rear
seats.
It may cause injury or damage
to passengers, pets or luggage.
ONCDSA3116
ONCESA2104
Pull the 2nd row seat back folding
1. Lower the rear headrests to the
lever out.
lowest position.
The 2nd row seat back will be folded.
2. Push the center seatback folding
If you pull the left side lever (1) out,
lever up, then fold the seat toward
left side seat back and center seat
the front of the vehicle.
back will be folded.
If you pull the right side lever (2) out,
When you return the seatback to its
right side seat back will be folded.
upright position, always be sure it
has locked into position by pushing
on the top of the seatback.
3 27















Content   ..   1  2  3   ..
