Hyundai Santa Fe XL (2019 year). Instruction - part 1

Your vehicle at a glance

EXTERIOR OVERVIEW

■ Front view

1. Panoramic sunroof

4-50

2. Front windshield wiper blades

7-43

3. Side view mirrors

4-68

4. Door locks

4-21

5. Headlight

7-77

6. Front fog light

4-125

7. Hood

4-44

8. Tires and wheels

7-48, 8-5

❈ The actual shape may differ from the illustration.

ONC016001

2 2

Your vehicle at a glance

■ Rear view

1. Antenna

4-177

2. Defroster

4-137

3. Parking assist system

4-113

4. Fuel filler door

4-46

5. Towing hook

6-26

6. Rear combination lamp

7-81

7. Rear window wiper blade

7-44

8. High mounted stop lamp

7-84

9. Rearview camera

4-117

❈ The actual shape may differ from the illustration.

ONC016002

2 3

Your vehicle at a glance

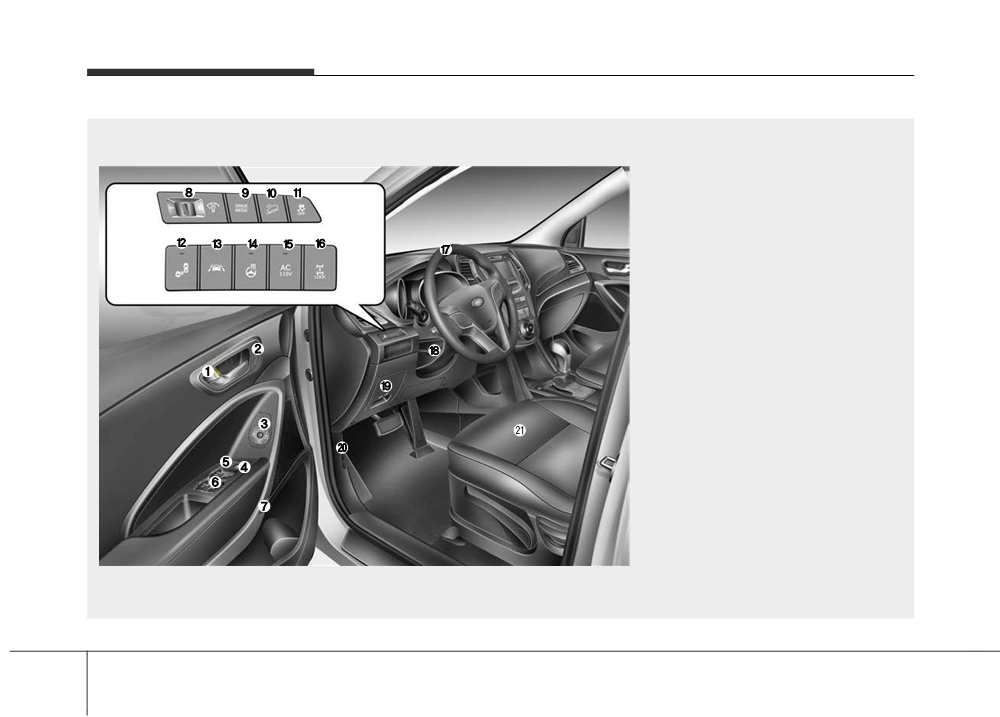

INTERIOR OVERVIEW (I)

1. Inside door handle

4-23

2. Driver position memory system

3-16

3. Side view mirrors control

4-69

4. Power window lock button

4-43

5. Central door lock switch

4-23

6. Power window switch

4-39

7. Fuel-filler door opener

4-46

8. Instrument panel illumination

control knob

4-73

9. Drive mode button or

Active ECO button

5-29, 5-100

10. DBC button

5-51

11. ESC OFF button

5-46

12. BSD on/off button

5-89

13. LDWS button

5-96

14. Heated steering wheel button

4-58

15. AC inverter button

4-169

16. AWD LOCK button

5-23

17. Steering wheel

4-56

18. Tilt and telescopic steering

control lever

4-57

19. Inner panel fuse

7-65

20. Hood release lever

4-44

21. Seat

3-4

❈ The actual shape may differ from the illustration.

ONC017003N

2 4

Your vehicle at a glance

INTERIOR OVERVIEW (II)

■ Type A

1. Power outlet

4-167

2. Aux, USB and iPod®

4-172

3. Transaxle shift lever

5-15

4. Seat warmer or

Air ventilation seat button

3-13, 3-14

5. Parking assist system button

4-113

6. Multi-view camera system

■ Type B

on/off button

4-118

7. Cup holder

4-165

8. AUTO HOLD button

5-41

9. EPB switch

5-35

❈ The actual shape may differ from the illustration.

ONC018007C

2 5

Your vehicle at a glance

INSTRUMENT PANEL OVERVIEW

1. Lighting control lever

4-121

2. Audio remote control buttons

4-177

3. Cruise control button

5-67

4. LCD display control buttons

4-77

5. Horn

4-59

6. Driver’s front air bag

3-66

7. Wiper and washer control lever

4-130

8. Ignition switch/

Engine start/stop button

5-7, 5-10

9. Audio/Video/Navigation (AVN)

system

4-178

10. Hazard warning flasher

4-119

11. Climate control system

4-139, 4-149

12. Passenger’s front air bag

3-66

13. Glove box

4-162

❈ The actual shape may differ from the illustration.

ONC018006

2 6

Your vehicle at a glance

ENGINE COMPARTMENT

■ Gasoline 3.3L GDI

1. Engine coolant reservoir

7-33

2. Engine oil filler cap

7-30

3. Brake fluid reservoir

7-35

4. Air cleaner

7-38

5. Fuse box

7-64

6. Negative battery terminal

7-45

7. Positive battery terminal

7-45

8. Radiator cap

7-34

9. Engine oil dipstick

7-30

10. Windshield washer fluid reservoir

7-37

❈ The actual engine room in the vehicle may differ from the illustration.

ONC077013RU

2 7

Safety features of your vehicle

SEATS

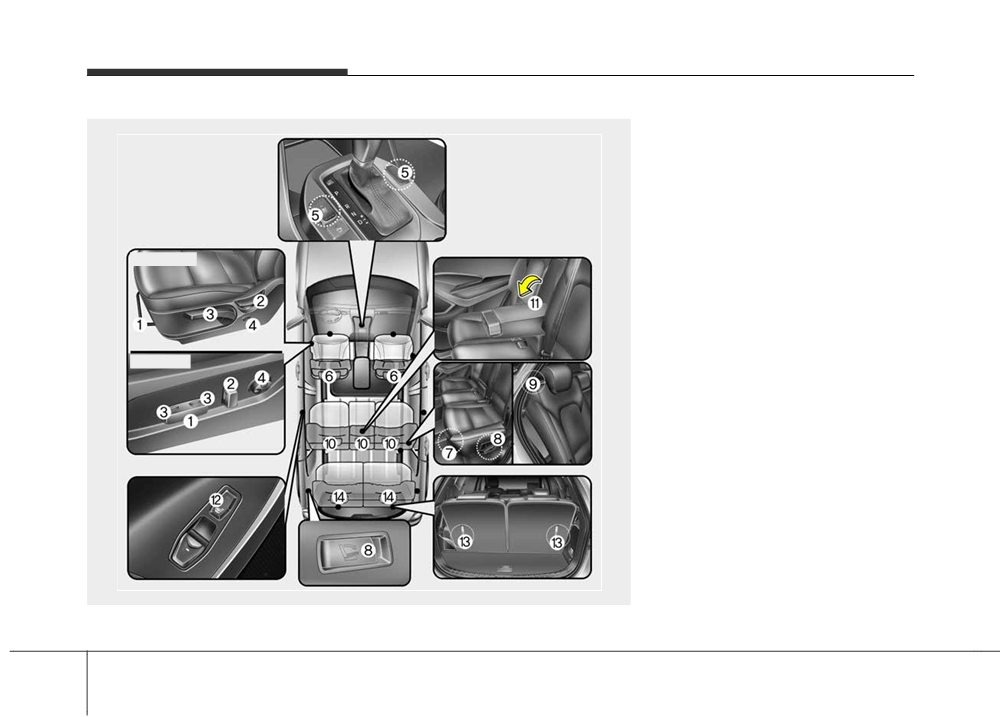

Front seat

(1) Forward and backward

(2) Seatback angle

(3) Seat cushion height*

(4) Lumbar support (Driver’s seat)*

(5) Seat warmer* /

Air ventilation seat*

Manual seat

(6) Headrest

2nd row seat

(7) Forward and backward

Power seat

(8) Seatback angle and folding

(9) Walk-in seat lever

(10) Headrest

(11) Armrest

(12) Seat warmer*

3rd row seat

(13) Seatback folding

(14) Headrest

* if equipped

ONCNSA3001

❈ The actual feature in the vehicle may differ from the illustration.

3 4

Safety features of your vehicle

WARNING - Loose

WARNING - Driver

WARNING - Driver’s seat

objects

responsibility for passengers

To avoid serious injury or death:

Loose objects in the driver’s

Riding in a vehicle with the

•

Never attempt to adjust the

foot area could interfere with

seatback reclined could lead to

seat while the vehicle is mov-

the operation of the foot pedals,

serious or fatal injury in an acci-

ing. This could result in loss

possibly causing an accident.

dent. If a seat is reclined during

of control, and an accident

Do not place anything under the

an accident, the occupant’s

causing death, serious injury,

front seats.

hips may slide under the lap

or property damage.

portion of the seat belt, apply-

•

Do not allow anything to inter-

ing great force to the unprotect-

fere with the normal position

ed abdomen. Serious or fatal

WARNING - Uprighting

of the seatback. Storing items

internal injuries could result.

seat

against a seatback or in any

The driver must advise the pas-

other way interfering with

When you return the seatback

senger to keep the seatback in

proper locking of a seatback

to its upright position, hold the

an upright position whenever

could result in serious or fatal

seatback and return it slowly

the vehicle is in motion.

injury in a sudden stop or col-

and be sure there are no other

lision.

occupants around the seat. If

the seatback is returned with-

•

In order to avoid unnecessary

WARNING

out being held and controlled,

and perhaps severe air bag

the back of the seat could

Occupants should never sit on

injuries, always sit as far back

spring forward resulting in acci-

seat cushions. The passenger's

as possible from the steering

dental injury to a person struck

hips may slide under the lap

wheel while maintaining com-

by the seatback.

portion of the seat belt during

fortable control of the vehicle.

an accident or a sudden stop.

We recommend that your

Serious or fatal internal injuries

chest be at least 10 inches

could result because the seat

(250 mm) away from the steer-

belt cannot operate normally.

ing wheel.

3 5

Safety features of your vehicle

(Continued)

WARNING - Rear

WARNING

•

Luggage and other cargo

seatbacks

•

Do not adjust the seat while

should be laid flat in the cargo

•

The rear seatback must be

wearing seat belts. Moving the

area or on the folded rear

securely latched. If not, pas-

seat cushion forward may

seatback. If objects are large,

sengers and objects could be

cause strong pressure on the

heavy, or must be piled, they

thrown forward resulting in

abdomen.

must be secured. Under no

serious injury or death in the

•

Use extreme caution so that

circumstances should cargo

event of a sudden stop or col-

hands or other objects are not

be piled higher than the seat-

lision.

caught in the seat mechanisms

backs. Failure to follow these

•

No passenger should ride in

while the seat is moving.

warnings could result in seri-

the cargo area or sit or lie on

ous injury or death in the

•

Do not place a cigarette

folded seatbacks while the

event of a sudden stop, colli-

lighter on the floor or seat.

vehicle is moving. All passen-

sion or rollover.

When you operate the seat,

gers must be properly seated

gas may exit out of the lighter

in seats and restrained prop-

and cause a fire.

erly while riding.

WARNING

•

Use extreme caution when

•

When resetting the seatback

picking small objects trapped

After adjusting the seat, always

to the upright position, make

under the seats or between

check that it is securely locked

sure it is securely latched by

the seat and the center con-

into place by attempting to

pushing it forward and rear-

sole. Your hands might be cut

move the seat forward or

wards.

or injured by the sharp edges

reverse without using the lock

•

To avoid the possibility of

of the seats mechanism.

release lever. Sudden or unex-

burns, do not remove the car-

pected movement of the dri-

pet in the cargo area. Emission

ver's seat could cause you to

control devices beneath this

lose control of the vehicle

floor generate high tempera-

resulting in an accident.

tures.

(Continued)

3 6

Safety features of your vehicle

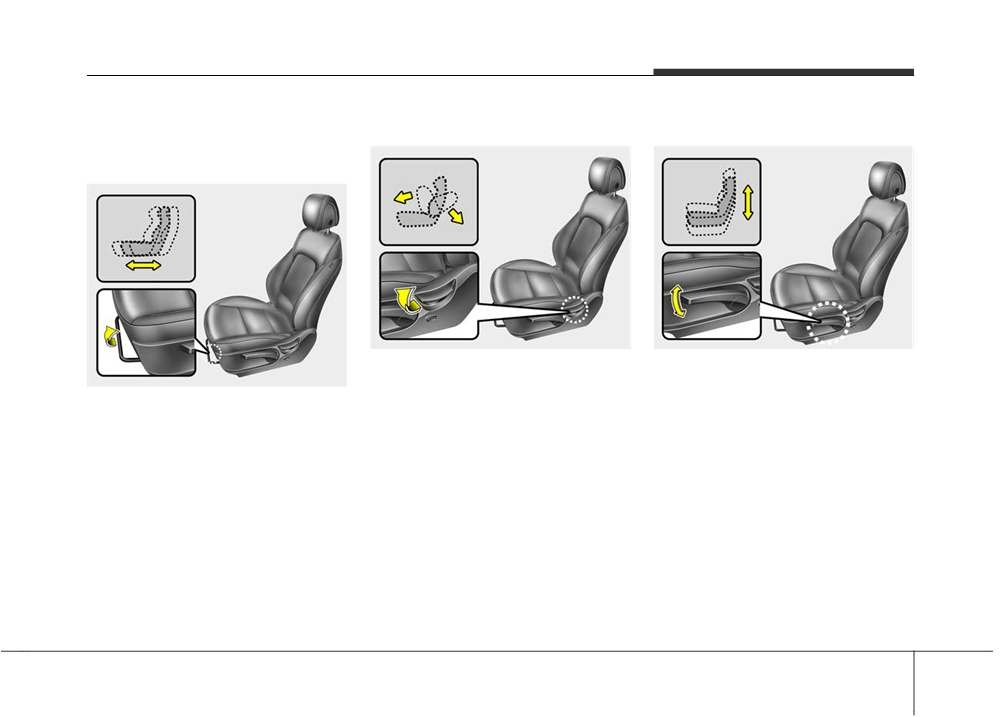

Front seat adjustment - Manual

Seatback angle

Seat cushion height (if equipped)

(if equipped)

Forward and rearward

ONCESA2003

ONCESA2004

To recline the seatback:

To change the height of the seat

ONCESA2002

cushion, push the lever upwards or

1. Lean forward slightly and lift up the

downwards.

seatback recline lever.

To move the seat forward or rearward:

2. Carefully lean back on the seat

• To lower the seat cushion, push the

1. Pull the seat slide adjustment

lever down several times.

and adjust the seatback of the

lever up and hold it.

seat to the position you desire.

• To raise the seat cushion, pull the

2. Slide the seat to the position you

lever up several times.

3. Release the lever and make sure

desire.

the seatback is locked in place.

3. Release the lever and make sure

(The lever MUST return to its orig-

the seat is locked in place.

inal position for the seatback to

Adjust the seat before driving, and

lock.)

make sure the seat is locked secure-

ly by trying to move forward and rear-

ward without using the lever. If the

seat moves, it is not locked properly.

3 7

Safety features of your vehicle

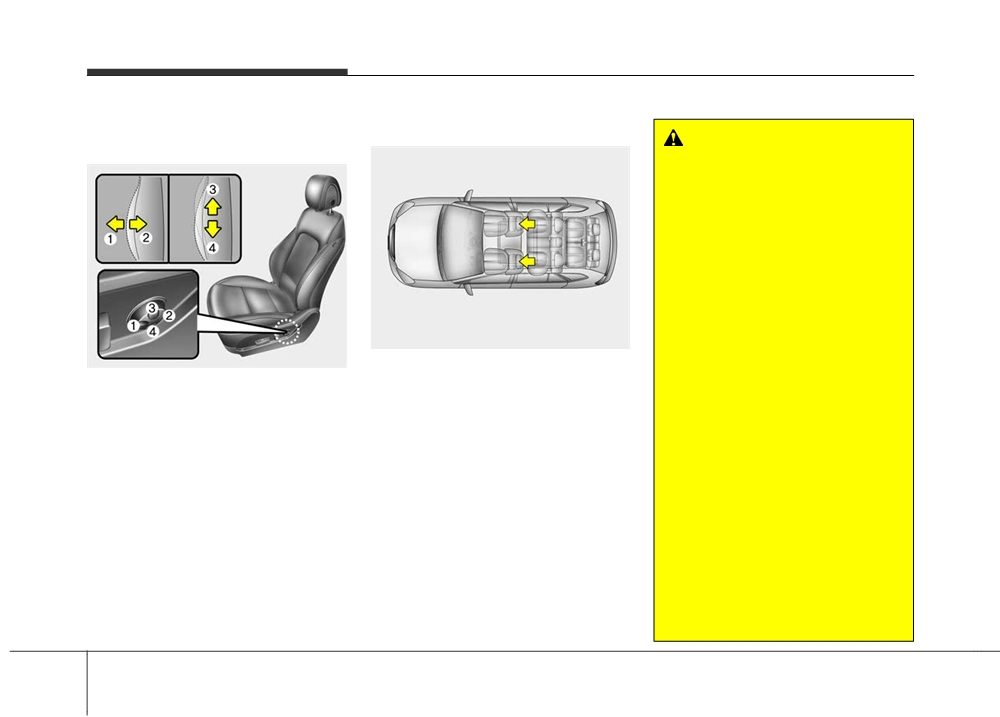

2-way lumbar support

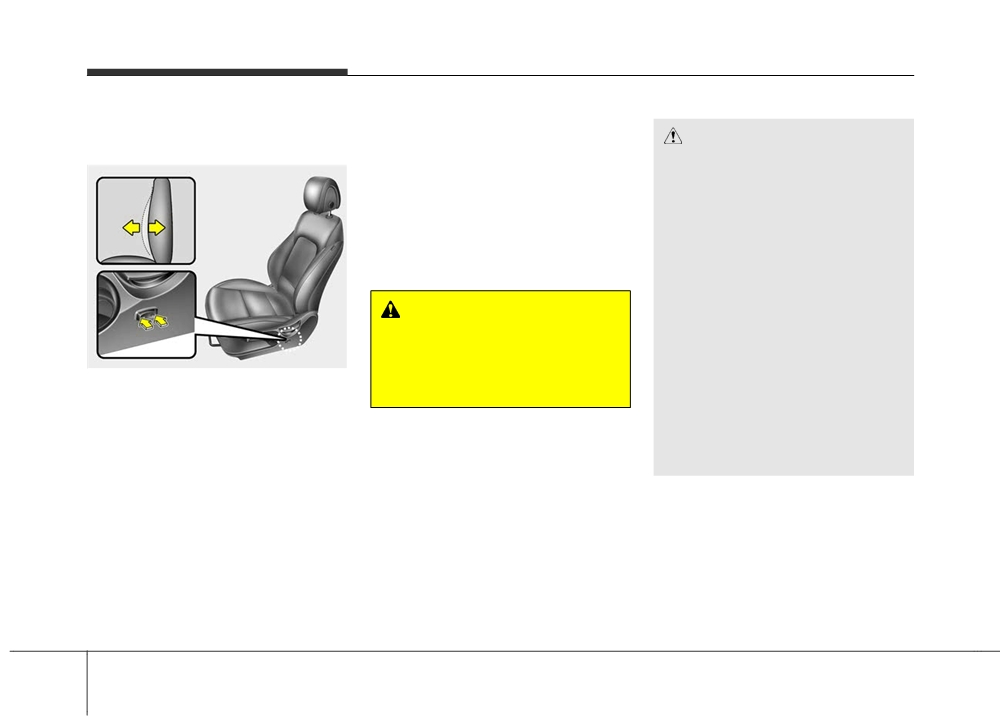

Front seat adjustment - Power

(for driver’s seat)

(if equipped)

CAUTION

•

The power seat is driven by an

The front seat can be adjusted by

electric motor. Stop operating

using the control knobs located on

once the adjustment is com-

the outside of the seat cushion.

pleted. Excessive operation

Before driving, adjust the seat to the

may damage the electrical

proper position so as to easily con-

equipment.

trol the steering wheel, pedals and

switches on the instrument panel.

•

When in operation, the power

seat consumes a large amount

of electrical power. To prevent

WARNING

unnecessary battery drain,

The power seat is operable with

don’t adjust the power seat

the ignition OFF.

longer than necessary while

ONCESA2005

the engine is not running.

Therefore, children should never

1. Press the front portion of the

be left unattended in the vehicle.

•

Do not operate two or more

switch to increase support or the

power seat control knobs at the

rear portion of the switch to

same time. Doing so may result

decrease support.

in power seat motor or electri-

cal component malfunction.

2. Release the switch once it reach-

es the desired position.

3 8

Safety features of your vehicle

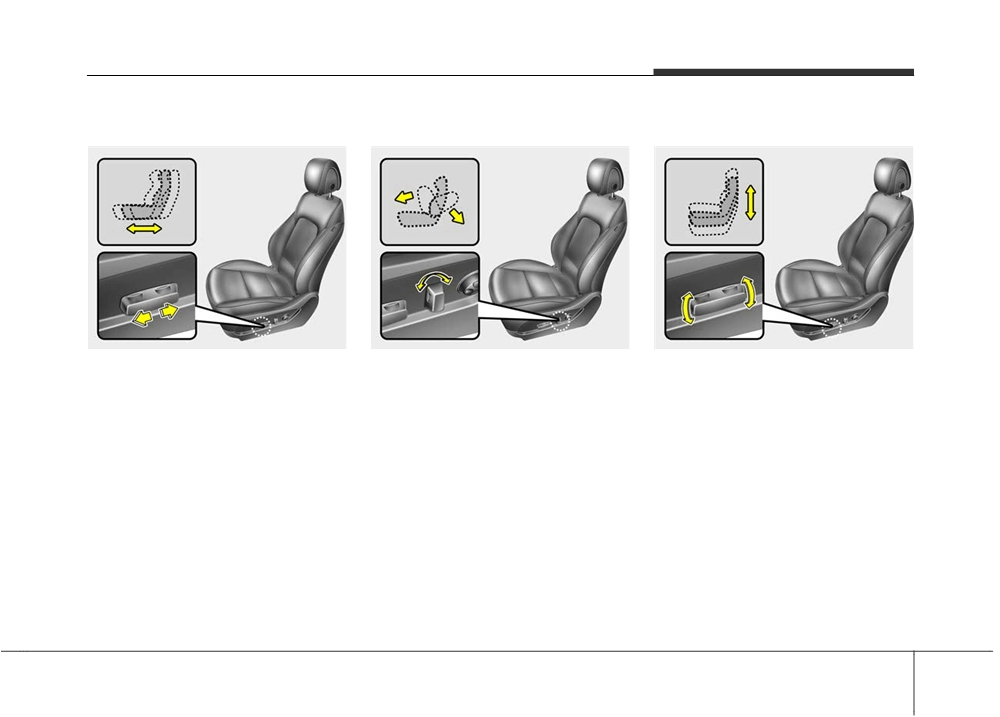

Forward and backward

Seatback angle

Seat cushion height (if equipped)

ONCESA2006

ONCESA2007

ONCESA2009

1. Push the control switch forward or

1. Push the control switch forward or

1. Pull the front portion of the control

backward to move the seat to the

backward to move the seatback to

switch up to raise or down to lower

desired position.

the desired angle.

the front part of the seat cushion.

Pull the rear portion of the control

2. Release the switch once the seat

2. Release the switch once the seat

switch up to raise or down to lower

reaches the desired position.

reaches the desired position.

the seat cushion.

2. Release the switch once the seat

reaches the desired position.

3 9

Safety features of your vehicle

4-way lumbar support

Headrest

(for driver’s seat, if equipped)

WARNING - Headrest

adjustment

•

For maximum effectiveness in

case of an accident, the head-

rest should be adjusted so the

middle of the headrest is at the

same height as the center of

gravity of an occupant's head.

Generally, the center of gravity

of most people's head is simi-

lar with the height of the top of

their eyes.

OHM038048N

Also adjust the headrest as

ONCESA2008

The driver's and front passenger's

close to your head as possi-

The lumbar support can be adjusted

seats are equipped with a headrest

ble. For this reason, the use of

by pressing the switch.

for the occupant's safety and comfort.

a cushion that holds the body

1. Press the front portion (1) of the

The headrest not only provides com-

away from the seatback is not

switch to increase support, or the

fort for the driver and front passenger,

recommended.

rear portion (2) of the switch, to

but also helps to protect the head and

•

Do not operate the vehicle

decrease support.

neck in the event of a collision.

with the headrests removed.

2. Release the switch once it reach-

Severe injury to an occupant

es the desired position.

may occur in the event of an

accident. Headrests may pro-

3. Press the upper portion (3) of the

vide protection against severe

switch to move the support posi-

neck injuries when properly

tion up, or press the lower portion

adjusted.

(4) of the switch, to move the sup-

port position down.

•

Do not adjust the headrest

position of the driver's seat

4. Release the switch once it reach-

while the vehicle is in motion.

es the desired position.

3

10

Content   ..  1  2  3   ..
