1 FEATURES OF YOUR HYUNDAI

12

TO ACCESS THE ENGINE

B300A01H-GAT

B300C05HR-GAT

To Inspect the Engine Compart-

The engine compartment can be

ment Under the Front Passenger's

checked by moving the driver's seat

and the front passenger's seat.

Seat (Fixed Seatback type)

B300B01HR-GAT

To Inspect the Engine Compart-

ment Under the Diver's Seat

B300B02HR

2. Pull the recliner control lever and tilt

the seatback forward.

HHR2047A

1. Pull the clamp lever up and unhook

the clamp from the seat pan's hook.

B300B01HR

1. Move the seat all the way forward by

pulling the lever up.

B300B03HR

3. After lifting up the mat, open the

access hole cover by removing the

nut with a spanner.

FEATURES OF YOUR HYUNDAI

1

13

B300D05HR-GAT

To Inspect the Engine Compart-

ment Under the Front Passenger's

Strap

Seat (Folding Seatback type)

Strap

(2)

OHR2048

OHR2132

2. Lift up the seat cushion and secure

3. Lift up the seat cushion and secure

the strap to the seat pan's hook on

the strap to the seat pan's hook on

(1)

the left side to hold the seat.

the left side to hold the seat.

And then, inspect the engine com-

HHR2047

And then, inspect the engine com-

partment under the front passenger

1. Pull the recliner control lever (1) and

partment under the front passenger

seat.

tilt the seatback forward.

seat.

2. Pull the clamp lever (2) up and un-

NOTE:

hook the clamp from the seat pan's

NOTE:

To return the seat cushion to its

hook.

To return the seat cushion to its

normal position, reverse the above

normal position, reverse the above

procedure.

procedure.

1 FEATURES OF YOUR HYUNDAI

16

B180A03A-GAT

It will also lock if you try to lean forward

SEAT BELTS 3-Point System

too quickly. Check to make sure that

!

with Emergency Locking Retrac-

the belt is properly locked and that the

WARNING:

tor

belt is not twisted.

o When you fasten the seat belt, be

careful not to latch the seat belt in

To Fasten Your Belt

NOTE:

buckles of other seat. It's very

dangerous and you may not be

If you are not able to pull out the seat

protected by the seat belt prop-

belt from the retractor, firmly pull the

erly.

belt out and release it. Then you will

o Do not unfasten the seat belt and

be able to pull the belt out smoothly.

do not fasten and unfasten the seat

belt repeatedly while driving. This

could result in loss of control, and

an accident causing death, seri-

ous injury, or property damage.

o When fastening the seat belt, make

B180A01L

sure that the seat belt does not

pass over objects that are hard or

To fasten your seat belt, pull it out of the

can break easily.

retractor and insert the metal tab into

o Make sure there is nothing in the

the buckle. There will be an audible

buckle. The seat belt may not be

"click" when the tab locks into the

fastened securely.

buckle.

The seat belt automatically adjusts to

the proper length only after the lap belt

is adjusted manually so that it fits

snugly around your hips. If you lean

forward in a slow, easy motion, the belt

will extend and let you move around.

If there is a sudden stop or impact,

however, the belt will lock into position.

FEATURES OF YOUR HYUNDAI

1

17

B200A01S-GAT

B210A01A-AAT

B220A01A-AAT

Adjusting Your Seat Belt

To Release the Seat Belt

SEAT BELTS

(2-Point Static Type)

To Fasten Your Seat Belt

B200A01L

B210A01L

You should place the belt as low as

The seat belt is released by pressing

possible on your hips, not on your

the release button in the locking buckle.

HTB225

waist. If the belt is located too high on

When it is released, the belt should

To fasten a 2-point static type belt,

your body, you could slide under it in

automatically draw back into the re-

insert the metal tab into the locking

case of accident or a sudden stop.

tractor.

buckle. There will be an audible "click"

This could result of death, serious

If this does not happen, check the belt

when the tab locks into the buckle.

injury or property damage. Both arms

to be sure it is not twisted, then try

Check to make sure the belt is properly

should not be under or over the belt.

again.

locked and that the belt is not twisted.

Rather, one should be over and the

other under, as shown in the illustration.

Never wear the seat belt under the arm

nearest the door.

1 FEATURES OF YOUR HYUNDAI

CHILD RESTRAINT SYSTEM

18

B220B01A-AAT

B220C02HR-GAT

B230A02HP-GAT

Adjusting Your Seat Belt

To Release the Seat Belt

(If Installed)

Children riding in the car should sit in

the rear seat and must always be

properly restrained to minimize the

Too

risk of injury in an accident, sudden

high

stop or sudden maneuver. According

to accident statistics, children are safer

when properly restrained in the rear

seats than in the front seat. Larger

Correct

Shorten

children not in a child restraint should

use one of the seat belts provided.

B220C01HR

You are required by law to use safety

HTB226

restraints for children. If small children

With a 2-point static type seat belt, the

When you want to release the seat belt,

ride in your vehicle you must put them

length must be adjusted manually so it

press the button in the locking buckle.

in a child restraint system (safety seat).

fits snugly around your body. Fasten

Child restraint systems are designed to

the belt and pull on the loose end to

be secured in vehicle seats by lap belts

tighten. The belt should be placed as

!

WARNING:

or the lap belt portion of a lap/shoulder

low as possible on your hips, not on

The center lap belt latching mecha-

belt, or by a tether anchor and/or ISOFIX

your waist. If the belt is too high, it

nism is different from those for the

anchors (if installed).

could increase the possibility of your

front seat shoulder belts. When fas-

Children could be injured or killed in a

being injured in an accident.

tening the front seat shoulder belts

crash if their restraints are not properly

or the center lap belt, make sure they

secured. For small children and ba-

are inserted into the correct buckles

bies, a child seat or infant seat must be

to obtain maximum protection from

used. Before buying a particular child

the seat belt system and assure proper

restraint system, make sure it fits your

operation.

car and seat belts, and fits your child.

Follow all the instructions provided by

the manufacturer when installing the

child restraint system.

1 FEATURES OF YOUR HYUNDAI

20

B230F01HR-GAT

B230G01HR-GAT

o If there is not enough space to

Installation on Front Seat Center

Installation on Outboard Front

place the child restraint system

Position

Passenger's Seat

because of the driver's seat, in-

stall the child restraint system in

the rear right seat.

B230F01HR

B230G01HR

Use the center seat belt to secure the

To install a child restraint system on the

child restraint system as illustrated.

outboard front passenger's seat, ex-

After installation of the child restraint

tend the shoulder/lap belt from its re-

system, rock the child seat back and

tractor. Install the child restraint sys-

forth, and side to side to ensure that it is

tem, buckle the seat belt and allow the

properly secured by the seat belt.

seat belt to take up any slack. Make

If the child seat moves, readjust the

sure that the lap portion of the belt is

length of the seat belt. Then, if equipped,

tight around the child restraint system

insert the child restraint tether strap

and the shoulder portion of the belt is

hook into the child restraint hook holder

positioned so that it cannot interfere

and tighten to secure the seat. Always

with the child's head or neck. After

refer to the child restraint system

installation of the child restraint sys-

manufacturer's recommendation before

tem, try to move it in all directions to be

installing the child restraint system in

sure the child restraint system is se-

your vehicle.

curely installed.

FEATURES OF YOUR HYUNDAI

1

21

If you need to tighten the belt, pull more

B230H01HR-GAT

U :Suitable for "universal" category

webbing toward the retractor. When you

Child Seat Restraint Suitability

restraints approved for use in this

unbuckle the seat belt and allow it to

For Seat Position

mass group (PEG-PEREGO E13

retract, the retractor will automatically

03 0010 083779)

Use child safety seats that have been

revert back to its normal seated pas-

UF: Suitable for forward-facing "univer-

officially approved and are appropriate

senger emergency locking usage con-

sal" category restraints approved

for your children. When using the child

dition.

for use in this mass group

safety seats, refer to the following table.

(ROMER E1 03301133)

NOTE:

Seating Position

X :Seat position not suitable for chil-

Age Group

Passenger

Passenger

dren in this mass group

o Before installing the child re-

Outboard

Center

straint system, read the instruc-

tions supplied by the child re-

0 : Up to 10 kg

X

X

straint system manufacturer.

(0 ~ 9 months)

o If the seat belt does not operate

0+ : Up to 13 kg

U

X

as described, have the system

(0 ~ 2 years)

checked immediately by your

I : 9kg to 18kg

authorized Hyundai dealer.

(9 months ~

UF

UF

4 years)

II & III : 15kg to

36kg (4 ~

X

X

12 years)

1 FEATURES OF YOUR HYUNDAI

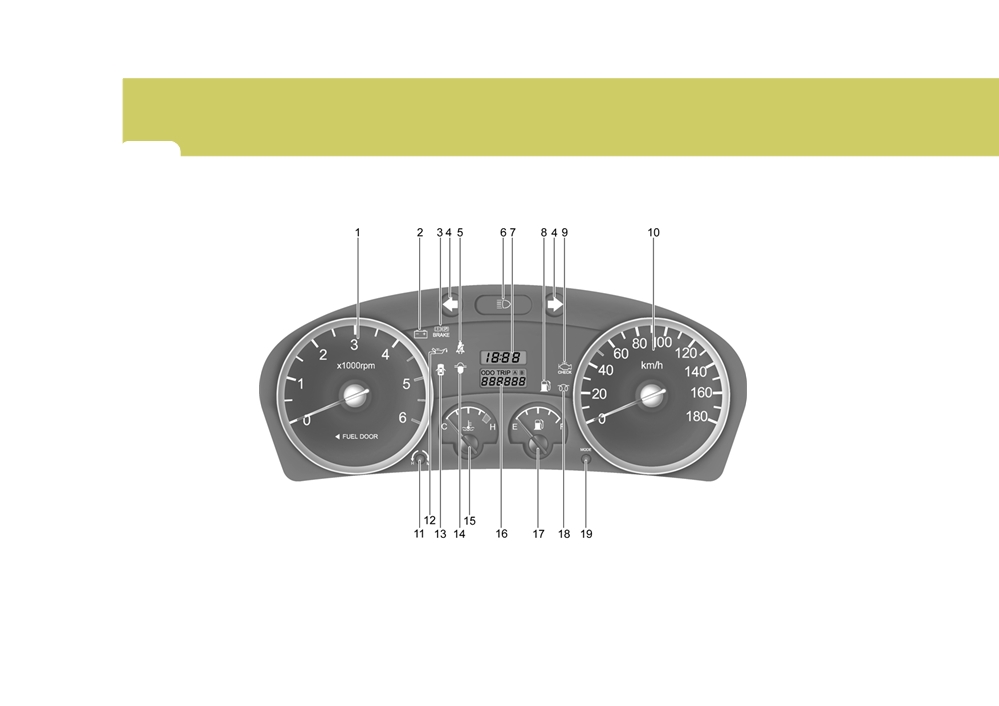

INSTRUMENT CLUSTER AND INDICATOR LIGHTS

22

B260A01HR-GAT

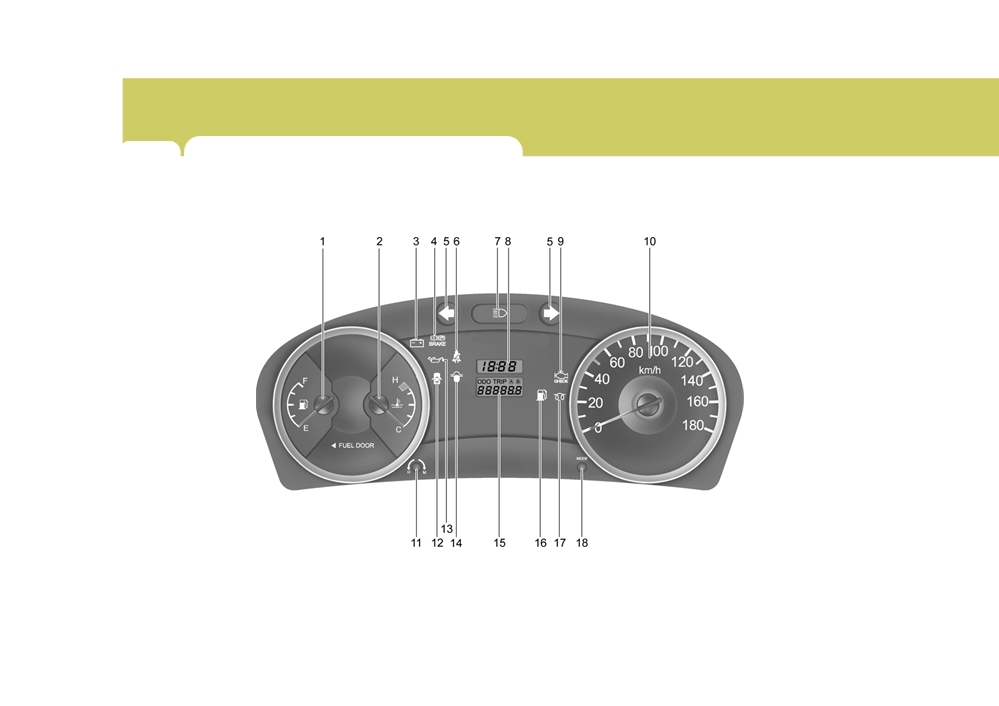

Type A (Without Tachometer)

B260A01HR

1 FEATURES OF YOUR HYUNDAI

24

B260B01HR-GAT

Type B (With Tachometer)

B260B01HR

1 FEATURES OF YOUR HYUNDAI

WARNING AND INDICATOR LIGHTS

26

B260D01A-AAT

B260G01A-AAT

B260H02O-GAT

Turn Signal Indicator

Low Oil Pressure

Parking Brake/Low Brake

Lights

Warning Light

Fluid Level Warning Light

The blinking green arrows on the in-

strument panel show the direction indi-

!

CAUTION:

!

cated by the turn signals. If the arrow

If the oil pressure warning light stays

WARNING:

comes on but does not blink, blinks

on while the engine is running, seri-

If you suspect brake trouble, have

more rapidly than normal, or does not

ous engine damage may result. The

your brakes checked by a Hyundai

illuminate at all, a malfunction in the

oil pressure warning light comes on

dealer as soon as possible. Driving

turn signal system is indicated. Your

whenever there is insufficient oil pres-

your car with a problem in either the

dealer should be consulted for repairs.

sure. In normal operation, it should

brake electrical system or brake hy-

come on when the ignition switch is

draulic system is dangerous, and

turned on, then go out when the en-

could result in a serious injury or

B260F01A-AAT

gine is started. If the oil pressure

death.

High Beam Indicator

warning light stays on while the en-

Light

gine is running, there may be a seri-

Warning Light Operation

The high beam indicator light comes

ous malfunction.

If this happens, stop the car as soon

The parking brake/low brake fluid level

on whenever the headlights are

as it is safe to do so, turn off the

warning light should come on when the

switched to the high beam or flash

engine and check the oil level. If the

parking brake is applied and the ignition

position.

oil level is low, fill the engine oil to

switch is turned to "ON" or "START".

the proper level and start the engine

After the engine is started, the light

again. If the light stays on with the

should go out when the parking brake is

engine running, turn the engine off

released.

immediately. In any instance where

If the parking brake is not applied, the

the oil light stays on when the engine

warning light should come on when the

is running, the engine should be

ignition switch is turned to "ON" or

checked by an authorized Hyundai

"START", then go out when the engine

dealer before the car is driven again.

starts. If the light comes on at any other

FEATURES OF YOUR HYUNDAI

1

27

time, you should slow the vehicle and

B260J01S-GAT

bring it to a complete stop in a safe

Charging System

!

location off the roadway.

CAUTION:

Warning Light

The brake fluid level warning light indi-

The parking brake/low brake fluid

The charging system warning light

cates that the brake fluid level in the

warning light should also come on

should come on when the ignition is

brake master cylinder is low and hy-

when the vacuum level in brake

turned on, then go out when the engine

draulic brake fluid conforming to DOT 3

booster descends to about 275 mmHg

is running. If the light stays on while the

or DOT 4 specifications should be added.

or below. The brake system is de-

engine is running, there is a malfunc-

After adding fluid, if no other trouble is

signed to stop the vehicle with re-

tion in the electrical charging system. If

found, the car should be immediately

serve assist if brake pedal is held

the light comes on while you are driv-

and carefully driven to a Hyundai dealer

down. This reserve is greatly reduced

ing, stop, turn off the engine and check

for inspection. If further trouble is expe-

each time you release the brake.

under the hood. First, make certain the

rienced, the vehicle should not be driven

Without vacuum assist your vehicle

generator drive belt is in place. If it is,

at all but taken to a dealer by a profes-

can still be stopped by pushing much

check the tension of the belt.

sional towing service or some other

harder on brake pedal, however the

And then, have the system checked by

safe method.

stopping distance may be much

your Hyundai dealer.

Your Hyundai is equipped with dual-

longer. If the light comes on at any

diagonal braking systems. This means

other time, you should slow the ve-

you still have braking on two wheels

hicle and bring it to a complete stop

even if one of the dual systems should

in a safe location off the roadway.

!

CAUTION:

fail. With only one of the dual systems

After starting the engine, do not drive

If the drive belt (generator belt) is

working, more than normal pedal travel

the vehicle until the vacuum level is

loosen, broken, or mission while the

and greater pedal pressure are required

above 275 mmHg below atmosphere

vehicle is driving, there may be a

to stop the car. Also, the car will not

and warning light has turned off. If

serious malfunction, engine could

stop in as short a distance with only half

further trouble is experienced, the

overheat because this belt also

of the brake system working. If the

vehicle should not be driven at all

drives the water pump.

brakes fail while you are driving, shift to

but taken to a dealer by a profes-

a lower gear for additional engine brak-

sional towing service.

ing and stop the car as soon as it is safe

to do so.

1 FEATURES OF YOUR HYUNDAI

28

B260L02HP-GAT

B260N01HR-GAT

B265C01HR-GAT

Door Ajar Warning Light

Malfunction Indicator

Diesel Preheat

and Chime (If Installed)

Light (If Installed)

Indicator Light

The door ajar warning light warns you

The MIL(Malfunction Indicator Light)

The indicator light illuminates amber

that a door is not completely closed and

illuminates when there are the malfunc-

when the ignition switch is placed at the

the chime warns you that the key is in

tions in main sensors(such as pedal

"ON" position. The engine can be started

the ignition switch.

sensor, booster sensor, etc.) or FIP(Fuel

after the preheat indicator light goes off.

Injection Pump) during driving.

The illuminating time varies with the

NOTE :

This light will illuminate when the igni-

water temperature.

The warning chime only sounds

tion key is turned from the "OFF" posi-

whenever the key is in the ignition

Water temperature

Illuminating time

tion to the "ON" position, and will go out

switch and the driver's side front

after the engine starts. If it illuminates

(°C)

(sec)

door is open simultaneously. The

while driving, or does not illuminate

Below -30

22.5

chime sounds until the key is re-

when the ignition key is turned from the

-20

8

moved from the ignition switch or

"OFF" position to the "ON" position,

the driver's side front door is closed.

take your car to your nearest authorized

-15

6

Hyundai dealer and have the system

60

0.5

checked.

80

0

B260M01A-AAT

Low Fuel Level Warning

NOTE:

Light

B260E01HP-GAT

If the engine were not started within

The low fuel level warning light comes

Seat Belt Warning Light

2 seconds after the preheating is

on when the fuel tank is approaching

completed, turn the ignition key once

empty. When it comes on, you should

more to the "LOCK" position during

The seat belt warning light blinks for

add fuel as soon as possible. Driving

10 seconds, and then to the "ON"

about 6 seconds when the ignition key

with the fuel level warning light on or

position, in order to preheat again.

is turned from the "OFF" position to

with the fuel level below "E" can cause

"ON" or "START".

the engine to misfire and damage the

catalytic converter.

Content   ..   1  2  3   ..
