WARNING
WARNING
❈All vehicles sold in the
EUROPE market during below
• The TPMS cannot alert you to
For EUROPE
period must be equipped with
TPMS.
severe and sudden tire dam-
•
Do not modify the vehicle; it
age caused by external factors
- New model vehicle :
may interfere with the TPMS
such as nails or road debris.
Nov. 1, 2012 ~
function.
• If you feel any vehicle instabil-
- Current model vehicle :
•
The wheels on the market do
ity, immediately take your foot
Nov. 1, 2014~ (Based on
not have a TPMS sensor.
off the accelerator, apply the
vehicle registrations)
brakes gradually and with
For your safety, we recom-
light force, and slowly move to
mend that you use parts for
a safe position off the road.
replacement from an author-
ized HYUNDAI dealer.
•
If you use the wheels on the
market, use a TPMS sensor
WARNING
approved by a HYUNDAI deal-
er. If your vehicle is not
Tampering with, modifying, or
6
equipped with a TPMS sensor
disabling the Tire Pressure
or TPMS does not work prop-
Monitoring System (TPMS) com-
erly, you may fail the periodic
ponents may interfere with the
vehicle inspection conducted
system's ability to warn the driv-
in your country.
er of low tire pressure condi-
tions and/or TPMS malfunctions.
Tampering with, modifying, or
disabling the Tire Pressure
Monitoring System (TPMS) com-
ponents may void the warranty
for that portion of the vehicle.
6-19
What to do in an emergency
IF YOU HAVE A FLAT TIRE (WITH SPARE TIRE, IF EQUIPPED)
Jack and tools
WARNING
Changing a tire can be danger-
ous. Follow the instructions in
this section when changing a
tire to reduce the risk of serious
injury or death.
CAUTION
OOS067036L
Be careful as you use the jack
Turn the winged hold down bolt
handle to stay clear of the flat
OOS067035L
counterclockwise to remove the
end. The flat end has sharp
(1) Jack handle
spare tire.
edges that could cause cuts.
(2) Jack
Store the spare tire in the same com-
(3) Wheel nut wrench
partment by turning the winged hold
down bolt clockwise.
To prevent the spare tire and tools
The jack, jack handle, and wheel nut
from "rattling", store them in their
wrench are stored in the luggage
proper location.
compartment under the luggage box
cover.
The jack is provided for emergency
tire changing only.
6-20
Changing tires
• Do not start or run the engine
while the vehicle is on the
WARNING
jack.
• Do not allow anyone to remain
A vehicle can slip or roll off of a
in the vehicle while it is on the
jack causing serious injury or
jack.
death to you or those nearby.
Take the following safety pre-
• Keep children away from the
cautions:
road and the vehicle.
•
Do not get under a vehicle
that is supported by a jack.
Follow these steps to change your
OOS067040
•
NEVER attempt to change a
vehicle's tire:
If it is hard to loosen the tire hold-
tire in the lane of traffic.
1. Park on a level, firm surface.
down wing bolt by hand, you can
ALWAYS move the vehicle
loosen it easily using the wheel nut
2. Move the shift lever into P (Park,
completely off the road on
wrench.
for dual clutch transmission vehi-
level, firm ground away from
cle) or neutral (for manual trans-
Turn the tire hold-down wing bolt
traffic before trying to change
mission vehicle), apply the park-
6
counterclockwise with the wheel nut
a tire. If you cannot find a
ing brake, and place the ignition
wrench.
level, firm place off the road,
switch in the LOCK/OFF position.
call a towing service for assis-
tance.
3. Press the hazard warning flasher
button.
•
Be sure to use the jack pro-
vided with the vehicle.
4. Remove the wheel lug nut wrench,
jack, jack handle, and spare tire
•
ALWAYS place the jack on the
from the vehicle.
designated jacking positions
on the vehicle and NEVER on
the bumpers or any other part
of the vehicle for jacking sup-
port.
6-21
What to do in an emergency

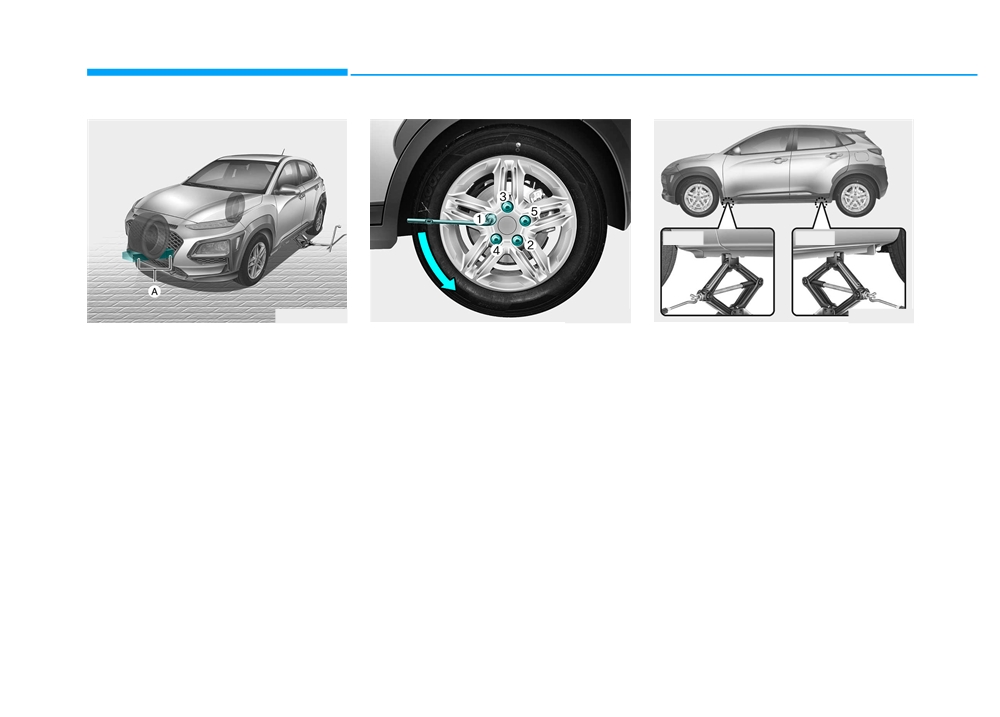

■ Front
■ Rear
OOS067016L
OOS067017
OOS067018
[A] : Block
6. Loosen the wheel lug nuts coun-
7. Place the jack at the designated
terclockwise one turn each in the
jacking position under the frame
5. Block both the front and rear of the
tire diagonally opposite of the tire
order shown above, but do not
closest to the tire you are chang-
remove any lug nuts until the tire
ing. The jacking positions are
you are changing.
has been raised off of the ground.
plates welded to the frame with
two notches. Never jack at any
other position or part of the vehi-
cle. It may damage the side seal
molding.
6-22
11. Tighten the lug nuts with your fin-
gers onto the studs with the
smaller end of the lug nuts clos-
est to the wheel.
12. Lower the vehicle to the ground
by turning the jack handle coun-
terclockwise.
OOS067020
OOS067019L

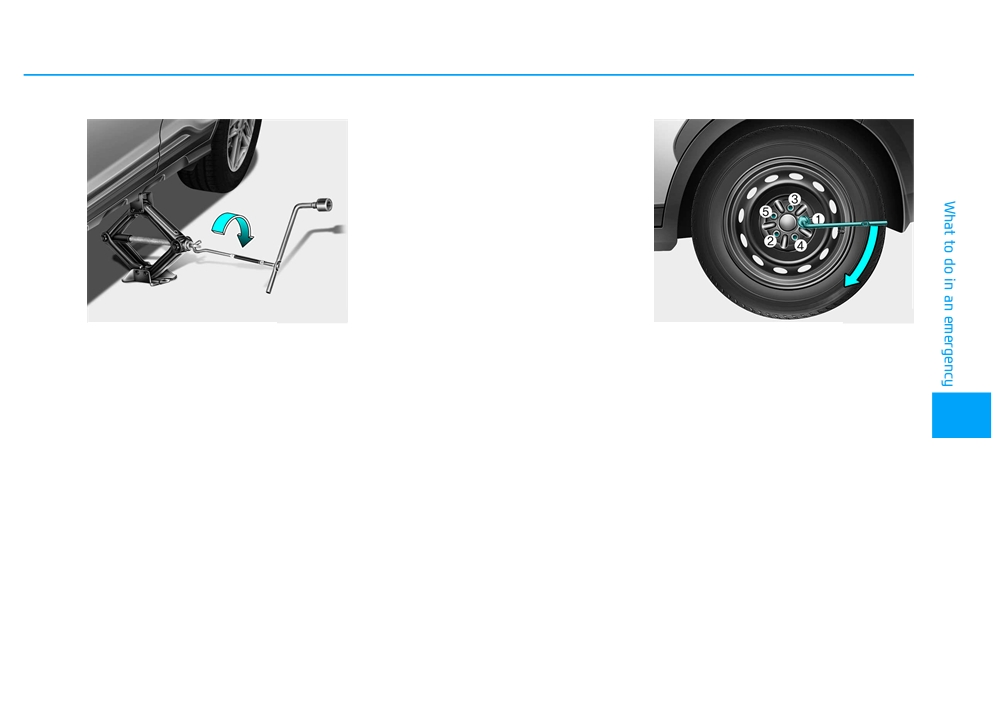

8. Insert the jack handle into the jack
13. Use the wheel lug nut wrench to
and turn it clockwise, raising the
tighten the lug nuts in the order
vehicle until the tire clears the
shown. Double-check each lug
ground. Make sure the vehicle is
nut until they are tight. After
stable on the jack.
changing tires, we recommend
6
that an authorized HYUNDAI
9. Loosen the lug nuts with the wheel
dealer tighten the lug nuts to their
lug nut wrench and remove them
proper torque as soon as possi-
with your fingers. Remove the
ble. The wheel lug nut should
wheel from the studs and lay it flat
be tightened to 11~13 kgf·m
on the ground out of the way.
(79~94 lbf·ft).
Remove any dirt or debris from
the studs, mounting surfaces, and
wheel.
10. Install the spare tire onto the
studs of the hub.
6-23
What to do in an emergency
If you have a tire gauge, check the
Use of compact spare tires
CAUTION
tire pressure
(see "Tires and
(if equipped)
Wheels" in chapter 8 for tire pressure
Compact spare tires are designed for
Your vehicle has metric threads
instructions.). If the pressure is lower
emergency use only. Drive carefully
on the studs and lug nuts. Make
or higher than recommended, drive
on the compact spare tire and
certain during tire changing
slowly to the nearest service station
always follow the safety precautions.
that the same nuts that were
and adjust it to the recommended
removed are reinstalled. If you
pressure. Always reinstall the valve
have to replace your lug nuts
WARNING
cap after checking or adjusting tire
make sure they have metric
pressure. If the cap is not replaced,
threads to avoid damaging the
To prevent compact spare tire
air may leak from the tire. If you lose
studs and ensure the wheel is
failure and loss of control pos-
a valve cap, buy another and install it
properly secured to the hub. We
sibly resulting in an accident:
as soon as possible. After changing
recommend that you consult an
•
Use the compact spare tire
tires, put the flat tire in its place and
return the jack and tools to their
authorized HYUNDAI dealer for
only in an emergency.
assistance.
proper storage locations.
•
NEVER operate your vehicle
over 80 km/h (50 mph).
NOTICE
If any of the equipment such as the
•
Do not exceed the vehicle’s
jack, lug nuts, studs, or other equip-
maximum load rating or the
• Check the tire pressure as soon
ment is damaged or in poor condi-
load carrying capacity shown
as possible after installing a
tion, do not attempt to change the
on the sidewall of the com-
spare tire. Adjust it to the rec-
tire and call for assistance.
pact spare tire.
ommended pressure.
•
Do not use the compact spare
• Check and tighten the wheel lug
tire continuously. Repair or
nuts after driving over 50 km if
replace the original tire as
tires are replaced. Re-check the
soon as possible to avoid fail-
tire wheel lug nuts after driving
ure of the compact spare tire.
over 1,000 km.
6-24
When driving with the compact spare
NOTICE
CAUTION
tire mounted to your vehicle:
When the original tire and wheel
•
Check the tire pressure after
are repaired and reinstalled on the
To prevent damaging the com-
installing the compact spare tire.
vehicle, the lug nut torque must be
pact spare tire and your vehicle:
The compact spare tire should be
set correctly. The correct lug nut
•
Drive slowly enough for the
inflated to 420 kPa (60 psi).
tightening torque is 11~13 kgf·m
road conditions to avoid all
•
Do not take this vehicle through an
(79~94 lbf·ft).
hazards, such as a potholes
automatic car wash while the com-
or debris.
pact spare tire is installed.
•
Avoid driving over obstacles.
•
Do not use the compact spare tire
The compact spare tire diame-
on any other vehicle because this
ter is smaller than the diame-
tire has been designed especially
ter of a conventional tire and
for your vehicle.
reduces the ground clearance
•
The compact spare tire's tread life is
approximately 25 mm (1 inch).
shorter than a regular tire. Inspect
•
Do not use tire chains on the
your compact spare tire regularly
compact spare tire. Because
and replace worn compact spare
6
of the smaller size, a tire chain
tires with the same size and design,
will not fit properly.
mounted on the same wheel.
•
Do not use the compact spare
•
Do not use more than one compact
tire on any other wheels, nor
spare tire at a time.
should standard tires, snow
•
Do not tow a trailer while the com-
tires, wheel covers or trim
pact spare tire is installed.
rings be used with the com-
pact spare wheel.
6-25
What to do in an emergency

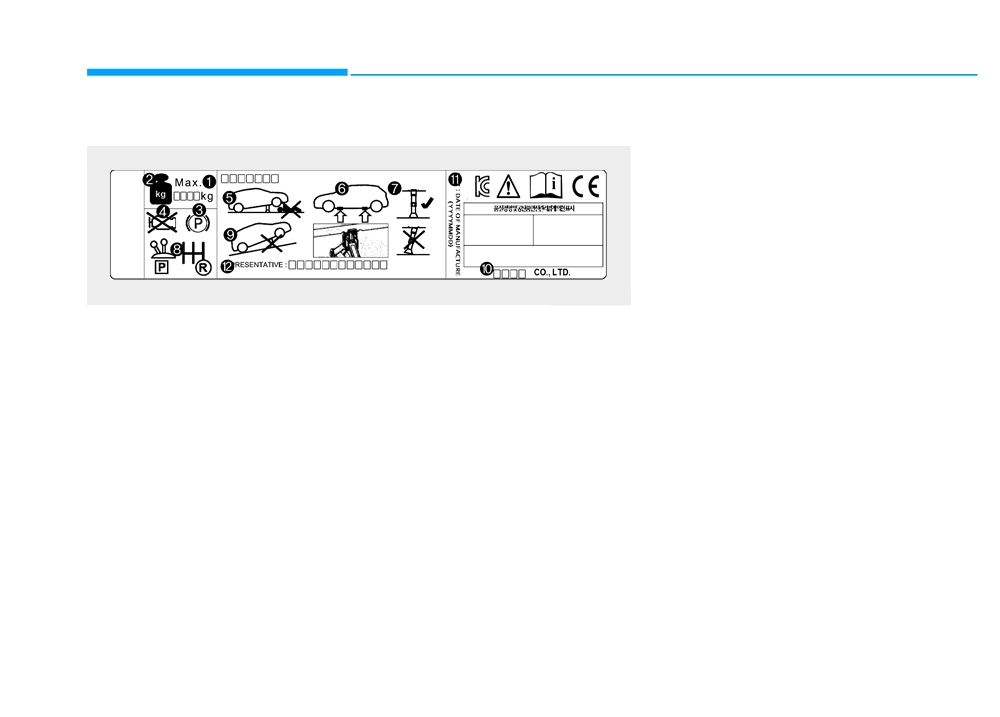

Jack label
■ Example
OOS067043
The actual Jack label in the vehicle may differ from the illustration.
For more detailed specifications, refer to the label attached to the jack.
1. Model Name
8. Shift into Reverse gear on vehicles
with manual transmission or move
2. Maximum allowable load
the shift lever to the P position on
3. When using the jack, set your
vehicles with dual clutch transmis-
parking brake.
sion.
4. When using the jack, stop the
9. The jack should be used on firm
engine.
level ground.
5. Do not get under a vehicle that is
10. Jack manufacture
supported by a jack.
11. Production date
6. The designated locations under
12. Representative company and
the frame
address
7. When supporting the vehicle, the
base plate of jack must be vertical
under the lifting point.
6-26

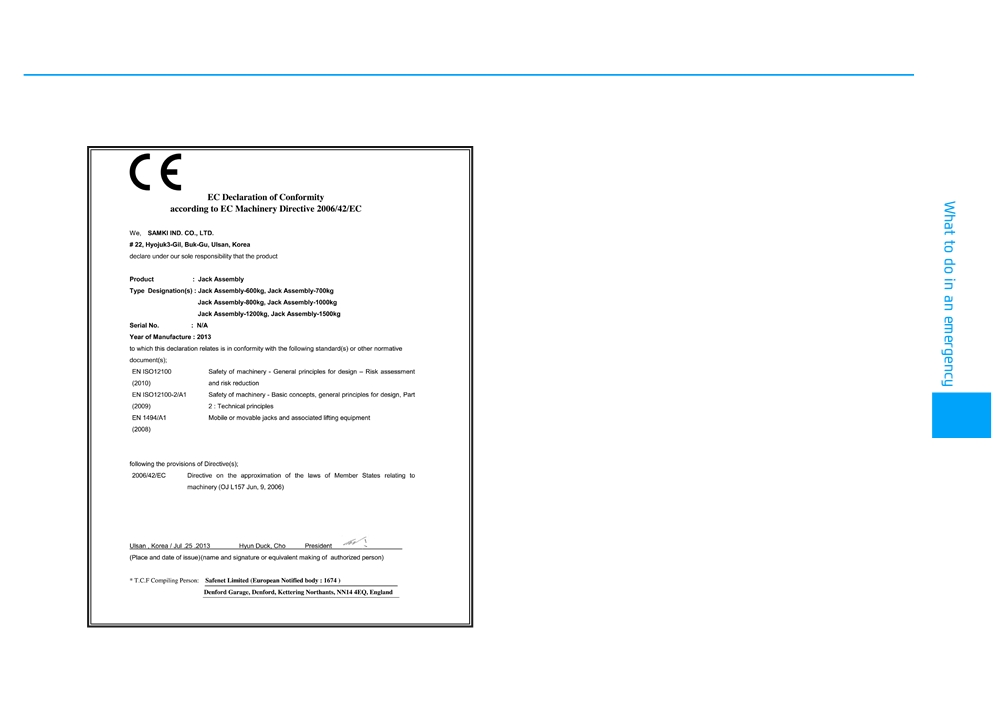

EC Declaration of conformity for Jack
6
JACKDOC14S
6-27
What to do in an emergency
IF YOU HAVE A FLAT TIRE (WITH TIRE MOBILITY KIT, IF EQUIPPED) - TYPE A
After you ensured that the tire is
WARNING
properly sealed you can drive cau-
tiously on the tire (distance up to 200
Do not use the Tire Mobility Kit
km (120 miles)) at a max. speed of
to repair punctures in the tire
80 km/h (50 mph) in order to reach a
walls. This can result in an acci-
service station or tire dealer to have
dent due to tire failure.
the tire replaced.
It is possible that some tires, espe-
cially with larger punctures or dam-
WARNING
age to the sidewall, cannot be sealed
completely.
Have your tire repaired as soon
OOS067030
as possible. The tire may loose
Air pressure loss in the tire may
For safe operation, carefully read
air pressure at any time after
adversely affect tire performance.
and follow the instructions in this
inflating with the Tire Mobility Kit.
For this reason, you should avoid
manual before use.
abrupt steering or other driving
(1) Compressor
maneuvers, especially if the vehicle
Introduction
is heavily loaded or if a trailer is in
(2) Sealant bottle
With the Tire Mobility Kit you stay
use.
The Tire Mobility Kit is a temporary
mobile even after experiencing a tire
The Tire Mobility Kit is not designed
fix to the tire and we recommend that
puncture.
or intended as a permanent tire
the system be inspected by an
authorized HYUNDAI dealer.
The system of compressor and seal-
repair method and is to be used for
ing compound effectively and com-
one tire only. This instruction shows
fortably seals most punctures in a
you step by step how to temporarily
CAUTION
seal the puncture simply and reliably.
passenger car tire caused by nails
or similar objects and reinflates the
Read the section "Notes on the safe
When two or more tires are flat,
tire.
use of the Tire Mobility Kit".
do not use the tire mobility kit
because the supported one
sealant of Tire Mobility Kit is
only used for one flat tire.
6-28
•
Do not use on motorcycles, bicy-
•
Do not use the Tire Mobility Kit if
WARNING
cles or any other type of tires.
the ambient temperature is below
-30°C (-22°F).
•
When the tire and wheel are dam-
Do not use the TMK if a tire is
aged, do not use Tire Mobility Kit
•
In case of skin contact with the
severely damaged by driving
for your safety.
sealant, wash the area thoroughly
run flat or with insufficient air
with plenty of water. If the irritation
pressure.
•
Use of the Tire Mobility Kit may not
persists, seek medical attention.
be effective for tire damage larger
Only punctured areas located
than approximately 6 mm (0.24 in).
•
In case of eye contact with the
within the tread region of the
sealant, flush your eyes for at least
tire can be sealed using the
If the tire cannot be made roadwor-
thy with the Tire Mobility Kit, we
15 minutes. If the irritation persists,
TMK.
seek medical attention.
recommend that you contact an
authorized HYUNDAI dealer.
•
In case of swallowing the sealant,
Notes on the safe use of the
rinse the mouth and drink plenty of
•
Do not use the Tire Mobility Kit if a
Tire Mobility Kit
water. However, never give any-
tire is severely damaged by driving
thing to an unconscious person
• Park your car at the side of the
run flat or with insufficient air pres-
and seek medical attention imme-
sure.
road so that you can work with the
diately.
Tire Mobility Kit away from moving
•
Do not remove any foreign objects
6
•
Long time exposure to the sealant
traffic.
such as nails or screws that have
may cause damage to bodily tissue
• To be sure your vehicle will not
penetrated the tire.
such as kidney, etc.
move, even when you're on fairly
•
Provided the car is outdoors, leave
level ground, always set your park-
the engine running. Otherwise
ing brake.
operating the compressor may
eventually drain the car battery.
• Only use the Tire Mobility Kit for
sealing/inflation passenger car
•
Never leave the Tire Mobility Kit
tires. Only punctured areas located
unattended while it is being used.
within the tread region of the tire
•
Do not leave the compressor run-
can be sealed using the tire mobil-
ning for more than 10 min. at a time
ity kit.
or it may overheat.
6-29
What to do in an emergency
Components of the Tire Mobility Kit
9. Hose to connect compressor and
sealant bottle or compressor and
wheel
Connectors, cable and connection
hose are stored in the compressor
housing.
Strictly follow the specified sequence,
otherwise the sealant may escape
under high pressure.
WARNING
Expired sealant
Do not use the Tire sealant after
the sealant has expired
(i.e.
pasted the expiration date on
the sealant container). This can
increase the risk of tire failure.
OEL069020
0. Speed- restriction label
4. Holder for the sealant bottle
WARNING
1. Sealant bottle and label with
5. Compressor
speed restriction
Sealant
6. ON/OFF switch
2. Filling hose from sealant bottle to
• Keep out of reach of children.
7. Pressure gauge for displaying the
wheel
tire inflation pressure
• Avoid contact with eyes.
3. Connectors and cable for the
8. Button for reducing tire inflation
• Do not swallow.
power outlet direct connection
pressure
6-30
Using the Tire Mobility Kit
CAUTION
OLMF064104
OOS067011R
2. Screw the connection hose
(9)
4. Unscrew the valve cap from the
onto the connector of the sealant
valve of the defective wheel and
OOS067010
bottle.
screw the filling hose (2) of the
Detach the speed restriction
sealant bottle onto the valve.
3. Ensure that the button (8) on the
label (0) from the sealant bottle
compressor is not pressed.
6
(1), and place it in a highly visi-
ble place inside the vehicle
such as on the steering wheel
to remind the driver not to drive
too fast.
1. Shake the sealant bottle.
6-31
What to do in an emergency
8. With the ignition switch in the ON
position, switch on the compres-
sor and let it run for approximately
5~7 minutes to fill the sealant up
to proper pressure. (refer to the
Tire and Wheels, chapter 8). The
inflation pressure of the tire after
filling is unimportant and will be
checked/corrected later.
Be careful not to overinflate the
tire and stay away from the tire
OLMF064105
OOS067014L
when filling it.
5. Insert the sealant bottle into the
7. Plug the compressor power cord
housing of the compressor (4) so
(3) into the vehicle power outlet.
CAUTION
that the bottle is upright.
6. Ensure that the compressor is
NOTICE
Tire pressure
switched off, position 0.
Do not attempt to drive your
Only use the front passenger side
power outlet when connecting the
vehicle if the tire pressure is
CAUTION
power cord.
below 200 kPa (29 psi). This
could result in an accident due
Securely install the sealant fill-
to sudden tire failure.
ing hose to the valve. If not,
sealant may flow backward,
possibly clogging the filling
hose.
6-32
9. Switch off the compressor.
Checking the tire inflation
10. Detach the hoses from the
pressure
sealant bottle connector and
from the tire valve.
Return the Tire Mobility Kit to its stor-
age location in the vehicle.
WARNING
Carbon monoxide
Do not leave your vehicle run-
OLMF064106
ning in a poorly ventilated area
Distributing the sealant
for extended periods of time.
11. Immediately drive approximately
OOS067038L
Carbon monoxide poisoning
7~10 km (4~6 miles or, about
and suffocation can occur.
1. After driving approximately 7~10
10min) to evenly distribute the
km (4~6 miles or about 10 min),
sealant in the tire.
stop at a safety location.
6
2. Connect the connection hose (9)
Do not exceed a speed of 80 km/h
of the compressor directly to the
(50 mph). If possible, do not fall
tire valve.
below a speed of 20 km/h (12 mph).
3. Plug the compressor power cord
While driving, if you experience any
into the vehicle power outlet.
unusual vibration, ride disturbance or
4. Adjust the tire inflation pressure to
noise, reduce your speed and drive
the recomended tire inflation.
with caution until you can safely pull
off of the side of the road.
With the ignition swithched on,
proceed as follows.
Call for road side service or towing.
6-33
What to do in an emergency
- To increase the inflation pres-
CAUTION
CAUTION
sure : Switch on the compres-
sor, position I. To check the cur-
If the inflation pressure is not
Tire pressure sensor
rent inflation pressure setting,
maintained, drive the vehicle a
(if equipped with TPMS)
briefly switch off the compressor.
second time, refer to Distributing
- To reduce the inflation pres-
The sealant on the tire pressure
the sealant. Then repeat steps 1
sure: Press the button (8) on the
sensor and wheel should be
to 4.
compressor.
removed when you replace the
Use of the TMK may be ineffec-
tire with a new one and inspect
tual for tire damage larger than
the tire pressure sensors at an
NOTICE
approximately 4 mm (0.16 in).
authorized dealer.
Do not let the compressor run for
We recommend that you contact
more than 10 minutes, otherwise
an authorized HYUNDAI dealer if
the device will overheat and may
the tire cannot be made road-
i
Information
be damaged.
worthy with the Tire Mobility Kit.
When reinstalling the repaired or
replaced tire and wheel on the vehicle,
i
Information
tighten the wheel lug nut to
11~13
WARNING
kgf·m (79~94 lbf·ft).
The pressure gauge may show higher
than actual reading when the com-
The tire inflation pressure must
pressor is running. To get an accurate
be at least 220 kPa (32 psi). If it
tire reading, the compressor needs to
is not, do not continue driving.
be turned off.
Call for road side service or tow-
ing.
6-34
IF YOU HAVE A FLAT TIRE (WITH TIRE MOBILITY KIT, IF EQUIPPED) - TYPE B
Introduction
CAUTION
With the Tire Mobility Kit you stay
mobile even after experiencing a tire
When two or more tires are flat,
do not use the tire mobility kit
puncture.
because the supported one
The system of compressor and seal-
sealant of Tire Mobility Kit is
ing compound effectively and com-
only used for one flat tire.
fortably seals most punctures in a
passenger car tire caused by nails
or similar objects and reinflates the
WARNING
tire.
After you ensured that the tire is
OOS067009
Do not use the Tire Mobility Kit
properly sealed you can drive cau-
For safe operation, carefully read
to repair punctures in the tire
tiously on the tire (distance up to 200
and follow the instructions in this
walls. This can result in an acci-
km (120 miles)) at a max. speed of
manual before use.
dent due to tire failure.
80 km/h (50 mph) in order to reach a
(1) Compressor
service station or tire dealer to have
(2) Sealant bottle
the tire replaced.
6
WARNING
The Tire Mobility Kit is a temporary
It is possible that some tires, espe-
fix to the tire and we recommend that
cially with larger punctures or dam-
Have your tire repaired as soon
the system be inspected by an
age to the sidewall, cannot be sealed
as possible. The tire may loose
authorized HYUNDAI dealer.
completely.
air pressure at any time after
Air pressure loss in the tire may
inflating with the Tire Mobility Kit.
adversely affect tire performance.
For this reason, you should avoid
abrupt steering or other driving
maneuvers, especially if the vehicle
is heavily loaded or if a trailer is in
use.
6-35
