Warning light and message

LKA system failure indicator

The LKA system will not be in the

ENABLED state and the steering

Check LKA system

The LKA system failure

wheel will not be assisted when:

indicator (yellow) will illu-

minate if the LKA system

•

The turn signal is turned on before

is not working properly.

changing a lane. If you change

We recommend that the

lanes without the turn signal on,

system be checked by an

the steering wheel might be con-

authorized

HYUNDAI

trolled.

dealer.

•

The vehicle is not driven in the mid-

dle of the lane when the system is

turned on or right after changing a

When there is a problem with the

lane.

system do one of the following:

•

ESC (Electronic Stability Control) or

• Turn the system on after turning

OOS057084R

the engine off and on again.

VSM (Vehicle Stability Management)

5

is activated.

• Check if the ignition switch is in the

If there is a problem with the system

•

The vehicle is driven on a sharp

ON position.

a message will appear for a few sec-

curve.

onds. If the problem continues the

• Check if the system is affected by

•

Vehicle speed is below 60 km/h (37

LKA system failure indicator will illu-

the weather. (ex: fog, heavy rain,

mph) and over 180 km/h (112 mph).

minate.

etc.)

•

The vehicle makes sharp lane

• Check if there is foreign matter on

changes.

the camera lens.

•

The vehicle brakes suddenly.

•

Only one lane marker is detected.

If the problem is not solved, we rec-

ommend that the system be checked

•

The lane is very wide or narrow.

by an authorized HYUNDAI dealer.

•

There are more than two lane

markers on the road. (e.g. con-

struction area)

5-81

• Driving on a steep grade, over a

LKA system function change

Standard LKA

hill, or when driving on a curved

The driver can change LKA to Lane

The Standard LKA mode guides the

road.

Departure Warning (LDW) system or

driver to help keep the vehicle within

• The adverse road conditions cause

change the LKA system mode

the lanes. It rarely controls the steer-

excessive vehicle vibrations while

between Standard LKA and Active

ing wheel, when the vehicle drives

driving.

LKA from the LCD display. Go to the

well inside the lanes. However, it

• The surrounding of the inside rear

"User Settings  Driver Assistance

starts to control the steering wheel,

view mirror temperature is high

 Lane Keeping Assist  Lane

when the vehicle is about to deviate

due to direct sunlight, etc.

Departure

Warning/Standard

out of the lanes.

LKA/Active LKA".

The system is automatically set to

Active LKA

When front visibility is poor

Standard LKA if a function is not

• The windshield or the LKAS cam-

The Active LKA mode provides more

selected.

era lens is blocked with dirt or

frequent steering wheel control in

comparison with the Standard LKA

5

debris.

Lane Departure Warning

mode. Active LKA can reduce the dri-

• The windshield glass is fogged up;

ver’s fatigue to assist the steering for

a clear view of the road is obstruct-

LDW system alerts the driver with a

maintaining the vehicle in the middle

ed.

visual warning and a warning alarm

of the lane.

when the system detects the vehicle

• Placing objects on the dashboard,

departing the lane. The steering

etc.

wheel will not be controlled.

• The sensor cannot detect the lane

because of fog, heavy rain or snow.

5-83

Driving your vehicle

DRIVER ATTENTION WARNING (DAW) SYSTEM (IF EQUIPPED)

The Driver Attention Warning (DAW)

•

The driver can select the Driver

Display of the driver's attention

system displays the condition of the

Attention Warning (DAW) system

level

driver's fatigue level and inattentive

mode.

■ System off

driving practices.

- Off : The Driver Attention Warning

(DAW) system is deactivated.

System setting and activation

- Normal Sensitivity

: The Driver

Attention Warning (DAW) system

System setting

alerts the driver of his/her fatigue

• The Driver Attention Warning

level or inattentive driving prac-

(DAW) system is set to be in the

tices.

OFF position, when your vehicle is

- High Sensitivity

: The Driver

first delivered to you from the fac-

Attention Warning (DAW) system

tory.

alerts the driver of his/her fatigue

• To turn ON the Driver Attention

level or inattentive driving prac-

OOS057085L

Warning (DAW) system, turn on

tices faster than Normal mode.

■ Attentive driving

the engine, and then select "User

•

The set-up of the Driver Attention

Settings

 Driver Assistance 

Warning

(DAW) system will be

Driver Attention Warning  High

maintained, as selected, when the

Sensitivity/Normal Sensitivity" on

engine is re-started.

the LCD display.

OPDE056061

5-84

■ Inattentive driving

• When the driver turns on the sys-

Resetting the system

tem while driving, it displays 'Last

•

The last break time is set to 00:00

Break time' and level.

and the driver's attention level is

set to 5 (very attentive) when the

Take a break

driver resets the Driver Attention

Warning (DAW) system.

•

The Driver Attention Warning

(DAW) system resets the last

break time to 00:00 and the driver's

attention level to 5 in the following

situations.

OPDE056062

- The engine is turned OFF.

•

The driver can monitor their driving

- The driver unfastens the seat belt

conditions on the LCD display.

and then opens the driver's door.

5

The DAW screen will appear when

- The vehicle is stopped for more

you select the ASSIST mode tab

than 10 minutes.

(

) on the LCD display if the sys-

OPDE056063

tem is activated.

(For more

•

The Driver Attention Warning

details, refer to "LCD Display

•

The "Consider taking a break"

(DAW) system operates again,

Modes" in chapter 3.)

message appears on the LCD dis-

when the driver restarts driving.

play and a warning sounds in order

•

The driver's attention level is dis-

to suggest the driver to take a

played on the scale of 1 to 5. The

break, when the driver’s attention

lower the level is, the more inatten-

level is below 1.

tive the driver is.

•

The Driver Attention Warning

•

The level decreases when the driv-

(DAW) system does not suggest

er does not take a break for a cer-

the driver to take a break, when the

tain period of time.

total driving time is shorter than 10

•

The level increases when the driv-

minutes.

er attentively drives for a certain

period of time.

5-85

Driving your vehicle

System standby

System malfunction

WARNING

•

The Driver Attention Warning

(DAW) system is not a substi-

tute for safe driving practices,

but a convenience function

only. It is the responsibility of

the driver to always drive cau-

tiously to prevent unexpected

and sudden situations from

occurring. Pay attention to the

road conditions at all times.

OOS057086L

OOS057087L

•

The system may suggest a

break according to the dri-

The Driver Attention Warning (DAW)

Check Driver Attention Warning

ver's driving pattern or habits

system enters the ready status and

(DAW) system

even if the driver doesn't feel

displays the 'Standby' screen in the

When the "Check Driver Attention

fatigue.

following situations.

Warning

(DAW) system" warning

•

The driver, who feels fatigued,

- The camera does not detect the

message appears, the system is not

should take a break, even

lanes.

working properly. In this case, we rec-

though there is no break sug-

ommend that you have the vehicle

- Driving speed remains under

60

gestion by the Driver Attention

inspected by an authorized HYUNDAI

km/h (40 mph) or over 200 km/h

Warning (DAW) system.

dealer.

(125 mph).

5-86

NOTICE

• Do not disassemble camera

•

Forward drivability of the

temporarily for tinted window or

vehicle is severely under-

The Driver Attention Warning

attaching any types of coatings

mined (possibly due to wide

(DAW) system utilizes the camera

and accessories. If you disas-

variation in tire pressures,

sensor on the front windshield for

semble a camera and assemble

uneven tire wear-out, toe-

its operation. To keep the camera

it again, we recommend that you

in/toe-out alignment).

sensor in the best condition, you

take your vehicle to an author-

should observe the followings:

ized HYUNDAI dealer and have

•

The vehicle drives on a curvy

•

NEVER install any accessories

the system checked for calibra-

road.

or stickers on the front wind-

tion.

•

The vehicle drives through a

shield, nor tint the front wind-

windy area.

shield.

•

The vehicle drives on a

CAUTION

•

NEVER locate any reflective

bumpy road.

objects (i.e. white paper, mirror)

The Driver Attention Warning

•

The vehicle is controlled by

5

over the dashboard. Any light

(DAW) system may not properly

the following driving assist

reflection may cause a malfunc-

operate with limited alerting in

systems:

tion of the Driver Attention

the following situations:

- Lane Keeping Assist (LKA)

Warning (DAW) system.

• The lane detection perform-

system

•

Pay extreme caution to keep the

ance is limited.

(For more

- Forward Collision-avoidance

camera sensor out of water.

details, refer to "Lane Keeping

Assist (FCA) system

•

NEVER arbitrarily disassemble

Assist (LKA) system" in this

the camera assembly, nor apply

chapter.)

any impact on the camera

• The vehicle is violently driven

CAUTION

assembly.

or is abruptly turned for

obstacle avoidance (e.g. con-

Playing the vehicle audio sys-

struction area, other vehicles,

tem at high volume may offset

fallen objects, bumpy road).

the Driver Attention Warning

(DAW) system warning sounds.

5-87

Driving your vehicle

SPEED LIMIT CONTROL SYSTEM (IF EQUIPPED)

Speed Limit Control operation

Speed limit control switch

To set speed limit

You can set the speed limit when you

do not want to drive over a specific

speed.

If you drive over the preset speed

limit, the warning system operates

(set speed limit will blink and chime

will sound) until the vehicle speed

returns within the speed limit.

i

Information

While speed limit control is in opera-

OPDE056114

OOS057053

tion, the cruise control system cannot

be activated.

: Changes mode between

1. Press the

button to turn

cruise control system and

the system on. The speed limit

speed limit control system.

indicator in the instrument cluster

will illuminate.

System off

Cruise Control

Speed Limit Control

RES+: Resumes or increases speed

limit control speed.

SET-: Sets or decreases speed limit

control speed.

O (Cancel): Cancels set speed limit.

5-88

3. • Push the toggle switch up

To turn off the speed limit con-

(RES+) or down

(SET-), and

trol, do one of the following:

release it at the desired speed.

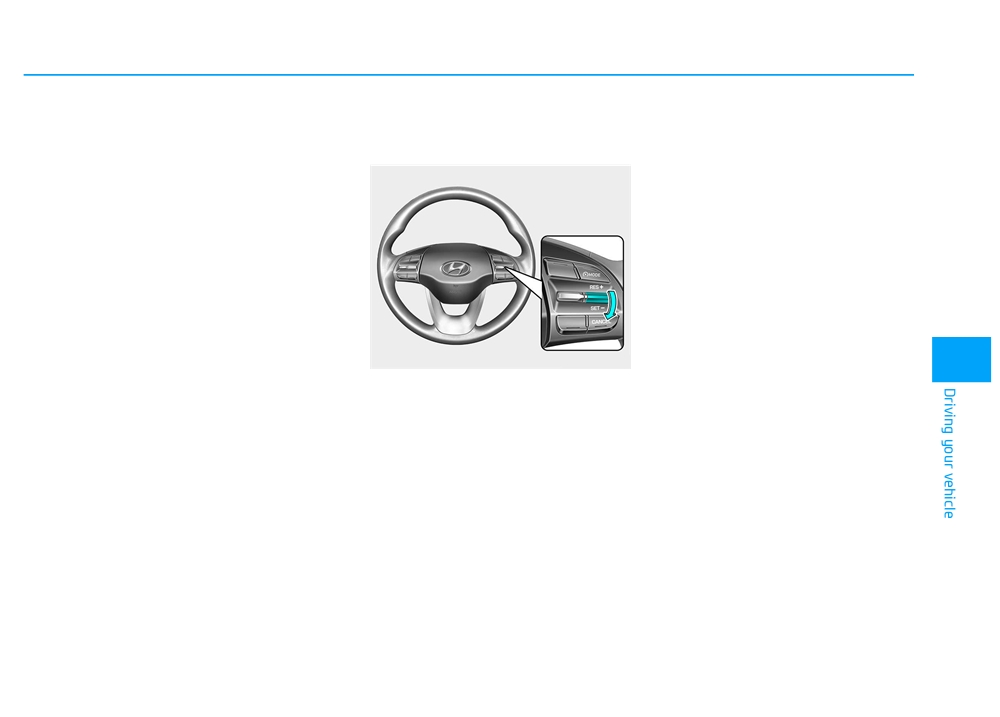

• Push the toggle switch up

(RES+) or down (SET-) and hold

it. The speed will increase or

decrease by 5 km/h.

The set speed limit will display on the

instrument cluster.

If you would like to drive over the pre-

set speed limit when you depress the

OOS057054

accelerator pedal less than approxi-

mately 50%, the vehicle speed will

maintain within speed limit.

OOS057053

5

However if you depress the acceler-

•

Press the

button.

ator pedal more than approximately

70%, you can drive over the speed

•

If you press O

(cancel) button

limit. Then the set speed limit will

once, the set speed limit will can-

blink and chime will sound until you

cel, but it will not turn the system

return the vehicle speed within the

off. If you wish to resume the speed

speed limit.

limit, push the +RES or SET- tog-

gle switch on your steering wheel

to your desired speed.

OOS057055

2. Push the toggle switch down

(SET-).

5-89

Driving your vehicle

CRUISE CONTROL (IF EQUIPPED)

Cruise Control operation

WARNING

- When driving on rainy, icy, or

snow-covered roads

Take the following precautions:

- When driving on hilly or

•

Always set the vehicle speed

windy roads

under the speed limit in your

- When driving in windy areas

country.

• Do not use cruise control

•

If the Cruise Control is left on,

when towing a trailer.

(CRUISE (

) indicator light

in the instrument cluster is

NOTICE

illuminated)

the

Cruise

Control can be activated unin-

During cruise-speed driving of a

tentionally. Keep the Cruise

manual transmission vehicle, do

OOS057052

Control system off

(CRUISE

not shift into neutral without

indicator light OFF) when the

depressing the clutch pedal, since

1. CRUISE (

) indicator

Cruise Control is not in use, to

the engine will be overrevved. If

2. SET indicator

avoid inadvertently setting a

this happens, depress the clutch

speed.

pedal or press the cruise control

The Cruise Control system allows you

•

Use the Cruise Control system

ON / OFF button.

to drive at speeds above 30 km/h

only when traveling on open

(20 mph) without depressing the

highways in good weather.

accelerator pedal.

•

Do not use the Cruise Control

when it may be unsafe to keep

the vehicle at a constant

speed:

- When driving in heavy traffic

or when traffic conditions

make it difficult to drive at a

constant speed

5-90

i

Information

i

Information

•

During normal cruise control opera-

tion, when the SET switch is activat-

ed or reactivated after applying the

brakes, the cruise control will acti-

vate after approximately 3 seconds.

This delay is normal.

•

Before activating the cruise control

function, the system will check to

verify that the brake switch is oper-

ating normally. Depress the brake

OOS057053

pedal at least once after turning ON

Cruise control switch

the ignition or starting the vehicle.

OOS057053

O (Cancel): Cancels cruise control

5

operation.

First, switch the mode to Cruise

Control by pressing the

but-

CRUISE (

,

):

ton if equipped with the Speed Limit

Turns cruise control system on or off.

Control System.

RES+: Resumes or increases cruise

The mode changes, as below, whenev-

control speed.

er the

button is pressed.

SET-: Sets or decreases cruise con-

trol speed.

System off

Cruise Control

Speed Limit Control

5-91

Driving your vehicle

To set Cruise Control speed

To increase Cruise Control

speed

OOS057054

3. Push the toggle switch down

OOS057053

(SET-), and release it. The SET

OOS057055

1. Press the

(CRUISE) button on

indicator light will illuminate.

•

Push the toggle switch up (RES+)

the steering wheel to turn the sys-

4. Release the accelerator pedal.

and hold it, while monitoring the

tem on. The

(CRUISE) indica-

SET speed on the instrument clus-

tor will illuminate.

i

Information

ter.

2. Accelerate to the desired speed,

On a steep slope, the vehicle may

Release the toggle switch when

which must be more than 30 km/h

slightly slow down or speed up, while

the desired speed is shown and

(20 mph).

driving uphill or downhill.

the vehicle will accelerate to that

speed.

i

Information - Manual trans-

mission

For manual transmission vehicles, you

should depress the brake pedal at

least once to set the cruise control

after starting the engine.

5-92

• Push the toggle switch up (RES+)

To decrease Cruise Control

To temporarily accelerate with

and release it immediately. The

speed

the Cruise Control ON

cruising speed will increase

2.0

Depress the accelerator pedal. When

km/h (1.2 mph) each time the tog-

you take your foot off the accelerator,

gle switch is operated in this man-

the vehicle will return to the previ-

ner.

ously set speed.

• Depress the accelerator pedal.

If you push the toggle switch down

When the vehicle attains the

(SET-) at the increased speed, the

desired speed, push the toggle

Cruise Control will maintain the

switch down (SET-).

increased speed.

OOS057054

5

• Push the toggle switch down (SET-)

and hold it.Your vehicle will gradual-

ly slow down. Release the toggle

switch at the speed you want to

maintain.

• Push the toggle switch down (SET-)

and release it immediately. The

cruising speed will decrease

2.0

km/h (1.2 mph) each time the toggle

switch is operated in this manner.

• Lightly tap the brake pedal. When

the vehicle attains the desired

speed, push the toggle switch

down (SET-).

5-93

Driving your vehicle

Cruise Control will be canceled

• Moving the shift lever into N

To resume preset Cruising

when:

(Neutral). (for dual clutch transmis-

speed

sion vehicle)

• Decreasing the vehicle speed to

less than approximately 30 km/h

(20 mph).

• The ESC

(Electronic Stability

Control) is operating.

• Downshifting to the

2nd gear in

manual shift mode. (for dual clutch

transmission vehicle)

i

Information

OOS057056

OOS057055

Each of the above actions will cancel

•

Depressing the brake pedal.

Cruise Control operation

(the SET

Push the toggle switch up (RES+). If

the vehicle speed is over 30 km/h (20

•

Depressing the clutch pedal.

indicator light in the instrument clus-

(for manual transmission vehicle)

ter will go off), but only pressing the

mph), the vehicle will resume the

preset speed.

(CRUISE) button will turn the

•

Pressing the O

(Cancel) button

system off. If you wish to resume

located on the steering wheel.

Cruise Control operation, push the

•

Pressing the

(CRUISE) button.

toggle switch up (RES+) located on

Both the

(CRUISE) indicator

your steering wheel. You will return to

and the SET indicator will turn OFF.

your previously preset speed, unless

•

Pressing the

button. Both

the system was turned off using the

the

(CRUISE) indicator and the

(CRUISE) button.

SET indicator will turn OFF.

(if

equipped with the Speed Limit

Control)

5-94

To turn Cruise Control off

i

Information

The mode changes, as below, whenev-

er the

button is pressed.

System off

Cruise Control

Speed Limit Control

OOS057053

5

•

Press the

(CRUISE) button (the

(CRUISE) indicator light will go

off).

•

Press the

button

(The

cruise indicator light will go off.). (if

equipped with Speed Limit Control)

- With the Cruise Control on,

pressing the button once will turn

Off the Cruise Control and turn

on the Speed Limit Control.

- With the Cruise Control off and

Speed Limit Control on, pressing

the button will turn off both sys-

tem.

5-95

Driving your vehicle

SPECIAL DRIVING CONDITIONS

Hazardous driving conditions

Rocking the vehicle

WARNING

When hazardous driving elements

If it is necessary to rock the vehicle

are encountered such as water,

to free it from snow, sand, or mud,

If the vehicle is stuck and

snow, ice, mud and sand, take the

first turn the steering wheel right and

excessive wheel spin occurs,

following precautions:

left to clear the area around your

the temperature in the tires can

• Drive cautiously and maintain a

front wheels. Then, shift back and

increase very quickly. If the tires

forth between R (Reverse) and a for-

longer braking distance.

become damaged, a tire blow

ward gear.

out or tire explosion can occur.

• Avoid abrupt braking or steering.

Try to avoid spinning the wheels, and

This condition is dangerous -

• When your vehicle is stuck in snow,

do not race the engine.

you and others may be injured.

mud, or sand, use the second

Do not attempt this procedure if

To prevent transmission wear, wait

gear. Accelerate slowly to avoid

people or objects are anywhere

unnecessary wheel spinning.

until the wheels stop spinning before

near the vehicle.

shifting gears. Release the accelera-

• Put sand, rock salt, tire chains or

tor pedal while shifting, and press

If you attempt to free the vehi-

other non-slip materials under the

lightly on the accelerator pedal while

cle, the vehicle can overheat

wheels to provide additional trac-

the transmission is in gear. Slowly

quickly, possibly causing an

tion while being stuck in ice, snow,

spinning the wheels in forward and

engine compartment fire or

or mud.

reverse directions causes a rocking

other damage. Try to avoid spin-

motion that may free the vehicle.

ning the wheels as much as

WARNING

possible to prevent overheating

of either the tires or the engine.

Downshifting with an a dual

DO NOT allow the vehicle to

clutch transmission while driv-

spin the wheels above 56 km/h

ing on slippery surfaces can

(35 mph).

cause an accident. The sudden

change in tire speed could

cause the tires to skid. Be care-

ful when downshifting on slip-

pery surfaces.

5-96

Smooth cornering

Driving in the rain

i

Information

Avoid braking or gear changing in

Rain and wet roads can make driving

The ESC system (if equipped) must be

corners, especially when roads are

dangerous. Here are a few things to

turned OFF before rocking the vehi-

wet. Ideally, corners should always

consider when driving in the rain or

cle.

be taken under gentle acceleration.

on slick pavement:

NOTICE

•

Slow down and allow extra follow-

ing distance. A heavy rainfall

Driving at night

If you are still stuck after rocking

makes it harder to see and increas-

the vehicle a few times, have the

Night driving presents more hazards

es the distance needed to stop

vehicle pulled out by a tow vehicle

than driving in the daylight. Here are

your vehicle.

to avoid engine overheating, pos-

some important tips to remember:

•

Turn OFF your Cruise Control. (if

sible damage to the transmission,

•

Slow down and keep more dis-

equipped)

and tire damage. See "Towing" in

tance between you and other vehi-

•

Replace your windshield wiper

chapter 6.

cles, as it may be more difficult to

blades when they show signs of

5

see at night, especially in areas

streaking or missing areas on the

where there may not be any street

windshield.

lights.

•

Be sure your tires have enough

•

Adjust your mirrors to reduce the

tread. If your tires do not have

glare from other drivers' head-

enough tread, making a quick stop

lamps.

on wet pavement can cause a skid

•

Keep your headlamps clean and

and possibly lead to an accident.

properly aimed. Dirty or improperly

See "Tire Tread" in chapter 7.

aimed headlamps will make it

•

Turn on your headlamps to make it

much more difficult to see at night.

easier for others to see you.

•

Avoid staring directly at the head-

•

Driving too fast through large pud-

lamps of oncoming vehicles. You

dles can affect your brakes. If you

could be temporarily blinded, and it

must go through puddles, try to

will take several seconds for your

drive through them slowly.

eyes to readjust to the darkness.

5-97

Content   ..  18  19  20  21   ..
