Maintenance
Fuse/relay panel description

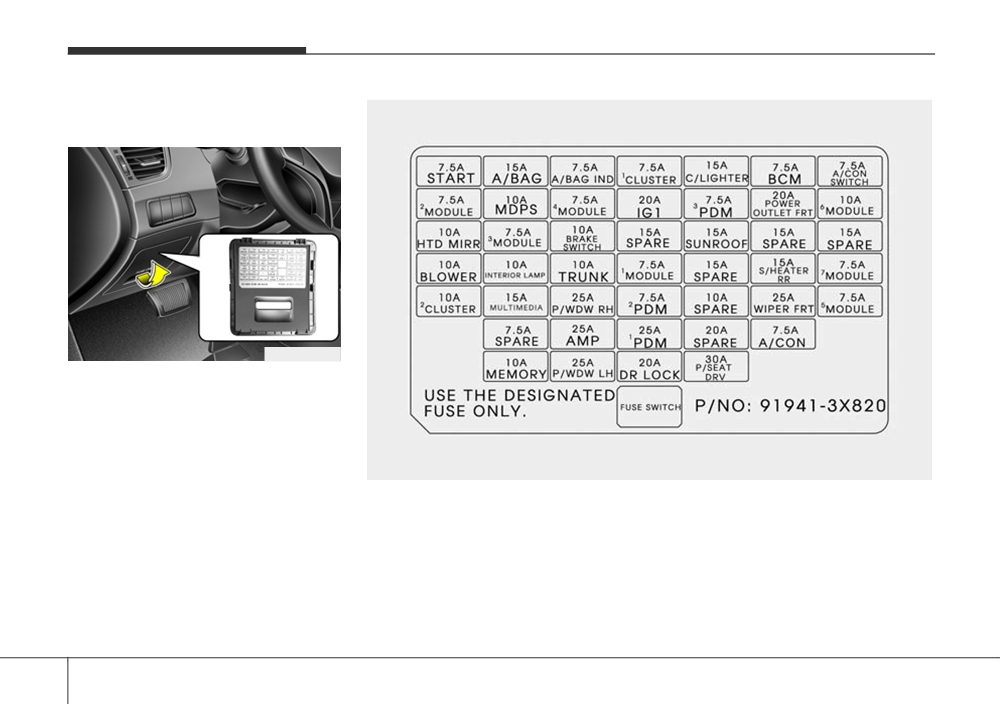

Instrument panel fuse panel
OMD070023
Inside the fuse/relay panel covers,
you can find the fuse/relay label
describing fuse/relay name and
capacity.
✽ NOTICE
OMD074063N
Not all fuse panel descriptions in
this manual may be applicable to
your vehicle. It is accurate at the
time of printing. When you inspect
the fuse panel in your vehicle, refer
to the fuse panel label.
7 62
Maintenance
Instrument panel (Driver’s side fuse panel)
Fuse Name
Fuse rating
Protected Component
W/O Smart Key : ICM Relay Box(Burglar Alarm Relay), With Smart Key : A/T - Transaxle Range Switch,
START
7.5A
M/T - ECM, E/R Fuse & Relay Box(Start 1 Relay), Smart Key Control Module
A/BAG
15A
SRS Control Module, Passenger Weight Classification Sensor
A/BAG IND
7.5A
Instrument Cluster
CLUSTER
7.5A
ISG LDC (Audio), Cluster (ISG)
C/LIGHTER
15A
Cigarette Lighter
BCM
7.5A
Smart Key Control Module, BCM
A/CON SWITCH
7.5A
A/C Control Module
MODULE 2
7.5A
Electro Chromic Mirror, ESC Off Switch
MDPS
10A
EPS Control Module
MODULE 4
7.5A
Rear Parking Assist Sensor LH/RH (IN/OUT), A/C Control Module(Auto A/C), ATM Lever Indicator
IG1
20A
E/R Fuse & Relay Box(Fuse - TCU 1, B/UP LP, ECU 3, ABS 3)
PDM 3
7.5A
Smart Key Control Module
POWER OUTLET FRT
20A
Power Outlet
MODULE 6
10A
AMP, Power Outside Mirror Switch, Audio, A/V & Navigation Head Unit, Digital Clock
7 63
Maintenance
Fuse Name
Fuse rating
Protected Component
HTD MIRR
10A
Driver/Passenger Power Outside Mirror, A/C Control Module
Audio, Tire Pressure Monitoring Module, Digital Clock, BCM, Instrument Cluster,
MODULE 3
7.5A
Driver/Passenger Seat Warmer Module
BRAKE SWITCH
10A
-
SPARE
15A
-
SUNROOF
15A
Sunroof
SPARE
15A
-
SPARE
15A
-
BLOWER
10A
Manual A/C - A/C Control Module, ECM/PCM, Blower Resistor
Luggage Lamp, Vanity Lamp LH/RH, Room Lamp, Overhead Console Lamp,
INTERIOR LAMP
10A
Ignition Key Ill. & Door Warning Switch(W/O Smart Key)
TRUNK
10A
Trunk Relay
MODULE 1
7.5A
Sport Mode Switch(A/T), Key Solenoid(W/O Smart Key)
SPARE
15A
-
S/HEATER RR
15A
Rear Seat Warmer Switch LH/RH
MODULE 7
7.5A
Smart Key Control Module, BCM
MULTIMEDIA
15A
Audio, A/V & Navigation Head Unit
7 64
Maintenance
Fuse Name
Fuse rating
Protected Component
P/WDW RH
25A
P/WDW RH Relay
PDM 2
7.5A
Smart Key Control Module, Start Stop Button Switch
SPARE
10A
-
ICM Relay Box(Rain Sensor Relay), Multifunction Switch, Wiper Motor, E/R Fuse & Relay Box(Wiper
WIPER FRT
25A
Relay)
MODULE 5
7.5A
Cluster Ionizer(Auto A/C), Rain Sensor, Sunroof
SPARE
7.5A
-
AMP
25A
AMP
PDM 1
25A
Smart Key Control Module
SPARE
20A
-
A/CON
7.5A
A/C Control Module, E/R Fuse & Relay Box(Blower Relay)
Tire Pressure Monitoring Module, BCM, Auto Light & Photo Sensor, Instrument Cluster,
MEMORY
10A
Data Link Connector, Smart Junction Box Upgrade Connector, Electro Chromic Mirror,
A/C Control Module, Digital Clock
P/WDW LH
25A
P/WDW LH Relay, Driver Safety Power Window Module
DR LOCK
20A
Door Lock Relay, Door Unlock Relay, ICM Relay Box(Two Turn Relay)
P/SEAT DRV
30A
Driver Seat Manual Switch
7 65
Maintenance

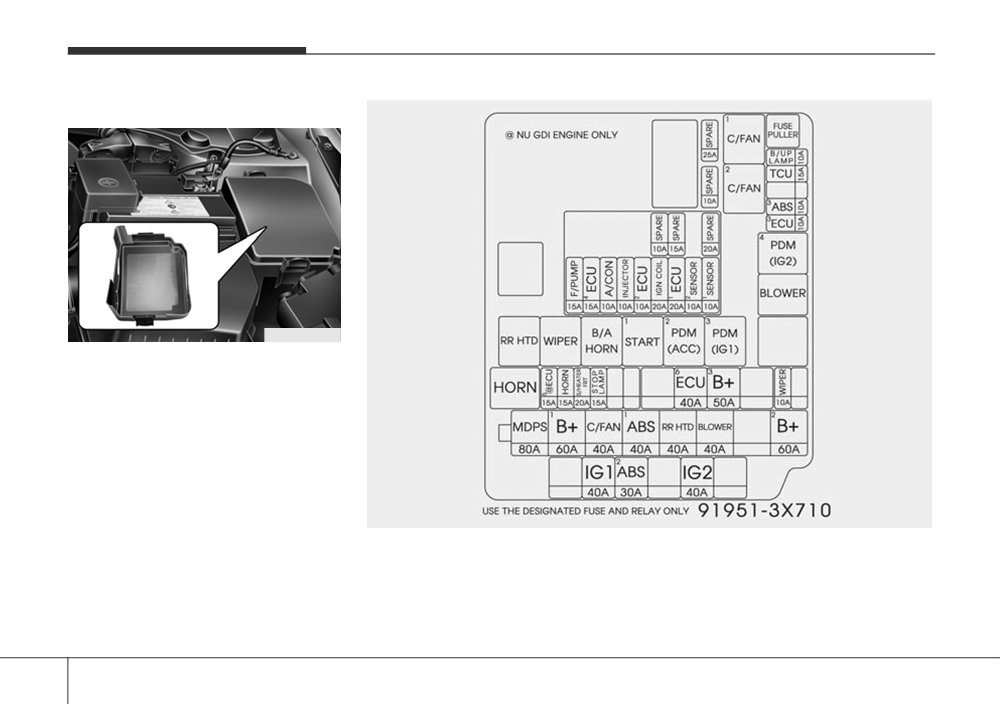

Engine compartment fuse panel
OMD070024
Inside the fuse/relay panel covers,
you can find the fuse/relay label
describing fuse/relay name and
capacity.
✽ NOTICE
Not all fuse panel descriptions in
this manual may be applicable to
your vehicle. It is accurate at the
OMD074067A
time of printing. When you inspect
the fuse panel in your vehicle, refer
to the fuse panel label.
7 66
Maintenance
Engine compartment main fuse panel
Description
Fuse rating
Protected component
MDPS
80A
EPS Control Module
B+1
60A
Smart Junction Box(ARISU 1 (4CH), IPS 1, FUSE - P/WDW LH, P/WDW RH, TRUNK, AMP 1)
C/FAN
40A
C/FAN Lo Relay, C/FAN Hi Relay
ABS 1
40A
ESC Module, Multipurpose Check Connector
MULTI
FUSE
RR HTD
40A
RR HTD Relay
BLOWER
40A
Blower Relay
SPARE
40A
-
Smart Junction Box(Turn Signal Lamp Sound Relay, ARISU 2 (4CH), IPS (1CH),
B+2
60A
IPS (2CH), FUSE - P/SEAT DRV, SUNROOF)
Electro Chromic Mirror, A/V & Navigation Head Unit, Rear Combination Lamp (In) LH/RH, M/T -
B/UP LAMP
10A
Back-Up Lamp Switch, BCM, Instrument Cluster
TCU 1
15A
M/T - Vehicle Speed Sensor, A/T - Transaxle Range Switch
ABS 3
10A
ESC Module, Multipurpose Check Connector
FUSE
ECU 3
10A
Stop Lamp Switch, M/T - ECM, A/T - PCM
WIPER
10A
Rain Sensor, M/T - ECM, A/T - PCM
B+3
50A
Smart Junction Box (Leak Current Autocut Device, FUSE - MODULE 1, PDM 1, PDM 2, DR LOCK)
EMS
40A
EMS Box(Engine Control Relay, FUSE - ECU 4, A/CON, F/PUMP)
7 67
Maintenance
Description
Fuse rating
Protected component
ISG INVERTER
50A
Oil Pump Inverter
STOP LP
15A
Stop Lamp Switch, Smart Key Control Module
S/HEATER FRT
20A
Driver/Passenger Seat Warmer Module
HORN
15A
Horn Relay
W/O Smart Key : Ignition Switch, Start 1 Relay,
IG 2
40A
With Smart Key : PDM 4 (IG2) Relay, Start 1 Relay
ABS 2
30A
ESC Module, Multipurpose Check Connector
IG 1
40A
W/O Smart Key : Ignition Switch, With Smart Key : PDM 3 (IG1) Relay, PDM 2 (ACC) Relay
FUSE
F/PUMP
15A
F/PUMP Relay
ECU 4
15A
PCM (A/T), ECM (M/T)
A/CON
10A
A/C COMP Relay
INJECTOR
10A
Injector #1 / #2 / #3 / #4, A/C COMP Relay, F/PUMP Relay
ECU 2
10A
PCM (A/T), ECM (M/T)
IGN COIL 1
20A
Ignition Coil #1 / #2 / #3 / #4, Condenser
ECU 1
20A
-
SENSOR 2
10A
Immobilizer Module, Camshaft Position Sensor #1 / #2
7 68
Maintenance
Description
Fuse rating
Protected component
Oxygen Sensor (UP/DOWN), Canister Close Valve, Variable Intake Solenoid Valve, Oil Control
SENSOR 1
10A
Valve #1 / #2, Purge Control Solenoid Valve, C/FAN LO Relay, C/FAN HI Relay
SPARE
10A
-
FUSE
SPARE
15A
-
SPARE
20A
-
7 69
Maintenance
LIGHT BULBS
Consult an authorized HYUNDAI
Headlight, parking light, turn
dealer to replace most vehicle light
WARNING
signal light, side marker and
bulbs. It is difficult to replace vehicle
•
Prior to replacing a light,
front fog light bulb replace-
light bulbs because other parts of the
depress the foot brake, move
ment
vehicle must be removed before you
the shift lever into P
(Park)
■ Type A
can get to the bulb. This is especially
apply the parking brake, place
true for removing the headlight
the ignition switch in the
assembly to get to the bulb(s).
LOCK/OFF position, and take
Removing/installing the headlight
the key with you when leaving
assembly can result in damage to
the vehicle to avoid sudden
the vehicle.
movement of the vehicle and
to prevent possible electric
shock.
✽ NOTICE
•
Be aware the bulbs may be
After heavy driving, rain or wash-
hot and may burn your fin-
ing, headlight and taillight lenses
gers.
could appear frosty. This condition
OMD074101N
is caused by the temperature differ-
■ Type B
ence between the lamp inside and
the outside temperature. This is sim-
ilar to the condensation on your win-
dows inside your vehicle during the
rain and doesn’t indicate a problem
with your vehicle. If the water leaks
into the lamp bulb circuitry, have
your vehicle checked by an author-
ized HYUNDAI dealer.
OMD074102N
7 70
Maintenance
■ Type C
•
Always handle them carefully, and
avoid scratches and abrasions. If
the bulbs are lit, avoid contact with
liquids.
•
Never touch the glass with bare
hands. Residual oil may cause the
bulb to overheat and burst when lit.
•
A bulb should be operated only
when installed in a headlamp.
•
If a bulb becomes damaged or
cracked, replace it immediately
OMD074026K
OMD070053N
and carefully dispose of it.
(1) Turn signal light
Halogen bulb
(2) Headlight (High)
(3) Headlight (Low)
WARNING
(4) Parking (Position) light
• Handle halogen bulbs with
care. Halogen bulbs contain
(5) Side marker
pressurized gas that will pro-
(6) Fog light*
duce flying pieces of glass
that could cause injuries if
* : if equipped
broken.
• Wear eye protection when
changing a bulb. Allow the
bulb to cool down before han-
dling it.
7 71
Maintenance
Headlight bulb (low, high)
11. Connect the headlight bulb sock-
et-connector.
12. Install the headlight bulb cover by
turning it clockwise.
Low
OMD074027
High
1. Open the hood.
OMD074028
2. Disconnect the negative battery
6. Remove the headlight bulb cover
cable.
by turning it counterclockwise.
3. Loosen the screws with a screw-
7. Disconnect the headlight bulb
driver.
socket-connector.
4. Pull the headlight assembly out to
8. Unsnap the headlight bulb retain-
the front of the vehicle.
ing wire by depressing the end
5. Disconnect the power connec-
and pushing it upward.
tor(s) from the back of the head-
9. Remove the bulb from the head-
light assembly.
light assembly.
10. Install a new headlight bulb and
snap the headlight bulb retaining
wire into position by aligning the
wire with the groove on the bulb.
7 72
Maintenance
Turn signal light
8. Insert a new bulb into the socket
Front side marker
and rotating it until it locks into
place.
9. Install the socket in the assembly
by aligning the tabs on the socket
with the slots in the assembly.
Push the socket into the assembly
and turn the socket clockwise.
Side marker
10.Reinstall the light assembly to the
body of the vehicle.
Turn signal
Parking (Position) light bulbs
OMD074029
OMD074112
If the LED light does not operate,
Follow steps 1 to 5 from the previous
have the vehicle checked by an
Follow steps 1 to 5 from the previous
page.
authorized HYUNDAI dealer.
page.
6. Remove the socket from the
6. Remove the socket from the
assembly by turning the socket
assembly by turning the socket
counterclockwise until the tabs on
counterclockwise until the tabs on
the socket align with the slots on
the socket align with the slots on
the assembly.
the assembly.
7. Remove the bulb from the socket
7. Remove the bulb from the socket
by pressing it in and rotating it
by pulling out the bulb.
counterclockwise until the tabs on
8. Insert a new bulb.
the bulb align with the slots in the
socket. Pull the bulb out of the
socket
7 73
Maintenance
9. Install the socket in the assembly
Fog light bulbs

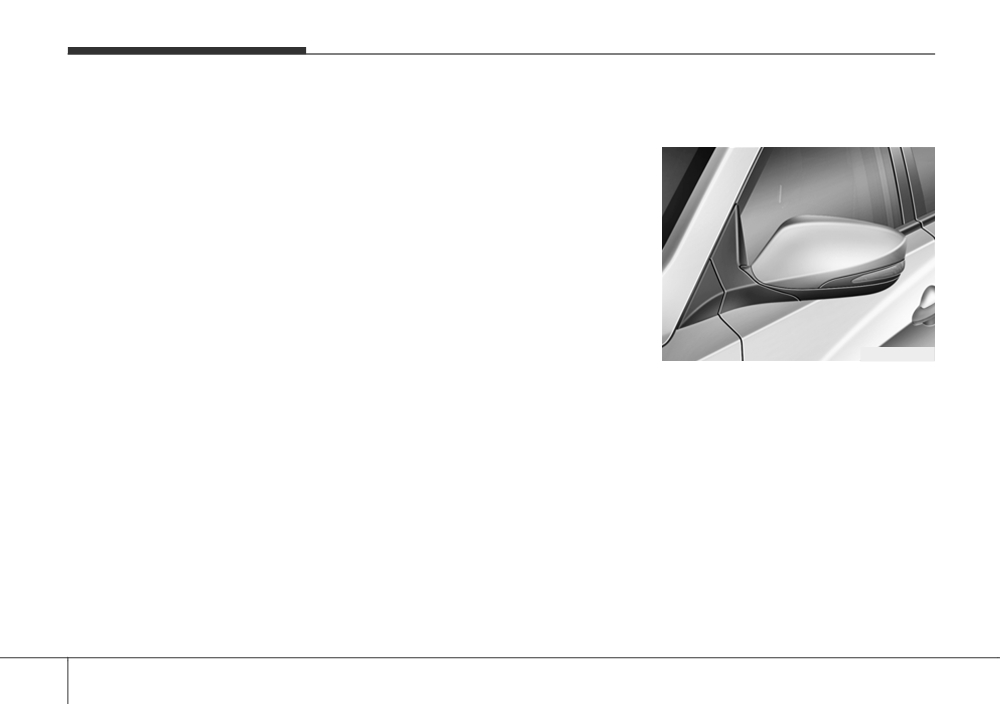

Side repeater light replace-
by aligning the tabs on the socket
ment
1. Remove the front bumper under
with the slots in the assembly.
cover.
Push the socket into the assembly
2. Reach your hand into the back of
and turn the socket clockwise.
the front bumper.
10. Reinstall the light assembly to
3. Disconnect the power connector
the body of the vehicle.
from the socket.
4. Remove the bulb-socket from the
housing by turning the socket
counter clockwise until the tabs on
the socket align with the slots on
the housing.
5. Install the new bulb-socket into the
OMD070030
housing by aligning the tabs on
the socket with the slots in the
If the LED light does not operate,
housing. Push the socket into the
have the vehicle checked by an
housing and turn the socket clock-
authorized HYUNDAI dealer.
wise.
6. Connect the power connector to
the socket.
7. Reinstall the front bumper under
cover.
7 74
Maintenance

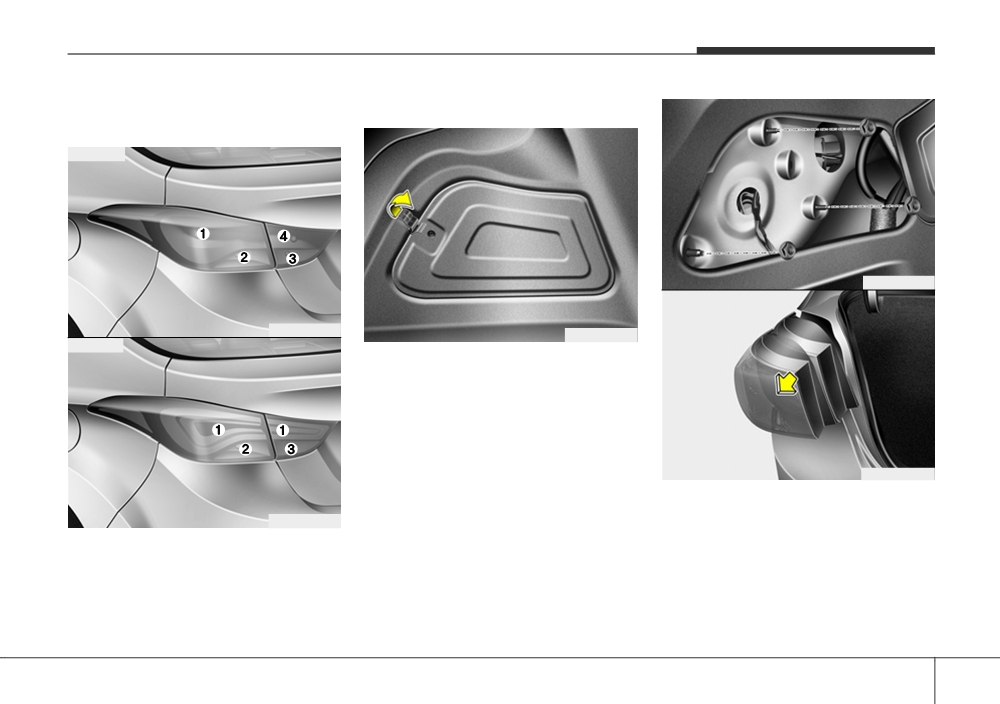

Rear combination light bulb
Outside light
replacement
■ Type A
OMD070033
OMD074071
OMD070032
■ Type B
1. Open the trunk lid.
2. Remove the service cover by
pulling out the service cover.
OMD070034
3. Loosen the assembly retaining
nuts.
OMD074031
4. Remove the rear combination light
(1) Stop/Tail light
assembly from the body of the
vehicle.
(2) Turn signal light
(3) Back-up light
(4) Tail light
7 75
Maintenance
■ Type A
6. Remove the bulb from the socket
Side marker
Side marker
by pressing it in and rotating it
5. Remove the socket from the
counterclockwise until the tabs on
assembly by turning the socket
the bulb align with the slots in the
counterclockwise until the tabs on
socket. Pull the bulb out of the
the socket align with the slots on
socket.
the assembly.
7. Insert a new bulb by inserting it
6. Remove the bulb by pulling it out.
Stop/Tail
into the socket and rotating it until
7. Inset a new bulb by insetring it into
it locks into place.
Turn signal
the socket.
8. Install the socket in the assembly
OMD074111
8. Install the socket in the assembly
■ Type B
by aligning the tabs on the socket
by aligning the tabs on the socket
with the slots in the assembly.
with the slots in the assembly.
Push the socket into the assembly
Push the socket into the assembly
and turn the socket clockwise.
and turn the socket clockwise.
Stop/Tail light (Type B)
Side marker
If the LED light does not operate,
have the vehicle checked by an
Turn signal
authorized HYUNDAI dealer.
OMD074110
Stop/Tail light and turn signal light
5. Remove the socket from the
assembly by turning the socket
counterclockwise until the tabs on
the socket align with the slots on
the assembly.
7 76
Maintenance
Inside light
3.Disconnect the connector and then
■ Type A
remove the nuts by turning the nuts
Tail
counter clockwise.
Back-up
OMD074040
■ Type B
OMD070037
Back-up
OMD074108
4.Take the light assembly out.
OMD070038C
5. Remove the socket from the
1.Open the trunk.
assembly by turning the socket
2.Loosen the retaining screw of the
counterclockwise until the tabs on
trunk lid cover and then remove the
the socket align with the slots on
cover.
the assembly.
6. Remove the bulb by pulling it out.
7 77
Maintenance
7.Insert a new bulb by inserting it into

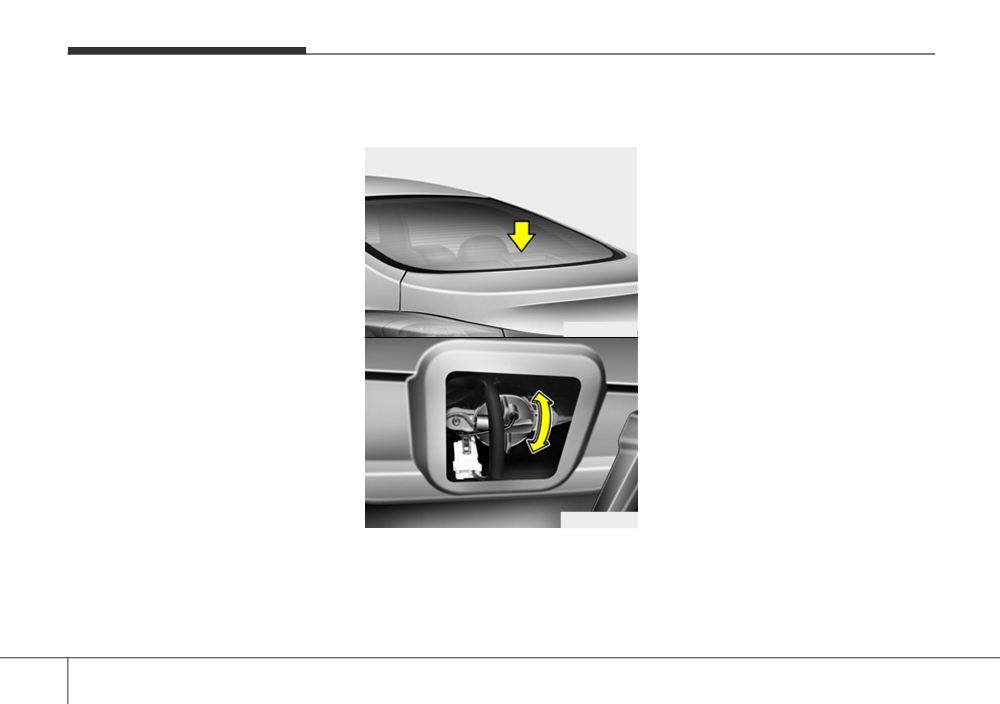

High mounted stop light
3. Remove the bulb from the socket
the socket.
replacement
by pressing it in and rotating it
counterclockwise until the tabs on
8.Install the light assembly to the
the bulb align with the slots in the
trunk.
socket. Pull the bulb out of the
9.Reinstall the nuts and connector
socket.
and then the trunk lid cover by
4. Insert a new bulb by inserting it
pushing in the screw.
into the socket and rotating it until
it locks into place.
Stop/Tail light (Type B)
5. Install the socket in the assembly
If the LED light does not operate,
by aligning the tabs on the socket
have the vehicle checked by an
with the slots in the assembly.
authorized HYUNDAI dealer.
OMD070041
Push the socket into the assembly
and turn the socket clockwise.
OMD070042
1. Open the trunk.
2. Remove the socket by turning it
counterclockwise until the tabs on
the socket align with the slots.
7 78
