Hyundai Elantra Coupe (2016 year). Instruction - part 6

Features of your vehicle

DOOR LOCKS

Operating door locks from

Once the doors are unlocked, they

Remote key

outside the vehicle

may be opened by pulling the door

handle.

Mechanical key

When closing the door, push the

■ Type A

■ Type B

door by hand. Make sure that doors

are closed securely.

Unlock

Unlock

Lock

Lock

OMD044711N

To lock the doors, press the Door

OMD044010N

Lock button (1) on the remote key.

Press the Door Unlock button (2) on

Turn the key toward the rear of the

the remote key, the driver’s door will

vehicle to unlock and toward the front

unlock. If you press the Door Unlock

of the vehicle to lock.

button on the remote key again with-

If you lock the door with a key, all

in four seconds, then all the doors

vehicle doors will lock automatically.

will unlock.

(if equipped with the central door

Once the doors are unlocked, they

lock system)

may be opened by pulling the door

From the driver’s door, turn the key to

handle.

the right once to unlock the driver’s

When closing the door, push the

door and once more within 4 seconds

door by hand. Make sure that doors

to unlock all doors. (if equipped with

are closed securely.

the central door lock system)

4 14

Features of your vehicle

✽ NOTICE

Smart key

Press the button on the outside door

handle while carrying the smart key

• In cold and wet climates, door lock

with you or press the door unlock

and door mechanisms may not

button on the smart key, the driver’s

work properly due to freezing con-

door will unlock. If you press the

ditions.

Door Unlock button on the smart key

• If the door is locked/unlocked

again within four seconds, then all

multiple times in rapid succession

the doors will unlock.

with either the vehicle key or door

Lock / Unlock

lock switch, the system may stop

Once the doors are unlocked, they

operating temporarily in order to

may be opened by pulling the door

protect the circuit and prevent

handle.

damage to system components.

OMD040008

When closing the door, push the

door by hand. Make sure that doors

are closed securely.

✽ NOTICE

• In cold and wet climates, door lock

and door mechanisms may not

work properly due to freezing con-

ditions.

• If the door is locked/unlocked

OMD044709

multiple times in rapid succession

with either the vehicle key or door

To lock the doors, press the button on

lock switch, the system may stop

the outside door handle while carry-

operating temporarily in order to

ing the smart key with you or press

protect the circuit and prevent

the door lock button on the smart key.

damage to system components.

4 15

Features of your vehicle

Operating door locks from

•

To open a door, pull the door han-

✽ NOTICE

inside the vehicle

dle (3) outward.

If a power door lock ever fails to

•

If the inner door handle of the dri-

With the door lock button

function while you are in the vehicle

ver’s (or front passenger’s) door is

try one or more of the following

pulled when the door lock button is

techniques to exit:

in the lock position, the button is

Operate the door unlock feature

unlocked and door opens.

repeatedly

(both electronic and

•

Front doors cannot be locked if the

manual) while simultaneously

Lock

key is in the ignition switch and any

pulling on the door handle.

front door is open.

Operate the other door locks and

handles, front and rear.

•

Doors cannot be locked if the

Lower a front window and use the

Unlock

smart key is in the vehicle and any

mechanical key to unlock the door

door is open.

from outside.

OMD040011

•

To unlock a door, push the door

lock button (1) to the “Unlock” posi-

tion. The red mark (2) on the door

lock button will be visible.

•

To lock a door, push the door lock

button (1) to the “Lock” position. If

the door is locked properly, the red

mark (2) on the door lock button

will not be visible.

4 16

Features of your vehicle

With the central door lock switch (if equipped)

WARNING

■ 4-door vehicle

■ 2-door vehicle

• Driver’s door

• Driver’s door

The doors should always be

fully closed and locked while

the vehicle is in motion. If the

doors are unlocked, the risk of

being thrown from the vehicle in

a crash is increased.

OMD040012A

OMDS042012

WARNING

• Passenger’s door

• Passenger’s door

Do not leave children or animals

unattended in your vehicle. An

enclosed vehicle can become

extremely hot, causing death or

serious injury to unattended

children or animals who cannot

escape the vehicle. Children

might operate features of the

vehicle that could injure them,

OMD040192N

OMDS042192

or they could encounter other

harm, possibly from someone

When pressing the (

) portion (1) of the switch, all vehicle doors will lock.

gaining entry to the vehicle.

• If the key is in the ignition switch and any door is opened, the doors will not

lock even though the lock button (1) of the central door lock switch is pressed.

• If the smart key is in the vehicle and any door is opened, the doors will not

lock even though the lock button (1) of the central door lock switch is pressed.

When pressing the (

) portion (2) of the switch, all vehicle doors will unlock.

4 17

Features of your vehicle

Child-safety rear door locks

To utilize the child safety lock, insert

(for 4-door vehicle only)

a key (or screwdriver) into the hole

(1) and turn it to the lock (

) posi-

tion.

To allow a rear door to be opened

from inside the vehicle, unlock the

child safety lock.

WARNING

If children accidently open the

rear doors while the vehicle is in

motion, they could fall out of the

vehicle.The rear door safety locks

OMD044007

should always be used whenever

The child safety lock is provided to

children are in the vehicle.

help prevent children seated in the

rear from accidentally opening the

rear doors. The rear door safety locks

should be used whenever children

are in the vehicle.

The child safety lock is located on

the edge of each rear door. When the

child safety lock is in the lock position

(

), the rear door will not open if

the inner door handle is pulled.

4 19

Features of your vehicle

TRUNK

Opening the trunk

■ Inside

Closing the trunk

1. Make sure the shift lever is in P

Lower the trunk lid and press down

(Park, for automatic transaxle) or first

until it locks. To be sure the trunk lid

gear or R

(Reverse, for manual

is securely fastened, always check

transaxle) and set the parking brake.

by trying to pull it up again.

2. Perform one of the following:

■ Outside

✽ NOTICE

In cold and wet climates, trunk locks

and trunk mechanisms may not

work properly due to freezing condi-

OMD040014

tions.

- Use the trunk release lever.

WARNING

Make sure there are no people

or objects around the trunk

before opening or closing the

OMD040013A

trunk.

- Press the remote key or smart

key Trunk Unlock button for more

than one second.

- Press the button on the trunk

itself with the smart key in your

possession.

- Press the button on the trunk

itself when all doors are unlocked.

- Use the mechanical key.

4 21

Features of your vehicle

Emergency trunk safety

CAUTION

WARNING

release

Make certain that you close the

The trunk lid should be always

trunk before driving your vehi-

kept completely closed while

cle. Possible damage may occur

the vehicle is in motion. If it is

to the trunk lift cylinders and

left open or ajar, poisonous

attached hardware if the trunk is

exhaust gases may enter the

not closed prior to driving.

vehicle and serious illness or

death may result.

OMD040015

Your vehicle is equipped with an

Emergency Trunk Safety Release

lever located inside the trunk. When

someone is inadvertently locked in

the trunk, the trunk can be opened by

moving the lever in the direction of the

arrow and pushing the trunk open.

4 22

Features of your vehicle

(Continued)

WARNING

•

Your vehicle should be kept

•

You and your passengers

locked and the key should be

must be aware of the location

kept out of the reach of chil-

of the Emergency Trunk

dren. Parents should teach

Safety Release lever in this

their children about the dan-

vehicle and how to open the

gers of playing in the trunk.

trunk in case you are acciden-

tally locked in the trunk.

•

Use the release lever for

emergencies only.

•

NEVER allow anyone to occu-

py the trunk of the vehicle at

any time. If the trunk is partial-

ly or totally latched and the per-

son is unable to get out, seri-

ous injury or death could occur

due to lack of ventilation,

exhaust fumes and rapid heat

build-up, or because of expo-

sure to cold weather condi-

tions. The trunk is also a highly

dangerous location in the

event of a crash because it is

not a protected occupant

space but is a part of the vehi-

cle’s crush zone.

(Continued)

4 23

Features of your vehicle

WINDOWS

Power windows

(1) Driver’s door power window

switch

(2) Front passenger’s door power

window switch

(3) Rear door (left) power window

switch (for 4-door vehicle only)

(4) Rear door (right) power window

switch (for 4-door vehicle only)

(5) Window opening and closing

(6) Automatic power window*

(7) Power window lock switch

(for 4-door vehicle only)

* : if equipped

OMD040016N

4 24

Features of your vehicle

The ignition switch must be in the ON

✽ NOTICE

Window opening and closing

position to be able to raise or lower

•

In cold and wet climates, power

the windows. Each door has a Power

windows may not work properly

Window switch to control that door's

due to freezing conditions.

window. The driver has a Power

•

While driving with the rear win-

Window Lock switch which can block

dows down or with the sunroof (if

the operation of passenger windows.

equipped) opened

(or partially

The power windows will operate for

opened), your vehicle may demon-

approximately 30 seconds after the

strate a wind buffeting or pulsation

ignition switch is placed in the ACC

noise. This noise is normal and can

or LOCK/OFF position. However, if

be reduced or eliminated by taking

the front doors are opened, the

the following actions. If the noise

Power Windows cannot be operated

occurs with one or both of the rear

even within the 30 second period.

OMD040017

windows down, partially lower

both front windows approximately

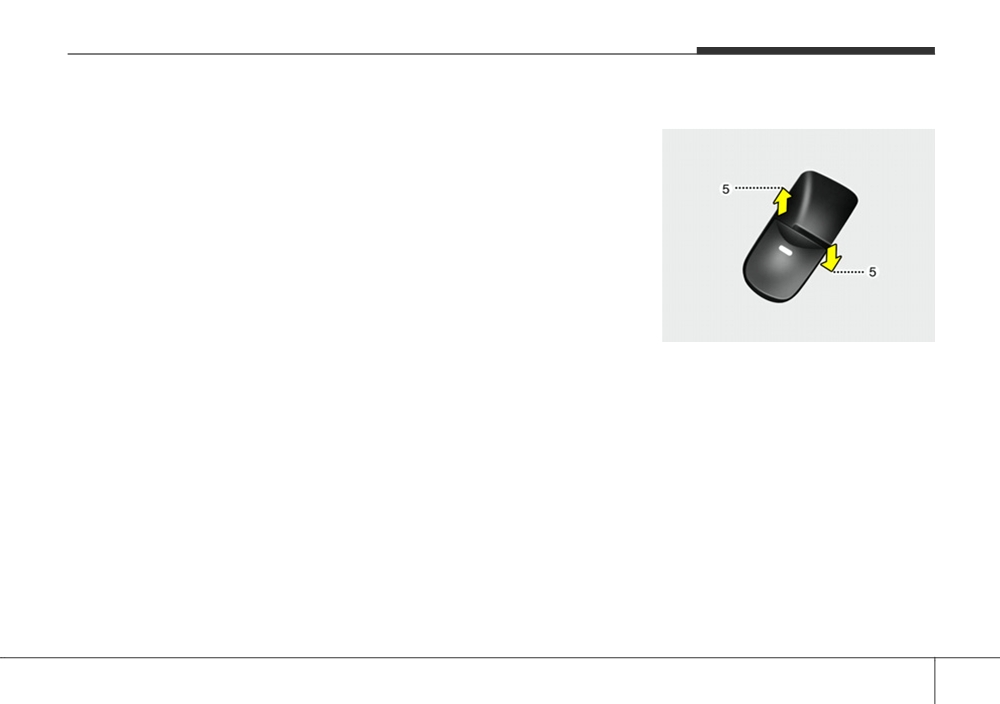

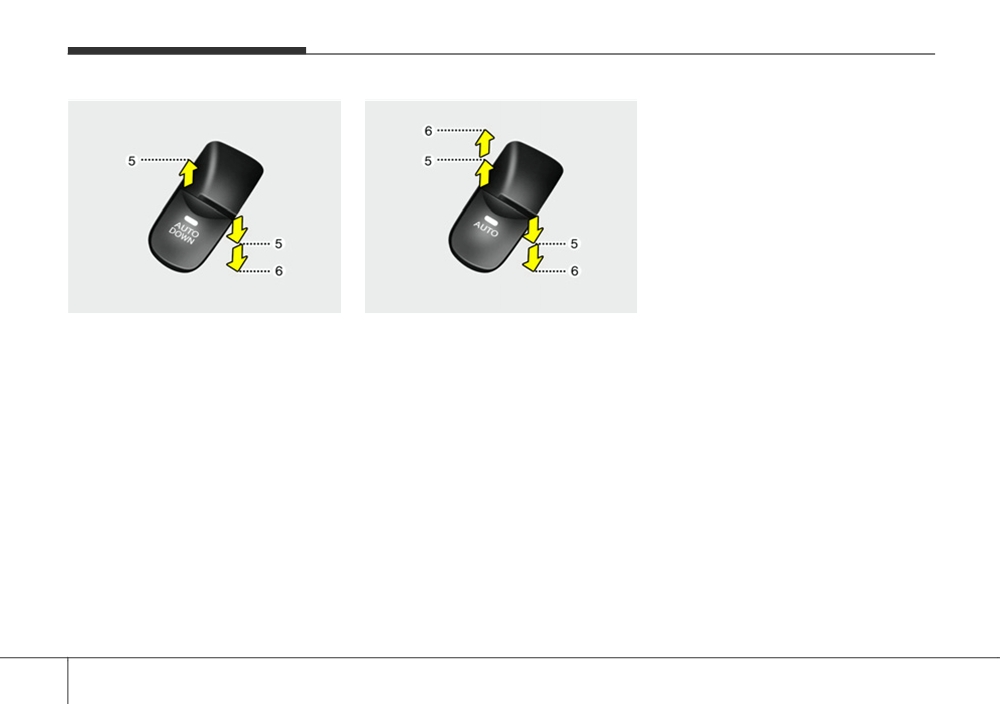

To open or close a window, press

one inch. If you experience the

down or pull up the front portion of

noise with the sunroof open, slight-

the corresponding switch to the first

ly close the sunroof.

detent position (5).

4 25

Features of your vehicle

To reset the power windows

If the power windows do not operate

normally, the automatic power win-

dow system must be reset as follows:

1. Place the ignition switch to the ON

position.

2. Close the window and continue

pulling up on the power window

switch for at least one second.

If the power windows do not operate

OMD040019

OMD040018

properly after resetting, have the

system checked by an authorized

Auto down window (if equipped)

Auto up/down window (if equipped)

HYUNDAI dealer.

Pressing the power window switch

Pressing or pulling up the power win-

momentarily to the second detent

dow switch momentarily to the sec-

position

(6) completely lowers the

ond detent position

(6) completely

window even when the switch is

lowers or lifts the window even when

released. To stop the window at the

the switch is released. To stop the

desired position while the window is

window at the desired position while

in operation, pull up or press down

the window is in operation, pull up or

and release the switch.

press down and release the switch.

4 26

Features of your vehicle

✽ NOTICE

Power window lock switch

(for 4-door vehicle only, if equipped)

The automatic reverse feature is

only active when the “auto up” fea-

ture is used by fully pulling up the

switch to the second detent.

WARNING

•

Make sure body parts or other

objects are safely out of the

way before closing the win-

OUN026013

dows to avoid injuries or vehi-

cle damage.

Automatic reversal (if equipped)

• Objects less than 4 mm (0.16

If a window senses any obstacle while

OMD040020N

inches.) in diameter caught

it is closing automatically, it will stop

between the window glass

The driver can disable the power

and lower approximately 30 cm (12

and the upper window chan-

window switches on the passengers’

inches.) to allow the object to be

nel may not be detected by

doors by pressing the power window

cleared.

the automatic reverse window

lock switch.

If the window detects the resistance

and the window will not stop

• The driver’s control can operate

while the power window switch is

and reverse direction.

the driver’s power window.

pulled up continuously, the window will

• The front passenger’s control can-

stop upward movement then lower

approximately 2.5 cm (1 inches.).

not operate the front passenger’s

power window.

If the power window switch is pulled

up continuously again within 5 sec-

• The rear passenger’s control can-

not operate the rear passenger’s

onds after the window is lowered by

the automatic window reversal fea-

power window.

ture, the automatic window reversal

will not operate.

4 27

Features of your vehicle

CAUTION

WARNING - Windows

•

To prevent possible damage

•

NEVER leave the keys in your

to the power window system,

vehicle with unsupervised

do not open or close two win-

children, when the engine is

dows or more at the same

running.

time. This will also ensure the

•

NEVER leave any child unat-

longevity of the fuse.

tended in the vehicle. Even

•

Never try to operate the main

very young children may inad-

switch on the driver's door

vertently cause the vehicle to

and the individual door win-

move, entangle themselves in

dow switch in opposite direc-

the windows, or otherwise

tions at the same time. If this is

injure themselves or others.

done, the window will stop and

•

Always double check to make

cannot be opened or closed.

sure all arms, hands, head

and other obstructions are

safely out of the way before

closing a window.

•

Do not allow children to play

with the power windows. Keep

the driver’s door power window

lock switch in the LOCK posi-

tion

(pressed). Serious injury

can result from unintentional

window operation by the child.

•

Do not extend your head,

arms or body outside the win-

dows while driving.

4 28

Features of your vehicle

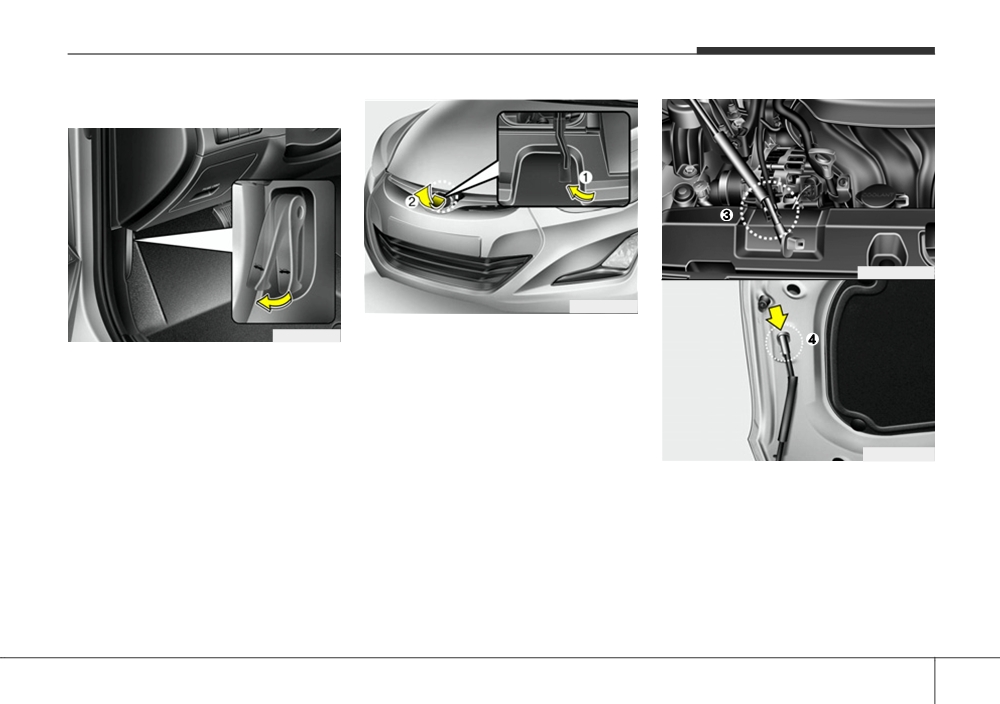

HOOD

Opening the hood

OMD041204L

OMD044022

3. Raise the hood slightly, pull the

OMD040021

secondary latch up (1) inside of

1. Make sure the shift lever is in P

the hood center until it releases

(Park, for automatic transaxle) or

the hood and lift the hood (2).

first gear or R (Reverse, for manual

transaxle) and set the parking

brake.

2. Pull the release lever to unlatch

OMD040023

the hood. The hood should pop

4. Pull out the support rod (3).

open slightly.

5. Hold the hood opened with the

support rod (4).

4 29

Content   ..  4  5  6  7   ..
