Hyundai Elantra Coupe (2016 year). Instruction - part 4





Safety features of your vehicle
Where are the air bags?
■ Driver’s front air bag
WARNING
Driver’s and passenger’s front air
To reduce the risk of serious
bags
injury or death from an inflating
Your vehicle is equipped with a
front air bags, take the following
Advanced Supplemental Restraint
precautions:
System (SRS) and lap/shoulder belts
Seat belts must be worn at all
at both the driver and passenger
times to help keep occupants
seating positions.
positioned properly.
The SRS consists of air bags which
OMD030033
Move your seat as far back as
are located in the center of the steer-
■ Passenger’s front air bag
possible from front air bags,
ing wheel and the passenger's side
while still maintaining control
front panel pad above the glove box.
of the vehicle.
The air bags are labeled with the let-
Never lean against the door or
ters “AIR BAG” embossed on the pad
center console.
covers.
Do not allow the front passen-
ger to place their feet or legs on
the dashboard.
No objects should be placed
OMD030034A
over or near the air bag mod-
ules on the steering wheel,
The purpose of the SRS is to provide
instrument panel, and the front
the vehicle's driver and front passen-
passenger's panel above the
gers with additional protection than
glove box. Such objects could
that offered by the seat belt system
cause harm if the vehicle is in a
alone. The SRS uses sensors to
crash severe enough to cause
gather information about the driver's
the air bags to deploy.
seat position, the driver's and front
passenger's seat belt usage and
impact severity.
3
46
Safety features of your vehicle
Side impact air bags
The side impact air bags are
designed to deploy only during certain
WARNING
side impact collisions, depending on
To reduce the risk of serious
the crash severity, angle, speed and
injury or death from an inflating
point of impact.
side impact air bag, take the fol-
The side impact air bags are not
lowing precautions:
designed to deploy in all side impact.
Seat belts must be worn at all
times to help keep occupants
positioned properly.
Do not allow passengers to
lean their heads or bodies onto
OMD030035
doors, put their arms on the
doors, stretch their arms out of
the window, or place objects
between the doors and seats.
Hold the steering wheel at the 9
o’clock and 3 o’clock positions,
to minimize the risk of injuries
to your hands and arms.
Do not use any accessory
seat covers. This could reduce
OJK032063
or prevent the effectiveness
of the system.
Your vehicle is equipped with a side
impact air bag in each seat. The pur-
Do not place any objects over
pose of the air bag is to provide the
the air bag or between the air
vehicle's driver and the front passen-
bag and yourself.
ger with additional protection than that
(Continued)
offered by the seat belt alone.
3 47
Safety features of your vehicle
Curtain air bags
They are designed to help protect the
(Continued)
heads of the front seat occupants
Do not place any objects
and the rear outboard seat occupants
between the door and the
in certain side impact collisions.
seat. They may become dan-
The curtain air bags are designed to
gerous projectiles if the side
deploy only during certain side
impact air bag inflates.
impact collisions, depending on the
Do not install any accessories
crash severity, angle, speed and
on the side or near the side
impact.
impact air bags.
The curtain air bags are not designed
Do not cause impact to the
to deploy in all side impact.
doors when the ignition
OMD030042
switch is in the ON position or
this may cause the side air
bags to inflate.
If the seat or seat cover is
damaged, have the vehicle
checked and repaired by an
authorized HYUNDAI dealer.
OJK032066
Curtain air bags are located along
both sides of the roof rails above the
front and rear doors.
3 48
Safety features of your vehicle
SRS components and functions
10. PASS AIR BAG “OFF” indicator
WARNING
(Front passenger’s seat only)
To reduce the risk of serious
11. Occupant classification system
injury or death from an inflating
(Front passenger’s seat only)
curtain air bags, take the follow-
12. Driver’s and front passenger’s
ing precautions:
seat belt buckle sensors
All seat occupants must wear
13. Anchor pre-tensioner
seat belts at all times to help
14. Side pressure sensor
keep occupants positioned
properly.
Properly secure child restraints
The SRSCM continually monitors all
as far away from the door as
SRS components while the ignition
possible.
OMD030050N
switch is ON to determine if a crash
impact is severe enough to require
Do not allow passengers to
The SRS consists of the following
air bag deployment or pre-tensioner
lean their heads or bodies
components:
seat belt deployment.
onto doors, put their arms on
1. Driver's front air bag module
the doors, stretch their arms
out of the window, or place
2. Passenger's front air bag module
objects between the doors
3. Side impact air bag modules
and seats.
4. Curtain air bag modules
Do not open or repair the side
5. Retractor pre-tensioner assem-
curtain air bags.
blies
6. Air bag warning light
7. SRS control module (SRSCM)
8. Front impact sensors
9. Side impact sensors
3 49
Safety features of your vehicle
SRS warning light
During a moderate to severe frontal
WARNING
collision, sensors will detect the vehi-
cle’s rapid deceleration. If the rate of
If your SRS malfunctions, the
air bag may not inflate properly
deceleration is high enough, the con-
trol unit will inflate the front air bags.
during an accident increasing
the risk of serious injury or
The front air bags help protect the
The SRS
(Supplement Restraint
death.
driver and front passenger by
System) air bag warning light on the
If any of the following condi-
responding to frontal impacts in
instrument panel displays the air bag
which seat belts alone cannot provide
tions occur, your SRS is mal-
symbol depicted in the illustration. The
functioning:
adequate restraint.
system checks the air bag electrical
Air bags are activated
(able to
The light does not turn on for
system for malfunctions. The light indi-
approximately six seconds
inflate if necessary) only when the
cates that there is a potential problem
ignition switch is in the ON position.
when the ignition switch is
with your air bag system.
placed in the ON position.
Air bags inflate in the event of a
The light stays on after illumi-
severe frontal or side collision to
help protect the occupants from
nating for approximately six
seconds.
serious physical injury.
There is no single speed at which
The light comes on while the
vehicle is in motion.
the air bags will inflate. Generally,
air bags are designed to inflate
The light blinks when the
based upon the severity of a colli-
engine is running.
sion and its direction. These two
Have an authorized HYUNDAI
factors determine whether the sen-
dealer inspect the SRS as soon
sors produce an electronic deploy-
as possible if any of these con-
ment/inflation signal.
ditions occur.
3 50
Safety features of your vehicle

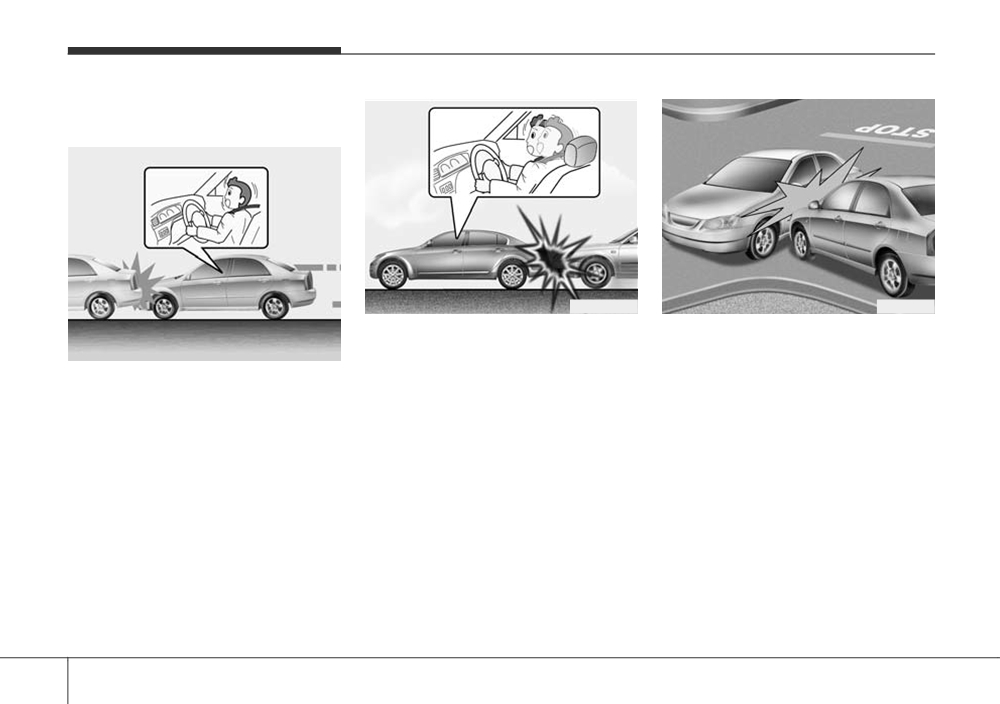

Air bag deployment depends on a
To help provide protection, the air
You can take steps to reduce the risk
number of factors including vehicle
bags must inflate rapidly. The
of being injured by an inflating air
speed, angles of impact and the
speed of air bag inflation is a con-
bag. The greatest risk is sitting too
density and stiffness of the vehicles
sequence of extremely short time
close to the air bag. An air bag needs
or objects which your vehicle
in which to inflate the air bag
about 25 cm (10 inches) of space to
impacts during a collision. The
between the occupant and the
inflate.
determining factors are not limited
vehicle structures before the occu-
to those mentioned above.
pant impacts those structures. This
speed of inflation reduces the risk
The front air bags will completely
of serious or life-threatening
inflate and deflate in an instant. It is
injuries and is thus a necessary
virtually impossible for you to see
part of air bag design.
the air bags inflate during an acci-
dent. It is much more likely that you
However, the rapid air bag inflation
will simply see the deflated air bags
can also cause injuries which can
hanging out of their storage com-
include facial abrasions, bruises
partments after the collision.
and broken bones because the
inflation speed also causes the air
bags to expand with a great deal of
force.
There are even circumstances
under which contact with the air
bag can cause fatal injuries, espe-
cially if the occupant is positioned
excessively close to the air bag.
3 51
Safety features of your vehicle
Driver’s front air bag (1)
Driver’s front air bag (2)
WARNING
To reduce the risk of serious
injury or death from an inflating
air bag, take the following pre-
cautions:
NEVER place a child restraint
in the front passenger seat.
Always properly restrain chil-
dren under age 13 in the rear
seats of the vehicle.
OLMB033054
OLMB033055
Adjust the front passenger’s
When the SRSCM detects a suffi-
Upon deployment, tear seams mold-
and driver’s seats as far to the
ciently severe impact to the front of
ed directly into the pad covers will
rear as possible while allow-
the vehicle, it will automatically
separate under pressure from the
ing you to maintain full con-
deploy the front air bags.
expansion of the air bags. Further
trol of the vehicle.
opening of the covers allows full
Hold the steering wheel with
inflation of the air bags.
hands at the 9 o’clock and 3
A fully inflated air bag, in combina-
o’clock positions.
tion with a properly worn seat belt,
Never place anything or any-
slows the driver's or the passenger's
one between the air bag and
forward motion, reducing the risk of
the seat occupant.
head and chest injury.
Do not allow the front passen-
ger to place their feet or legs
on the dashboard.
3 52
Safety features of your vehicle
Driver’s front air bag (3)

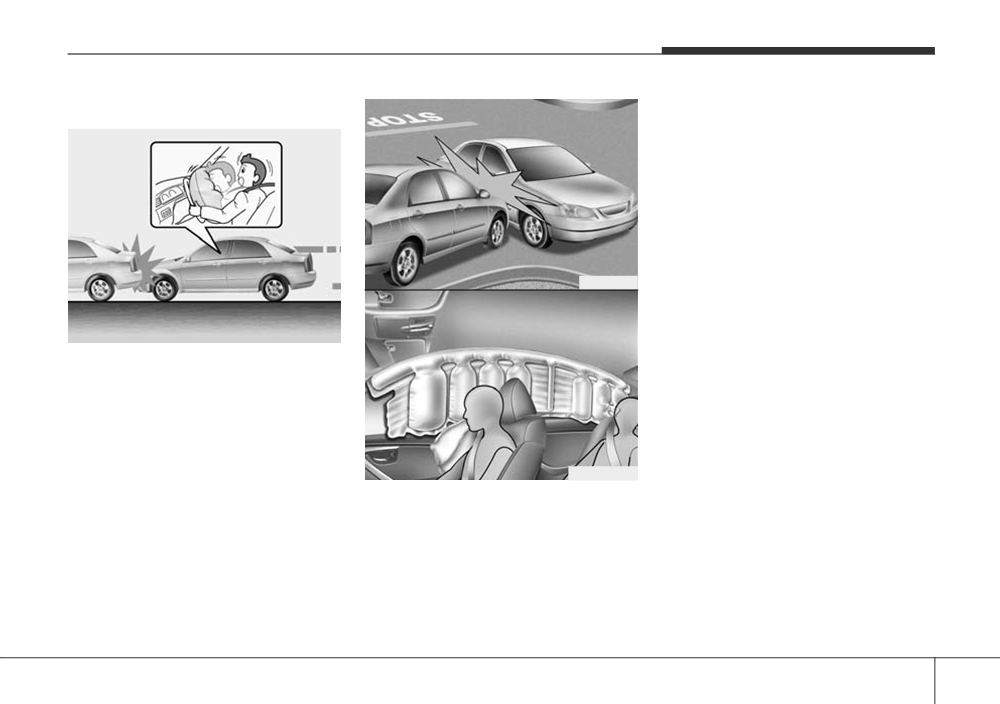

What to expect after an air bag
WARNING
inflates
To prevent objects from becom-
After a frontal or side air bag inflates,
ing dangerous projectiles when
it will deflate very quickly. Air bag
the passenger's air bag inflates:
inflation will not prevent the driver
Do not install or place any
from seeing out of the windshield or
objects
(drink holder, CD
being able to steer. Curtain air bags
holder, stickers, etc.) on the
may remain partially inflated for
front passenger's panel above
some time after they deploy.
the glove box where the pas-
OLMB033056
Passenger’s front air bag
senger's air bag is located.
WARNING
Do not install a container of
After an air bag inflates, take
liquid air freshener near the
instrument cluster or on the
the following precautions:
instrument panel surface.
Open your windows and
doors as soon as possible
after impact to reduce pro-
longed exposure to the smoke
and powder released by the
inflating air bag.
OLMB033057
Do not touch the air bag stor-
After complete inflation, the air bag
age area’s internal compo-
immediately starts deflating, enabling
nents immediately after an air
the driver to maintain forward visibili-
bag has inflated. The parts
ty and the ability to steer or operate
that come into contact with an
other controls.
inflating air bag may be very
hot.
(Continued)
3 53
Safety features of your vehicle
Noise and smoke from inflating
Occupant Classification
(Continued)
air bag
System (OCS)
Always wash exposed skin
When the air bags inflate, they make
areas thoroughly with luke-
a loud noise and they leave smoke
warm water and mild soap.
and powder in the air inside of the
Always have an authorized
vehicle. This is normal and is a result
HYUNDAI dealer replace the air
of the ignition of the air bag inflator.
bag immediately after deploy-
After the air bag inflates, you may
ment. Air bags are designed to
feel substantial discomfort in breath-
be used only once.
ing because of the contact of your
chest with both the seat belt and the
air bag, as well as from breathing the
smoke and powder. The powder may
aggravate asthma for some people. If
OMD030047N
you experience breathing problems
after an air bag deployment, seek
Your vehicle is equipped with an
medical attention immediately.
Occupant Classification System
Though the smoke and powder are
(OCS) in the front passenger's seat.
nontoxic, they may cause irritation to
The OCS is designed to detect the
the skin, eyes, nose, throat, etc. If
presence of a properly-seated front
this is the case, wash and rinse with
passenger and determine if the pas-
cold water immediately and seek
senger's front air bag should be
medical attention if the symptoms
enabled (may inflate) or not. The dri-
persist.
ver's front air bag is not affected or
controlled by the OCS.
3 54
Safety features of your vehicle
Main components of the
Front passenger seat adult occu-
The OCS may not function properly if
Occupant Classification System
pants who are properly seated and
the passenger takes actions which
wearing the seat belt properly,
can affect the classification system.
A detection device located within
should not cause the passenger air
These include:
the front passenger seat.
bag to be automatically turned OFF.
Failing to sit in an upright position.
Electronic system to determine
However, if the occupant does not sit
whether the passenger air bag
Leaning against the door or center
in the seat properly (for example, by
should be activated or deactivated.
console.
not sitting upright, by sitting on the
An indicator light located on the
edge of the seat, or by otherwise
Sitting towards the sides of the
instrument panel which illuminates
being out of position), this could
front of the seat.
the words "PASSENGER AIR BAG
cause the sensor to turn the air bag
Putting their legs on the dashboard
OFF" indicating the front passen-
OFF.
or resting them on other locations
ger air bag system is deactivated.
which reduce the passenger
You will find the "PASSENGER AIR
The instrument panel air bag indi-
BAG OFF" indicator on the center
weight on the front seat.
cator light is interconnected with
facia panel. This system detects the
Wearing the seat belt improperly.
the OCS.
conditions 1-4 in the following table
Reclining the seatback.
and activates or deactivates the front
passenger air bag based on these
conditions.
Always be sure that you and all vehi-
cle occupants are seated properly
and wearing the seat belt properly for
the most effective protection by the
air bag and the seat belt.
3 55
Safety features of your vehicle
Condition and operation in the front passenger Occupant Classification System
Indicator/Warning light
Devices
Condition detected by the
“PASSENGER
occupant classification system
SRS
Front passenger
AIR BAG OFF”
warning light
air bag
indicator light
1. Adult*1
Off
Off
Activated
2. Infant*2 or child restraint sys-
On
Off
Deactivated
tem with 12 months old*3
3. Unoccupied
On
Off
Deactivated
4. Malfunction in the system
Off
On
Activated
*1 The system judges a person of adult size as an adult. When a smaller adult sits in the front
passenger seat, the system may recognize him/her as a child depending on his/her
physique and posture.
*2 Do not allow children to ride in the front passenger seat. When a larger child who has out-
grown a child restraint system sits in the front passenger seat, the system may recognize
him/her as an adult depending upon his/her physique or sitting position.
*3 Never install a child restraint system on the front passenger seat.
3 56
Safety features of your vehicle
WARNING
Riding in an improper position or placing weight on the front passenger's seat when it is unoccupied by a
passenger adversely affects the OCS. To reduce the risk of serious injury or death:
NEVER put a heavy load in
NEVER ride with the seat-
the front seat or seatback
back reclined when the
pocket.
vehicle is moving.
OVQ036013N
1KMN3662
NEVER place your feet on
NEVER place your feet or
the front passenger seat-
legs on the dashboard.
back.
OVQ036014N
1KMN3665
NEVER sit with your hips
NEVER lean on the door or
shifted towards the front
center console or sit on
of the seat.
one side of the front pas-
senger seat.
1KMN3663
1KMN3664
3 57
Safety features of your vehicle
NOTICE
WARNING
The "PASSENGER AIR BAG OFF"
Never allow an adult passenger
indicator illuminates for approxi-
to ride in the front passenger
mately 4 seconds after the ignition
seat when the “PASSENGER AIR
switch is in the ON position or after
BAG OFF” indicator is illuminat-
the engine is started. If the front
ed. During a collision, the air bag
passenger seat is occupied, the OCS
will not inflate if the indicator is
will then classify the front passenger
illuminated. Have your passen-
after several more seconds.
ger move to the rear seat.
B990A01O
Proper seated position for OCS
If the “PASSENGER AIR BAG OFF”
indicator is on when an adult is seat-
ed in the front passenger seat, place
the ignition switch to the LOCK/OFF
position and ask the passenger to sit
properly (sitting upright with the seat
back in an upright position, centered
on the seat cushion with their seat
belt on, legs comfortably extended
and their feet on the floor). Restart
the engine and have the person
remain in that position. This will allow
the system to detect the person and
to enable the passenger air bag. If
the "PASSENGER AIR BAG OFF"
indicator is still on, ask the passen-
ger to move to the rear seat.
3 58
Safety features of your vehicle
Do Not Install a Child Restraint in
Why Didn’t My Air Bag Go Off
the Front Passenger’s Seat
WARNING
in a Collision? (Air bags are
NEVER place a rear-facing or
not designed to inflate in
front-facing child restraint in
every collision.)
the front passenger’s seat of
There are certain types of accidents
the vehicle.
in which the air bag would not be
An inflating frontal air bag
expected to provide additional protec-
could forcefully strike a child
tion. These include rear impacts, sec-
resulting in serious injury or
ond or third collisions in multiple
death.
impact accidents, as well as low
Always properly restrain chil-
speed impacts. Damage to the vehicle
dren in an appropriate child
indicates a collision energy absorp-
restraint in the rear seat of the
tion, and is not an indicator of whether
vehicle.
or not an air bag should have inflated.
1JBH3051
Even though your vehicle is equipped
with the OCS, never install a child
restraint in the front passenger’s seat.
An inflating air bag can forcefully
strike a child or restraint resulting in
serious or fatal injury.
3 59
Safety features of your vehicle
Air bag collision sensors
WARNING
To reduce the risk of an air bag
deploying unexpectedly and
causing serious injury or death:
Do not hit or allow any objects
to impact the locations where air
bags or sensors are installed.
Do not perform maintenance
on or around the air bag sen-
sors. If the location or angle of
the sensors is altered, the air
bags may deploy when they
should not or may not deploy
when they should.
Do not install bumper guards
or replace the bumper with a
non-genuine HYUNDAI parts.
This may adversely affect the
collision and air bag deploy-
ment performance.
Have all repairs conducted by
an authorized HYUNDAI dealer.
OMD030036/OMD030037/OMD030038N/OMD030039
(1) SRS control module/Rollover sensor
(2) Front impact sensor
(3) Side impact sensor
3 60
Safety features of your vehicle
Air bag deployment conditions
Although the driver’s and front pas-
senger’s air bags are designed to
inflate only in frontal collisions, they
also may inflate in other types of col-
lisions if the front impact sensors
detect a sufficient impact. Side
impact and curtain air bags are
designed to inflate only in side
impact collisions, but they may inflate
in other collisions if the side impact
sensors detect a sufficient impact.
1JBA3514
If the vehicle chassis is impacted by
bumps or objects on unimproved
1JBA3513
roads, the air bags may deploy. Drive
Front air bag
carefully on unimproved roads or on
surfaces not designed for vehicle
Front air bags are designed to inflate
traffic to prevent unintended air bag
in a frontal collision depending on
deployment.
the intensity, speed, or angles of
impact of the front collision.
OJK032067
Side impact and curtain air bags
Side impact and curtain air bags are
designed to inflate when an impact is
detected by side collision sensors
depending on the strength, speed, or
angles of impact resulting from a
side impact collision.
3 61
Safety features of your vehicle
Air bag non- deployment condi-
tions
OBH038058
1JBA3516
Front air bags are not designed to
Front air bags may not inflate in side
inflate in rear collisions, because
impact collisions, because occupants
1JBA3515
occupants are moved backward by
move in the direction of the collision,
In certain low-speed collisions the air
the force of the impact. In this case,
and thus in side impacts, front air bag
bags may not deploy. The air bags
inflated air bags would not provide
deployment would not provide addi-
are designed not to deploy in such
any additional benefit.
tional occupant protection.
cases because they may not provide
However, side impact and curtain air
benefits beyond the protection of the
bags may inflate depending on the
seat belts.
intensity, vehicle speed and angles
of impact.
3 62















Content   ..  2  3  4  5   ..
