Hyundai Elantra Coupe (2016 year). Instruction - part 2





Safety features of your vehicle
Rear seats
To fold down the rear seatback:
Folding the rear seat
1. Set the front seatback to the
upright position and if necessary,
The rear seatbacks can be folded to
slide the front seat forward.
facilitate carrying long items or to
2.Lower the rear headrests to the
increase the luggage capacity of the
lowest position.
vehicle.
WARNING
Never allow passengers to sit
on top of the folded down
OMD030026
seatback while the vehicle is
moving. This is not a proper
3.Pull on the seatback folding lever
seating position and no seat
located in the trunk.
belts are available for use.
This could result in serious
injury or death in case of an
accident or sudden stop.
Objects carried on the folded
down seatback should not
extend higher than the top of
the front seatbacks. This
could allow cargo to slide for-
ward and cause injury or dam-
age during sudden stops.
3 12
Safety features of your vehicle
WARNING
WARNING
When returning the rear seat-
Do not place objects in the rear
back from a folded to an upright
seats, since they cannot be
position, hold the seatback and
properly secured and may hit
return it slowly. Ensure that the
vehicle occupants in a collision
seatback is completely locked
causing serious injury or death.
into its upright position by
pushing on the top of the seat-
back. In an accident or sudden
stop, the unlocked seatback
WARNING
OMD031028N
could allow cargo to move for-
Make sure the engine is off, the
ward with great force and enter
shift lever is in P (Park), and the
4.Fold the seatback toward the front
the passenger compartment,
parking brake is securely
of the vehicle.
which could result in serious
applied whenever loading or
5. To use the rear seat, lift and pull
injury or death.
unloading cargo. Failure to take
the seatback rearward. Pull the
these steps may allow the vehi-
seatback firmly until it clicks into
cle to move if the shift lever is
place. Make sure the seatback is
inadvertently moved to another
locked in place.
position.
When you return the seatback to
its upright position, always be sure
it has locked into position by push-
ing on the top of the seatback.
6. Return the rear seat belt to the
proper position.
3 13
Safety features of your vehicle
Armrest
CAUTION
Make sure the engine is off,
the transaxle is in P and the
parking brake is applied
whenever loading or unload-
ing cargo. Vehicle may move if
shift lever is inadvertently
moved to another position.
Be careful when loading cargo
through the rear passenger
OMD030031
seats to prevent damage to
the vehicle interior.
Carrying long/narrow cargo
OMD030029N
(if equipped)
When cargo is loaded through
The armrest is located in the center
the rear passenger seats,
Pull the armrest down using the strap
of the rear seat. Pull the armrest
ensure the cargo is properly
provided on the armrest. Pull the
down from the seatback to use it.
secured to prevent it from
cover down while pushing the release
You will find cup holders on the cen-
moving while driving.
lever
(1) down. Additional cargo
ter armrest.
space is provided to accommodate
Unsecured cargo in the pas-
long/narrow cargo (skis, poles, lum-
senger compartment can
ber, etc.) not able to fit properly in the
cause damage to the vehicle
trunk when closed.
or injury to it’s occupants.
3 14
Safety features of your vehicle
Headrest
Front seat headrest
(Continued)
The vehicle’s front and rear seats
Adjust the headrests so the
have adjustable headrests. The head-
middle of the headrests is at
rests provide comfort for passengers,
the same height as the height
but more importantly they are
of the top of the eyes.
designed to help protect passengers
from whiplash and other neck and
spinal injuries during an accident,
especially in a rear impact collision.
WARNING
NEVER adjust the headrest
position of the driver’s seat
To reduce the risk of serious
when the vehicle is in motion.
OMG038400
injury or death in an accident,
take the following precautions
Adjust the headrest as close
The driver’s and front passenger’s
when adjusting your headrests:
to the passenger’s head as
seats are equipped with adjustable
possible. Do not use a seat
headrests for the passengers safety
Always properly adjust the
cushion that holds the body
and comfort.
headrests for all passengers
away from the seatback.
BEFORE starting the vehicle.
Make sure the headrest locks
NEVER let anyone ride in a seat
into position after adjusting it.
with the headrest removed.
(Continued)
WARNING
To prevent damage, NEVER hit
or pull on the headrests.
3 15
Safety features of your vehicle
Type A
CAUTION
OMD034062
Type B
OMD030010
OYFH034205
Adjusting the height up and down
If you recline the seatback
To raise the headrest:
towards the front with the head-
1. Pull it up to the desired position (1).
rest and seat cushion raised,
the headrest may come in con-
tact with the sunvisor or other
To lower the headrest:
parts of the vehicle.
1. Push and hold the release button
(2) on the headrest support.
OMD034011
2. Lower the headrest to the desired
position (3).
Removal/Reinstall
To remove the headrest:
1. Recline the seatback (2) with the
recline lever or switch (1).
2. Raise headrest as far as it can go.
3. Press the headrest release button
(3) while pulling the headrest up (4).
3 16
Safety features of your vehicle
Type A
WARNING
WARNING
NEVER allow anyone to ride in a
Always make sure the headrest
seat with the headrest removed.
locks into position after rein-
stalling and adjusting it properly.
OMD034063
Type B
OMD034012
To reinstall the headrest :
1. Put the headrest poles (2) into the
holes while pressing the release
button (1).
2. Recline the seatback (4) with the
recline lever or switch (3).
3. Adjust the headrest to the appro-
priate height.
3 17
Safety features of your vehicle
Rear seat headrest
OMD030015
OMD030016
Adjusting the height up and down
Removal/Reinstall
ONF039401
To raise the headrest:
To remove the headrest:
The rear seats are equipped with
headrests in all the seating positions
1. Pull it up to the desired position (1).
1. Raise the headrest as far as it can
for the passenger’s safety and com-
go.
fort.
To lower the headrest:
2. Press the release button (1) while
pulling the headrest up (2).
1. Push and hold the release button
(2) on the headrest support.
2. Lower the headrest to the desired
WARNING
position (3).
NEVER allow anyone to ride in a
seat with the headrest removed.
3 18
Safety features of your vehicle
To reinstall the headrest:
Seat warmers
WARNING
1. Recline the seatback.
Seat warmers are provided to warm
2. Put the headrest poles (3) into the
the seats during cold weather.
NEVER place anything on the
seat that insulates against heat
holes while pressing the release
when the seat warmer is in oper-
button (1).
WARNING
ation, such as a blanket or seat
3. Adjust the headrest to the appropri-
The seat warmers can cause a
cushion. This may cause the
ate height.
SERIOUS BURN, even at low
seat warmer to overheat, caus-
temperatures and especially if
ing a burn or damage to the seat.
WARNING
used for long periods of time.
Passengers must be able to feel
Always make sure the headrest
locks into position after rein-
if the seat is becoming too warm
CAUTION
so they can turn it off, if needed.
stalling and adjusting it to prop-
To prevent damage to the seat
erly protect the occupants.
People who cannot detect tem-
warmers and seats:
perature change or pain to the
Never use a solvent such as
skin should use extreme cau-
paint thinner, benzene, alco-
tion, especially the following
hol or gasoline to clean the
types of passengers:
seats.
Infants, children, elderly or
Do not place heavy or sharp
disabled persons, or hospital
objects on seats equipped
outpatients.
with seat warmers.
People with sensitive skin or
who burn easily.
Fatigued individuals.
Intoxicated individuals.
People taking medication that
can cause drowsiness or
sleepiness.
3 19
Safety features of your vehicle
Front seat warmers (if equipped)
Each time you push the switch, the
Rear seat warmers (if equipped)
temperature setting of the seat is
Left
Right
changed as follows :
OFF HIGH (
)
LOW (
)
The seat warmer defaults to the OFF
position whenever the ignition switch
is placed in the ON position.
NOTICE
OMD034014
With the seat warmer switch in the
OMD030025
ON position, the heating system in
While the engine is running, push
While the engine is running, push
the seat turns off or on automatical-
either of the switches to warm the dri-
either switch to warm the rear seat.
ly depending on the seat tempera-
ver's seat or front passenger's seat.
During mild weather or under condi-
ture.
During mild weather or under condi-
tions where the operation of the seat
tions where the operation of the seat
warmer is not needed, keep the
warmer is not needed, keep the
switches in the "OFF" position.
switches in the OFF position.
NOTICE
With the seat warmer switch in ON
position, the heating system in the
seat turns off or on automatically
depending on the seat temperature.
3 20
Safety features of your vehicle
SEAT BELTS
This section describes how to use the
(Continued)
seat belts properly. It also describes
WARNING
some of the things not to do when
Do not use the seat belt if it is
Seat belts must be used by ALL
twisted. A twisted seat belt
using seat belts.
passengers whenever the vehi-
will not protect you properly
cle is moving. Take the following
in an accident.
precautions when adjusting and
Seat belt safety precautions
wearing seat belts:
Do not use a seat belt if the
Always fasten your seat belt and
webbing or hardware is dam-
ALWAYS properly restrain
make sure all passengers have fas-
aged.
children under age 13 in the
tened their seat belts before starting
Do not latch the seat belt into
rear seats.
any trip. Air bags are designed to
the buckles of other seats.
NEVER allow children to ride
supplement the seat belt as an addi-
in the front passenger seat. If
NEVER unfasten the seat belt
tional safety device, but they are not a
a child age 13 or older must be
while driving. This may cause
substitute.
seated in the front seat, move
loss of vehicle control result-
the seat as far back as possi-
ing in an accident.
ble and properly restrain them
Make sure there is nothing in
in the seat belt.
the buckle interfering with the
NEVER allow an infant or child
seat belt latch mechanism.
to be carried on an occupant’s
This may prevent the seat belt
lap.
from fastening securely.
NEVER ride with the seatback
No modifications or additions
reclined when the vehicle is
should be made by the user
moving.
which will either prevent the
seat belt adjusting devices
Do not allow children to share
from operating to remove
a seat or seat belt.
slack, or prevent the seat belt
Do not wear the shoulder belt
assembly from being adjusted
under your arm or behind your
to remove slack.
back.
(Continued)
3 21
Safety features of your vehicle
Seat belt warning light
Conditions
Warning Pattern
WARNING
Seat belt warning light
Vehicle
Chime-
Seat Belt
Light-Blink
Damaged seat belts and seat
Speed
Sound
(for driver’s seat)
belt assemblies will not operate
Unbuckled
6 seconds
properly. Always replace:
Buckled
6 seconds
None
Frayed, contaminated, or dam-
Below 5 km/h
aged webbing
6 seconds
None
(3 mph)
Damaged hardware
Buckled
5 km/h~
6 seconds
The entire seat belt assembly
Unbuckled
10 km/h
after it has been worn in an
Above 10 km/h
6 sec. on / 24 sec. off
accident, even if damage to
(6 mph)
(11 times)
webbing or assembly is not
apparent
Above 10 km/h
(6 mph)
6 seconds *1
Unbuckled
OLMB033022
Below 5 km/h
Stop *2
The driver’s seat belt warning light
(3 mph)
and chime will come on according to
the following table when the ignition
*1 :The Warning Pattern repeats 11 times with
switch is in the ON position.
an interval of 24 seconds. If the driver's
seat belt is buckled, the light will stop with-
in 6 seconds and chime will stop immedi-
ately.
*2 :The light will stop within
6 seconds and
chime will stop immediately.
3 22
Safety features of your vehicle
Seat belt restraint system
The seat belt automatically adjusts to
Height adjustment
the proper length after the lap belt
Seat Belt-Driver’s 3-point system
You can adjust the height of the
portion is adjusted manually so that it
shoulder belt anchor to one of the
with emergency locking retractor
fits snugly around your hips. If you
four different positions for maximum
To fasten your seat belt:
lean forward in a slow, easy motion,
comfort and safety.
the belt will extend and move with
The shoulder portion should be
you. If there is a sudden stop or
adjusted so it lies across your chest
impact, the belt will lock into position.
and midway over your shoulder near-
It will also lock if you try to lean for-
est the door, not over your neck.
ward too quickly.
NOTICE
If you are not able to smoothly pull
enough of the seat belt out from the
retractor, firmly pull the seat belt out
and release it. After release, you will
B180A01NF-1
be able to pull the belt out smoothly.

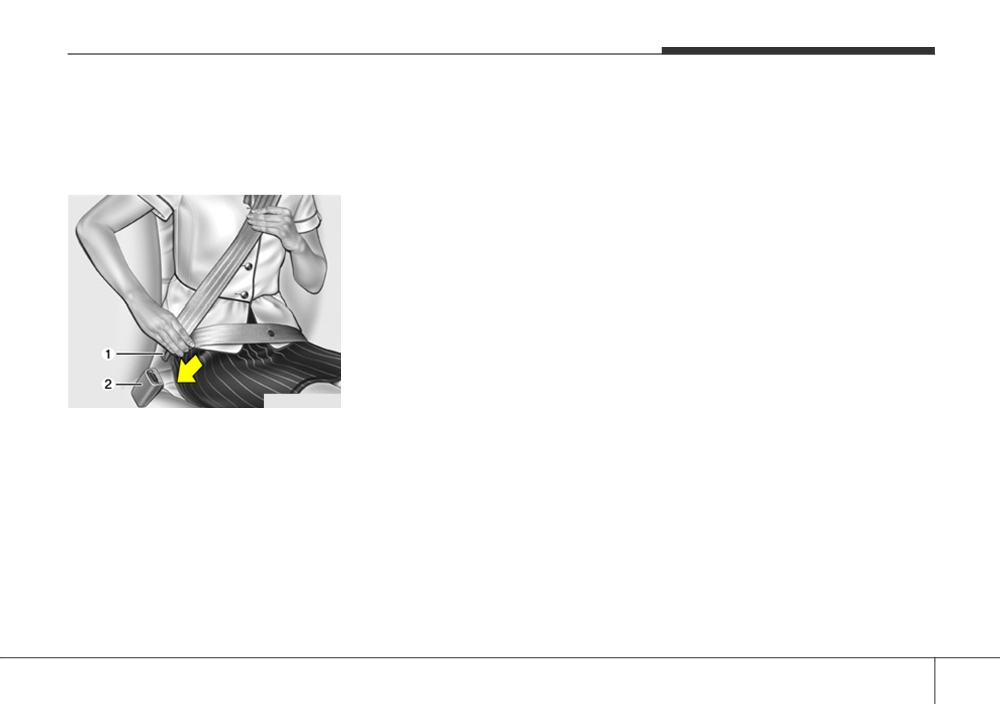

Pull the seat belt out of the retractor
and insert the metal tab (1) into the
buckle (2). There will be an audible
"click" when the tab locks into the
buckle.
3 23
Safety features of your vehicle
Front seat
Shoulder belt extension guide
(if equipped)
WARNING
Verify the shoulder belt
anchor is locked into position
at the appropriate height.
Never position the shoulder
belt across your neck or face.
Improperly positioned seat
belts can cause serious
injuries in an accident.
Failure to replace seat belts
OHD036019
after an accident could leave
To adjust the height of the seat belt
you with damaged seat belts
anchor, lower or raise the height
that will not provide protec-
OJK032061
adjuster into an appropriate position.
tion in the event of another
You can adjust the position of the
collision leading to personal
To raise the height adjuster, pull it up
shoulder belt extension guide for
injury or death. Replace your
(1). To lower it, push it down (3) while
easier access to the shoulder belt.
seat belts after being in an
pressing the height adjuster button (2).
accident as soon as possible.
Release the button to lock the anchor
Set the belt extension guide to the
into position. Try sliding the height
position (1~3) when using the seat
adjuster to make sure that it has
belt.
locked into position.
3 24
Safety features of your vehicle
Seat Belt - Passenger’s 3-point
(Continued)
system with combination locking
Position one arm under the
retractor
shoulder belt and the other over
This type of seat belt combines the
the belt, as shown in the illus-
features of both an emergency lock-
tration.
ing retractor seat belt and an auto-
Always position the shoulder
matic locking retractor seat belt.
belt anchor into the locked
Combination retractor type seat belts
position at the appropriate
are installed in the rear seat positions
height.
to help accommodate the installation
Never position the shoulder
of child restraint systems. Although a
OLMB033025
belt across your neck or face.
combination retractor is also installed
in the front passenger seat position,
NEVER place any infant restraint sys-
WARNING
tem in the front seat of the vehicle.
Improperly positioned seat belts
may increase the risk of serious
injury in an accident. Take the fol-
To fasten your seat belt:
lowing precautions when adjust-
Pull the seat belt out of the retractor
ing the seat belt:
and insert the metal tab into the
Position the lap portion of the
buckle. There will be an audible
seat belt as low as possible
"click" when the tab locks into the
across your hips, not on your
buckle. When not securing a child
waist, so that it fits snugly.
restraint, the seat belt operates in the
same way as the driver's seat belt
(Continued)
(Emergency Locking Retractor
Type). It automatically adjusts to the
proper length only after the lap belt
portion of the seat belt is adjusted
manually so that it fits snugly across
your hips.
3 25
Safety features of your vehicle
When the seat belt is fully extended
from the retractor to allow the instal-
lation of a child restraint system, the
seat belt operation changes to allow
the belt to retract, but not to extend
(Automatic Locking Retractor Type).
Refer to
“Using a Child Restraint
System” in this chapter.
NOTICE
Although the seat belt retractor pro-
OMD030018N
B180A01NF-1
vides the same level of protection for
seated passengers in either emer-

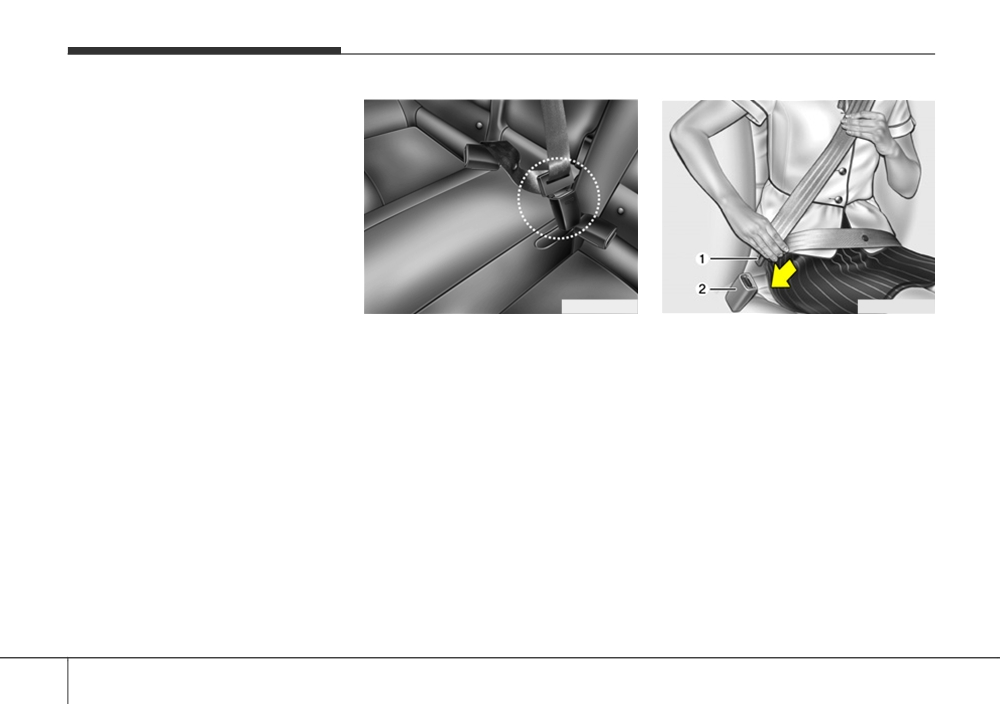

When using the rear center seat belt,
To release your seat belt:
gency or automatic locking modes,
the buckle with the “CENTER” mark
Press the release button (1) in the
the emergency locking mode allows
must be used.
locking buckle.
seated passengers to move freely in
When it is released, the belt should
their seat while keeping some tension
automatically draw back into the
on the belt. During a collision or sud-
retractor. If this does not happen,
den stop, the retractor automatically
check the belt to be sure it is not twist-
locks the belt to help restrain your
ed, then try again.
body. To deactivate the automatic
locking mode, allow the unbuckled
seat belt to fully retract.
3 26
Safety features of your vehicle
Pre-tensioner seat belt
Emergency Fastening Device
(EFD)
WARNING
Emergency Fastening Device(EFD),
Pre-Tensioner Seat Belts that
which is a supplement system of the
malfunction may not protect you
seat belts, protects the driver and
properly during an accident.
front passenger's lower body by
Take the following precautions:
pulling the pelvis back instantly in
Always wear your seat belt
certain frontal collisions.
and sit properly in your seat.
The EFD may be activated in crash-
Do not use the seat belt if it is
es where the frontal collision is
loose or twisted. A loose or
severe enough.
twisted seat belt will not pro-
tect you properly in an acci-
OED030300
NOTICE
dent.
Retractor Pre-tensioner
The pre-tensioner will activate not
Do not place anything near the
only in a frontal collision but also in
buckle. This may adversely
The retractor pre-tensioner, which is
a side collision, if the vehicle is
affect the buckle and cause it
a supplement system of the seat
equipped with a side or curtain air
to function improperly.
belts and airbags, helps the driver
bag.
and front passenger's upper body to
Always replace your pre-ten-
sioners after activation or an
be fastened surely to the seat by
pulling the shoulder back instantly in
accident.
certain frontal collisions.
NEVER inspect, service, repair
The retractor pre-tensioner may be
or replace the pre-tensioners
activated in crashes where the
yourself. This must be done by
frontal collision is severe enough.
an authorized HYUNDAI dealer.
The retractor pre-tensioner will be
Do not hit the seat belt assem-
activated with the airbags.
blies.
3 27
Safety features of your vehicle
NOTICE
WARNING
The sensor that activates the SRS air
Do not touch the pre-tensioner
bag is connected with the pre-ten-
seat belt assemblies for several
sioner seat belts. The SRS air bag
minutes after they have been
warning light on the instrument panel
activated. When the pre-ten-
will illuminate for approximately 6
sioner seat belt mechanism
seconds after the ignition switch is
fires during a collision the pre-
placed in the ON position, and then it
tensioner becomes hot and can
should turn off.
burn you.
If the pre-tensioner is not working
properly, the warning light will illu-
1LDE3100/Q
minate even if the SRS air bag is not
The Pre-Tensioner Seat Belt System
malfunctioning. If the warning light
does not illuminate, stays illuminated
consists mainly of the following com-
ponents. Their locations are shown in
or illuminates when the vehicle is
being driven, have an authorized
the illustration above:
HYUNDAI dealer inspect the pre-
1. SRS air bag warning light
tensioner seat belts and SRS air bags
2. Retractor pre-tensioner assembly
as soon as possible.
3. SRS control module
4. Anchor pre-tensioner assembly
3 28















Content   ..   1  2  3   ..
