WHAT TO DO IN AN EMERGENCY
SD070G1-E
SD070H1-E
5. Raising the Car
6. Changing Wheels
Wrench bar
Wheel nut
AS30130A
Wrench
HFC4022
AS30120A
WARNING:
It is important that the faces of the wheel

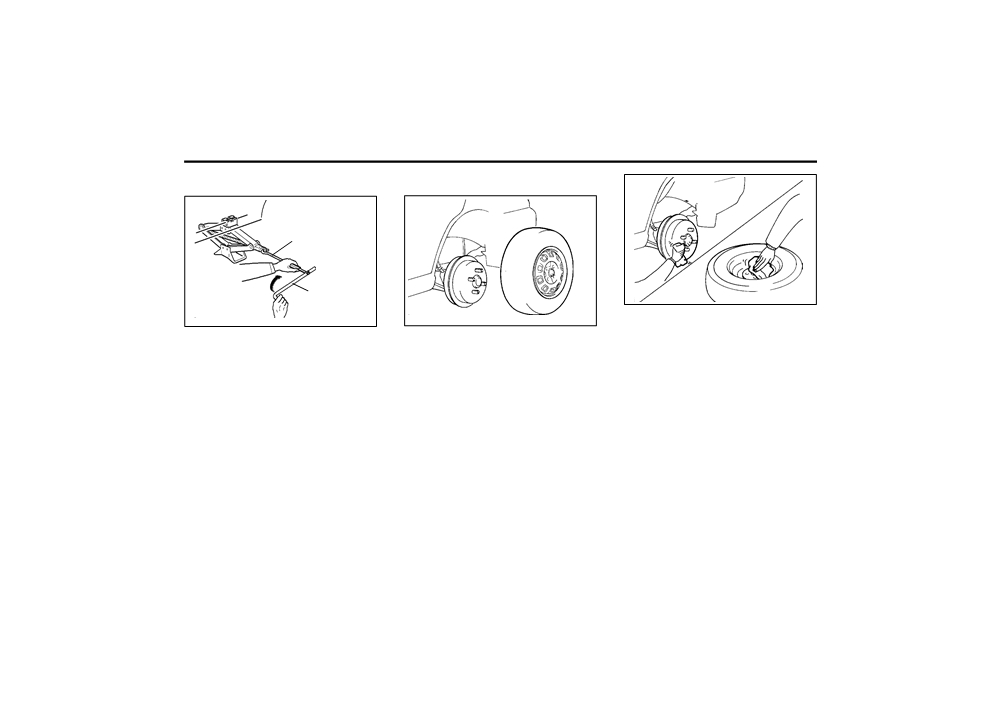

Install the jack handle into the jack as shown in
Using the wheel brace, remove the nuts and
and hub are clean prior to installing the
the drawing. To raise the vehicle, turn the jack
slide the wheel off the hub and wheel studs. Lie
wheel. The prescence of dirt or other matter
handle clockwise. As the jack begins to raise
the wheel flat to prevent it from rolling. Ensure
in the wheel or hub faces could result in the
the vehicle, double check that it is properly
that the faces of the wheel and hub are clean.
wheel nuts becoming loose whilst the vehi-
positioned and will not slip. If the jack is on soft
Position the spare wheel over the studs and
cle is being driven.
ground or sand, it may be necessary to place a
slide it up to the hub.
stout piece of timber under the base of the jack
to prevent it from sinking.
Raise the car high enough so that the fully
inflated spare wheel can be installed.
WARNING:
Do not get under the car when it is support-
ed by the jack! The jack is solely designed
for wheel changing and is not intended to
support the vehicle for other purposes. The
use of purpose designed supports is neces-
sary whilst the vehicle is raised and the
operator is required to get underneath.
3-5
WHAT TO DO IN AN EMERGENCY
SD070I1-E
firmly on the ground, remove the jack and
If the valve cap is lost from any of the valves,
7. Re-install Wheel Nuts
tighten the wheel nuts securely. At the first
a replacement should be obtained and fitted at
available opportunity, the wheel nut torque
the first available opportunity. The valve cap
should be checked with a suitable torque
prevents the ingress of dirt which may cause
wrench.
the valve to stick and therefore leak and is part
of the valve sealing function.
Wheel nut tightening torque
Steel wheel & aluminium alloy wheel:
Ensure that the spare wheel, jack and jack
65-80 lb.ft (900-1,100 kg.cm)
handle as well tools are correctly located in the
boot of the vehicle to prevent damage and
noise.
SD070K1-E
AFTER CHANGING WHEELS
SD080A1-E
D060H01A

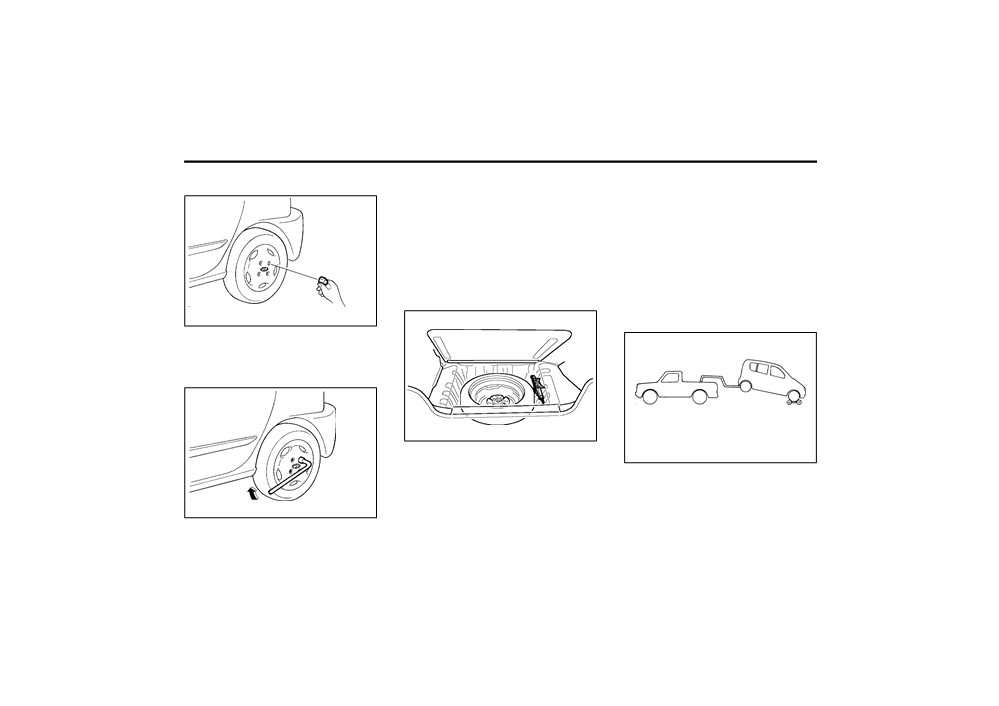

VEHICLE TOWING OR RECOVERY
Fit the wheel nuts onto the studs and tighten
with the wheel brace.
XD070J1-E
8. Lower Vehicle and Tighten Nuts
D060J01X
o OK FOR AUTOMATIC OR MANUAL
TRANSAXLE EQUIPPED VEHICLE
The pressure of the spare tyre should be
D080A01A
checked at the first available opportunity. If any
doubt exists as to the tyre pressure, the vehicle
CAUTION:
should be driven slowly to the nearest service
An incorrect tow or recovery could result in
station and the tyre pressure checked and
serious damage to the vehicle. If any dam-
adjusted as required.
D060I01A
age to the suspension, steering or transaxle
is apparent or suspected, a towing ambu-
Lower the car to the ground turning the jack
lance must be used.
handle counterclockwise. When the vehicle is
3-6
WHAT TO DO IN AN EMERGENCY
SD090A1-E

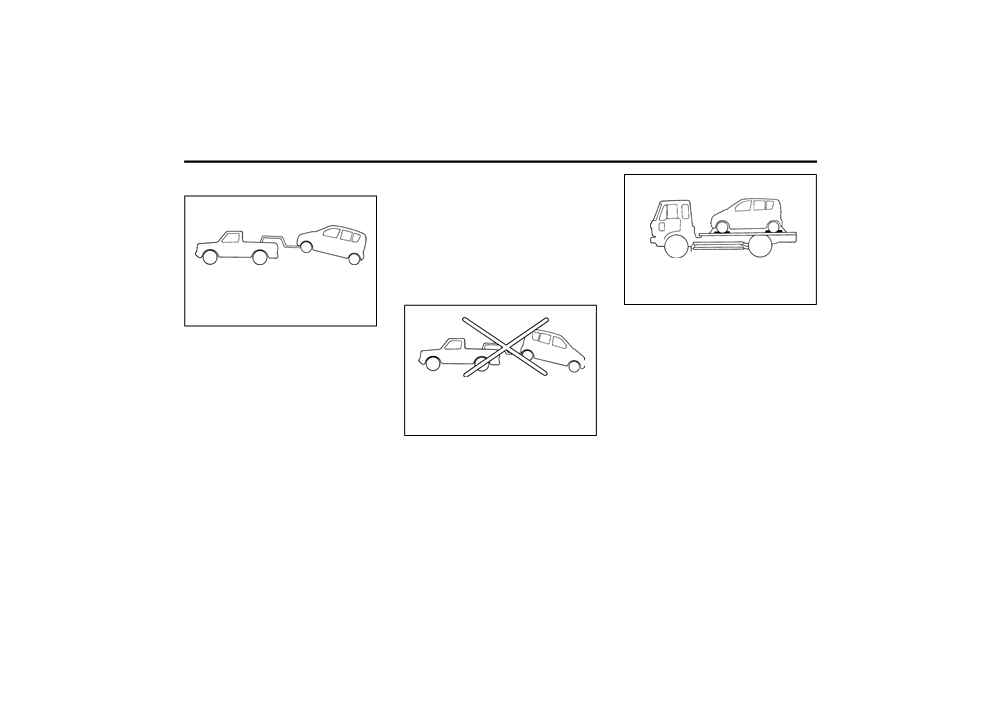

o If a suspended tow is being given to the
Manual Transaxle Vehicle
rear, the ignition key must be at the "ACC"
position since the steering lock is not
designed to withstand the force required
to hold the front wheels straight during
the tow.
o The vehicle must not be towed with the
front wheels on the ground for more than
thirty miles.
o OK FOR AUTOMATIC OR MANUAL
SD100A2-E
TRANSAXLE EQUIPPED VEHICLE
o OK FOR AUTOMATIC OR MANUAL
D080C02A
Automatic Transaxle Vehicle
TRANSAXLE EQUIPPED VEHICLE
WITH NO DAMAGE
D080B01A
CAUTION:
The following restriction must be observed
The vehicle may be towed by the conventional
in order to avoid serious damage to the
method using the towing eye at the front of the
transaxle.
vehicle as an attachment point. In addition, a
The vehicle must never be towed from the
suspended tow with or without an ambulance
rear with the front wheels on the ground.
may be used with either the front or the rear
The vehicle must not be towed until transaxle
wheels being suspended, provided the above
fluid has been added to bring the level up to
caution is observed.
o NOT OK FOR AUTOMATIC TRANSAXLE
the "HOT" marking on the dipstick. (The
EQUIPPED VEHICLE
level will need to be reduced again after
In addition, the following points must
o OK FOR MANUAL TRANSAXLE
towing).
D080C01A
be noted:
The vehicle must not be towed at speeds
o If towing by conventional means, the ig-
The vehicle may be towed by the conventional
faster than 25 mph. or distances greater
nition key must be at the "ACC" position,
method using the towing eye at the front of the
than fifty miles. The general points regard-
otherwise the steering lock will be acti-
vehicle as an attachment point.
ing the steering lock etc. described in the
vated.
In addition, a suspended tow may be given to
preceding section (Manual transaxle vehicle)
o Because the brake system and steering
the front of the vehicle without an ambulance. In
should be observed.
sys-tem power assistance is derived from
the event of a suspended tow being given to the
the engine, the amount of effort required
rear of the vehicle, the use of an ambulance is
to stop or steer the vehicle will be greater
imperative.
than normal.
3-7
WHAT TO DO IN AN EMERGENCY
D080D01X-GAT
D120A02A-GAT
Emergency Towing
IF YOU LOSE YOUR KEYS
Information about the key of immobilizer sys-
tem will be found on page 1-2.
D080D01X

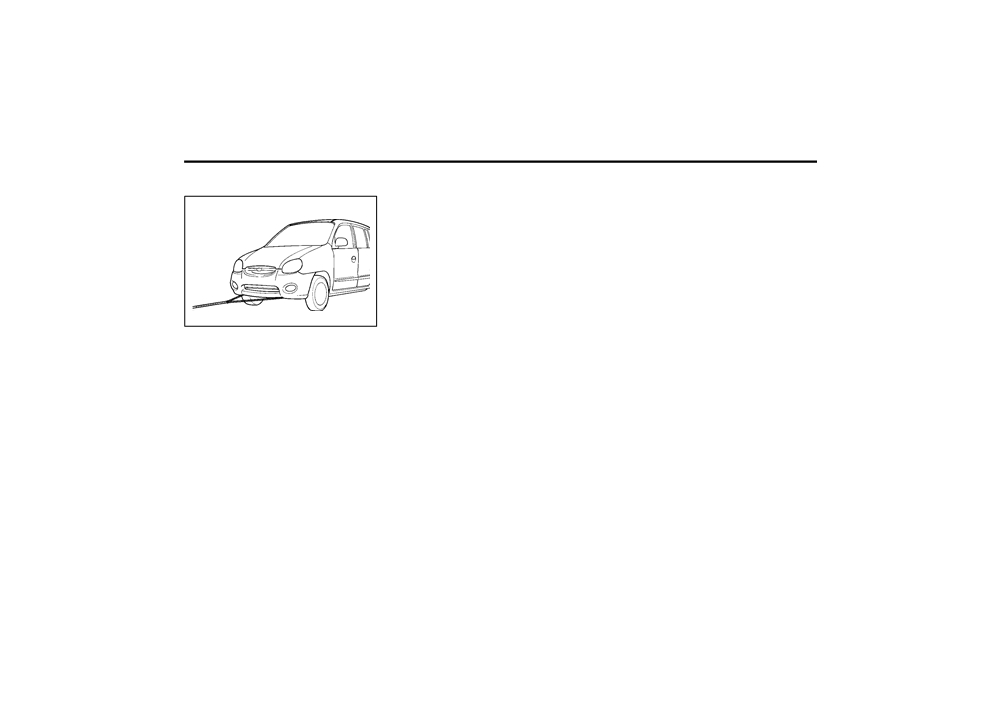

For emergency towing when no commercial
tow vehicle is available, attach a tow cable,
chain or strap to the two hooks under the front
of your car. Do not attempt to tow your vehicle
in this manner on any unpaved surface. This
could result in serious damage to your car.
Nor should it be attempted if the wheels, drive
train, axles, steering or brakes are damaged.
Before towing, be sure the transaxle is in neu-
tral and the key is in "ACC" (with the engine off)
or in the "ON" position (with the engine run-
ning). A driver must be in the towed car to steer
it and operate the brakes.
3-8
CORROSION PREVENTION & APPEARANCE CARE
ZE000A1-E
moved. Should any damage to or deterioration
since the carpet may begin to create musty
of the underbody coating be apparent, the ad-
smells and promote internal corrosion of the
4. CORROSION PRE-
vice of a Hyundai dealer regarding the use of a
floorpan.
compatible repair material should be sought.
VENTION & AP-
JE050A1-E
NOTE:
VALETING
The underbody should never be steam
PEARANCE CARE
Regular cleaning of the exterior paintwork serves
cleaned since the underbody coating may
two important functios. Firstly, the removal of
be removed by this process.
ZE020A1-E
abrasive dirt and contaminants will maintain the
APPEARANCE CARE
lustre of the paintwork and will prevent
During the interim period between power wash-
In using the most advanced design and con-
discolouration and dulling due to prolonged con-
ing the underbody, the more vulnerable areas
struction practices, every Hyundai is built to
tact.
such as wheelarches should be hosed off,
retain its original factory finish for many years.
Secondly, the presence of damage through
particularly during the winter season to prevent
However, long term durability is also greatly
impact or abrasion will be apparent allowing
prolonged contact of road salt with the body.
4
dependant upon maintaining the various pro-
early rectification to be made thus preventing
Ensure that the various drain points located at
tection systems and coatings used in manufac-
corrosion from becoming established and
bottom of the door panels are kept clear, to
ture since constant exposure to the elements
spreading beneath the paint film. To avoid "wa-
prevent water becoming trapped within the cavi-
will eventually result in their breakdown and
ter spotting" the vehicle should not be washed
ties. Wherever possible, the parking of the
loss of effectiveness. The following sugges-
in direct sunlight particularly in the case of
vehicle in a confined, poorly ventilated location
tions are made to assist in the maintenance of
vehicles having dark body colours. The heat
(e.g.) garage should be avoided when the vehi-
the vehicle bodywork.
from the sun rays is absorbed by the paint film
cle is wet or covered with snow or ice. Under
increasing the surface temperature. This action
these conditions, the internal cavities of the
causes water used for washing to evaporate
ZE020B1-E
vehicle will remain damp for long periods of
quickly leaving behind the deposits from the
Underbody Coatings
time which encourage corrosion. Parking the
water and the shampoo used.
Every Hyundai passenger car receives a full
vehicle where good ventilation exists is prefer-
Use only a shampoo intended for the purpose
underbody and cavity injection treatment during
able.
and ensure that the body work is thoroughly
production. In order that this treatment may
wetted to soften the dirt film prior to attempting
retain maximum effectiveness, it is recommend-
ZE020C1-E
to remove this.
ed that the underbody receives a power wash
Interior
After removing the dirt film with a soft sponge,
and a thorough inspection after each winter
During the winter period, it is possible that the
the body work should be thoroughly rinsed and
season. In so doing any accumulations of mud,
carpet within the passenger compartment may
then dried with a good quality ch mois leather to
which act as moisture traps and combine with
become wet. The carpet should not be allowed
prevent streaking or spotting of the paint work.
road salts to accelerate corrosion, will be re-
to remain in this condition for prolonged periods
4-1
CORROSION PREVENTION & APPEARANCE CARE
Household detergents, solvents and abrasive
JE080A1-E
JE100A1-E
cleaning materials should not be used in order
BUMPER MAINTENANCE
SEAT BELTS
ot avoid damaging the paint film.
The special material from which the bumpers
Seat belts should be cleaned only with a mild
Plastic wheel covers should be cleaned using a
are manufactured warrants special attention to
soap solution. Strong detergents, solvens or
sponge and water. Cast alloy wheels should be
preserve the appearance of thebumpers. Avoid
bleaches may damage the belt webbing and
cleaned using a mild soap or neutral detergent.
contact with battery electrolyte or brake fluid
therefore reduce the effectiveness of the belt.
Abrasive compounds must not be used since in
and ensure that accidental spillages are imme-
Belts which display signs of fraying, wear of cut
the event of these damaging the lacquer coat-
diately flushed with water.
should be replaced.
ing, oxidisation of the aluminium wheel will
Do not use abrasive cleaning materials which
occur, spoiling the appearance.
may damage the bumpers.
JE110A1-E
The use of an a toothbrush will facilitate clean-
Avoid subjecting the bumpers to high tempera-
INTERIOR VALETING
ing between the wheel "spokes".
tures such as may be encountered in high bake
The soft trim and carpets should be maintained
paing ovens.
with the regular use of a vacuum cleaner. Heavy
JE060A1-E
soiling should be removed with a dry cleaning
STAIN/SPOT REMOVAL
JE090A1-E
agent recommended for this purpose following
ACCIDENT REPAIRS
the instructions of the product manufacturer.
Should tree sap, dead insects or tar prove to be
difficult to remove from the paint film, turpentine
In the event of the body work sustaining dam-
Paint thinner, solvents or other such cleaning
or a proprietary paint cutting compound may be
age, the following points should be noted prior
materials should not be used since damage to
used. Ensure that the area to be cleaned is not
to repairs being undertaken.
the upholstery may result.
rubbed intensively to prevent breaking through
If body panels are replaced or repaired, anti
the colour coat and exposing the under coat.
corrosion treatment must be applied to the
JE120A1-E
repair area. The product used must be compat-
WINDOWS
JE070A1-E
ible with those used in manufacture. It is recom-
A proprietary glass cleaner should be used to
mended that repairs are entrusted to a Hyundai
clean the inside of the windows. However, the
POLISHING
dealer to ensure that replacement parts used
rear heated windscreen must only be cleaned
The exterior paint work should be polished with
are of the same high quality as those used in
using a light horizontal cleaning action. Care
a proprietary wax polish when water no longer
manufacture of the vehicle and that the correct
should be exercised to avoid the use of abra-
collects in bead form on the paint work. The
repair methods and materials will ensure ade-
sive cleaners or contact with items of jewellery
instructions of the product manufacturer should
quate levels of corrosion protection and the
which may damage the heating elements.
be adhered to.
continued validity of the Anti Perforation War-
ranty.
4-2
VEHICLE MAINTENANCE REQUIREMENTS
ZF010A1-A
NOTE:
be sure these are equivalent to the quality of
The inspection and testing of certain elec-
the original Hyundai parts. Your Service Pass-
5. VEHICLE MAINTE-
tronic fuel injection/engine management and
port provides further information about your
automatic transmission control systems re-
warranty coverage.
NANCE REQUIRE-
quire specialised electronic equipment spe-
cifically designed for Hyundai vehicles. The
DF020F1-E
MENTS
use of general purpose electrical test equip-
SERVICE HISTORY
ment may result in damage to the control
It is important that all scheduled maintenance
unit microprocessors.
DF020A1-E
services are recorded in the warranty and ser-
MAINTENANCE AND SERVICING
vice passport to ensure that proof of mainte-
SF020C1-B
nance is available when warranty service is
REQUIREMENTS
Specified Scheduled Procedures
required.
To ensure the continued reliability and safety of
the vehicle, certain routine maintenance opera-
These are the procedures such as inspections,
tions are required at specific mileage or time
adjustments and replacements that are listed in
intervals.
the maintenance charts starting on page 5-2.
It is the responsibility of the vehicle owner to
These procedures must be performed at the
ensure that the maintenance schedules shown
intervals shown in the maintenance schedule
5
in both this Owners Manual and the Warranty
to assure that your warranty remains in effect.
and Service Passport are adhered to.
Although it is strongly recommended that they
The new vehicle warranty may be invalidated if
be performed by the factory-trained or distribu-
the routine maintenance operations are not
tor-trained technicians at your Hyundai dealer,
performed in line with the recommendations
these procedures may be performed at any
outlined and the safety and durability of the
qualified service facility.
vehicle adversely affected.
It is suggested that genuine Hyundai service
It is recommended that all maintenance opera-
parts be used for any required repairs or re-
tions with the exception of the daily operating
placements. Other parts of equivalent quality
checks are entrusted to a Hyundai dealer to
such as engine oil, engine coolant, manual or
ensure that the latest repair and maintenance
auto transaxle oil, brake fluid and so on which
procedures and specialized servicing tools are
are not supplied by Hyundai Motor Company or
employed. In addition, the use of genuine
its distributor may be used without affecting
Hyundai replacement parts will ensure that the
your warranty coverage but you should always
vehicle safety and performance will not be
compromised.
5-1
VEHICLE MAINTENANCE REQUIREMENTS
XF040C1-E
SCHEDULED MAINTENANCE
In order to ensure the continued safety, reliability and longevity of the
It is recommended that all routine maintenance services are entrusted to
vehicle, the following maintenance service operations should be per-
a Hyundai dealer to ensure that the manufacturers recommended proce-
formed at the time or mileage intervals specified.
dures are employed and that only genuine Hyundai replacement parts are
used. Incorrect maintenance techniques or the use of non genuine
replacement parts may invalidate the vehicle warranty.
F030B02X-EAT
R : Replace
I : Inspect and, after inspection, clean, adjust, repair or replace if necessary
MILES X 1000
10
20
30
40
50
60
No.
DESCRIPTION
MONTHS
12
24
36
48
60
72
ENGINE CONTROL SYSTEM MAINTENANCE
1
ENGINE OIL & FILTER (SG OR ABOVE)
R
R
R
R
R
R
2
DRIVE BELT (WATER PUMP & GENERATOR)
R
3
FUEL FILTER (MFI)
R
4
FUEL LINES, FUEL HOSES & CONNECTIONS
I
I
I
I
I
I
5
TIMING BELT
I
R
6
VAPOR HOSE & FUEL FILLER CAP
I
7
VACUUM CRANKCASE VENTILATION HOSES
I
R
I
R
I
R
8
AIR CLEANER FILTER
R
R
R
9
SPARK PLUGS
R
10
VALVE CLEARANCE
I
I
I
5-2
VEHICLE MAINTENANCE REQUIREMENTS
F030C02X-EAT
R : Replace
I : Inspect and, after inspection, clean, adjust, repair or replace if necessary
MILES X 1000
10
20
30
40
50
60
NO.
DESCRIPTION
MONTHS
12
24
36
48
60
72
GENERAL MAINTENANCE
1
COOLING SYSTEM
I
I
I
I
I
I
2
ENGINE COOLANT
R
3
ENGINE COOLANT SPECIFIC GRAVITY
I
I
I
I
I
I
4
MANUAL TRANSAXLE OIL
I
I
I
I
I
I
5
AUTOMATIC TRANSAXLE FLUID AND FILTER
I
I
I
I
I
R
6
BRAKE PIPES, HOSES, AND CONNECTIONS
I
I
I
I
I
I
7
BRAKE FLUID
I
R
I
R
I
R
8
CLUTCH FLUID
I
R
I
R
I
R
9
REAR BRAKE LININGS AND CYLINDERS
I
I
I
10
BRAKE PADS
I
I
I
I
I
I
11
SUSPENSION AND STEERING SYSTEM
I
I
I
I
I
I
12
FRONT SUSPENSION BALL JOINTS
I
I
I
I
I
I
13
POLLEN FILTER
R
R
R
R
R
R
14
TRANSFER CASE OIL
I
I
I
I
R
I
15
REAR AXLE OIL
I
I
I
I
R
I
16
CLEAN PROPELLAR SHAFT/RETIGHTEN BOLTS
I
I
I
I
I
I
17
REAR WHEEL BEARINGS
I
I
I
I
I
I
18
TYRE CONDITION AND PRESSURE (including Spare)
I
I
I
I
I
I
19
LUBRICATE LOCKS AND HINGES
I
I
I
I
I
I
20
CHECK ALL ELECTRICAL SYSTEMS
I
I
I
I
I
I
21
ROAD TEST
I
I
I
I
I
I
22
CHECK ALL SYSTEMS WITH HI-SCAN
I
I
I
I
I
I
5-3
VEHICLE MAINTENANCE REQUIREMENTS
F040A02X-EAT
MAINTENANCE UNDER SEVERE USAGE CONDITIONS
The following items must be serviced more frequently on cars normally used under severe driving conditions. Refer to the chart below for the appropriate
maintenance intervals.
R : Replace
I : Inspect and, after inspection, clean, adjust, repair or replace if necessary
MAINTENANCE
MAINTENANCE
DRIVING
MAINTENANCE ITEM
OPERATION
INTERVALS
CONDITION
ENGINE OIL AND FILTER
R
EVERY 4,500 MILE OR 6 MONTHS
A, B, C, F, H
AIR CLEANER FILTER
R
MORE FREQUENTLY
C, E
SPARK PLUGS
R
MORE FREQUENTLY
B, H
TIMING BELT
R
EVERY 37,000 MILE OR 48 MONTHS
D, E, F, G
BRAKE PADS, CALIPERS AND ROTORS
I
MORE FREQUENTLY
C, D, G, H
REAR BRAKE DRUMS/LININGS,
I
MORE FREQUENTLY
C, D, G, H
PARKING BRAKE
STEERING GEAR BOX, LINKAGE
I
MORE FREQUENTLY
C, D, E, F
& BOOTS/LOWER ARM BALL JOINT
DRIVESHAFTS AND BOOTS
I
EVERY 9,000 MILE OR 12 MONTHS
C, D, E, F
MANUAL TRANSAXLE OIL TRANSAXLE OIL
R
EVERY 60,000 MILE
A, C, D, E, F, G, H, I, J
AUTOMATIC TRANSAXLE FLUID
R
EVERY 27,000 MILE
A, C, E, F, G, H, I
SEVERE DRIVING CONDITIONS
A - Repeated short distance driving
F - More than 50% driving in heavy city traffic during hot weather above
B - Extensive idling
90°F (32°C)
C - Driving in dusty, rough roads
G- Driving in mountainous areas
D - Driving in areas using salt or other corrosive materials or in
H - Towing a trailer
very cold weather
I
- Driving for rental car, taxi, commercial car or vehicle towing
E - Driving in sandy areas
J - Driving over 100 MPH
5-4
VEHICLE MAINTENANCE REQUIREMENTS
F060A01A-AAT
F060D01A-AAT
Inspect the hose routing to assure that the
EXPLANATION OF SCHEDULED MAIN-
o Fuel lines, fuel hoses and connec-
hoses do not come in contact with any heat
tions
source, sharp edges or moving component
TENANCE ITEMS
Check the fuel lines, fuel hoses and connec-
which might cause heat damage or mechanical
F060M01A-AAT
tions for leakage and damage. Replace any
wear. Inspect all hose connections, such as
o Engine oil and filter
damaged or leaking parts immediately.
clamps and couplings, to make sure they are
secure, and that no leaks are present. Hoses
The engine oil and filter should be changed at
the intervals specified in the maintenance sched-
F060E01A-AAT
should be replaced immediately if there is any
evidence of deterioration or damage.
ule. If the car is being driven in severe condi-
o Timing belt
tions, more frequent oil and filter changes are
Inspect all parts related to the timing belt for
required.
damage and deformation. Replace any dam-
F060H01A-AAT
aged parts immediately.
o Air cleaner filter
F060B01A-AAT
A Genuine Hyundai air cleaner filter is recom-
o Drive belts
mended when filter is replaced.
F060G01A-AAT
Inspect all drive belts for evidence of cuts,
o Vapour hose and fuel filler cap
F060J01A-AAT
cracks, excessive wear or oil saturation and
The vapor hose and fuel filler cap should be
replace if necessary. Drive belts should be
o Spark plugs
inspected at those intervals specified in the
checked periodically for proper tension and
Make sure to install new spark plugs of the
maintenance schedule. Make sure that a new
adjusted as necessary.
correct heat range.
vapour hose or fuel filler cap is correctly re-
placed.
F060C01A-AAT
F060N01X-GAT
o Fuel filter
o Valve clearances
F060F01A-AAT
A clogged filter can limit the speed at which the
Incorrect valve clearance will not only result in
o Vacuum, crankcase
vehicle may be driven, damage the emission
unsteady engine operation, but will also cause
ventilation hoses
system and cause hard starting. If an exces-
excessive noise and reduced engine perfor-
Inspect the surface of hoses for evidence of
sive amount of foreign matter accumulates in
mance. Inspect valve clearance and adjust as
heat and/or mechanical damage. Hard and
the fuel tank, the filter may require replacement
required while the engine is hot.
brittle rubber, cracking, tears, cuts, abrasions,
more frequently.
and excessive swelling indicate deterioration.
After installing a new filter, run the engine for
Valve-to-rocker arm clearance
Particular attention should be paid to examine
several minutes, and check for leaks at the
Intake valves
0.008 in. (0.2 mm)
those hose surfaces nearest to high heat sourc-
connections.
Exhaust valves
0.010 in. (0.25 mm)
es, such as the exhaust manifold.
5-5
VEHICLE MAINTENANCE REQUIREMENTS
F070B01A-GAT
F070F01A-AAT
F070K01A-AAT
o Cooling System
o Brake hoses and lines
o Exhaust pipe and muffler
Check the cooling system part, such as radia-
Visually check for proper installation, chafing,
Visually inspect the exhaust pipes, muffler and
tor, coolant reservoir, hoses and connections
cracks, deterioration and any leakage. Replace
hangers for cracks, deterioration, or damage.
for leakage and damage. Replace any dam-
any deteriorated or damaged parts immediate-
Start the engine and listen carefully for any
aged parts.
ly.
exhaust gas leakage. Tighten connections or
replace parts as necessary.
F070C01A-AAT
F070G02A-AAT
o Engine coolant
o Brake fluid
F070L01A-AAT
The coolant should be changed at the intervals
Check brake fluid level in the brake fluid reser-
o Suspension mounting bolts
specified in the maintenance schedule.
voir. The level should be between "MIN" and
Check the suspension connections for loose-
"MAX" marks on the side of the reservoir. Use
ness or damage. Retighten to the specified
F070D01X-GAT
only hydraulic brake fluid conforming to DOT 3
torque.
o Manual or semi-automatic transaxle
or DOT 4.
oil
F070M01A-AAT
Inspect the manual or semi-automatic transaxle
F070H01A-AAT
o Steering gear box, linkage & boots/
oil according to the maintenance schedule.
o Rear brake drums/linings, parking
lower arm ball joint
brake
With the vehicle stopped and engine off, check
NOTE:
Check the rear brake drums and linings for
for excessive free-play in the steering wheel.
If the oil level is low, check for possible
scoring, burning, leaking fluid, broken parts,
Check the linkage for bends or damage. Check
leaks before adding oil. Do not overfill.
and excessive wear. Inspect the parking brake
the dust boots and ball joints for deterioration,
system including the parking brake lever and
cracks, or damage. Replace any damaged
F070E01X-AAT
cables. For detailed service procedures, refer
parts.
o Automatic transaxle fluid
to the Shop Manual.
F070N01A-AAT
The fluid level should be in the “HOT” range of
F070J01A-AAT
o Power steering pump, belt and hos-
the dipstick, after engine and transaxle are at
normal operating temperature. Check the Auto-
o Brake pads, calipers and rotors
es
matic Transaxle Fluid level with the engine
Check the pads for excessive wear, discs for
Check the power steering pump and hoses for
running and the transaxle in neutral, with the
run out and wear, and calipers for fluid leakage.
leakage and damage. Replace any damaged
parking brake properly applied. Use ESSO
or leaking parts immediately. Inspect the power
JWS3314 when adding or changing fluid.
steering belt for evidence of cuts, cracks, ex-
cessive wear, oiliness and proper tension.
Replace or adjust it if necessary.
5-6
VEHICLE MAINTENANCE REQUIREMENTS
F070P01A-AAT
o Driveshafts and boots
Check the drive shafts, boots and clamps for
cracks, deterioration, or damage. Replace any
damaged parts and, if necessary, repack the
grease.
F070Q01A-AAT
o Air conditioning refrigerant
Check the air conditioning lines and connec-
tions for leakage and damage. Check air con-
ditioning performance according to the relevant
shop manual if necessary.
F070R02X-GAT
o Rear wheel bearing grease
Check rear wheel bearing grease whenever
the brake drums are removed to inspect the
rear brake system.
5-7
DO-IT-YOURSELF MAINTENANCE
ZG000A1-E
6. DO-IT-YOURSELF MAINTENANCE
G010A01X-EAT
ENGINE COMPARTMENT (For Multiport Fuel Injection)
1
2
3
4
5
6
G010A03X
6
7
8
9
10
11
1213
1. Brake fluid reservoir
6. Power steering fluid reservoir
10. Radiator cap
2. Brake booster
7. Engine oil level dipstick
11. Battery
3. Air cleaner
8. Spark plug
12. Relay box
4. Engine oil filler cap
9. Automatic transaxle fluid level dipstick
13. Engine coolant reservoir
5. Windscreen washer fluid reservoir cap
(Automatic T/A only)
6-1
DO-IT-YOURSELF MAINTENANCE
ZG020B1-E
G020C02X-GAT
ZG030A1-A
GENERAL CHECKS
Vehicle Interior
CHECKING THE ENGINE OIL
Engine Compartment
The following should be checked each time
Engine oil is essential to the performance and
when the vehicle is driven:
service of the engine. It is suggested that you
The following should be checked regularly:
check the oil level at least once a week in
o Lights operation
normal use and more often if you are on a trip
o Engine oil level and condition
o Windscreen wipers operation
or driving in severe conditions.
o Transaxle fluid level and condition
o Horn operation
o Brake reservoir fluid level
o Engine coolant level
o Defroster, heating system operation (and air
ZG030B1-E
conditioning, if installed)
o Windscreen washer fluid level
Recommended Oil
o Steering operation and condition
o Accessory drive belt condition
o Mirror condition and operation
o Coolant hose condition
20W-40 20W-50
o Turn signal operation
o Fluid leaks (on or below components)
o Accelerator pedal operation
15W-40 15W-50
o Power steering fluid level
o Tyre pressure and condition (including spare)
o Brake operation, including parking brake
10W-30
o Manual transaxle operation, including clutch
o Battery condition
10W-40 10W-50
operation
5W-40
o Automatic transaxle operation, including
"Park" mechanism operation
5W-30
ZG020C1-A
Vehicle Exterior
o Seat control condition and operation
5W-20
o Seat belt condition and operation
The following should be checked monthly:
o Sunvisor operation
°C
-25
-15
-10
0
10
20
40
°F
-13
5
-14
32
50
68
104SSA6030B
o Overall appearance and condition
If you notice anything that does not operate
SH, SG or SG/CD (API) multi-grade and fuel
o Wheel condition and wheel nut tightness
correctly or appear to be functioning correctly,
efficient oil is recommended.
o Exhaust system condition
inspect it carefully and seek assistance from
o Light condition and operation
your Hyundai dealer if service is needed.
NOTE:
o Windscreen glass condition
o Wiper blade condition
SAE 5W-20 is not recommended for sus-
o Paint condition and corrosion
tained high speed vehicle operation.
o Fluid leaks
o Door and hood lock condition
o Air filter element condition
6-2
DO-IT-YOURSELF MAINTENANCE
ZG030C1-A
ZG030D1-A
G350A01A-GAT

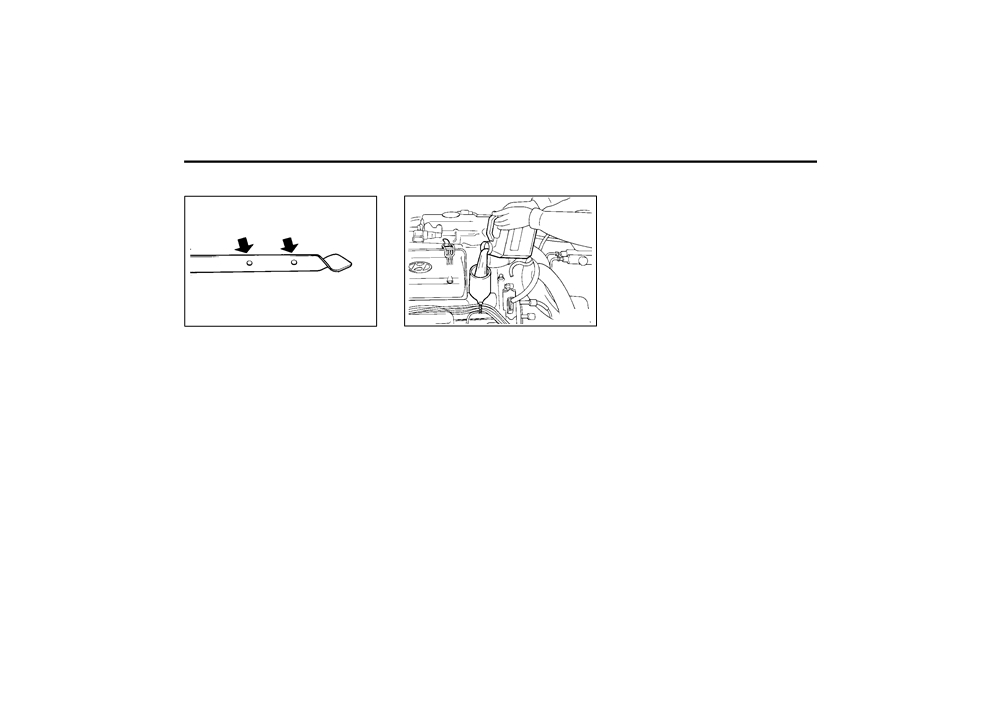

To Check the Oil Level
Adding Oil
ENGINE OIL CONSUMPTION
Function of Engine Oil
Engine oil has the primary function of lubricat-
ing and cooling the inside of the engine.
Engine oil consumption
If is normal that an engine should consume
F
L
some engine oil while normal driving. The cause
of oil consumption in a normal engine are as
follows;
AS60050A
G030D01A
o Engine oil is used to lubricate pistons, piston
rings and cylinders.
Before checking the oil, warm up the engine to
If the oil level is close to or below the "L" mark,
o A thin film of oil is left on the cylinder wall
normal operating temperature and be sure it is
add oil until it reaches the "F" mark. To add oil:
when a piston moves downwards in the
parked on level ground. Turn the engine off.
cylinder. High negative pressure generated
1. Remove the oil filler cap by turning it coun-
during engine operation sucks some of the
Wait a minute, then remove the dipstick, wipe it
terclockwise.
oil into the combustion chamber.
off, fully reinsert the dipstick and withdraw it
2. Add oil, then check the level again. Do not
This oil with some oil of the cylinder wall is
again. Then note the highest level the oil has
overfill.
burned by the high temperature combustion
reached on the dipstick. It should be between
3. Replace the cap by turning it clockwise.
gases during the combustion process.
the upper ("F") and lower ("L") range.
o The engine oil consumption is strongly ef-
The distance between the "F" and "L" marks is
fected by the viscosity and quality of oil,
equal to about 1 quart of oil.
engine rpm and driving condition etc. The
engine oil is more consumed under severe
driving conditions such as high speeds and
frequent acceleration and deceleration than
normal driving condition.
6-3
DO-IT-YOURSELF MAINTENANCE
G040A01X-GAT
3. Slide underneath the car and loosen the
CHANGING THE OIL AND FILTER
drain plug by turning it counterclockwise
with a wrench of the proper size. Be sure
Oil filler cap
that a drain pan is in position to catch the oil
as it drains out, then remove the drain plug.
WARNING:
Be very careful when draining the engine oil
as it may be hot enough to burn you!
4. When the oil has stopped draining, replace
the drain plug using a new washer and
G040A03X
G040A01X
retighten by turning it clockwise.
Drain plug
Oil filter
6.
First, remove the vehicle number plate. Un-
screw the tapping screws (4EA) and re-
The engine oil and filter should be changed at
move the front bumper grille.
those intervals specified in the maintenance
schedule in Section 5. If the car is being driven
SST (09263-02000)
in severe conditions, more frequent oil and filter
changes are required.
SST (09263-02000)
The procedure for changing the oil and filter is
as follows:
1. Park the car on level ground and set the
parking brake. Start the engine and let it
G040A02X
warm up until the needle on the coolant
Extension bar
5. Before removing the oil filter, prepare the
temperature gauge moves above the lowest
special tool (oil filter wrench), extension bar
mark. Turn the engine off and place the gear
G040A04X
and ratchet handle.
selector lever in "P" (automatic transaxle) or
reverse gear (manual transaxle, semi-auto-
7.
Using the special tool (09263-02000), re-
matic transaxle).
move the oil filter through the bumper hole.
2. Open the hood and remove the engine oil
filler cap.
6-4
