Hyundai Atos (2002 year). Instruction

FEATURES OF YOUR HYUNDAI

ZB000A1-A

cised when charging the vehicle tank from jerry

B020A01X-EAT

cans or by means of a funnel that the fuel being

RUNNING IN

1. FEATURES OF

used is unleaded.

The longevity and performance of the vehicle

The use of leaded fuel in this vehicle will result

are greatly affected by the care exercised dur-

YOUR HYUNDAI

in irreversible pollution of the catalyst element.

ing the first 1000 miles of motoring. Because of

Such pollution will prevent correct operation of

modern manufacturing techniques, rigid guide-

the catalyst and give rise to increased operat-

lines regarding maximum road speeds have

B010A01X-EAT

ing temperatures leading to the catalyst ele-

become unnecessary. However, certain pre-

FUEL RECOMMENDATIONS

ment melting and restricting the exhaust flow

cautions should be observed in order to obtain

THIS VEHICLE MUST ONLY BE OPERATED

along with an increase in exhaust emission

the best possible performance and useful life

WITH UNLEADED FUEL.

levels.

from the vehicle.

SERIOUS DAMAGE WILL RESULT FROM

THE USE OF LEADED FUEL.

CAUTION:

1) Do not race the engine without a load (i.e

The vehicle warranty will not extend to dam-

revving the engine in neutral).

age arising from the use of incorrect fuels.

2) During the first 500 miles the maximum

UNLEADED

engine speed should be restricted to 3000

FUEL ONLY

rpm and gradually increased thereafter.

B010D01S-EAT

3) Avoid prolonged constant speed operation.

"Alternative fuels"

The internal components of the engine will

Fuels which contain methanol or ethanol must

become more quickly run in if the operation

not be used.

speed is varied during the running in period.

4) Never allow the engine to labour. Use the

B010F01A-EAT

gearbox freely and avoid large throttle open-

Operation in Foreign Countries

ings when the engine speed is below 1500

B010A01X

Drivers of vehicles which are to be operated in

rpm.

foreign countries must satisfy themselves that:

5) Avoid rapid acceleration and maximum

Unleaded fuel with a Research Octane Number

throttle openings.

(RON) of 91 or higher must be used in this

o The vehicle meets all local regulations with

6) Avoid harsh braking during the first 100

vehicle.

respect to insurance, specifications etc.,

miles of urban motoring or 1000 miles of

To prevent accidental charging of the fuel tank

o The correct types and grades of fuel are

motorway driving to allow the friction facings

with leaded fuel, a small diameter filler neck

available for satisfactory operation of the

of the brake pads and shoes to bed against

along with a restrictor flap are fitted to ensure

vehicle.

the discs and drums properly.

that only unleaded fuel pump nozzles may enter

the filler neck. However, care must be exer-

1-1

FEATURES OF YOUR HYUNDAI

B010E01A-AAT

NOTE:

If you need additional keys or if you should lose

GASOLINES FOR CLEANER AIR

If you make your own duplicate key, you will

your keys, your authorized Hyundai dealer can

To help contribute to cleaner air, Hyundai rec-

not be able to cancel the system or start the

make new keys.

ommends that you use gasolines treated with

engine.

detergent additives, which help to prevent de-

B880D02A-GAT

posit formation in the engine. These gasolines

B880C02A-GAT

Limp home procedures

will help the engines run cleaner and the Emis-

Key Numbers

sion Control System performance.

B880A01A-EAT

IMMOBILIZER SYSTEM

The immobilizer system is an anti-theft device,

designed to prevent and deter automobile theft.

B880B03A-GAT

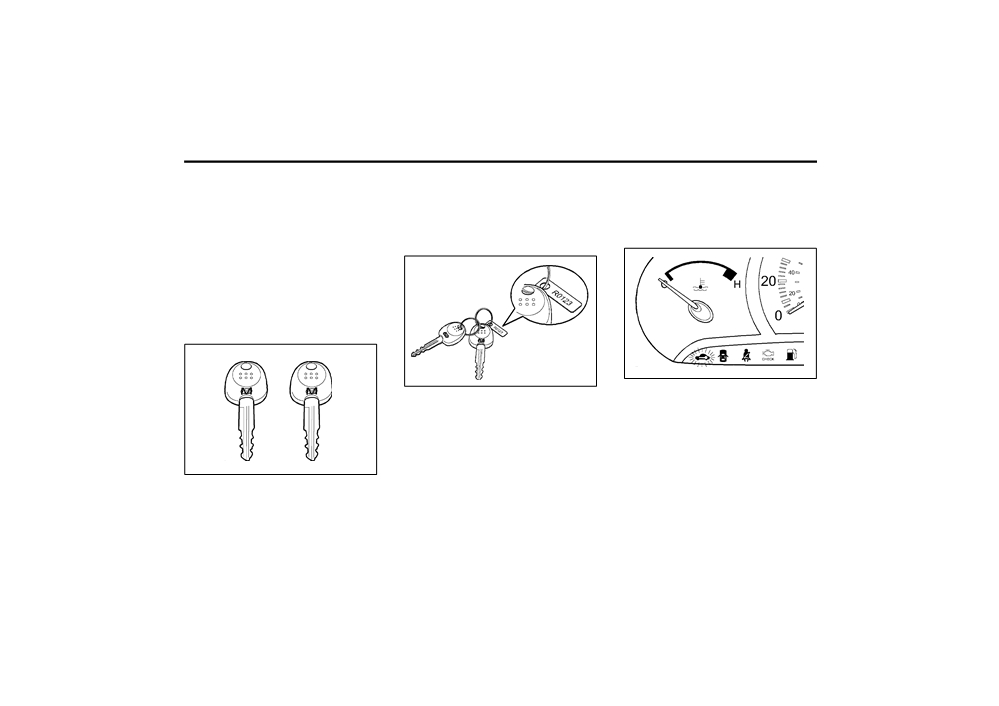

Keys

B880D01X-DAG

AX10030A-1

In case the immobilizer warning indicator blinks

The vehicle key number is recorded upon a

for five seconds when the ignition key is turned

metal tag attached to the keys when the vehicle

to "ON" position, this indicates that the immobi-

is first delivered to you.

lizer system is out of order. And you cannot

The key number should be recorded and kept

start the engine without the limp home proce-

in a safe place in case the need to order further

dures with ignition key.

keys arises. New keys are available from any

The following procedure is how to start the

Hyundai dealer by quoting the relevant key

B880B01O

engine with the function of the limp home. (0, 1,

number.

2, 3 as a sample password).

In the interest of security, the metal tag at-

All of the locks fitted to the vehicle are operated

tached to the keys which bears the key number

by the same key. However, since it is possible

NOTE:

should be removed from the key ring after you

to lock the doors without the use of the key,

You can get the limp home password when

receive your new vehicle. In addition, key num-

care should be exercised to ensure that the key

the vehicle is first delivered to you. If you do

bers cannot be provided by Hyundai for secu-

does not become locked inside the vehicle by

not have the password, consult your autho-

rity reasons.

mistake.

rized Hyundai dealer.

1-2

FEATURES OF YOUR HYUNDAI

1. To set the password you may turn the igni-

CAUTION:

SB040B1-F

tion key "ON" and then turn it "OFF" accord-

o If you fail to try the limp home procedure

Locking, unlocking front doors with

ing to the digit numbers, then the immobi-

with the sequence of three times, you

key

lizer indicator will blink along with the opera-

have to wait for about one hour to do the

tion of the ignition key. For example, turn the

limp home procedure again.

ignition key once for digit number "1", and

o If you cannot start your engine in spite of

Unlock

Lock

twice for "2", and so on. However, for the

limp home procedure, have your vehicle

digit number "0", you must turn the ignition

towed by an authorized Hyundai dealer.

key for 10 times.

2. Wait for 3~10 seconds.

SB040A1-F

3. You may set the remaining number of digits

DOOR LOCKS

by following the same procedures 1 and 2.

4. If all of four digits have been tried success-

WARNING:

fully, turn the ignition key "ON" and check

o Unlocked doors can be dangerous.

that the immobilizer indicator illuminates.

Before you drive away-especially if there

XV10050E

From this time, you have to start your engine

are children in the car-be sure that all the

within 30 seconds. If you start your engine

doors are securely closed and locked,

o The door can be locked or unlocked with a

after 30 seconds, your engine will not start.

the doors cannot be opened from inside.

key.

This helps assure that doors will not be

o Lock the door by turning the key toward the

NOTE:

opened accidentally. Also, when com-

front of the vehicle and unlock it by turning

If the engine dies while driving after limp

bined with the proper use of seat belts,

the key toward the rear.

home procedure, you can start your engine

locking the doors helps keep occupants

within 8 seconds without limp home proce-

from being ejected from the car in case

dure again.

of an accident.

o Before opening the door, always look for

5. If the immobilizer indicator blinks for five

and avoid oncoming traffic.

seconds, you have to try the limp home

procedure again from the beginning.

After doing the limp home procedure, you have

to consult with your authorized Hyundai dealer

as soon as possible.

1-3

FEATURES OF YOUR HYUNDAI

B040C01A-EAT

B040P01X-EAT

B040E02A-AAT

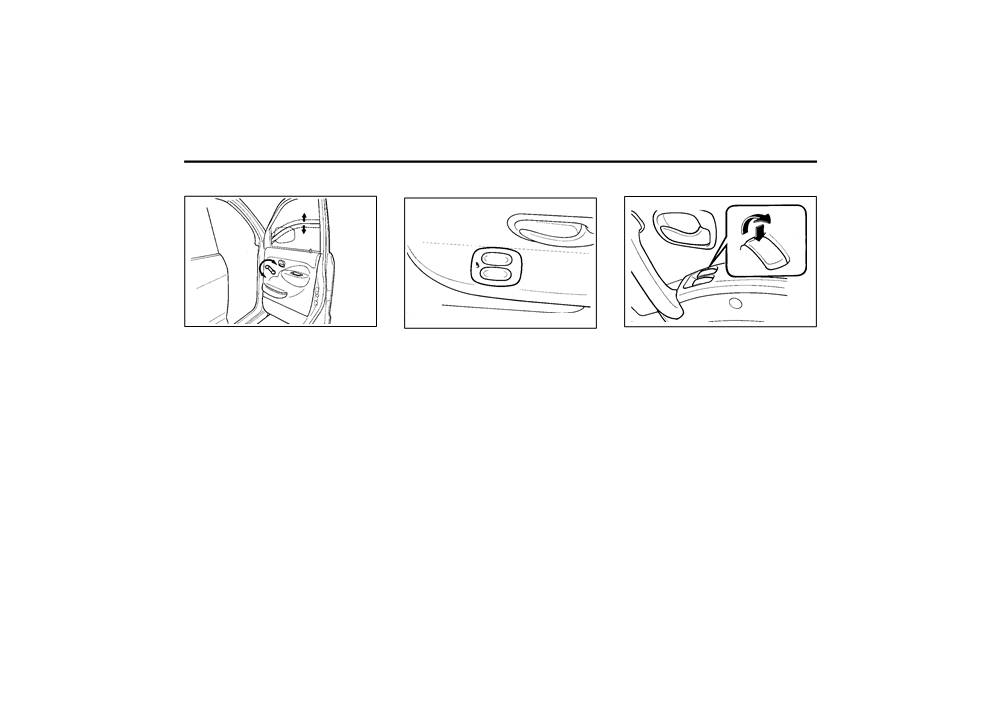

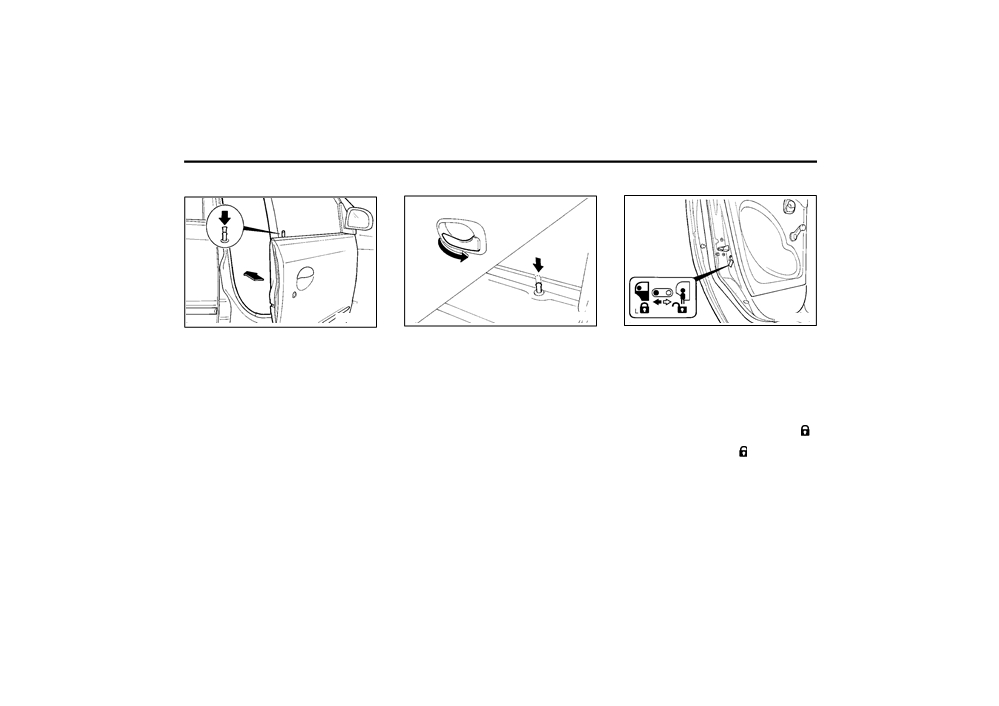

Locking from the Outside

Locking from Inside

Child-Protector Rear Door Lock

XV10060E

AS10070D

B040E02A-1

The doors can be locked without a key.

To lock your Hyundai from inside, simply close

Your Hyundai is equipped with a "child-protec-

First push the lock button down, then close the

the door and push the lock button down.

tor" rear door lock assembly. When the lock

door.

When this is done, the door cannot be opened

mechanism is engaged, the rear door cannot be

using either the inside or the outside door handle.

opened from the inside. Its use is recommend-

NOTE:

To unlock your Hyundai from inside, pull up the

ed whenever there are small children

lock button and then pull the inside door handle.

in the rear seat.

o When locking the door this way, be care-

ful not to lock the door with the ignition

Before opening the door, always look for and

avoid on coming traffic.

To engage the child-protector feature so that

key left in the vehicle.

the door cannot be opened from the inside,

o For protects against theft, always remove

move the child-protector lever to the "

the ignition key, close all windows, and

position and close the door. Move the lever to

lock all doors when leaving your vehicle

the opposite direction of "

" position when

unattended.

normal door operation is desired.

If you wish to be able to open the door from the

outside, pull the outside door handle to its up

position.

1-4

FEATURES OF YOUR HYUNDAI

B080A01A-AAT

B080C01A-AAT

B080D02A-AAT

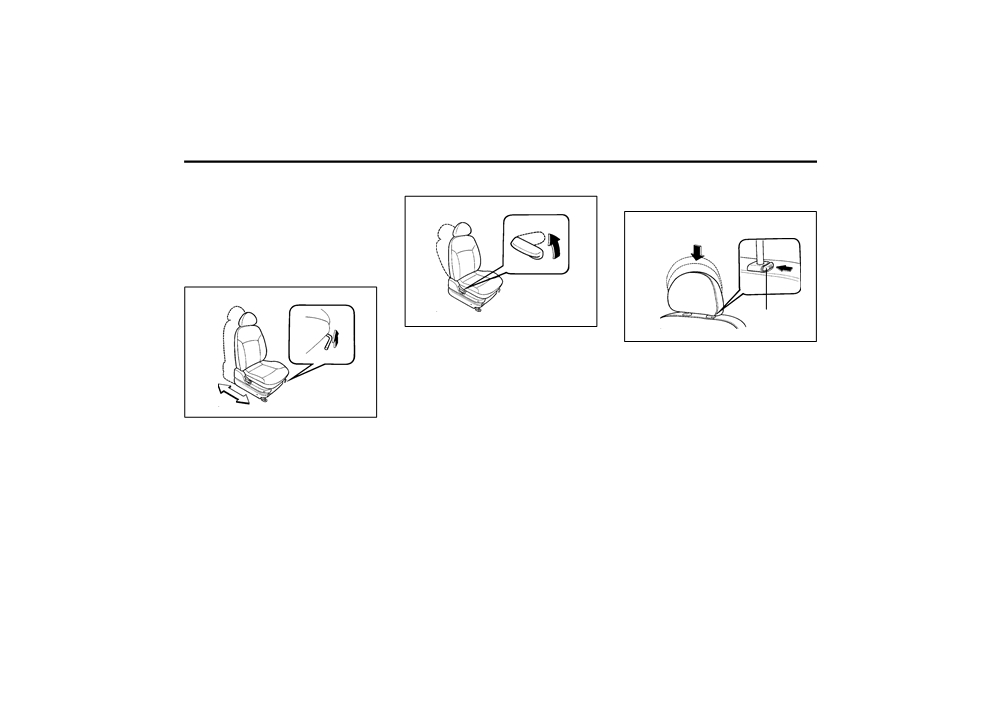

ADJUSTABLE FRONT SEATS

Adjusting Seatback Angle

Adjustable Headrestraint

WARNING:

(Not all models)

Never attempt to adjust the seat while the

vehicle is moving. This could result in loss

of control, and an accident causing death,

serious injury, or property damage.

B080B01A-AAT

Adjusting Seat Forward and Rearward

XV10120E

Lock Knob

B080D01A

To recline the seatback, lean forward to take

your weight off it, then pull up on the recliner

Headrestraint are designed to help reduce the

control lever at the outside edge of the seat.

risk of neck injuries.

Now lean back until the desired seatback angle

To raise the headrest, pull it up. To lower it,

is achieved. To lock the seatback into position,

push it down while pressing the lock knob.

release the recliner control lever.

WARNING:

XV10110E

WARNING:

o For maximum effectiveness in case of an

To minimize risk of personal injury in the

accident the headrestraint should be ad-

To move the seat toward the front or rear, pull

event of a collision or sudden stop, both the

justed so the top of the headrestraint is

the lock release lever upward. This releases

driver and passenger seatbacks should al-

at the same height as the top of the

the seat on its track so you can move it forward

ways be in a nearly upright position while

occupant's ears. For this reason, the use

or rearward to the desired position. When you

the vehicle is in motion. The protection pro-

of a cushion that holds the body away

find the position you want, release the lever and

vided by the seat belts and airbags may be

from the seatback is not recommended.

slide the seat forward or rearward on its track

reduced significantly when the seatback is

o Do not operate vehicle with the

until it locks into position and cannot be moved

reclined. There is greater risk that the driver

headrestraint removed as severe injury

further.

and passenger will slide under the seat belt

to an occupant may occur in the event of

resulting in serious injury when the seatback

an accident. Headrests may provide pro-

is reclined.

tection against neck injuries when prop-

erly adjusted.

1-5

FEATURES OF YOUR HYUNDAI

B050A01A-AAT

B060A02X-GAT

B060A01V-GAT

WINDOW GLASS

POWER WINDOWS (Not all models)

Open

XV10170E

XV10180E

B060A01V.DAG

To raise or lower the window, turn the window

The power windows operate only when the

regulator handle clockwise or counterclockwise.

ignition key is in the "ON" position. The main

switches are located on the driver’s arm rest

switches are located on the driver's arm rest

WARNING:

and control the front windows. The windows

and control the front windows.

When opening or closing the windows, make

may be operated by depressing the desired

The windows may be opened by depressing the

sure your passenger’s arms and hands are

switch.

appropriate window switch and closed by pull-

safely out of the way.

ing up the switch.

WARNING:

o Be careful that head, hands and body are

WARNING:

not trapped by a closing window.

o Be careful that head, hands and body are

o If passengers remain in the car when you

not trapped by a closing window.

leave, especially if a child remains alone,

o If passengers remain in the car when you

always remove the ignition key for safe-

leave, especially if a child remains alone,

ty.

always remove the ignition key for safety.

1-6

FEATURES OF YOUR HYUNDAI

B040G01A-GAT

elementary safety precaution is observed. In

increase the severity of injuries in case of an

CENTRAL DOOR LOCKING SYSTEM

addition, we would like to make the following

accident.

(Not all models)

recommendations.

ZB090G1-B

ZB090C1-E

Do Not Lie Down

Children

For maximum effectiveness, all passengers

It is recommended that children occupy the rear

should be sitting up and the front seats should

seat and wear their seat belts. If the child is in

be in an upright position. A seat belt cannot

the front seat, it should be securely restrained

operate properly if the person is lying down in

by the seat belt. Under no circumstances should

the rear seat or if the front seat is at or near the

the child be allowed to stand or kneel on the

fully reclined position.

seat.

ZB090D1-E

B160A01S-GAT

XV10210E

Pregnant Women

CARE OF SEAT BELTS

The use of a seat belt is recommended for

Seat belt systems should never be disassem-

This system is controlled by the driver’s door

bled or modified. In addition, care should be

pregnant women. The seat belt should be worn

lock and operates the passenger door lock.

taken to assure that seat belts and belt hard-

as low and snugly as possible across the hips,

When the driver’s door is locked, the passenger

ware are not damaged by seat hinges, doors or

not across the abdomen. A qualified Medical

doors are locked automatically.

other abuse.

Practioner should be consulted for further infor-

If a rear door is open when the latch in de-

mation.

pressed, it will remain locked when closed. If

ZB090I1-A

the front passenger door is open when the latch

ZB090E1-A

Periodic Inspection

is locked, the outside door handle must be held

Injured Person

It is recommended that all seat belts be inspect-

in the raised position. When the door is closed,

A seat belt should be used when an injured

ed periodically for wear or damage of any kind.

the door will remain locked. All doors will be

person is being transported. When this is nec-

Parts of the system that are damaged should

unlocked automatically whenever the driver’s

essary, you should consult a physician for rec-

be replaced as soon as possible.

door is unlocked whether by key or latch.

ommendations.

ZB090J1-A

ZB090A1-E

ZB090F1-A

Keep Belts Clean and Dry

SEAT BELT PRECAUTIONS

One Person Per Belt

Seat belts should be kept clean and dry. If belts

All vehicle occupants should wear seat belts at

Two people (including children) should never

become dirty, they can be cleaned using a mild

all times. The possibility of injury or the severity

attempt to use a single seat belt. This could

soap solution and warm water. Bleach, dye,

of injury in an accident be decreased if this

strong detergents or abrasives should not be

1-7

FEATURES OF YOUR HYUNDAI

used because they may damage and weaken

pull on the height adjuster knob and then lower

There will be an audible "click" when the tab

the fabric.

or raise the height adjuster into an appropriate.

locks into the buckle.

To raise the height adjuster, pull it up. To lower

The seat belt automatically adjusts to the proper

ZB090K1-A

it, push it down while pressing the height ad-

length only after the lap belt is adjusted manu-

When to Replace Seat Belts

juster button. Release the knob to lock the

ally so that it fits snugly around your hips. If you

The entire seat belt assembly or assemblies

anchor into position. Try to slide the anchor

lean forward in a slow, easy motion, the belt will

should be replaced if the vehicle has been

upward and downward after releasing the knob

extend and let you move around. If there is a

involved in an accident. This should be done

to make sure that it has locked into position.

sudden stop or impact, however, the belt will

even if no damage is visible. Additional ques-

lock into position. It will also lock if you try to

tions concerning seat belt operation should be

WARNING:

lean forward too quickly.

directed to your Hyundai Dealer.

o The height adjuster must be in the locked

position whenever the vehicle is moving.

ZB090U1-A

o The misadjustment of height of the shoul-

B170A03X-GAT

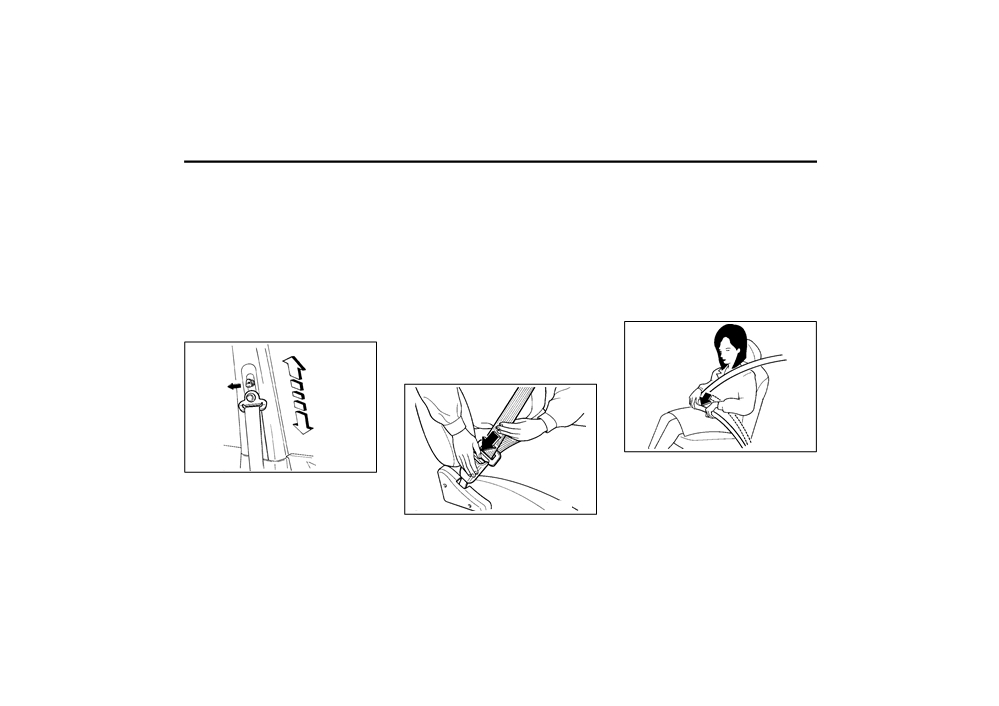

Adjusting Your Seat Belt

der belt could reduce the effectiveness

HEIGHT ADJUSTABLE FRONT SEAT

of the seat belt in a crash.

SHOULDER BELT (Not all models)

ZB090T1-H

SEAT BELTS (3-Point Type)

To Fasten Your Belt

FUA1090Q

XV10191E

You should place the belt as low as possible on

your hips, not on your waist. If located too high

You can adjust the height of the front seat

on your body, the chances of sliding out from

shoulder belt anchor to one of 4 positions. The

under it and suffering serious injury or death are

shoulder belt should be adjusted so that it fits

FUA1090P

increased. Both arms should not be under or

midway over the shoulder, and NEVER across

over the belt. Rather, one should be over and

the neck.

To fasten your seat belt, pull it out of the

the other under, as shown in the illustration.

To adjust the height of the shoulder belt anchor,

retractor and insert the metal tab into the buckle.

1-8

FEATURES OF YOUR HYUNDAI

ZB090V1-A

ZB090W2-A

ZB090X2-A

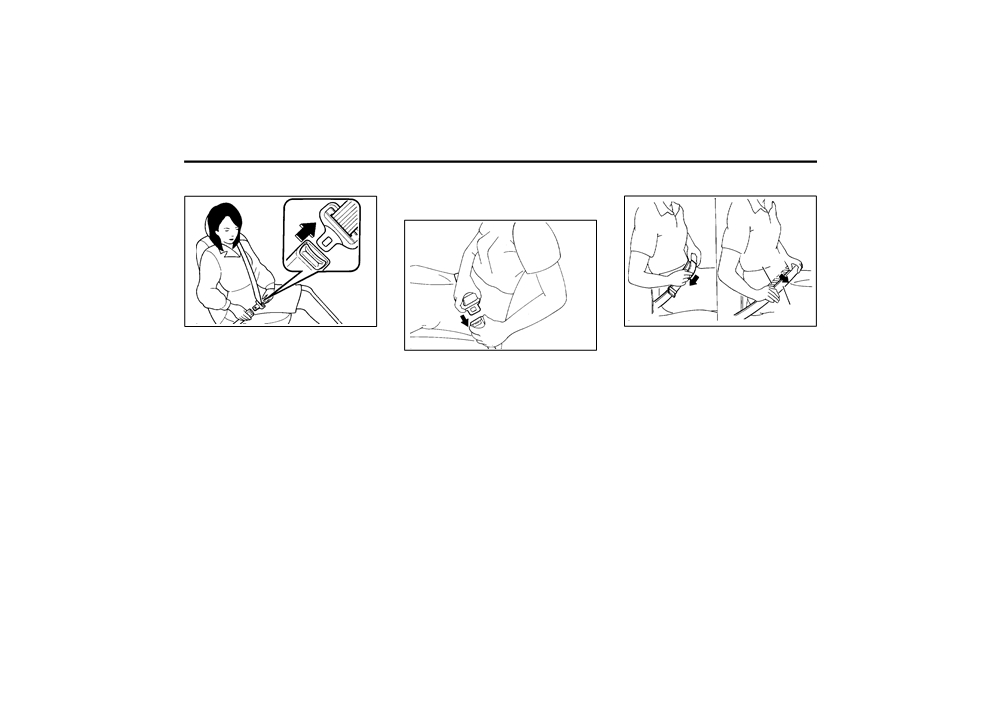

To Release the Seat Belt

SEAT BELTS (2-Point Static Type)

Adjusting Your Seat Belt

(Rear Seat Centre)

To Fasten Your Seat Belt

Too high

Shorten

Correct

FUA1090R

SSA1090T

The seat belt is released by pressing the re-

With a 2-point static type seat belt, the length

SSD1090S

lease button in the locking buckle. When it is

must be adjusted manually so it fits snugly

released, the belt should automatically draw

To fasten a 2-point static type seat belt, insert

around your body. Fasten the belt and pull on

back into the retractor.

the metal tab into the locking buckle. There will

the loose end to tighten. The belt should be

If this does not happen, check the belt to be

be an audible “click” when the tab locks into the

placed as low as possible on your hips, not on

sure it is not twisted, then try again.

buckle. Check to make sure the belt is properly

your waist. If the belt is too high, it could

locked and that the belt is not twisted.

increase the possibility of your being injured in

an accident because you could slide under it.

1-9

FEATURES OF YOUR HYUNDAI

ZB090Y1-A

B230A02P-GAT

Since a safety belt or child restraint sys-

To Release the Seat Belt

CHILD RESTRAINT SYSTEM

tem can become very hot if it is left in a

closed vehicle, be sure to check the seat

(Not all models)

cover and buckles before placing a child

Children riding in the car should sit in the rear

there.

seat and must always be properly restrained to

When the child restraint system is not in

minimize the risk of injury in an accident, sud-

use, fasten it with a safety belt so that it

den stop or sudden maneuver. According to

will not be thrown forward in the case of

accident statistics, children are safer when prop-

a sudden stop or an accident.

erly restrained in the rear seats than in the front

Children who are too large to be in a

seat. Larger children should use one of the seat

child restraint should sit in the rear seat

belts provided.

and be restrained with the available lap/

You are required by law to use safety restraints

shoulder belts. Never allow children to

for children. If small children ride in your vehicle

B220C01A

ride in the front passanger seat.

you must put them in a child restraint system

Always make sure that the shoulder belt

(safety seat).

When you want to release the seat belt, press

portion of the outboard lap/shoulder belt

Children could be injured or killed in a crash if

the button in the locking buckle.

is positioned midway over the shoulder,

their restraints are not properly secured. For

never across the neck or behind the back.

small children and babies, a child seat or infant

WARNING:

Moving the child closer to the center of

seat must be used. Before buying a particular

The centre lap belt latching mechanism is

the vehicle may help provide a good

child restraint system, make sure it fits your car

different from those for the rear seat shoul-

shoulder belt fit. The lap belt portion of

seat and seat belts, and fits your child. Follow

der belts. When fastening the rear seat shoul-

the lap/shoulder belt or the center seat

all the instructions provided by the manufac-

der belts or the centre lap belt, make sure

lap belt must always be positioned as

turer when installing the child restraint system.

they are inserted into the correct buckle to

low as possible on the child's hips and

obtain maximum protection from the seat

as snug as possible.

WARNING:

belt system and assure proper operation.

If the seat belt will not properly fit the

o A child restraint system must be placed

child, we recommend the use of an ap-

in the rear seat. Never install a child or

proved booster seat in the rear seat in

infant seat on the front passenger's seat.

order to raise the child's seating height

Should an accident occur and cause the

so that the seat belt will properly fit the

passenger side airbag to deploy, it could

child.

severely injure or kill an infant or child

Never allow a child to stand up or kneel

seated in an infant or child seat. Thus,

on the seat.

only use a child restraint in the rear seat

of your vehicle.

1-10

FEATURES OF YOUR HYUNDAI

o Never use an infant carrier or child safety

portion of the belt is tight around the child

B230H01X-GAT

Child Seat Restraint Suitability For Seat Po-

seat that "hooks" over a seatback; it may

restraint system and the shoulder portion of the

sition

not provide adequate security in an acci-

belt is positioned so that it cannot interfere with

dent.

the child's head or neck. After installation of the

Use child safety seats that have been officially

o Never allow a child to be held in a person's

child restraint system, try to move it in all

approved and are appropriate for your children.

arms while they are in a moving vehicle,

directions to be sure the child restraint system

as this could result in serious injury to

is securely installed.

Seating Position

the child in the event of an accident or a

If you need to tighten the belt, pull more web-

Age Group

Front

Rear

sudden stop. Holding a child in a moving

bing toward the retractor. When you unbuckle

Passenger

Outboard

Center

vehicle does not provide the child with

the seat belt and allow it to retract, the retractor

0 : Up to 10 kg

any means of protection during an acci-

will automatically revert back to its normal seated

(0 ~ 9 months)

dent, even if the person holding the child

passenger emergency locking usage condition.

0+ : Up to 13 kg

is wearing a seat belt.

(0 ~ 2 years)

NOTE:

9kg to 18kg

o Before installing the child restraint sys-

(9 months ~

B230G01A-GAT

tem, read the instructions supplied by

4 years)

Installation on Outboard Rear Seats

the child restraint system manufacturer.

II & III

15kg to

On outboard rear seats

o If the seat belt does not operate as de-

36kg (4 ~ 12 years)

scribed, have the system checked imme-

U : Suitable for "universal" category restraints

diately by your authorized Hyundai dealer.

approved for use in this mass group

UF : Suitable for forward-facing "universal" cat-

WARNING:

egory restraints approved for use in this

Do not install any child restraint system in

mass group

the front passenger seat. Should an acci-

X : Seat position not suitable for children in

dent occur and cause the passenger side

this mass group

airbag to deploy, it could severely injure or

kill an infant or child seated in an infant or

child seat. Therefore, only use a child re-

YR10400B

straint system in the rear seat of your ve-

To install a child restraint system in the out-

hicle.

board rear seats, extend the shoulder/lap belt

from its retractor. Install the child restraint sys-

tem, buckle the seat belt and allow the seat belt

to take up any slack. Make sure that the lap

1-11

FEATURES OF YOUR HYUNDAI

B180B01X-GAT

B240A02F-EAT

NOTE:

Pre-tensioner Seat Belt

SUPPLEMENTAL RESTRAINT

Be sure to read information about the SRS

on the labels provided on the backside of

(Not all models)

(AIRBAG) SYSTEM (Not all models)

the sun visor and in the glove box.

Ordinarily the pre-tensioner seat belt operates

in the same way as E.L.R (Emergency Locking

WARNING:

Retractor) type (When vehicles stop suddenly,

As its name implies, the SRS is designed

the belt will lock into the position. It will also

to work with, and be supplemental to, the

lock if you try to lean forward too quickly.).

driver's and the passenger's three point

However, when vehicles crash, the retractor

seat belt systems and is not a substitute

rewinds the belt webbing. This will restrain the

for them. Therefore your seat belts must

passenger movement quickly and also reduce

be worn at all times while the vehicle is in

the slack between passenger and belt webbing.

motion. In addition, the airbags deploy

only in certain frontal impact conditions

NOTE:

o When the pre-tensioner seat belt is acti-

AS10356A

severe enough to likely cause significant

injury to the vehicle occupants.

vated, there may be an explosion noise.

The SRS is designed to deploy the airbags

This noise is normal and is not hazard-

Your Hyundai is equipped with a Supplemental

ous.

Restraint (Airbag) System. The indications of

only when an impact is sufficiently se-

o Pre-tensioner seat belt is designed to

the system's presence are the letters "SRS AIR

vere and when the impact angle is less

operate only when a sufficiently severe

BAG" embossed on the airbag pad cover in the

than 30° from the forward longitudinal

impact occurs and it will be only operat-

steering wheel and the passenger's side front

axis of the vehicle and will not deploy in

ed once.

panel pad above the glove box.

side, rear or rollover impacts. Additional-

ly, the airbags will only deploy once.

WARNING:

The Hyundai SRS consists of airbags installed

Thus, seat belts must be worn at all

If the pre-tensioner seat belt was activated,

under the pad covers in the centre of the

times.

never attempt to replace it by yourself. It

steering wheel and the passenger's side front

must be replaced by an authorized Hyundai

panel above the glove box. The purpose of the

Dealer.

SRS is to provide the vehicle's driver and/or the

front passenger with additional protection than

that offered by the seat-belt system alone, in

case of a frontal impact of sufficient severity.

1-12

FEATURES OF YOUR HYUNDAI

B240B01X-EAT

SRS Components and Functions

Rear impact

Side impact

Rollover

B240C01X

FUA1112A

o Front airbags are not intended to deploy

The SRS service reminder indicator (SRI) on

in side-impact, rear-impact or rollover

FUA1111B

the instrument panel will blink for about 6 sec-

crashes. In addition, airbags will not de-

The SRS consists of the following components:

onds after the ignition key is turned to the "ON"

ploy in frontal crashes below the deploy-

position or after the engine is started, after

ment threshold speed.

- Driver's Side Airbag Module

which the SRI should go out.

o For maximum safety protection in all

- SRS Service Reminder Indicator (SRI)

types of crashes, all occupants including

- SRS Control Module (SRSCM)

the driver should always wear their seat

The SRSCM continually monitors all elements

belts whether or not an airbag is also

while the ignition is "ON" to determine if a

provided at their seating position to min-

frontal or near-frontal impact is severe enough

imize the risk of severe injury or death in

to require airbag deployment.

the event of a crash. Do not sit or lean

unnecessarily close to the airbag while

the vehicle is in motion.

o The SRS airbag system must deploy very

rapidly to provide protection in a crash. If

an occupant is out of position because of

FUA1113A

not wearing a seat belt, the airbag may

forcefully contact the occupant causing

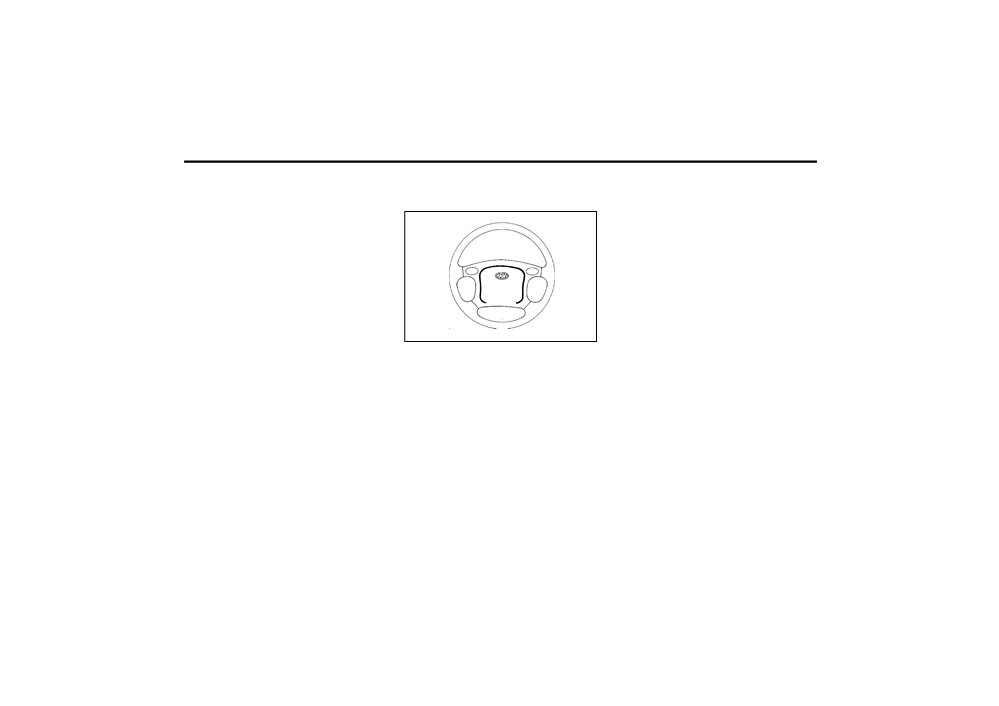

The airbag modules are located both in the

serious or fatal injuries.

centre of the steering wheel. When the SRSCM

detects a considerable impact to the front of the

vehicle, it will automatically deploy the airbags.

1-13

FEATURES OF YOUR HYUNDAI

Upon deployment, tear seams molded directly

WARNING:

B240C01X-EAT

into the pad covers will separate under pres-

When the SRS is activated, there may be

SRS Care

sure from the expansion of the airbags. Further

a loud noise and fine dust will be re-

The SRS is virtually maintenance-free and so

opening of the covers then allows full inflation of

leased through out the vehicle. These

there are no parts you can safely service by

the airbags.

conditions are normal and are not haz-

yourself. The entire SRS system must be in-

ardous. However, the fine dust generat-

spected by an authorized Hyundai dealer in 10

A fully inflated airbag in combination with a

ed during airbag deployment may cause

years after the date that the car was manufac-

properly worn seat belt slows the driver's for-

skin irritation. Be sure to wash your hands

ture.

ward motion, thus reducing the

and face thoroughly with lukewarm wa-

Any work on the airbag system, such as remov-

risk of head and chest injury.

ter and a mild soap after an accident in

ing, installing, repairing, or any work on the

which the airbags were deployed.

steering wheel must be performed by a quali-

After complete inflation, the airbag immediately

The SRS can function only when the

fied Hyundai technician.

starts deflating, enabling the driver to maintain

ignition key is in the "ON" position. If the

Improper handling of the airbag system may

forward visibility.

SRS SRI does not come on, or continu-

result in serious personal injury.

ously remains on, after flashing for about

CAUTION:

6 seconds when the ignition key is turned

WARNING:

When installing a container of liquid air

to the "ON" position, or after the engine

o Modification to SRS components or wir-

fresherer inside a vehicle, do not place it

is started, or comes on while driving, the

ing, including the addition of any kind of

near the instrument cluster nor on the in-

SRS is not working properly. If this oc-

badges to the pad cover or modifica-

strument panel pad surface. If there is any

curs, have your vehicle immediately in-

tions to the body structure, can adverse-

leakage from the air fresherer onto these

spected by your Hyundai dealer.

ly affect SRS performance and lead to

areas (instrument cluster, instrument panel

Before you replace a fuse or disconnect

possible injury.

pad or air ventilator), it may damage these

a battery terminal, turn the ignition key to

o For cleaning the horn pad, use only a

parts. If the liquid from the air fresherer

the "LOCK" position or remove the igni-

soft, dry cloth or one which has been

does leak onto these areas, wash them with

tion key. Never remove or replace the air

moistened with plain water. Solvents or

water immediately.

bag related fuse(s) when the ignition key

cleaners could adversely affect the airbag

is in the "ON" position. Failure to heed

cover and proper deployment of the sys-

this warning will cause the SRS SRI to

tem.

illuminate.

o No objects should be placed over or near

the label identifying the airbag on the

steering wheel and instrument panel,

because any such object could cause

harm if the vehicle is in a crash severe

enough to cause the airbag to inflate.

1-14

FEATURES OF YOUR HYUNDAI

If the airbag inflate, it must be replaced

by an authorized Hyundai dealer.

Do not tamper with or disconnect SRS

wiring, or other components of the SRS

system. Doing so could result in injury,

due to accidental firing of the airbag or

by rendering the SRS inoperative.

If components of the airbag system must

be discarded, or if the vehicle must be

scrapped, certain safety precautions

must be observed. Your Hyundai dealer

knows these precautions and can give

you the necessary information. Failure to

follow these precautions and procedures

could increase the risk of personal inju-

ry.

If you sell your vehicle, be sure to inform

the new owner of these important points

and make certain that this manual is

transferred to the new owner together

with the vehicle.

If your vehicle was flooded and has

soaked carpeting or water on flooring,

you shouldn't try to start engine; have

the car towed to authorized Hyundai

dealer.

1-15

FEATURES OF YOUR HYUNDAI

B250A02X-EAT

INSTRUMENTS AND CONTROLS

34 5

7,8

1112

CAUTION:

When installing a container of liquid air

fresherer inside a vehicle, do not place it

near the instrument cluster nor on the crash

pad surface. If there is any leakage from the

air fresherer onto these areas (Instrument

cluster, instrument panel or air ventilator), it

may damage these parts. If the liquid from

an air fresherer does leak onto these areas,

wash them with water immediaterly.

B250A02X-DAG

1314 1516

17 1819

20 21

1. Side Air Vent Louver

8. Rear Wiper Switch/Rear Washer Switch

15. Ashtray

2. Defroster Ventilation Outlet

9. Horn Button

16. Heating/Air Conditioning Control Panel

3. Center Air Vent Louver

10. SRS Air Bag (Driver Side)

17. Front Fog Light Switch

4. Hazard Warning Switch

11. Head light Leveling Device

18. Cigarette Light

5. Digital Clock (Not all models)

12. Multi-Function Light Switch

19. Air Conditioning Switch

6. Rear Defroster Switch

13. Rear Fog Light Switch

20. Ignition Switch

7. Windshield Wiper/Washer Switch

14. Audio System (Not all models)

21. Hood Release Lever

1-16

FEATURES OF YOUR HYUNDAI

B260A04X-EAT

INSTRUMENT CLUSTER AND INDICATOR

B260A03X-DAG

1. Temperature Gauge

8. Immobilizer Warning Indicator Light

15. Parking Brake/Brake Fluid Level Warning

2. Turn Signal Indicator Light

9. Door Ajar Warning Light

Light

3. Speedometer

10. Seat Belt Warning Light

16. SRS Service Reminder Indicator

4. Odometer

11. Malfunction Indicator Lamp (MIL)

(Not all models)

5. Trip Odometer

12. Low Fuel Warning Light

17. Charging System Warning Light

6. Trip Odometer Reset Button

13. High Beam Indicator Light

18. Oil Pressure Warning Light

7. Fuel Gauge

14. ABS Service Reminder Indicator

19. Overdrive Off Indicator Light (Auto T/A only)

(Not all models)

1-17

Hyundai Atos (2002 year). Instruction - part 9
