DIESEL CONTROL SYSTEM

FLA -319

DTC P0605 INTERNAL CONTROL MODULE READ ONLY MEMORY(ROM)
ERROR

COMPONENT LOCATION

E3CA5F91

Refer to DTC P0602.

GENERAL DESCRIPTION

EAF8FFDC

Refer to DTC P0602.

DTC DESCRIPTION

E7F18B44

P0605 is set when 1)communication error between micro controller inside of ECM and EEP ROM is detected or 2)a
different vesion of ECM is installed.

DTC DETECTING CONDITION

ED8A09D3

Item

Detecting Condition

Possible Cause

DTC Strategy

• EEPROM monitorting

Enable Conditions

• IG KEY "ON"

ThresholdValue

• (EEPROM communication error): communication

failure between micro controller inside of
ECM and EEPROM

• Each data range is activated abnormally.
• self test about optional devices(A/C, immobilizer,

cruise control)

DiagnosticTime

• Immediately

Fuel Cut

YES

EGR Off

NO

Fuel Limit

NO

Fail Safe

MIL

NO

• Version difference

between ECM and
ECMcommunication module

• ECM component failure

COMPONENT INSPECTION

EF2DEFF3

1.

ECM Component Inspection

1)

IG KEY "OFF", ENGINE "OFF".

2)

Disconnect ECM.

3)

Replace ECM, check if abnormal operations disappear.

4)

If problems are corrected, replace ECM.

VERIFICATION OF VEHICLE REPAIR

E0D33456

Refer to DTC P0602.

FLA -320

FUEL SYSTEM

DTC P0606 ECM/PCM PROCESSOR(ECM-SELF TEST FAILED)

COMPONENT LOCATION

E556A464

Refer to DTC P0602.

GENERAL DESCRIPTION

EA98F57C

Refer to DTC P0602.

DTC DESCRIPTION

E0AEAC1F

P0606 is set when 1) writing/reading error inside of ECM occur. 2) error of APS 2 ground checking which is repeated
every 0.2 sec. or 3) the voltage of sensor power supply 1 and 2 ( the standard voltage of A/D converter) are below 4.7V
or above 5.1V. This code is due to ECM internal failure.

DTC DETECTING CONDITION

E09FAEE2

Item

Detecting Condition

Possible Cause

DTC Strategy

• Signal monitoring

Enable Conditions

• IG KEY "ON"

ThresholdValue

• writing/reading error inside of ECM - 100ms
• APS 2 ground checking error - 500ms
• APS 2 ground checking error - 100ms

DiagnosticTime

• Refer to the data above this cell

Fuel Cut

NO

EGR Off

NO

Fuel Limit

NO

Fail Safe

MIL

NO

• ECM component failure

DIESEL CONTROL SYSTEM

FLA -321

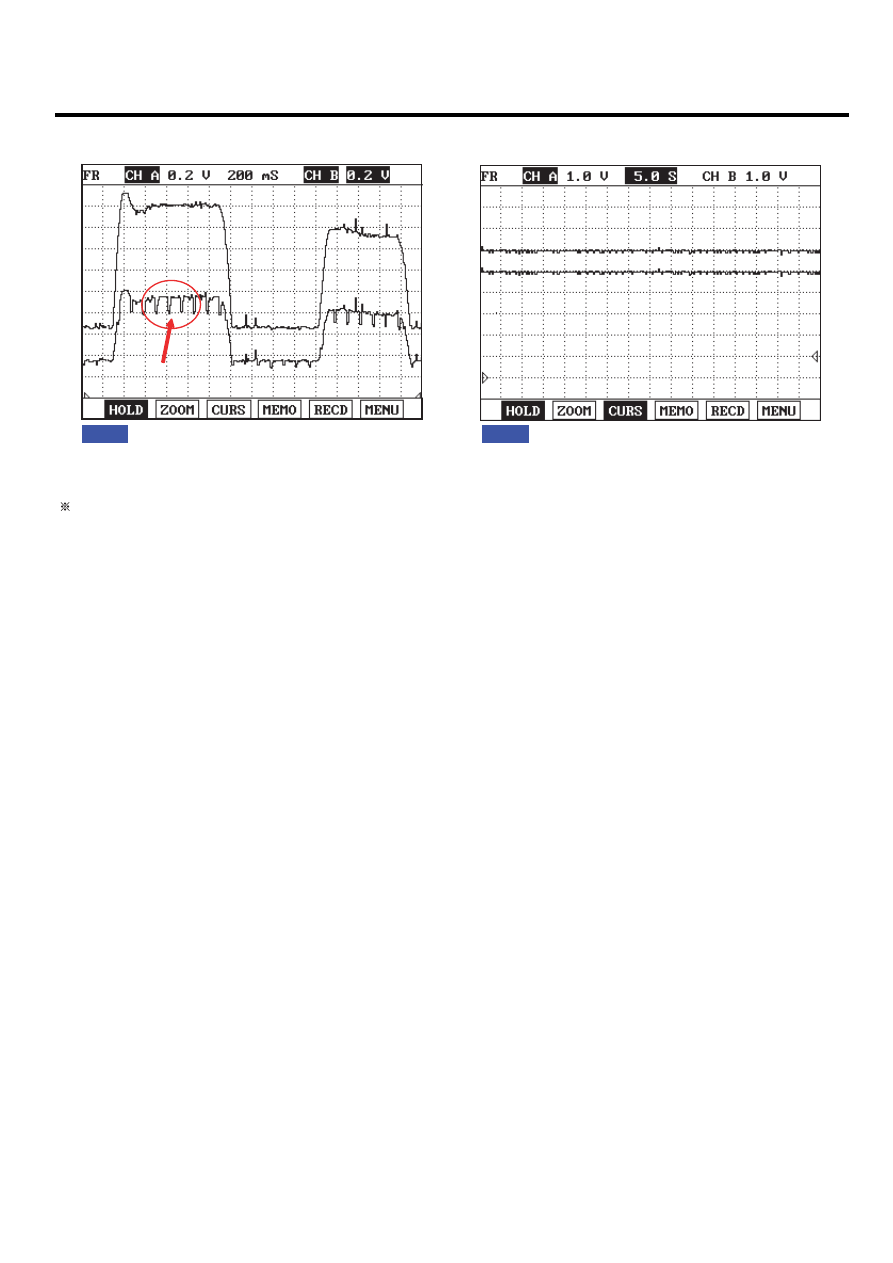

SIGNAL WAVEFORM AND DATA

E0AA3EBC

APS 2 Power

APS1 Power

APS 2 Ground check signal

APS 1 Signal

APS 2 Signal

Fig.1

Fig.2

Fig.1) Ground checking signal of APS 2 signal is for ECM to monitor APS 2. This signal drops APS 2 output voltage to below
          200.39mV every 200msec. If APS 2 output voltage does not drop  to below 200.39mV, ECM sets DTC as recognizing ground
          circuit error of APS 2 .

 The waveform below 200.39mV is not detectable in ground checking signal waveform of APS 2 signal. Instead, the waveform

     which drops a little is detected. If APS 2 data of "SERVICE DATA" on the Scantool varies from 350mV to 0mV periodically,
     it means it works normally.

Fig.2) APS 1 and APS 2 signals are measured simultaneously,  Check if 5V sensor voltage(the standard voltage of A/D converter
          inside of ECM) is from 4.8V to 5.16V.

EGNG001Y

COMPONENT INSPECTION

E43AE240

1.

ECM Component Inspection

1)

IG KEY "OFF", ENGINE "OFF".

2)

Disconnect ECM.

3)

Replace ECM, check if abnormal operations disappear.

4)

If problems are corrected, replace ECM.

VERIFICATION OF VEHICLE REPAIR

E1AE96AD

Refer to DTC P0602.

FLA -322

FUEL SYSTEM

DTC P0611 INJECTOR CIRCUIT MALFUNCTION (MORE THAN TWO
INJECTORS)

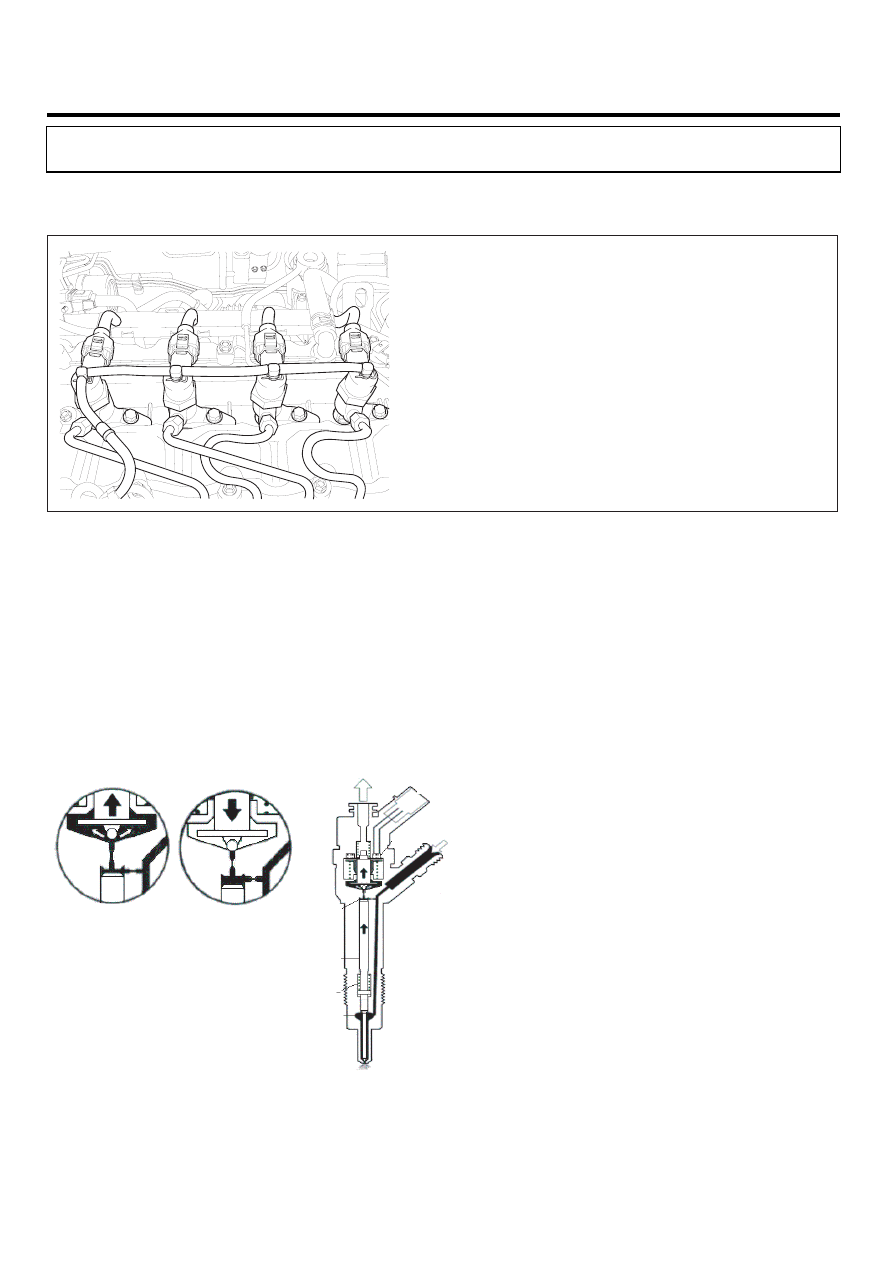

COMPONENT LOCATION

E2C338B1

EGNG008C

GENERAL DESCRIPTION

E8583E16

Injectors spray fuel in the highly compressed combustion chamber, and power generates through combustion process.Fuel
pressure is raised to 1600bar in common rail diesel engine for the purpose of making fuel into minute particles. And fuel
devided into minute particles leads smoke reduction, high power generation, and improved fuel efficiency. To control
pressure of 1600bar with solenoid, oil pressure surbo is applied. And injector solenoids is actuated by solenoid oper-
ating voltage raised to 80V with the method of current control. Niddle valve inside of injector is located between A and
B chamber. If applied pressure to B chamber is relived by injector solenoid, niddle valve is raised by the pressure of A
chamber then, fuel is injected. If same pressure is applied to A and B chamber, niddle valve closes by the elasticity then,
fuel injection stops.As electronically controlled injector is applied instead of mechanical injector, pilot and post injection,
injeciton duration and quantity control are achieved. And engine performance is improved by these control.



ChamberB

ChamberA

niddle

spring

solenoid

B chamber press.

Released

(injection performed)

B chamber press.

loaded

(injection disabled)

returning fuel

EGNG008D
