Hyundai: Engine D4FA. Manual - part 32

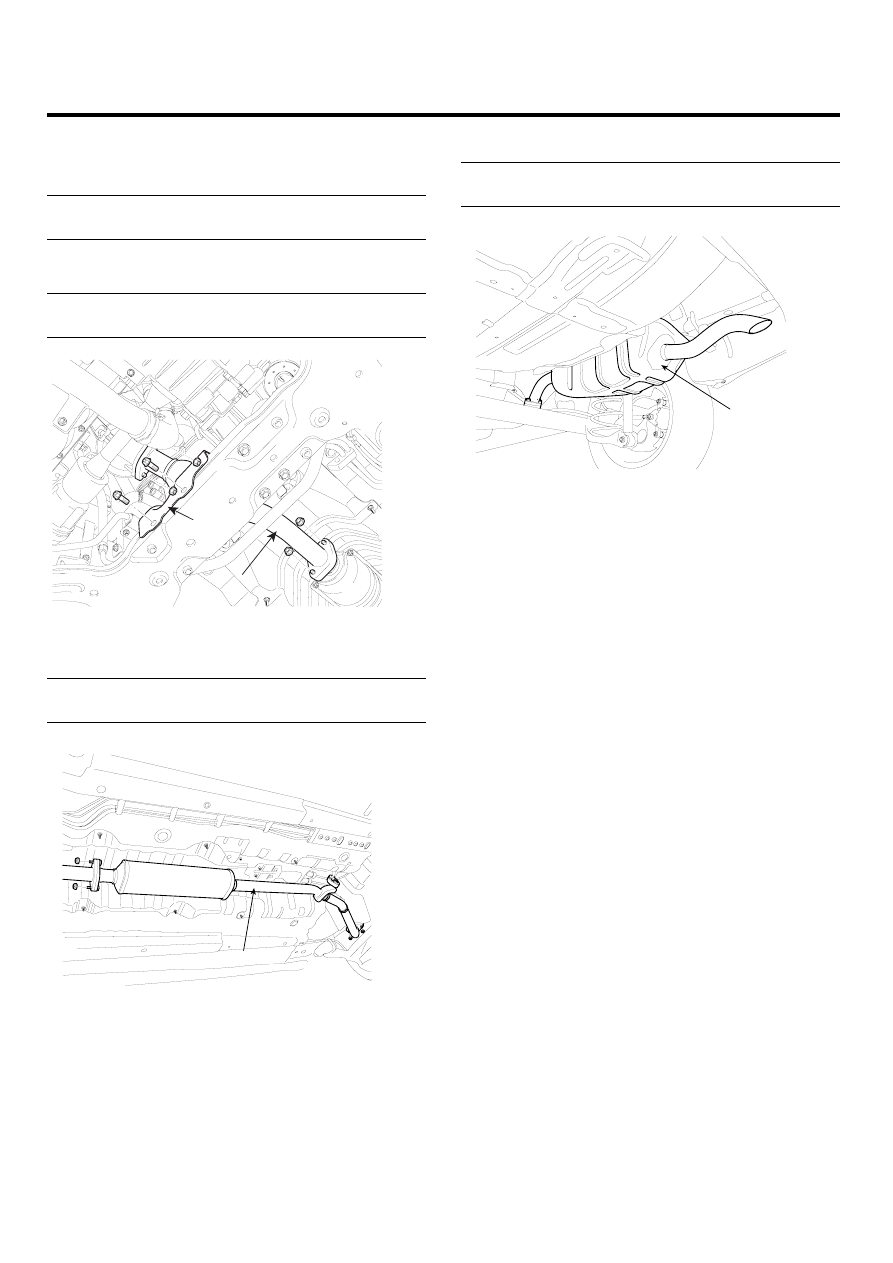

INTAKE AND EXHAUST SYSTEM
EMA -97
6.

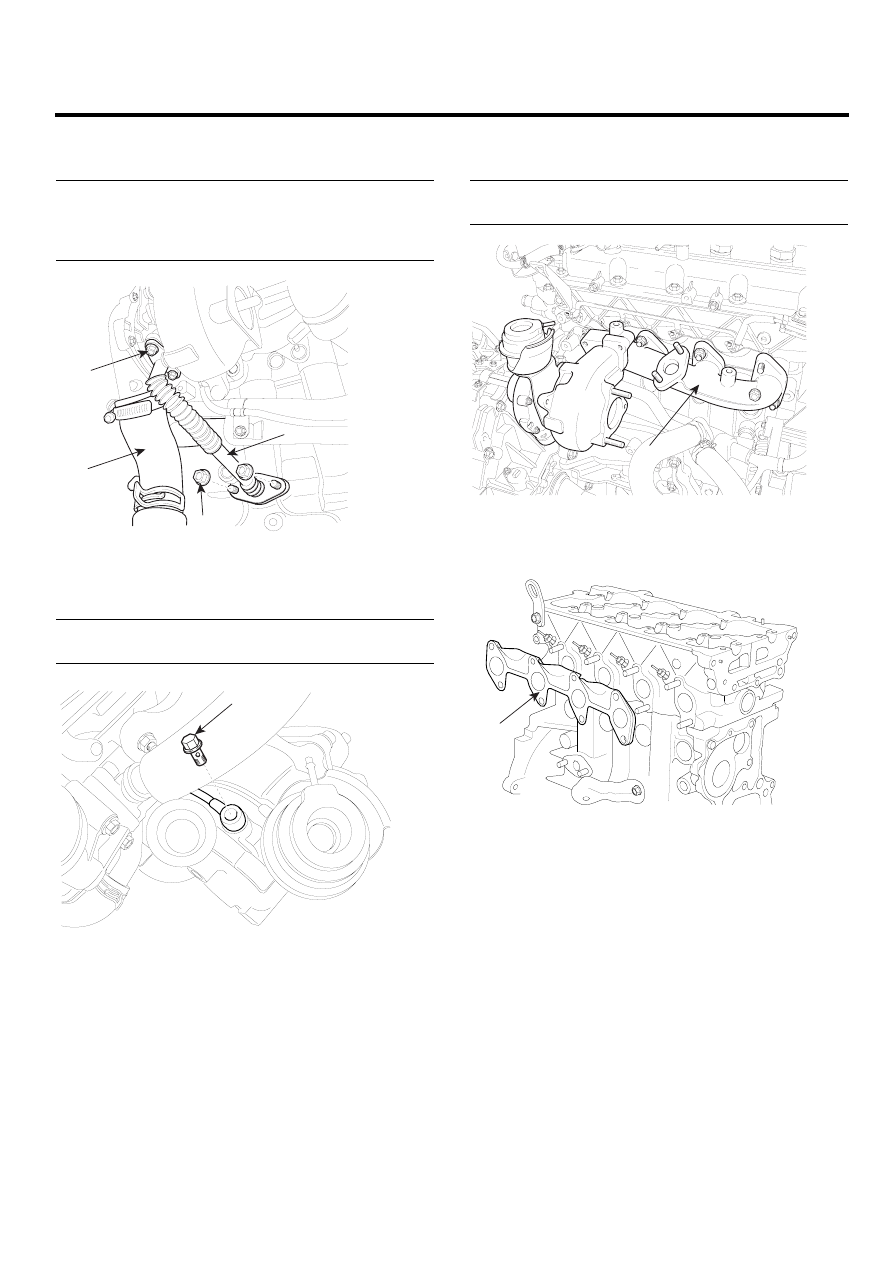

Remove the inter cooler hose(A) and the oil return
pipe(B).
Tightening torque :
Nut(C) : 9.8 ~ 14.7 Nm (1.0 ~ 1.5 kgf.m, 7.2 ~ 10.8 lb-ft)
Bolt(D) : 14.7 ~ 19.6 Nm (1.5 ~ 2.0 kgf.m,
10.8 ~ 14.5 lb-ft)
A
D
B
C
ADJF051A
7.
Remove the eye bolt(A) from the turbo charger oil
feeding pipe.
Tightening torque :
13.7 ~ 18.6 Nm (1.4 ~ 1.9 kgf.m, 10.1 ~ 13.7 lb-ft)
A
LCGF118A
8.
Remove the turbo charger and exhaust manifold as-
sembly(A).
Tightening torque :
29.4 ~ 34.3 Nm (3.0 ~ 3.5 kgf.m, 21.7 ~ 25.3 lb-ft)
A
ADJF043A
9.
Remove the exhaust manifold gasket(A) .
A
LCGF037A
10. Installation is in the reverse order of removal.
