Hyundai: Engine D4FA. Manual - part 19





CYLINDER HEAD ASSEMBLY

EMA -45

REMOVAL

E7827144

Engine removal is required for this procedure.

CAUTION

• To avoid damaging the cylinder head, wait un-

til the engine coolant temperature drops be-
low normal temperature before removing it.

• When handling a metal gasket, take care not

to fold the gasket or damage the contact sur-
face of the gasket.

NOTE

• Turn the crankshaft pulley so that the No. 1 piston

is at top dead center.

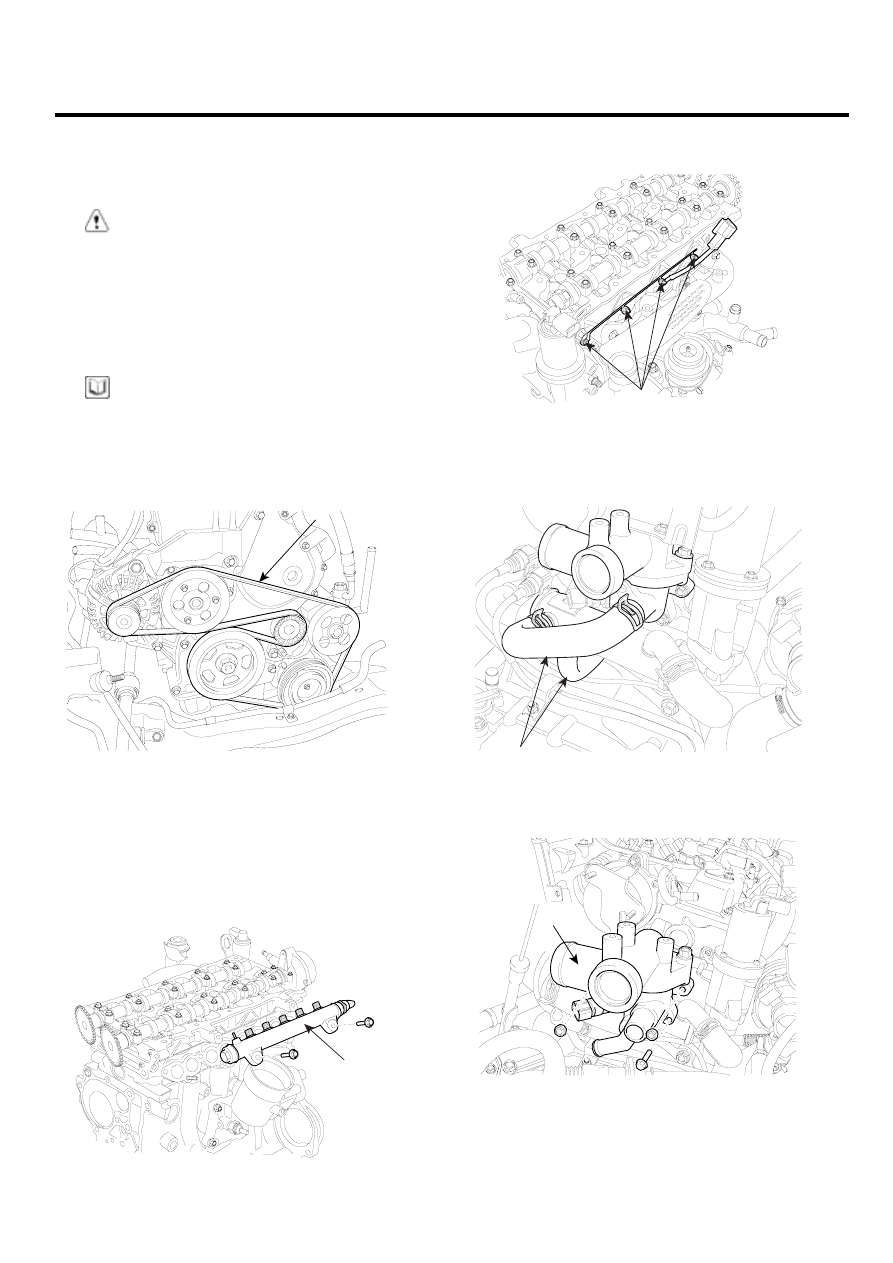

1.

Remove the drive belt(A).

A

ACGF031A

2.

Remove the timing chain. (Refer to EMA-18)

3.

Remove the intake and exhaust manifold. (Refer to
EMA-96)

4.

Remove the delivery pipe(A).

A

LCGF040A

5.

Remove the glow plug(A).

A

LCGF041A

6.

Disconnect the water hose(A) from thermostat hous-
ing.

A

ADJF047A

7.

Remove the thermostat housing(A).

A

ADJF046A

EMA -46

ENGINE (D4FA - DSL1.5)

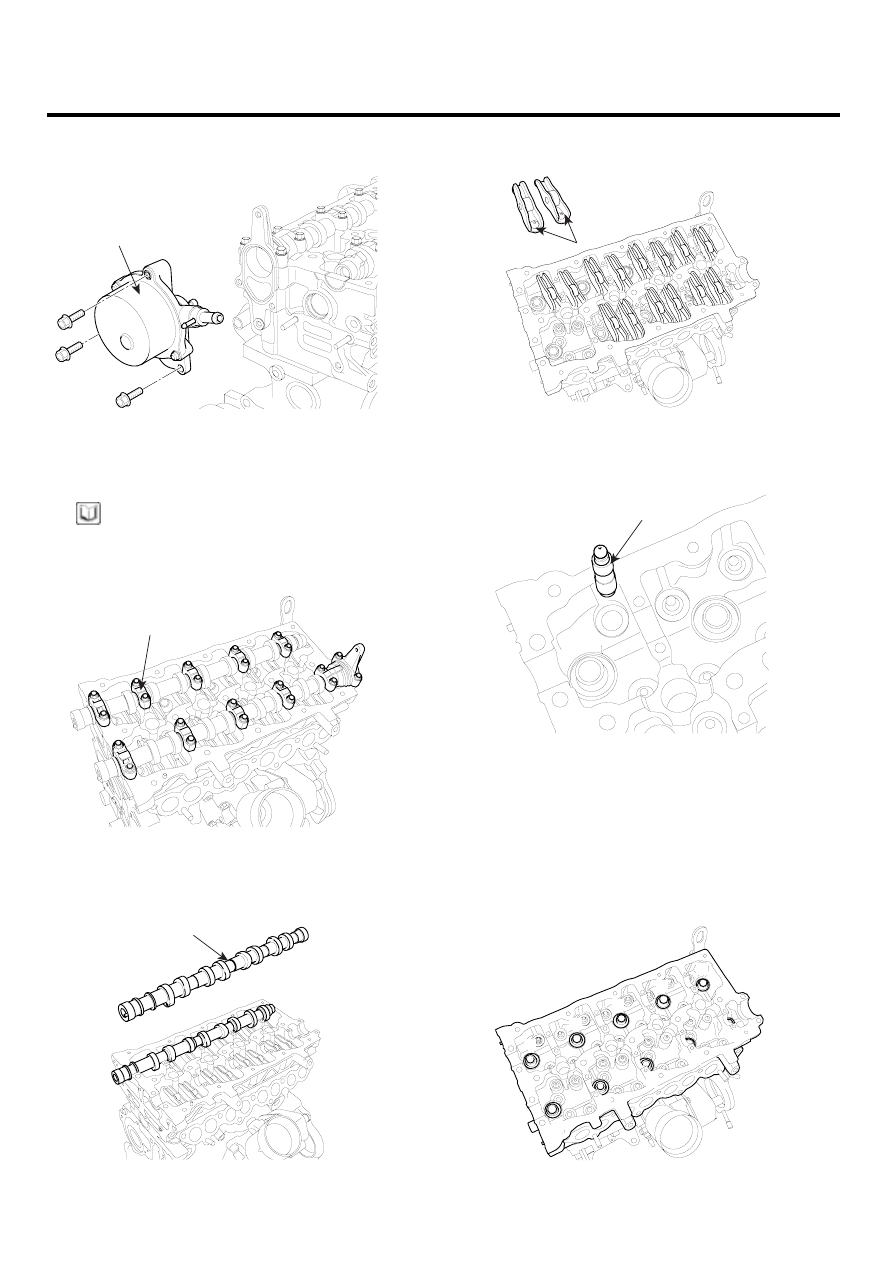

8.

Remove the vacuum pump(A).

A

LCGF044A

9.

Remove the camshaft bearing caps(A).

NOTE

Mark the camshaft bearing caps to be able to re-
assemble in the original position and direction.

A

LCGF045A

10. Remove the camshaft(A).

A

LCGF046A

11. Remove the cam follower(A).

A

LCGF047A

12. Remove the HLA(Hydraulic Lash Adjust)(A).

A

LCGF048A

13. Remove the cylinder head bolts, then remove the

cylinder head.

1)

Using socket (12PT), uniformly loosen and
remove the 10 cylinder head bolts, in several
passes, in the sequence shown.Remove the 10
cylinder head bolts.

1

5

9

8

4

3

7

10

6

2

LCGF049A

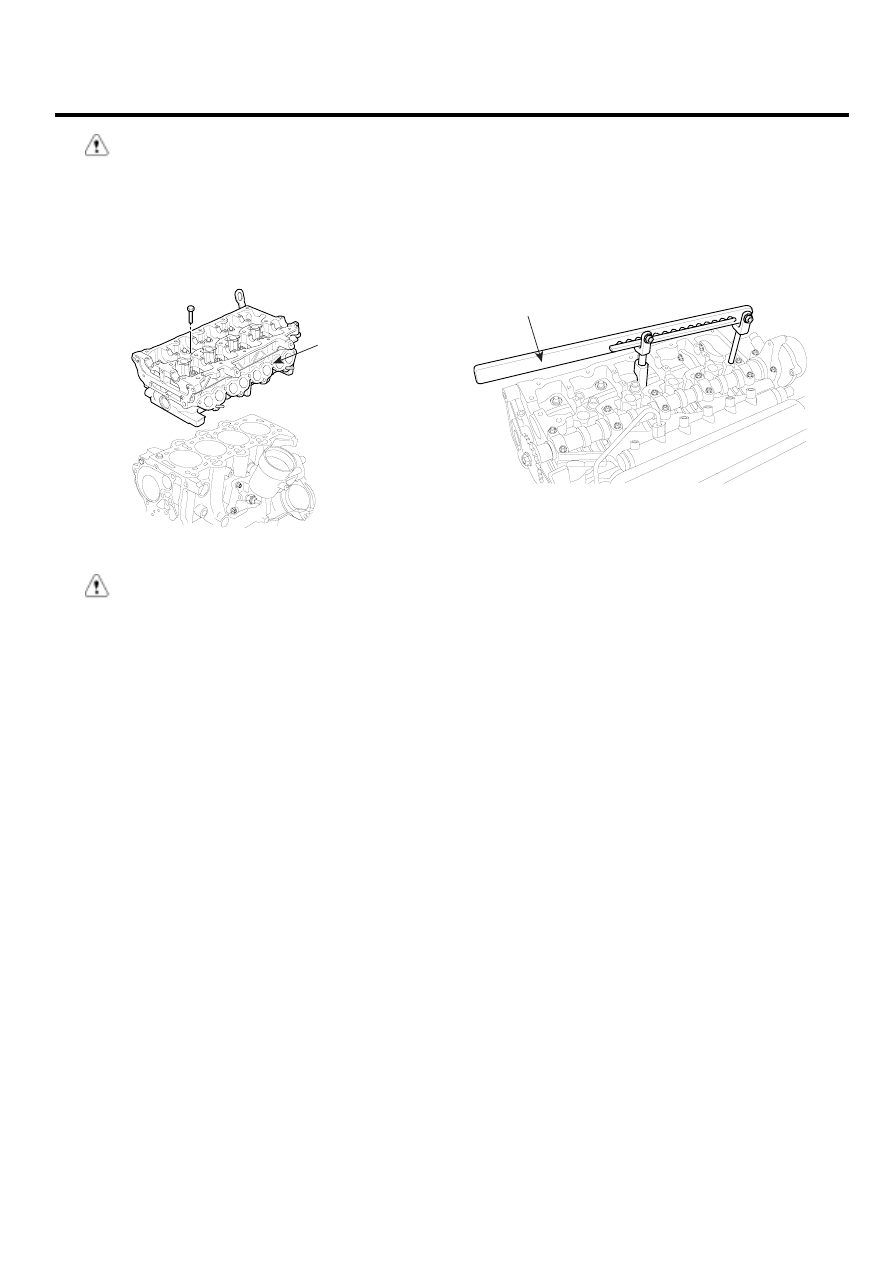

CYLINDER HEAD ASSEMBLY

EMA -47

CAUTION

Head warpage or cracking could result from re-
moving bolts in an incorrect order.

2)

Lift the cylinder head from the dowels on the
cylinder block and replace the cylinder head(A)
on wooden blocks on a bench.

A

LCGF050A

CAUTION

Be careful not to damage the contact surfaces of
the cylinder head and cylinder block.

DISASSEMBLY

EBC5B0B5

1.

Remove the valves.

1)

Using the SST (09222-3K000, 09222-2A100)(A),
compress the valve spring and remove the re-
tainer lock.

A

LCGF101A

2)

Remove the spring retainer.

3)

Remove the valve spring.

4)

Remove the valve.

5)

Using a needle-nose pliers, remove the stem oil
seal.

EMA -48

ENGINE (D4FA - DSL1.5)

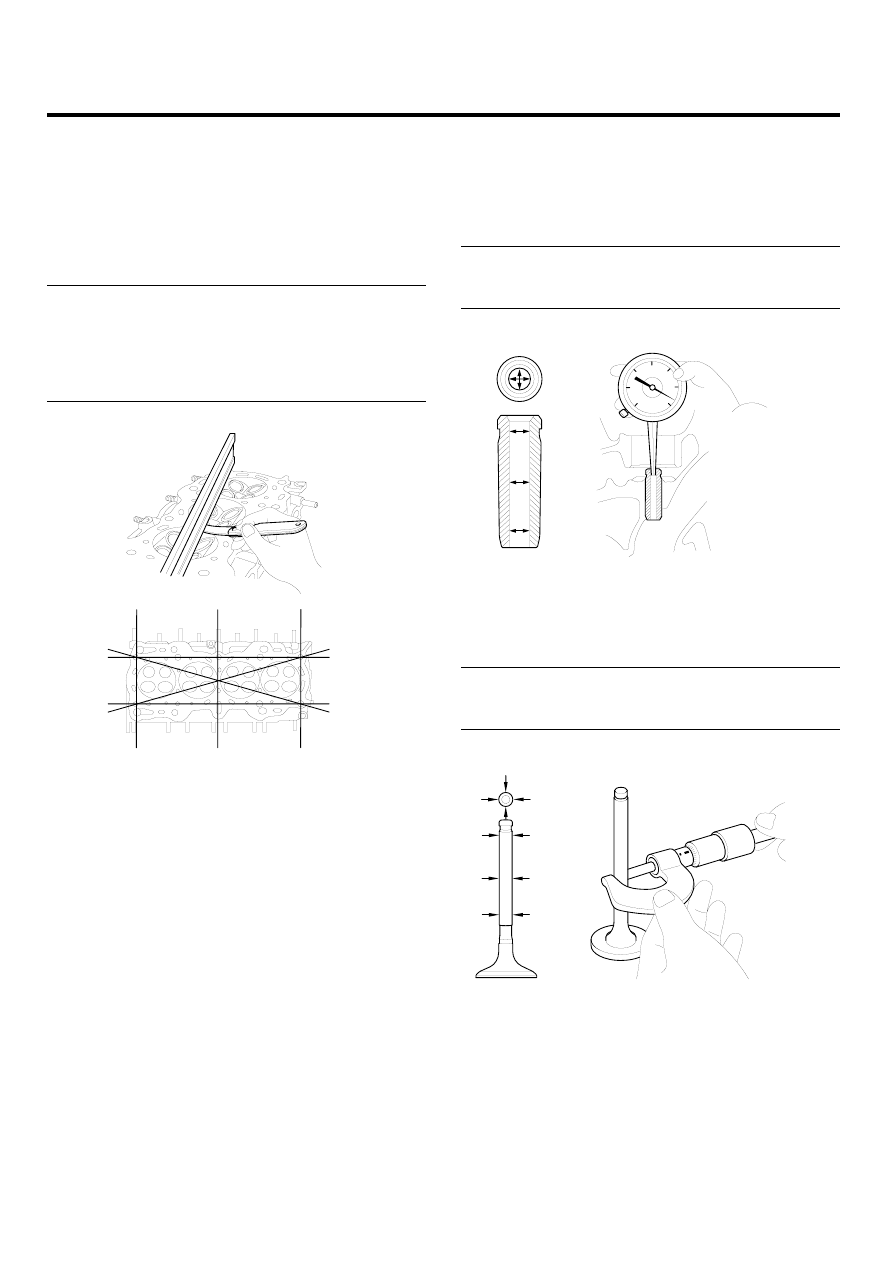

INSPECTION

E45A23A8

CYLINDER HEAD

1.

Inspect for flatness.
Using a precision straight edge and feeler gauge,
measure the surface the contacting the cylinder block
and the manifolds for warpage.

Flatness of cylinder head gasket surface :
Less than 0.03mm (0.0012in) for width
Less than 0.09mm (0.0035in) for length
Flatness of manifold mating surface :
Less than 0.025mm (0.0010in) for width
Less than 0.160mm (0.0063in) for length

ECKD001H

2.

Inspect for cracks.
Check the combustion chamber, intake ports, exhaust
ports and cylinder block surface for cracks. If cracked,
replace the cylinder head.

VALVE AND VALVE SPRING

1.

Inspect the valve stems and valve guides.

1)

Using a caliper gauge, measure the inner diam-
eter of valve guide.

Valve guide inner diameter :
Intake : 5.500 ~ 5.512mm (0.2165 ~ 0.2170in)
Exhaust : 5.500 ~ 5.512mm (0.2165 ~ 0.2170in)

ECKD219A

2)

Using a micrometer, measure the outer diameter
of valve stem.

Valve stem outer diameter
Intake : 5.455 ~ 5.470mm (0.2148 ~ 0.2154in)
Exhaust : 5.435 ~ 5.450mm (0.2140 ~ 0.2146in)

ECKD220A
