129

15

13

11

12

14

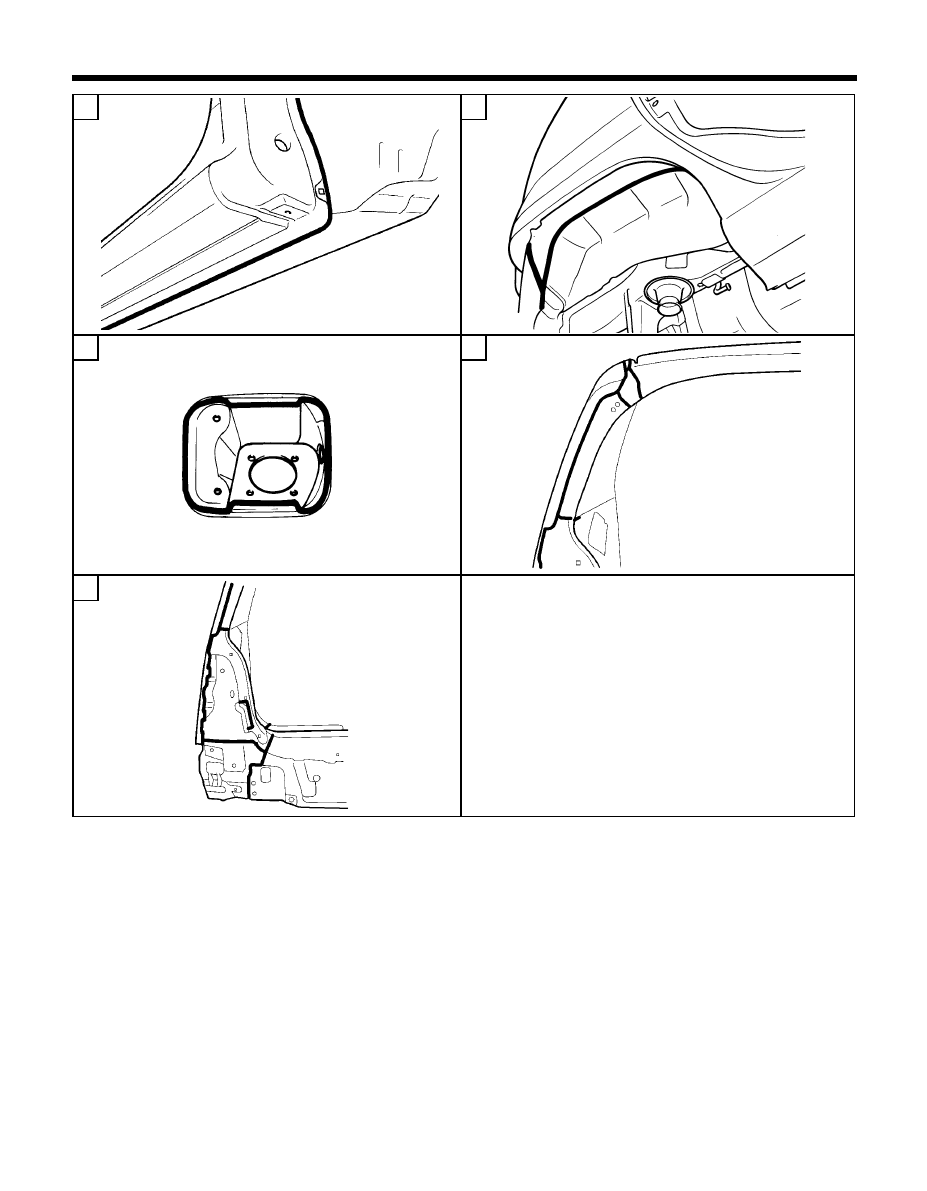

BODY SEALING LOCATIONS - Upper and side body

SEA-0110

SEA-0490

SEA-0310

SEA-0120

SEA-0290

CORROSION
PROTECTION

132

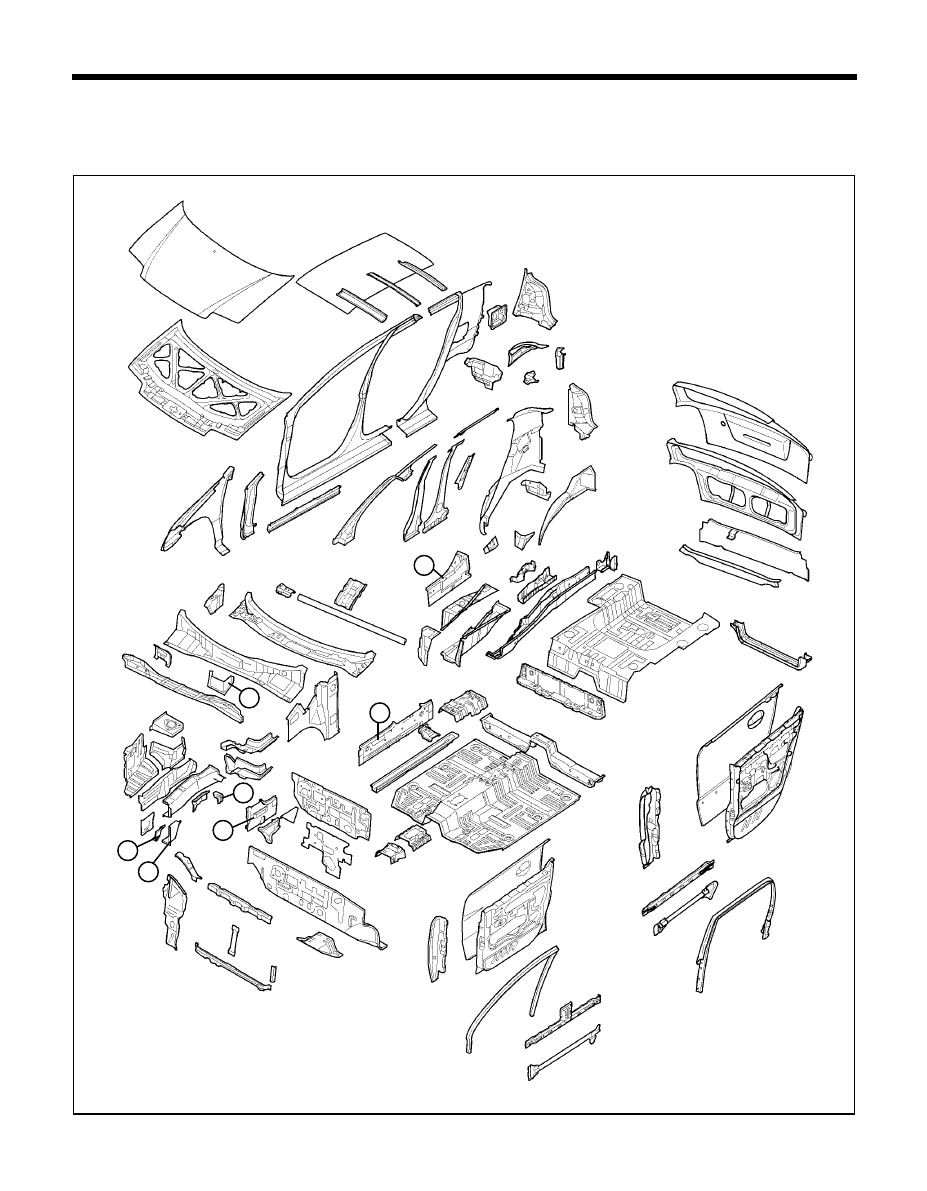

BODY CONSTRUCTION - Zinc-galvanized steel panels (For domestic)

ZINC-GALVANIZED STEEL PANELS

Because galvanized steel panel has excellent resistance, it is used in areas which have a high possibility of painting
deficiency below.

CON-0050

1

3

4

2

7

6

5

133

BODY CONSTRUCTION - Zinc-galvanized steel panels (For domestic)

1. Side sill inner front extension

2. Battery tray mounting bracket

3. Sub frame front mounting bracket

4. Sub frame front mounting reinforcement

5.  Side sill inner panel

6. Side sill inner rear extension

7. Plenum chamber guide bracket
