Hyundai Atos: Body Repair Manual - part 4

19

1. Head lamp support panel

2. Radiator support upper side member

3. Radiator support upper center member

4. Radiator support center member

5. Radiator support center cross member

6. Dash panel

7. Dash lower center reinforcement

8. Side sill inner front extension

9. Front side inner member

10. Front side member inner reinforcement

11. Battery tray mounting bracket

12. Sub frame front mounting bracket

13. Sub frame front mounting reinforcement

14. Front side rear lower member

15. Front side rear upper member

16. Fender apron inner panel

17. Fender apron inner front panel

18. Front shock absorber cover panel

19. Center floor panel

20. TGS lever mounting reinforcement

21. Center floor rear reinforcement

22. Center floor side member

23. Side sill inner panel

24. Rear floor panel

25. Rear front side member

26. Rear floor side reinforcement

27. Side sill inner rear extension

28. Rear bumper mounting bracket

29. Rear floor front cross member

30. Rear floor center cross member

31. Back panel

32. Front pillar inner lower panel

33. Cowl inner lower panel

34. Plenum chamber guide bracket

35. Cowl inner lower center reinforcement

36. Cowl front outer panel

37. Cowl top outer panel

38. Cowl side panel

39. Fender panel

40. Front side outer panel

41. Rear side outer panel

42. Front pillar outer reinforcement

43. Side sill outer reinforcement

44. Fuel filler housing

45. Quarter outer rear lower extension

46. Quarter inner panel

47. Wheel house inner panel

48. Quarter inner rear lower extension

49. Wheel house inner front extension

50. Hood outer panel

51. Hood inner panel

52. Tail gate outer panel

53. Tail gate inner panel

54. Front door outer panel

55. Front door inner panel

56. Front door hinge face reinfrocement

57. Rear door outer panel

58. Rear door inner panel

59. Rear door hinge face reinforcement

BODY CONSTRUCTION - Zinc-galvanized steel panels (For export)

20

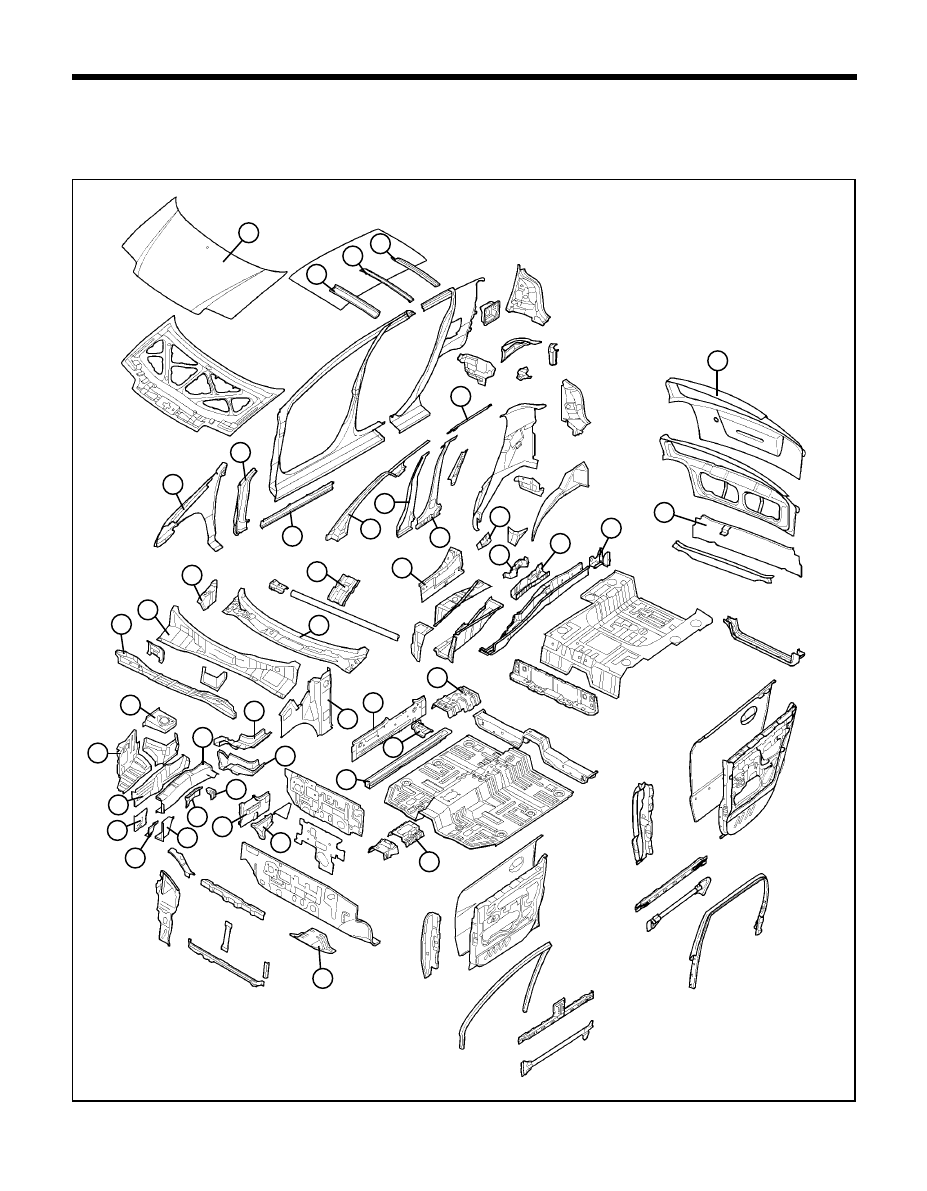

BODY CONSTRUCTION - High-strength steel panels (For export)

HIGH STRENGTH STEEL PANELS

Because High strength steel panel has excellent resistance, it is used in areas which have a high possibility of painting
deficiency below.

2

8

9

6

12

7

5

3

11

4

14

27

26

28

30

25

18

16

19

15

17

31

35

37

39

36

38

20

23

24

43

22

41

40

21

29

42

33

34

32

CON-0050

13

1

10

21

1. Dash lower center reinforcement

2. Side sill inner front extension

3. Dash lower side reinforcement

4. Front side inner member

5. Front side member inner reinforcement

6. Battery tray mounting bracket

7. Sub frame front mounting bracket

8. Sub frame front mounting reinforcement

9. Front side outer member gusset

10. Front side outer member

11. Front side rear lower member

12. Front side rear upper member

13. Fender apron inner front panel

14. Front shock absorber cover panel

15. TGS lever mounting reinforcement

16. Center floor rear reinforcement

17. Center floor side member

18. Side sill inner panel

19. Front seat rear side mounting bracket

20. Rear floor side reinforcement

21. Side sill inner rear extension

22. Rear shock absorber outer side mounting bracket

23. Rear bumper mounting bracket

24. Back panel

25. Front pillar inner lower panel

26. Cowl inner lower panel

27. Cowl front outer panel

28. Cowl top outer panel

29. Cowl side panel

30. Steering column mounting plate

31. Fender panel

32. Roof center rail

33. Roof rear rail

34. Roof front rail

35. Front pillar outer reinforcement

36. Side sill outer reinforcement

37.  Front inner upper piller

38. Center inner pillar

39.  Center pillar outer reinforcement

40. Roof side inner rail

41. Quarter pillar reinforcement

42. Hood outer panel

43. Tail gate outer panel

BODY CONSTRUCTION - High-strength steel panels (For export)

22

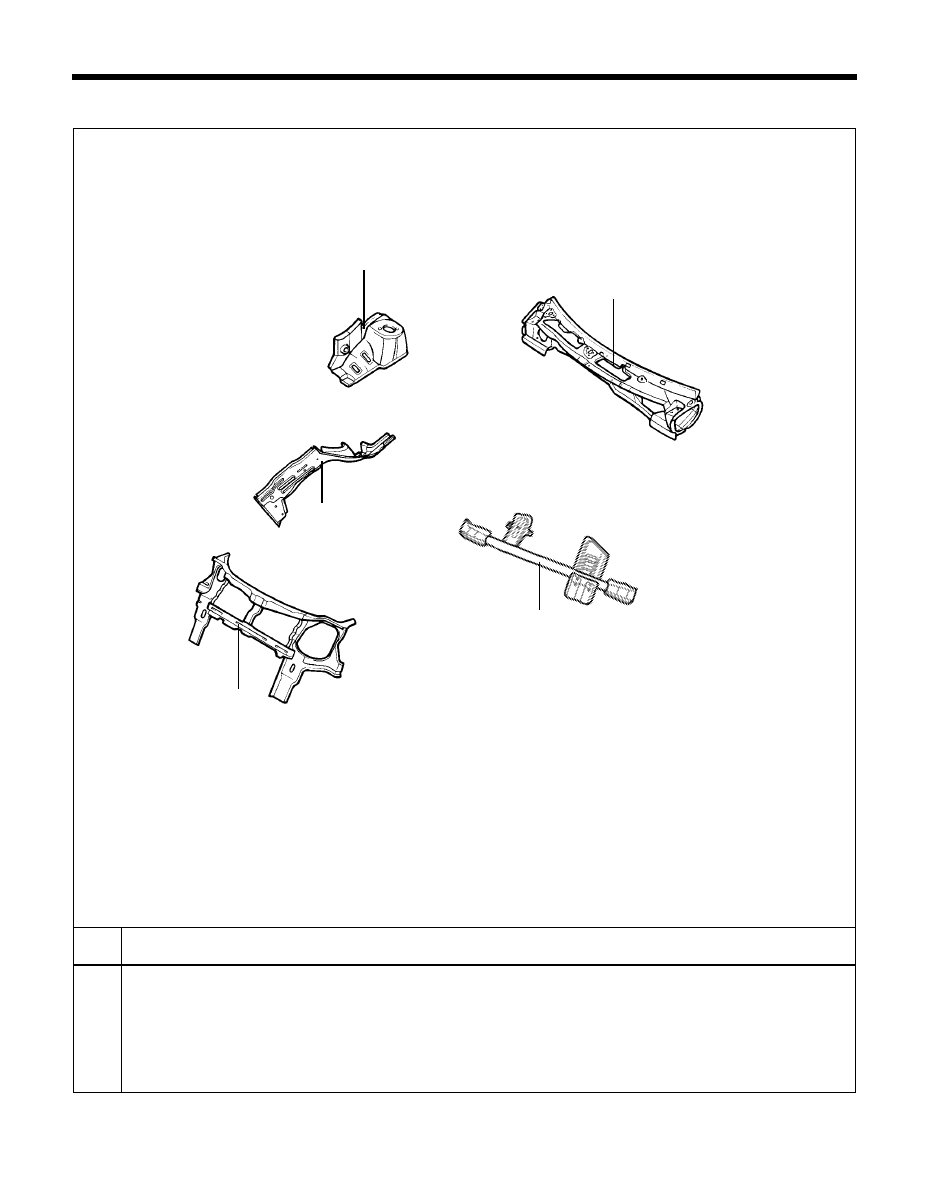

BODY CONSTRUCTION - Front body

FRONT BODY

PART NAME

No.

Radiator support panel
Front side member
Fender apron panel
Cowl top outer panel
Cowl cross member

1
2
3
4
5

3

2

CON-0090/CON-0091

1

4

5
