Hyundai H1: Body Repair Manual - part 27

110

BODY PANEL REPAIR PROCEDURE - Quarter outer panel

QSAQ2420

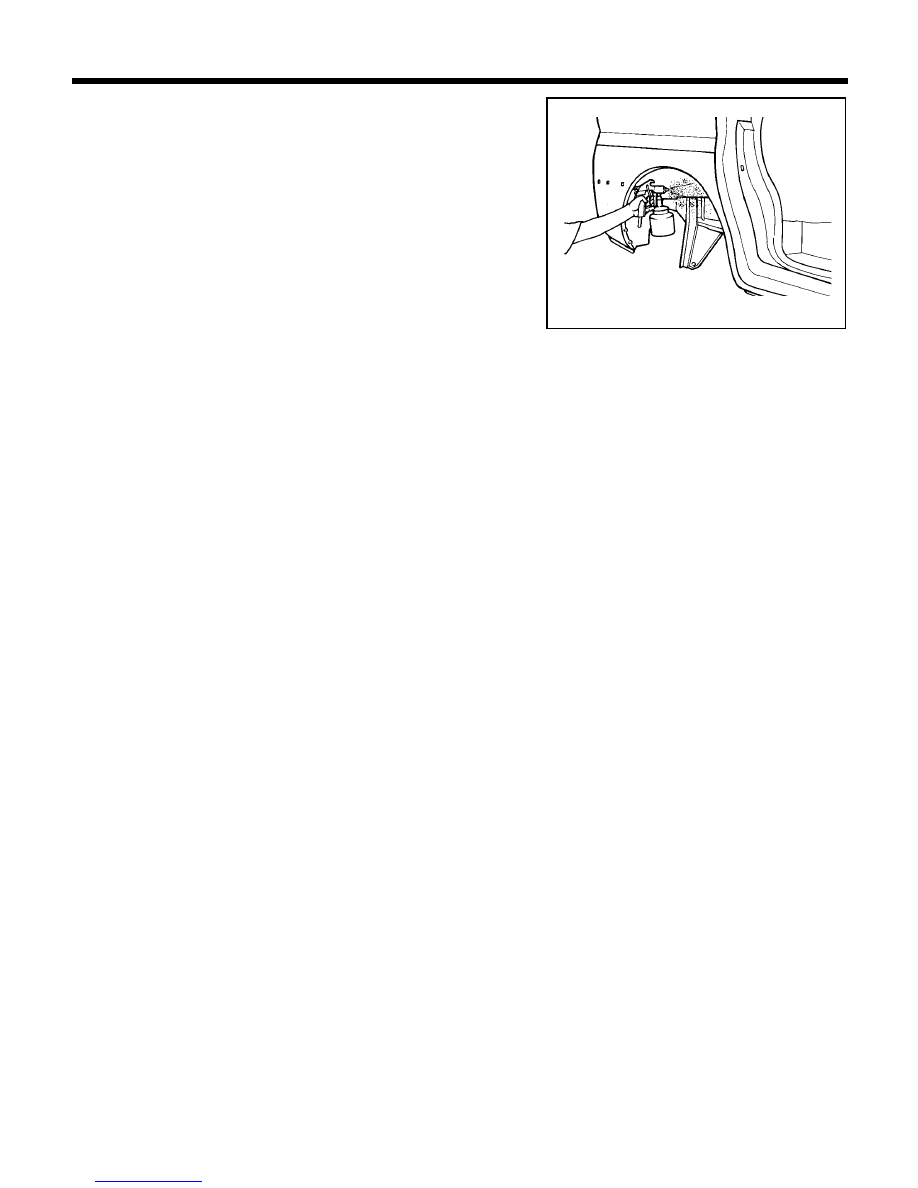

21. After completing body repairs, carefully apply under coating to

the wheel well (Refer to the CORROSION PROTECTION).

22. In order to improve corrosion resistance, if necessary, apply a

under body anti-corrosion agent to the wheel well (Refer to the
CORROSION PROTECTION).

111

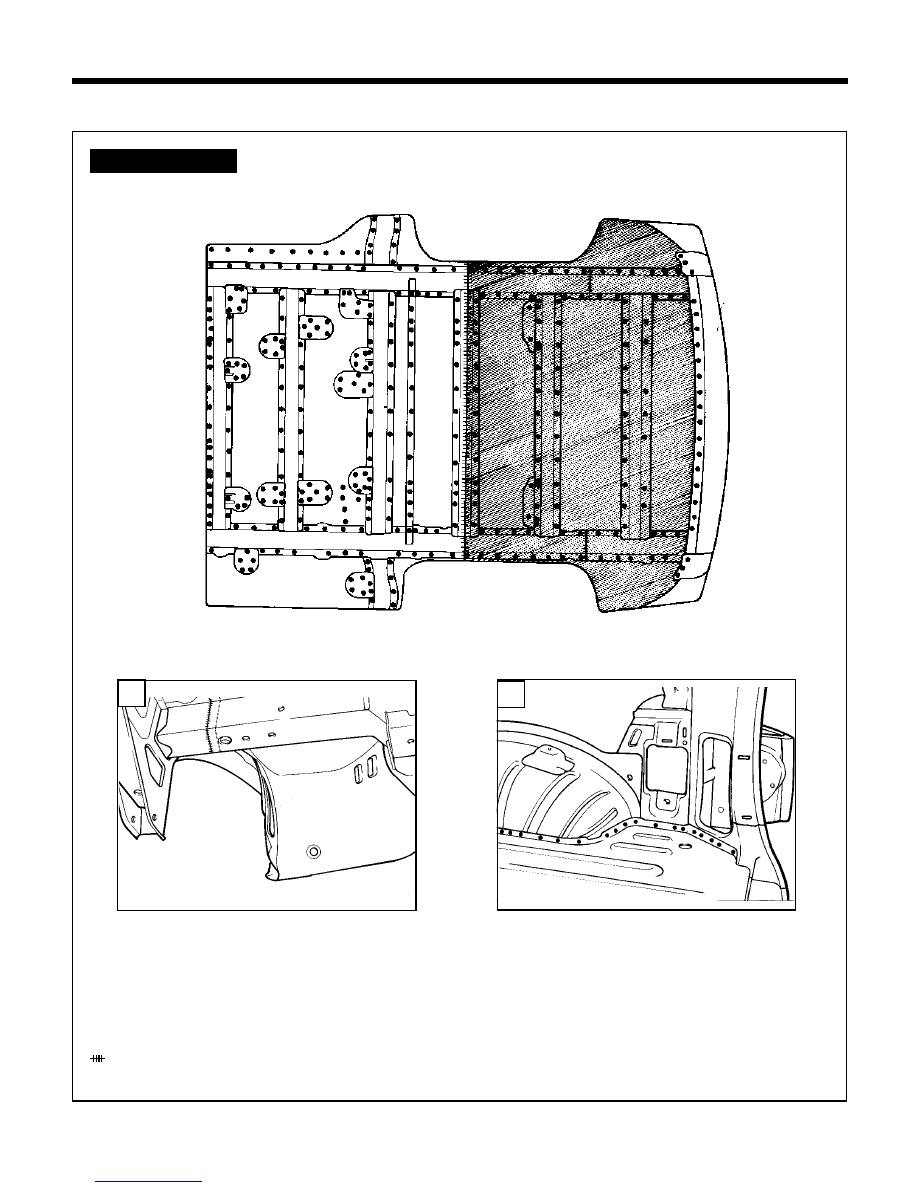

REAR FLOOR (SHORT BODY)

BODY PANEL REPAIR PROCEDURE - Rear floor

z MIG plug welding

MIG batt welding

RRAF3010

RRAF3023

RRAF3012

WELDING POINTS

Ï

Ï

Ï

Ï

Ï

A

Ñ

Ñ

Ñ

Ñ

Ñ

B

A

B

112

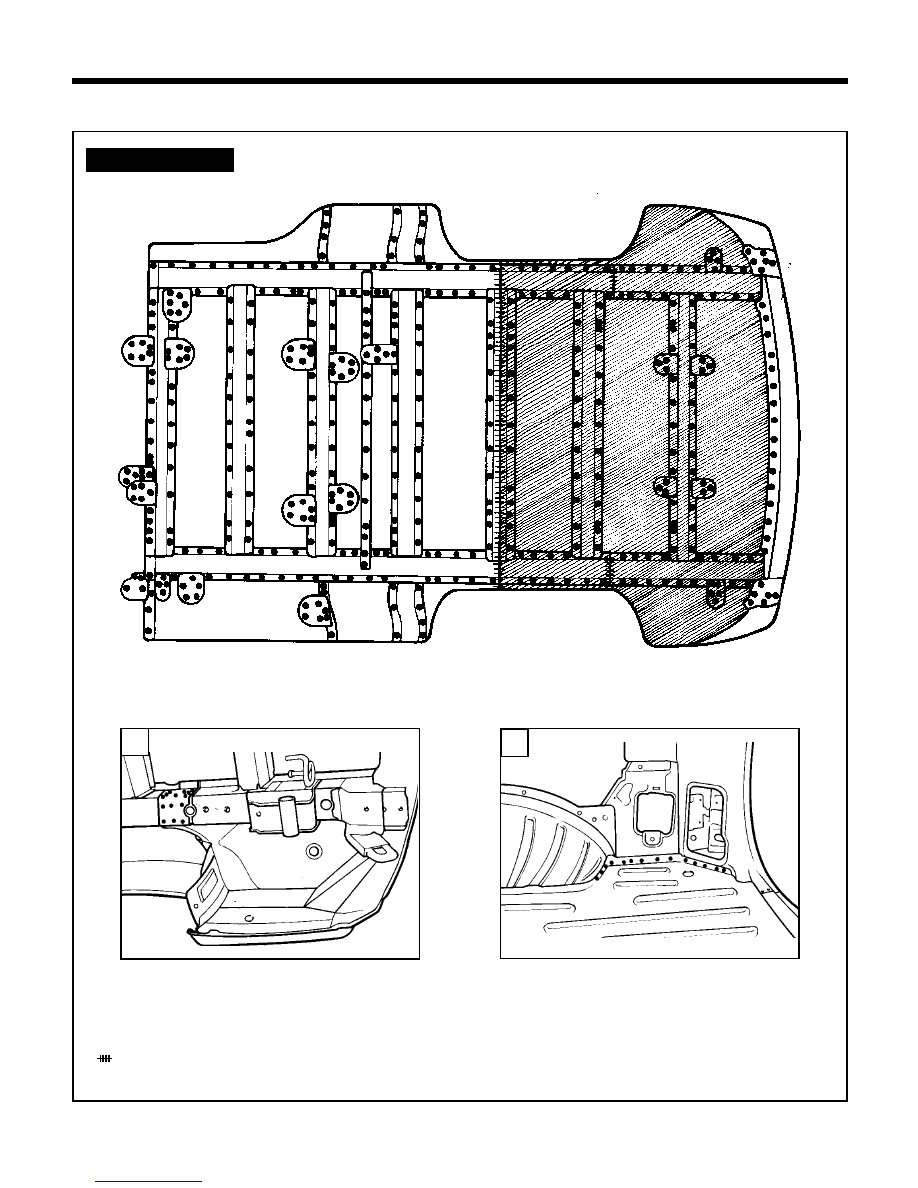

BODY PANEL REPAIR PROCEDURE - Rear floor

REAR FLOOR (LONG BODY)

z MIG plug welding

MIG batt welding

WELDING POINTS

RRAF3020

Ï

Ï

Ï

Ï

Ï

A

B

Ñ

Ñ

Ñ

Ñ

Ñ

B

RRAF3022

RRAF3024

A

113

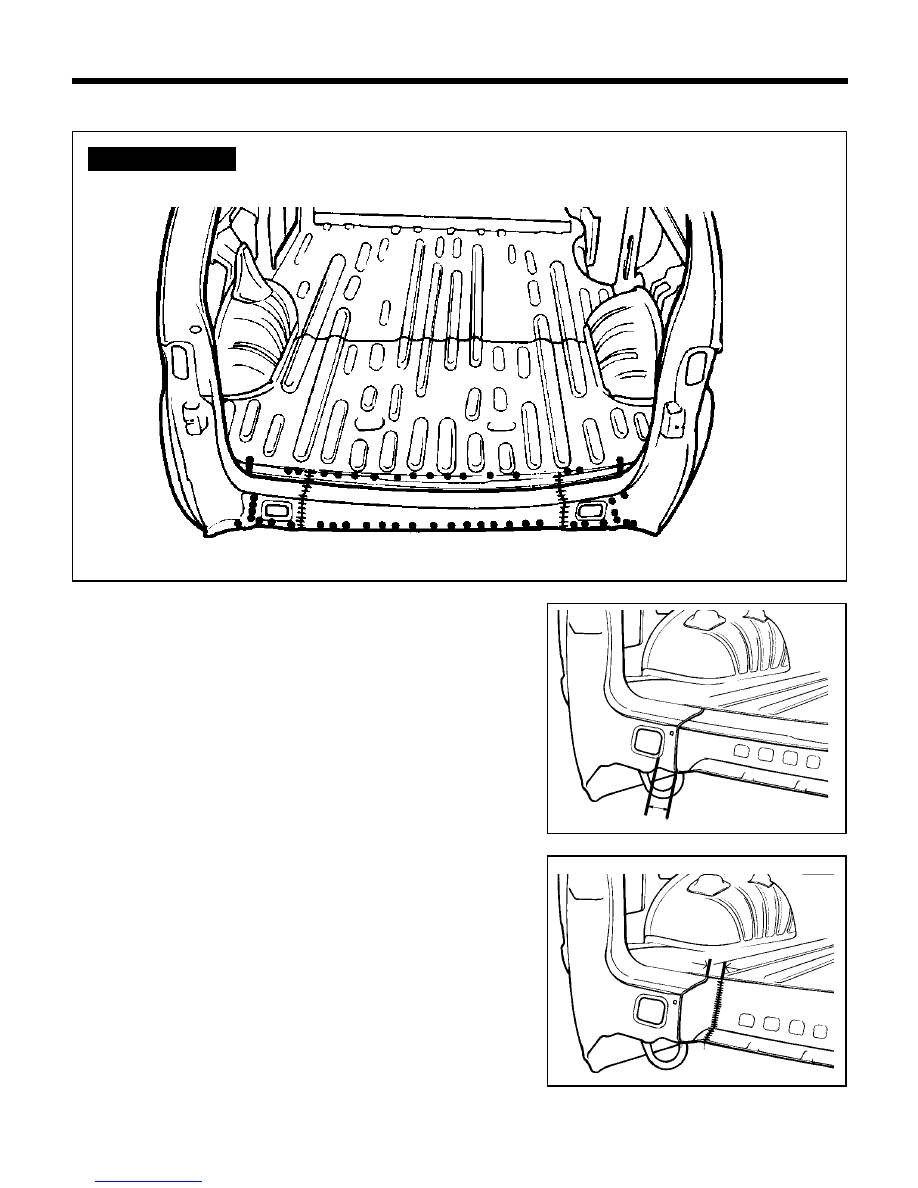

BODY PANEL REPAIR PROCEDURE - Rear floor

REAR END CORSSMEMBER (PARTIAL)

RRAF3150

REMOVAL

1. Cut the rear end crossmember outer and lower simultaneously at

50 mm apart from the hole marked in the illustration.

2. Cut the rear end crossmember inner at 30 mm apart from the

rear end crossmember outer.

INSTALLATION

Installation is the reverse order of removal. Refer to the service
procedure of rear floor for anti-corrosion treatment and sealing.

RRAF3160

RRAF3170

WELDING POINTS

50mm

30mm
