12-168

Electrical System

______________________________________________________

IGNITION SWITCH

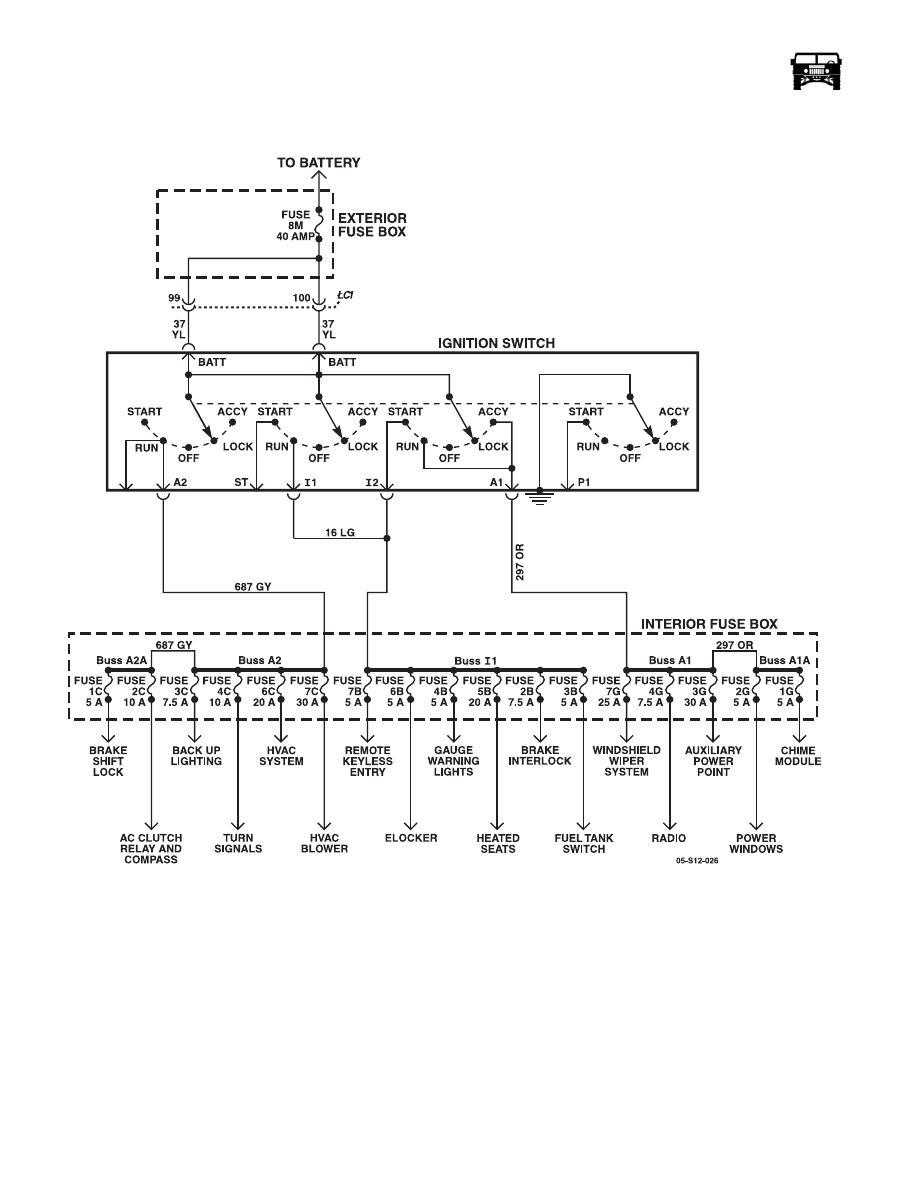

Figure 12-124:   Ignition Switch Wiring Schematic

_____________________________________________________

 Electrical System  12-169

INTAKE AIR TEMPERATURE SENSOR

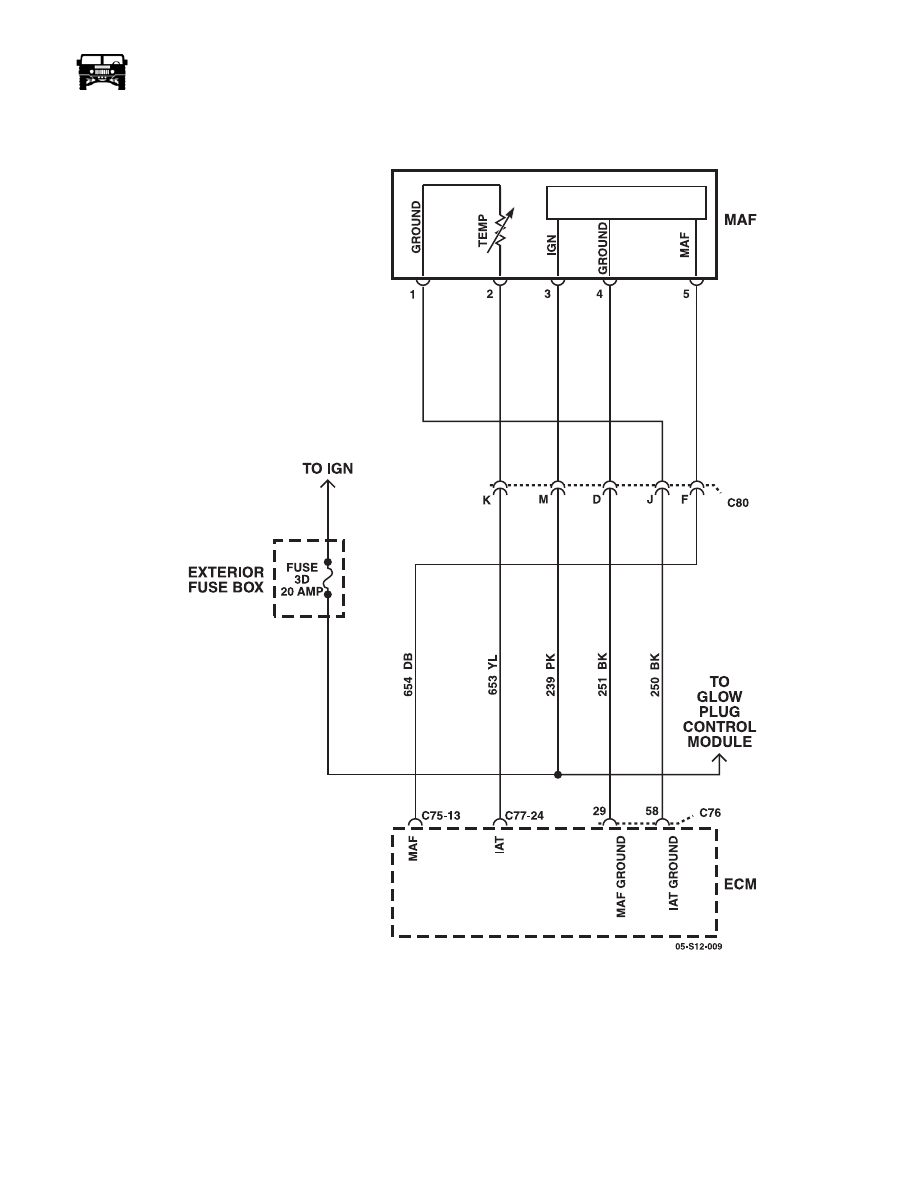

Figure 12-125:   Intake Air Temperature Sensor Wiring Schematic

12-170

Electrical System

______________________________________________________

LIGHTING BUSS/ FUSES

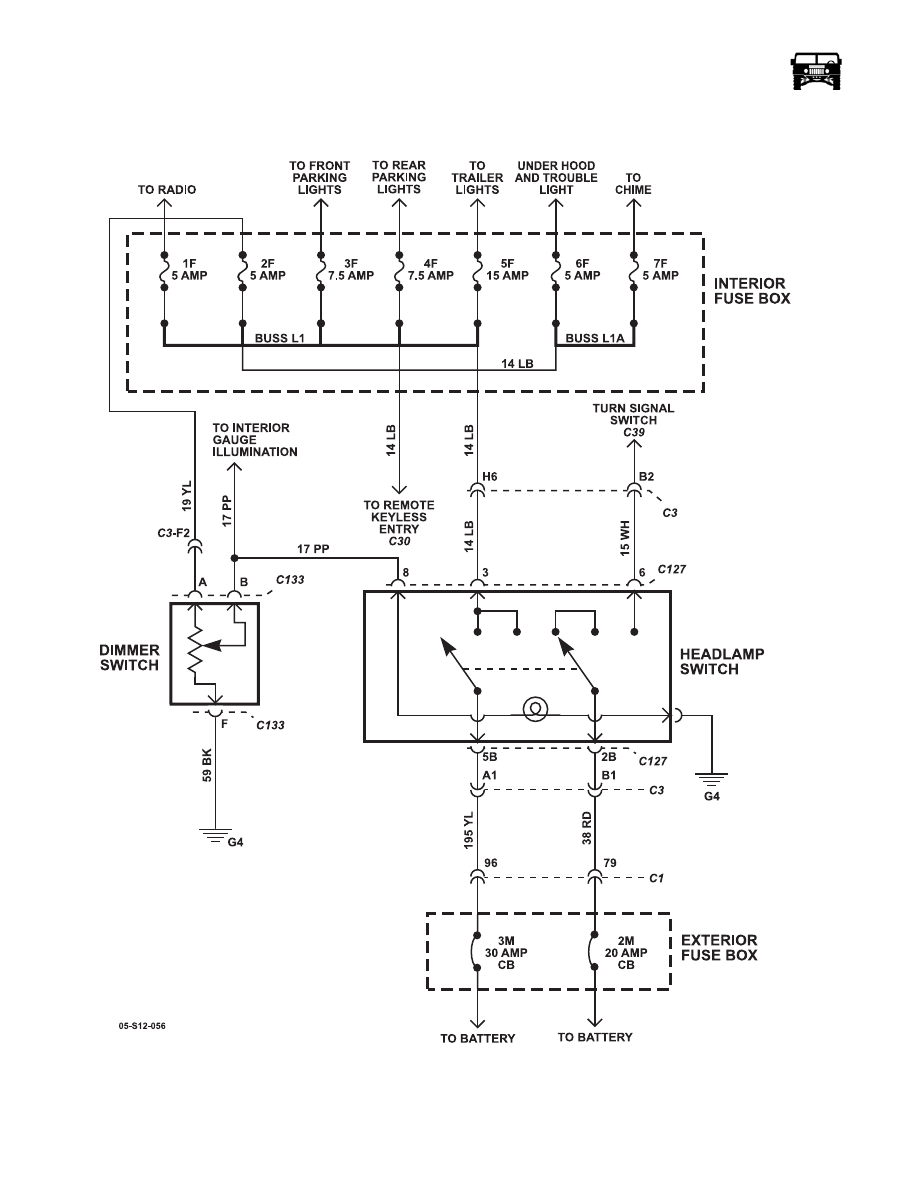

Figure 12-126:   Lighting Bus/ Fuses

_____________________________________________________

 Electrical System  12-171

LOCKS POWER HMCS W/ INCANDESCENT BULBS THROUGH VIN 226860

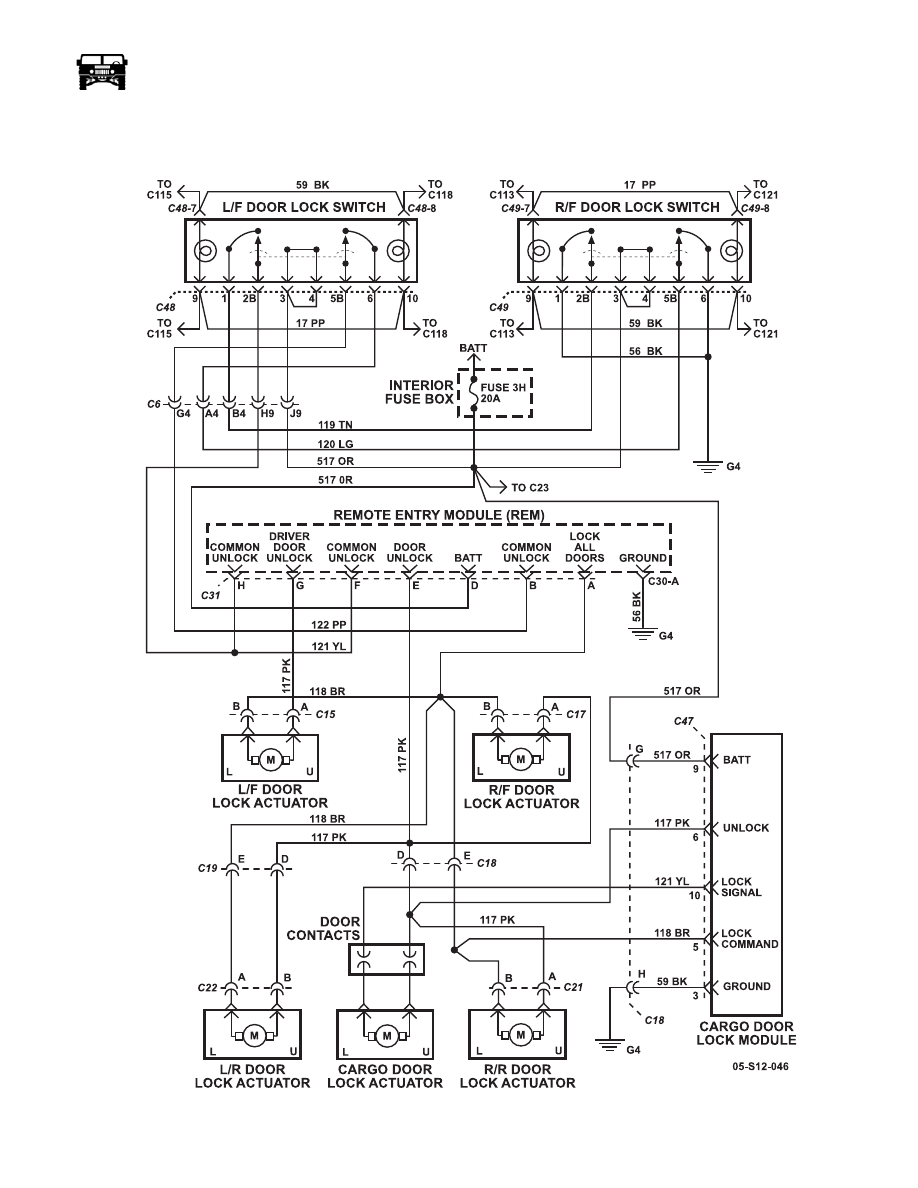

Figure 12-127:   Locks Power With Incandescent Bulbs Wiring Schematic
