Hummer H1 (2006+). Manual - part 371

12-160

Electrical System

______________________________________________________

GAUGE MODULES POWER AND GROUNDS

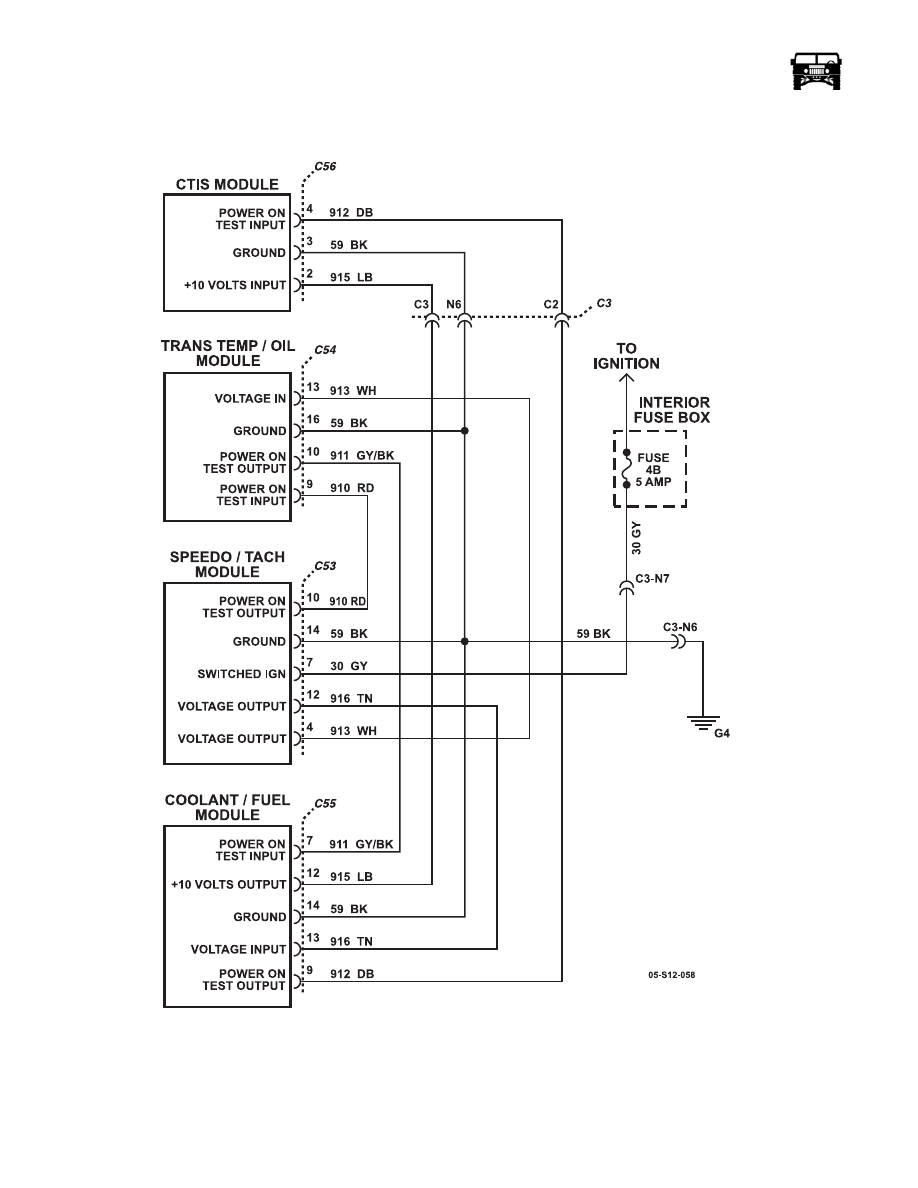

Figure 12-116:   Gauge Module Wiring Schematic

_____________________________________________________

 Electrical System  12-161

GLOW PLUG CONTROL MODULE

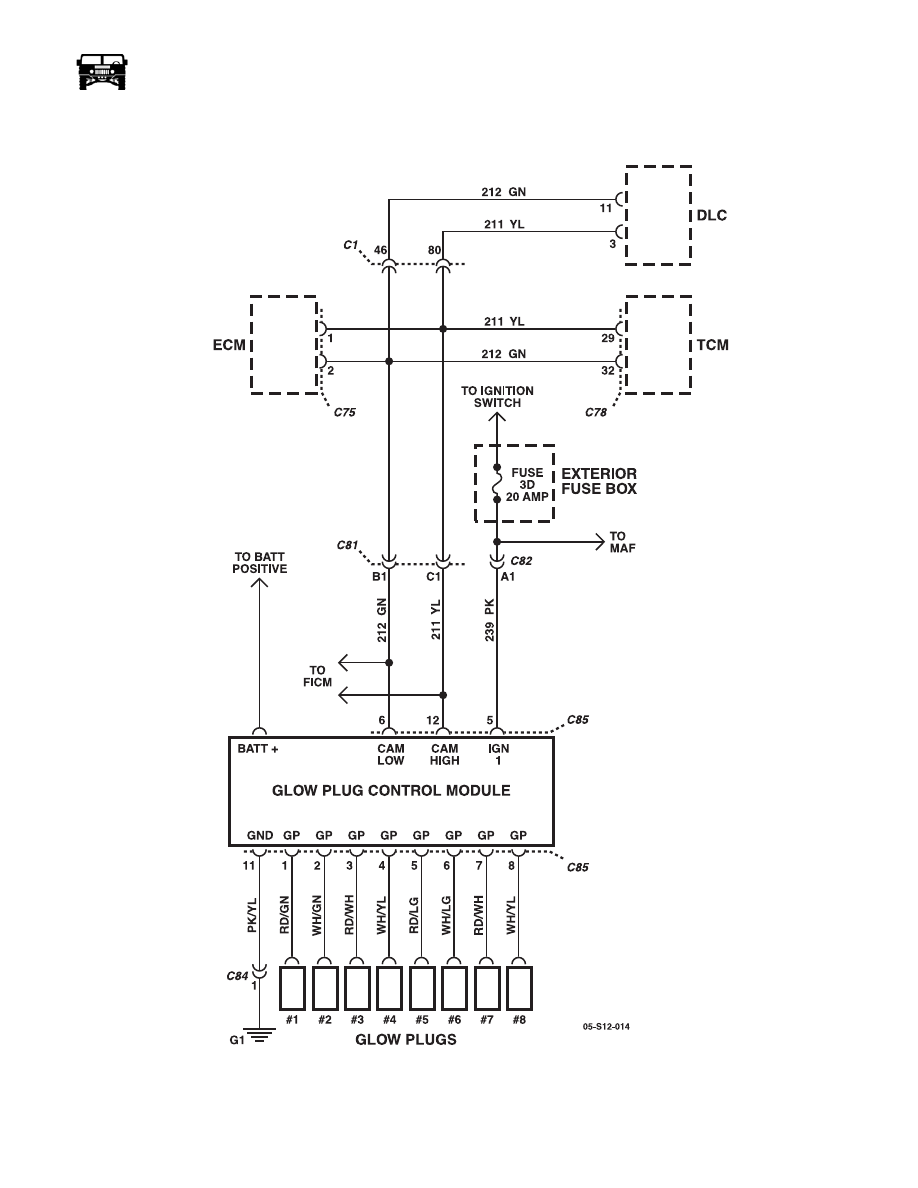

Figure 12-117:   Glow Plug Wiring Schematic

12-162

Electrical System

______________________________________________________

HEAD LAMP/ DIMMER SWITCH

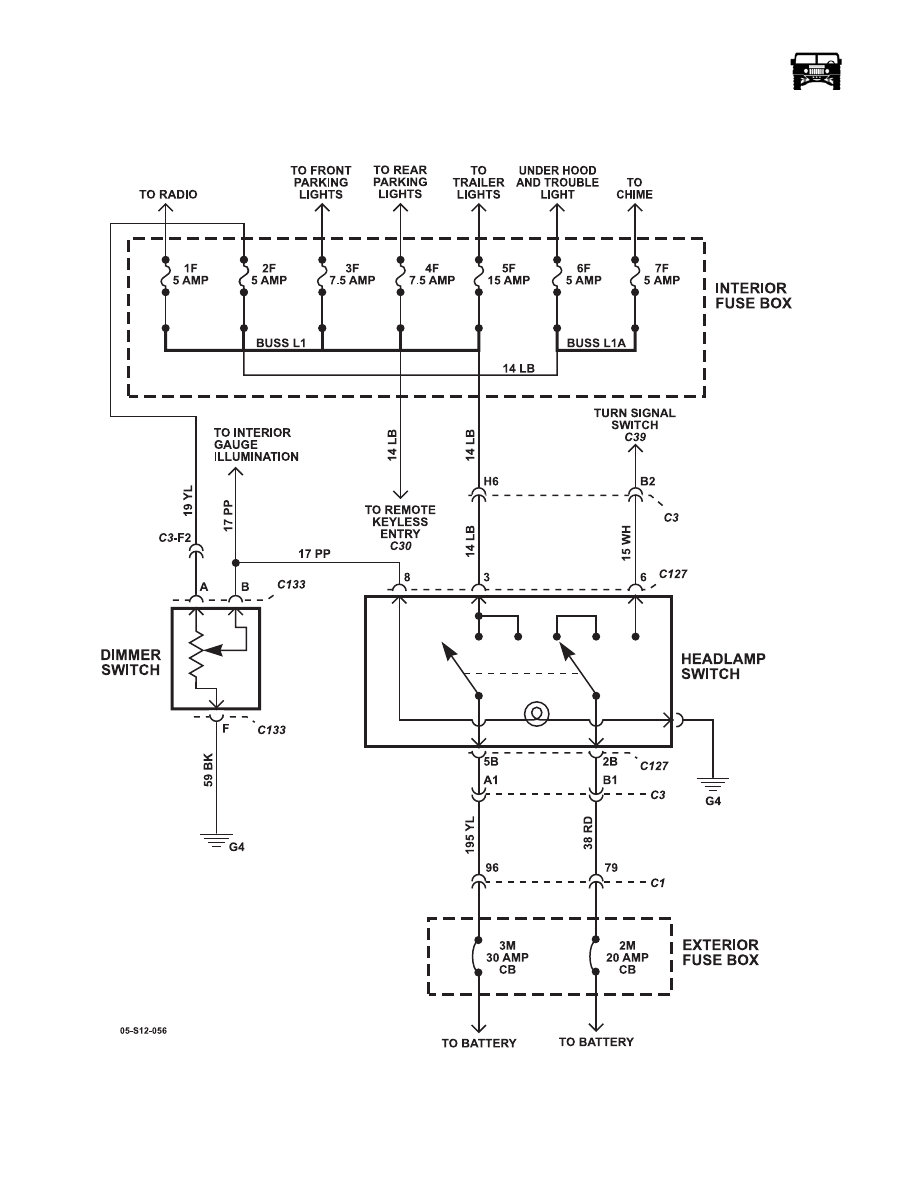

Figure 12-118:   Head Lamp/ Dimmer Switch Wiring Schematic

_____________________________________________________

 Electrical System  12-163

HEAD LIGHTS

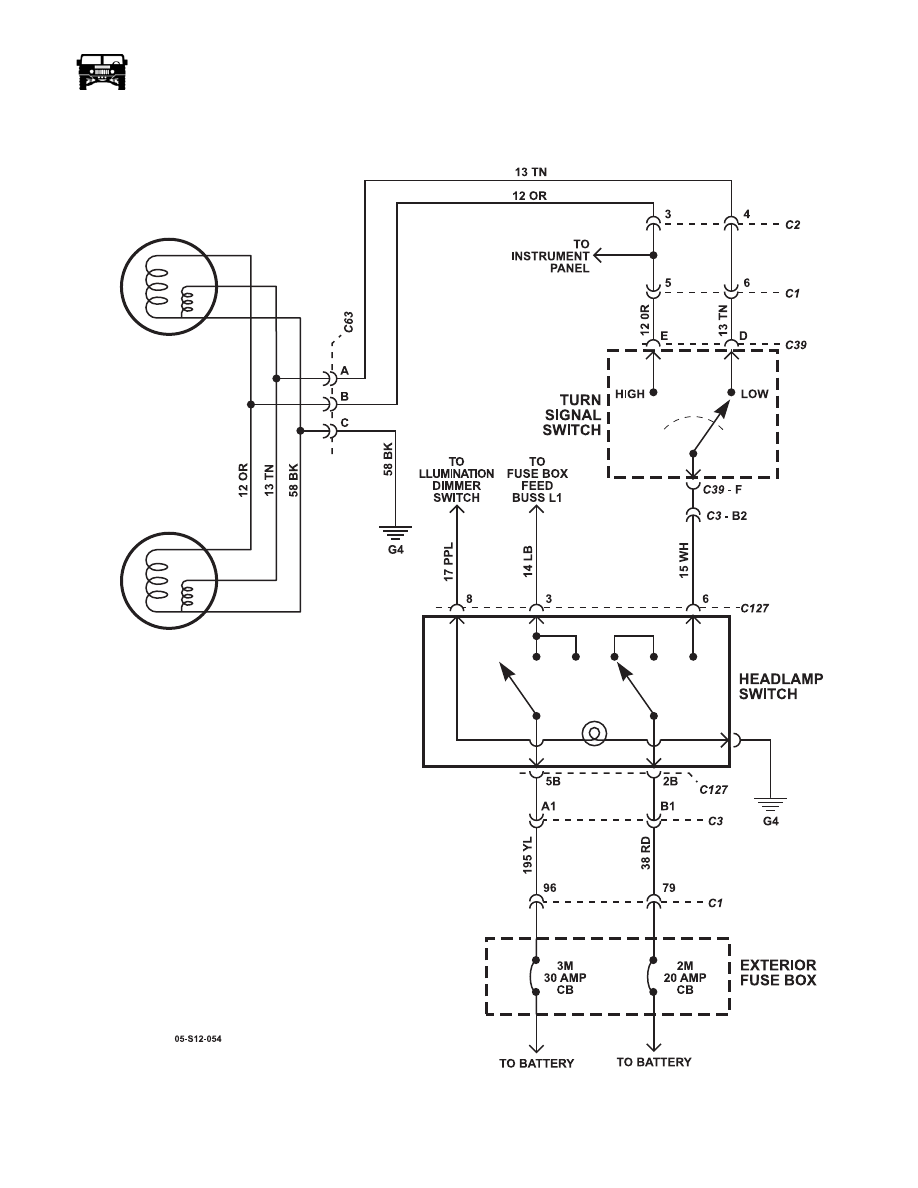

Figure 12-119:   Head Lights Wiring Schematic
