Hummer H1 (2006+). Manual - part 369

12-152

Electrical System

______________________________________________________

E LOCKER

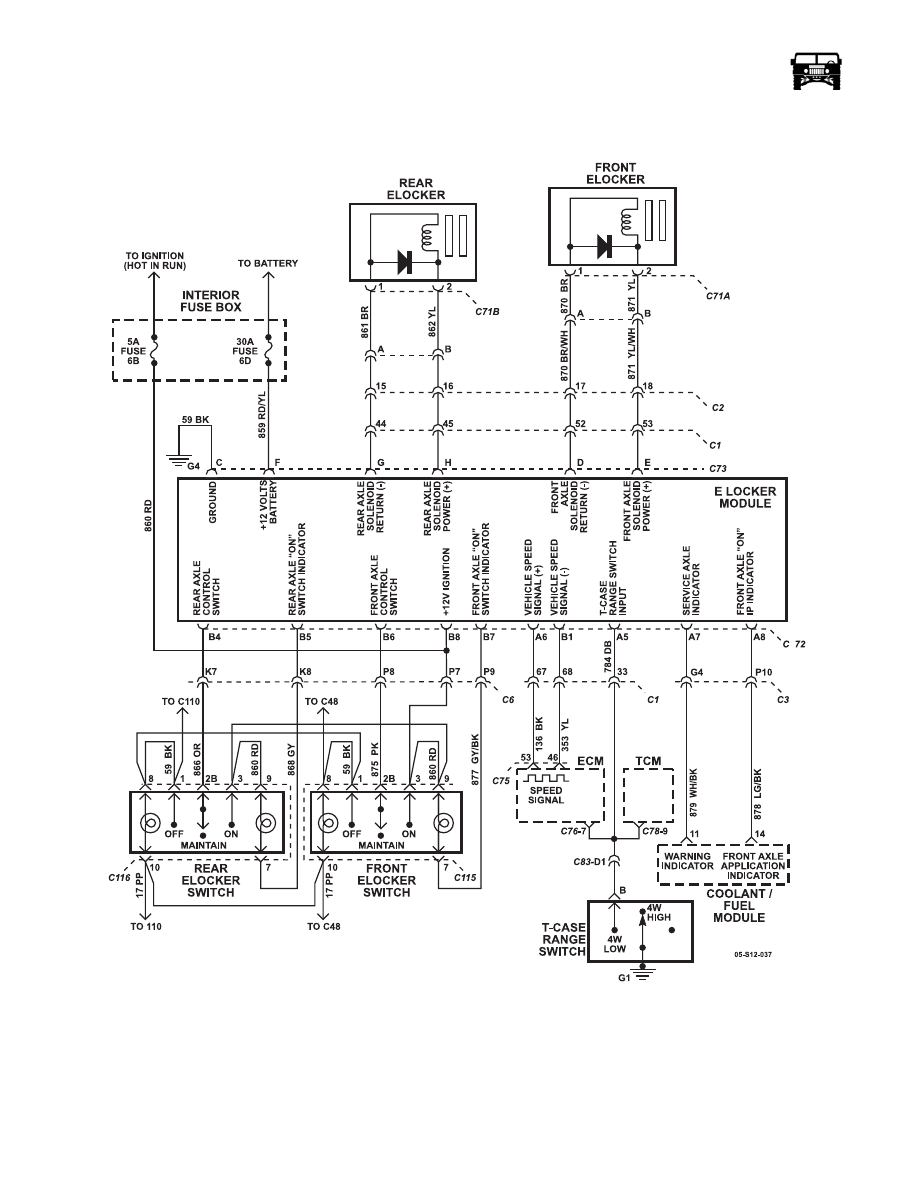

Figure 12-108:   E Locker Wiring Schematic

_____________________________________________________

 Electrical System  12-153

 EXPRESS DOWN MODULE/ POWER WINDOWS

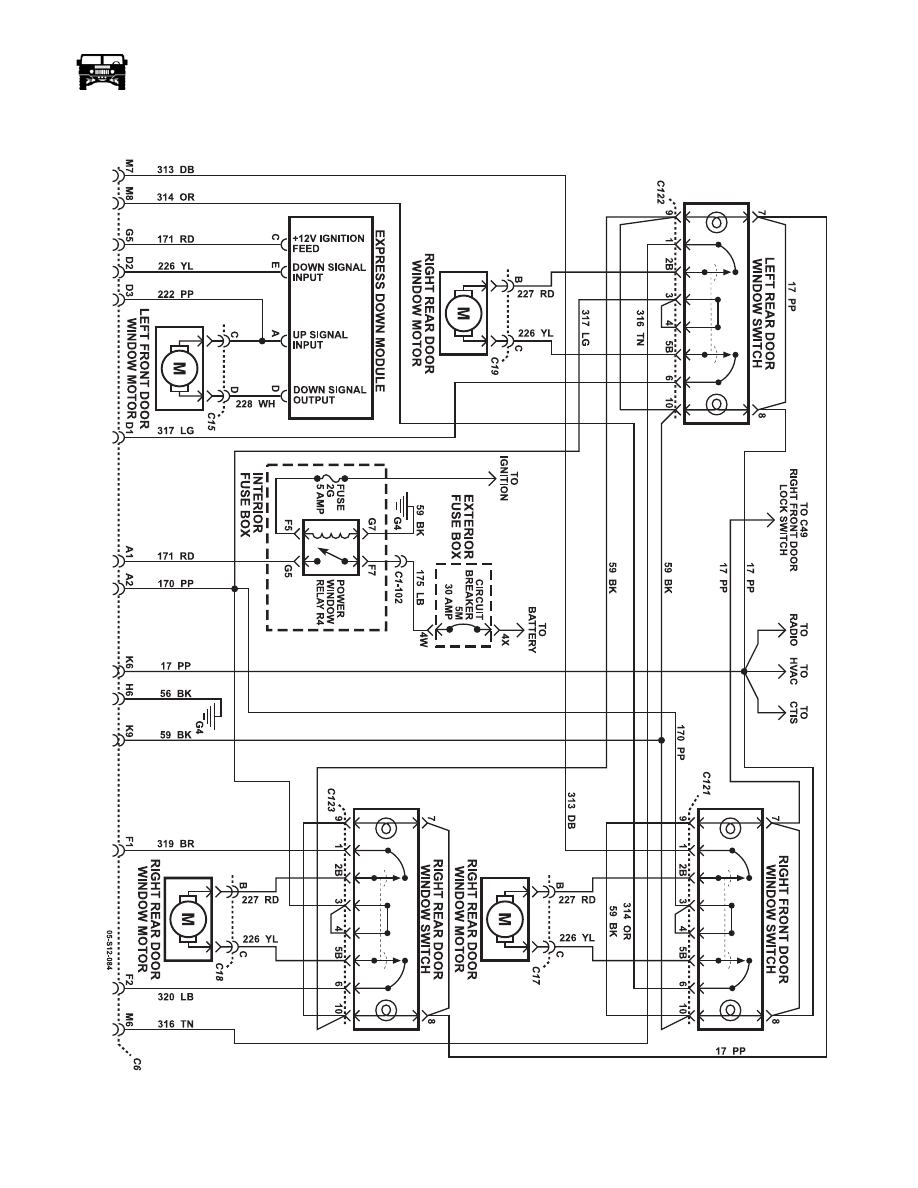

Figure 12-109:   Express Down Module Wiring Schematic

12-154

Electrical System

______________________________________________________

FUEL GAUGE

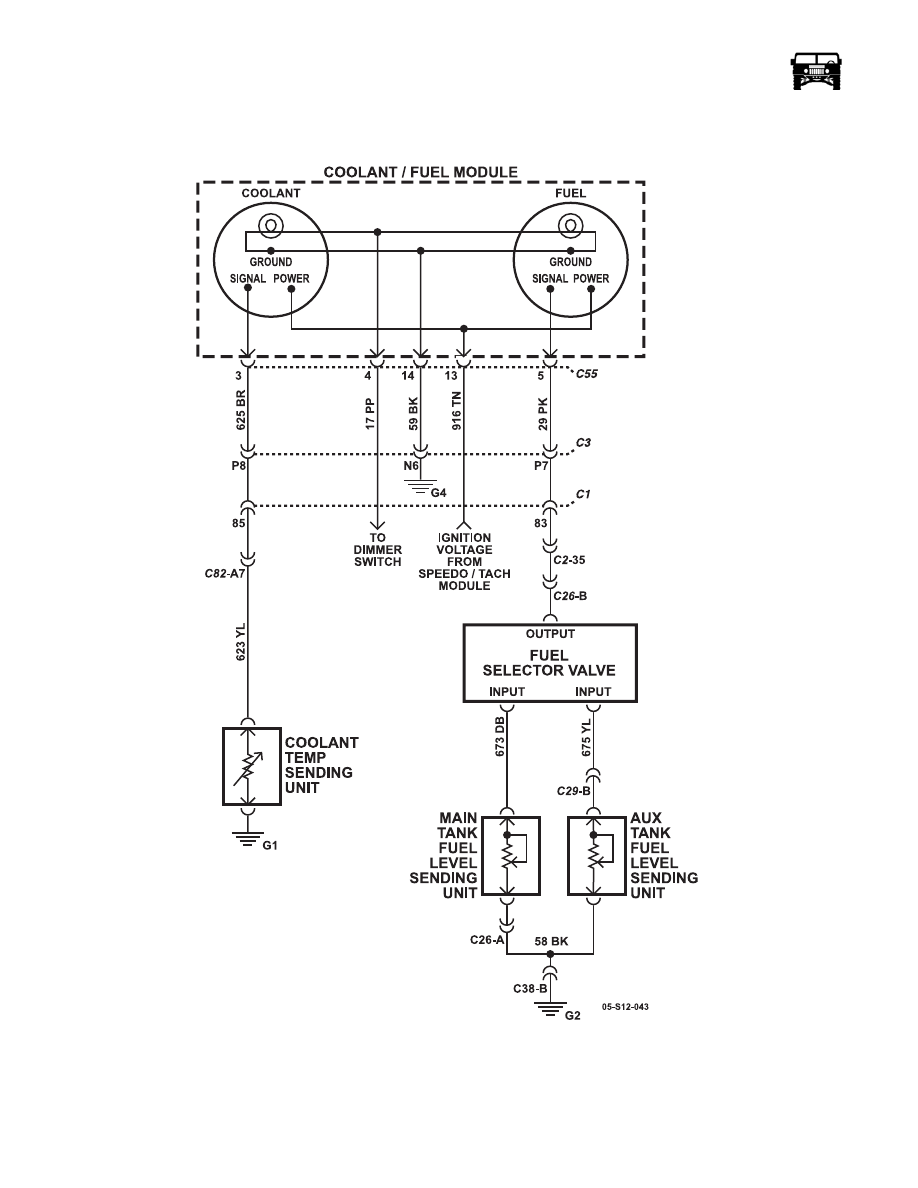

Figure 12-110:   Fuel Gauge Wiring Schematic

_____________________________________________________

 Electrical System  12-155

FUEL INJECTORS/ FUEL INJECTION CONTROL MODULE (FICM)

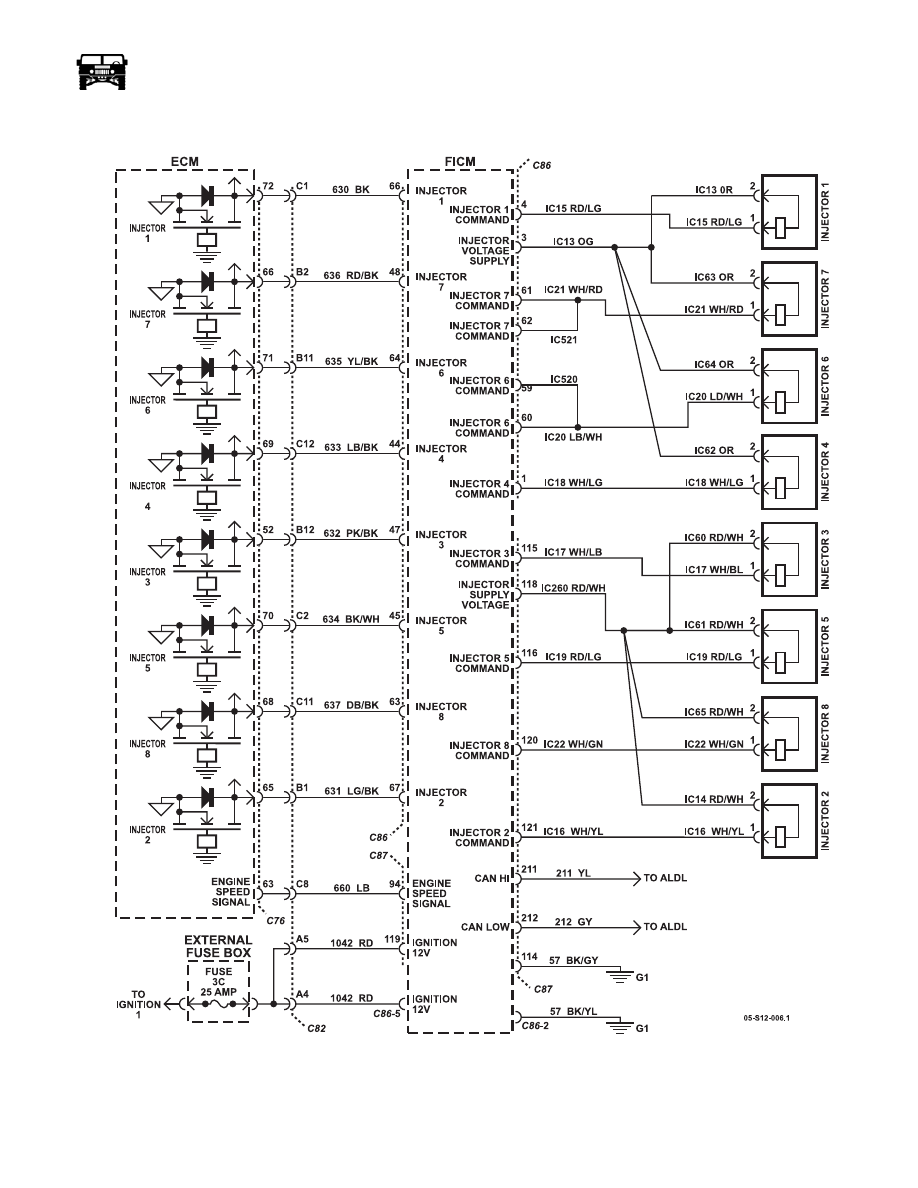

Figure 12-111:   Fuel Injection Wiring Schematic
