COOLANT TEMPERATURE SENSOR

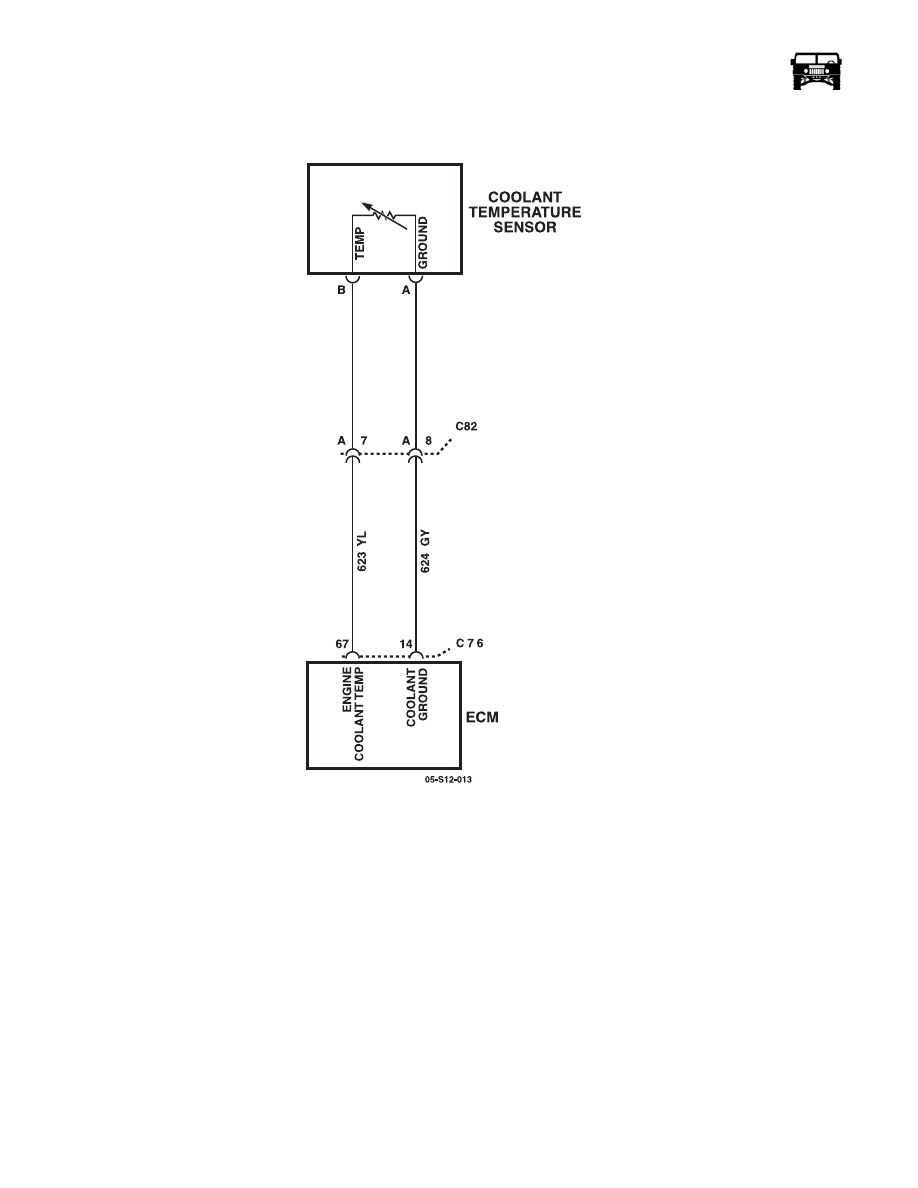

Figure 12-100:   Coolant Temperature Sensor Wiring Schematic

_____________________________________________________

 Electrical System  12-145

CRUISE CONTROL

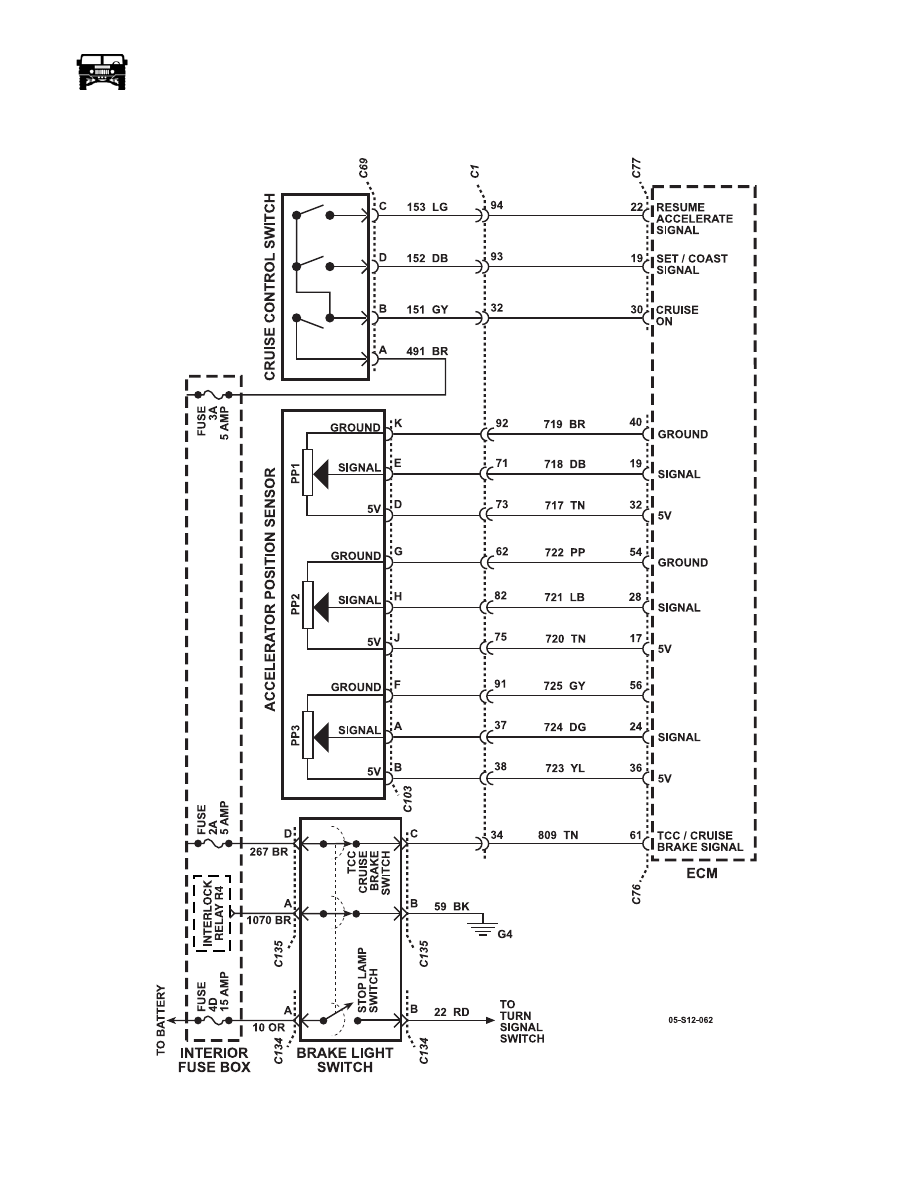

Figure 12-101:   Cruise Control Wiring Schematic

12-146

Electrical System

______________________________________________________

CTIS SYSTEM

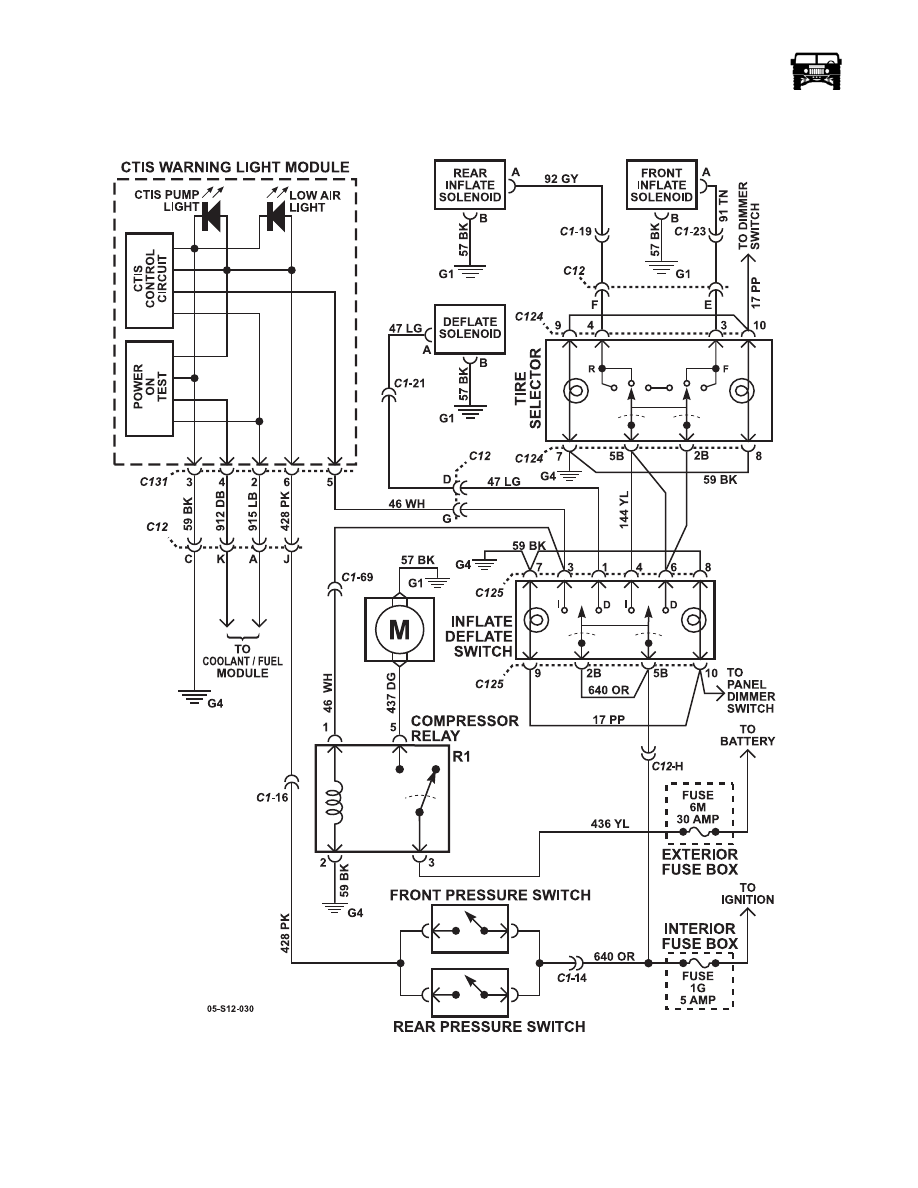

Figure 12-102:   CTIS Wiring Schematic

_____________________________________________________

 Electrical System  12-147

DIAGNOSTIC LINK CONNECTOR

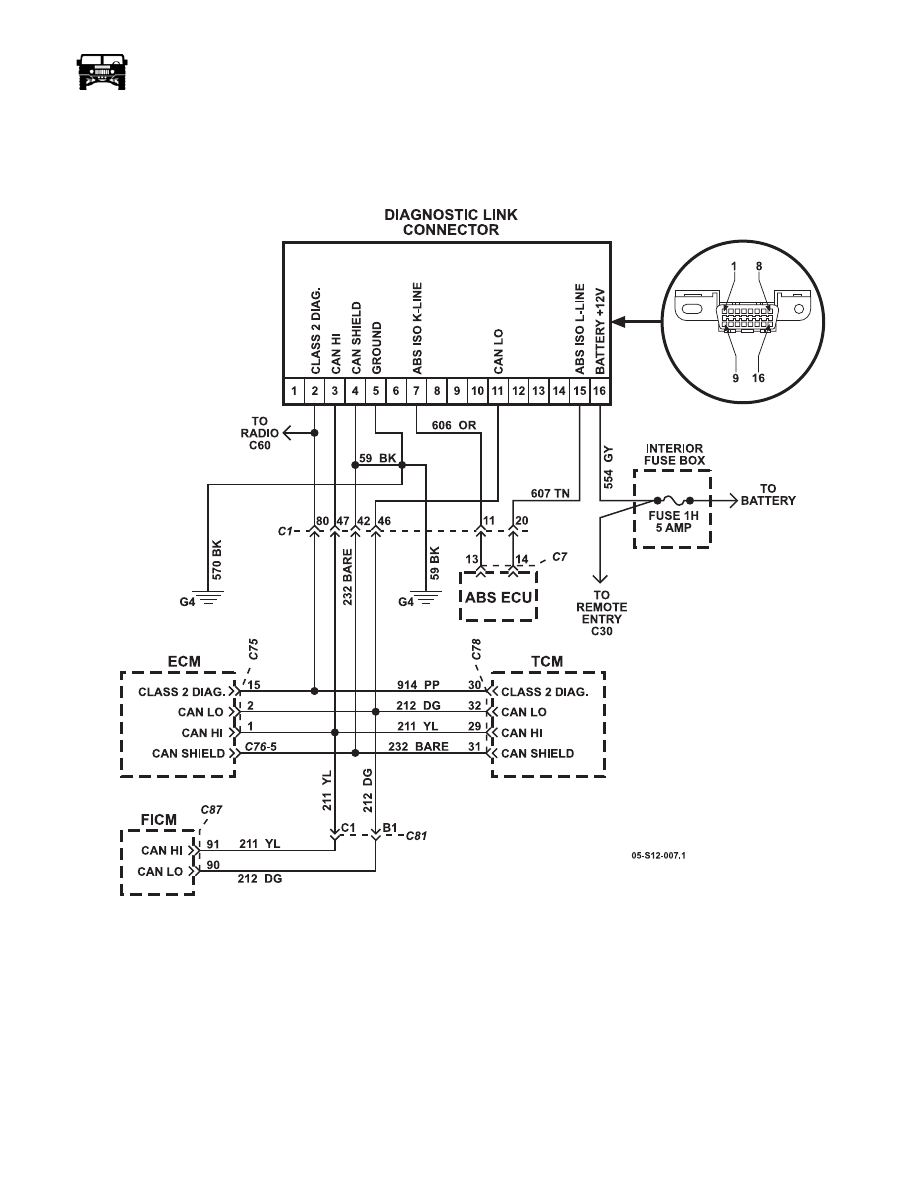

Figure 12-103:   Diagnostic Link Connector Wiring Schematic
