FUSE/RELAY LOCATION AND IDENTIFICATION

Interior Fuse Box

The interior fuse box, is located under the instrument panel to the left of the steering column. The fuse box is divided into two mini-
fuse junction blocks, relays, and a auxiliary power point.The mini-fuse blocks may be accessed without removing the main fuse
box cover (Figure 12-17).

To access relays, the main fuse box cover must be removed. Before removing any of the fuse box access covers, refer to the illus-
trations and charts in this section for the location of specific fuses, relays, and circuit breakers. Doing this will enable you to go di-
rectly to the fuse or circuit breaker you want to inspect.

Figure 12-17:   Interior Fuse Box and Mini Fuse Layout

Fuses and circuit breakers protect the vehicle's electrical system from damage caused by overloading. An overloaded circuit
breaker will switch the circuit on again, causing intermittent operation. A blown fuse will permanently disable the circuit until the
fuse is replaced.

Whenever a fuse blows or a circuit breaker opens a circuit, all electrical components using that circuit will not operate. Therefore,
during diagnosis of any of these electrical components, check the appropriate fuses and circuit breakers for damage (Figure 12-20).

In Line Fuses

Some fuses are placed in-line with the components they are protecting, meaning they are not located in the fuse box but in the ac-
tual wire suppling current to the device. The only inline fuse used on the HUMMER H1 is in the power feed to the HVAC high
blower relay. This fuse is located on the passenger side of the engine compartment inside a black plastic cover.

Auxiliary Power Point

An auxiliary power point is provided to ease installation of aftermarket electrical accessories. The power point is divided into 2
sections: Ignition and Battery. When a power supply is needed, a fuse must be installed into one of the empty slots, and a connec-

CTIS BUZZER

FLASHER

H
G

F

E

D

C

B

A

UPPER

LOWER

BLOCK

MINI-FUSE

MINI-FUSE
BLOCK

INTERIOR FUSE BOX

7-OM5-001.1

1

2

3

4

5

6

7

5

5

5

5

5

5

5

7.5

5

5

20

5

5

5

10

7.5

10

20

30

15

5

20

15

15

30

25

5

7.5

15

7.5

5

5

5

7.5

7.5

15

5

5

5

5

30

7.5

25

5

10

20

30

15

15

25

______________________________________________________

 Electrical System  12-17

tion made to the adjacent terminal. The main supply circuits to both sections of the aux. power point are fused to 30 amps. Total
amperage draw on either section should not exceed 30 amps.

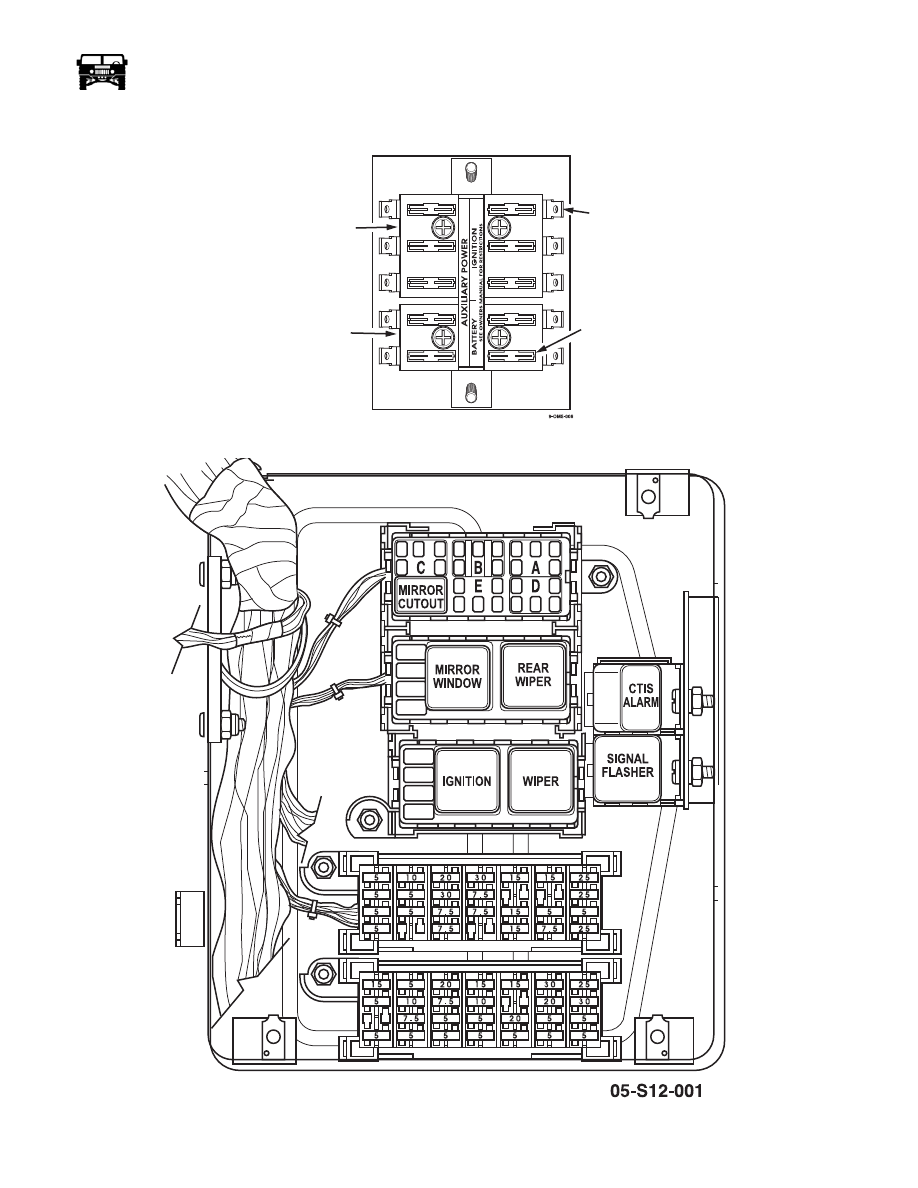

Figure 12-18:   Auxiliary Power Point

Figure 12-19:   Relay Location (Interior Fuse Box)

IGNITION

BATTERY

FUSE SLOT

TERMINAL

12-18

Electrical System

_______________________________________________________

UPPER MINI-FUSE LOCATION

*May not be provided.

FUSE

AMPERAGE

CIRCUIT PROTECTED

1E

5

Spare Fuse

2E

Blank

3E

7.5

Spare Fuse

4E

Blank

5E

15

Spare Fuse

6E

7.5

IGN Interlock Solenoid

7E

5

Aux Water Pump

1F

5

Running Lights

2F

5

Panel Lights Dimmer

3F

7.5

Front Parking/Running Lights

4F

7.5

Rear Parking/Running Lights

5F

15

Trailer Park Lights

6F

5

Underhood and Trouble Lights

7F

5

Warning Chimes

1G

5

CTIS/Key Chime

2G

5

Power Windows

3G

30

Auxiliary Power Point (Ignition)

4G

7.5

Radio Ignition

5G

Blank

6G

Blank

7G

25

Windshield Wiper/Washer

1H

5

ALDL RKE

2H

10

Radio Memory/Clock

3H

20

Power Door Locks/Power Mirror

4H

30

Auxiliary Power Point (Battery)

5H

15

Dome/Courtesy Lights

6H

15

Auxiliary Power Outlet (console)

7H

25*

Trailer Brake Controller

______________________________________________________

 Electrical System  12-19

LOWER MINI-FUSE LOCATION

FUSE

AMPERAGE

CIRCUIT PROTECTED

1A

5

Spare Fuse

2A

5

Brake Switch

3A

5

Cruise Control

4A

5

Trans Switches

5A

5

HVAC Pump

6A

5

Aux Water Pump

7A

5

ECM Relay

1B

Blank

2B

7.5

Brake Interlock

3B

5

Fuel Tank Selector Switch

4B

5

Gauges/Indicator Lights/MIL

5B

20

Heated Seats

6B

5

E Locker

7B

5

Remote Entry Ignition Feed

1C

5

Transmission Shifter Lock/Heated Windshield

2C

10

A/C Clutch Relay And Compass

3C

7.5

Backup Lights

4C

10

Turn Signals

5C

Blank

6C

20

HVAC Control

7C

30

HVAC Blower

1D

15

Radio Amplifier-Monsoon only

2D

5

Compass Mirror

3D

20

Cigar Lighters

4D

15

Stoplights

5D

15

Hazard Flasher

6D

30

E Locker

7D

25

Anti-lock Brakes
