Hummer H1 (2006+). Manual - part 334





12-12

Electrical System

_______________________________________________________

Wiring Repair

Wiring harness and wires - All wires are of a specific insulation color indicated on the wiring diagrams. Insulation color helps to
identify circuits and make correct connections. Insulation colors and their abbreviations are as follows:

Wire repair is very important for the continued, reliable operation of the vehicle. This repair must be done as described in the fol-
lowing procedure:

Single Wire Repair (Exposed)

1.

Remove the damaged area, removing as little wire as possible  (Figure 12-8).

NOTE: Care should be exercised in stripping the wire insulation to avoid cutting wire conductor strands.

2.

Strip the wire ends to the appropriate length required by the splice clip (Figure 12-9).

NOTE: Heat shrink tubing is available in various diameters. Typically the heat shrink tubing will shrink to approximately one-half
of its original diameter, therefore the tubing diameter selected for the repair should not be greater than twice the wire insulation di-
ameter to ensure a proper seal.

3.

Slide heat shrink the tubing over one of the wire ends (Figure 12-10).

NOTE: Splice clips are available for different wire gauge sizes. Therefore, it is important to select the appropriate size for the wire
gauge being repaired.

4.

Slide both ends of the wire into the splice clip and crimp the splice clip to the wire ends (Figure 12-11).

5.

Pull the wires, by hand, in the opposite directions to test the crimp of the splice clip.

6.

Center heat shrink the tubing over the splice clip (Figure 12-12).

7.

Using a heat gun or equivalent heat source, apply heat to the heat shrink tubing until the tubing conforms to the splice clip and
the wire insulation (Figure 12-13).

8.

After the splice cools, apply two layers of vinyl adhesive electrical tape to complete the repair (Figure 12-14).

Single Wire Repair (In a Harness)

1.

Remove the harness covering in the affected area (Figure 12-15).

2.

Repair the damaged wire using the exposed single wire repair procedures. (Go to Step 1.)

3.

After completing the wire repair, apply two layers of vinyl adhesive electrical tape over the affected area to complete the repair
(Figure 12-16).

Multiple Wire Repair (In a Harness)

NOTE: Since more than one splice is required in this case, stagger the wire splices such that they are no closer than 3 in. (7.6 cm)
from each other.

Repair the affected wires using the single wire repair (in a harness) procedures.

BK - Black

PK - Pink

BR - Brown

PP - Purple

DB - Dark Blue

RD - Red

DG - Dark Green

GY - Gray

TN - Tan

LB - Light Blue

WH - White

LG - Light Green

YL - Yellow

OR - Orange

______________________________________________________

 Electrical System  12-13

FUSIBLE LINK MAINTENANCE

The following procedure covers the replacement of fusible links encountered through circuit diagnosis.

1.

Disconnect the battery ground cable.

2.

Carefully remove the old fusible link from the termination (alternator, power stud, starter).

3.

Locate the original wiring harness splice between the fusible link and the wiring harness  (Figure 12-7).

4.

Cut the fusible link splice on the harness side. Do not splice into the original fusible link; this may be weakened and cause a
premature failure and repeat problem.

5.

Identify the original fuse link size and length of the fuse link and cut away from the vehicle.

6.

Matching the wire size, cut a length of the fusible link wire to the total length cut from the vehicle in Step 4. Be sure to
compensate for any harness wire removed with the original wire. This will avoid overtight wiring that may become separated
with normal operation.

NOTE: Fusible link is a wire with special insulation. It is important that replacement material be fusible link wire and it should be
labeled as such. The replacement fusible link should be between six and nine inches long.

7.

Install a new crimp on the connector of the same type and size as the original lug or connector. Seal the connection with low
temperature heat shrink tubing.

8.

Place a piece of heat shrink tubing onto the wire and install a butt connector onto the fusible link.

9.

Install the fusible link by connecting it to the wiring harness with the butt connector and the heat shrink tubing.

10. Connect the terminal end to the original location, alternator, power stud, or the starter. Reconnect the battery ground cable and

check the circuit(s) affected for proper operation.

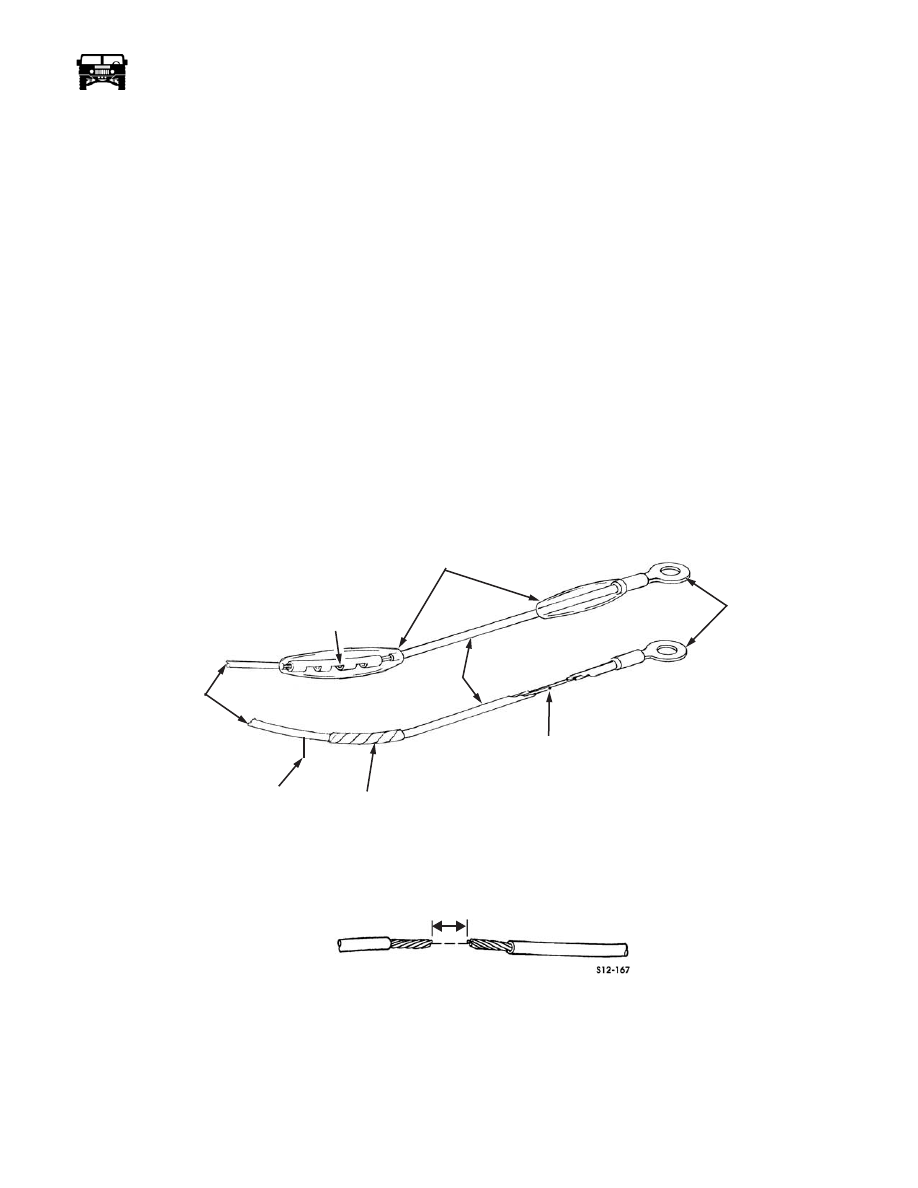

Figure 12-7:   Fusible Link

Figure 12-8:    Damaged Wire

WIRING

HARNESS

BUTT CONNECTOR

HEAT SHRINK

TUBING

FUSIBLE

LINK

TERMINALS

BURNT SECTION

ORIGINAL

SPLICE

CUT HERE TO

REPLACE LINK

S12-022.3

DAMAGED AREA

12-14

Electrical System

_______________________________________________________

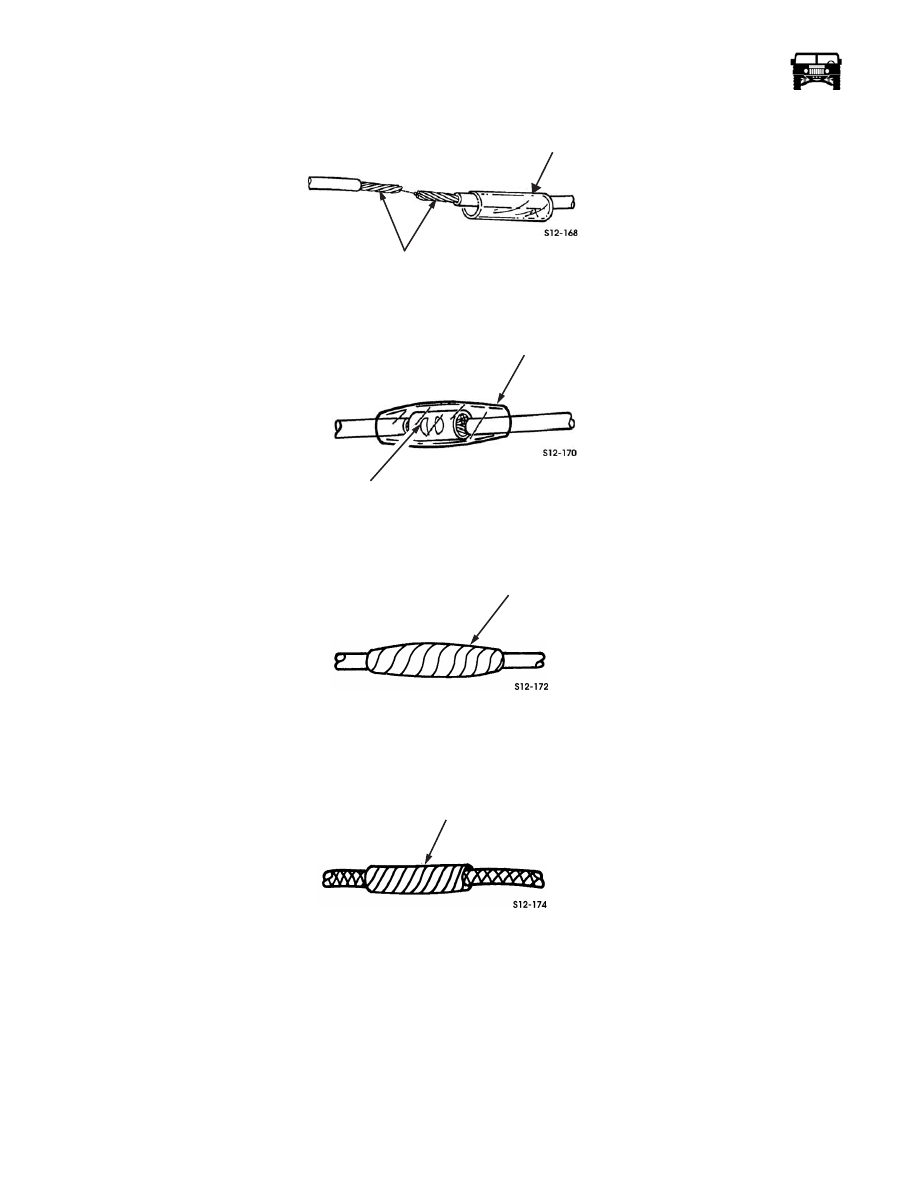

Figure 12-9:    Heat Shrink Tubing

Figure 12-10:    Splice Clip

Figure 12-11:    Electrical Tape

Figure 12-12:    Electrical Tape

STRIPPED WIRE ENDS

HEAT SHRINK TUBING

HEAT SHRINK TUBING

SPLICE CLIP

ELECTRICAL TAPE

ELECTRICAL TAPE

______________________________________________________

 Electrical System  12-15

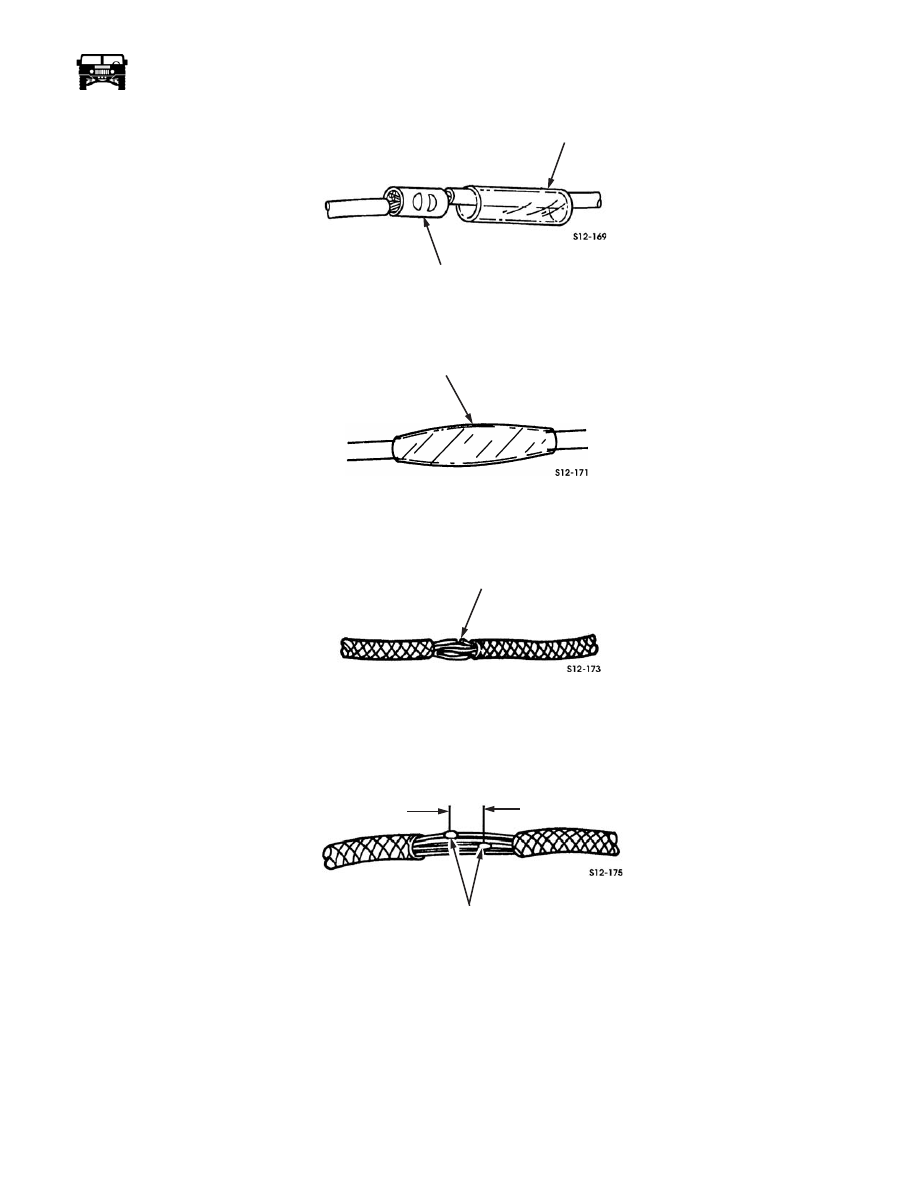

Figure 12-13:    Splice Clip

Figure 12-14:    Heat Shrink Tubing

Figure 12-15:    Damaged Wire

Figure 12-16:    Multiple Wire Splice

HEAT SHRINK TUBING

SPLICE CLIP

HEAT SHRINK TUBING

DAMAGED WIRE

3.0 INCH

MINIMUM

SPLICE
