Hood and Hinge Replacement



Removal



1.

Raise and secure hood.



WARNING:  To avoid injury, or damage to equipment,
support hood during removal and installation.



2.

Disconnect two connector plugs from connector
receptacles  (Figure 10-84).

3.

Remove four cotter pins, washers, and two hinge pins
securing upper hinge halves to lower hinge halves.

4.

Remove cotter pin, two washers, and prop rod from hood
(Figure 10-84).

5.

Remove hood.



NOTE:



Perform steps 6 and 7 if replacing hinges.

6.

Remove four bolts, washers, two upper hinge halves, and
hinge plates from hood  (Figure 10-84).

7.

Remove four locknuts, washers, two hinge plates, four
bolts, washers, two lower hinge halves, and two spacers
from brackets.



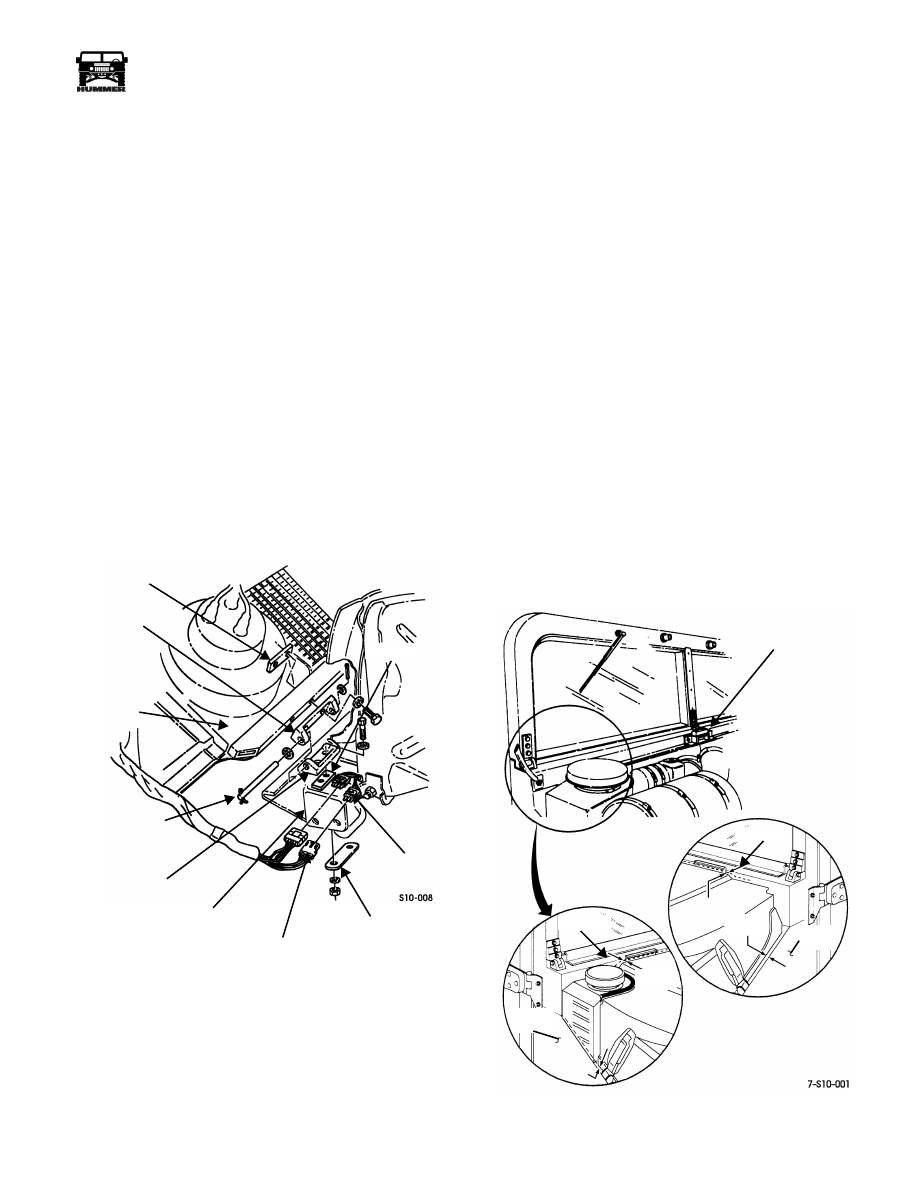

Figure 10-84:   Hood and Hinge Assembly

Breakdown



Inspection and Repair



NOTE:



Refer to Fiberglass Repair for inspection and repair of

hood.



Installation



NOTE:



Perform steps 1 and 2 if hinges were removed.

1.

Secure two spacers, two lower hinge halves and hinge
plates to two brackets with four washers, bolts, washers,
and locknuts. Do not tighten bolts (Figure 10-84).

2.

Secure hinge plates and two upper hinge halves to hood
with four washers and bolts. Tighten bolts to 28 lb-ft
(38 N•m).

3.

Install hood by mating two upper hinge halves to lower
hinge halves and securing with washers, hinge pins,
washers, and four cotter pins.

4.

Connect two connector plugs to connector receptacles.

5.

Secure hood prop rod to hood with two washers and cotter
pin  (Figure 10-84).

6.

Align hood.

7.

Check headlight aim and adjust if necessary.



Hood Alignment



Alignment should be checked whenever replacing the hood
stops, hinges, or latches. Surfaces that adjoin hood seals should
be checked for signs of wear from hood movement.

1.

Inspect hood prior to adjustment to determine condition of
seals, hinges, and stops. Replace or repair any worn parts.



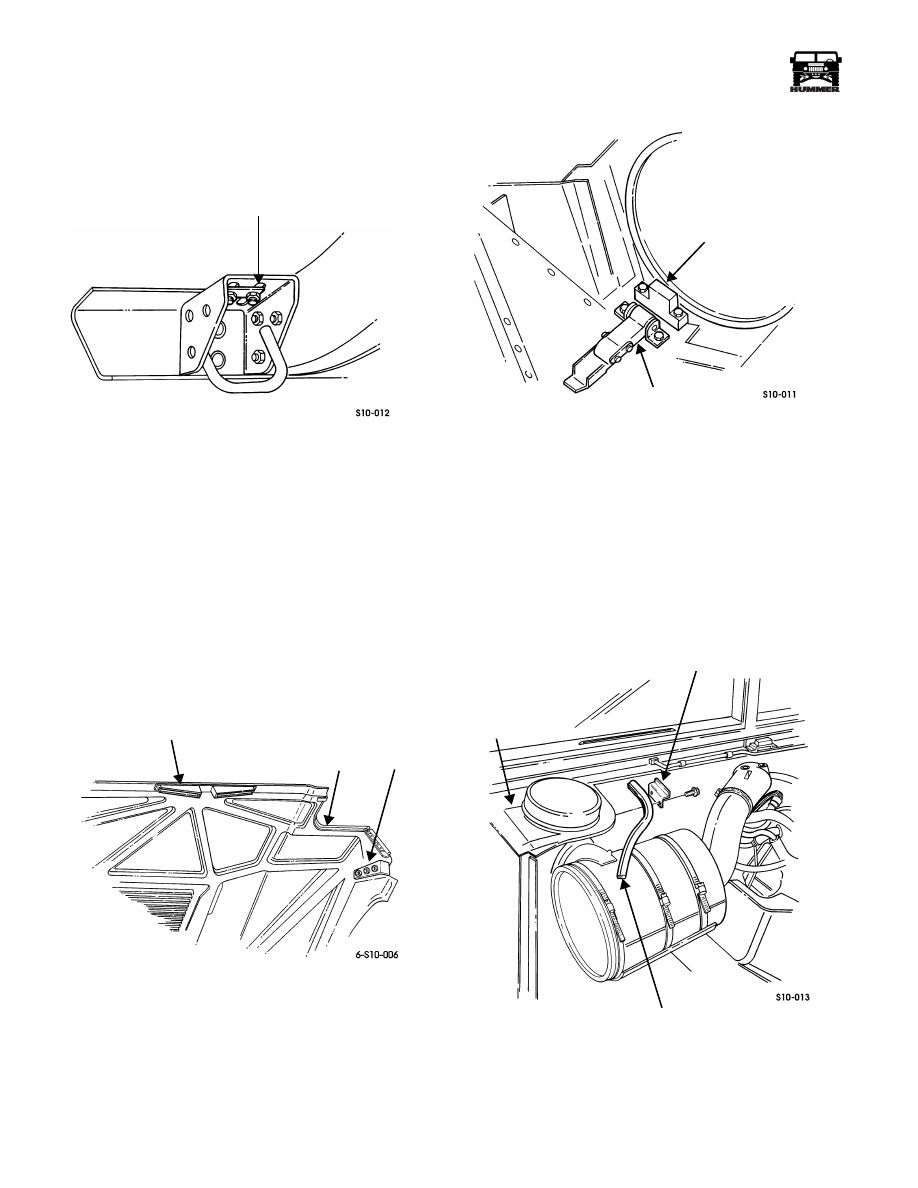

Figure 10-85:   Center Hood Stop Location

HINGE PLATE

UPPER

HOOD

HINGE PIN

LOWER HINGE HALF

BRACKET

CONNECTOR RECEPTACLE

HINGE PLATE

CONNECTOR

PLUG

HINGE

HALF

SPACER

CENTER

HOOD

STOP

HOOD

HOOD

COWL PANEL

A-PILLAR

A-PILLAR

COWL



PANEL

COWL



PANEL

MIN.3/8”

MAX. 1/2”

MIN.3/8”

MAX. 1/2”

MIN.3/8”

MAX. 1/2”

MIN.3/8”

MAX. 1/2”

RIGHT SIDE



10-48

Body



______________________________________________________________________



®



2.

Open hood and loosen center hood stop  (Figure 10-85).

3.

Gently close hood and loosen lower hinge half locknuts
(Figure 10-86).



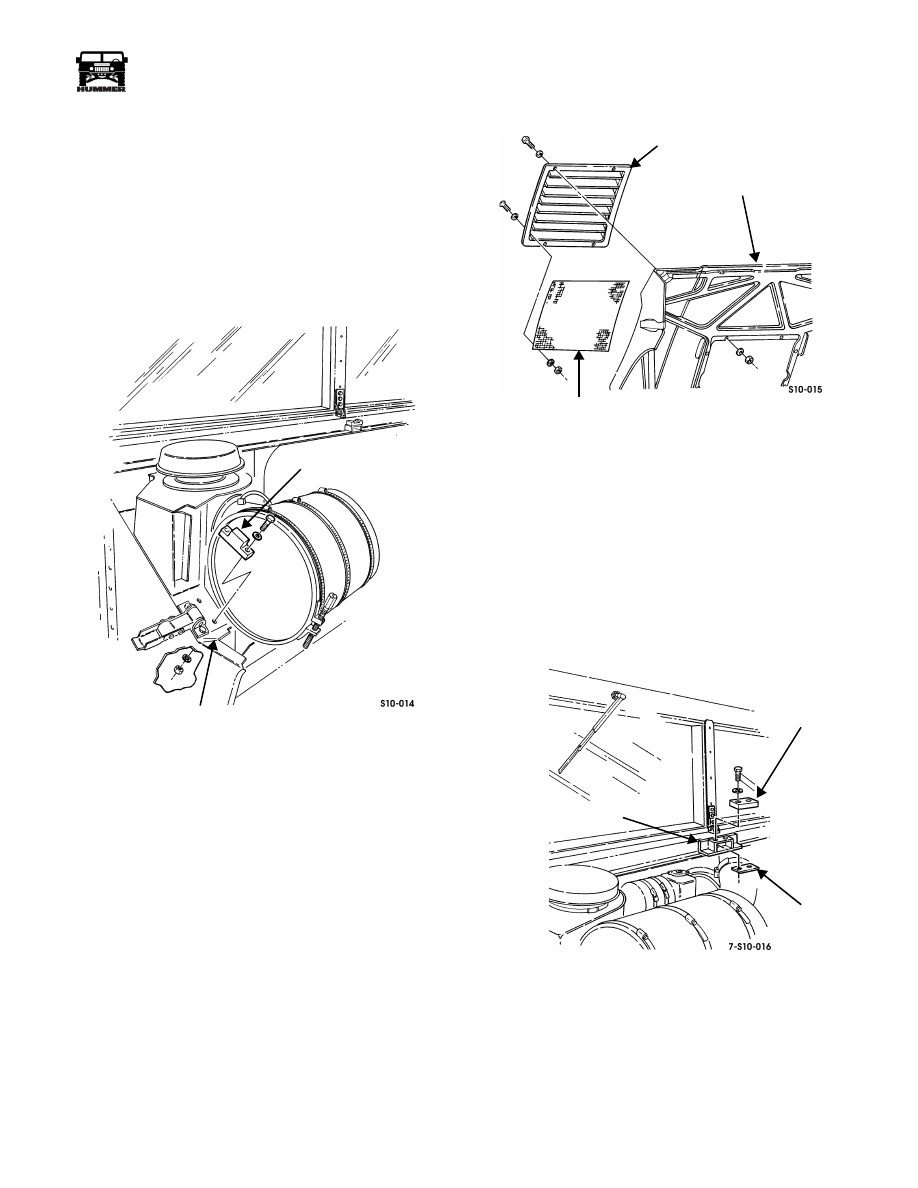

Figure 10-86:   Lower Hinge Half Locknut Location



4.

Gently position hood to obtain proper and even clearance
with A-pillar and both front cowl panels (minimum 3/8” /
maximum 1/2”)  (Figure 10-85).

5.

Tighten lower hinge half locknuts to lock adjustment.
Open hood gently and position guide bracket assembly to
contact center hood stop. Gently close hood to check guide
bracket assembly position  (Figures 10-85  and 10-87).

6.

Tighten and recheck guide bracket assembly position.
When properly positioned, tighten to 10 lb-ft (14 N•m)
(Figure 10-87).

7.

Tighten front lower hinge half locknuts to 28 lb-ft (38
N•m) and recheck hood position (Figure 10-86).





Figure 10-87:   Guide Bracket Assembly Location



8.

Lubricate all hood stops, hinges, and guide brackets. Latch
hood (Figure 10-88).

9.

Test drive to ensure proper alignment (no squeaks).

10. Check headlight aim and adjust if necessary.



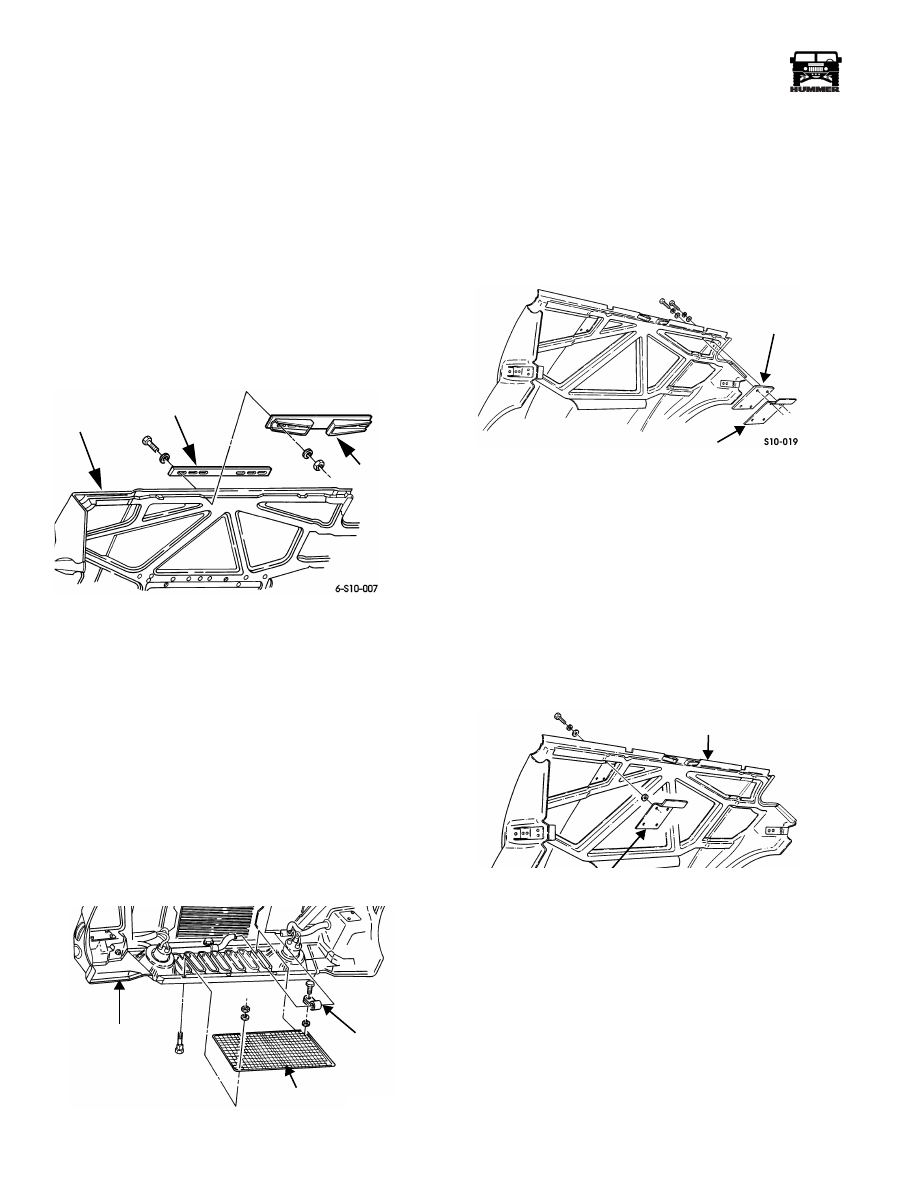

Figure 10-88:   Hood Latch and Stop Location



Outer Hood Seal Replacement



Removal



Remove two bolts, seal retainer, and hood seal from body
(Figure 10-89).



Installation



Secure hood seal to body with seal retainer and two bolts
(Figure 10-89).



Figure 10-89:   Outer Hood Seal Replacement

LOWER HINGE

HALF LOCKNUTS

HOOD

HOOD
CATCH

GUIDE BRACKET ASSEMBLY

HOOD LATCH

SIDE HOOD

STOP

BODY

SEAL RETAINER

HOOD SEAL



_____________________________________________________________________



 Body  10-49



®



05745159



Side Hood Stop Replacement



Removal



Remove two locknuts, washers, bolts, washers, and side hood
stop from body (Figure 10-90).



Installation



Secure side hood stop to body with two washers, bolts, wash-
ers, and locknuts. Tighten bolts to 6 lb-ft (8 N•m)
(Figure 10-90).



Figure 10-90:   Side Hood Stop Replacement



Grille and Screen Replacement



Removal



1.

Remove six locknuts, washers, bolts, washers, and grille
from hood (Figure 10-91).

2.

Remove six locknuts, washers, screws, washers, and
screen from grille.



Installation



1.

Secure screen to grille with six washers, screws, washers,
and locknuts. Tighten locknuts to 6 lb-ft (8 N•m)
(Figure 10-91).

2.

Secure grille to hood with six washers, screws, washers,
and locknuts. Tighten locknuts to 7 lb-ft (9 N•m).



Figure 10-91:   Grille and Screen Replacement



Center Hood Stop Replacement



Removal



Remove two bolts, washers, center hood stop, and plate from
A-beam (Figure 10-92).



Installation



Secure center hood stop and plate to A-beam with two washers
and bolts. Tighten bolts to 12 lb-ft (16 N•m) (Figure 10-92).



Figure 10-92:   Center Hood Stop Replacement

SIDE HOOD STOP

BODY

GRILLE

HOOD

SCREEN

A-BEAM

CENTER

PLATE

HOOD

STOP



10-50

Body



______________________________________________________________________



®



Guide Bracket Assembly Replacement



Removal



Remove six locknuts, twelve washers, guide bracket assembly,
guide plate, and six bolts from hood (Figure 10-93).



Installation



1.

Loosely attach guide plate and guide bracket assembly to
hood with six bolts, twelve washers, and six locknuts.
Tighten locknuts to 10 lb-ft (14 N•m) (Figure 10-93).

2.

Lower hood and align guide bracket assembly with center
hood stop on A-beam (Figure 10-92).

3.

Mark guide bracket assembly position, raise hood, and
tighten locknuts to 10 lb-ft (14 N•m) (Figure 10-93).



Figure 10-93:   Bracket Assembly Replacement



Front Hood Screen Replacement



Removal



1.

Remove three locknuts, washers, and carriage bolts secur-
ing front hood screen to hood (Figure 10-94).

2.

Remove three bolts, harness clamps, washers, and front
hood screen from hood.



Installation



1.

Secure front hood screen to hood with three washers, har-
ness clamps, and bolts. Tighten bolts to 20-30 lb in. (2-3
N•m) (Figure 10-94).

2.

Secure front hood screen to hood with three carriage bolts,
washers, and locknuts. Tighten locknuts to 21 lb-ft (29 N•m).



Figure 10-94:   Front Hood Screen Replacement



Right Hood Retainer Bracket Replacement



Removal



Remove four bolts, lockwashers, washers, right hood retainer
bracket, and spacer from hood (Figure 10-95).



Installation



Secure right hood retainer bracket and spacer to hood with four
washers, lockwashers, and bolts (Figure 10-95).



Figure 10-95:   Right Hood Retainer Bracket

Replacement



Left Hood Retainer Bracket Replacement



Removal



Remove four bolts, lockwashers, washers, left hood retainer
bracket, and four washers from hood (Figure 10-96).



Installation



Install left hood retainer bracket on hood with eight washers,
four lockwashers, and bolts (Figure 10-96).



Figure 10-96:   Left Hood Retainer Bracket

GUIDE PLATE

HOOD

GUIDE

ASSEMBLY

 BRACKET

HOOD

HARNESS

CLAMP

FRONT HOOD SCREEN

SPACER

RIGHT HOOD

RETAINER BRACKET

HOOD
