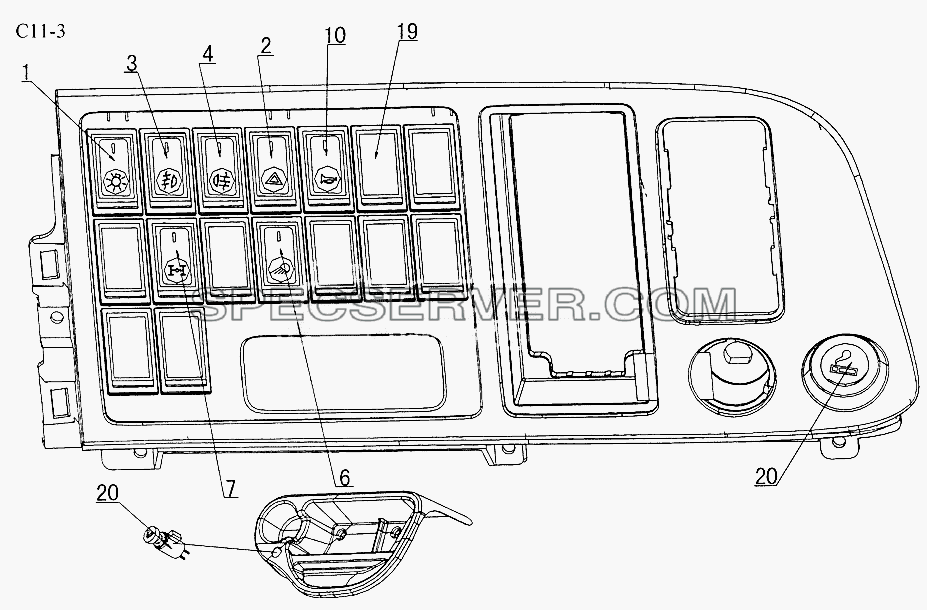

№		Номер детали	Наименование запчасти
1		WG9719582001 [Light switch]	Light switch
2		WG9719582004 [Emer.blinker system switch]	Emer.blinker system switch
3		WG9719582002 [Front fog lamp switch]	Front fog lamp switch
4		WG9719582004 [Rear fog lamp switch]	Rear fog lamp switch
5		WG9719582007 [Working lamp switch]	Working lamp switch
6		WG9719582011 [Wheel diff.lock switch]	Wheel diff.lock switch
7		WG9719582012 [Axle dift.lock switch]	Axle dift.lock switch
8		WG9719582013 [All-wheel-drive switch]	All-wheel-drive switch
9		WG9719582010 [Power take off switch]	Power take off switch
10		WG9719582005 [Horn switch]	Horn switch
11		WG9719582018 [Transfer case high/low speed switch]	Transfer case high/low speed switch
12		WG9719582017 [Transfer case neutral switch]	Transfer case neutral switch
13		WG9719582009 [PTO neutral switch]	PTO neutral switch
14		WG9719582008 [Cool start switch]	Cool start switch
15		WG9719582014 [ABS check switch]	ABS check switch
16		WG9719582019 [Lifting switch for trailing axle]	Lifting switch for trailing axle
17		WG9719582020 [ECU check switch]	ECU check switch
18		WG9719582030 [Switch for ECU check lamp]	Switch for ECU check lamp
19		WG9900580021 [Cover]	Cover
20		WG9100580141 [Cigar lighter]	Cigar lighter
21		WG9725580001 [Outer cover for check connector]	Outer cover for check connector

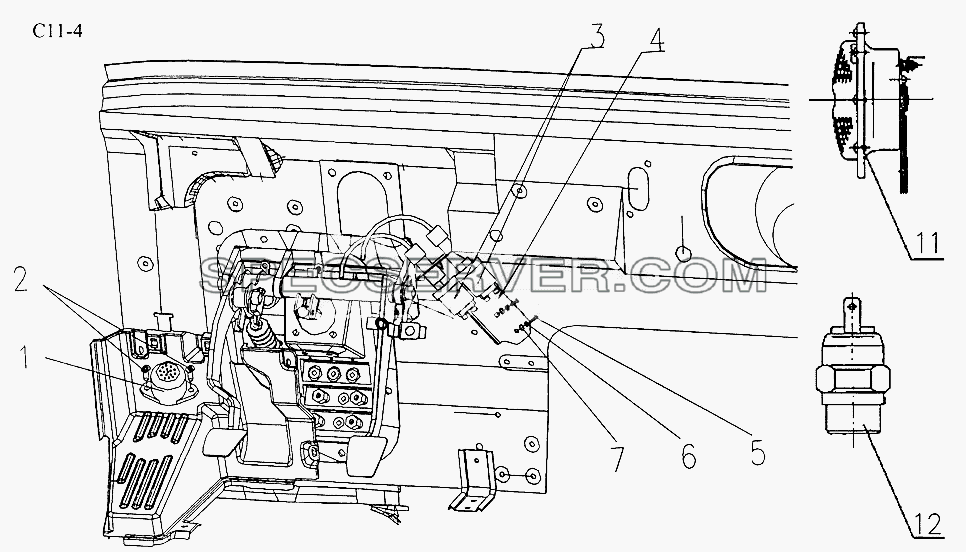

ELECTRICAL EQUIPMENT ON THE CHASSIS (C11-4) для Sinotruk 6x6 Tipper (336) (список запасных частей)

Таблица запасных частей

№		Номер детали	Наименование запчасти
-		190003800497 [Screw]	Screw
-		190003962019 [Screw]	Screw
-		Q1460825 [Combination screw]	Combination screw
-		Q150B08110 [Screw]	Screw
-		Q150B0816 [Screw]	Screw
-		Q33208 [Nut]	Nut
-		Q33208 [Nut]	Nut
-		Q40308 [Spring washer]	Spring washer
-		Q72312T5F [Gasket]	Gasket
1		WG9719710001 [Exhaust brake switch]	Exhaust brake switch
1		WG9719710002 [Exhaust brake switch]	Exhaust brake switch
2		Q2714216 [Screw]	Screw
3		WG9130713001 [Air pressure sensol]	Air pressure sensol
4		AZ9725710001 [Bracket]	Bracket
5		Q150B0616 [Screw]	Screw
6		Q40306 [Spring washer]	Spring washer
7		Q41206 [Washer]	Washer
8		WG9100580141 [Cigar lighter]	Cigar lighter
9		WG9718710001 [Electromagnetic valve for pneumatic horn]	Electromagnetic valve for pneumatic horn
10		WG9100710008 [Electromagnetic valve]	Electromagnetic valve
11		WG9718710002 [Electro horn]	Electro horn
12		WG9100710004 [Air pressure signal lamp switch]	Air pressure signal lamp switch
13		WG9725580028 [Water temperoture sensor]	Water temperoture sensor
14		WG9725580029 [Oil pressure sensor]	Oil pressure sensor
15		WG9725580006 [100A protector]	100A protector
16		WG9725580009 [SA protector]	SA protector
17		AZ9725580015 [Relay for battery]	Relay for battery
18		AZ9725580011 [Cutout relay]	Cutout relay
19		190003499855 [Seven hole socket]	Seven hole socket
20		WG9160710522 [ABS sensor (WABCO)]	ABS sensor (WABCO)
21		WG9160710523 [Sleeve for ABS sensor (WABCO)]	Sleeve for ABS sensor (WABCO)
22		WG9718580005 [ABS sensor (KNORR)]	ABS sensor (KNORR)
23		WG9718580006 [Sleeve for ABS sensor (KNORR)]	Sleeve for ABS sensor (KNORR)

ELECTRICAL EQUTPMENT IN DRIVER'S CAB (C11-5) для Sinotruk 6x6 Tipper (336) (список запасных частей)

Таблица запасных частей

№		Номер детали	Наименование запчасти
-		WG9719790003 [Internal light]	Internal light
-		WG9719790004 [Reading lamp]	Reading lamp
-		WG9719790006 [Rear side lamp]	Rear side lamp
15		WG9719790005 [Left, front side lamp]	Left, front side lamp
15		WG9719790007 [Side lamp]	Side lamp
16		WG9719790008 [Right, front side lamp]	Right, front side lamp
17		Q2764825 [Screw]	Screw
18		Q39748202 [Spring nut]	Spring nut
19		169200720016 [Bulb]	Bulb
20		WG9719790002 [Internal light]	Internal light
21		179100810051 [Bulb]	Bulb
22		WG9719790001 [Door contact]	Door contact
23		Q2764216 [Screw]	Screw
25		AZ9719770006 [Roof line of cab]	Roof line of cab
25		AZ9719770015 [Roof line of cab]	Roof line of cab
26		AZ9719770005 [Line for driver's cab]	Line for driver's cab
26		AZ9719770009 [Line for driver's cab]	Line for driver's cab
27		AZ9719770007 [Reading lamp line]	Reading lamp line
55		WG1642440052 [Lock signal switch for cab]	Lock signal switch for cab

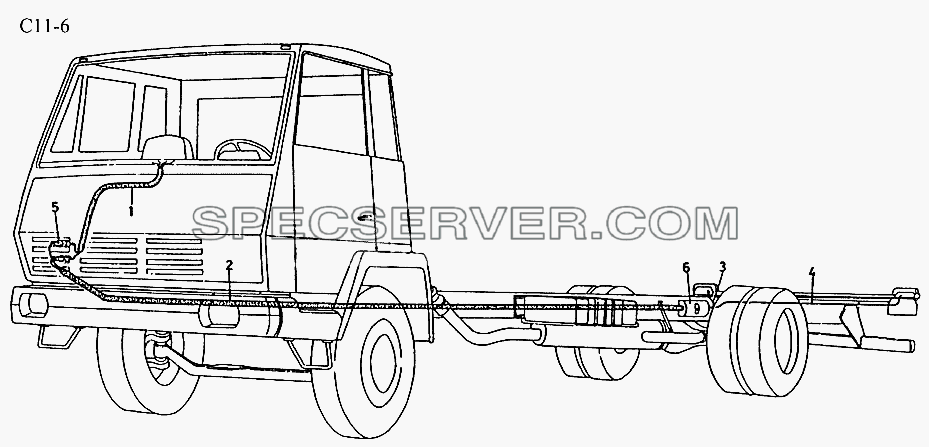

ELECTRICAL LINES (C11-6) для Sinotruk 6x6 Tipper (336) (список запасных частей)

Таблица запасных частей

№		Номер детали	Наименование запчасти
-		179100770391 [Line connector]	Line connector
-		189100770104 [Connecting box I]	Connecting box I
-		WG9100770394 [Line connector cover]	Line connector cover
1		AZ9130775038 [Driver's cab-line ABS (Wabco)]	Driver's cab-line ABS (Wabco)
1		AZ9716770001 [Driver's cab-line]	Driver's cab-line
1		AZ9718770020 [Electro-line for ABS (Knorr)]	Electro-line for ABS (Knorr)
1		AZ9718770061 [Gearbox-connector negative line (240)]	Gearbox-connector negative line (240)
1		AZ9718770062 [Gearbox-connector negative line (300)]	Gearbox-connector negative line (300)
1		AZ9718770063 [Gearbox-connector negative line (350)]	Gearbox-connector negative line (350)
1		AZ9718770064 [Gearbox-connector negative line (410)]	Gearbox-connector negative line (410)
1		AZ9718770065 [Gearbox-connector negative line (470)]	Gearbox-connector negative line (470)
1		AZ9718770066 [Gearbox-connector negative line (540)]	Gearbox-connector negative line (540)
1		AZ9718770067 [Gearbox-connector negative line (610)]	Gearbox-connector negative line (610)
1		AZ9718770068 [Gearbox-connector negative line (690)]	Gearbox-connector negative line (690)
1		AZ9718770069 [Gearbox-connector negative line (760)]	Gearbox-connector negative line (760)
1		AZ9718770070 [Gearbox-connector negative line (830)]	Gearbox-connector negative line (830)
1		AZ9718770085 [Speedmeter cable (470)]	Speedmeter cable (470)
1		AZ9719770001 [Driver's cab-line]	Driver's cab-line
1		AZ9719770002 [Switch-line]	Switch-line
1		AZ9719770010 [Chassis-line for air conditioner]	Chassis-line for air conditioner
1		AZ9719770041 [Electro-line for ABS (Wabco)]	Electro-line for ABS (Wabco)
2		189100770068 [Seven hole socket-line]	Seven hole socket-line
2		AZ9130775051 [ABS (4S/4M) chassis line]	ABS (4S/4M) chassis line
2		AZ9716770020 [Power take off-line]	Power take off-line
2		AZ9718770014 [Transmission-line]	Transmission-line
2		AZ9718770024 [ABS chassis frame line (Knorr)]	ABS chassis frame line (Knorr)
2		AZ9718770026 [ABS chassis frame line (Knorr)]	ABS chassis frame line (Knorr)
2		AZ9718770026 [ABS chassis frame line (Knorr)]	ABS chassis frame line (Knorr)
2		AZ9718770031 [ABS chassis frame line (Knorr)]	ABS chassis frame line (Knorr)
2		AZ9718770032 [ABS chassis frame line (Knorr)]	ABS chassis frame line (Knorr)
2		AZ9718770033 [ABS chassis frame line (Knorr)]	ABS chassis frame line (Knorr)
2		AZ9718770035 [ABS chassis frame line (Knorr)]	ABS chassis frame line (Knorr)
2		AZ9718770037 [ABS chassis frame line (Knorr)]	ABS chassis frame line (Knorr)
2		AZ9718770051 [Electro-1ine for ABS on trailer]	Electro-1ine for ABS on trailer
2		AZ9718770052 [Flexible spirality cable-line for ABS]	Flexible spirality cable-line for ABS
2		AZ9718770054 [ABS socket-line]	ABS socket-line
2		AZ9719770012 [Engine-line]	Engine-line
2		AZ9719770013 [Starter-line]	Starter-line
2		AZ9719770014 [Transmission and air filter-line]	Transmission and air filter-line
2		AZ9719770021 [Fuel tank, solenoid valve and air dryer-line]	Fuel tank, solenoid valve and air dryer-line
2		AZ9719770022 [Fuel tank, solenoid valve and air dryer-line]	Fuel tank, solenoid valve and air dryer-line
2		AZ9719770023 [Fuel tank, solenoid valve and air dryer-line]	Fuel tank, solenoid valve and air dryer-line
2		AZ9719770024 [Fuel tank, solenoid valve and air dryer-line]	Fuel tank, solenoid valve and air dryer-line
2		AZ9719770026 [Chassis frame-line]	Chassis frame-line
2		AZ9719770027 [Chassis frame-line]	Chassis frame-line
2		AZ9719770028 [Chassis frame-line]	Chassis frame-line
2		AZ9719770029 [Chassis frame-line]	Chassis frame-line
2		AZ9719770030 [Chassis frame-line]	Chassis frame-line
2		AZ9719770031 [Chassis frame-line]	Chassis frame-line
2		AZ9719770032 [Chassis frame-line]	Chassis frame-line
2		AZ9719770033 [Chassis frame-line]	Chassis frame-line
2		AZ9719770034 [Chassis frame-line]	Chassis frame-line
2		AZ9719770035 [Chassis frame-line]	Chassis frame-line
2		AZ9719770051 [Electro-1ine for ABS on trailer]	Electro-1ine for ABS on trailer
2		AZ9719770052 [Flexible spirality cable-line for ABS]	Flexible spirality cable-line for ABS
2		AZ9719770053 [ABS socket]	ABS socket
2		AZ9719770054 [ABS socket-line]	ABS socket-line
2		AZ9725770001 [Side lamp-line]	Side lamp-line
2		AZ9731770012 [Starter-line]	Starter-line
2		AZ9731770013 [Starter-line]	Starter-line
2		AZ9731770020 [Lifting magnetic valve-line]	Lifting magnetic valve-line
2		AZ9731770024 [Fuel tank, solenoid valve and air dryer-line]	Fuel tank, solenoid valve and air dryer-line
2		AZ9731770025 [Fuel tank, solenoid valve and air dryer-line]	Fuel tank, solenoid valve and air dryer-line
2		AZ9731770026 [Fuel tank, solenoid valve and air dryer-line]	Fuel tank, solenoid valve and air dryer-line
2		AZ9731770027 [Fuel tank, solenoid valve and air dryer-line]	Fuel tank, solenoid valve and air dryer-line
2		AZ9731770042 [ABS chassis-line (6S/6M)]	ABS chassis-line (6S/6M)
2		AZ9731770043 [ABS chassis-line (6S/6M)]	ABS chassis-line (6S/6M)
2		AZ9731770044 [ABS chassis-line (6S/6M)]	ABS chassis-line (6S/6M)
2		AZ9731770045 [ABS chassis-line (6S/6M)]	ABS chassis-line (6S/6M)
2		WG9100770255 [Flexible spirality cable-line]	Flexible spirality cable-line
2		WG9100773029 [Air dryer-line]	Air dryer-line
2		WG9130773086 [Speedometer-line]	Speedometer-line
2		WG9130775007 [Work lamp chassis-line]	Work lamp chassis-line
3		189100770082 [Axle diff.lock and wheel diff.lock.line]	Axle diff.lock and wheel diff.lock.line
4		AZ9716770016 [Left rear combination lamp-line]	Left rear combination lamp-line
4		AZ9716770017 [Right rear combination lamp-line]	Right rear combination lamp-line
4		AZ9718770060 [Connector negative-line]	Connector negative-line
4		AZ9719770016 [Left,rear combination lamp-line]	Left,rear combination lamp-line
4		AZ9719770017 [Right,rear combination lamp-line]	Right,rear combination lamp-line
4		AZ9719770018 [Left,rear combination lamp-line]	Left,rear combination lamp-line
4		AZ9719770019 [Right,rear combination lamp-line]	Right,rear combination lamp-line
5		189100770103 [Connecting box I]	Connecting box I
6		WG9100770392 [Line connector body]	Line connector body

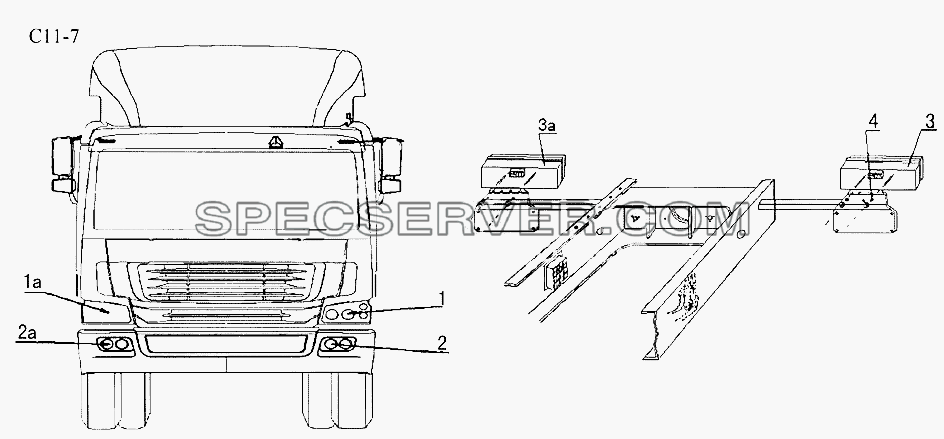

LIGHTS (C11-7) для Sinotruk 6x6 Tipper (336) (список запасных частей)

Таблица запасных частей

№		Номер детали	Наименование запчасти
-		WG9716720002 [Right head lamp]	Right head lamp
-		WG9719720002 [Right head lamp]	Right head lamp
-		WG9719720006 [Front right combinatory lamp]	Front right combinatory lamp
-		WG9719810002 [Rear right combinatory lamp]	Rear right combinatory lamp
1		WG9716720001 [Left head lamp]	Left head lamp
1		WG9719720001 [Left head lamp]	Left head lamp
2		WG9719720005 [Front left combinatory lamp]	Front left combinatory lamp
3		WG9719810001 [Rear left combinatory lamp]	Rear left combinatory lamp
4		AZ9725810001 [Spacing plate for tail light]	Spacing plate for tail light
5		1-34-172-010 [Working lamp]	Working lamp
6		WG9100720012 [Side lamp]	Side lamp

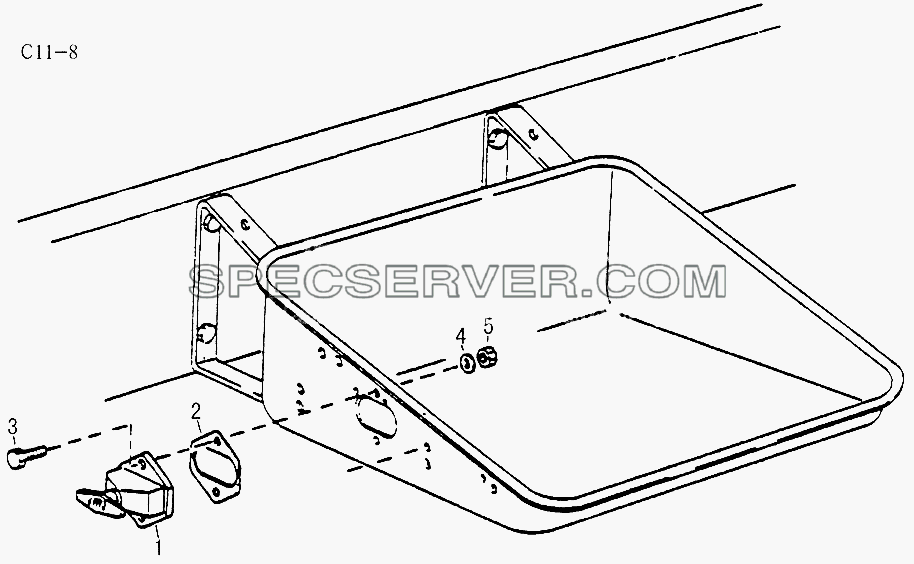

BATTERY, MAIN SWITCH (C11-8) для Sinotruk 6x6 Tipper (336) (список запасных частей)

Таблица запасных частей

№		Номер детали	Наименование запчасти
1		WG9100760100 [Battery main switch]	Battery main switch
2		199100760099 [Gasket]	Gasket
3		Q150B0835 [Screw]	Screw
4		Q40308 [Spring washer]	Spring washer
5		Q340B08 [Nut]	Nut
6		WG9100760001 [Battery]	Battery
6		WG9100760064 [Battery]	Battery
6		WG9100760065 [Battery]	Battery
