№		Номер детали	Наименование запчасти
-		179100710082 [Angle frame]	Angle frame
-		179100810051 [Bulb]	Bulb
-		190003452490 [Bulb]	Bulb
-		190003699568 [Nut]	Nut
-		199012710014 [Protection sheath]	Protection sheath
-		Q150B0516 [Bolt]	Bolt
-		Q150B0616 [Bolt]	Bolt
-		Q150B0616 [Bolt]	Bolt
-		Q150B0616 [Bolt]	Bolt
-		Q150B0816 [Bolt]	Bolt
-		Q150B0830 [Bolt]	Bolt
-		Q2140630 [Bolt]	Bolt
-		Q2140650 [Bolt]	Bolt
-		Q2540516 [Bolt]	Bolt
-		Q33206 [Nut]	Nut
-		Q33208 [Nut]	Nut
-		Q33210 [Nut]	Nut
-		Q340B06 [Nut]	Nut
-		Q340B06 [Nut]	Nut
-		Q340B06 [Nut]	Nut
-		Q340B08 [Nut]	Nut
-		Q340B08 [Nut]	Nut
-		Q40008 [Washer]	Washer
-		Q40105 [Washer]	Washer
-		Q40106 [Washer]	Washer
-		Q40305 [Spring washer]	Spring washer
-		Q40305 [Washer]	Washer
-		Q40306 [Spring washer]	Spring washer
-		Q40308 [Spring washer]	Spring washer
-		Q40308 [Washer]	Washer
-		Q40506 [Spring washer]	Spring washer
-		Q40506 [Washer]	Washer
-		QS40B05 [Nut]	Nut
-		WG9100583011 [Buzzer]	Buzzer
1		WG9200580018 [Blinking relay]	Blinking relay
2		WG9100580027 [Wiper intermission control relay]	Wiper intermission control relay
3		WG9100583049 [Start relay(80A)]	Start relay(80A)
4		WG9100580141 [Cigar lighter]	Cigar lighter
5		WG9130583017 [Combination switch]	Combination switch
6		AZ9130583016 [Implement fixable board assembly]	Implement fixable board assembly
7		WG9100710043 [Electric horn]	Electric horn
8		WG9100710004 [Air pressure signal lamp switch]	Air pressure signal lamp switch
9		WG9130713004 [Air pressure Sensor]	Air pressure Sensor
10		169000360186 [Solenoid valve]	Solenoid valve
11		WG9100710006 [Stop lamp switch]	Stop lamp switch
12		WG9100720105 [Quad left headlamp system]	Quad left headlamp system
13		WG9100720106 [Quad right headlamp system]	Quad right headlamp system
14		WG9100720003 [Left turn light lamp]	Left turn light lamp
15		WG9100720004 [Right turn light lamp]	Right turn light lamp
16		WG9100720008 [T/fog lamp]	T/fog lamp
18		WG9200810009 [Combination rear lamp(left)]	Combination rear lamp(left)
19		WG9200810010 [Combination rear lamp(right)]	Combination rear lamp(right)
20		WG9100720110 [Left combination head lamp]	Left combination head lamp
21		WG9100720111 [Right combination headlamp]	Right combination headlamp
22		1-34-172-010 [Working lamp]	Working lamp
23		190003452407 [Bulb]	Bulb
24		190003499855 [Trailer socket]	Trailer socket

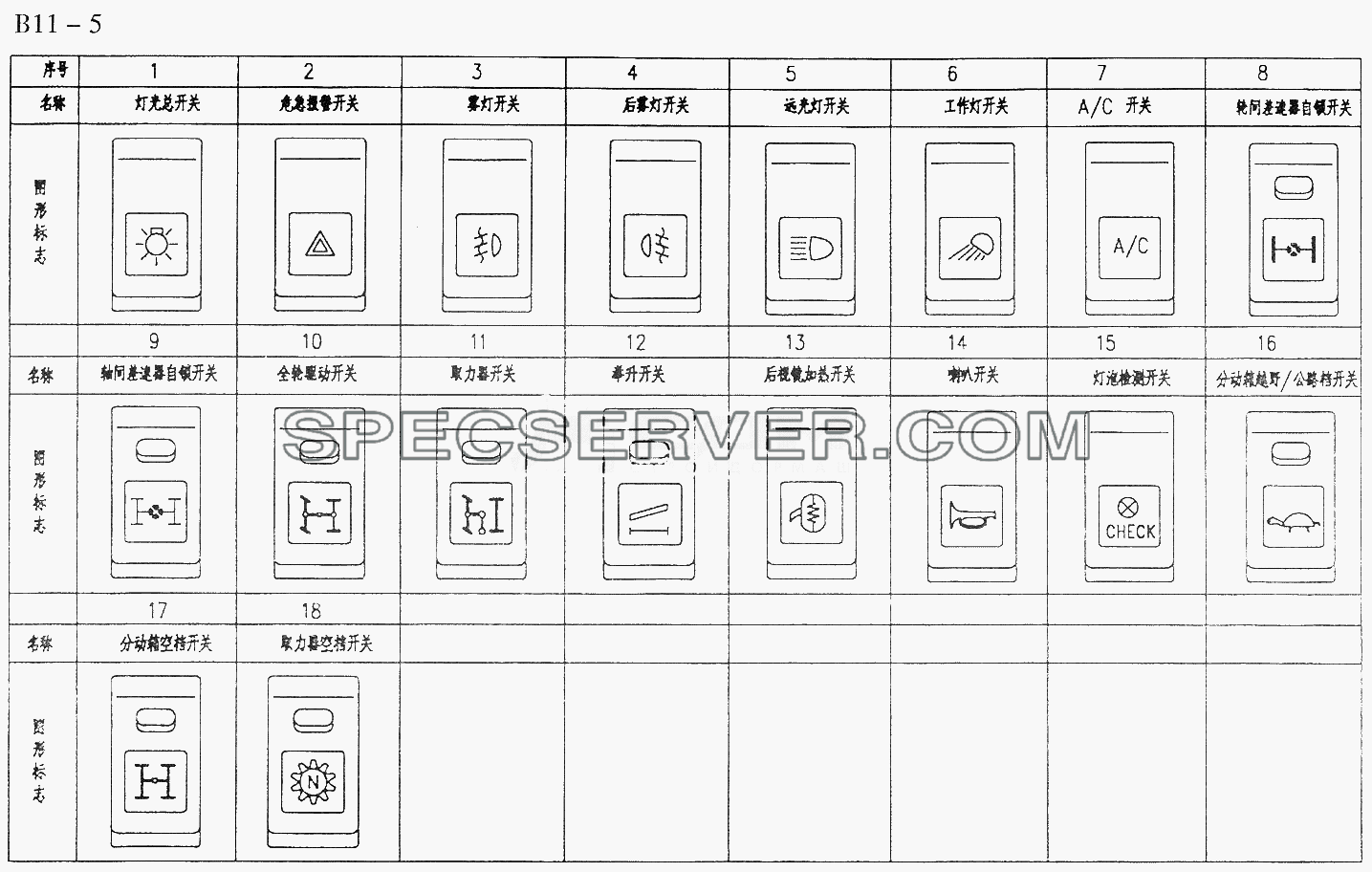

SWITCHS FOR CENTRAL CONTROL ELECTRICAL SYSTEM (B11-5) для Sinotruk 6x6 Tipper (336) (список запасных частей)

Таблица запасных частей

№		Номер детали	Наименование запчасти
1		WG9130581011 [Light switch]	Light switch
2		WG9130581027 [Em-blinker system switch]	Em-blinker system switch
3		WG9130581029 [Fog lamp switch]	Fog lamp switch
4		WG9130581025 [Rear fog lamp switch]	Rear fog lamp switch
5		WG9130581037 [High beam lamp switch]	High beam lamp switch
6		WG9130581038 [Working lamp switch]	Working lamp switch
7		WG9130581034 [Air condition switch]	Air condition switch
8		WG9130581043 [Wheel diff lock switch]	Wheel diff lock switch
9		WG9130581042 [Axle diff lock switch]	Axle diff lock switch
10		WG9130581022 [All-wheel-drive switch]	All-wheel-drive switch
11		WG9130581040 [Power take off switch]	Power take off switch
12		WG9130581050 [Tipper switch]	Tipper switch
13		WG9130581054 [Mirror heating switch]	Mirror heating switch
14		WG9130583063 [Horn switch]	Horn switch
15		WG9130581036 [Indicator check switch]	Indicator check switch
16		WG9130581051 [Transfer case high/low speed switch]	Transfer case high/low speed switch
17		WG9130581052 [Transfer case neutral switch]	Transfer case neutral switch
18		WG9130581045 [PTO neutral switch]	PTO neutral switch
19		WG9130581036 [Light check switch]	Light check switch

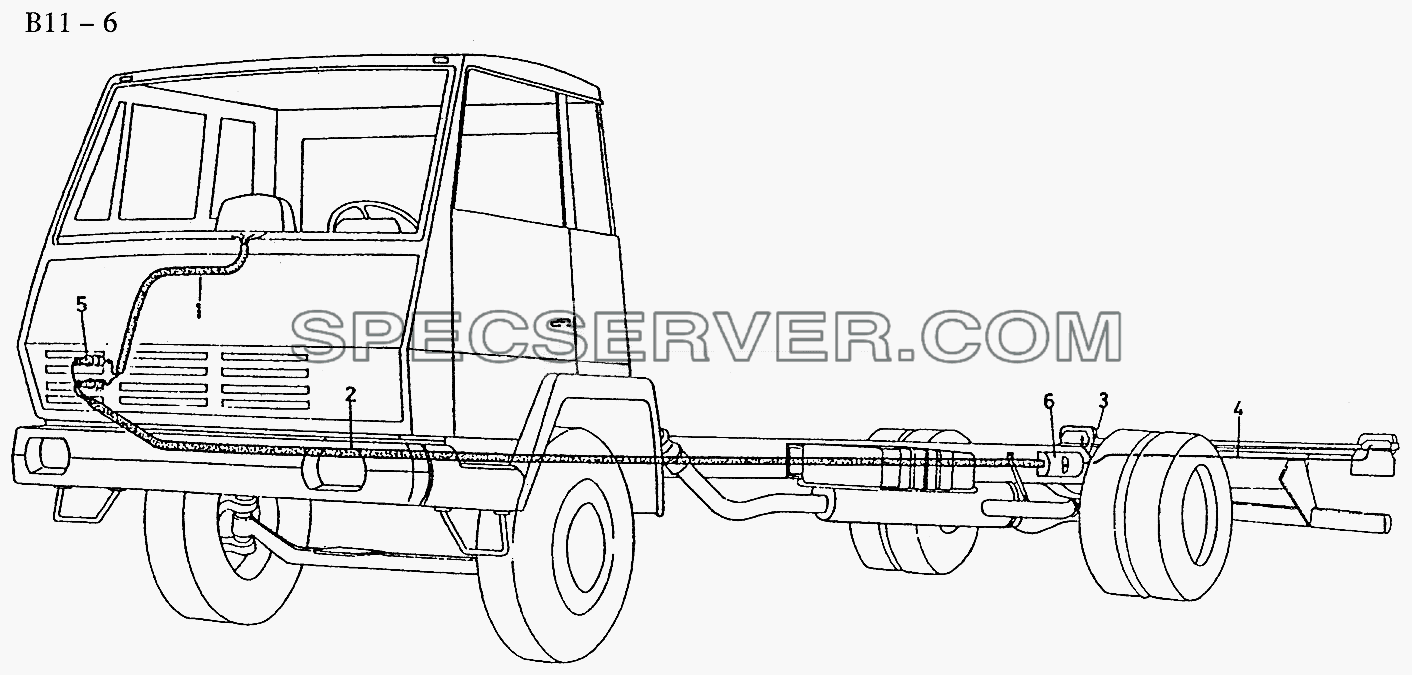

ELECTRICAL LINES FOR CENTRAL CONTROL ELECTRICAL SYSTEM (B11-6) для Sinotruk 6x6 Tipper (336) (список запасных частей)

Таблица запасных частей

№		Номер детали	Наименование запчасти
-		179100770391 [Box]	Вох
-		WG9100770394 [Cover]	Cover
1		WC9130773001 [Drivers cab-line]	Drivers cab-line
1		WG9100770025 [Drivers cab negative line]	Drivers cab negative line
1		WG9100773004 [Left/right turn lamp-line]	Left/right turn lamp-line
1		WG9100773062 [Air condition chassis-line]	Air condition chassis-line
1		WG9130773003 [Left/right head lamp-line]	Left/right head lamp-line
1		WG9130773006 [Left switch-line]	Left switch-line
1		WG9130773007 [Right switch-line]	Right switch-line
1		WG9130773008 [Water pump and horn-line]	Water pump and horn-line
1		WG9130773009 [Air pressure sensor and switch-line]	Air pressure sensor and switch-line
1		WG9130773055 [Left/right turn lamp-line]	Left/right turn lamp-line
1		WG9130775005 [Left/right head lamp-line]	Left/right head lamp-line
1		WG9130775038 [ABS(WABCO)Cab wiring harness-line]	ABS(WABCO)Cab wiring harness-line
2		WG9100770132 [Seven hole socket-line]	Seven hole socket-line
2		WG9100770133 [Seven hole socket-line]	Seven hole socket-line
2		WG9100770255 [Flexible spirality cable-line]	Flexible spirality cable-line
2		WG9100773002 [Air drier-line]	Air drier-line
2		WG9100773010 [Respective move box electric operation wining harness in cab-line]	Respective move box electric operation wining harness in cab-line
2		WG9100773011 [Fuel box, solenoid valve and air filter-line]	Fuel box, solenoid valve and air filter-line
2		WG9100773012 [Fuel box, solenoid valve and air filter-line]	Fuel box, solenoid valve and air filter-line
2		WG9100773013 [Fuel box, solenoid valve and air filter-line]	Fuel box, solenoid valve and air filter-line
2		WG9100773014 [Fuel box, solenoid valve and air filter-line]	Fuel box, solenoid valve and air filter-line
2		WG9100773015 [Engine-line]	Engine-line
2		WG9100773017 [Transmission-line]	Transmission-line
2		WG9100773018 [Transmission-line]	Transmission-line
2		WG9100773028 [Transmission-line]	Transmission-line
2		WG9100773029 [Air drier-line]	Air drier-line
2		WG9100773031 [Classis flame-line]	Classis flame-line
2		WG9100773032 [Classis flame-line]	Classis flame-line
2		WG9100773033 [Classis flame-line]	Classis flame-line
2		WG9100773034 [Classis flame-line]	Classis flame-line
2		WG9100773035 [Classis flame-line]	Classis flame-line
2		WG9100773036 [Classis flame-line]	Classis flame-line
2		WG9100773037 [Classis flame-line]	Classis flame-line
2		WG9100773038 [Classis flame-line]	Classis flame-line
2		WG9100773039 [Classis flame-line]	Classis flame-line
2		WG9100773040 [Classis flame-line]	Classis flame-line
2		WG9100773041 [Transmission-line]	Transmission-line
2		WG9100773042 [Transmission-line]	Transmission-line
2		WG9100773043 [Transmission-line]	Transmission-line
2		WG9100773044 [Transmission-line]	Transmission-line
2		WG9100773051 [Work lamp chassis-line]	Work lamp chassis-line
2		WG9100773055 [Power take off-line]	Power take off-line
2		WG9100773056 [Air drier-line]	Air drier-line
2		WG9100773080 [Fuel box, solenoid valve and air filter-line]	Fuel box, solenoid valve and air filter-line
2		WG9100773089 [Starter-line]	Starter-line
2		WG9100773090 [Starter-line]	Starter-line
2		WG9100773095 [Starter-line]	Starter-line
2		WG9100779001 [Fuel box, solenoid valve and air filter-line]	Fuel box, solenoid valve and air filter-line
2		WG9130773086 [Speedometer and odometer-line]	Speedometer and odometer-line
2		WG9130775019 [Power take off-line]	Power take off-line
2		WG9130775020 [Power take off-line]	Power take off-line
2		WG9130775036 [Power take off-line]	Power take off-line
2		WG9130775040 [ABS chassis wiring harness-line]	ABS chassis wiring harness-line
2		WG9130775043 [ABS chassis wiring harness-line]	ABS chassis wiring harness-line
2		WG9600775038 [Respective nlove box solenoid valve-line]	Respective nlove box solenoid valve-line
3		WG9100770082 [Axle diff lock-line]	Axle diff lock-line
3		WG9100770084 [Axle diff lock-line]	Axle diff lock-line
3		WG9100770086 [Axle diff lock-line]	Axle diff lock-line
3		WG9100770087 [Axle diff lock-line]	Axle diff lock-line
4		26042770015 [Junction box earth wire-line]	Junction box earth wire-line
4		WG9100773020 [Right rear combination lamp-line]	Right rear combination lamp-line
4		WG9100773021 [Left rear combination lamp-line]	Left rear combination lamp-line
4		WG9100773022 [Right rear combination lamp-line]	Right rear combination lamp-line
4		WG9100773023 [Left rear combination lamp-line]	Left rear combination lamp-line
4		WG9100773046 [Right rear combination lamp-line]	Right rear combination lamp-line
5		WG9130773002 [Wiring harness through box-line]	Wiring harness through box-line
6		WG9100770392 [Line connector]	Line connector
10		WG9130773086 [Cable for speedmeter]	Cable for speedmeter

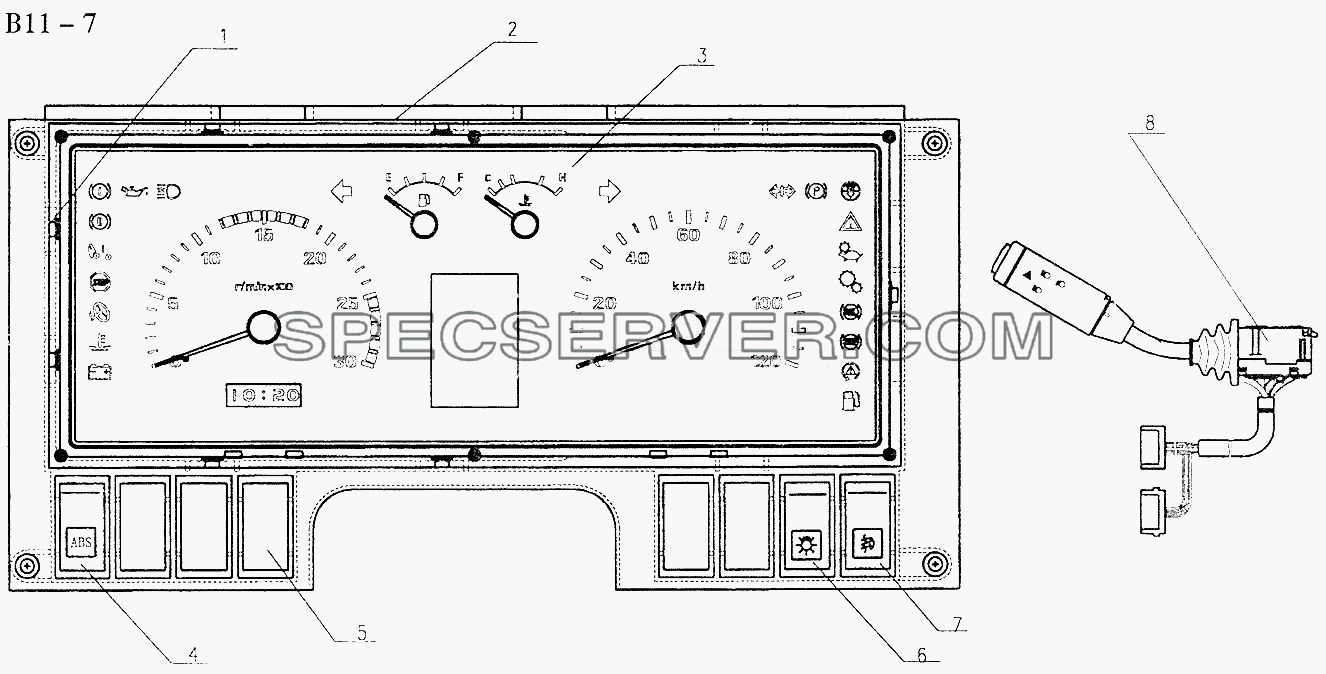

CAN MAIN CIRCUIT ELECTRICAL DASHBOARD I (B11-7) для Sinotruk 6x6 Tipper (336) (список запасных частей)

Таблица запасных частей

№		Номер детали	Наименование запчасти
-		WG9600581000-2 [Combination instnmaent(nothe center control element in)]	Combination instnmaent(nothe center control element in)
-		WG9600581000-3 [Center control element]	Center control element
-		WG9600581000-4 [DB25 Cable]	DB25 Cable
1		AZ9130583004 [Rubber block]	Rubber block
2		AZ9600585002-9 [The left instrument panel]	The left instrument panel
3		WG9600581000-1 [Combination instrument(the center control element in)]	Combination instrument(the center control element in)
4		ABS switch
5		13990580021 [Cover board]	Cover board
6		WG9600580011 [Light switch]	Light switch
7		WG9600580029 [Fog light switch]	Fog light switch
8		WG9130583017 [Combination switch]	Combination switch
10		WG9100583056 [Sersor for speedmeter]	Sersor for speedmeter

CAN MAIN CIRCUIT ELECTRICAL DASHBOARD II (B11-8) для Sinotruk 6x6 Tipper (336) (список запасных частей)

Таблица запасных частей

№		Номер детали	Наименование запчасти
1		AZ9600583001 [Cover boald]	Cover boald
2		AZ1630120016 [The right instrument panel]	The right instrument panel
3		AZ9130583004 [Rubber block]	Rubber block
4		WG9130583002 [Combination instrument II]	Combination instrument II
5		WG9130583005 [Knob]	Knob
15		WG9900580021 [Cover board]	Cover board

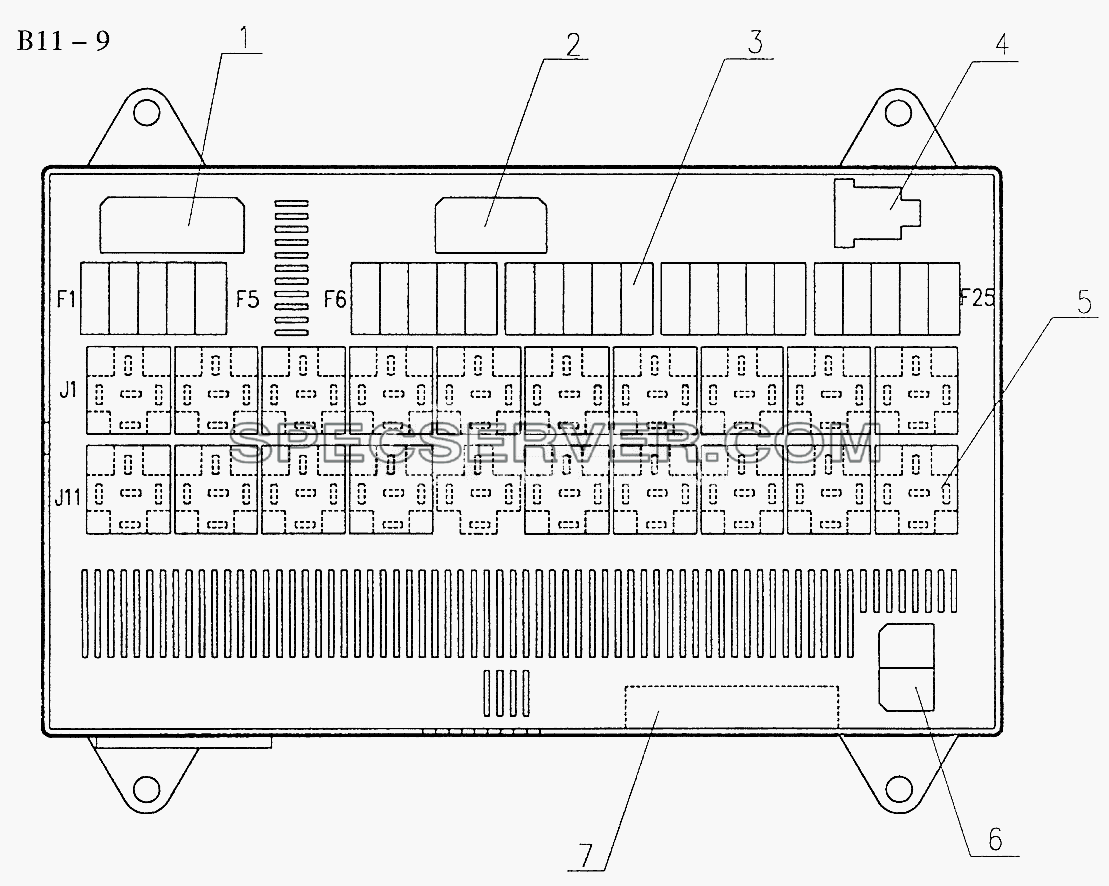

CAN MAIN CIRCUIT ELECTRICAL DRIVING BOARD AND CHASSIS ELECTRICAL DEVICE (B11-9) для Sinotruk 6x6 Tipper (336) (список запасных частей)

Таблица запасных частей

№		Номер детали	Наименование запчасти
-		WG9600581000 [CAN control system]	CAN control system
-		WG9600581000-5 [Central control driving board]	Central control driving board
-		WG9600581000-6 [Central control driving board (no incl.Relay)]	Central control driving board (no incl.Relay)
1		WG9600581000-7 [Connector]	Connector
2		WG9600581000-8 [Connector]	Connector
3		WG9600581000-9 [Fuse]	Fuse
4		WG9600581000-10 [Connector]	Connector
5		WG9600581000-11 [Relay]	Relay
6		WG9600581000-12 [Connector]	Connector
7		WG9600581000-13 [Connector]	Connector
8		WG9100583049 [Start relay]	Start relay
9		WG9130583017 [Combination switch]	Combination switch
10		WG9100580141 [Cigar lighter]	Cigar lighter
11		WG9100710043 [Electric horn]	Electric horn
14		WG9130713001 [Air presure sensor]	Air presure sensor
15		169000360186 [Solenoid valve]	Solenoid valve
16		WG9100720110 [Left combination head lamp]	Left combination head lamp
17		WG9100720111 [Right combination head lamp]	Right combination head lamp
18		WG9200720040 [Fog lamp]	Fog lamp
19		WG9200720041 [Wide lamp]	Wide lamp
20		WG9600773086 [Cable for speed meter]	Cable for speed meter
21		WG9200810009 [Combination lear lamp left]	Combination lear lamp left
22		WG9200810010 [Combination rear lamp right]	Combination rear lamp right
