№		Номер детали	Наименование запчасти
-		3211W6004 [Brake anchor right]	Brake anchor right
-		5-60730 [Brake spacer]	Brake spacer
-		A3236Q2123 [Brake cover]	Brake cover
-		AZ9111340025 [Support]	Support
-		AZ9761340103 [Brake lining]	Brake lining
-		AZ9761340104 [Brake lining]	Brake lining
-		AZ9761340105 [Shoe]	Shoe
-		AZ9761341010 [Drive shaft right]	Drive shaft right
-		AZ9761345542 [Bracket right]	Bracket right
-		AZ9761345544 [Bracket right]	Bracket right
-		AZ9761345556 [Bracket right]	Bracket right
-		AZ9761348143 [Brake camshaft right]	Brake camshaft right
-		Q33208 [Nut]	Nut
-		WG9112340008 [Gear ring]	Gear ring
-		WG9761340108 [Rivet]	Rivet
1		AZ9107346010 [ABS sensor bellows]	ABS sensor bellows
2		Q218B0835 [Screw]	Screw
3		AZ9107346006 [ABS sensor bracket]	ABS sensor bracket
4		1229D2942 [Circlip]	Circlip
5		1229W3117 [Washer]	Washer
6		1229J3130 [Washer]	Washer
7		AZ9111340040 [Rod adjusting device]	Rod adjusting device
7		WG9111340045 [Self rod adjusting device]	Self rod adjusting device
8		1229H4090 [Washer]	Washer
9		A1205V1556 [Oil seaI]	Oil seaI
10		WG122511208 [Bush]	Bush
11		A3236R2124 [Brake cover]	Brake cover
12		AZ9761340106 [Brake shoe C]	Brake shoe C
13		1259N274 [Bolt]	Bolt
14		3105B210 [Support]	Support
15		1779R18 [Roller]	Roller
16		2258W803 [Spring]	Spring
17		Q150B1028 [Screw]	Screw
18		AZ9118340012 [Spacer]	Spacer
19		2258H1230 [Spring]	Spring
20		Q150B1235 [Screw]	Screw
21		AZ9761345541 [Bracret left]	Bracret left
21		AZ9761345543 [Bracret left]	Bracret left
21		AZ9761345555 [Bracret left]	Bracret left
22		1205G761 [O-ring]	O-ring
23		3211W6003 [Brake anchor left]	Brake anchor left
24		1229G4089 [Washer]	Washer
25		AZ9761348144 [Brake camshaft left]	Brake camshaft left
26		Q151B1635TF2 [Screw]	Screw
27		AZ9111340017 [Spacer]	Spacer
28		WG9112340114 [Oil seal]	Oil seal
29		WG9112340113 [Oil seal]	Oil seal
30		190003326067 [Bevel roller bearing]	Bevel roller bearing
31		WG9107340002 [Wheel stud]	Wheel stud
32		AZ9118340006 [Brake drum]	Brake drum
33		Q150B0816 [Screw]	Screw
34		Q40308 [Washer]	Washer
35		AZ9761340021 [Cover]	Cover
36		AZ9761340082 [Rear wheeI hub]	Rear wheeI hub
37		WG9003884160 [Wheel nut]	Wheel nut
38		Q2541025 [Screw]	Screw
39		1218G85 [Pin]	Pin
40		WG1225L1208 [Bush]	Bush
41		32217 [Bevel roller bearing]	Bevel roller bearing
42		1227N1184 [Inter adjusting nut]	Inter adjusting nut
43		1229M3003 [Locking sheet]	Locking sheet
44		AZ9107334673 [Locking sheet]	Locking sheet
45		1227P1186 [Outer adjusting nut]	Outer adjusting nut
46		WG9107340003 [Stud]	Stud
47		AZ9761341020 [Drive shaft left]	Drive shaft left
48		1246V1166 [Bevel sleeve]	Bevel sleeve
49		1229X518 [Locking sheet]	Locking sheet
50		190003888627 [Locking nut]	Locking nut

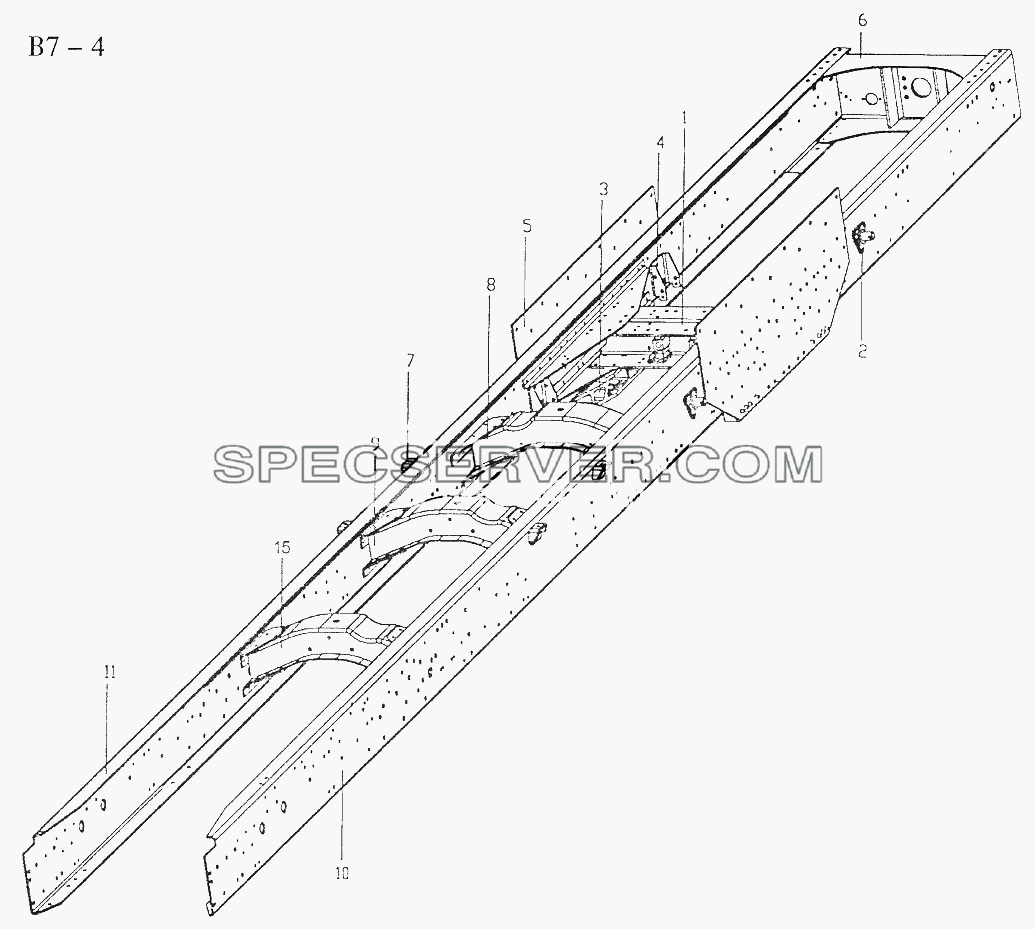

CHASSIS FRAME FOR 6x4 TIPPER TRUCK (B7-4) для Sinotruk 6x6 Tipper (336) (список запасных частей)

Таблица запасных частей

№		Номер детали	Наименование запчасти
-		199114510050 [Chassis frame]	Chassis frame
-		AZ9232510030 [Chassis frame]	Chassis frame
-		AZ92332510090 [Chassis frame]	Chassis frame
-		AZ9626510001 [Chassis frame]	Chassis frame
-		AZ9626510010 [Chassis frame]	Chassis frame
-		AZ9632510010 [Chassis frame]	Chassis frame
-		AZ9632510040 [Chassis frame]	Chassis frame
1		199014512015 [Cross member]	Cross member
2		199014510038 [Bracket]	Bracket
3		199114510015 [Bracket]	Bracket
4		199014510226 [Bracket]	Bracket
5		199014512021 [Plate]	Plate
5		AZ9114512013 [Plate]	Plate
6		199100510028 [Cross member]	Cross member
6		AZ9114510410 [Cross member]	Cross member
7		1780 510196 [Bracket]	Bracket
7		AZ9114510071 [Bracket]	Bracket
7		AZ9114510072 [Bracket]	Bracket
8		199014510040 [Cross member]	Cross member
9		199012510075 [Cross member]	Cross member
9		199100510022 [Cross member]	Cross member
9		199114512135 [Cross member]	Cross member
10		199114510051 [Left longeron]	Left longeron
10		AZ9232510031 [Left longeron]	Left longeron
10		AZ9232510091 [Left longeron]	Left longeron
10		AZ9626510002 [Left longeron]	Left longeron
10		AZ9626510011 [Left longeron]	Left longeron
10		AZ9632510011 [Left longeron]	Left longeron
10		AZ9632510041 [Left longeron]	Left longeron
11		199114510052 [Right longeron]	Right longeron
11		AZ9232510032 [Right longeron]	Right longeron
11		AZ9232510092 [Right longeron]	Right longeron
11		AZ9626510003 [Right longeron]	Right longeron
11		AZ9626510012 [Right longeron]	Right longeron
11		AZ9632510012 [Right longeron]	Right longeron
11		AZ9632510042 [Right longeron]	Right longeron
15		199012510075 [Cross member]	Cross member

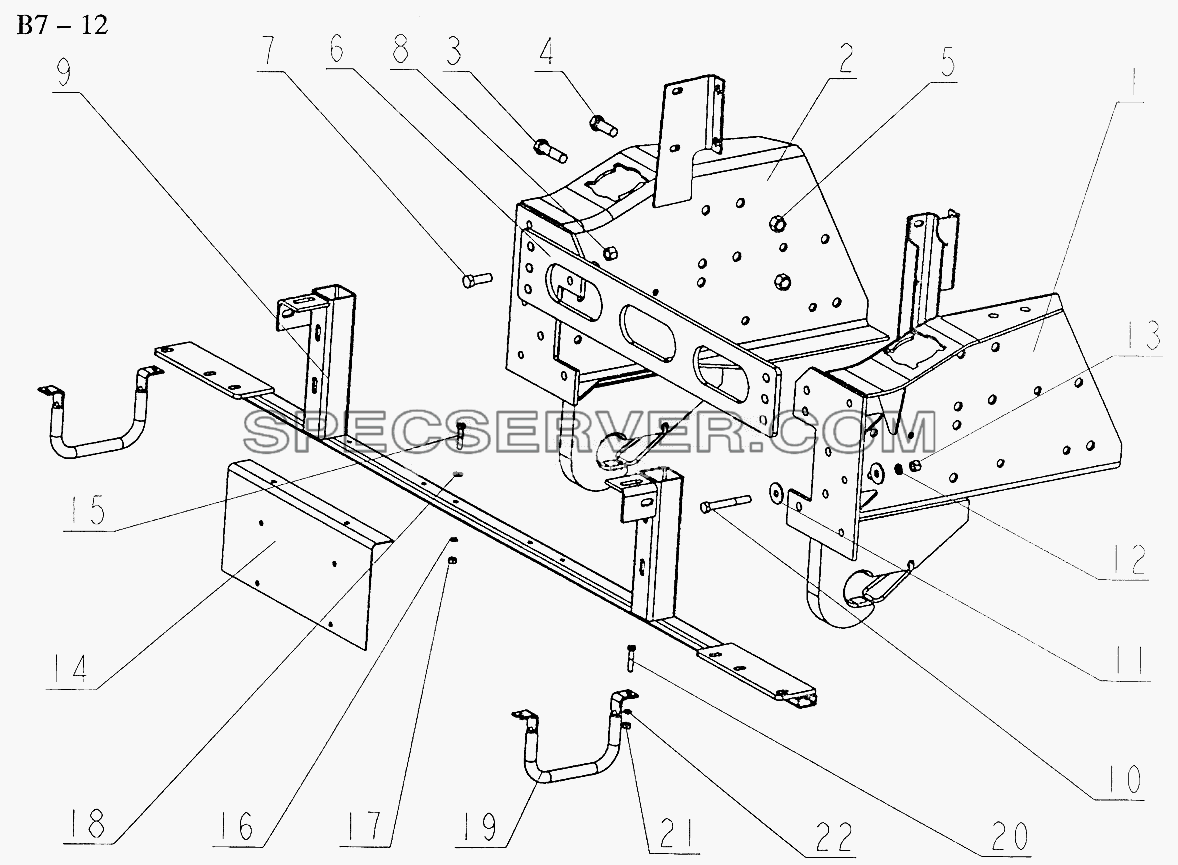

BRACKET OF HIGH BUMPER WITH FIXED TOWING HOOK (B7-12) для Sinotruk 6x6 Tipper (336) (список запасных частей)

Таблица запасных частей

№		Номер детали	Наименование запчасти
1		AZ9114930820 [Bracket left]	Bracket left
2		AZ9114930830 [Bracket right]	Bracket right
3		Q151B1660 [Screw]	Screw
4		Q151B1645 [Screw]	Screw
5		190003888459 [Nut]	Nut
6		WG9114930040 [Plate]	Plate
7		Q150B1440 [Screw]	Screw
8		Q33214 [Nut]	Nut
9		WG9114930170 [Support]	Support
10		Q150B1290 [Screw]	Screw
11		Q40212 [Washer]	Washer
12		Q40312 [Spring washer]	Spring washer
13		Q340B12 [Nut]	Nut
14		AZ9114930172 [Support]	Support
15		Q150B0840 [Screw]	Screw
16		Q40308 [Spring washer]	Spring washer
17		Q340B08 [Nut]	Nut
18		Q40108 [Washer]	Washer
19		AZ9100930061 [Step]	Step
20		Q150B0840 [Screw]	Screw
21		Q340B08 [Nut]	Nut
22		Q40308 [Spring washer]	Spring washer

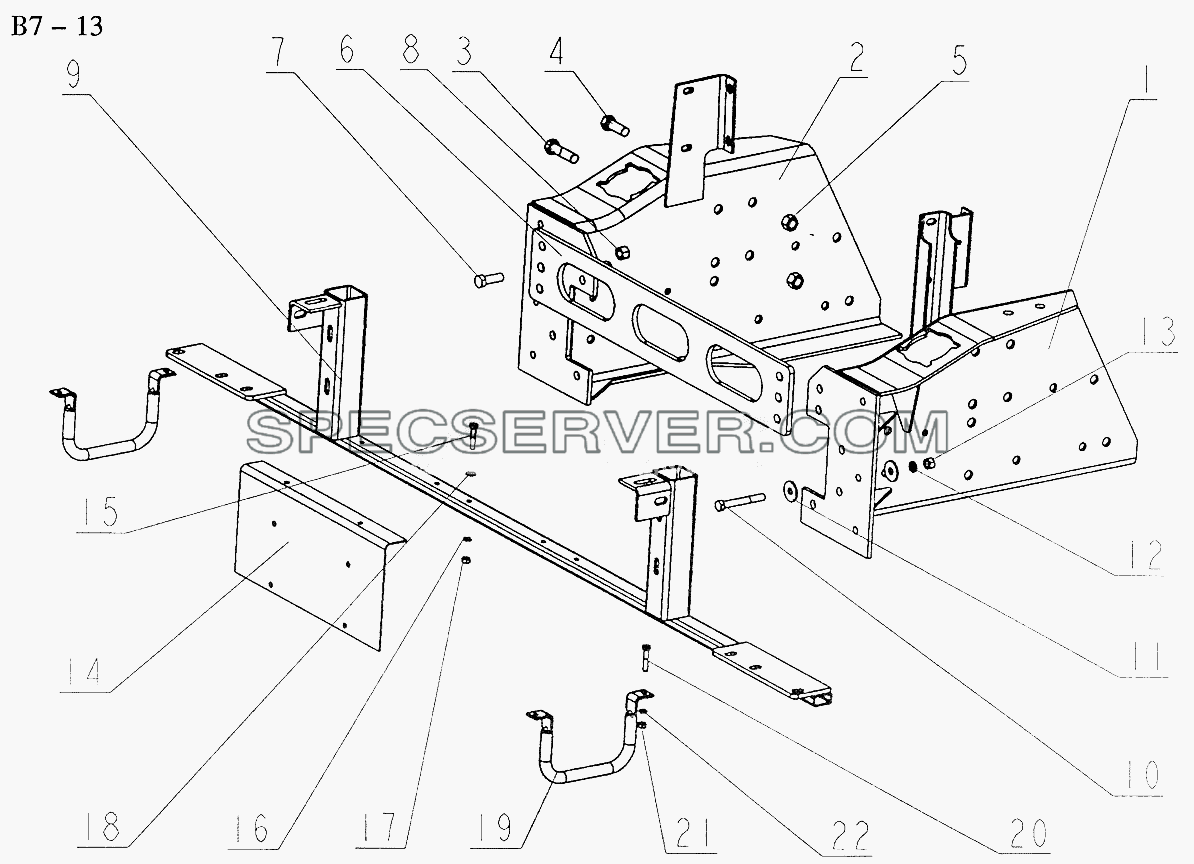

BRACKET OF HIGH BUMPER WITH REMOABLE TOWING HOOK (B7-13) для Sinotruk 6x6 Tipper (336) (список запасных частей)

Таблица запасных частей

№		Номер детали	Наименование запчасти
1		AZ9240930001 [Bracket left]	Bracket left
1		WG9114930035 [Bracket left]	Bracket left
1		WG9118930051 [Bracket left]	Bracket left
1		WG9632930003 [Bracket left]	Bracket left
2		AZ924093002 [Bracket left]	Bracket left
2		WG9114930036 [Bracket right]	Bracket right
2		WG9118930052 [Bracket right]	Bracket right
3		Q151B1660 [Screw]	Screw
4		Q151B1645 [Screw]	Screw
5		190003888459 [Nut]	Nut
6		WG9114930040 [Plate]	Plate
7		Q150B1440 [Screw]	Screw
8		Q33214 [Nut]	Nut
9		WG9114930170 [Support]	Support
10		Q150B1290 [Screw]	Screw
11		Q40212 [Washer]	Washer
12		Q40312 [Spring washer]	Spring washer
13		Q340B12 [Nut]	Nut
14		AZ9114930172 [Support]	Support
15		Q150B0840 [Screw]	Screw
16		Q40308 [Spring washer]	Spring washer
17		Q340B08 [Nut]	Nut
18		Q40108 [Washer]	Washer
19		AZ9100930061 [Step]	Step
20		Q150B0840 [Screw]	Screw
21		Q340B08 [Nut]	Nut
22		Q40308 [Spring washer]	Spring washer

LOW BUMPER WITH REMOVABLE TOWING HOOK (B7-14) для Sinotruk 6x6 Tipper (336) (список запасных частей)

Таблица запасных частей

№		Номер детали	Наименование запчасти
1		WG9114930035 [Bracket l.]	Bracket l.
1		WG9114930045 [Bracket l.]	Bracket l.
1		WG9118930051 [Bracket l.]	Bracket l.
1		WG9632930002 [Bracket l.]	Bracket l.
1		WG9632930003 [Bracket l.]	Bracket l.
2		WG9114930036 [Bracket r.]	Bracket r.
2		WG9114930046 [Bracket r.]	Bracket r.
2		WG9118930052 [Bracket r.]	Bracket r.
3		Q151B1660 [Screw]	Screw
4		Q151B1645 [Screw]	Screw
5		190003888459 [Nut]	Nut
6		WG9114930040 [Plate]	Plate
7		Q150B1440 [Screw]	Screw
8		Q33214 [Nut]	Nut
9		WG9114930070 [Support]	Support
10		Q150B1290 [Screw]	Screw
11		Q40212 [Washer]	Washer
12		Q40312 [Spring washer]	Spring washer
13		Q340B12 [Nut]	Nut
14		AZ9114930080 [Bracket l.]	Bracket l.
14		AZ9118930240 [Bracket l.]	Bracket l.
15		AZ9114930090 [Bracket r.]	Bracket r.
16		Q150B1235 [Screw]	Screw
17		Q40312 [Spring washer]	Spring washer
18		Q340B12 [Nut]	Nut
19		AZ9114930101 [Plate]	Plate
20		Q150B1050 [Screw]	Screw
21		Q40210 [Washer]	Washer
22		Q40310 [Spring washer]	Spring washer
23		Q340B10 [Nut]	Nut

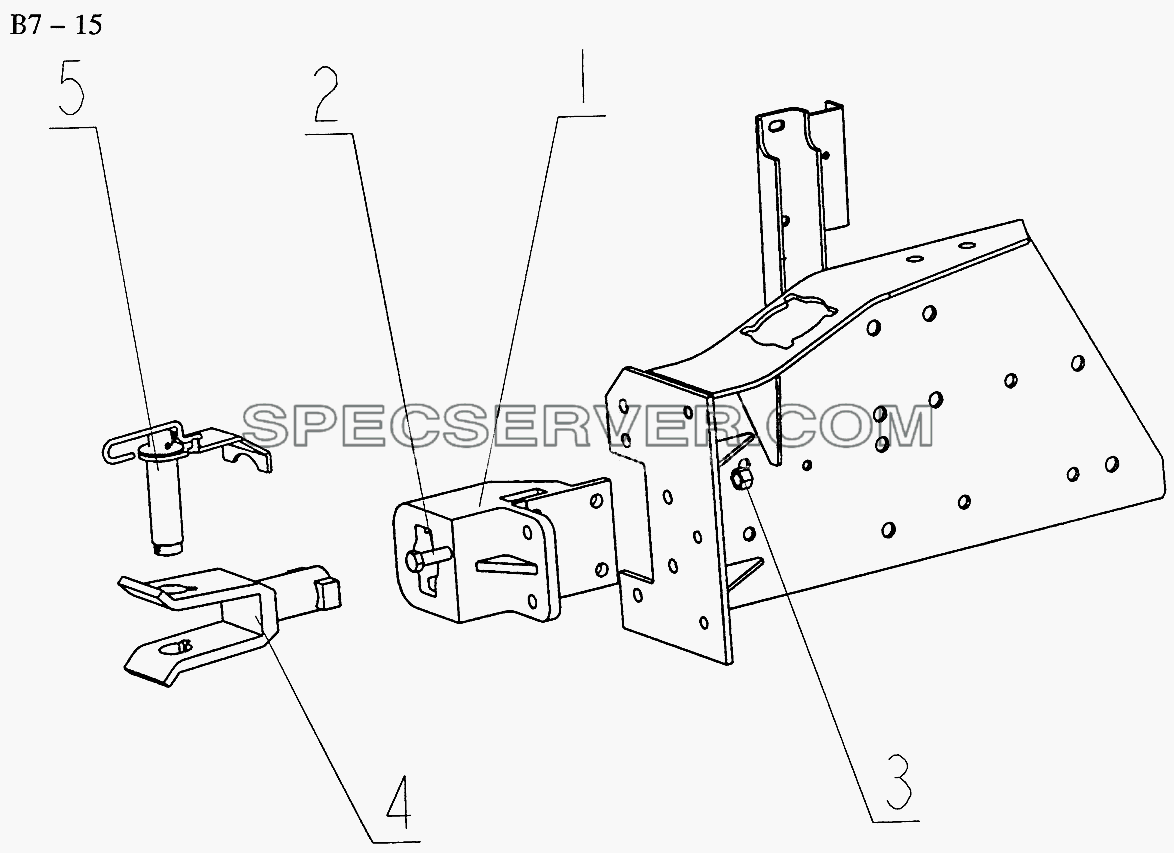

REMOVABLE TOWING HOOK (B7-15) для Sinotruk 6x6 Tipper (336) (список запасных частей)

Таблица запасных частей

№		Номер детали	Наименование запчасти
1		AZ9114930092 [Towing]	Towing
2		Q150B1440 [Screw]	Screw
3		Q33214 [Nut]	Nut
4		AZ9114930093 [Towing hook]	Towing hook
5		AZ9114930094 [Towing hitch]	Towing hitch
