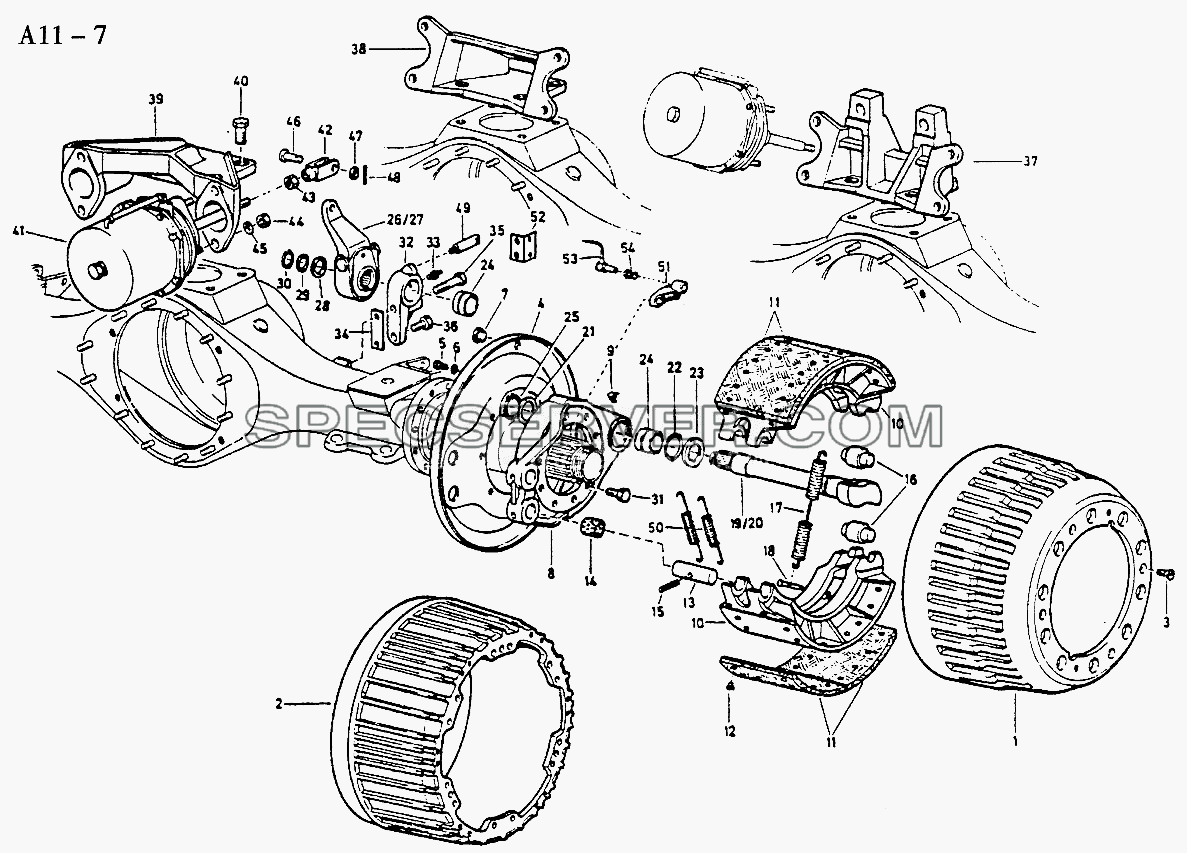

Запчасти: REAR BRAKE (A11-7) для Sinotruk 6x6 Tipper (336)

REAR BRAKE (A11-7) для Sinotruk 6x6 Tipper (336) (список запасных частей)

REAR BRAKE (A11-7) для Sinotruk 6x6 Tipper (336) (список запасных частей)

Таблица запасных частей







№ Номер детали Наименование запчасти
- 199000340070 [Brake shoe C] Brake shoe C
- 199112340028 [Brake lining] Brake lining
- AZ9100349992 [Bracket (left)] Bracket (left)
- AZ9100349993 [Bracket (right)] Bracket (right)
- AZ9112340010 [ABS/Sensor bellows] ABS/Sensor bellows
- AZ9112340056 [ABS Sensor bracket] ABS Sensor bracket
1 AZ9112340006 [Brake drum] Brake drum
3 190003825513 [Screw] Screw
4 1880 34 0018 [Brake cover] Brake cover
4 199112340012 [Brake cover] Brake cover
5 Q150B0816 [Screw] Screw
6 Q40308 [Spring washer] Spring washer
7 1880 340037 [Seal-ring] Seal-ring
8 199000340062 [Brake anchor] Brake anchor
9 199000343114 [Grease nipple] Grease nipple
10 199000340061 [Brake shoe] Brake shoe
11 WG9200340068 [Brake lining] Brake lining
12 189000340068 [Rivet] Rivet
13 199000340064 [Bolt] Bolt
14 1880 34 0016 [Bearing bush] Bearing bush
15 190003909661 [Pin] Pin
16 199000340027 [Pressure roller] Pressure roller
17 AZ9100340012 [Spring] Spring
18 1880 44 0032 [Bolt] Bolt
19 199112340026 [Brake camshaft left] Brake camshaft left
19 AZ9231340226 [Brake camshaft left] Brake camshaft left
20 199112340027 [Brake camshaft right] Brake camshaft right
20 AZ9231340227 [Brake camshaft right] Brake camshaft right
21 1880440010 [Washer] Washer
22 1880340023 [Gasket] Gasket
23 1880440010 [Washer] Washer
24 WG9100340017 [Bush] Bush
25 190003933300 [Snap ring] Snap ring
26 WG9100340056 [Rod adjusting device L.] Rod adjusting device L.
26 WG9100340061 [Self rod adjusting device] Self rod adjusting device
27 WG9100340057 [Rod adjusting device R.] Rod adjusting device R.
27 WG9100340060 [Self rod adjusting device] Self rod adjusting device
28 1880340022 [Washer] Washer
29 180320028 [Shim] Shim
29 180320029 [Shim] Shim
29 180320030 [Shim] Shim
29 180320046 [Shim] Shim
30 190003933116 [Circlip] Circlip
31 Q151B1635TF2 [Screw] Screw
32 199014340041 [Bracket] Bracket
33 190003963112 [Grease nipple] Grease nipple
34 13809470031 [Shim] Shim
34 13809470032 [Shim] Shim
34 13809470033 [Shim] Shim
34 1880340031 [Shim] Shim
34 1880340032 [Shim] Shim
34 1880340033 [Shim] Shim
34 1880340034 [Shim] Shim
35 Q151B1490 [Screw] Screw
36 Q151B1440 [Screw] Screw
37 199014340042 [Bracket] Bracket
39 199012340066 [Bracket] Bracket
40 Q151B2040TF2 [Screw] Screw
41 WG910360303 [Spring brake cylinder] Spring brake cylinder
42 190003964459 [Screw fort] Screw fort
43 Q341B14 [Nut] Nut
44 Q341B16 [Nut] Nut
45 Q40316 [Spring washer] Spring washer
46 190003903661 [Bolt] Bolt
47 Q40114 [Washer] Washer
48 Q5004022 [Pin] Pin
49 199014340048 [Pin] Pin
50 199112340049 [Spring] Spring

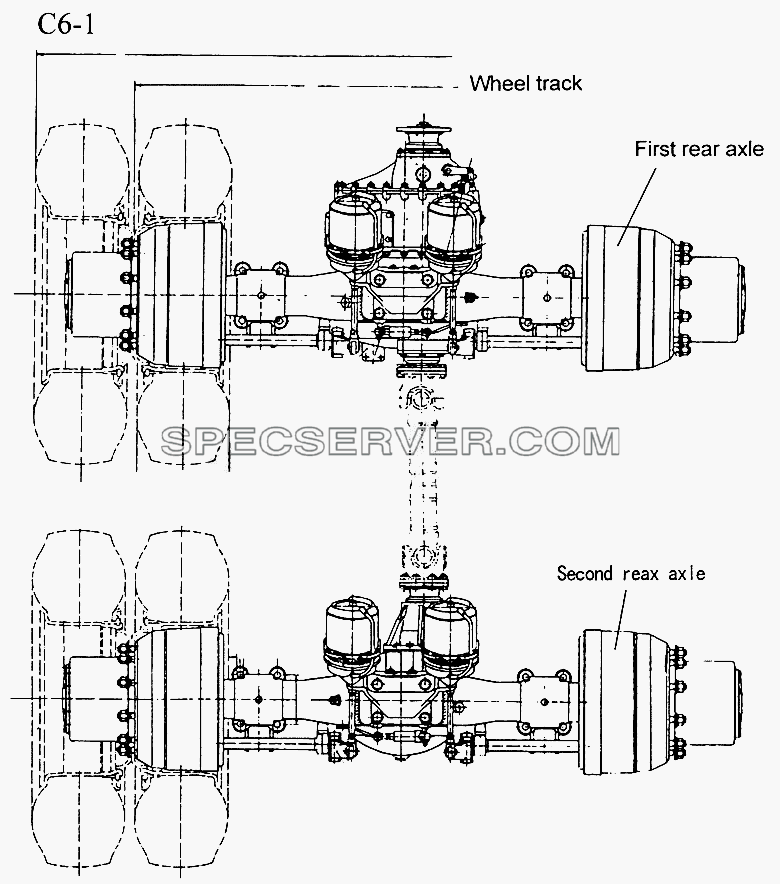

Запчасти: HOWO REAR DRIVE AXLE (C6-1) для Sinotruk 6x6 Tipper (336)

HOWO REAR DRIVE AXLE (C6-1) для Sinotruk 6x6 Tipper (336) (список запасных частей)

HOWO REAR DRIVE AXLE (C6-1) для Sinotruk 6x6 Tipper (336) (список запасных частей)

Таблица запасных частей







№ Номер детали Наименование запчасти
1 AH71361500210 [HW1667 single reax axle(i=4.22,TF180)] HW1667 single reax axle(i=4.22,TF180)
2 AH71361500211 [HW1667 single reax axle(i=4.22,TF165)] HW1667 single reax axle(i=4.22,TF165)
3 AH71361500212 [HW1667 single reax axle(i=4.22,PF165)] HW1667 single reax axle(i=4.22,PF165)
4 AH71361500700 [HW1667 single reax axle(i=3.73,PF165)] HW1667 single reax axle(i=3.73,PF165)
5 AH71361501200 [HW1667 single rear axle (i=4.22,TF180,ABS)] HW1667 single rear axle (i=4.22,TF180,ABS)
6 AH71361501201 [HW1667 single rear axle (i=4.22,TF165,ABS)] HW1667 single rear axle (i=4.22,TF165,ABS)
7 AH71361501202 [HW1667 single rear axle (i=4.22,PF165,ABS)] HW1667 single rear axle (i=4.22,PF165,ABS)
8 AH71361500200 [HW1667 single rear axle (i=4.22,TF180,ABS,SRAD)] HW1667 single rear axle (i=4.22,TF180,ABS,SRAD)
9 AH71361500201 [HW1667 single rear axle (i=4.22,TF165,ABS,SRAD)] HW1667 single rear axle (i=4.22,TF165,ABS,SRAD)
10 AH71361500202 [HW1667 single rear axle (i=4.22,PF165,ABS,SRAD)] HW1667 single rear axle (i=4.22,PF165,ABS,SRAD)
11 AH71361401502 [First rear axle of HW1697 double axle (i=4.22,PF165)] First rear axle of HW1697 double axle (i=4.22,PF165)
12 "AH71361401506 [First rear axle of HW1697 double axle (i=4.22,TF165)] First rear axle of HW1697 double axle (i=4.22,TF165)
13 "AH71361401510 [First rear axle of HW1697 double axle (i=4.22,TF180)] First rear axle of HW1697 double axle (i=4.22,TF180)
14 "AH71361400502 [First rear axle of HW1697 double axle (i=4.22,PF165,SRAD)] First rear axle of HW1697 double axle (i=4.22,PF165,SRAD)
15 "AH71 361400506 [First rear axle of HW1697 double axle (i=4.22,TF165,SRAD)] First rear axle of HW1697 double axle (i=4.22,TF165,SRAD)
16 "AH71361400508 [First rear axle of HW1697 double axle (i=4.22,PF180,SRAD)] First rear axle of HW1697 double axle (i=4.22,PF180,SRAD)
17 "AH71361400510 [First rear axle of HW1697 double axle(i=4.22,TF180,SRAD)] First rear axle of HW1697 double axle(i=4.22,TF180,SRAD)
18 "AH71361400522 [First rear axle Of HW1697 double axle(i=4.22,PF165,ABS)] First rear axle Of HW1697 double axle(i=4.22,PF165,ABS)
19 "AH71361400526 [First rear axle of HW1697 double axle(i=4.22,TF165,ABS)] First rear axle of HW1697 double axle(i=4.22,TF165,ABS)
20 "AH71361400610 [First rear axle of HW1697 double axle(i=4.22,TF180,ABS)] First rear axle of HW1697 double axle(i=4.22,TF180,ABS)
21 "AH71361400701 [First rear axle of HW1697 double axle(i=3.73,PF165,ABS)] First rear axle of HW1697 double axle(i=3.73,PF165,ABS)
22 "AH71361400512 [First rear axle of HW1697 double axle (i=4.22,PF165,ABS,SRAD)] First rear axle of HW1697 double axle (i=4.22,PF165,ABS,SRAD)
23 "AH71361400516 [First rear axle of HW1697 double axle(i=4.22,65,ABS,SRAD)] First rear axle of HW1697 double axle(i=4.22,65,ABS,SRAD)
24 "AH71361400420 [Second rear axle of HW1697 double axle(i=4.22,TF165,ABS,SRAD,10x4)] Second rear axle of HW1697 double axle(i=4.22,TF165,ABS,SRAD,10x4)
25 AH71361400520 [Second rear axle Of HW1697 double(i=4.22,TF165,ABS,SRAD)] Second rear axle Of HW1697 double(i=4.22,TF165,ABS,SRAD)
26 "AH71361401420 [Second rear axle of HW1697 double axle (i=4.22,TF165,ABS,10x4)] Second rear axle of HW1697 double axle (i=4.22,TF165,ABS,10x4)
27 "Ah71361401520 [Second rear axle of HW1697 double axle (i=4.22,TF165,ABS)] Second rear axle of HW1697 double axle (i=4.22,TF165,ABS)
28 "AH71361400620 [Second real axle of HW1697 double axle (i=4.22,Ф165TF)] Second real axle of HW1697 double axle (i=4.22,Ф165TF)
29 AH71361400630 [Second rear axle of HW1697 double axle (i=4.22,TF165,10x4)] Second rear axle of HW1697 double axle (i=4.22,TF165,10x4)
30 AH71361400702 [Second real axle of HW1697 double axle(i=3.73,TF165)] Second real axle of HW1697 double axle(i=3.73,TF165)

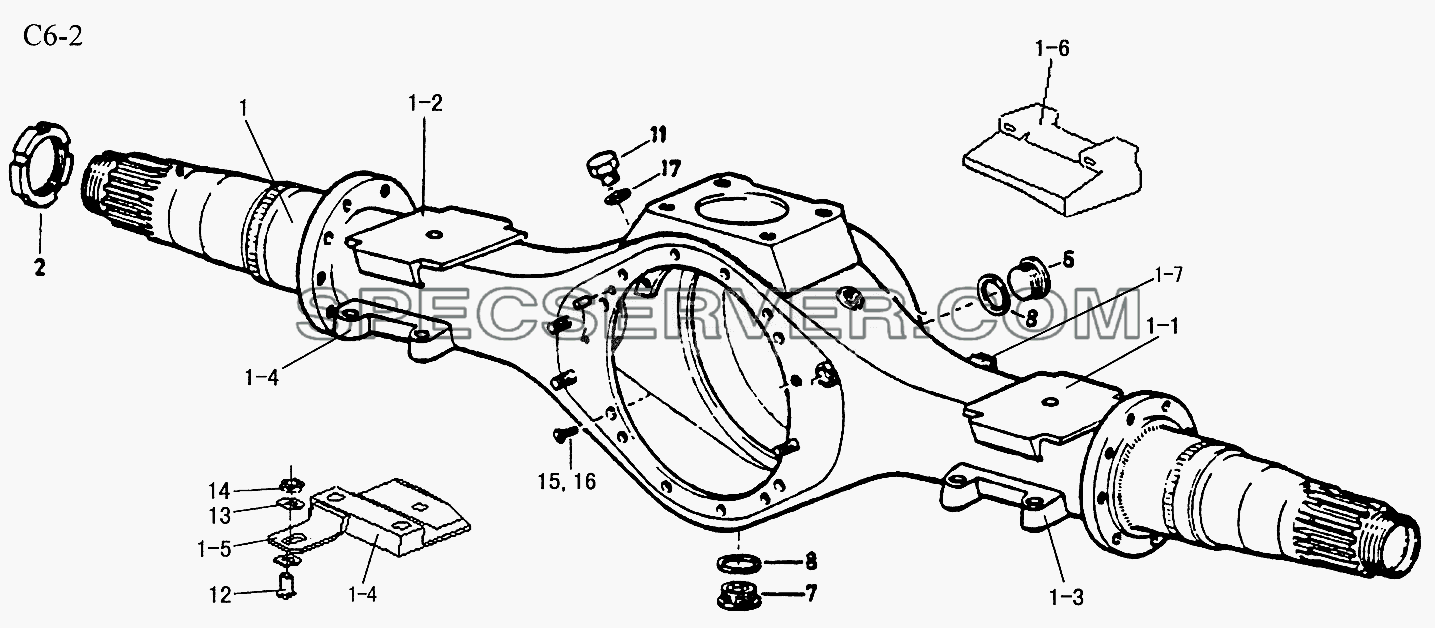

REAR AXLE HOUSING (C6-2) для Sinotruk 6x6 Tipper (336) (список запасных частей)

REAR AXLE HOUSING (C6-2) для Sinotruk 6x6 Tipper (336) (список запасных частей)

REAR AXLE HOUSING (C6-2) для Sinotruk 6x6 Tipper (336) (список запасных частей)

Таблица запасных частей







№ Номер детали Наименование запчасти
- 1227P1186 [Outer adjusting nut] Outer adjusting nut
- AZ9118330013 [Upper base left] Upper base left
- AZ9118330014 [Bottom base left] Bottom base left
- AZ9118330015 [Bracket for stabilizer] Bracket for stabilizer
- AZ9118330019 [Upper base right] Upper base right
- AZ9118330020 [Bottom base right] Bottom base right
- AZ9761330002 [Base for brace rod] Base for brace rod
- AZ9761336005 [Support for sensor] Support for sensor
- MS216120 [Screw] Screw
1 AZ9761330065 [HW1667 single rear axle housing] HW1667 single rear axle housing
1 AZ9761330660 [Second rear axle housing of HW1697 double axle] Second rear axle housing of HW1697 double axle
2 1227N1184 [Inter adjusting nut] Inter adjusting nut
6 181500010163 [Screw] Screw
7 1586 330015 [Magnet plug] Magnet plug
8 Q72336 [Gasket] Gasket
11 199000330006 [Breather] Breather
12 WG41X1090 [Screw] Screw
13 WG1229N1626 [Washer] Washer
14 WG40X1182 [Locking nut] Locking nut
15 MS216060 [Screw] Screw
16 MWA516 [Washer] Washer

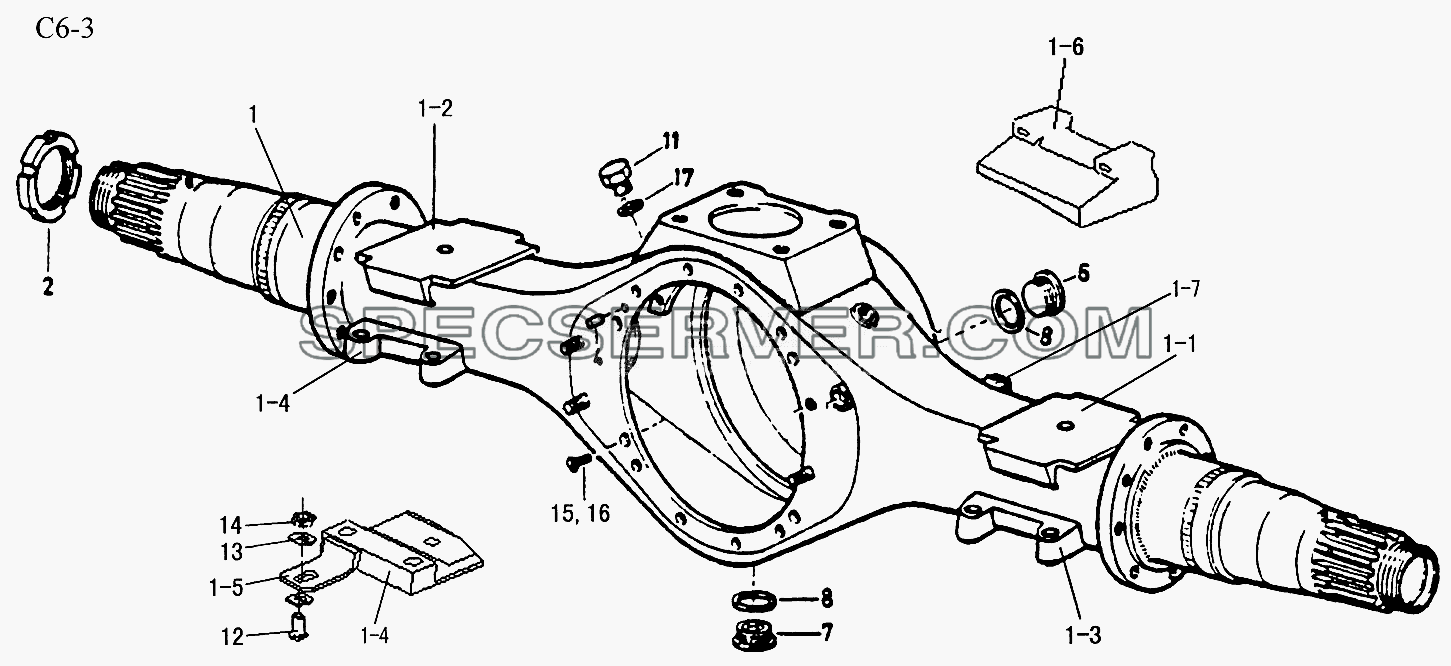

FIRST REAR AXLE HOUSING (C6-3) для Sinotruk 6x6 Tipper (336) (список запасных частей)

FIRST REAR AXLE HOUSING (C6-3) для Sinotruk 6x6 Tipper (336) (список запасных частей)

FIRST REAR AXLE HOUSING (C6-3) для Sinotruk 6x6 Tipper (336) (список запасных частей)

Таблица запасных частей







№ Номер детали Наименование запчасти
- 1227P1186 [Outer adjusting nut] Outer adjusting nut
- AZ9118330013 [Upper base left] Upper base left
- AZ9118330014 [Bottom base left] Bottom base left
- AZ9118330019 [Upper base right] Upper base right
- AZ9118330020 [Bottom base right] Bottom base right
- AZ9761330001 [Base for brace rod] Base for brace rod
- AZ9761330002 [Base for brace rod] Base for brace rod
- AZ9761336005 [Support for sensor] Support for sensor
- MS2161201 [Screw] Screw
1 AZ9761330560 [HW1697 first rear axle housing] HW1697 first rear axle housing
1 AZ9761330662 [HW1697 first rear axle housing] HW1697 first rear axle housing
2 1227N1184 [Inter adjusting nut] Inter adjusting nut
6 199000330006 [Breather] Breather
7 190003962021 [Screw] Screw
8 1586 330015 [Magnet plug] Magnet plug
9 Q72336 [Gasket] Gasket
12 WG41X1090 [Screw] Screw
13 WG1229N1626 [Washer] Washer
14 WG40X1182 [Locking nut] Locking nut
15 MS2160601 [Screw] Screw
16 MWA516 [Washer] Washer

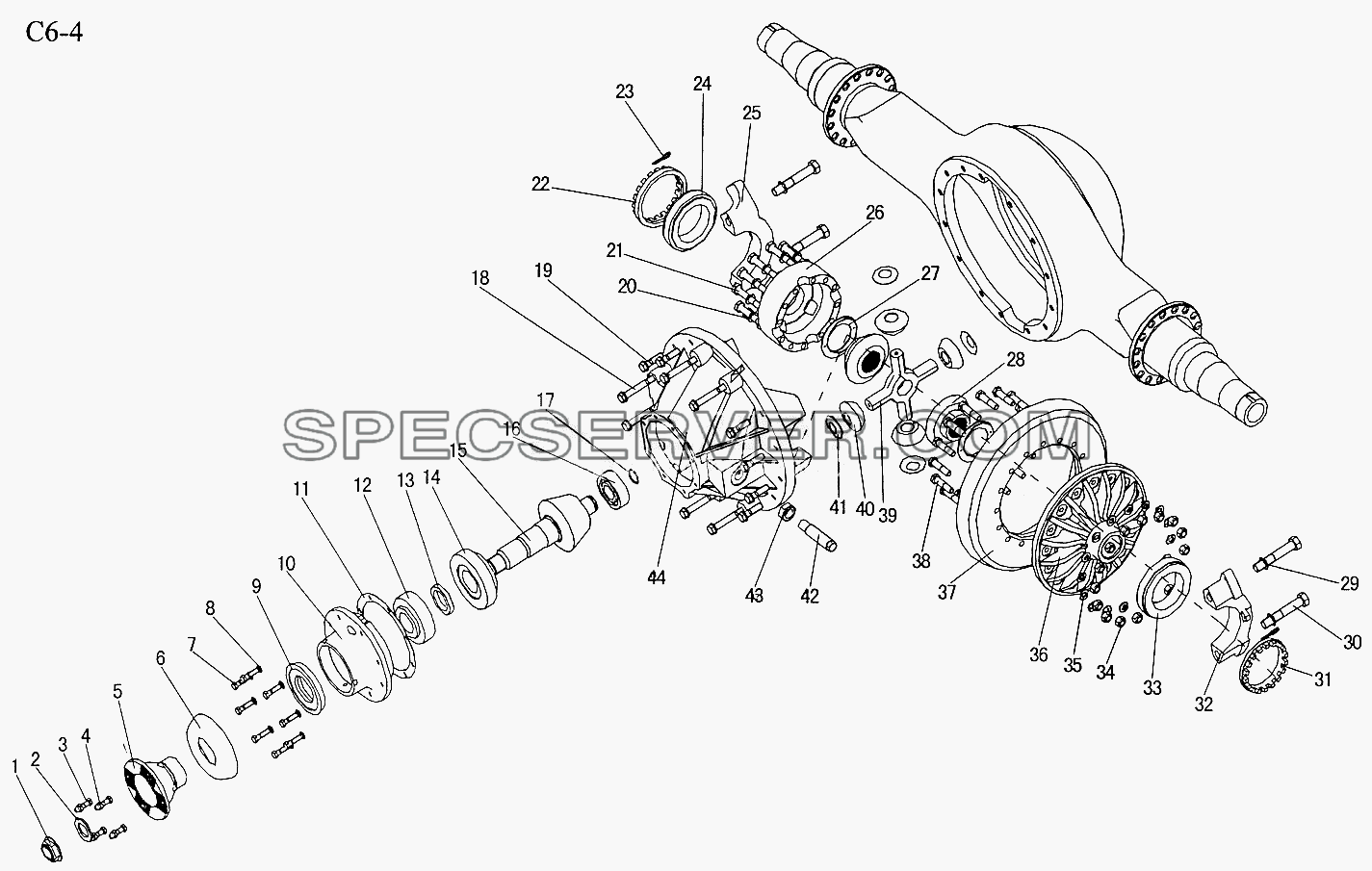

REAR AXLE DRIVE (C6-4) для Sinotruk 6x6 Tipper (336) (список запасных частей)

REAR AXLE DRIVE (C6-4) для Sinotruk 6x6 Tipper (336) (список запасных частей)

REAR AXLE DRIVE (C6-4) для Sinotruk 6x6 Tipper (336) (список запасных частей)

Таблица запасных частей







№ Номер детали Наименование запчасти
- AC71313200660 [Rear axle drive (i=4.22, TF180)] Rear axle drive (i=4.22, TF180)
- AC71613200130 [Rear axle drive (i=4.22, TF165)] Rear axle drive (i=4.22, TF165)
- AC71613200662 [Rear axle drive (i=4.22, PF165)] Rear axle drive (i=4.22, PF165)
- AC71613200663 [Rear axle drive (i=3.73, PF165)] Rear axle drive (i=3.73, PF165)
- AZ9118320281 [Ф180 Toothed flange body] Ф180 Toothed flange body
- AZ9761320168 [Ф165 plane flange body] Ф165 plane flange body
- AZ9761320381 [Ф165 toothed flange body] Ф165 toothed flange body
- AZ9761321899 [Drive housing] Drive housing
1 WG40X1233 [Locking nut] Locking nut
2 1229N1730 [Washer] Washer
3 Q151C1245 [Screw] Screw
4 190003888457 [Locking nut] Locking nut
5 AZ9118320280 [Ф180 Toothed flange C] Ф180 Toothed flange C
5 AZ9761320167 [Ф165 plane flange C] Ф165 plane flange C
5 AZ9761320380 [Ф165 toothed flange C] Ф165 toothed flange C
6 3264G189 [Cover] Cover
7 41X1408 [Screw] Screw
8 1229C1511 [Gasket] Gasket
9 A1205Q2591 [Oil sealing] Oil sealing
10 AZ9761320001 [Bearing seat] Bearing seat
11 2803A2757 [Shim] Shim
11 2803B2758 [Shim] Shim
11 2803Y2755 [Shim] Shim
11 2803Z2756 [Shim] Shim
12 HY15311-H715334 [Bearing] Bearing
13 S2203H8536 [Adjusting shim set] Adjusting shim set
14 9220-9278 [Bearing] Bearing
15 AZ9118321014 [Pinion and crown wheel 38/9] Pinion and crown wheel 38/9
15 AZ9761321014 [Pinion and crown wheel 41/11] Pinion and crown wheel 41/11
16 WG1228S1267 [Roller bering] Roller bering
17 1229L1624 [Snap ring] Snap ring
18 MS2161201 [Screw] Screw
19 MS2160601 [Screw] Screw
20 1229U1503 [Washer] Washer
21 WG41X1275 [Screw] Screw
22 2214S1137 [Adjusting nut] Adjusting nut
23 1199R2176 [Split pin] Split pin
24 JM822010-JM822049 [Bearing] Bearing
25 A3212X1194 [Cover] Cover
26 3235F2138 [Diff. half housing without flange] Diff. half housing without flange
27 1229L3002 [Spacer] Spacer
28 2234Z1066 [Bevel pinion] Bevel pinion
29 42X1024 [Washer] Washer
30 41X1018 [Screw] Screw
31 2214G1125 [Adjusting nut] Adjusting nut
32 A3212Z1196 [Cover] Cover
33 NP022042-NP579116 [Bearing] Bearing
34 WG40X1182 [Locking nut] Locking nut
35 1229W1557 [Washer] Washer
36 AZ9761322143 [Diff.half housing with flange] Diff.half housing with flange
38 AZ9118321334 [Screw] Screw
39 3278W335 [Diff.spider] Diff.spider
40 AZ9118321001 [Bevel pinion] Bevel pinion
41 1229K3001 [Spacer] Spacer
42 AZ9761321167 [Screw] Screw
43 1227D472 [Nut] Nut
44 AZ9761321890 [Drive housing C.] Drive housing C.
45 A23235K2143I [DIFF.Assembly] DIFF.Assembly
46 A13235K2143I [DIFF.Housing C] DIFF.Housing C
47 KIT2318 [DIFF.Parts] DIFF.Parts

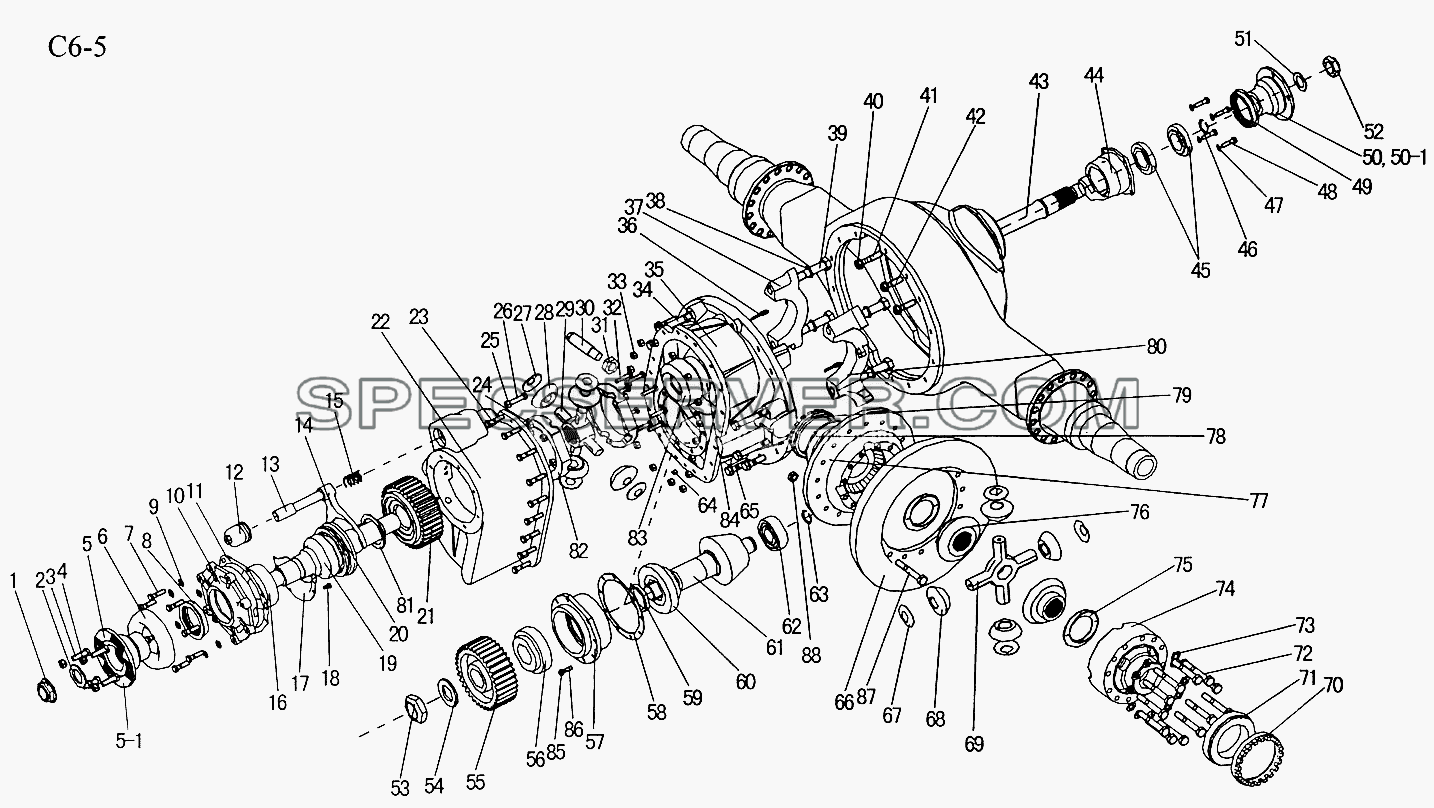

FIRST REAR AXLE DRIVE (C6-5) для Sinotruk 6x6 Tipper (336) (список запасных частей)

FIRST REAR AXLE DRIVE (C6-5) для Sinotruk 6x6 Tipper (336) (список запасных частей)

FIRST REAR AXLE DRIVE (C6-5) для Sinotruk 6x6 Tipper (336) (список запасных частей)

Таблица запасных частей











№ Номер детали Наименование запчасти
- 1228K37 [Steel ball] Steel ball
- 1229K1597 [Washer] Washer
- 1229W1557 [Washer] Washer
- 2230J1180 [Piston] Piston
- 3226H1126 [Bearing seat] Bearing seat
- 3261Q1057 [Cylinder] Cylinder
- 5X1198 [O-ring] O-ring
- AC71613200110 [First rear axle drive I=4.22 TF180(input),TF165(output)] First rear axle drive I=4.22 TF180(input),TF165(output)
- AC71613200111 [First rear axle drive I=4.22 PF165(input),TF165(output)] First rear axle drive I=4.22 PF165(input),TF165(output)
- AC71613200112 [First rear axle drive I=4.22 TF165(input),TF165(output)] First rear axle drive I=4.22 TF165(input),TF165(output)
- AC71613200113 [First rear axle drive I=4.22 PF180(input),TF165(output)] First rear axle drive I=4.22 PF180(input),TF165(output)
- AC71613200114 [First rear axle drive I=3.73 PF165(input),TF165(output)] First rear axle drive I=3.73 PF165(input),TF165(output)
- AZ9161321196 [Input shaft] Input shaft
- AZ9761320086 [Drive gear] Drive gear
- AZ9761320124 [Pinion 9] Pinion 9
- AZ9761320125 [Crown wheel 38] Crown wheel 38
- AZ9761320163 [Ф165 Toothed flange body] Ф165 Toothed flange body
- AZ9761320164 [Ф165 plane flange body] Ф165 plane flange body
- AZ9761320183 [Ф180 Plane flange body] Ф180 Plane flange body
- AZ9761320224 [Pinion 11] Pinion 11
- AZ9761320225 [Crown wheel 41] Crown wheel 41
- AZ9761320281 [Ф180 toothed flange body] Ф180 toothed flange body
- AZ9761320282 [Ф165 toothed flange body] Ф165 toothed flange body
- AZ9761320283 [Cover] Cover
- AZ9761320421 [First rear axle drive I=3.73 without flange] First rear axle drive I=3.73 without flange
- AZ9761320422 [First rear axle drive I=4.22 without flange] First rear axle drive I=4.22 without flange
- AZ9761321894 [Housing] Housing
- HM813820 [Outer ring of bearing] Outer ring of bearing
- Q40308 [Spring washer] Spring washer
- Q40312 [Spring washer] Spring washer
- Q40312 [Spring washer] Spring washer
- Q5005060 [Split pin] Split pin
- WG9761320084 [Bush] Bush
1 WG40X1233 [Locking nut] Locking nut
2 1229N1730 [Washer] Washer
3 Q150B1445TF2 [Screw] Screw
4 Q33414T13F2 [Locking nut] Locking nut
5 AZ9761320165 [Ф165 Plane flange C] Ф165 Plane flange C
5 AZ9761320166 [Ф165 Toothed flangeC] Ф165 Toothed flangeC
5 AZ9761320182 [Ф180 Plane flangeC] Ф180 Plane flangeC
5 AZ9761320280 [Ф180 toothed flange C] Ф180 toothed flange C
6 3264G189 [Cover] Cover
7 MS2120451 [Screw] Screw
8 A1205J2428 [Gasket] Gasket
9 1229D4632 [Washer] Washer
10 A3226H1126 [Bearing seat C] Bearing seat C
11 2203K9241 [Shim] Shim
11 2203L9242 [Shim] Shim
11 2203M9243 [Shim] Shim
12 A23261Q1057 [Cylinder C] Cylinder C
13 2244K1025 [Push rod] Push rod
14 AZ9761321086 [Shifting fork] Shifting fork
15 2258U411 [Spring] Spring
16 HM813810-HM813844 [Bearing] Bearing
17 AZ9111320020 [Cover] Cover
18 Q150B0816 [Screw] Screw
19 AZ9761321195 [Input shaft C] Input shaft C
20 3107U1061 [Shifting dog] Shifting dog
21 AZ9761320085 [Drive gear C] Drive gear C
22 AZ9761321312 [Housing] Housing
23 Q150B1250 [Screw] Screw
24 Q340B10 [Nut] Nut
25 MN3121 [Nut] Nut
26 41X1208 [Screw] Screw
27 1229Q2929 [Spacer] Spacer
28 2233K245 [Bevel pinion] Bevel pinion
29 3278N300 [Diff.spider] Diff.spider
30 AZ9761321167 [Screw] Screw
31 1227D472 [Nut] Nut
32 MS210080A1 [Screw] Screw
33 Q340B12 [Nut] Nut
34 MS2161201 [Screw] Screw
35 AZ9761320411 [Housing C] Housing C
36 1199R2176 [Split pin] Split pin
37 A321221196 [Cover] Cover
38 42X1024 [Washer] Washer
39 41X1018 [Screw] Screw
40 MN3161 [Nut] Nut
41 4X1746 [Stud] Stud
42 4X1740 [Stud] Stud
43 AZ9761321010 [Driving shaft] Driving shaft
44 AZ9761321112 [Bearing seat] Bearing seat
45 385A-382A [Bearing] Bearing
46 AZ9761322590 [Circlip set] Circlip set
47 Q40110 [Washer] Washer
48 Q150B1025 [Screw] Screw
49 AZ9761322430 [Oil sealing] Oil sealing
50 AZ9761320285 [Ф165 toothed flange C] Ф165 toothed flange C
51 1229T1736 [Washer] Washer
52 AZ9761321237 [Nut] Nut
53 WG40X1145 [Locking nut] Locking nut
54 1229G4063 [Washer] Washer
55 AZ9761320016 [Driven gear] Driven gear
56 H715311-H715341 [Bearing] Bearing
57 AZ9761320017 [Bearing seat] Bearing seat
58 AZ9761322785 [Shim set] Shim set
59 AZ9761320020 [Shim set]
