Maintenance Minder

TM

u

To Use Maintenance Minder

TM

Continued

Main

tenan

ce

1

Maintenance Service Items

Adjust the valves during services A, B, 1, 2, or 3 if
they are noisy.

U.S. models

*1: If a Maintenance Minder message does not appear more than 12 months after the display is reset,

change the engine oil every year.

# : See information on maintenance and emissions warranty in the first column on page

756

.

CODE

Maintenance Main Items

A

Replace engine oil

*1

B

Replace engine oil

*1

 and oil filter

Inspect front and rear brakes

Check expiration date for temporary tire repair kit
bottle (if equipped)

Inspect these items:

Tie rod ends, steering gearbox, and boots

Suspension components

Driveshaft boots

Brake hoses and lines (including ABS/VSA

®

)

All fluid levels and condition of fluids

Exhaust system

#

Fuel lines and connections

#

*2: If you drive in dusty conditions, replace the air cleaner element every 15,000 miles (24,000 km).
*3: If you drive primarily in urban areas that have high concentrations of soot in the air from industry and

from diesel-powered vehicles, replace the dust and pollen filter every 15,000 miles (24,000 km).

*4: Driving in mountainous areas at very low vehicle speeds results in higher transmission temperatures.

This requires transmission fluid changes more frequently than recommended by the Maintenance
Minder. If you regularly drive your vehicle under these conditions, have the transmission fluid changed
every 25,000 miles (40,000 km).

*5: Driving in mountainous areas at very low vehicle speeds results in higher transmission temperatures.

This requires transmission fluid changes more frequently than recommended by the Maintenance
Minder. If you regularly drive your vehicle under these conditions, have the transmission fluid changed
every 37,500 miles (60,000 km).

*6: If a Maintenance Minder message does not appear more than 36 months after the display for item 7 is

reset, change the brake fluid every 3 years.

CODE

Maintenance Sub Items

1

Rotate tires

2

Replace air cleaner element

*2

Replace dust and pollen filter

*3

Inspect drive belt

3

Replace transmission fluid

*4,*5

4

Replace spark plugs

Inspect valve clearance

5

Replace engine coolant

7

Replace brake fluid

*6

Continuously variable transmission models

Manual transmission models

648

uu

Maintenance Minder

TM

u

To Use Maintenance Minder

TM

Main

tenan

ce

1

Maintenance Service Items

Adjust the valves during services A, 0, 9, 1, 2, or 3
if they are noisy.

Canadian models

*1: If a Maintenance Minder message does not appear more than 12 months after the display is reset,

change the engine oil every year.

*2: If you drive in dusty conditions, replace the air cleaner element every 24,000 km (15,000 miles).
*3: If you drive primarily in urban areas that have high concentrations of soot in the air from industry and

from diesel-powered vehicles, replace the dust and pollen filter every 24,000 km (15,000 miles).

*4: Driving in mountainous areas at very low vehicle speeds results in higher transmission temperatures.

This requires transmission fluid changes more frequently than recommended by the Maintenance
Minder. If you regularly drive your vehicle under these conditions, have the transmission fluid changed
every 40,000 km (25,000 miles).

*5: Driving in mountainous areas at very low vehicle speeds results in higher transmission temperatures.

This requires transmission fluid changes more frequently than recommended by the Maintenance
Minder. If you regularly drive your vehicle under these conditions, have the transmission fluid changed
every 60,000 km (37,500 miles).

*6: If a Maintenance Minder message does not appear more than 36 months after the display for item 7 is

reset, change the brake fluid every 3 years.

# : See information on maintenance and emissions warranty in the first column on page

758

.

CODE

Maintenance Main Items

A

Replace engine oil

*1

0

Replace engine oil

*1

 and oil filter

Continuously variable transmission models

Manual transmission models

CODE

Maintenance Sub Items

1

Rotate tires

2

Replace air cleaner element

*2

Replace dust and pollen filter

*3

Inspect drive belt

3

Replace transmission fluid

*4,*5

4

Replace spark plugs

Inspect valve clearance

5

Replace engine coolant

7

Replace brake fluid

*6

9

Service front and rear brakes

Inspect these items:

Tie rod ends, steering gearbox, and boots

Suspension components

Driveshaft boots

Brake hoses and lines (including ABS/VSA

®

)

All fluid levels and condition of fluids

Exhaust system

#

Fuel lines and connections

#

Continued

649

uu

Maintenance Minder

TM

u

To Use Maintenance Minder

TM

Main

tenan

ce

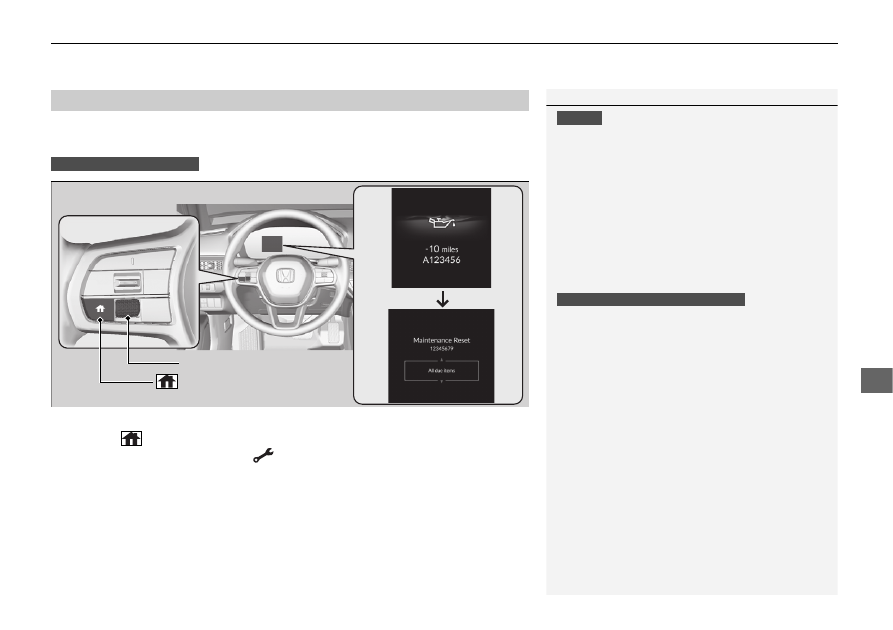

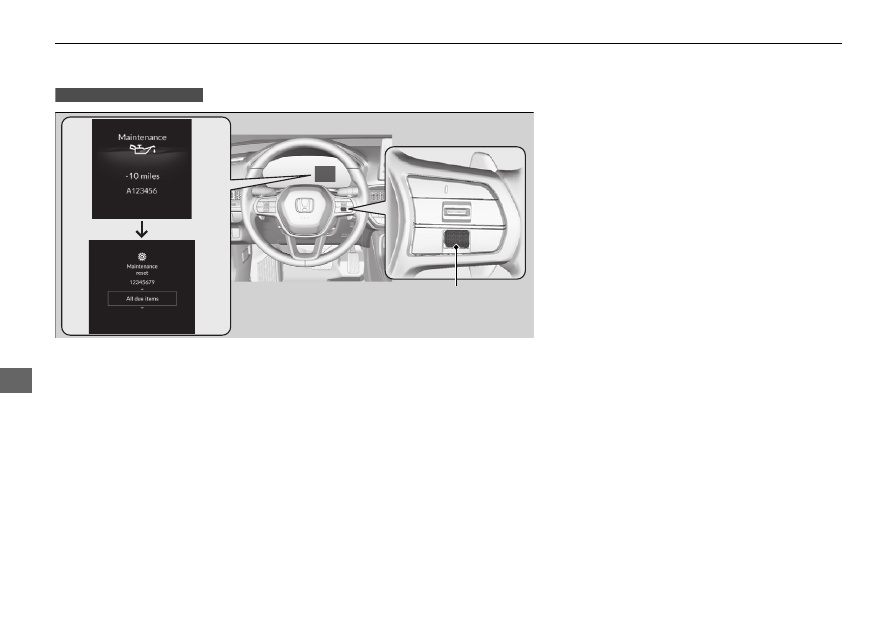

Reset the maintenance minder information display if you have performed the
maintenance service.

1.

Set the power mode to ON.

2.

Press the

 (home) button.

3.

Roll the left selector wheel until

 is displayed.

4.

Press the left selector wheel to go to the Maintenance Minder screen.

5.

Press and hold the left selector wheel for about 10 seconds to enter the reset
mode.

6.

Roll the left selector wheel to select a maintenance item to reset, or to select

All

due items

 (You can also select

Cancel

 to end the process).

7.

Press the left selector wheel to reset the selected item.

8.

Repeat from step 5 for other items you wish to reset.

Resetting the Display

1

Resetting the Display

NOTICE

Failure to reset the Maintenance Minder

TM

 display

after a maintenance service results in the system
showing incorrect maintenance intervals, which can
lead to serious mechanical problems.

The dealer will reset the Maintenance Minder

TM



display after completing the required maintenance
service. If someone other than a dealer performs
maintenance service, reset the Maintenance
Minder

TM

 display yourself.

You can also reset the Maintenance Minder

TM

 display

using the audio/information screen.

2

Customized Features

 P. 380

Models with 9-in. Color Touchscreen

Models with A-type meter

Left Selector Wheel

 (home) Button

650

uu

Maintenance Minder

TM

u

To Use Maintenance Minder

TM

Main

tenan

ce

1.

Set the power mode to ON.

2.

Roll the right selector wheel until the Maintenance Minder screen is displayed.

3.

Press and hold the right selector wheel for about 10 seconds to enter the reset
mode.

4.

Roll the right selector wheel to select a maintenance item to reset, or to select

All

due items

 (You can also select

Cancel

 to end the process).

5.

Press the right selector wheel to reset the selected item.

6.

Repeat from step 3 for other items you wish to reset.

Models with B-type meter

Right Selector Wheel

651

Continued

Main

tenan

ce

Maintenance Under the Hood

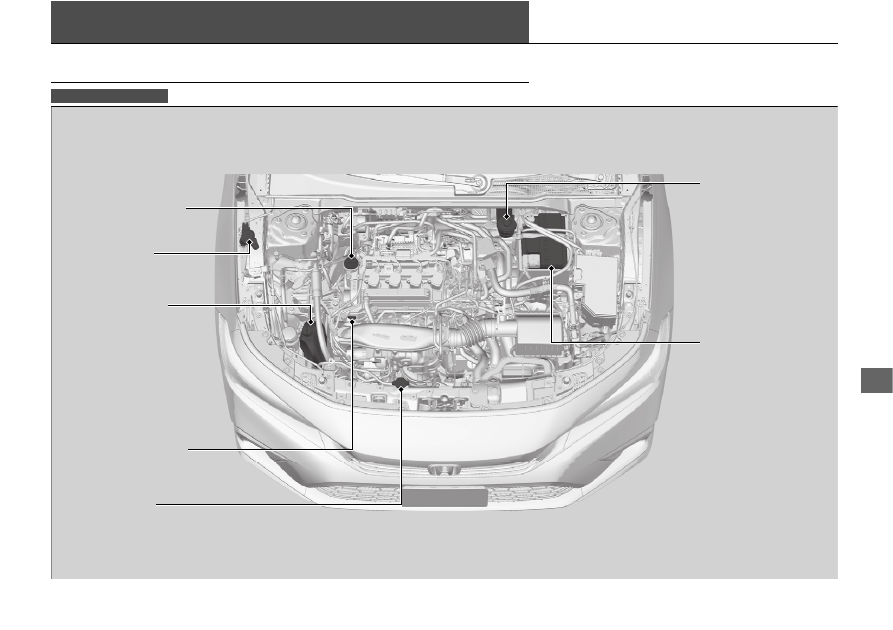

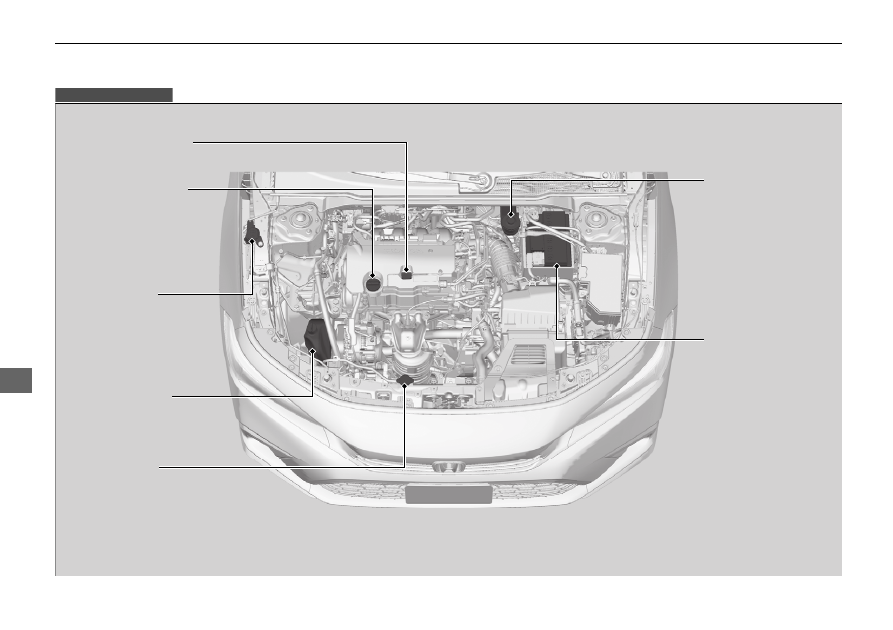

Maintenance Items Under the Hood

1.5 L engine models

Brake/Clutch

*

 Fluid

(Black Cap)

Radiator Cap

Washer Fluid
(Blue Cap)

Engine Oil Dipstick
(Orange)

Engine Oil Fill Cap

Battery

Engine Coolant
Reserve Tank

* Not available on all models

652

uu

Maintenance Under the Hood

u

Maintenance Items Under the Hood

Main

tenan

ce

2.0 L engine models

Brake Fluid
(Black Cap)

Washer Fluid
(Blue Cap)

Engine Oil Dipstick
(Orange)

Battery

Radiator Cap

Engine Coolant
Reserve Tank

Engine Oil Fill Cap

653

uu

Maintenance Under the Hood

u

Opening the Hood

Main

tenan

ce

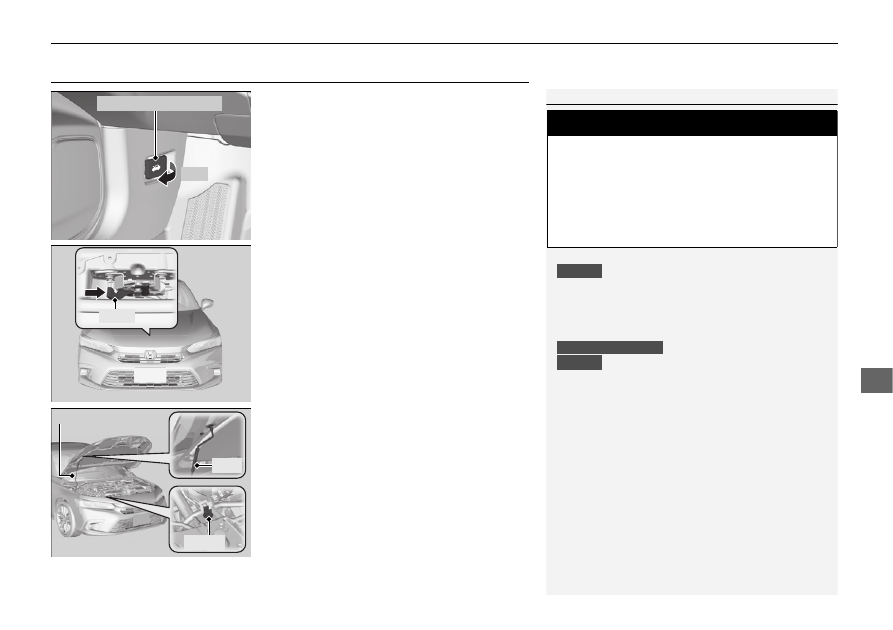

Opening the Hood

1.

Park the vehicle on a level surface, and set
the parking brake.

2.

Pull the hood release handle under the
driver’s side lower corner of the dashboard.

u

The hood will pop up slightly.

3.

Push the hood latch lever (located under
the front edge of the hood to the center) to
the side and raise the hood. Once you have
raised the hood slightly, you can release the
lever.

4.

Remove the support rod from the clamp
using the grip. Mount the support rod in
the hood.

When closing, remove the support rod, and
stow it in the clamp, then gently lower the
hood. Remove your hand at a height of
approximately 12 inches (30 cm) and let the
hood close.

1

Opening the Hood

NOTICE

Do not open the hood when the wiper arms are
raised. The hood will strike the wipers, resulting in
possible damage to the hood and/or the wipers.

NOTICE

Do not press the engine cover forcibly. This may
damage the engine cover and component parts.

When closing the hood, check that the hood is
securely latched.

If the hood latch lever moves stiffly, or if you can
open the hood without lifting the lever, the latch
mechanism should be cleaned and lubricated.

Do not open the hood while the Auto Idle Stop
function is activated.

3

WARNING

The hood support rod can become very hot
due to heat from the engine.

To ensure against possible burns, do not
handle the metal section of the rod: Use
the foam grip instead.

2.0 L engine models

Hood Release Handle

Pull

Lever

Support Rod

Grip

Clamp

654

uu

Maintenance Under the Hood

u

Recommended Engine Oil

Main

tenan

ce

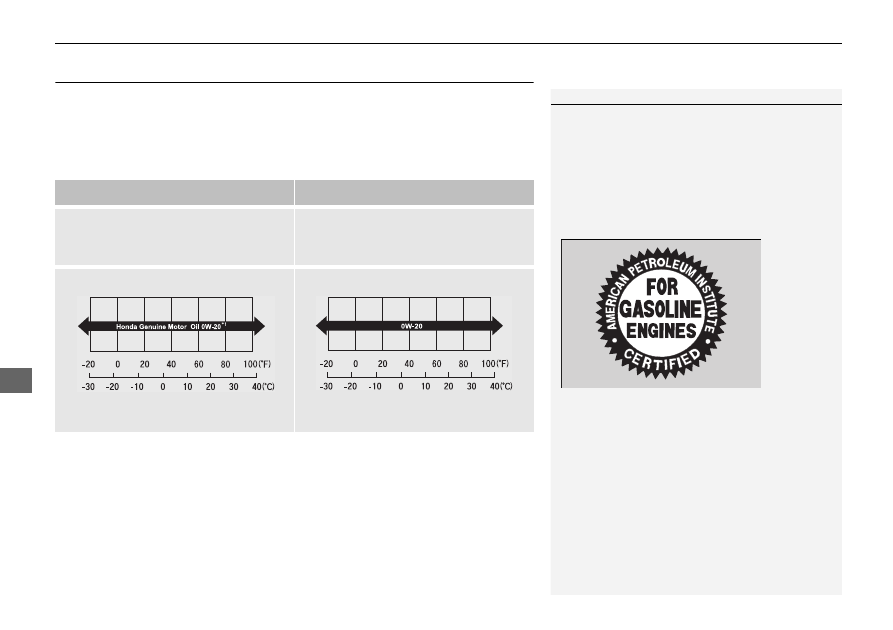

Recommended Engine Oil

Use a genuine engine oil or another commercial engine oil of suitable type and
viscosity (for the ambient temperature) as shown in the image that follows.

Oil is a major contributor to your engine’s performance and longevity. If you drive
the vehicle with insufficient or deteriorated oil, the engine may fail or be damaged.

*1:Formulated to improve fuel economy.

Synthetic oil

You may also use synthetic motor oil if it is labeled with the API Certification Seal
and is the specified viscosity grade.

Genuine Engine Oil

Commercial Engine Oil

Honda Genuine Motor Oil

Premium-grade 0W-20 detergent oil
with an API Certification Seal on the
container.

1

Recommended Engine Oil

Engine Oil Additives
Your vehicle does not require oil additives. In fact,
they may adversely affect the engine performance
and durability.

The following seal indicates the oil is energy
conserving and that it meets the American Petroleum
Institute’s latest requirements.

Ambient Temperature

Ambient Temperature

655

uu

Maintenance Under the Hood

u

Oil Check

Continued

Main

tenan

ce

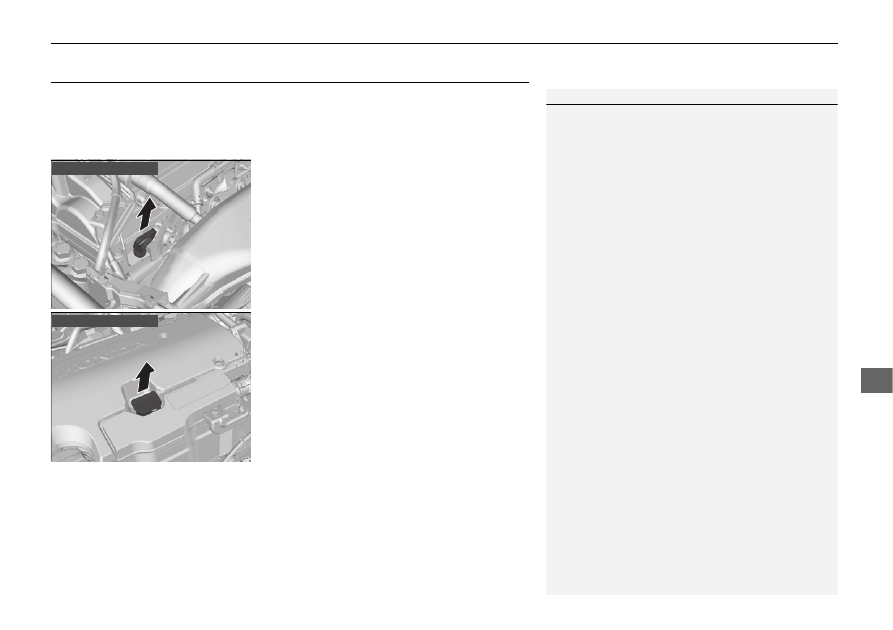

Oil Check

We recommend that you check the engine oil level every time you refuel.
Park the vehicle on level ground.
Wait approximately three minutes after turning the engine off before you check the
oil.

1.

Remove the dipstick (orange).

2.

Wipe the dipstick with a clean cloth or
paper towel.

3.

Insert the dipstick back all the way into its
hole.

1

Oil Check

If the oil level is near or below the lower mark, slowly
add oil, being careful not to overfill.

1.5 L engine models

2.0 L engine models

uu

Maintenance Under the Hood

u

Oil Check

656

Main

tenan

ce

4.

Remove the dipstick again, and check the
level. It should be between the upper and
lower marks. Add oil if necessary.

Upper Mark

Lower Mark

1.5 L engine models

Upper Mark

Lower Mark

2.0 L engine models

1

Oil Check

NOTICE

Under certain driving conditions, it is normal for the
engine oil level to rise above the upper mark. If you
have a concern, consult a dealer for details.

657

uu

Maintenance Under the Hood

u

Adding Engine Oil

Main

tenan

ce

Adding Engine Oil

1.

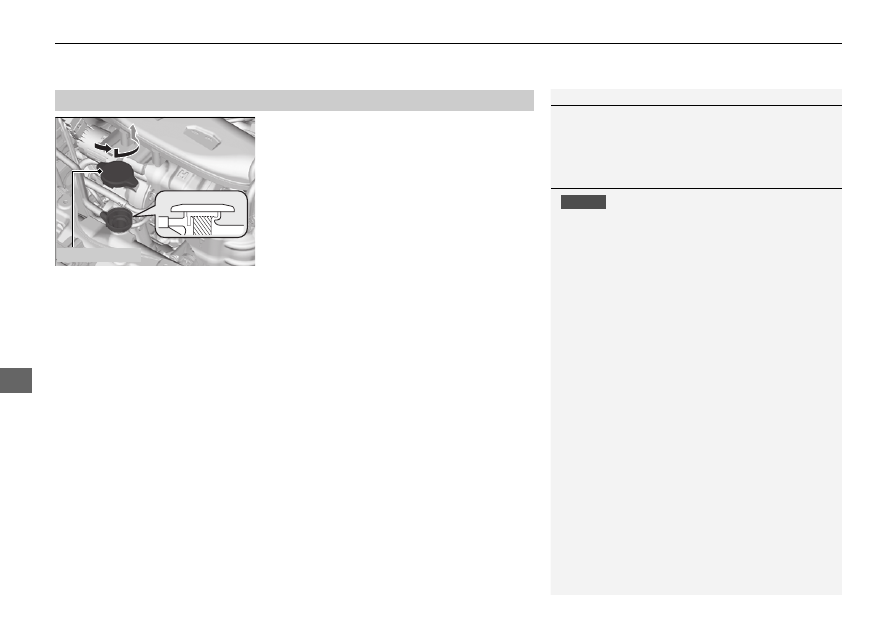

Unscrew and remove the engine oil fill cap.

2.

Add oil slowly.

3.

Reinstall the engine oil fill cap, and tighten
it securely.

4.

Wait for three minutes and recheck the
engine oil dipstick.

1

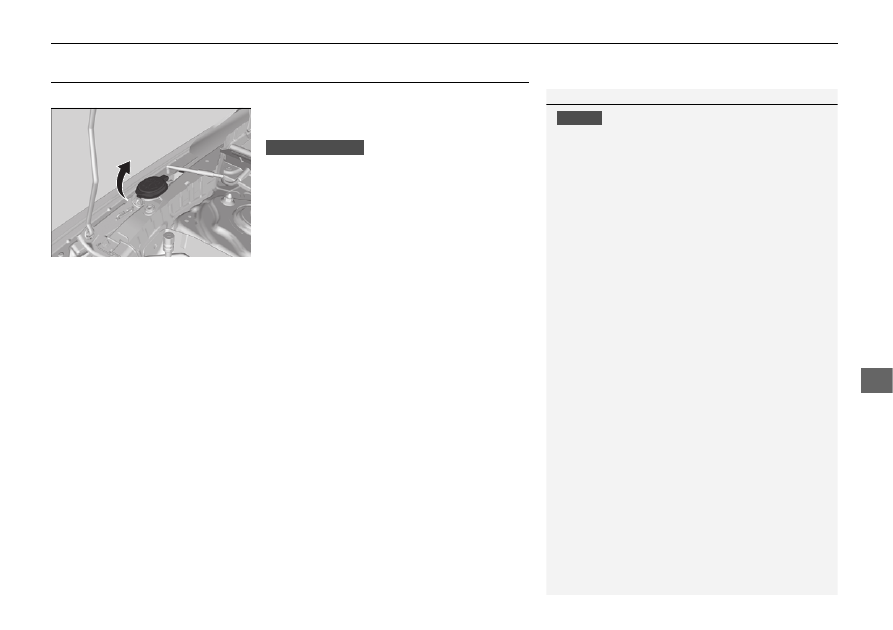

Adding Engine Oil

NOTICE

Do not fill the engine oil above the upper mark.
Overfilling the engine oil may result in leaks and
engine damage.

If any oil spills, wipe it away immediately. Spilled oil
may damage the engine compartment components.

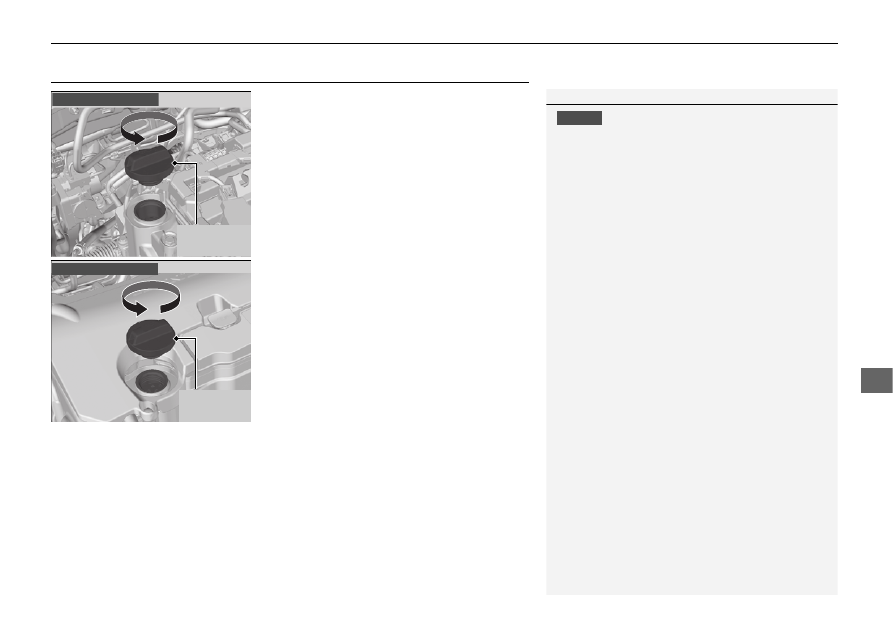

Engine Oil
Fill Cap

1.5 L engine models

Engine Oil
Fill Cap

2.0 L engine models

658

uu

Maintenance Under the Hood

u

Changing the Engine Oil and Oil Filter

Main

tenan

ce

Changing the Engine Oil and Oil Filter

You must change the engine oil and oil filter regularly in order to maintain the
engine’s lubrication. The engine may be damaged if they are not changed regularly.

Change the oil and filter in accordance with the maintenance message on the driver
information interface.

1.

Run the engine until it reaches normal
operating temperature, and then turn the
engine off.

2.

Open the hood and remove the engine oil
fill cap.

3.

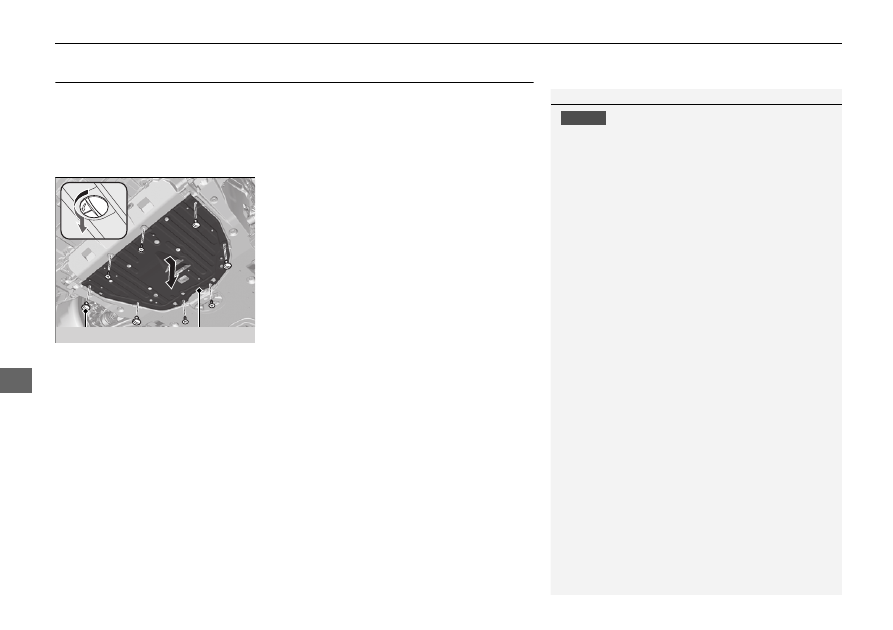

Remove the Phillips-head screws and
slotted head screws by turning 90°
counter-clockwise on the undercarriage
and remove the under cover.

1

Changing the Engine Oil and Oil Filter

NOTICE

You may damage the environment if you do not
dispose of the oil in a suitable way. If you are
changing the oil by yourself, appropriately dispose of
the used oil. Put the oil in a sealed container and take
it to a recycling center. Do not throw the oil away
into a garbage can or onto the ground.

Under Cover

Screw

659

uu

Maintenance Under the Hood

u

Changing the Engine Oil and Oil Filter

Continued

Main

tenan

ce

4.

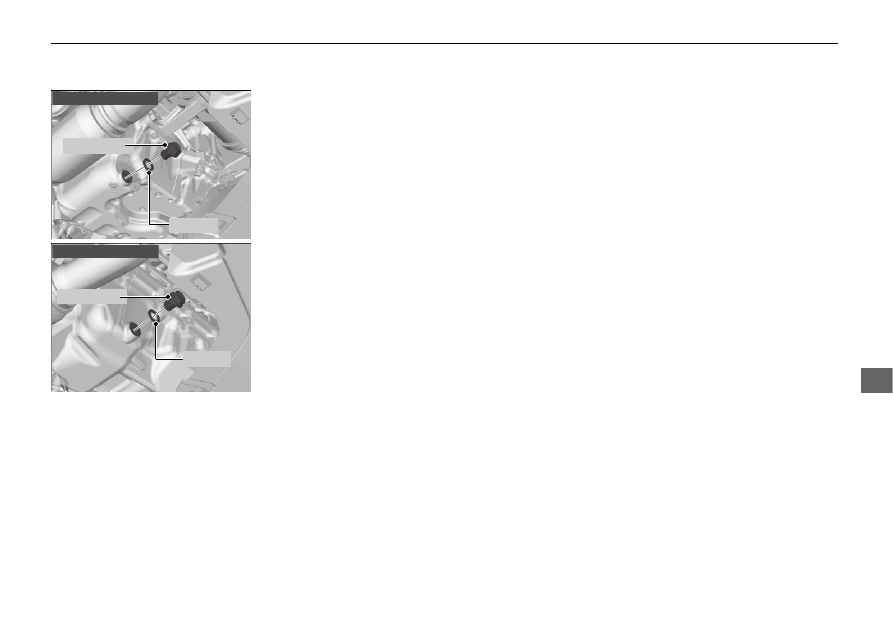

Remove the drain bolt and washer from
the bottom of the engine, and drain the
oil into a suitable container.

1.5 L engine models

Drain Bolt

Washer

2.0 L engine models

Drain Bolt

Washer

uu

Maintenance Under the Hood

u

Changing the Engine Oil and Oil Filter

660

Main

tenan

ce

5.

Remove the oil filter and dispose of the
remaining oil.

6.

Check that the filter gasket is not stuck to
the engine contact surface.

u

If it is stuck, you must detach it.

7.

Wipe away dirt and dust adhering to the
contact surface of the engine block, and
install a new oil filter.

u

Apply a light coat of new engine oil to
the filter gasket.

8.

Put a new washer on the drain bolt, then
reinstall the drain bolt.

u

Tightening torque:
30 lbf∙ft (40 N∙m, 4.0 kgf∙m)

9.

Pour the recommended engine oil into the
engine.

u

Engine oil change capacity (including
filter):

3.7 US qt (3.5 L)

4.4 US qt (4.2 L)

10.

Reinstall the engine oil fill cap securely and
start the engine.

11.

Run the engine for a few minutes, and
then check that there is no leak from the
drain bolt or oil filter.

12.

Stop the engine, wait for three minutes,
and then check the oil level on the
dipstick.

u

If necessary, add more engine oil.

1

Changing the Engine Oil and Oil Filter

You will need a special wrench to replace the oil
filter. You can buy this wrench from a dealer.

When installing the new oil filter, follow the
instructions supplied with the oil filter.

Reinstall the engine oil fill cap. Start the engine. If the
low oil pressure warning appears, turn off the
engine, and check your work.

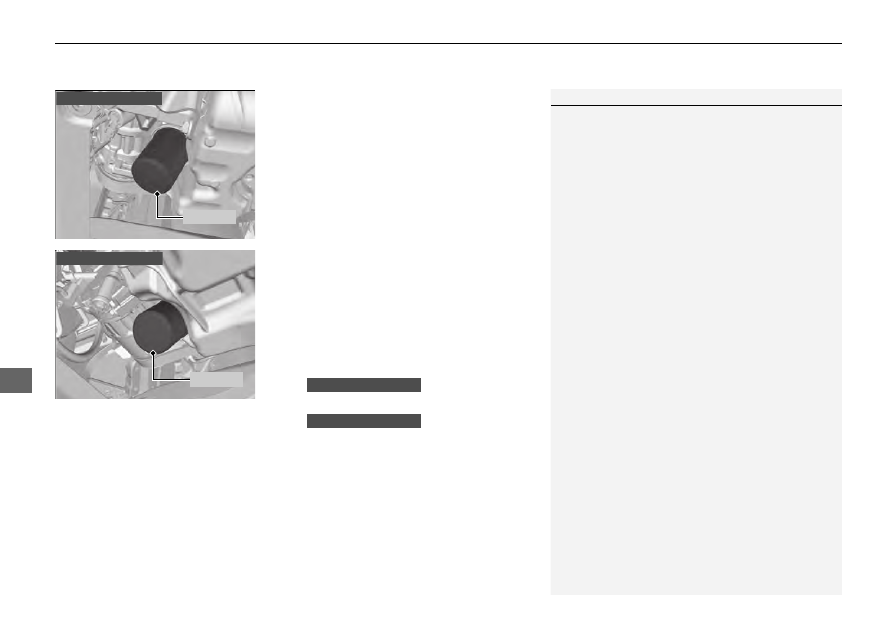

Oil Filter

1.5 L engine models

2.0 L engine models

Oil Filter

1.5 L engine models

2.0 L engine models

661

uu

Maintenance Under the Hood

u

Engine Coolant

Continued

Main

tenan

ce

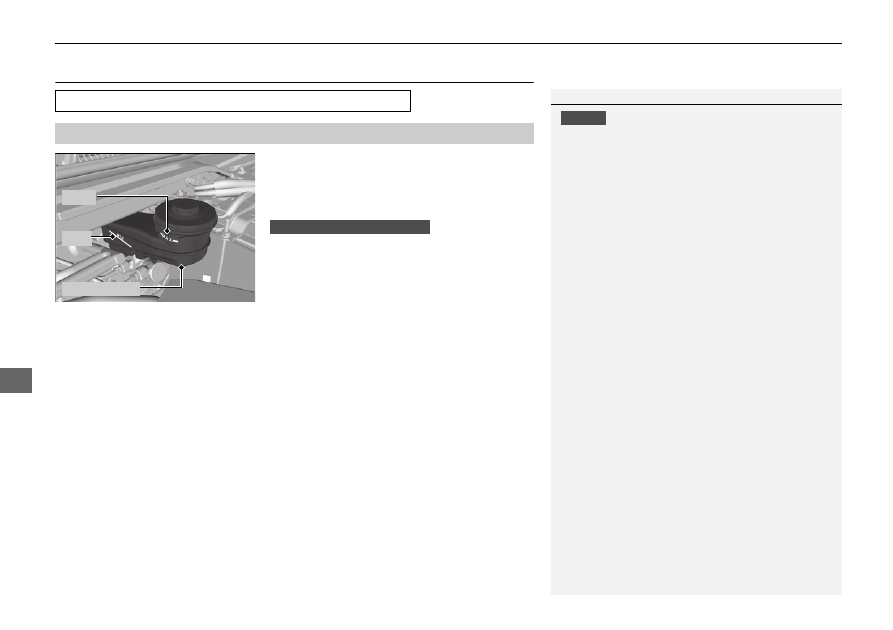

Engine Coolant

This coolant is premixed with 50% antifreeze and 50% water. Do not add any
straight antifreeze or water.

We recommend you check the engine coolant level every time you refuel. Check the
reserve tank first. If it is completely empty, also check the coolant level in the
radiator. Add the engine coolant accordingly.

1. Make sure the engine and radiator are

cool

.

2.

Check the amount of coolant in the reserve
tank.

u

If the coolant level is below the

MIN



mark, add the specified coolant until it
reaches the

MAX

 mark.

3.

Inspect the cooling system for leaks.

Specified coolant: Honda Long Life Antifreeze/Coolant Type 2

Reserve Tank

1

Engine Coolant

NOTICE

Genuine Honda engine coolant is a 50/50 mixture of
antifreeze and water that can withstand freezing at
temperatures as low as about −31°F (−35°C). If your
vehicle is consistently subjected to temperatures
below this, the concentration of antifreeze in the
coolant should be increased. Consult a dealer for
details.

If Honda antifreeze/coolant is not available, you may
use another major brand of non-silicate coolant as a
temporary replacement. Check that it is a high quality
coolant recommended for aluminum engines.
Continued use of any non-Honda coolant can result
in corrosion, causing the cooling system to
malfunction or fail. Have the cooling system flushed
and refilled with Honda antifreeze/coolant as soon as
possible.

3

WARNING

Removing the radiator cap while the
engine is hot can cause the coolant to spray
out, seriously scalding you.

Always let the engine and radiator cool
down before removing the radiator cap.

MAX

MIN

Reserve Tank

uu

Maintenance Under the Hood

u

Engine Coolant

662

Main

tenan

ce

1. Make sure the engine and radiator are

cool.

2.

Turn the radiator cap 1/8 turn counter-
clockwise and relieve any pressure in the
cooling system.

3.

Push down and turn the radiator cap
counter-clockwise to remove it.

4.

The coolant level should be up to the base
of the filler neck. Add coolant if it is low.

5.

Put the radiator cap back on, and tighten it
fully.

Radiator

1

Engine Coolant

Do not add rust inhibitors or other additives to your
vehicle’s cooling system. They may not be compatible
with the coolant or with the engine components.

1

Radiator

NOTICE

Pour the fluid slowly and carefully so you do not spill
any. Clean up any spills immediately; they can
damage components in the engine compartment.

Radiator Cap

663

uu

Maintenance Under the Hood

u

Transmission Fluid

Main

tenan

ce

Transmission Fluid

Have a dealer check the fluid level and replace if necessary.

Do not attempt to check or change the continuously variable transmission fluid
yourself.

Have a dealer check the fluid level and replace if necessary.

Do not attempt to check or change the manual transmission fluid yourself.

Continuously Variable Transmission (CVT) Fluid

Specified fluid: Honda HCF-2

Manual Transmission Fluid

Specified fluid: Honda MTF

Models with continuously variable transmission

1

Continuously Variable Transmission (CVT) Fluid

NOTICE

Do not mix Honda HCF-2 with other
transmission fluids.

Using a transmission fluid other than Honda HCF-2 may
adversely affect the operation and durability of your
vehicle's transmission, and damage the transmission.
Any damage caused by using a transmission fluid that
is not equivalent to Honda HCF-2 is not covered by
Honda's new vehicle limited warranty.

Models with manual transmission

1

Manual Transmission Fluid

NOTICE

If Honda MTF is not available, you may use the API
certificated SAE 0W-20 or 5W-20 viscosity motor oil
as a temporary measure.
Replace with MTF as soon as possible. Motor oil does
not contain the proper additives for the transmission
and continued use can cause decreased shifting
performance and lead to transmission damage.

664

uu

Maintenance Under the Hood

u

Brake/Clutch

*

 Fluid

Main

tenan

ce

Brake/Clutch

*

 Fluid

The fluid level should be between the

MIN



and

MAX

 marks on the side of the reserve

tank.

The brake fluid reserve tank is also used for
your vehicle’s clutch fluid. As long as you keep
the brake fluid level as instructed above, there
is no need for checking the clutch fluid level.

Specified fluid: Honda Heavy Duty Brake Fluid DOT 3

Checking the Brake Fluid

1

Brake/Clutch

*

 Fluid

NOTICE

Brake fluid marked DOT 5 is not compatible with your
vehicle’s braking system and can cause extensive
damage.

If the specified brake fluid is not available, you should
use only DOT 3 or DOT 4 fluid from a sealed
container as a temporary replacement.

Using any non-Honda brake fluid can cause corrosion
and decrease the longevity of the system. Have the
brake system flushed and refilled with Honda Heavy
Duty Brake Fluid DOT 3 as soon as possible.

If the brake fluid level is at or below the

MIN

 mark,

have a dealer inspect the vehicle for leaks or worn
brake pads as soon as possible.

Reserve Tank

MIN

MAX

Manual transmission models

* Not available on all models

665

uu

Maintenance Under the Hood

u

Refilling Window Washer Fluid

Main

tenan

ce

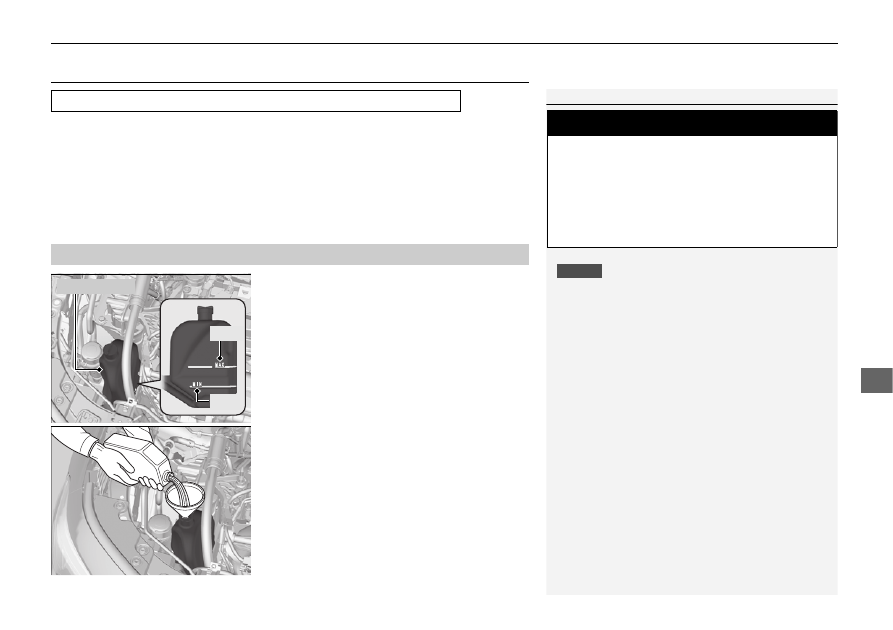

Refilling Window Washer Fluid

Check the amount of window washer fluid.

If the level is low, fill the washer reservoir.

If the washer fluid is low, a message appears
on the driver information interface.

Pour the washer fluid carefully. Do not overflow the reservoir.

1

Refilling Window Washer Fluid

NOTICE

Do not use engine antifreeze or a vinegar/water
solution in the windshield washer reservoir.
Antifreeze can damage your vehicle’s paint. A
vinegar/water solution can damage the windshield
washer pump.
Use only commercially available windshield washer
fluid.
Avoid prolonged use of hard water to prevent lime
scale buildup.

Canadian models

666

Main

tenan

ce

Replacing Light Bulbs

Headlights

Headlights are LED type. Have an authorized Honda dealer inspect and replace the
light assembly.

Fog Lights

*

Fog lights are LED type. Have an authorized Honda dealer inspect and replace the
light assembly.

Front Turn Signal Lights

Front turn signal lights are LED type. Have an authorized Honda dealer inspect and
replace the light assembly.

Front Side Marker Lights

Front side marker lights are LED type. Have an authorized Honda dealer inspect and
replace the light assembly.

Parking/Daytime Running Lights

Parking/daytime running lights are LED type. Have an authorized Honda dealer
inspect and replace the light assembly.

Side Turn Signal/Emergency Indicator Lights

*

Door mirror side turn lights are LED type. Have an authorized Honda dealer inspect
and replace the light assembly.

1

Headlights

The headlight aim is set by the factory, and does not
need to be adjusted. However, if you regularly carry
heavy items in the trunk, have the aiming readjusted
at a dealer or by a qualified technician.

* Not available on all models

667

uu

Replacing Light Bulbs

u

Brake Light, Taillight, Rear Side Marker Light, and Rear Turn Signal Light Bulbs

Continued

Main

tenan

ce

Brake Light, Taillight, Rear Side Marker Light, and
Rear Turn Signal Light Bulbs

When replacing, use the following bulbs.

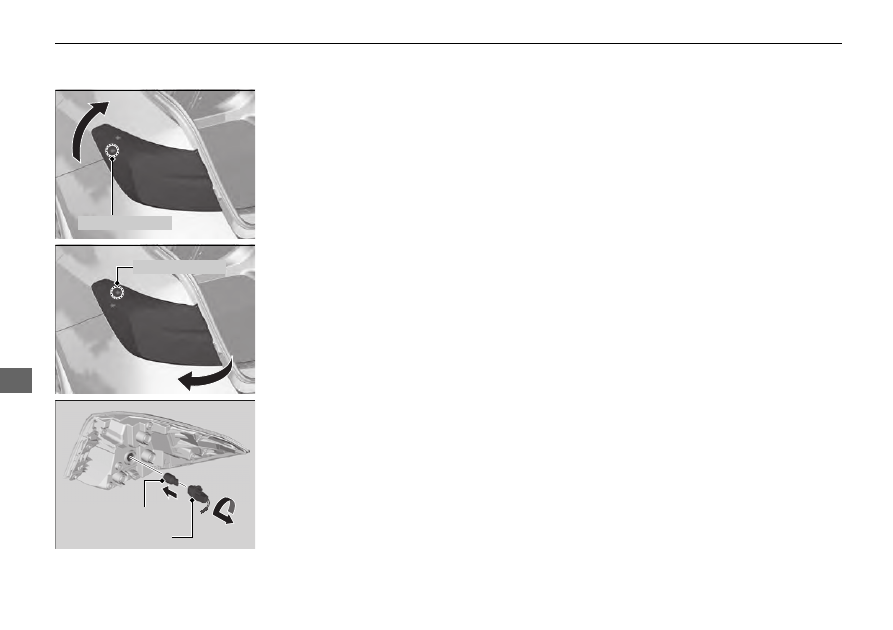

1.

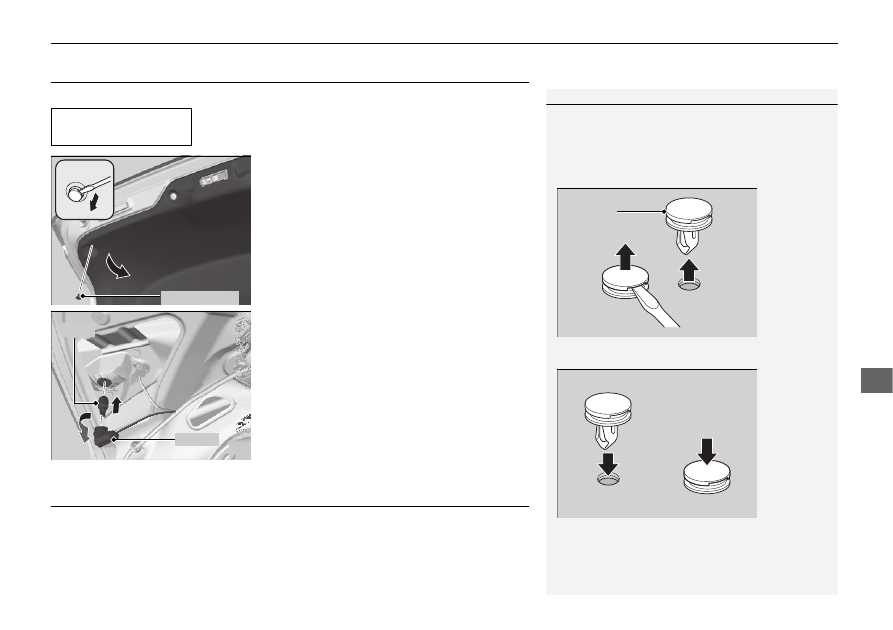

Pry on the edge of the cover using a flat-tip
screwdriver to remove the cover.

u

Wrap the flat-tip screwdriver with a cloth
to prevent scratches.

2.

Unscrew the bolts.

Brake Light: LED
Taillight: LED
Rear Side Marker Light: LED
Rear Turn Signal Light: 21 W (Amber)

1

Brake Light, Taillight, Rear Side Marker Light, and Rear Turn
Signal Light Bulbs

Brake lights, taillights, and rear side marker lights are
LED type. Have an authorized Honda dealer inspect
and replace the light assembly.

Cover

Bolt

668

uu

Replacing Light Bulbs

u

Brake Light, Taillight, Rear Side Marker Light, and Rear Turn Signal Light Bulbs

Main

tenan

ce

3.

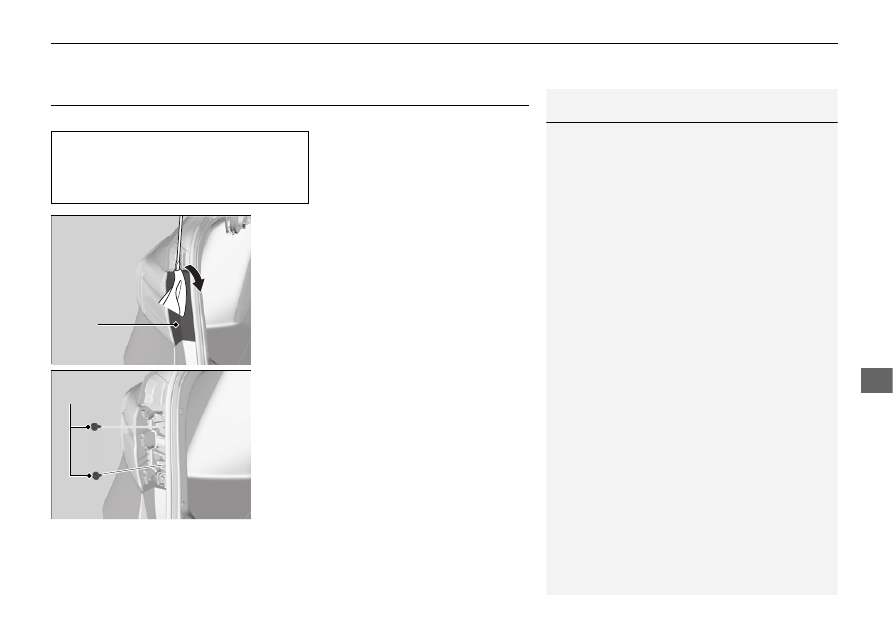

Grasp underneath the taillight and rotate it
upward to release the lower snap pin.

4.

Rotate the taillight outward to release the
upper snap pin.

5.

Pull the light assembly out of the rear pillar.

6.

Turn the socket counter-clockwise and
remove it.

7.

Remove the old bulb and insert a new bulb.

8.

Align the pins with the body grommets,
then push in until they fully seat.

Lower Snap Pin

Upper Snap Pin

Bulb

Socket

669

uu

Replacing Light Bulbs

u

Taillight and Back-Up Light Bulbs

Main

tenan

ce

Taillight and Back-Up Light Bulbs

When replacing, use the following bulbs.

1.

Remove the holding clip using a flat-tip
screwdriver, then pull the lining back.

2.

Turn the socket counter-clockwise and
remove it.

3.

Remove the old bulb and insert a new bulb.

Rear License Plate Light

Rear license plate light is LED type. Have an authorized Honda dealer inspect and
replace the light assembly.

Taillight: LED
Back-Up Light: 16 W

1

Taillight and Back-Up Light Bulbs

Taillights are LED type. Have an authorized Honda
dealer inspect and replace the light assembly.

When removing the clip, insert a flat-tip screwdriver,
then lift and remove the clip.

Insert the clip with the pin raised, and push until it is flat.

Clip

Push until the
pin is flat.

Holding Clip

Bulb

Socket

670

uu

Replacing Light Bulbs

u

High-Mount Brake Light Bulb

Main

tenan

ce

High-Mount Brake Light Bulb

When replacing, use the following bulb.

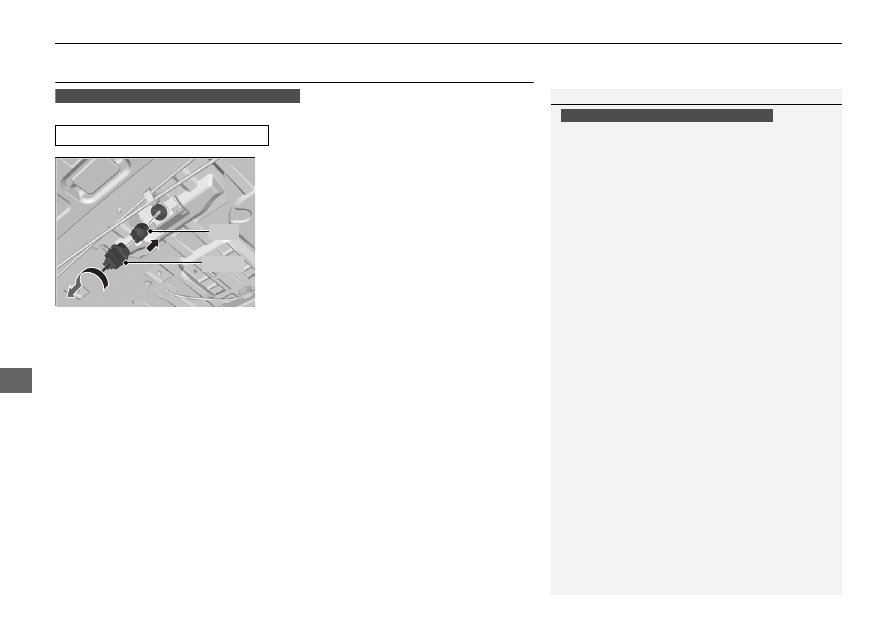

1.

Open the trunk.

2.

Turn the socket counter-clockwise and
remove it.

3.

Remove the old bulb and insert a new bulb.

High-Mount Brake Light: 21 W

1

High-Mount Brake Light Bulb

High-mount brake light is LED type. Have an
authorized Honda dealer inspect and replace the light
assembly.

Models with LED high-mount brake light

Models without LED high-mount brake light

Bulb

Socket

671

Continued

Main

tenan

ce

Checking and Maintaining Wiper Blades

Checking Wiper Blades

If the wiper blade rubber has deteriorated, it will leave streaks, become noisy, and
the hard surfaces of the blade may scratch the window glass.

Changing the Wiper Blade

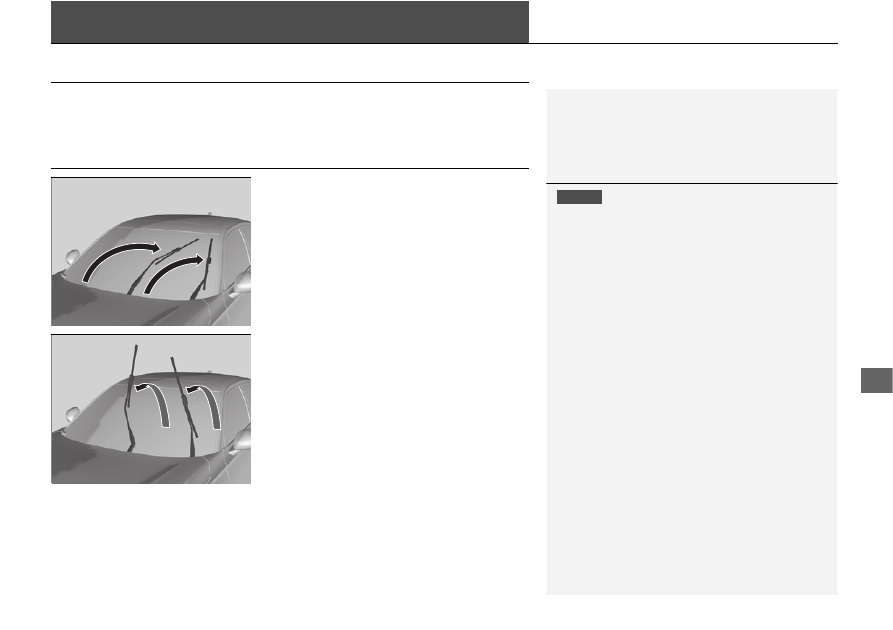

1.

Set the power mode to ON, then to
VEHICLE OFF.

2.

Within 10 seconds of setting the power
mode to VEHICLE OFF, hold the wiper
switch in the

MIST

 position for more than

two seconds.

u

Both wiper arms are set to the
maintenance position as shown in the
image.

3.

Lift both wiper arms.

1

Changing the Wiper Blade

NOTICE

Avoid dropping the wiper arm onto the windshield, it
may damage the wiper arm and/or the windshield.

672

uu

Checking and Maintaining Wiper Blades

u

Changing the Wiper Blade

Main

tenan

ce

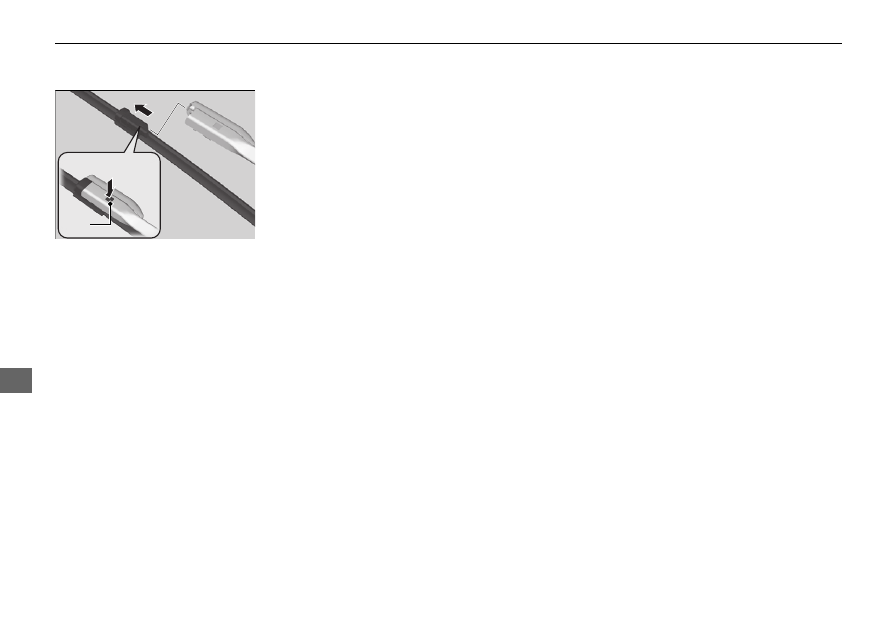

4.

Depress the lock tab, then slide the wiper
blade off the wiper arm.

5.

Slide the new wiper blade onto the wiper
arm until it clicks into place.

6.

Lower both wiper arms.

7.

Set the power mode to ON, then set the
wiper switch to the

MIST

 position once.

u

The wiper arms return to the standard
position.

Tab

673

Main

tenan

ce

Checking and Maintaining Tires

Checking Tires

To safely operate your vehicle, your tires must be of the proper type and size, in
good condition with adequate tread, and properly inflated.

Inflation guidelines

Properly inflated tires provide the best combination of handling, tread life, and
comfort. Refer to the driver’s doorjamb label or specifications page for the specified
pressure.

Underinflated tires wear unevenly, adversely affect handling and fuel economy, and
are more likely to fail from overheating.

Overinflated tires make your vehicle ride harshly, are more prone to road hazards,
and wear unevenly.

Every day before you drive, look at each of the tires. If one looks lower than the
others, check the pressure with a tire gauge.

At least once a month or before long trips, use a gauge to measure the pressure in all
tires, including the spare

*

. Even tires in good condition can lose 1-2 psi (10-20 kPa,

0.1-0.2 kgf/cm

2

) per month.

Inspection guidelines

Every time you check inflation, also examine the tires and valve stems. Look for:

Bumps or bulges on the side or in the tread. Replace the tire if you find any cuts,
splits, or cracks in the side of the tire. Replace it if you see fabric or cord.

Remove any foreign objects and inspect for air leaks.

Uneven tread wear. Have a dealer check the wheel alignment.

Excessive tread wear.

2

Wear Indicators

 P. 678

Cracks or other damage around valve stem.

1

Checking Tires

Measure the air pressure when tires are cold. This
means the vehicle has been parked for at least three
hours, or driven less than 1 mile (1.6 km). If
necessary, add or release air until the specified
pressure is reached.

If checked when hot, tire pressure can be as much as
4–6 psi (30–40 kPa, 0.3–0.4 kgf/cm

2

) higher than if

checked when cold.

Whenever tire pressure is adjusted, you must
calibrate the TPMS.

2

TPMS Calibration

 P. 492

Have a dealer check the tires if you feel a consistent
vibration while driving. New tires and any that have
been removed and reinstalled should be properly
balanced.

3

WARNING

Using tires that are excessively worn or
improperly inflated can cause a crash in
which you can be seriously hurt or killed.

Follow all instructions in this owner’s
manual regarding tire inflation and
maintenance.

U.S. models

* Not available on all models

674

uu

Checking and Maintaining Tires

u

Tire and Loading Information Label

Main

tenan

ce

Tire and Loading Information Label

The label attached to the driver’s doorjamb provides necessary tire and loading
information.

Tire Labeling

The tires that came on your vehicle have a
number of markings. Those you should be
aware of are described as shown.

Whenever tires are replaced, they should be replaced with tires of the same size.

1

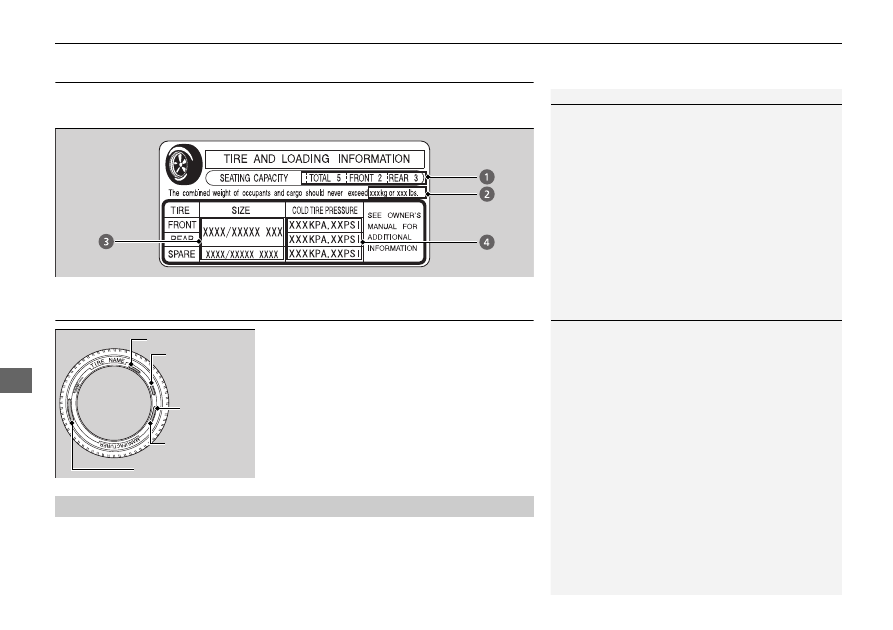

Tire and Loading Information Label

The tire and loading information label attached to the
driver’s doorjamb contains:

a

The number of people your vehicle can carry.

b

The total weight your vehicle can carry. Do not
exceed this weight.

c

The original tire sizes for front, rear, and spare.

d

The proper cold tire pressure for front, rear, and
spare.

Label
Example

Example

Tire Size

Tire
Identification
Number (TIN)

Maximum
Tire Load

Maximum
Tire Pressure

Tire Size

Tire Sizes

1

Tire Sizes

Following is an example of tire size with an
explanation of what each component means.

P205/55 R16 89H

P: Vehicle type (P indicates passenger vehicle).
205: Tire width in millimeters.
55: Aspect ratio (the tire’s section height as a
percentage of its width).
R: Tire construction code (R indicates radial).
16: Rim diameter in inches.
89: Load index (a numerical code associated with the
maximum load the tire can carry).
H: Speed symbol (an alphabetical code indicating the
maximum speed rating).

675

uu

Checking and Maintaining Tires

u

Tire Labeling

Main

tenan

ce

The tire identification number (TIN) is a group of numbers and letters that look like
the example in the side column. TIN is located on the sidewall of the tire.

Cold Tire Pressure

 – The tire air pressure when the vehicle has been parked for at

least three hours or driven less than 1 mile (1.6 km).

Load Rating

 – Means the maximum load that a tire is rated to carry for a given

inflation pressure.

Maximum Inflation Pressure

 – The maximum tire air pressure that the tire can

hold.

Maximum Load Rating

 – Means the load rating for a tire at the maximum

permissible inflation pressure for that tire.

Recommended Inflation Pressure

 – The cold tire inflation pressure recommended

by the manufacturer.

Treadwear Indicators (TWI)

 – Means the projections within the principal grooves

designed to give a visual indication of the degrees of wear of the tread.

Tire Identification Number (TIN)

Glossary of Tire Terminology

1

Tire Identification Number (TIN)

DOT B97R FW6X 2209

DOT: This indicates that the tire meets all
requirements of the U.S. Department of
Transportation.
B97R: Manufacturer's identification mark.
FW6X: Tire type code.
22 09: Date of manufacture.

Year
Week

676

uu

Checking and Maintaining Tires

u

DOT Tire Quality Grading (U.S. Vehicles)

Main

tenan

ce

DOT Tire Quality Grading (U.S. Vehicles)

The tires on your vehicle meet all U.S. Federal Safety
Requirements. All tires are also graded for treadwear, traction,
and temperature performance according to Department of
Transportation (DOT) standards. The following explains these
gradings.

Quality grades can be found where applicable on the tire sidewall
between tread shoulder and maximum section width.

The treadwear grade is a comparative rating based on the wear
rate of the tire when tested under controlled conditions on a
specified government test course. For example, a tire graded 150
would wear one and one-half (1 1/2) times as well on the
government course as a tire graded 100. The relative performance
of tires depends upon the actual conditions of their use, however,
and may depart significantly from the norm due to variations in
driving habits, service practices and differences in road
characteristics and climate.

Uniform Tire Quality Grading

Treadwear

1

Uniform Tire Quality Grading

For example:

Treadwear 200
Traction AA
Temperature A

All passenger car tires must conform
to Federal Safety Requirements in
addition to these grades.

677

uu

Checking and Maintaining Tires

u

DOT Tire Quality Grading (U.S. Vehicles)

Main

tenan

ce

The traction grades, from highest to lowest, are AA, A, B, and C.
Those grades represent the tire's ability to stop on wet pavement
as measured under controlled conditions on specified
government test surfaces of asphalt and concrete. A tire marked
C may have poor traction performance.

The temperature grades are A (the highest), B, and C,
representing the tire's resistance to the generation of heat and its
ability to dissipate heat when tested under controlled conditions
on a specified indoor laboratory test wheel. Sustained high
temperature can cause the material of the tire to degenerate and
reduce tire life, and excessive temperature can lead to sudden tire
failure. The grade C corresponds to a level of performance which
all passenger car tires must meet under the Federal Motor Vehicle
Safety Standard No. 109. Grades B and A represent higher levels
of performance on the laboratory test wheel than the minimum
required by law.

Traction

Temperature

1

Traction

Warning: The traction grade
assigned to this tire is based on
straight-ahead braking traction tests,
and does not include acceleration,
cornering, hydroplaning, or peak
traction characteristics.

1

Temperature

Warning: The temperature grade for
this tire is established for a tire that is
properly inflated and not
overloaded. Excessive speed,
underinflation, or excessive loading,
either separately or in combination,
can cause heat buildup and possible
tire failure.

678

uu

Checking and Maintaining Tires

u

Wear Indicators

Main

tenan

ce

Wear Indicators

The groove where the wear indicator is
located is about 1/16 inch (about 1.6 mm)
shallower than elsewhere on the tire. If the
tread has worn so that the indicator is
exposed, replace the tire.

Worn out tires have poor traction on wet
roads.

Tire Service Life

The life of your tires is dependent on many factors, including driving habits, road
conditions, vehicle loading, inflation pressure, maintenance history, speed, and
environmental conditions (even when the tires are not in use).

In addition to regular inspections and inflation pressure maintenance, it is
recommended that you have annual inspections performed once the tires reach five
years old. All tires, including the spare

*

, should be removed from service after 10

years from the date of manufacture, regardless of their condition or state of wear.

Example of a Wear
Indicator mark

* Not available on all models















Content      ..     18      19      20      21     ..
