Honda e (2021 year). Manual in english - page 39





610

uu

Checking and Maintaining Tyres

u

Wear Indicators

Main

tenan

ce

Wear Indicators

The groove where the wear indicator is
located is about 1.6 mm (about 1/16 inch)
shallower than elsewhere on the tyre. If the
tread has worn so that the indicator is
exposed, replace the tyre.

Worn out tyres have poor traction on wet
roads.

Tyre Service Life

The life of your tyres is dependent on many factors, including driving habits, road
conditions, vehicle loading, inflation pressure, maintenance history, speed, and
environmental conditions (even when the tyres are not in use).

In addition to regular inspections and inflation pressure maintenance, it is
recommended that you have annual inspections performed once the tyres reach five
years old. All tyres should be removed from service after 10 years from the date of
manufacture, regardless of their condition or state of wear.

a

Example of a Wear Indicator
mark

611

uu

Checking and Maintaining Tyres

u

Tyre and Wheel Replacement

Main

tenan

ce

Tyre and Wheel Replacement

Replace your tyres with radials of the same size, load range, speed rating, and
maximum cold tyre pressure rating (as shown on the tyre’s sidewall). Using tyres of
a different size or construction can cause certain vehicle systems such as the ABS
and Vehicle Stability Assist (VSA) system to work incorrectly.

It is best to replace all four tyres at the same time. If that isn’t possible, replace the
front or rear tyres in pairs.

Make sure that the wheel’s specifications match those of the original wheels.

1

Tyre and Wheel Replacement

3

WARNING

Installing improper tyres on your vehicle
can affect handling and stability. This can
cause a crash in which you can be seriously
hurt or killed.

Always use the size and type of tyres
recommended in the tyre information label
on your vehicle.

612

uu

Checking and Maintaining Tyres

u

Tyre Rotation

Main

tenan

ce

Tyre Rotation

The front and rear tyre sizes are different.
Due to this, the front and rear tyres on this vehicle cannot be rotated.

1

Tyre Rotation

Directional tyres should be mounted with the
rotation indication mark facing forward, as shown
below.

a

Front

b

Rotation Mark

613

uu

Checking and Maintaining Tyres

u

Snow Traction Devices

Main

tenan

ce

Snow Traction Devices

If driving on snowy or frozen roads, mount winter tyres, or tyre chains; reduce
speed; and maintain sufficient distance between vehicles when driving.

Be particularly careful when operating the steering wheel or brakes to prevent
skidding.

Use tyre chains, winter tyres, or all season tyres when necessary or according to the
law.

When mounting, refer to the following points.

For winter tyres:

Select the size and load ranges that are the same as the original tyres.

Mount the tyres to all four wheels.

For tyre chains:

Consult a dealer before purchasing any type of chains for your vehicle.

Install them on the rear tyres only.

Because your vehicle has limited tyre clearance, we strongly recommend using the
chains listed below:

*1:Original tyre size is mentioned on the tyre information label on the driver’s

doorjamb.

Follow the chain manufacturer’s instruction when installing. Mount them as
tightly as you can.

Check that the chains do not touch the brake lines or suspension.

Drive slowly.

Original Tyre Size

*1

Chain Type

205/55R16 91V

RUD-matic classic 48484

225/45ZR17 (94Y)

RUD-matic classic 48489

1

Snow Traction Devices

NOTICE

Traction devices that are the wrong size or improperly installed
can damage your vehicle’s brake lines, suspension, body, and
wheels. Stop driving if they are hitting any part of the vehicle.

According to the EU legislation for tyres, when winter tyres are
used, it is necessary to affix a sticker with the allowable max.
speed of the winter tyres clearly in the field of view of the
driver, if the designed max. speed of vehicle is higher than the
allowed max. speed of winter tyre. A sticker is obtainable from
your tyre dealer. If you have any question, consult a dealer.

When tyre chains are mounted, follow the chain manufacturer’s
instructions regarding vehicle operational limits.

Use tyre chains only in an emergency or when they
are legally required for driving through a certain area.

Use greater caution when driving with tyre chains on snow or ice. They
may have less-predictable handling than good winter tyres without chains.

If your vehicle is equipped with summer tyres, be aware
that these tyres are not designed for winter driving
conditions. For more information, contact a dealer.

3

WARNING

Using the wrong chains, or not properly
installing chains, can damage the brake
lines and cause a crash in which you can be
seriously injured or killed.

Follow all instructions in this owner’s
manual regarding the selection and use of
tyre chains.

614

Main

tenan

ce

12-Volt Battery

Checking the 12-Volt Battery

The condition of the battery is monitored by a
sensor located on the negative terminal of the
battery. If there is a problem with this sensor,
the driver information interface will display a
warning message. If this happens, have your
vehicle inspected by a dealer.

Check the battery terminals for corrosion
monthly.

If your vehicle’s battery is disconnected or goes dead:

The audio system is disabled.

2

Reactivating the audio system

 P. 255

The clock resets.

2

Clock Setup

 P. 274

The immobilizer system needs to be reset.

2

Immobilizer System Indicator

 P. 121

The vehicle cannot be charged. After reconnecting the battery, turn the power
system on, then turn it off.
Confirm that charging is possible.

2

Turning on the Power

 P. 381

2

Charging

 P. 562

1

12-Volt Battery

3

WARNING

The battery gives off explosive hydrogen
gas during normal operation.

A spark or open flame can cause the
battery to explode with enough force to
kill or seriously hurt you.

Keep all sparks, open flames, and smoking
materials away from the battery.

Wear protective clothing and a face shield,
or have a skilled technician do any battery
maintenance.

3

WARNING

The battery contains sulfuric acid
(electrolyte) which is highly corrosive and
poisonous.

Getting electrolyte in your eyes or on your
skin can cause serious burns. Wear
protective clothing and eye protection
when working on or near the battery.

Swallowing electrolyte can cause fatal
poisoning if immediate action is not taken.

KEEP OUT OF THE REACH OF CHILDREN

Right-hand Drive Type

All models

615

uu

12-Volt Battery

u

Checking the 12-Volt Battery

Main

tenan

ce

1

12-Volt Battery

Emergency Procedures

Eyes: Flush with water from a cup or other container
for at least 15 minutes. (Water under pressure can
damage the eye.) Call a physician immediately.
Skin: Remove contaminated clothing. Flush the skin
with large quantities of water. Call a physician
immediately.
Swallowing: Drink water or milk. Call a physician
immediately.

When you find corrosion, clean the battery terminals
by applying a baking powder and water solution.
Clean the terminals with a damp towel. Cloth/towel
dry the battery. Coat the terminals with grease to
help prevent future corrosion.

When replacing the battery, the replacement must be
of the same specifications.
Consult a dealer for more information.

616

uu

12-Volt Battery

u

Charging the 12-Volt Battery

Main

tenan

ce

Charging the 12-Volt Battery

Disconnect both battery cables to prevent damaging your vehicle’s electrical system.
Always disconnect the negative (-) cable first, and reconnect it last.

617

uu

12-Volt Battery

u

Replacing the 12-Volt Battery

Continued

Main

tenan

ce

Replacing the 12-Volt Battery

When you remove and replace the 12-volt battery, always follow the maintenance
safety and the warnings for when checking the battery to prevent potential hazards.

2

Maintenance Safety

 P. 579

2

Checking the 12-Volt Battery

 P. 614

1.

Set the power mode to VEHICLE OFF. Open
the bonnet.

2.

Loosen the nut on the negative battery
cable, then disconnect the cable from the
negative (−) terminal.

u

Do not remove the battery sensor
ground cable or connector.

3.

Open the positive battery terminal cover.
Loosen the nut on the positive battery
cable, then disconnect the cable from the
positive (+) terminal.

4.

Loosen the nut on each side of the battery
bracket with a wrench.

5.

Pull the bottom end of each battery stay out
of the hole on the battery base, and remove
the combination of the battery bracket and
the stays.

1

Replacing the 12-Volt Battery

NOTICE

An improperly disposed of battery can be harmful to
the environment and human health. Always confirm
local regulations for battery disposal.

This symbol on the battery means that this product
must not be treated as household waste.

To install a new battery, reverse this procedure.

Always disconnect the negative (–) cable first, and
reconnect it last.

a

Nuts

b

Cover

a

Stay

b

Nut

618

uu

12-Volt Battery

u

Replacing the 12-Volt Battery

Main

tenan

ce

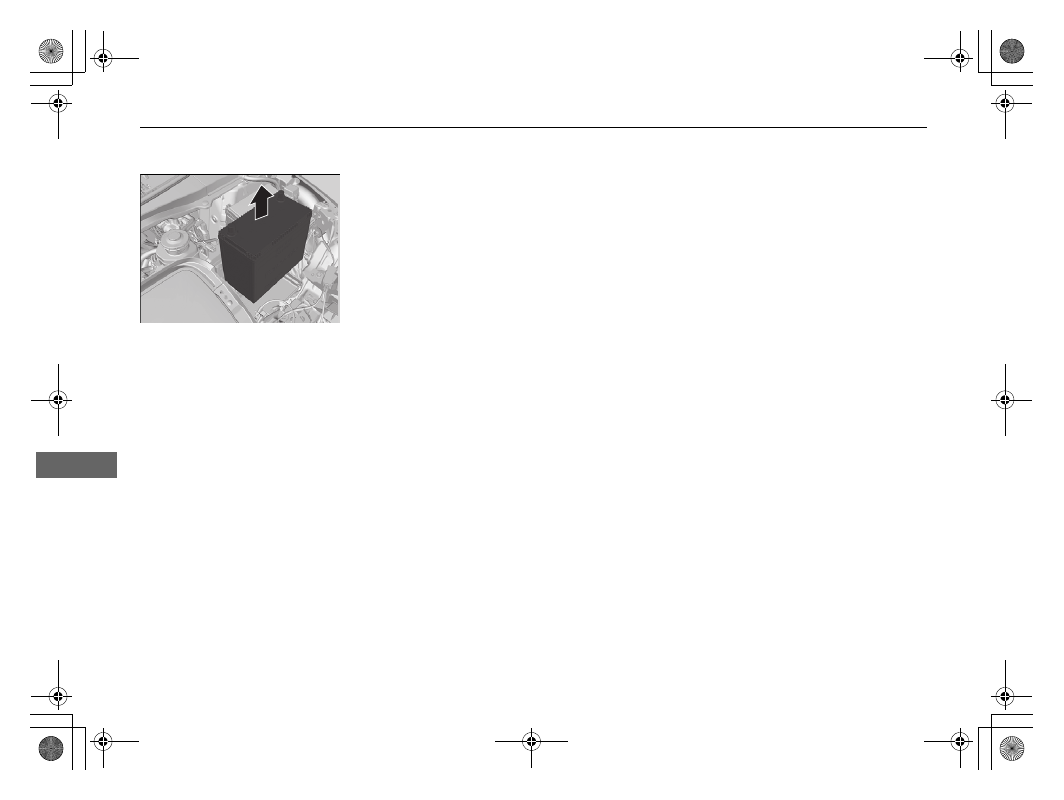

6.

Take out the battery carefully.

619

uu

12-Volt Battery

u

Battery Label

Main

tenan

ce

Battery Label

1

Battery Label

DANGER

Keep flames and sparks away from the battery. The
battery produces explosive gas that can cause an
explosion.

Wear eye protection and rubber gloves when
handling the battery to avoid risk of burns or loss of
eyesight if exposed to battery electrolyte.

Do not allow children to handle the battery, under
any circumstance. Ensure that anyone handling the
battery has a proper understanding of the hazards
and correct handling procedures involved.

Handle battery electrolyte with extreme care, as it
contains dilute sulfuric acid. Exposure to eyes or
skin can cause burns or loss of eyesight.

Read this manual carefully, and understand it
before handling the battery. Failure to do so can
cause personal injury and damage to the vehicle.

Do not use the battery if the level of electrolyte is at
or below the recommended level. Using the battery
with low electrolyte can cause it to explode,
causing serious injury.

Example

620

Main

tenan

ce

Remote Transmitter Care

Replacing the Button Battery

If the indicator does not come on when the button is pressed, replace the battery.

1.

Remove the built-in key.

2.

Remove the upper half by carefully prying
on the edge with a coin.

u

Wrap a coin with a cloth to prevent
scratching the keyless remote.

u

Remove carefully to avoid losing the
buttons.

3.

Make sure to replace the battery with the
correct polarity.

Keyless Remote

1

Replacing the Button Battery

A warning mark is located adjacent to the button
battery

*

.

NOTICE

An improperly disposed of battery can damage the
environment. Always confirm local regulations for
battery disposal.

This symbol on the battery means that this product
must not be treated as household waste.

Replacement batteries are commercially available or
at a dealer.

4 3

WARNING

CHEMICAL BURN HAZARD

The battery that powers the remote
transmitter can cause severe internal burns
and can even lead to death if swallowed.
Keep new and used batteries away from
children.
If you suspect that a child has swallowed
the battery, seek medical attention
immediately.

Battery type: CR2032

a

Battery

* Not available on all models

621

Main

tenan

ce

Climate Control System Maintenance

Air Conditioning

For proper and safe operation of the climate control system, the refrigerant system
should only be served by a qualified technician.

Never repair or replace the air conditioning evaporator (cooling coil) with one
removed from a used or salvaged vehicle.

1

Climate Control System Maintenance

NOTICE

Vented refrigerant is harmful to the environment.
To avoid refrigerant from venting, never replace the
evaporator with one removed from a used or
salvaged vehicle.

Refrigerant in your vehicle’s air conditioning system is
flammable and can be ignited during servicing if
proper procedures are not followed.

The air conditioner label is found under the bonnet:

2

Safety Labels

 P. 103

2

Specifications

 P. 676

: Caution

: Flammable Refrigerant

: Requires a qualified
technician to service

: Air Conditioning
System

622

uu

Climate Control System Maintenance

u

Dust and Pollen Filter

Main

tenan

ce

Dust and Pollen Filter

Replace the dust and pollen filter according to your vehicle’s recommended
maintenance schedule. It is recommended to replace the filter even sooner if the
vehicle has been driven in a dusty environment.

2

Maintenance Schedule

*

 P. 587

1.

Open the glove box.

When to Replace the Dust and Pollen Filter

How to Replace the Dust and Pollen Filter

1

Dust and Pollen Filter

If the airflow from the climate control system
deteriorates noticeably, and the windows fog up
easily, the filter may need to be replaced.

The dust and pollen filter collects pollen, dust, and
other debris in the air.

If you are not sure how to replace the dust and pollen
filter, have it replaced by a dealer.

a

Handle

b

Pull

* Not available on all models

623

uu

Climate Control System Maintenance

u

Dust and Pollen Filter

Continued

Main

tenan

ce

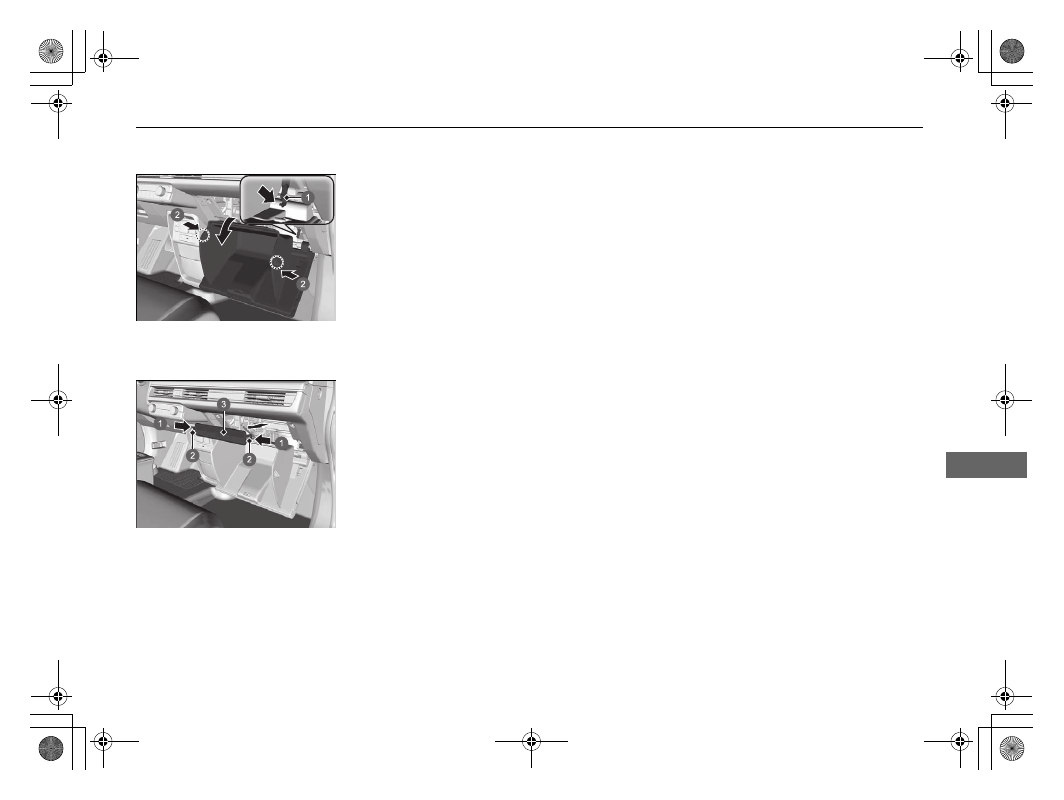

2.

Push the stopper on the passenger's side of
the glove box to detach it from the glove
box.

3.

Disengage the two tabs by pushing on each
side panel.

4.

Pivot the glove box out of the way.

5.

Push in the tabs on the corners of the filter
case cover, and remove it.

a

Stopper

b

Tabs

a

Push

b

Tabs

c

Cover

624

uu

Climate Control System Maintenance

u

Dust and Pollen Filter

Main

tenan

ce

6.

Remove the filter from the case.

7.

Install a new filter in the case.

u

Put the

AIR FLOW

 arrow directed side

down.

a

Dust and Porllen Filter

625

Continued

Main

tenan

ce

Cleaning

Interior Care

Use a vacuum cleaner to remove dust before using a cloth.
Use a damp cloth with a mixture of mild detergent and warm water to remove dirt.
Use a clean cloth to remove detergent residue.

Use a soft brush with a mixture of mild soap and warm water to clean the seat belts.
Let the belts air dry. Wipe the loops of the seat belt anchors using a clean cloth.

Cleaning Seat Belts

1

Interior Care

Do not spill liquids inside the vehicle. Electrical
devices and systems may malfunction if liquids are
splashed on them.

Do not use silicone based sprays on electrical devices
such as audio devices and switches. Doing so may
cause the items to malfunction or cause a fire inside
the vehicle.
If a silicone based spray is inadvertently used on
electrical devices, consult a dealer.

Depending on their composition, chemicals and
liquid aromatics may cause discolouration, wrinkles,
and cracking to resin-based parts and textiles.
Do not use alkali solvents or organic solvents such as
benzene or petrol.

After using chemicals, make sure to gently wipe them
away using a dry cloth.
Do not place used cloths on top of resin based parts
or textiles for long periods of time without washing.

Be careful not to spill a liquid type air freshener.

a

Loop















Content      ..     37      38      39      40     ..
