Emergency Towing

Call a professional towing service if you need to tow your vehicle.

■

Flat bed equipment

The operator loads your vehicle on the back of a flat bed truck.
This is the only way you can safely transport your vehicle.
Any other towing method will damage the vehicle’s drive system.

Emergency Towing

NOTICE

Trying to lift or tow your vehicle by the bumpers will
cause serious damage. The bumpers are not designed
to support the vehicle's weight.

NOTICE

Improper towing, such as towing behind a
motorhome or other motor vehicle can damage the
transmission.

Never tow your vehicle with just a rope or chain.
It is very dangerous since ropes or chains may shift
from side to side or break.

Do not use the hook on the rear of your vehicle for
the towing of other vehicles or emergency removal of
your vehicle. The hook may break.
If your vehicle needs to be towed backward, contact
an authorized Honda Clarity Plug-In Hybrid dealer or a
professional towing service.

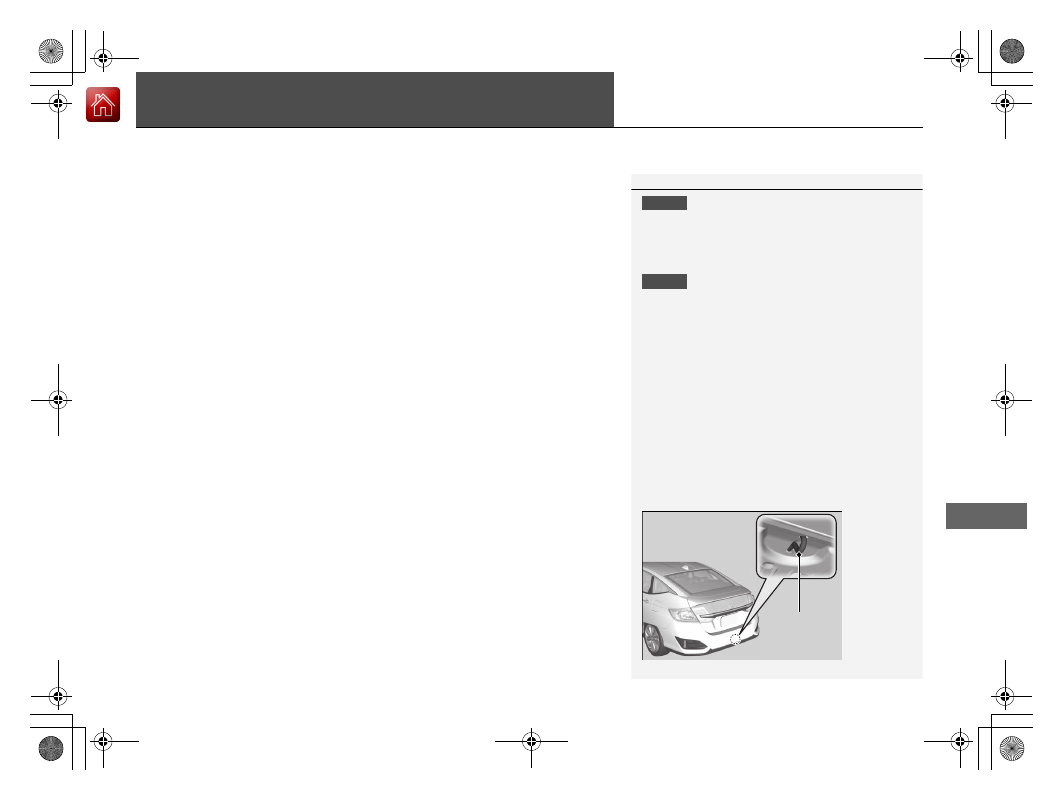

Hook

562

Han

lin
g the U

expected

When You Cannot Unlock the Fuel Fill Door

■

What to Do When Unable to Unlock the Fuel Fill Door

If you cannot open the fuel fill door, use the following procedure.

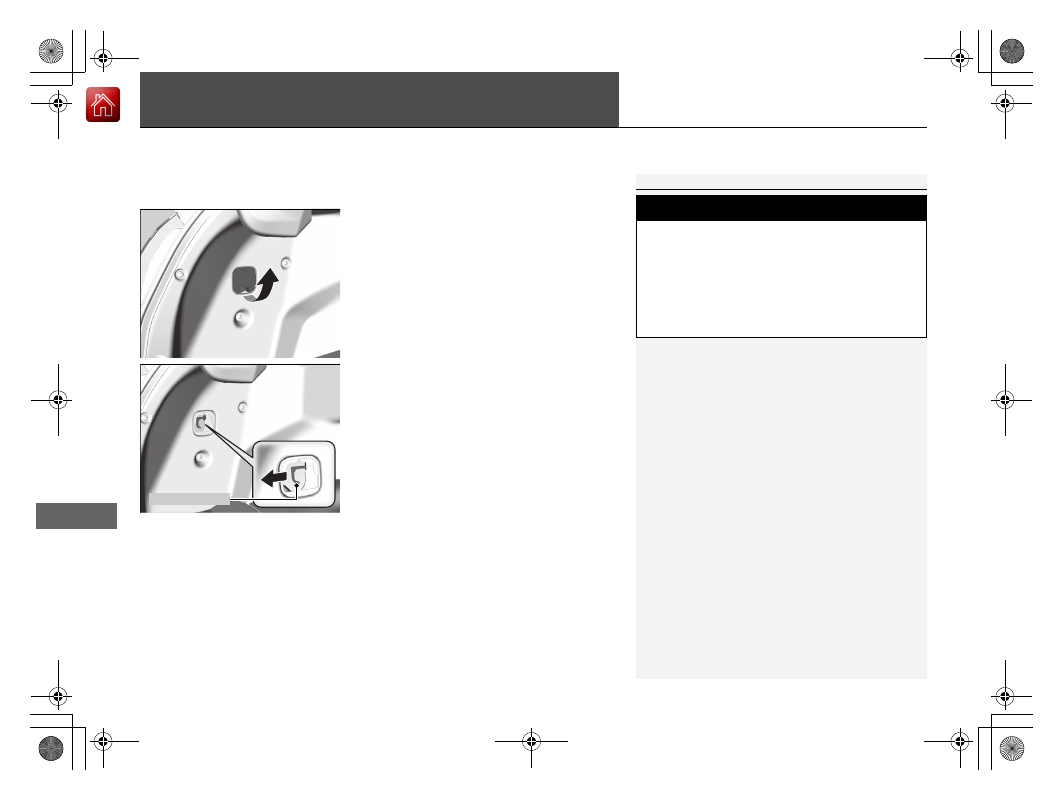

1. Open the trunk and pull off the left inside

cover.

2. Pull the release lever towards you.

The release lever opens the fuel fill door
when it is pulled.

3. Slowly remove the fuel fill cap by turning it

to the left. If you hear a release of pressure,
wait until it stops, then continue to slowly
remove the fuel fill cap.

2 How to Refuel P. 452

4. Add fuel very slowly.

The automatic fuel tank vent valve does
not operate when the fuel fill door is
opened manually. Trying to add fuel too
rapidly when the vent valve is closed will
cause fuel vapors to be pushed out the
filler pipe and can cause a small amount
of liquid fuel to be spilled onto the
ground.

When You Cannot Unlock the Fuel Fill Door

The automatic fuel tank vent does not operate when
using the manual fuel door release. Gradually release
pressure by slowly turning the fuel fill cap to the left.
If you hear a release of fuel vapors, wait until it stops,
then continue to slowly remove the fuel fill cap.

The malfunction indicator lamp may come on when
driving after you have refueled by manually opening
the fuel fill door.

2 If the Malfunction Indicator Lamp Comes

On or Blinks P. 547

After taking these steps, contact an authorized
Honda Clarity Plug-In Hybrid dealer to have the
vehicle checked.

WARNING

Gasoline vapors in tank are under pressure.
• If using the manual fuel door release,

open the cap slowly to gradually release
pressure.

• Stop the engine, and keep all sparks,

heat, and flame away.

Release Lever

563

Han

lin
g the U

expected

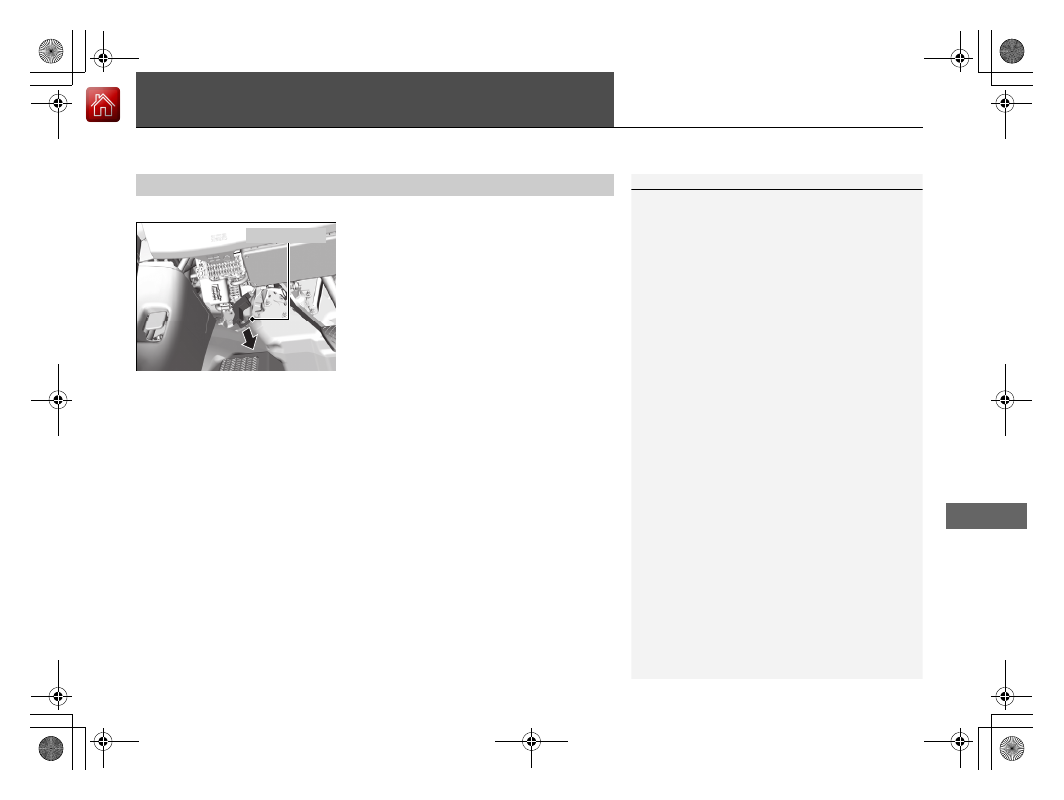

When You Cannot Open the Charge Lid

If you cannot open the charge lid, use the following procedure:

1. Pull the release lever under the lower left

corner of the dashboard.

The lid will pop up slightly.

■

What to Do When Unable to Open the Charge Lid

When You Cannot Open the Charge Lid

After taking this step, contact an authorized Honda
Clarity Plug-In Hybrid dealer to have the vehicle
checked.

Release Lever

564

Han

lin
g the U

expected

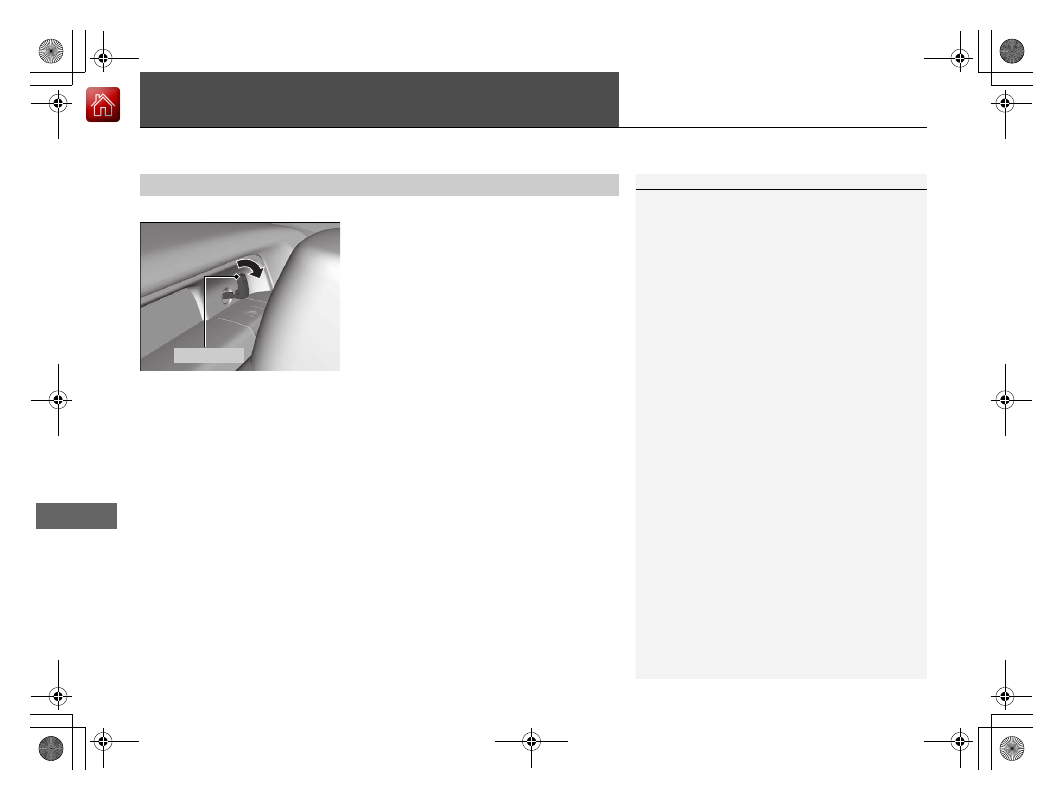

When You Cannot Open the Trunk

If you cannot open the trunk, use the following procedure:

1. Insert the built-in key into the cylinder and

turn the key clockwise (as shown).

The trunk unlocks and opens.

■

What to Do When Unable to Open the Trunk

When You Cannot Open the Trunk

Following up:
After taking these steps, contact an authorized
Honda Clarity Plug-In Hybrid dealer to have your
vehicle checked.

Built-in Key

566

Info

ation

Specifications

■

Vehicle Specifications

■

Air Conditioning

■

Engine Specifications

Model

CLARITY PLUG-IN HYBRID

No. of Passengers:
Front

Rear

Total

Weights:
Gross Vehicle Weight
Rating

U.S.:

4,965 lbs (2,252 kg)

Canada:

2,252 kg

Gross Axle Weight
Rating (Front)

U.S.:

2,579 lbs (1,170 kg)

Canada:

1,170 kg

Gross Axle Weight
Rating (Rear)

U.S.:

2,460 lbs (1,116 kg)

Canada:

1,116 kg

Refrigerant Type

HFO-1234yf (R-1234yf)

Charge Quantity

13.9 – 15.7 oz (395 – 445 g)

Lubricant Type

SE-A2 (POE)

Quantity

8.54 – 10.4 cu-in (140 – 170 cc)

Displacement

91.4 cu-in (1,498 cm

)

Spark Plugs

NGK

DILZKAR7C11H

■

Fuel

■

Washer Fluid

Type

Unleaded gasoline, Pump octane number
of 87 or higher

Fuel Tank Capacity

7.0 US gal (26.5 L)

Tank Capacity

1.43 US qt (1.35 L)

■

Light Bulbs

Headlights (Low Beam)

LED

Headlights (High Beam)

LED

Front Turn Signal Lights

LED

Front Side Marker Lights

LED

Parking/Daytime Running Lights

LED

Taillights/Rear Side Marker Lights

LED

Brake Lights

LED

Taillights

LED

Back-Up Lights

LED

Rear Turn Signal Lights

LED

High-Mount Brake Light

LED

Rear License Plate Light

LED

Interior Lights

Front and Rear Map Lights

LED

Front and Rear Ambient Lights LED
Vanity Mirror Lights

1.4 W

Center Console Light

LED

Glove Box Light

LED

Front Foot Lights

LED

Trunk Light

LED

Charge Indicator Light

LED

* Not available on all models

567

Specifications

Info

ation

■

Brake Fluid

■

Transmission Fluid

■

Engine Oil

■

Engine Coolant

Specified

Honda Heavy Duty Brake Fluid DOT 3

Specified

Honda Automatic Transmission Fluid
ATF DW-1

Capacity

Change

2.23 US qt (2.11 L)

Recommended

·Genuine Honda Motor Oil 0W-20
·API Premium-grade 0W-20 detergent oil

Capacity

Change

3.3 US qt (3.1L)

Change including filter 3.5 US qt (3.3L)

Specified

Honda Long Life Antifreeze/Coolant Type2

Ratio

50/50 with distilled water

Capacity

1.31 US gal (4.97 L)
(change including the remaining
0.14 US gal (0.52 L) in the reserve tank)

■

High Voltage Battery System Coolant

■

Inverter Coolant

Specified

Honda Long Life Antifreeze/Coolant Type2

Specified

Honda Long Life Antifreeze/Coolant Type2

■

Tire

Regular

Size

235/45R18 94V

Pressure
psi (kPa [kgf/cm

])

36 (250 [2.5])

Wheel Size

Regular

18 x 8J

568

Info

ation

Identification Numbers

Vehicle Identification Number (VIN), Engine Number,
Motor Number, and Transmission Number

Your vehicle has a 17-digit vehicle identification number (VIN) used to register your
vehicle for warranty purposes, for licensing, and insuring your vehicle.
The locations of your vehicle’s VIN, engine number, motor number, and
transmission number are shown as follows:

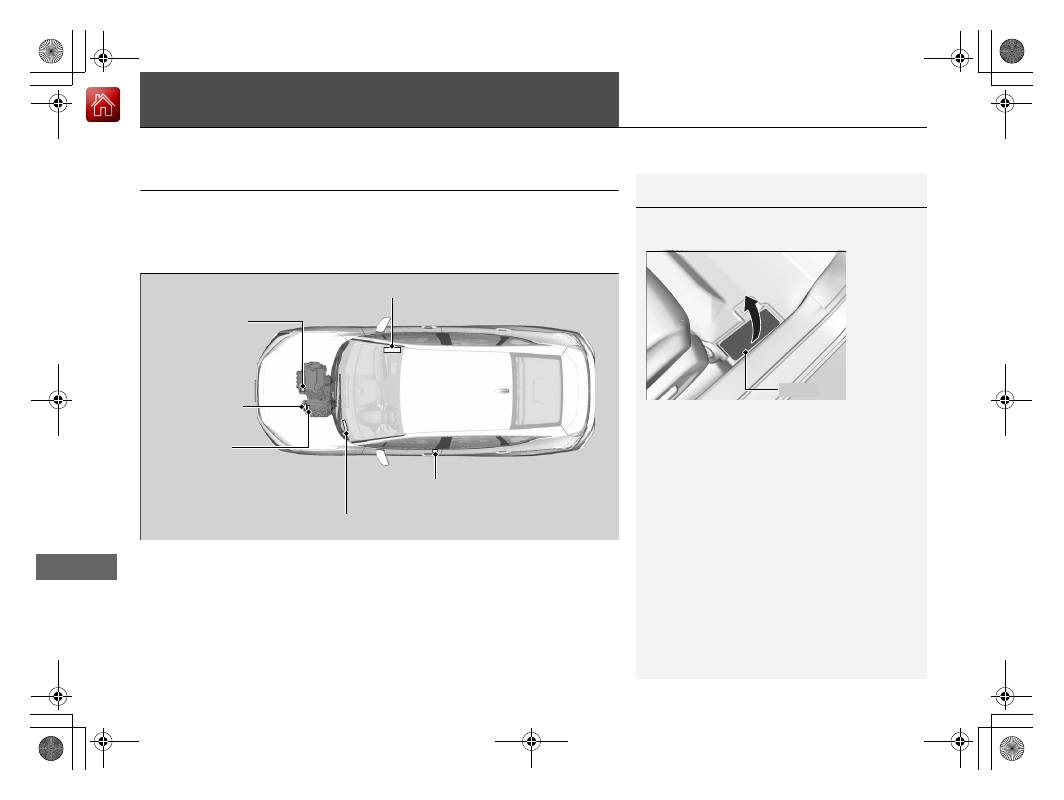

Vehicle Identification Number (VIN), Engine Number, Motor
Number, and Transmission Number

The vehicle identification number (VIN) is located
under the cover.

Cover

Vehicle Identification Number

Transmission
Number

Certification Label/
Vehicle Identification Number

Vehicle Identification Number

Motor Number

Engine Number

569

Continued

Info

ation

Devices that Emit Radio Waves

The following products and systems on your vehicle emit radio waves when in
operation.

Each of the above complies with the appropriate requirements or the required
standards of FCC (Federal Communications Commission) and Industry Canada
Standard, described below:

As required by the FCC:
This device complies with Part 15 of the FCC rules. Operation is
subject to the following two conditions: (1) This device may not
cause harmful interference, and (2) this device must accept any
interference received, including interference that may cause
undesired operation.

Changes or modifications not expressly approved by the party
responsible for compliance could void the user’s authority to
operate the equipment.

Adaptive Cruise Control (ACC) with Low Speed Follow (LSF)
Audio System
Bluetooth® Audio
Bluetooth® HandsFreeLink®
Charging Cable
Collision Mitigation Braking System

HomeLink® Universal Transceiver

Immobilizer System
Smart Entry System
Wi-Fi

* Not available on all models

571

Info

ation

Reporting Safety Defects

In the U.S.
If you believe that your vehicle has a defect which could cause a crash or could cause injury or death, you
should immediately inform the National Highway Traffic Safety Administration (NHTSA) in addition to
notifying American Honda Motor Co., Inc.

If NHTSA receives similar complaints, it may open an investigation, and if it finds that a safety defect exists
in a group of vehicles, it may order a recall and remedy campaign. However, NHTSA cannot become involved
in individual problems between you, your dealer, or American Honda Motor Co., Inc.

To contact NHTSA, you may call the Vehicle Safety Hotline toll-free at 1-888-327-4236 (TTY: 1-800-424-
9153); go to http://www.safercar.gov; or write to: Administrator, NHTSA, 1200 New Jersey Avenue, SE.,
Washington, DC 20590. You can also obtain other information about motor vehicle safety from http://
www.safercar.gov.

In Canada
If you believe that your vehicle has a defect which could cause a crash or could cause injury or death, you
should immediately inform Honda Canada Inc. and you may also inform Transport Canada.

If Transport Canada receives similar complaints, it may open an investigation, and if it finds that a safety
defect exists in a group of vehicles, it may lead to a recall and remedy campaign. However, Transport Canada
cannot become involved in individual problems between you, your dealer, or Honda Canada Inc.

To contact Transport Canada’s Defect Investigations and Recalls Division, you may call 1-800-333-0510. For
more information on reporting safety defects or about motor vehicle safety, go to http://www.tc.gc.ca/
roadsafety.

572

Info

ation

Emissions Testing

Testing of Readiness Codes

Your vehicle has readiness codes as part of the onboard self diagnostic system.
Some states use these codes for testing to verify whether your vehicle’s emissions
components are working properly.
The codes may not be read properly if testing is performed just after the 12-volt
battery has gone dead or been disconnected.

To check if they are set, set the power mode to ON, without turning the power
system on. The malfunction indicator lamp will come on for several seconds. If it
then goes off, the readiness codes are set. If it blinks five times, the readiness codes
are not set.

If you are required to have your vehicle tested before the readiness codes are ready,
prepare the vehicle for retesting by doing the following:

1. Fill the gas tank to approximately 3/4 full.
2. Park the vehicle and leave the power system off for 6 hours or more.
3. Make sure the ambient temperature is between 40°F and 95°F (4°C and 35°C).
4. Turn the power system on.
5. Use the HV button to select HV or HV Charge.

2 HV Button P. 16

6. Select a nearby, lightly traveled major highway where you can maintain a speed

of 50 mph (80 km/h) over for at least 20 minutes. Drive on the highway in

(

with SPORT mode. Do not use cruise control.

7. Drive in city or suburban traffic for at least 10 minutes. When traffic conditions

allow, let the vehicle coast for several seconds without using the accelerator pedal
or the brake pedal.

8. Park the vehicle and leave the power system off for 40 minutes.

Testing of Readiness Codes

The readiness codes are erased when the 12-volt
battery is disconnected, and set again only after
several days of driving under a variety of conditions.

If a testing facility determines that the readiness
codes are not set, you may be requested to return at
a later date to complete the test.

If the testing facility determines the readiness codes
are still not set, see an authorized Honda Clarity Plug-
In Hybrid dealer.

573

Continued

Info

ation

Warranty Coverages

■

U.S. Owners

Your new vehicle is covered by these warranties:

New Vehicle Limited Warranty – covers your new vehicle, except for the
emissions control systems and accessories, against defects in materials and
workmanship.

Powertrain Limited Warranty – the powertrain in your new Honda is covered by
a limited warranty. The duration of warranty coverage may vary. Please read your
warranty booklet for details.

High Voltage Battery Capacity Warranty – gradual capacity loss of the high
voltage battery is expected and not covered under warranty. Greater than normal
degradation is covered and can be determined by an authorized Honda Clarity Plug-
In Hybrid dealer. Please read your warranty booklet for details.

Emissions Control Systems Defects Warranty and Emissions Performance
Warranty – these two warranties cover your vehicle’s emissions control systems.
Time, mileage, and coverage are conditional. Please read your warranty booklet for
exact information.

Seat Belt Limited Warranty – a seat belt that fails to function properly is covered
by a limited warranty. Please read your warranty booklet for details.

Rust Perforation Limited Warranty – all exterior body panels are covered against
rusting from the inside out for the specified time period, regardless of mileage.

574

Warranty Coverages

Info

ation

Accessory Limited Warranty – Honda accessories are covered under this
warranty. Time and mileage limits depend on the type of accessory and other
factors. Please read your warranty booklet for details.

Replacement Parts Limited Warranty – covers all Honda replacement parts
against defects in materials and workmanship.

Replacement 12-Volt Battery Limited Warranty – provides prorated coverage
for a replacement battery purchased from an authorized Honda Clarity Plug-In
Hybrid dealer.

Replacement Muffler Lifetime Limited Warranty – provides coverage for as
long as the purchaser of the muffler owns the vehicle.

Tire Warranty – the original tires are warranted by their manufacturer. Your Honda
automobile dealer will be glad to assist you in contacting the tire’s manufacturer, if
needed. Please read your warranty booklet for details.

Restrictions and exclusions apply to all these warranties. Please read the Honda
warranty information booklet that came with your vehicle for precise information on
warranty coverages. Your vehicle’s original tires are covered by their manufacturer.
Tire warranty information is in a separate booklet.

577

Continued

Info

ation

Customer Service Information

Honda dealership personnel are trained professionals who should be able to deal
with any problems you may encounter with your vehicle. If, however, you are faced
with a problem that they cannot resolve to your satisfaction, contact Honda
Customer Services.

U.S. Owners
American Honda Motor Co., Inc.
Honda Automobile Customer Services
Mail Stop 100-5E-8A
1919 Torrance Blvd.
Torrance, CA 90501-2746
Tel: 1 (800) 999-1009

Canadian Owners
Honda Canada Inc.
Customer Relations 180 Honda Boulevard
Markham, ON
L6C 0H9
Tel: 1-888-9-HONDA-9
Fax: 1-877-939-0909
E-mail: Honda_cr@ch.honda.com

Customer Service Information

When you call or write, please give us the following
information:

•

Vehicle Identification Number

2 Vehicle Identification Number (VIN),

Engine Number, Motor Number, and
Transmission Number P. 568

•

Date of purchase

•

Odometer reading of your vehicle

•

Your name, address, and telephone number

•

A detailed description of the problem

•

Name of the dealer who sold the vehicle to you

Honda Clarity Plug-in Hybrid (2018 year). Instruction - part 36
