512

uu

When Driving

u

Road Departure Mitigation (RDM) System

*

Driving

■

Roadway conditions

• Driving on a snowy or wet roadway (obscured lane marking, vehicle tracks,

reflected lights, road spray, high contrast).

• Driving on a road with temporary lane markings.
• Faint, multiple, or varied lane markings are visible on the roadway due to road

repairs or old lane markings.

• The roadway has merging, split, or crossing lines (e.g., such as at an intersection

or crosswalk).

• The lane markings are extremely narrow, wide, or changing.
• The vehicle in front of you is driving near the lane lines.
• The road is hilly or the vehicle is approaching the crest of a hill.
• Driving on rough or unpaved roads, or over bumpy surfaces.
• When objects on the road (curb, guard rail, pylons, etc.) are recognized as white

lines (or yellow lines).

• Driving on roads with double lines.

■

Vehicle conditions

• Headlight lenses are dirty or the headlights are not properly adjusted.
• The outside of the windshield is streaked or blocked by dirt, mud, leaves, wet

snow, etc.

• The inside of the windshield is fogged.
• The camera temperature gets too high.
• An abnormal tire or wheel condition (wrong sized, varied size or construction,

improperly inflated, compact spare tire, etc.).

• The vehicle is tilted due to a heavy load or suspension modifications.
• When tire chains are installed.

513

uu

When Driving

u

Lane Keeping Assist System (LKAS)

*

Continued

Driving

Lane Keeping Assist System (LKAS)

*

Provides steering input to help keep the vehicle in the middle of a detected lane and
provides tactile and visual alerts if the vehicle is detected drifting out of its lane.

1

Lane Keeping Assist System (LKAS)

*

Important Safety Reminders
The LKAS is for your convenience only. It is not a
substitute for your vehicle control. The system does
not work if you take your hands off the steering
wheel or fail to steer the vehicle.

2 Driver Information Interface Warning and

Information Messages

*

 P. 103

Do not place objects on the instrument panel.
Objects may reflect on the front windshield and
prevent correct detection of the traffic lanes.

The LKAS only alerts you when lane drift is detected
without a turn signal in use. The LKAS may not detect
all lane markings or lane departures; accuracy will
vary based on weather, speed, and lane marker
condition.
It is always your responsibility to safely operate the
vehicle and avoid collisions.

The LKAS is convenient when it is used on freeways.

The LKAS may not work properly or may work
improperly under the certain conditions:

2 LKAS Conditions and Limitations P. 518

You can read about handling information for the
camera equipped with this system.

2 Front Sensor Camera

*

 P. 477

When you operate the turn signals to change lanes, the system is suspended, and
resumes after the signals are off.
() If you make a lane change without operating the turn signals, the LKAS
alerts activate, and torque is applied to the steering.

■

LKAS camera

Monitors the
lane lines

■

Tactile and visual alerts

Rapid vibrations on the steering wheel
and a warning display alert you that
the vehicle is drifting out of a detected
lane.

■

Steering input assist

The system applies torque to the steering to keep the vehicle between the left
and right lane lines. The applied torque becomes stronger as the vehicle gets
closer to either of the lane lines.

* Not available on all models

uu

When Driving

u

Lane Keeping Assist System (LKAS)

*

514

Driving

Provides assistance to keep the vehicle in the center of the lane. When the vehicle
nears a white or yellow line, steering force of the electric power steering will become
stronger.

When the vehicle enters the warning area, the LKAS alerts you with slight steering
wheel vibration as well as a warning display.

■

Lane Keep Support Function

1

Lane Keeping Assist System (LKAS)

*

The LKAS may not function as designed while driving
in frequent stop and go traffic, or on roads with
sharp curves.

When it fails to detect lanes, the system will
temporarily be canceled. When lane is detected,
system will recover automatically.

■

Lane Departure Warning Function

Warning Area

Warning Area

* Not available on all models

Continued

515

uu

When Driving

u

Lane Keeping Assist System (LKAS)

*

Driving

The system can be used when the following conditions are met.
• The lane in which you are driving has detectable lane markers on both sides, and

your vehicle is in the center of the lane.

• The vehicle speed is between 45 and 90 mph (72 and 145 km/h).
• You are driving on a straight or slightly curved road.
• The turn signals are off.
• The brake pedal is not depressed.
• The wipers are not in continuous operation.

■

How to activate the system

1. Press the MAIN button.

u

The LKAS is on in the driver information
interface.
The system is ready to use.

2. Press the LKAS button.

u

Lane outlines appear on the driver
information interface.
The system is activated.

■

When the System can be Used

1

When the System can be Used

If the vehicle drifts toward either left or right lane line
due to the system applying torque, turn off the LKAS
and have your vehicle checked by a dealer.

MAIN Button

LKAS Button

uu

When Driving

u

Lane Keeping Assist System (LKAS)

*

516

Driving

3. Keep your vehicle near the center of the

lane while driving.

u

The dotted outer lines change to solid
ones once the system starts operating
after detecting the left and right lane
markings.

To cancel the LKAS:
Press the MAIN or LKAS button.

The LKAS is turned off every time you stop the
engine, even if you turned it on the last time
you drove the vehicle.

■

To Cancel

1

To Cancel

Pressing the MAIN button also turns ACC with LSF
on and off.

Pressing the MAIN button also turns ACC on and off.

Models with ACC with LSF

Models with ACC

MAIN Button

LKAS Button

517

uu

When Driving

u

Lane Keeping Assist System (LKAS)

*

Continued

Driving

■

The system operation is suspended if
you:

• Set the wipers to continuous operation.

u

Turning the wipers off resumes the
LKAS.

• Set the wiper switch to AUTO and the

wipers operate continuously.

u

The LKAS resumes when the wipers stop
or operate intermittently.

• Decrease the vehicle speed to 40 mph (64

km/h) or less.

u

Increasing the vehicle speed to 45 mph
(72 km/h) or more resumes the LKAS.

• Depress the brake pedal.

u

The LKAS resumes and starts detecting
the lane lines again once you release the
brake pedal.

■

The LKAS may automatically be suspended when:

• The system fails to detect lane lines.
• The steering wheel is quickly turned.
• You fail to steer the vehicle.
• Driving through a sharp curve.
• Driving at a speed in excess of approximately 90 mph (145 km/h).
Once these conditions no longer exist, the LKAS automatically resumes.

When the LKAS is suspended,
the lane lines on the driver
information interface change to
contour lines, and the beeper
sounds (if activated).

Models with automatic intermittent wipers

All models

518

uu

When Driving

u

Lane Keeping Assist System (LKAS)

*

Driving

■

The LKAS may automatically be canceled when:

• The camera temperature gets extremely high or low.
• The camera behind the rearview mirror, or the area around the camera, including

the windshield, gets dirty.

• The ABS or VSA® system engages.
A beeper will sound if the LKAS is automatically canceled.

The system may not detect lane markings and therefore may not keep the vehicle in
the middle of a lane under certain conditions, including the following:

■

Environmental conditions

• Driving in bad weather (rain, fog, snow, etc.).
• Sudden changes between light and dark, such as an entrance or exit of a tunnel.
• There is little contrast between lane lines and the roadway surface.
• Driving into low sunlight (e.g., at dawn or dusk).
• Strong light is reflected onto the roadway.
• Driving in the shadows of trees, buildings, etc.
• Shadows of adjacent objects are parallel to lane markings.
• Roadway objects or structures are misinterpreted as lane markers.
• Reflections on the interior of the windshield.
• Driving at night or in a dark condition such as a tunnel.

■

LKAS Conditions and Limitations

519

uu

When Driving

u

Lane Keeping Assist System (LKAS)

*

Driving

■

Roadway conditions

• Driving on a snowy or wet roadway (obscured lane marking, vehicle tracks,

reflected lights, road spray, high contrast).

• Driving on a road with temporary lane markings.
• Faint, multiple, or varied lane markings are visible on the roadway due to road

repairs or old lane markings.

• The roadway has merging, split, or crossing lines (e.g., such as at an intersection

or crosswalk).

• The lane markings are extremely narrow, wide, or changing.
• The vehicle in front of you is driving near the lane lines.
• The road is hilly or the vehicle is approaching the crest of a hill.
• Driving on rough or unpaved roads, or over bumpy surfaces.
• When objects on the road (curb, guard rail, pylons, etc.) are recognized as white

lines (or yellow lines).

• Driving on roads with double lines.

■

Vehicle conditions

• Headlight lenses are dirty or the headlights are not properly adjusted.
• The outside of the windshield is streaked or blocked by dirt, mud, leaves, wet

snow, etc.

• The inside of the windshield is fogged.
• The camera temperature gets too high.
• An abnormal tire or wheel condition (wrong sized, varied size or construction,

improperly inflated, compact spare tire, etc.).

• The vehicle is tilted due to a heavy load or suspension modifications.

520

uu

When Driving

u

Vehicle Stability Assist (VSA®), aka Electronic Stability Control (ESC), System

Driving

Vehicle Stability Assist (VSA®), aka Electronic
Stability Control (ESC), System

VSA® helps to stabilize the vehicle during cornering if the vehicle turns more or less
than what was intended. It also assists in maintaining traction on slippery surfaces.
It does so by regulating engine output and selectively applying the brakes.

When VSA® activates, you may notice that the
engine does not respond to the accelerator.
You may also notice some noise from the
hydraulic system. You will also see the
indicator blink.

■

VSA® Operation

1

Vehicle Stability Assist (VSA®), aka Electronic Stability Control
(ESC), System

The VSA® may not function properly if tire type and
size are mixed. Make sure to use the same size and
type of tire, and the air pressures as specified.

When the VSA® system indicator comes on and stays
on while driving, there may be a problem with the
system. While this may not interfere with normal
driving, have your vehicle checked by a dealer
immediately.

The indicators for the Adaptive Cruise Control
(ACC)

*

, Adaptive Cruise Control (ACC) with Low

Speed Follow (LSF)

*

, Road Departure Mitigation

(RDM)

*

, Vehicle Stability Assist (VSA®) System,

Vehicle Stability Assist (VSA®) OFF, low tire Pressure/
TPMS

*

 and Collision Mitigation Braking System

TM



(CMBS

TM

)

*

 may come on after re-connecting the

battery. Drive a short distance at more than 12 mph
(20 km/h). The indicator should go off. If it does not,
have your vehicle checked by a dealer.

VSA® cannot enhance stability in all driving situations
and does not control the entire braking system. You
still need to drive and corner at speeds appropriate
for the conditions and always leave a sufficient
margin of safety.

The main function of the VSA® system is generally
known as Electronic Stability Control (ESC). The
system also includes a traction control function.

VSA® System
Indicator

* Not available on all models

Continued

521

uu

When Driving

u

Vehicle Stability Assist (VSA®), aka Electronic Stability Control (ESC), System

Driving

This button is on the driver side control panel.
To partially disable VSA® functionality/
features, press and hold it until you hear a
beep.

Your vehicle will have normal braking and
cornering ability, but traction control function
will be less effective.

To restore VSA® functionality/features, press
the

(VSA® OFF) button until you hear a

beep.

VSA® is turned on every time you start the
engine, even if you turned it off the last time
you drove the vehicle.

■

VSA® On and Off

1

Vehicle Stability Assist (VSA®), aka Electronic Stability Control
(ESC), System

In certain unusual conditions when your vehicle gets
stuck in shallow mud or fresh snow, it may be easier
to free it with the VSA® temporarily switched off.

When the

 button is pressed, the traction control

function becomes less effective. This allows for the
wheels to spin more freely at low speed. You should
only attempt to free your vehicle with the VSA® off if
you are not able to free it when the VSA® is on.

Immediately after freeing your vehicle, be sure to
switch VSA® on again. We do not recommend driving
your vehicle with the VSA® system switched off.

You may hear a motor sound coming from the
engine compartment while system checks are being
performed immediately after starting the engine or
while driving. This is normal.

VSA® OFF

Indicator

uu

When Driving

u

Vehicle Stability Assist (VSA®), aka Electronic Stability Control (ESC), System

522

Driving

■

When the drive mode is in +R mode

To completely disable VSA®, the VSA® must be
in +R mode. Press and hold the VSA® OFF
button until you hear a single beep, then later
two more beeps.

u

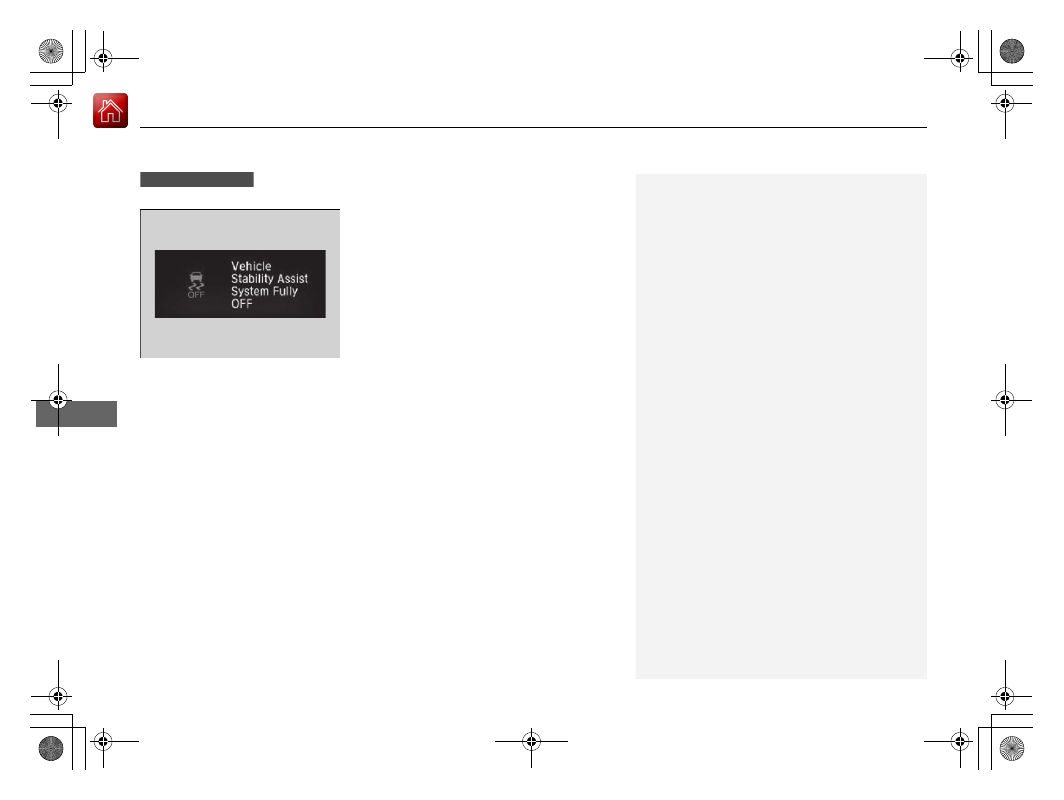

This message appears on the driver
information interface.

To resume VSA® full function, press the VSA®
OFF button until a single beep is heard.

If VSA® OFF mode is selected, and drive mode
is changed to a mode other than +R, VSA® full
function will resume, and the VSA® OFF
indicator will goes off.

2.0 L engine models

1

When the drive mode is in +R mode

In OFF mode, your vehicle will have normal braking
and cornering ability, but it will not have VSA®
traction and stability enhancement.

When the VSA® system is off, the traction control
system is also off.

We do not recommend driving your vehicle with the
VSA® and traction control system switched off.

523

uu

When Driving

u

Agile Handling Assist

Driving

Agile Handling Assist

Lightly brakes the front wheels, as needed, when you turn the steering wheel, and
helps support the vehicle’s stability and performance during cornering.

1

Agile Handling Assist

The agile handling assist cannot enhance stability in
all driving situations. You still need to drive and
corner at speeds appropriate for the conditions and
always leave a sufficient margin of safety.

When the VSA® system indicator comes on and stays
on while driving, the agile handling assist does not
activate.

You may hear a sound coming from the engine
compartment while the agile handling assist is
activated. This is normal.

524

uu

When Driving

u

Limited Slip Differential (LSD)

Driving

Limited Slip Differential (LSD)

LSD (limited slip differential) is a type of differential that delivers extra torque to the
wheel or the wheels with the most traction to minimize wheel slip and maintain
control of the vehicle.

■

Limited Slip Differential (LSD)

2.0 L engine models

1

Limited Slip Differential (LSD)

NOTICE

Make sure both front tires of your vehicle are of the
same brand and specified size, and have equal wear.
Otherwise, the LSD may not function properly.

525

uu

When Driving

u

LaneWatch

TM

*

Continued

Driving

LaneWatch

TM

*

LaneWatch is an assistance system that allows you to check the passenger side rear
areas displayed on the audio/information screen when the turn signal is activated to
the passenger’s side. A camera in the passenger side door mirror monitors these
areas and allows you to check for vehicles, in addition to your visual check and use
of the passenger door mirror. You can also keep the system on for your convenience
while driving.

1

LaneWatch

TM

*

Important Safety Reminder
Like all assistance systems, LaneWatch has
limitations. Over reliance on LaneWatch may result in
a collision.

The LaneWatch function can be affected by weather,
lighting (including headlights and low sun angle),
ambient darkness, camera condition, and loading.

The LaneWatch may not provide the intended display
of traffic to the side and rear under the following
conditions:

•

Your vehicle’s suspension has been altered,
changing the height of the vehicle.

•

Your tires are over or under inflated.

•

Your tires or wheels are of varied size or
construction.

3

WARNING

Failure to visually confirm that it is safe to
change lanes before doing so may result in
a crash and serious injury or death.

Do not rely only on LaneWatch while
driving.

Always look in your mirrors, to either side
of your vehicle, and behind you for other
vehicles before changing lanes.

1

2

Camera

Audio/Information Screen

Move the turn signal
lever to the passenger
side.

Press the LaneWatch
button.

The passenger side view
display appears on the
audio/information screen.

The system activates when you:

The system deactivates when you press
the LaneWatch button again.

* Not available on all models

uu

When Driving

u

LaneWatch

TM

*

526

Driving

■

Customizing the LaneWatch settings

*

You can customize the following items using the audio/information screen.
• Show with Turn Signal: Selects whether LaneWatch monitor comes on when

you operate the turn signal light lever.

• Display Time after Turn Signal Off: Changes the length of time the LaneWatch

display stays on after you pull the turn signal lever back.

• Reference Line: Selects whether the reference lines appear on the LaneWatch

monitor.

• Display: Allows for display adjustments of items, such as brightness, contrast and

black level. This setting is part of the System setup group.

2 Customized Features P. 348

■

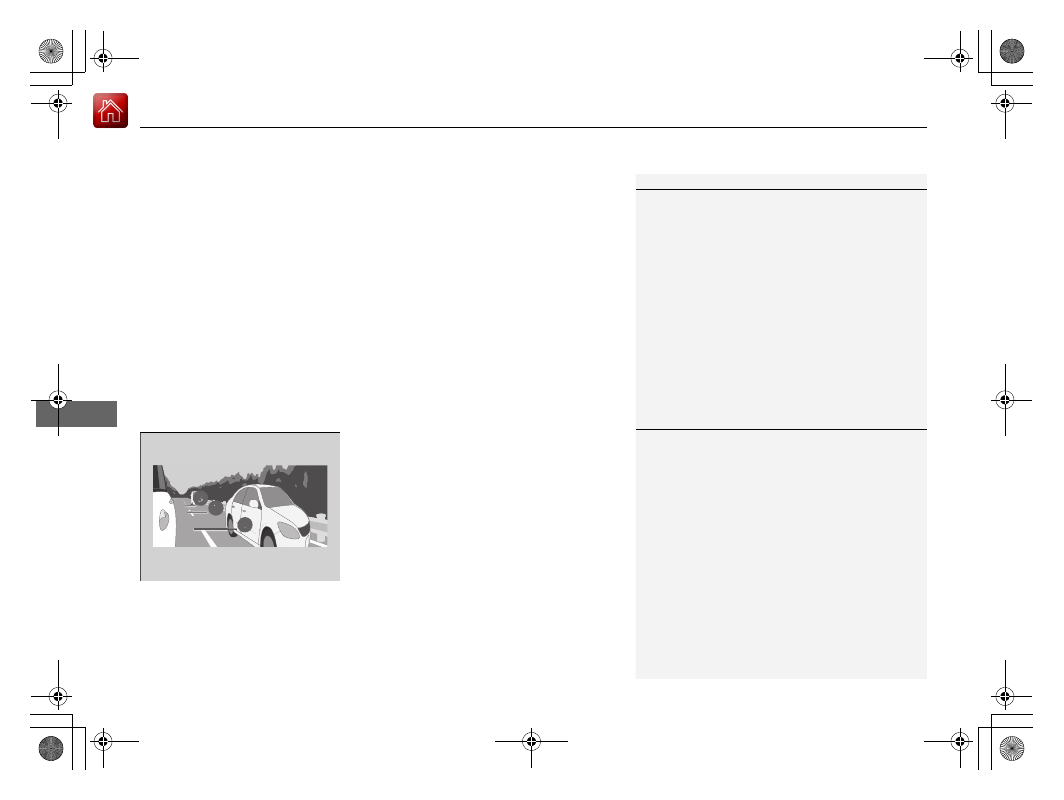

Reference Lines

Three lines that appear on the screen can give
an idea of how far the vehicles or objects on
the screen are from your vehicle, respectively.
If an object is near line 1 (in red), it indicates
that it is close to your vehicle whereas an
object near line 3 farther away.

1

LaneWatch

TM

*

The LaneWatch camera view is restricted. Its unique
lens makes objects on the screen slightly look
different from what they are.

LaneWatch display does not come on when the shift
lever is in

(

R.

For proper LaneWatch operation:

•

The camera is located in the passenger side door
mirror. Always keep this area clean. If the camera
lens is covered with dirt or moisture, use a soft,
moist cloth to keep the lens clean and free of debris.

•

Do not cover the camera lens with labels or stickers
of any kind.

•

Do not touch the camera lens.

2

3

1

1

Reference Lines

The area around the reference line 1 (red) is very close to
your vehicle. As always, make sure to visually confirm
the safety of a lane change before changing lanes.

The distance between your vehicle and lines 1, 2 and
3 on the screen vary depending on road conditions
and vehicle loading. For example, the reference lines
on the screen may seem to appear closer than the
actual distances when the rear of your vehicle is more
heavily loaded.

Consult a dealer if:

•

The passenger side door mirror, or area around it is
severely impacted, resulting in changing the
camera angle.

•

The LaneWatch display does not come on at all.

* Not available on all models

527

uu

When Driving

u

Tire Pressure Monitoring System (TPMS)

*

Continued

Driving

Tire Pressure Monitoring System (TPMS)

*

Instead of directly measuring the pressure in each tire, the TPMS on this vehicle
monitors and compares the rolling radius and rotational characteristics of each
wheel and tire while you are driving to determine if one or more tires are
significantly under-inflated. This will cause the low tire pressure/TPMS indicator to
come on and a message to appear on the driver information interface

*

.

You must start TPMS calibration every time you:
• Adjust the pressure in one or more tires.
• Rotate the tires.
• Replace one or more tires.

Before calibrating the TPMS:
• Set the cold tire pressure in all four tires.

2 Checking Tires P. 602

Make sure:
• The vehicle is at a complete stop.

• The shift lever is in

(

N.

• The shift lever is in

(

P.

• The ignition switch is in ON

(

w

*1

.

*1: Models with the smart entry system have an ENGINE START/STOP button instead of an
ignition switch.

■

TPMS Calibration

1

Tire Pressure Monitoring System (TPMS)

*

The system does not monitor the tires when driving
at low speed.

Conditions such as low ambient temperature and
altitude change directly affect tire pressure and can
trigger the low tire pressure/TPMS indicator to come on.

Tire pressure checked and inflated in:

•

Warm weather can become under-inflated in
colder weather.

•

Cold weather can become over-inflated in warmer
weather.

The low tire pressure/TPMS indicator will not come
on as a result of over inflation.

The TPMS may not function properly if tire type and
size are mixed. Make sure to use the same size and
type of tire.

2 Checking and Maintaining Tires P. 602

The low tire pressure/TPMS indicator may come on
with a delay or may not come on at all when:

•

You rapidly accelerate, decelerate, or turn the
steering wheel.

•

You drive on snowy or slippery roads.

•

Snow chains

*

 are used.

The low tire pressure/TPMS indicator may come on
under the following conditions:

•

A compact spare tire

*

 is used.

•

There is a heavier and uneven load on the tires,
such as when towing a trailer, than the condition at
calibration.

•

Snow chains

*

 are used.

Manual transmission models

Continuously variable transmission models

All models

* Not available on all models
