Honda Civic Hatchback (2018 year). Instruction - part 31

uu

When Driving

u

Adaptive Cruise Control (ACC) with Low Speed Follow (LSF)

*

480

Driving

■

How to activate the system

1

Adaptive Cruise Control (ACC) with Low Speed Follow (LSF)

*

When the MAIN button is pressed, both ACC with
LSF and the Lane Keeping Assist System (LKAS) are
either turned on or off.

ACC with LSF may not work properly under certain
conditions.

2 ACC with LSF Conditions and Limitations

P. 486

When not using ACC with LSF: Turn off adaptive
cruise by pressing the MAIN button. This also will
turn off the Lane Keeping Assist System (LKAS).

Do not use ACC with LSF under the following
conditions:

•

On roads with heavy traffic or while driving in
continuous stop and go traffic.

•

On roads with sharp turns.

•

On roads with steep downhill sections, as the set
vehicle speed can be exceeded by coasting. In such
cases, ACC with LSF will not apply the brakes to
maintain the set speed.

•

On roads with toll collection facilities or other
objects between lanes of traffic, or in parking
areas, or facilities with drive through access.

How to use

■

Press the MAIN button on
the steering wheel.

ACC (green) is on in the instrument panel.
ACC with LSF is ready to use.

* Not available on all models

Continued

481

uu

When Driving

u

Adaptive Cruise Control (ACC) with Low Speed Follow (LSF)

*

Driving

When driving at about 25 mph (40 km/h) or above: Take your foot off the
pedal and press the –/SET button when you reach the desired speed. The moment
you release the button, the set speed is fixed, and ACC with LSF begins.
When driving slower than about 25 mph (40 km/h): If the vehicle is moving
and the brake pedal is not depressed, pressing the button fixes the set speed to 25
mph (40 km/h) regardless of current vehicle speed. If your vehicle is stationary and a
vehicle is detected ahead, your vehicle speed can be set, even with the brake pedal
depressed.

■

To Set the Vehicle Speed

1

Adaptive Cruise Control (ACC) with Low Speed Follow (LSF)

*

The indicators for the Adaptive Cruise Control (ACC)
with Low Speed Follow (LSF), Road Departure
Mitigation (RDM), Vehicle Stability Assist (VSA®)
System, Vehicle Stability Assist (VSA®) OFF, low tire
Pressure/TPMS

*

 and Collision Mitigation Braking

System

TM

 (CMBS

TM

) may come on after reconnecting

the battery. Drive a short distance at more than 12
mph (20 km/h). The indicator should go off. If it does
not, have your vehicle checked by a dealer.

On when ACC with LSF
begins

Press and release

−/SET Button

* Not available on all models

482

uu

When Driving

u

Adaptive Cruise Control (ACC) with Low Speed Follow (LSF)

*

Driving

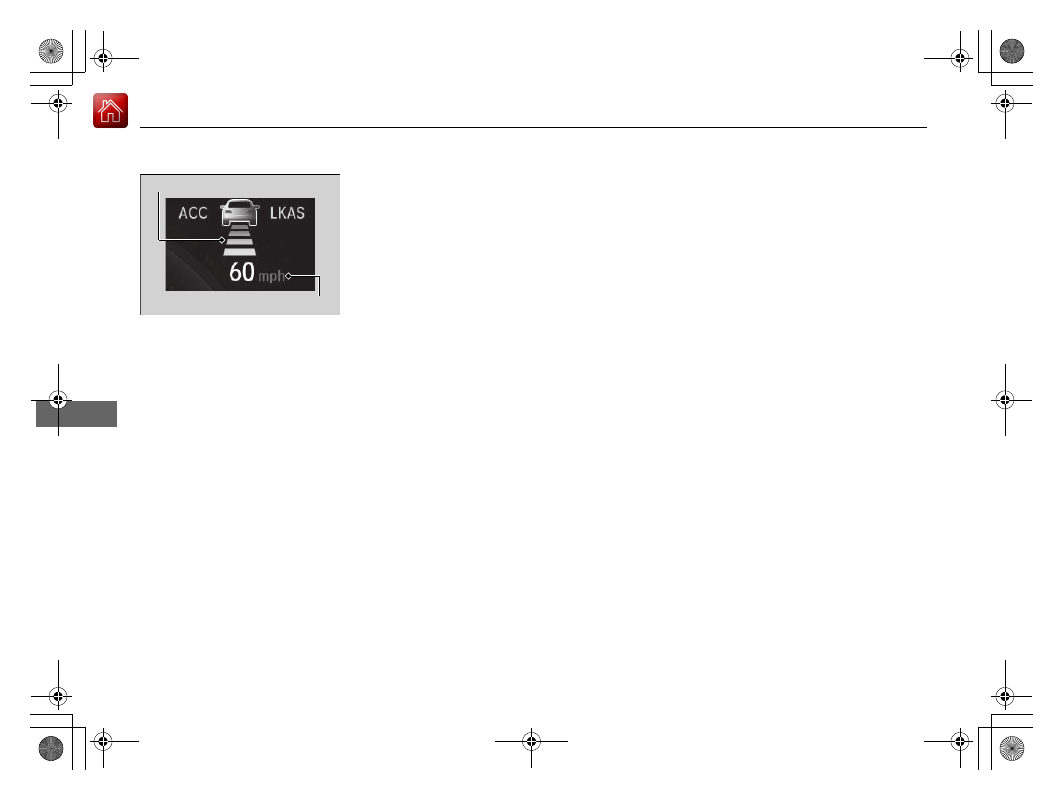

When ACC with LSF starts operating, the
vehicle icon, interval bars and set speed
appear on the driver information interface.

When you use ACC with LSF, Straight Driving
Assist (a feature of the Electric Power Steering
system) is activated.
By enabling the steering system to
automatically compensate for natural steering
pull, Straight Driving Assist makes it easier for
you to keep your vehicle in a straight line.

Set Vehicle Speed

Set Vehicle Interval

Continued

483

uu

When Driving

u

Adaptive Cruise Control (ACC) with Low Speed Follow (LSF)

*

Driving

■

There is a vehicle ahead

ACC with LSF monitors if a vehicle ahead of you enters the ACC with LSF range. If a
vehicle is detected doing so, the ACC with LSF system maintains or decelerates your
vehicle’s set speed in order to keep the vehicle’s set following-interval from the
vehicle ahead.

2 To Set or Change Following-interval P. 489

When a vehicle whose speed is slower than
your set speed is detected in front of you, your
vehicle starts to slow down.

■

When in Operation

1

When in Operation

If the vehicle ahead of you slows down abruptly, or if
another vehicle cuts in front of you, the beeper
sounds, a message appears on the driver information
interface.
Depress the brake pedal, and keep an appropriate
interval from the vehicle ahead.

Even if the interval between your vehicle and the
vehicle detected ahead is short, ACC with LSF may
start accelerating your vehicle under the following
circumstances:

•

The vehicle ahead of you is going at almost the
same speed as, or faster than, your vehicle.

•

A vehicle that cuts in front of you is going faster
than your vehicle, gradually increasing the interval
between the vehicles.

You can also set the system to beep when a vehicle in
front of you comes in and goes out of the ACC with
LSF detecting range. Change the ACC Forward
Vehicle Detect Beep setting.

2 Customized Features P. 133, 348

Beep

ACC with LSF Range: 394 ft. (120 m)

A vehicle icon appears on the
driver information interface

uu

When Driving

u

Adaptive Cruise Control (ACC) with Low Speed Follow (LSF)

*

484

Driving

■

There is no vehicle ahead

Your vehicle maintains the set speed without
having to keep your foot on the brake or
accelerator pedal.
If there previously was a vehicle detected
ahead that kept your vehicle from traveling at
the set speed, ACC with LSF accelerates your
vehicle to the set speed, and then maintains it.

■

When you depress the accelerator pedal

You can temporarily increase the vehicle speed. In this case, there is no audible or
visual alert even if a vehicle is in the ACC with LSF range.
ACC with LSF stays on unless you cancel it. Once you release the accelerator pedal,
the system resumes an appropriate speed for keeping the following-interval while a
vehicle ahead is within the ACC with LSF range.
There are times when the vehicle speed will decrease when the accelerator pedal is
lightly applied.

1

When in Operation

Limitations
You may need to use the brake to maintain a safe
interval when using ACC with LSF. Additionally, ACC
with LSF may not work properly under certain
conditions.

2 ACC with LSF Conditions and Limitations

P. 486

3

WARNING

Exiting a vehicle that has been stopped
while the ACC with LSF system is operating
can result in the vehicle moving without
operator control.

A vehicle that moves without operator
control can cause a crash, resulting in
serious injury or death.

Never exit a vehicle when the vehicle is
stopped by ACC with LSF.

25

A vehicle icon with dotted-line
contour appears on the driver
information interface

485

uu

When Driving

u

Adaptive Cruise Control (ACC) with Low Speed Follow (LSF)

*

Continued

Driving

■

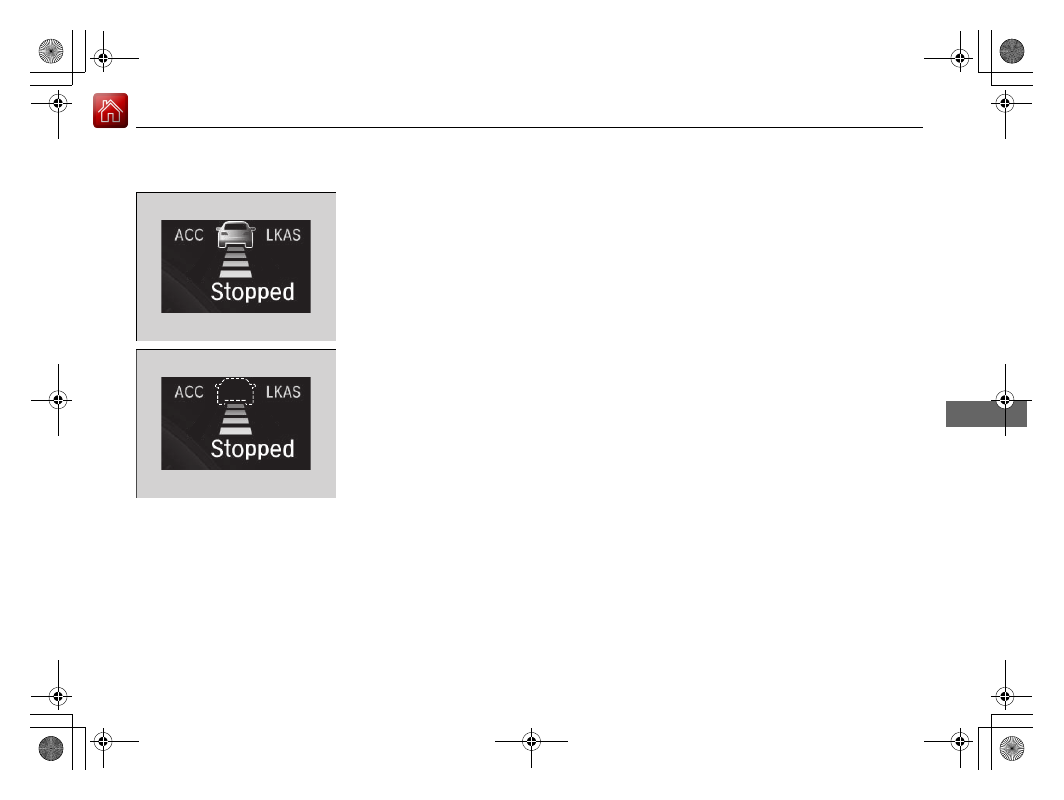

A vehicle detected ahead is within ACC with LSF range and slows to a stop

Your vehicle also stops, automatically. The
Stopped message appears on the driver
information interface.
When the vehicle ahead of you starts again,
the vehicle icon on the driver information
interface blinks. If you press the RES/+ or
–/SET button, or depress the accelerator
pedal, ACC with LSF operates again within the
prior set speed.
If no vehicle is ahead of you before you
resume driving, depress the accelerator pedal
and ACC with LSF will operate again within
the prior set speed.

uu

When Driving

u

Adaptive Cruise Control (ACC) with Low Speed Follow (LSF)

*

486

Driving

The system may automatically shut off and the ACC indicator will come on under
certain conditions. Some examples of these conditions are listed below. Other
conditions may reduce some of the ACC functions.

2 Front Sensor Camera

*

 P. 477

■

Environmental conditions

Driving in bad weather (rain, fog, snow, etc.).

■

Roadway conditions

Driving on a snowy or wet roadway (obscured lane marking, vehicle tracks, reflected
lights, road spray, high contrast).

■

Vehicle conditions

• The outside of the windshield is blocked by dirt, mud, leaves, wet snow, etc.
• An abnormal tire or wheel condition (Wrong sized, varied size or construction,

improperly inflated, compact spare tire, etc.).

• The camera temperature gets too high.
• The parking brake is applied.
• When the lower bumper next to the fog light

*

 is dirty.

• The vehicle is tilted due to a heavy load or suspension modifications.
• When tire chains are installed.

■

ACC with LSF Conditions and Limitations

1

ACC with LSF Conditions and Limitations

The radar sensor for ACC with LSF is shared with the
collision mitigation braking system

TM

 (CMBS

TM

).

2 Collision Mitigation Braking System

TM



(CMBS

TM

)

*

 P. 541

You can read about handling information for the
camera equipped with this system.

2 Front Sensor Camera

*

 P. 477

Always keep the radar sensor cover clean.

Never use chemical solvents or polishing powder for
cleaning the sensor cover. Clean it with water or a
mild detergent.

Do not put a sticker on the radar sensor cover or
replace the radar sensor cover.

If you need the radar sensor to be repaired, or
removed, or the radar sensor cover is strongly
impacted, turn off the system by pressing the MAIN
button and take your vehicle to a dealer.

Have your vehicle checked by a dealer if you find any
unusual behavior of the system (e.g., the warning
message appears too frequently).

* Not available on all models

Continued

487

uu

When Driving

u

Adaptive Cruise Control (ACC) with Low Speed Follow (LSF)

*

Driving

■

Detection limitations

• A vehicle suddenly crosses in front of you.
• The interval between your vehicle and the vehicle ahead of you is too short.
• A vehicle cuts in front of you at a slow speed, and it brakes suddenly.
• When you accelerate rapidly and approach the vehicle ahead of you at high

speed.

• The vehicle ahead of you is a motorcycle, bicycle, mobility scooter, or other small

vehicle.

• When there are animals in front of your vehicle.
• When you drive on a curved or winding or undulating road that makes it difficult

for the sensor to properly detect a vehicle in front of you.

• The speed difference between your vehicle and a vehicle in front of you is

significantly large.

• An oncoming vehicle suddenly comes in front of you.
• Your vehicle abruptly crosses over in front of an oncoming vehicle.
• When driving through a narrow iron bridge.
• When the vehicle ahead of you brakes suddenly.
• When the vehicle ahead of you has a unique shape.
• When your vehicle or the vehicle ahead of you is driving on one edge of the lane.

1

ACC with LSF Conditions and Limitations

If the front of the vehicle is impacted in any of the
following situations, the radar sensor may not work
properly. Have your vehicle checked by a dealer:

•

The vehicle mounted onto a bump, curb, chock,
embankment, etc.

•

You drive the vehicle where the water is deep.

•

Your vehicle has a frontal collision.

uu

When Driving

u

Adaptive Cruise Control (ACC) with Low Speed Follow (LSF)

*

488

Driving

Increase or decrease the vehicle speed using the RES/+ or –/SET button on the
steering wheel.

• Each time you press the RES/+ or –/SET button, the vehicle speed is increased or

decreased by about 1 mph or 1 km/h accordingly.

• If you press and hold the RES/+ or –/SET button, the vehicle speed increases or

decreases by about 5 mph or 5 km/h accordingly.

■

To Adjust the Vehicle Speed

1

To Adjust the Vehicle Speed

If a vehicle detected ahead is going at a speed slower
than your increased set speed, ACC with LSF may not
accelerate your vehicle. This is to maintain the set
interval between your vehicle and the vehicle ahead.

You can switch the displayed set speed
measurements on the driver information interface
between mph and km/h.

2 Customized Features P. 133, 348

When you depress the accelerator pedal and then
push and release the –/SET button, the current speed
of the vehicle is set.

To increase speed

To decrease speed

489

uu

When Driving

u

Adaptive Cruise Control (ACC) with Low Speed Follow (LSF)

*

Continued

Driving

Press the   (interval) button to change the
ACC with LSF following-interval.
Each time you press the button, the following-
interval (the interval behind a vehicle detected
ahead of you) setting cycles through extra
long, long, middle, and short following-
intervals.

Determine the most appropriate following-
interval setting based on your specific driving
conditions. Be sure to adhere to any
following-interval requirements set by local
regulation.

■

To Set or Change Following-interval

Interval Button

490

uu

When Driving

u

Adaptive Cruise Control (ACC) with Low Speed Follow (LSF)

*

Driving

The higher your vehicle’s following-speed is, the longer the short, middle, long or
extra long following-interval becomes. See the following examples for your
reference.

When your vehicle stops automatically because a vehicle detected ahead of you has
stopped, the interval between the two vehicles will vary based on the ACC with LSF
interval setting.

Following-interval

When the Set Speed is:

50 mph (80 km/h)

65 mph (104 km/h)

Short

83 feet

25 meters

1.1 sec

100 feet

31 meters

1.1 sec

Middle

111 feet

34 meters

1.5 sec

139 feet

43 meters

1.5 sec

Long

154 feet

47 meters

2.1 sec

200 feet

61 meters

2.1 sec

Extra
Long

207 feet

63 meters

2.9 sec

272 feet

83 meters

2.9 sec

Continued

491

uu

When Driving

u

Adaptive Cruise Control (ACC) with Low Speed Follow (LSF)

*

Driving

To cancel ACC with LSF, do any of the
following:
• Press the CANCEL button.
• Press the MAIN button.

u

ACC with LSF indicator goes off.

• Depress the brake pedal.

u

When the LSF function has stopped the
vehicle, you cannot cancel ACC with LSF
by depressing the brake pedal.

■

To Cancel

1

To Cancel

Resuming the prior set speed: After you have
canceled ACC with LSF, you can resume the prior set
speed while it is still displayed. Press the RES/+
button.

The set speed cannot be set or resumed when ACC
with LSF has been turned off using the MAIN button.
Press the MAIN button to activate the system, then
set the desired speed.

CANCEL
Button

MAIN
Button

uu

When Driving

u

Adaptive Cruise Control (ACC) with Low Speed Follow (LSF)

*

492

Driving

■

Automatic cancellation

The beeper sounds and a message appears on the driver information interface when
ACC with LSF is automatically canceled. Any of these conditions may cause the ACC
with LSF to automatically cancel:
• Bad weather (rain, fog, snow, etc.)
• When the radar sensor in the lower bumper next to the fog light

*

 gets dirty.

• The vehicle ahead of you cannot be detected.
• An abnormal tire condition is detected, or the tires are skidding.
• Driving on a mountainous road, or driving off road for extended periods.
• Abrupt steering wheel movement.
• When the ABS, VSA® or CMBS

TM

 is activated.

• When the ABS or VSA® system indicator comes on.
• When the vehicle is stopped on a very steep slope.
• When you manually apply the parking brake.
• When the detected vehicle within the ACC with LSF range is too close to your

vehicle.

• The camera behind the rearview mirror, or the area around the camera, including

the windshield, gets dirty.

• When the Maximum Load Limit is exceeded.
• When passing through an enclosed space, such as tunnel.

The ACC with LSF automatic cancellation can be also triggered by the following
causes. In these cases, the parking brake will be automatically applied.
• The driver’s seat belt is unfastened when the vehicle is stationary.
• The vehicle stops for more than 10 minutes.
• The engine is turned off.

1

Automatic cancellation

Even though ACC with LSF has been automatically
canceled, you can still resume the prior set speed.
Wait until the condition that caused ACC with LSF to
cancel improves, then press the –/SET button.

* Not available on all models

Continued

493

uu

When Driving

u

Adaptive Cruise Control (ACC) with Low Speed Follow (LSF)

*

Driving

Press and hold the   (interval) button for one
second. Cruise Mode Selected appears on
the driver information interface for two
seconds, and then the mode switches to
Cruise.
To switch back to ACC with LSF, press and
hold the   button again for one second. ACC
Mode Selected appears on the driver
information interface for two seconds.

■

When to use

Desired speed in a range above roughly 25 mph (40 km/h) ~.

Take your foot off the pedal and press the –/SET button when you reach the desired
speed.
The moment you release the –/SET button, the set speed is fixed, and cruise control
begins. The CRUISE CONTROL indicator comes on.

• Each time you press the RES/+ or –/SET button, the vehicle speed is increased or

decreased by about 1 mph or 1 km/h accordingly.

• If you keep the RES/+ or –/SET button pressed, the vehicle speed increases or

decreases until you release it. This speed is then set.

■

To Switch ACC with LSF to Cruise Control

1

To Switch ACC with LSF to Cruise Control

Always be aware which mode you are in. When you
are driving in Cruise mode, the system will not assist
you to maintain a following-interval from a vehicle
ahead of you.

You can switch the displayed set speed
measurements on the driver information interface
between mph and km/h.

2 Customized Features P. 133, 348

ACC with
LSF ON

Cruise
Control ON

■

To Set the Vehicle Speed

■

To Adjust the Vehicle Speed

uu

When Driving

u

Adaptive Cruise Control (ACC) with Low Speed Follow (LSF)

*

494

Driving

To cancel cruise control, do any of the following:
• Press the CANCEL button.
• Press the MAIN button.
• Depress the brake pedal.
The CRUISE CONTROL indicator goes off.

■

To Cancel

1

To Cancel

Resuming the prior set speed:
After cruise control has been canceled, you can still
resume the prior set speed by pressing the RES/+
button while driving at a speed of at least 25 mph (40
km/h) or more.

You cannot set or resume in the following situations:

•

When vehicle speed is less than 25 mph (40 km/h).

•

When the MAIN button is turned off.

At vehicle speeds of 22 mph (35 km/h) or less, cruise
control canceled automatically.

495

uu

When Driving

u

Adaptive Cruise Control (ACC)

*

Continued

Driving

Adaptive Cruise Control (ACC)

*

Helps maintain a constant vehicle speed and a set following-interval behind a vehicle
detected ahead of yours, without you having to keep your foot on the brake or the
accelerator.
When ACC slows your vehicle by applying the brakes, your vehicle’s brake lights will
illuminate.

1

Adaptive Cruise Control (ACC)

*

Important Reminder
As with any system, there are limits to ACC. Use the
brake pedal whenever necessary, and always keep a
safe interval between your vehicle and other vehicles.

3

WARNING

Improper use of ACC can lead to a crash.

Use ACC only when traveling on open
highways in good weather.

3

WARNING

ACC has limited braking capability.
When your vehicle speed drops below 22
mph (35 km/h), ACC will automatically
cancel and no longer will apply your
vehicle’s brakes.

Always be prepared to apply the brake
pedal when conditions require.

When to use

■

Vehicle speed for adaptive cruise control: Desired speed in a range above
roughly 25 mph (40 km/h) ~

The radar sensor is in
the lower bumper
next to the fog light.
Be careful not to have
the radar sensor cover
strongly impacted.

The camera is
located behind
the rearview
mirror.

* Not available on all models
