Maintenance Under the Hood

Oil Check

Main

tenan

4. Remove the dipstick again, and check the

level. It should be between the upper and
lower marks. Add oil if necessary.

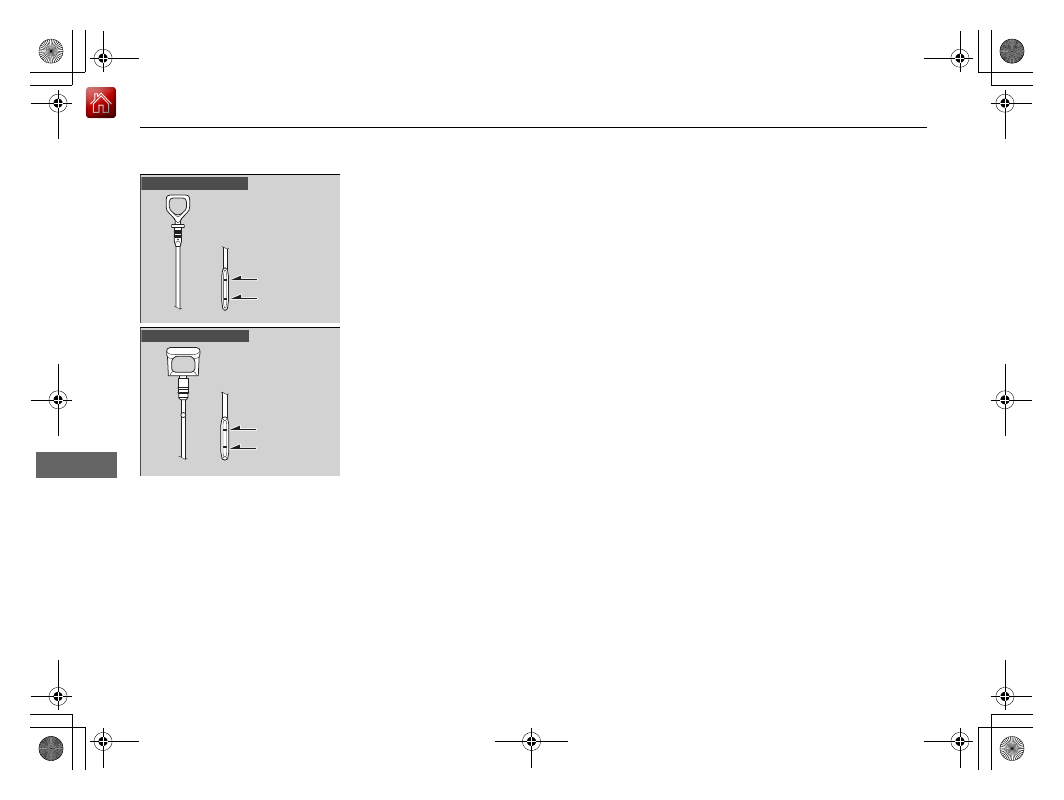

Upper Mark

Lower Mark

1.5 L engine models

Upper Mark

Lower Mark

2.0 L engine models

561

Maintenance Under the Hood

Adding Engine Oil

Main

tenan

Adding Engine Oil

1. Unscrew and remove the engine oil fill cap.
2. Add oil slowly.
3. Reinstall the engine oil fill cap, and tighten

it securely.

4. Wait for three minutes and recheck the

engine oil dipstick.

Adding Engine Oil

NOTICE

Do not fill the engine oil above the upper mark.
Overfilling the engine oil can result in leaks and
engine damage.

If any oil spills, wipe it away immediately. Spilled oil
may damage the engine compartment components.

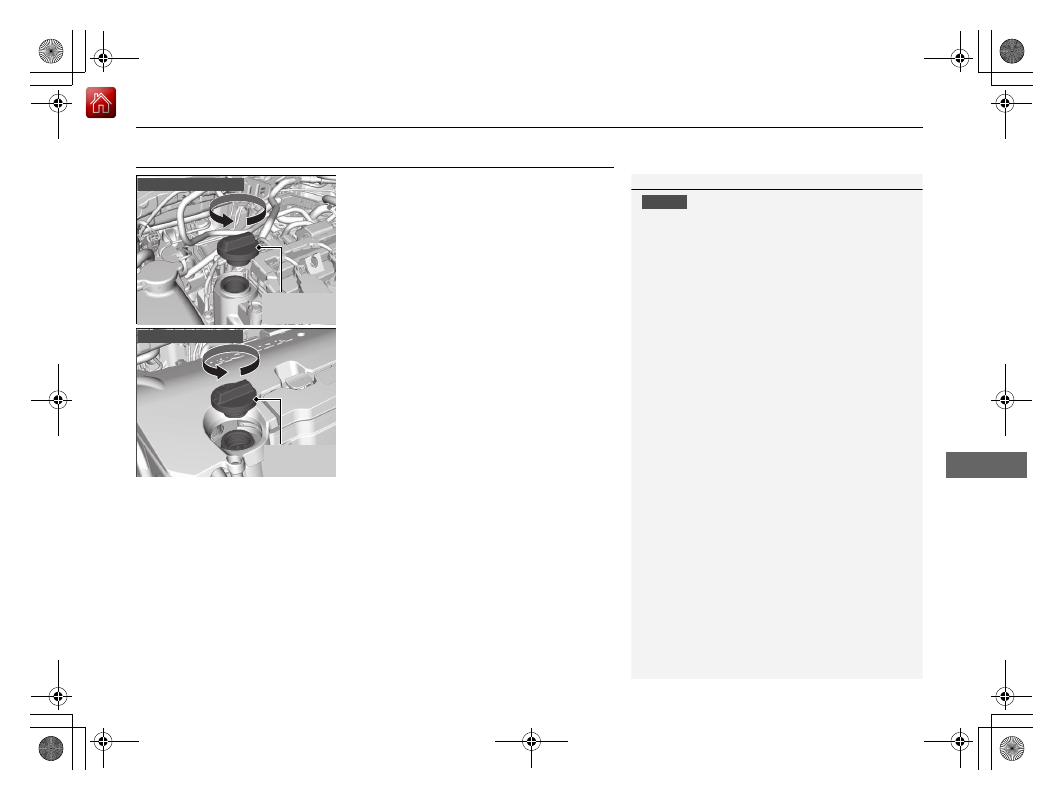

Engine Oil
Fill Cap

1.5 L engine models

Engine Oil
Fill Cap

2.0 L engine models

562

Maintenance Under the Hood

Changing the Engine Oil and Oil Filter

Main

tenan

Changing the Engine Oil and Oil Filter

You must change the engine oil and oil filter regularly in order to maintain the
engine’s lubrication. The engine may be damaged if they are not changed regularly.

Change the oil and filter in accordance with the maintenance message on the driver
information interface.

1. Run the engine until it reaches normal

operating temperature, and then turn the
engine off.

2. Open the hood and remove the engine oil

fill cap.

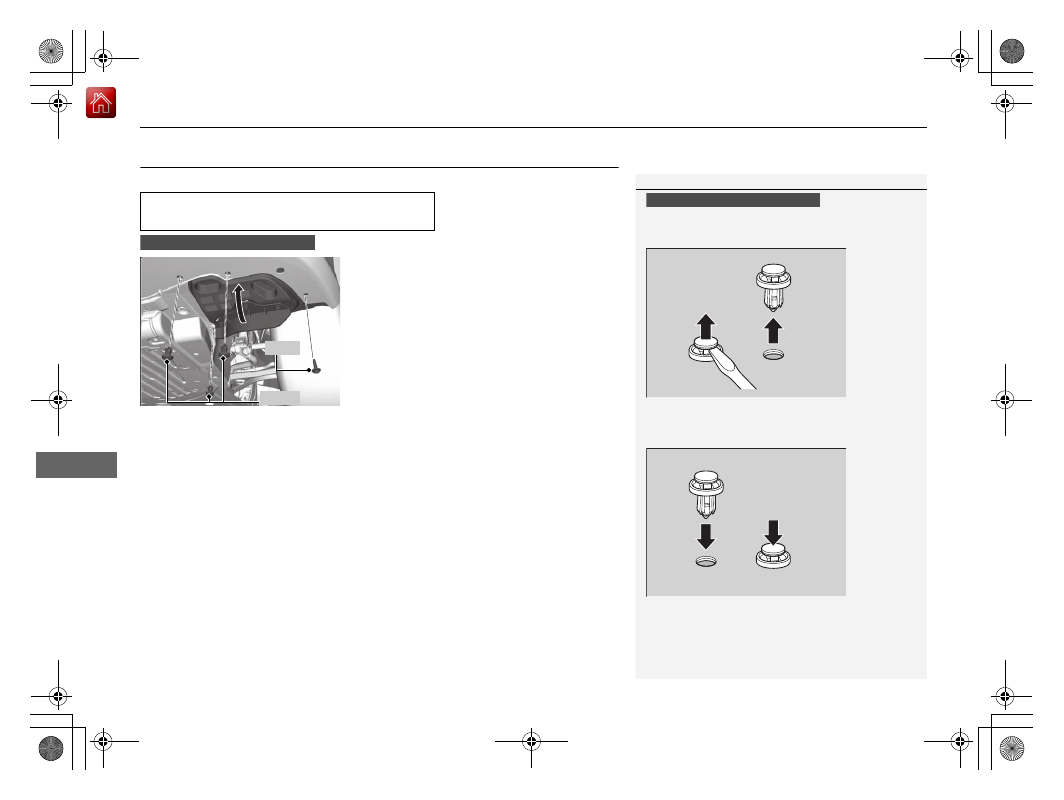

3. Remove the Phillips-head screws and

slotted head screws by turning 90°
counter-clockwise on the undercarriage
and remove the under cover.

Changing the Engine Oil and Oil Filter

NOTICE

You may damage the environment if you do not
dispose of the oil in a suitable way. If you are
changing the oil by yourself, appropriately dispose of
the used oil. Put the oil in a sealed container and take
it to a recycling center. Do not throw the oil away
into a garbage can or onto the ground.

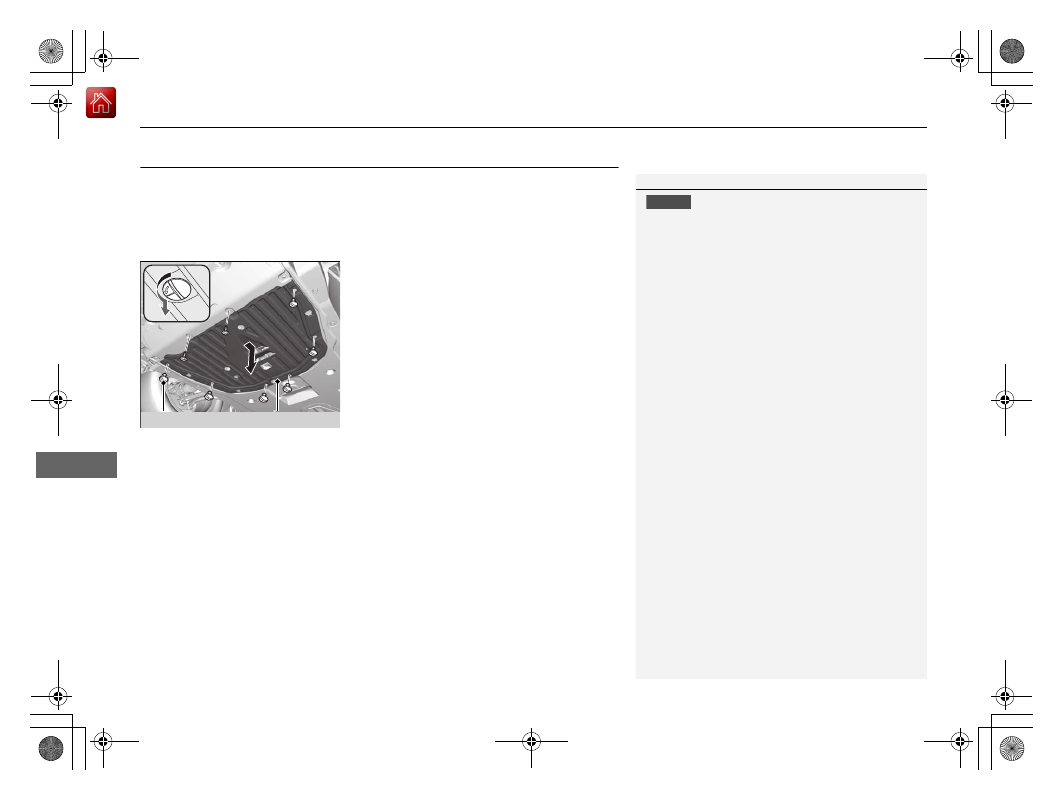

Under Cover

Screw

563

Maintenance Under the Hood

Changing the Engine Oil and Oil Filter

Continued

Main

tenan

4. Remove the drain bolt and washer from

the bottom of the engine, and drain the
oil into a suitable container.

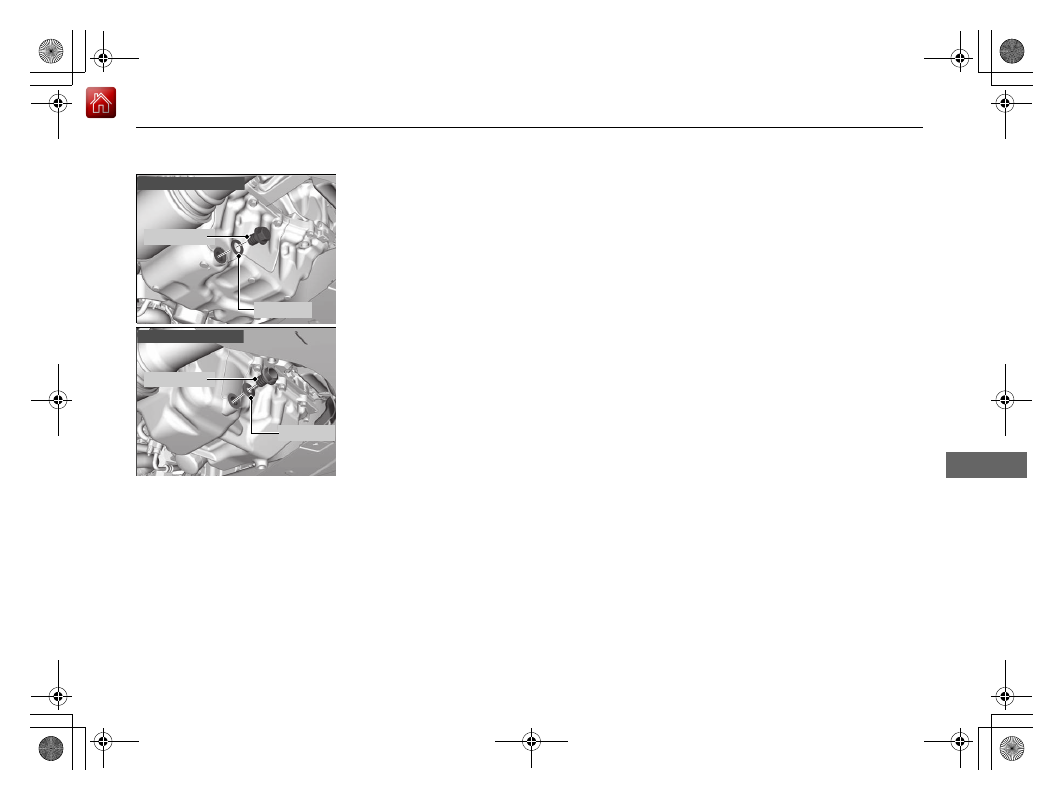

1.5 L engine models

Drain Bolt

Washer

2.0 L engine models

Drain Bolt

Washer

Maintenance Under the Hood

Changing the Engine Oil and Oil Filter

564

Main

tenan

5. Remove the oil filter and dispose of the

remaining oil.

6. Check that the filter gasket is not stuck to

the engine contact surface.

If it is stuck, you must detach it.

7. Wipe away dirt and dust adhering to the

contact surface of the engine block, and
install a new oil filter.

Apply a light coat of new engine oil to
the oil filter gasket.

8. Put a new washer on the drain bolt, then

reinstall the drain bolt.

Tightening torque:
30 lbf∙ft (40 N∙m, 4.0 kgf∙m)

9. Pour the recommended engine oil into the

engine.

Engine oil change capacity (including
filter):

3.7 US qt (3.5 L)

4.4 US qt (4.2 L)

10. Reinstall the engine oil fill cap securely and

start the engine.

11. Run the engine for a few minutes, and

then check that there are no leaks from
the drain bolt or oil filter.

12. Stop the engine, wait for three minutes,

and then check the oil level on the
dipstick.

If necessary, add more engine oil.

Changing the Engine Oil and Oil Filter

You will need a special wrench to replace the oil
filter. You can buy this wrench from a dealer.

When installing the new oil filter, follow the
instructions supplied with the oil filter.

Reinstall the engine oil fill cap. Start the engine. The
low oil pressure indicator should go off within five
seconds. If it does not, turn off the engine, and check
your work.

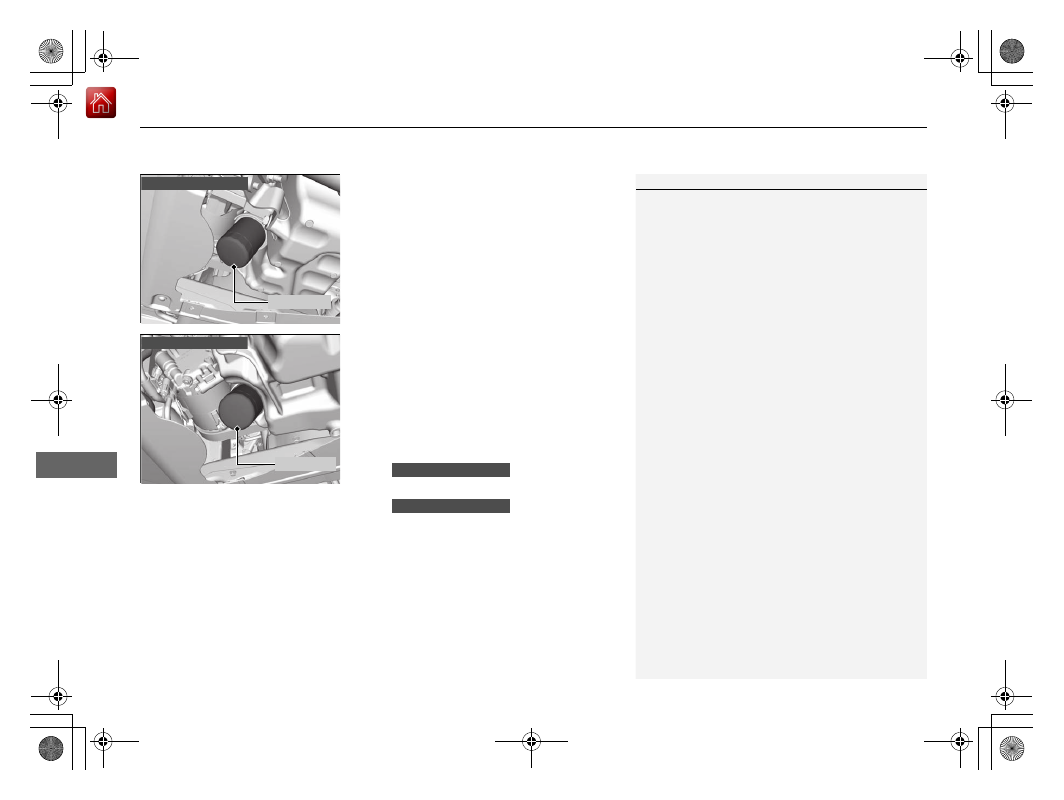

Oil Filter

1.5 L engine models

2.0 L engine models

Oil Filter

1.5 L engine models

2.0 L engine models

565

Maintenance Under the Hood

Engine Coolant

Continued

Main

tenan

Engine Coolant

This coolant is premixed with 50% antifreeze and 50% water. Do not add any
straight antifreeze or water.

We recommend you check the engine coolant level every time you refuel. Check the
reserve tank. Add the engine coolant accordingly.

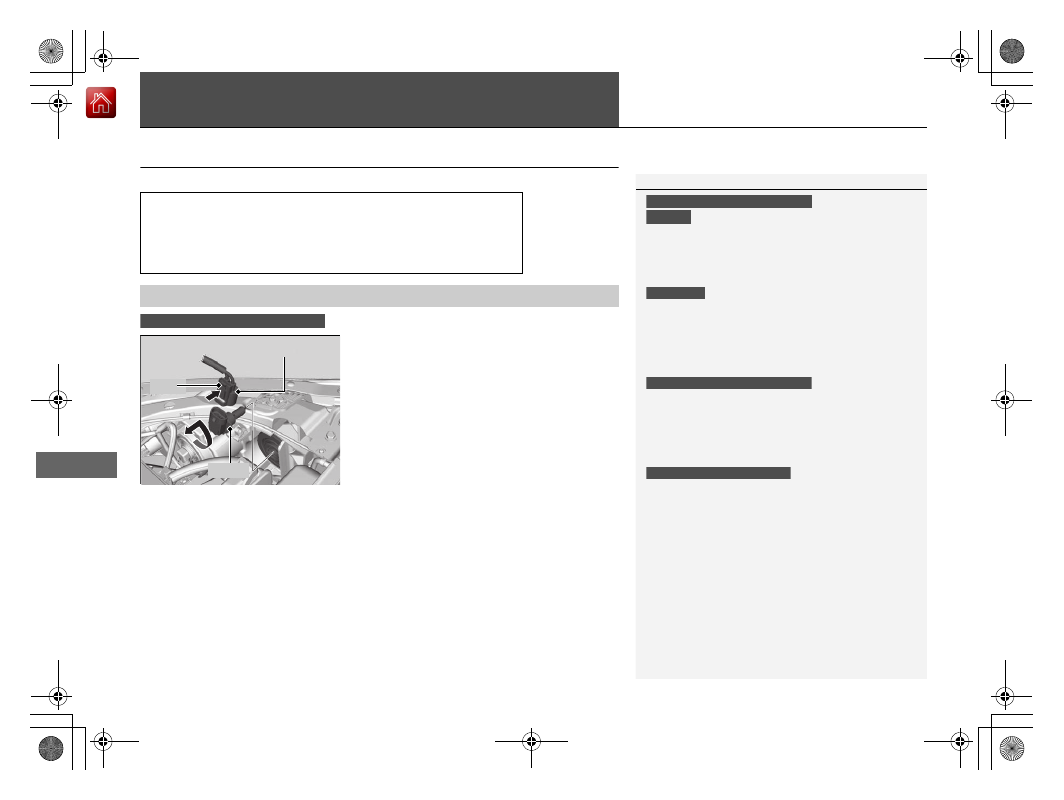

1. Make sure the engine and radiator are

cool.

2. Check the amount of coolant in the reserve

tank.

If the coolant level is below the MIN
mark, add the specified coolant until it
reaches the MAX mark.

3. Inspect the cooling system for leaks.

Specified coolant: Honda Long Life Antifreeze/Coolant Type 2

■

Checking the Coolant

Engine Coolant

NOTICE

Genuine Honda engine coolant is a 50/50 mixture of
antifreeze and water that can withstand freezing at
temperatures as low as about −31°F (−35°C). If your
vehicle is consistently subjected to temperatures
below this, the concentration of antifreeze in the
coolant should be increased. Consult a dealer for
details.

If Honda antifreeze/coolant is not available, you may
use another major brand of non-silicate coolant as a
temporary replacement. Check that it is a high quality
coolant recommended for aluminum engines.
Continued use of any non-Honda coolant can result
in corrosion, causing the cooling system to
malfunction or fail. Have the cooling system flushed
and refilled with Honda antifreeze/coolant as soon as
possible.

WARNING

Removing the reserve tank cap while the
engine is hot can cause the coolant to spray
out, seriously scalding you.

Always let the engine and radiator cool
down before removing the reserve tank
cap.

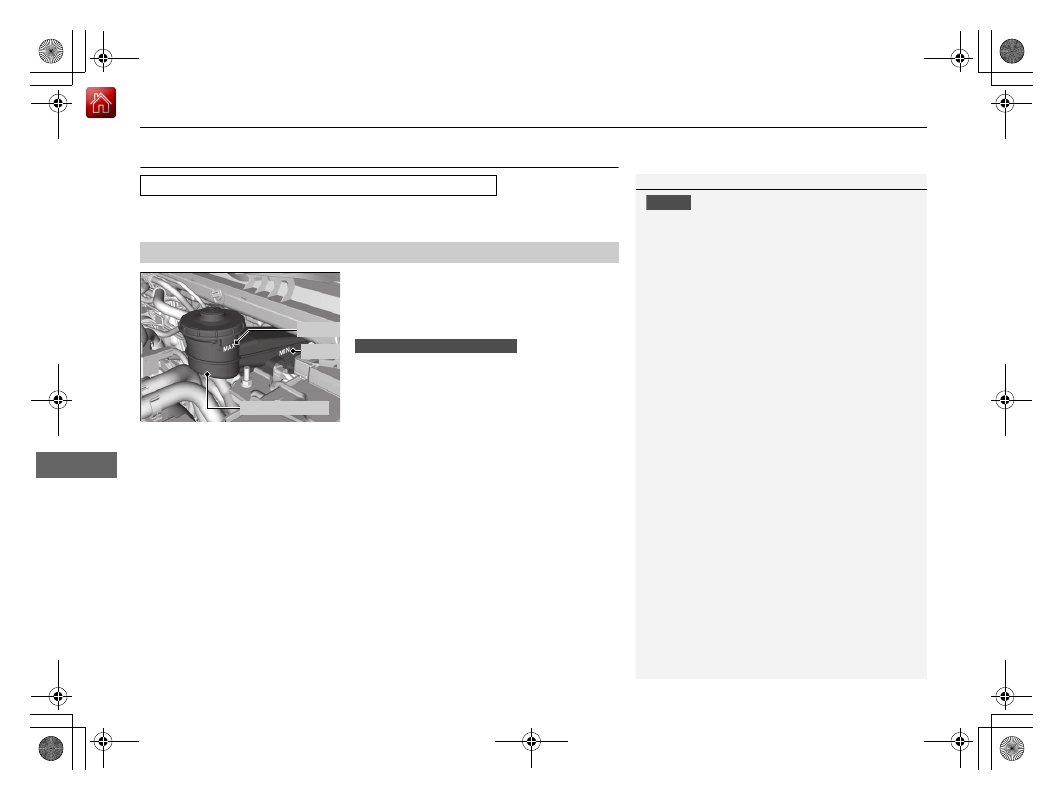

MAX

MIN

Reserve Tank

Maintenance Under the Hood

Engine Coolant

566

Main

tenan

1. Make sure the engine and radiator are

cool.

2. Turn the reserve tank cap 1/8 turn counter-

clockwise and relieve any pressure in the
cooling system.

3. Push down and turn the reserve tank cap

counter-clockwise to remove it.

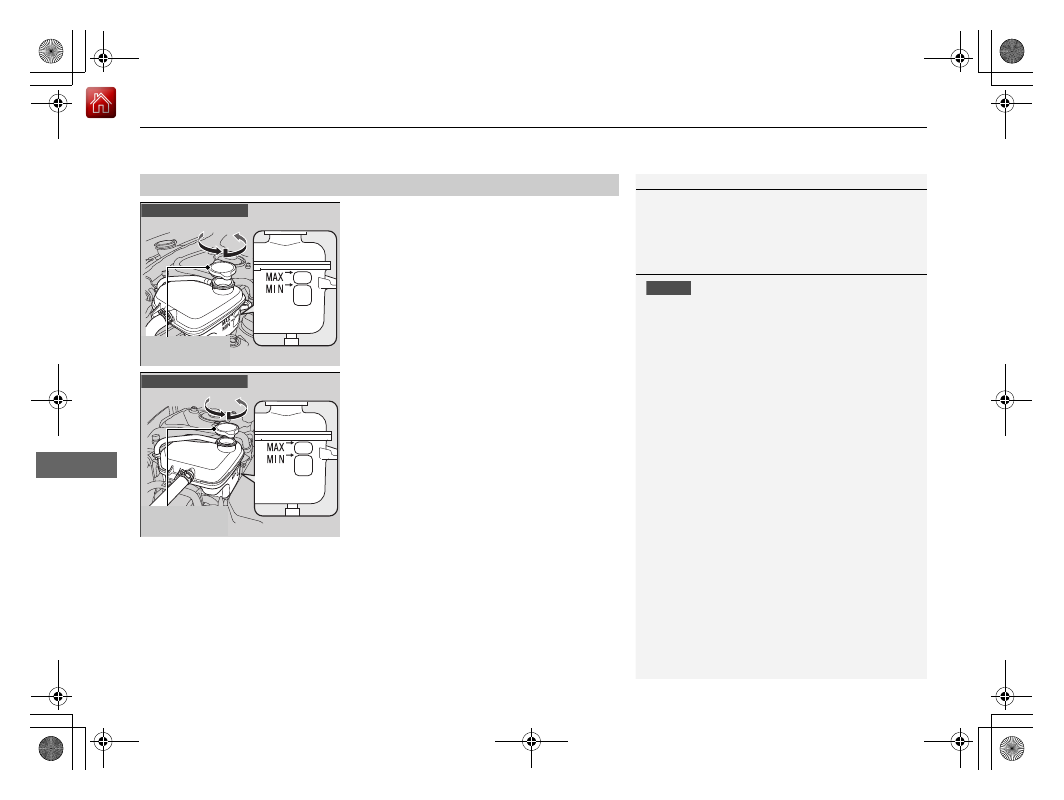

4. Pour coolant into the reserve tank until it

reaches the MAX mark.

5. Put the reserve tank cap back on, and

tighten it fully.

■

Adding the Coolant

Engine Coolant

Do not add rust inhibitors or other additives to your
vehicle’s cooling system. They may not be compatible
with the coolant or with the engine components.

Adding the Coolant

NOTICE

Pour the fluid slowly and carefully so you do not spill
any. Clean up any spills immediately; they can
damage components in the engine compartment.

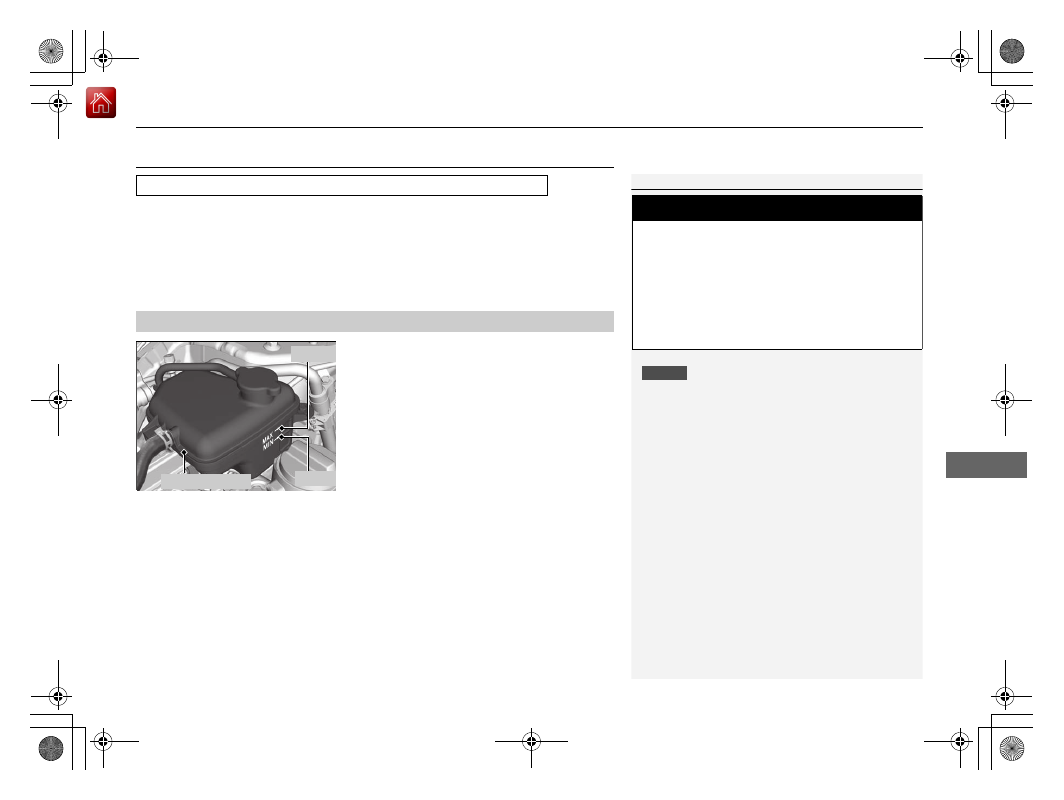

Reserve Tank
Cap

1.5 L engine models

Reserve Tank
Cap

2.0 L engine models

567

Maintenance Under the Hood

Transmission Fluid

Main

tenan

Transmission Fluid

Have a dealer check the fluid level and replace if necessary.

Do not attempt to check or change the continuously variable transmission fluid
yourself.

Have a dealer check the fluid level and replace if necessary.

Do not attempt to check or change the manual transmission fluid yourself.

■

Continuously Variable Transmission (CVT) Fluid

Specified fluid: Honda HCF-2 Transmission Fluid

■

Manual Transmission Fluid

Specified fluid: Honda Manual Transmission Fluid (MTF)

Models with continuously variable transmission

Continuously Variable Transmission (CVT) Fluid

NOTICE

Do not mix HCF-2 with other transmission fluids.
Using a transmission fluid other than HCF-2 may
adversely affect the operation and durability of your
vehicle’s transmission, and damage the transmission.
Any damage caused by using a transmission fluid that
is not equivalent to HCF-2 is not covered by Honda's
new vehicle limited warranty.

Models with manual transmission

Manual Transmission Fluid

If Honda MTF is not available, you may use the API
certificated SAE 0W-20 or 5W-20 viscosity motor oil
as a temporary measure.
Replace with MTF as soon as possible. Motor oil does
not contain the proper additives for the transmission
and continued use can cause decreased shifting
performance and lead to transmission damage.

568

Maintenance Under the Hood

Brake/Clutch

Fluid

Main

tenan

Brake/Clutch

Fluid

Use the same fluid for both the brakes and clutch.

The fluid level should be between the MIN
and MAX marks on the side of the reserve
tank.

The brake fluid reserve tank is also used for
your vehicle’s clutch fluid. As long as you keep
the brake fluid level as instructed above, there
is no need for checking the clutch fluid level.

Specified fluid: Honda Heavy Duty Brake Fluid DOT 3

■

Checking the Brake Fluid

Brake/Clutch

Fluid

NOTICE

Brake fluid marked DOT 5 is not compatible with your
vehicle’s braking system and can cause extensive
damage.

If the specified brake fluid is not available, you should
use only DOT 3 or DOT 4 fluid from a sealed
container as a temporary replacement.

Using any non-Honda brake fluid can cause corrosion
and decrease the longevity of the system. Have the
brake system flushed and refilled with Honda Heavy
Duty Brake Fluid DOT 3 as soon as possible.

If the brake fluid level is at or below the MIN mark,
have a dealer inspect the vehicle for leaks or worn
brake pads as soon as possible.

Reserve Tank

MIN

MAX

Manual transmission models

* Not available on all models

569

Maintenance Under the Hood

Refilling Window Washer Fluid

Main

tenan

Refilling Window Washer Fluid

Check the amount of window washer fluid by looking at the reservoir.

If the level is low, fill the washer reservoir.

If the washer fluid is low, a message appears
on the driver information interface.

Pour the washer fluid carefully. Do not overflow the reservoir.

Refilling Window Washer Fluid

NOTICE

Do not use engine antifreeze or a vinegar/water
solution in the windshield washer reservoir.
Antifreeze can damage your vehicle’s paint. A
vinegar/water solution can damage the windshield
washer pump.
Use only commercially available windshield washer
fluid.
Avoid prolonged use of hard water to prevent lime
scale build up.

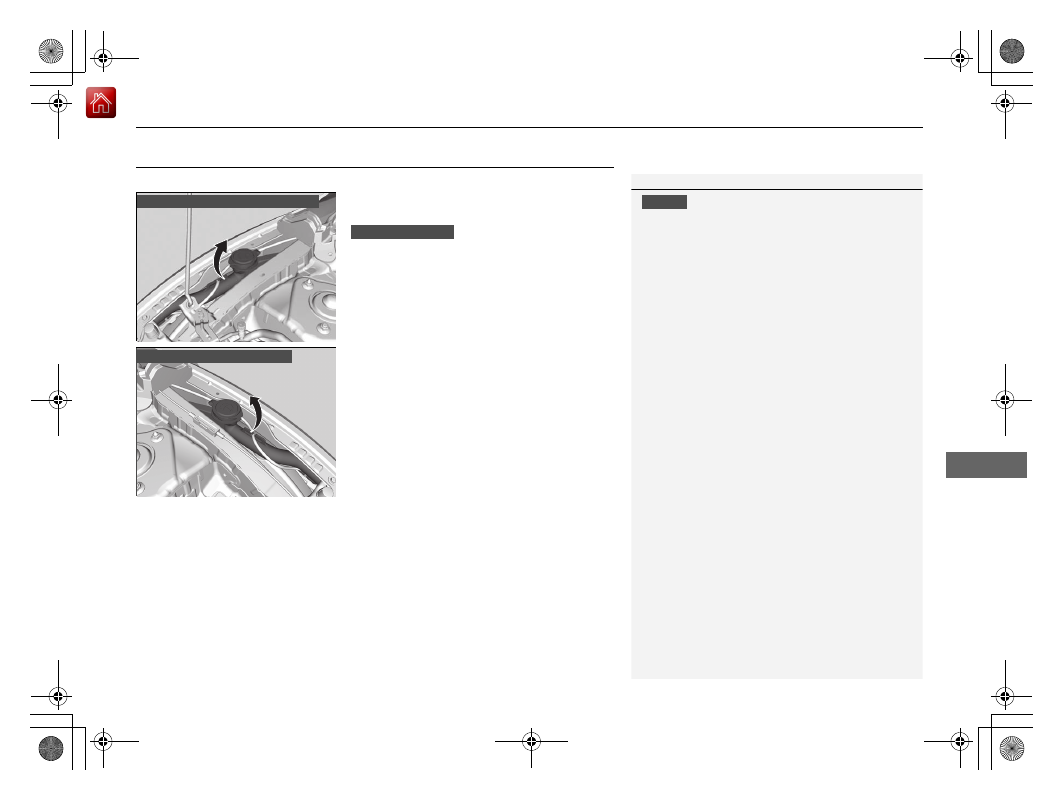

Except Canadian 1.5 L engine models

Canadian models

Canadian 1.5 L engine models

570

Main

tenan

Replacing Light Bulbs

Headlight Bulbs

When replacing, use the following bulbs.

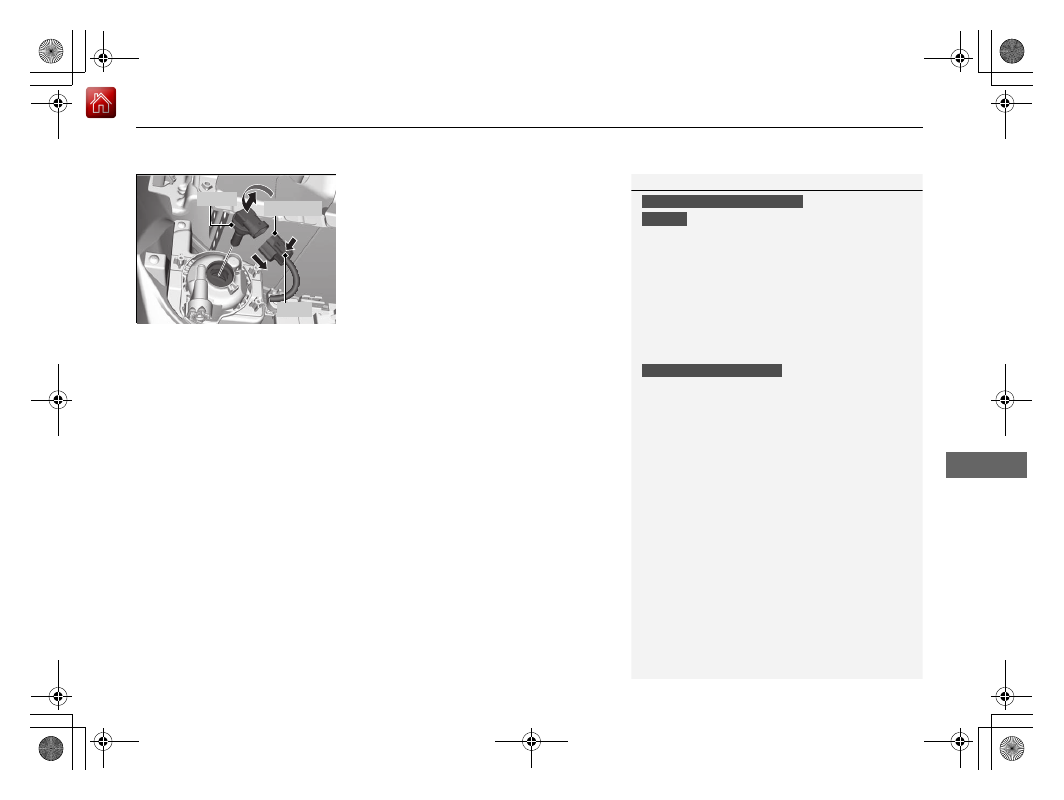

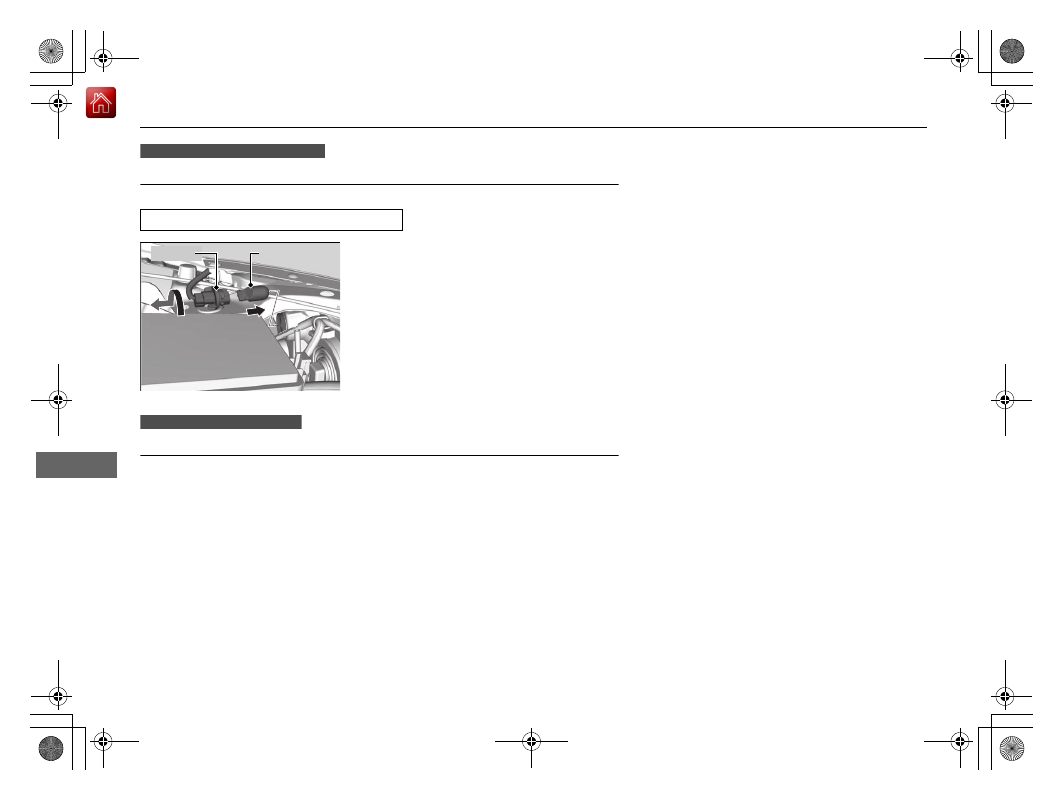

1. Push the tab to remove the coupler.
2. Rotate the old bulb counter-clockwise to

remove.

3. Insert a new bulb into the headlight

assembly and turn it clockwise.

4. Insert the coupler into the connector of the

bulb.

High beam headlight: 60 W (HB3 for halogen bulb type)

High beam headlight: LED type

Low beam headlight: 55 W (H11 for halogen bulb type)

Low beam headlight: LED type

■

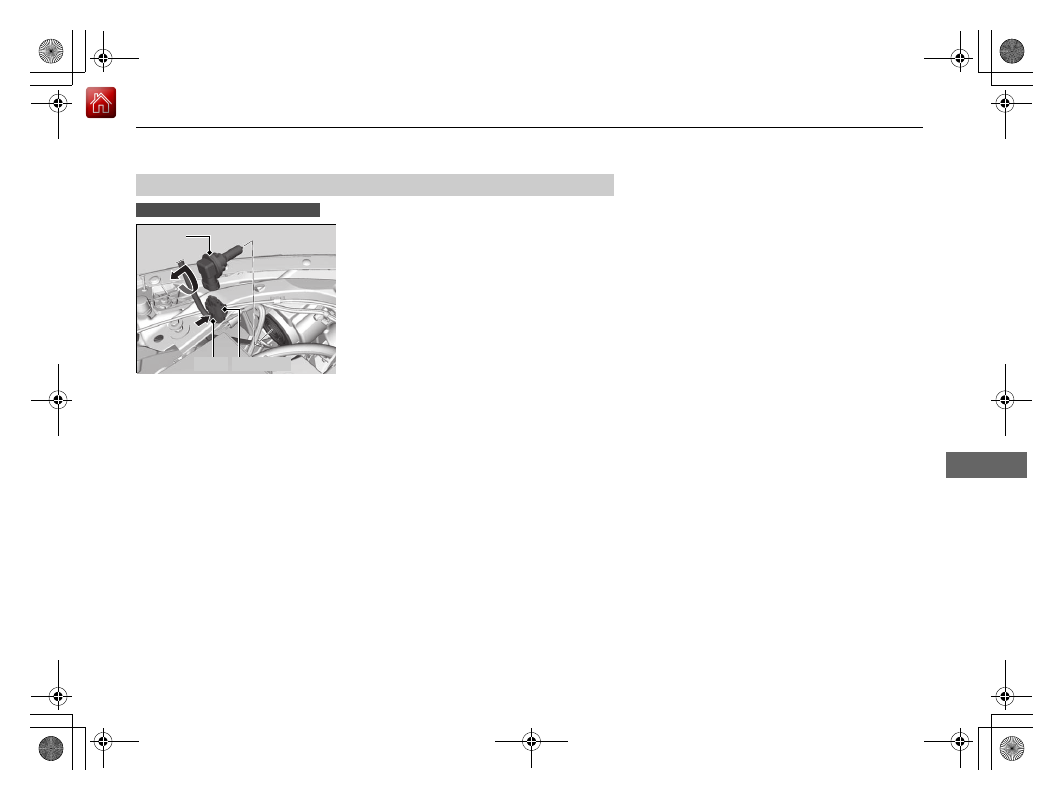

High Beam Headlights

Headlight Bulbs

NOTICE

Halogen bulbs get very hot when lit.
Oil, perspiration, or a scratch on the glass can cause
the bulb to overheat and shatter.

The headlight aim is set by the factory, and does not
need to be adjusted. However, if you regularly carry
heavy items in the trunk, have the aiming readjusted
at a dealer or by a qualified technician.

When replacing a halogen bulb, handle it by its base,
and protect the glass from contact with your skin or
hard objects. If you touch the glass, clean it with
denatured alcohol and a clean cloth.

Headlights are LED type. Have an authorized Honda
dealer inspect and replace the light assembly.

Models with halogen headlights

All models

Models with halogen headlights

Models with LED headlights

Models with halogen headlights

Tab

Coupler

Bulb

* Not available on all models

571

Replacing Light Bulbs

Headlight Bulbs

Main

tenan

1. Push the tab to remove the coupler.
2. Rotate the old bulb counter-clockwise to

remove.

3. Insert a new bulb into the headlight

assembly and turn it clockwise.

4. Insert the coupler into the connector of the

bulb.

■

Low Beam Headlights

Models with halogen headlights

Tab

Coupler

Bulb

572

Replacing Light Bulbs

Fog Light Bulbs

Main

tenan

Fog Light Bulbs

When replacing, use the following bulbs.

1. Remove the clips using a flat-tip

screwdriver, remove the bolt, and push up
the under cover.

Fog Light: 35 W (H8 for halogen bulb type)

Fog Light: LED type

Fog Light Bulbs

Insert a flat-tip screwdriver, lift and remove the center
pin to remove the clip.

Insert the clip with the center pin raised, and push
until it is flat.

Models with halogen fog lights

Push until the pin
is flat.

Models with halogen fog lights

Bolt

Clips

* Not available on all models

573

Replacing Light Bulbs

Fog Light Bulbs

Main

tenan

2. Push the tab to remove the coupler.
3. Rotate the old bulb counter-clockwise to

remove.

4. Insert a new bulb into the fog light

assembly and turn it clockwise.

5. Insert the coupler into the connector of the

bulb.

Fog Light Bulbs

NOTICE

Halogen bulbs get very hot when lit. Oil, perspiration,
or a scratch on the glass can cause the bulb to
overheat and shatter.

When replacing a halogen bulb, handle it by its
plastic case, and protect the glass from contact with
your skin or hard objects. If you touch the glass, clean
it with denatured alcohol and a clean cloth.

Fog lights are LED type. Have an authorized Honda
dealer inspect and replace the light assembly.

Models with halogen fog lights

Models with LED fog lights

Tab

Coupler

Bulb

* Not available on all models

574

Replacing Light Bulbs

Front Turn Signal Light Bulbs

Main

tenan

Front Turn Signal Light Bulbs

When replacing, use the following bulbs.

1. Turn the socket counter-clockwise and

remove it.

2. Remove the old bulb and insert a new bulb.

Front Turn Signal Lights

Front turn signal lights are LED type. Have an authorized Honda dealer inspect and
replace the light assembly.

Front Turn Signal Light: 21 W (Amber)

Models with halogen headlights

Socket

Bulb

Models with LED headlights

575

Replacing Light Bulbs

Front Side Marker Light Bulbs

Continued

Main

tenan

Front Side Marker Light Bulbs

When replacing, use the following bulbs.

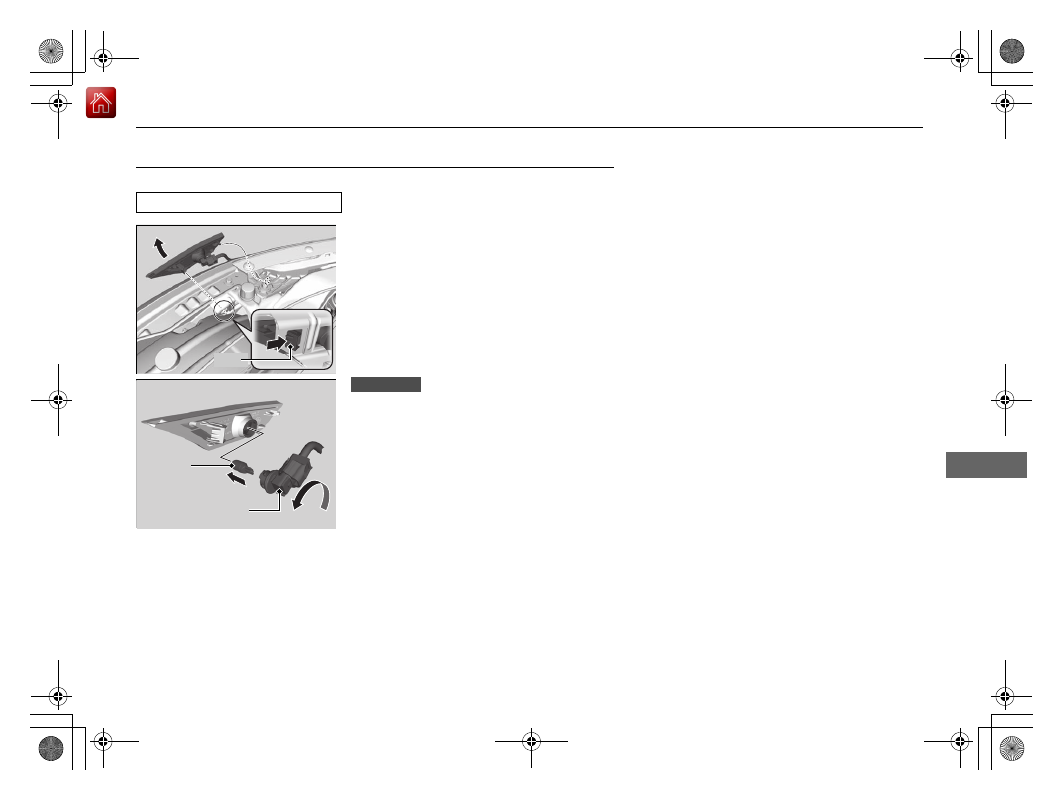

1. Push the tab to remove the light assembly.
2. Push the tab to remove the coupler.

3. Turn the socket counter-clockwise to

remove it, then remove the old bulb.

4. Insert a new bulb.

Front Side Marker Light: 3 W

Tab

Socket

Bulb

Driver side

Content .. 34 35 36 37 ..
