Honda Odyssey 2004. Manual - part 601





06

22

S0X4AZ4H46400056602FAAT02

’99-01 Models

SRS indicator stays on, but no DTCs are
stored (NEC SRS unit only)

YES

NO

YES

NO

YES

NO

23-346

SRS

Symptom Troubleshooting (cont’d)

A

A

B

C

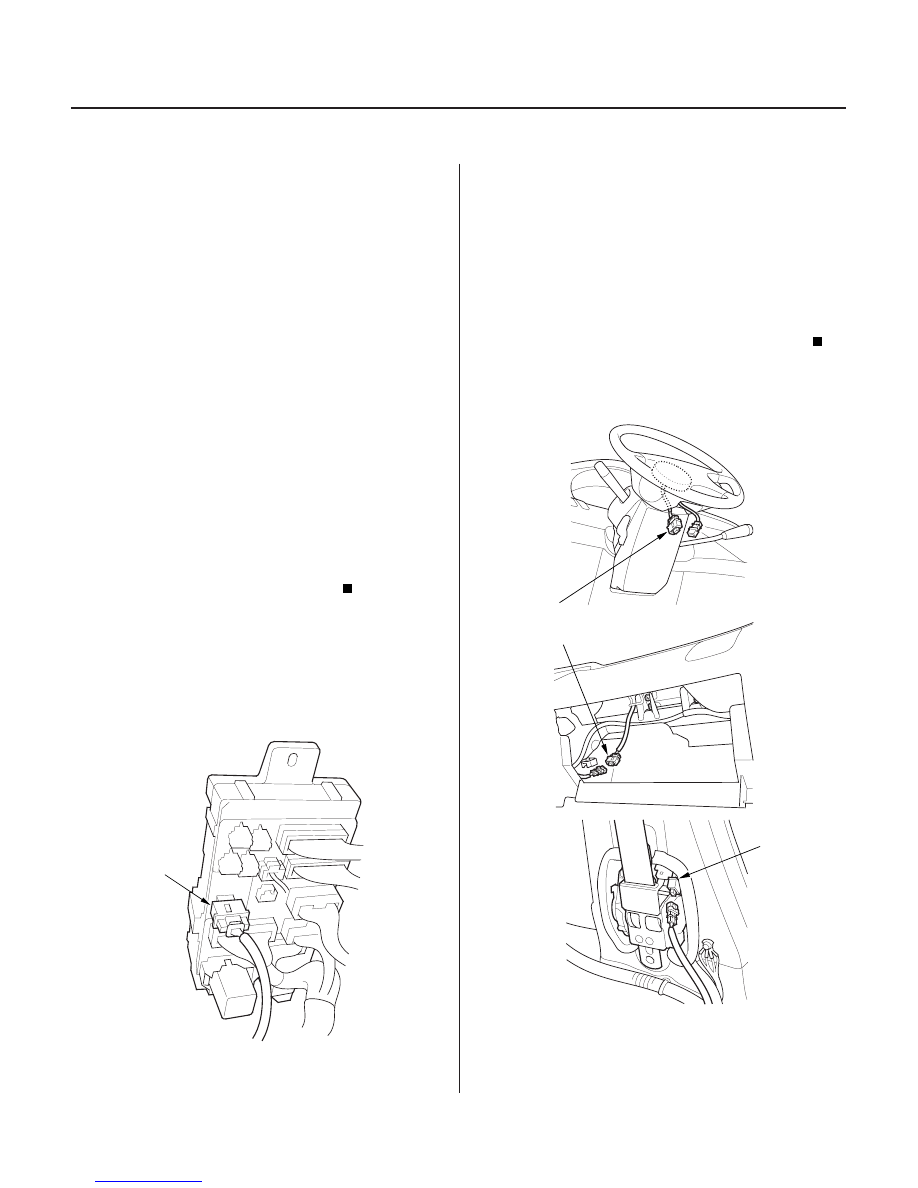

1. Check the No. 1 (15A) fuse in the driver’s under-

dash fuse/relay box.

Go to step 14.

Go to step 2.

2. Replace the No. 1 (15A) fuse in the driver’s under-

dash fuse/relay box.

3. Turn the ignition switch ON (II), and wait for 30

seconds. Then turn the ignition switch OFF.

4. Check the No. 1 (15A) fuse in the driver’s under-

dash fuse/relay box.

The system is OK at this time.

Go to step 5.

5. Replace the No. 1 (15A) fuse in the driver’s under-

dash fuse/relay box.

6. Disconnect the SRS main harness 2P connector (A)

from the driver’s under-dash fuse/relay box.

7. Turn the ignition switch ON (II) and wait for 30

seconds, then turn the ignition switch OFF.

8. Check the No. 1 (15A) fuse in the driver’s under-

dash fuse/relay box.

Go to step 9.

Short to ground in the No. 1 (15A) fuse line.

9. Disconnect the driver’s airbag connector (A), front

passenger’s airbag connector (B), and both seat
belt tensioner 2P connectors (C).

Is the f use OK ?

Is the f use OK ?

Is the f use OK ?

03/07/29 10:41:29 61S0X050_230_0346

07

06

YES

NO

23-347

A

A

B

C

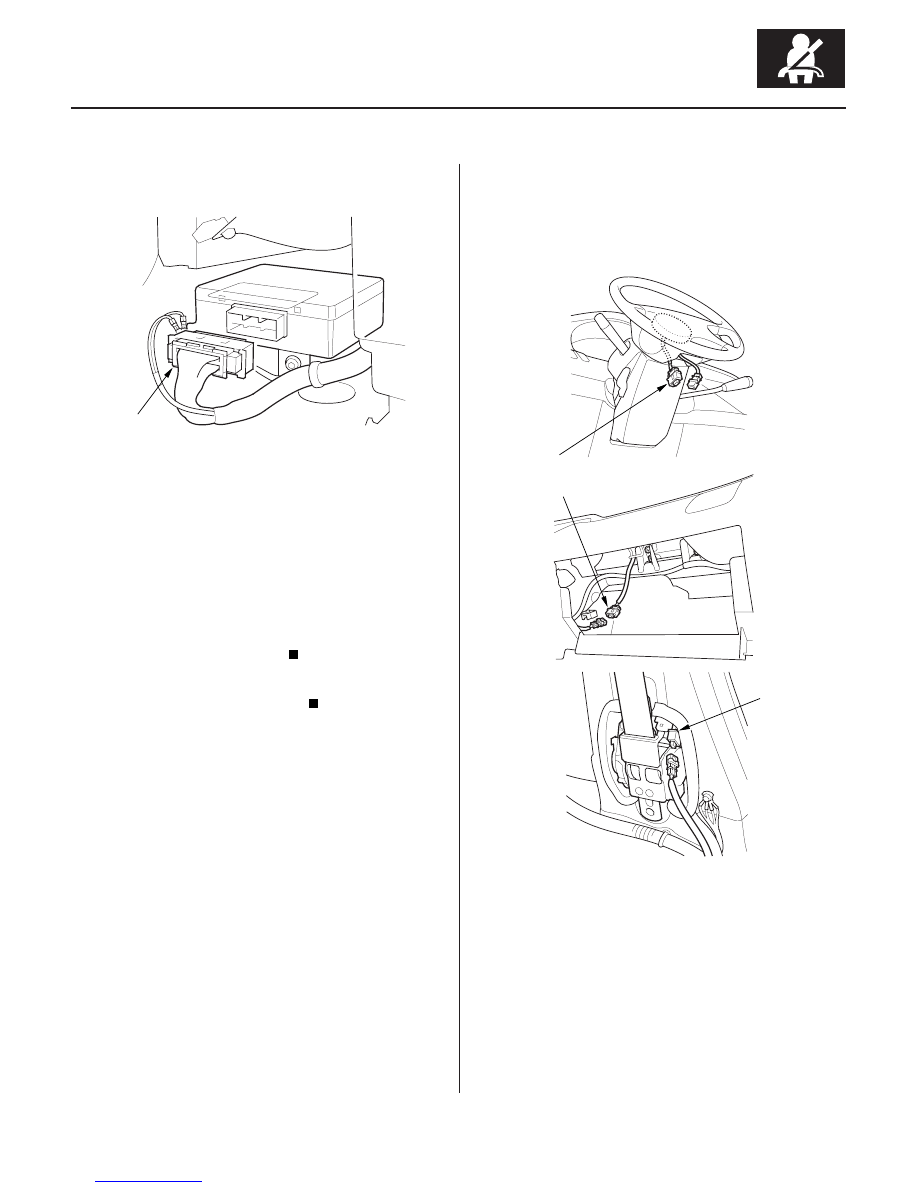

10. Disconnect the SRS main harness 18P connector

(A) from the SRS unit.

11. Reconnect the SRS main harness 2P connector to

the driver’s under-dash fuse/relay box.

12. Turn the ignition switch ON (II), and wait for 30

seconds. Then turn the ignition switch OFF.

13. Check the No. 1 (15A) fuse in the driver’s under-

dash fuse/relay box.

Short to ground in the SRS unit; replace the

SRS unit (see page 23-382).

Short to ground in the SRS main harness;

replace the SRS main harness.

14. Turn the ignition switch OFF. Disconnect the

battery negative cable, and wait for 3 minutes.

15. Disconnect the driver’s airbag connector (A), front

passenger’s airbag connector (B), and both seat
belt tensioner 2P connectors (C).

(cont’d)

Is the f use OK ?

03/07/29 10:41:29 61S0X050_230_0347

08

27

09

28

YES

NO

YES

NO

23-348

SRS

Symptom Troubleshooting (cont’d)

A

SRS MAIN HARNESS 18P CONNECTOR

SRS MAIN HARNESS 2P CONNECTOR

SRS MAIN HARNESS 18P CONNECTOR

A

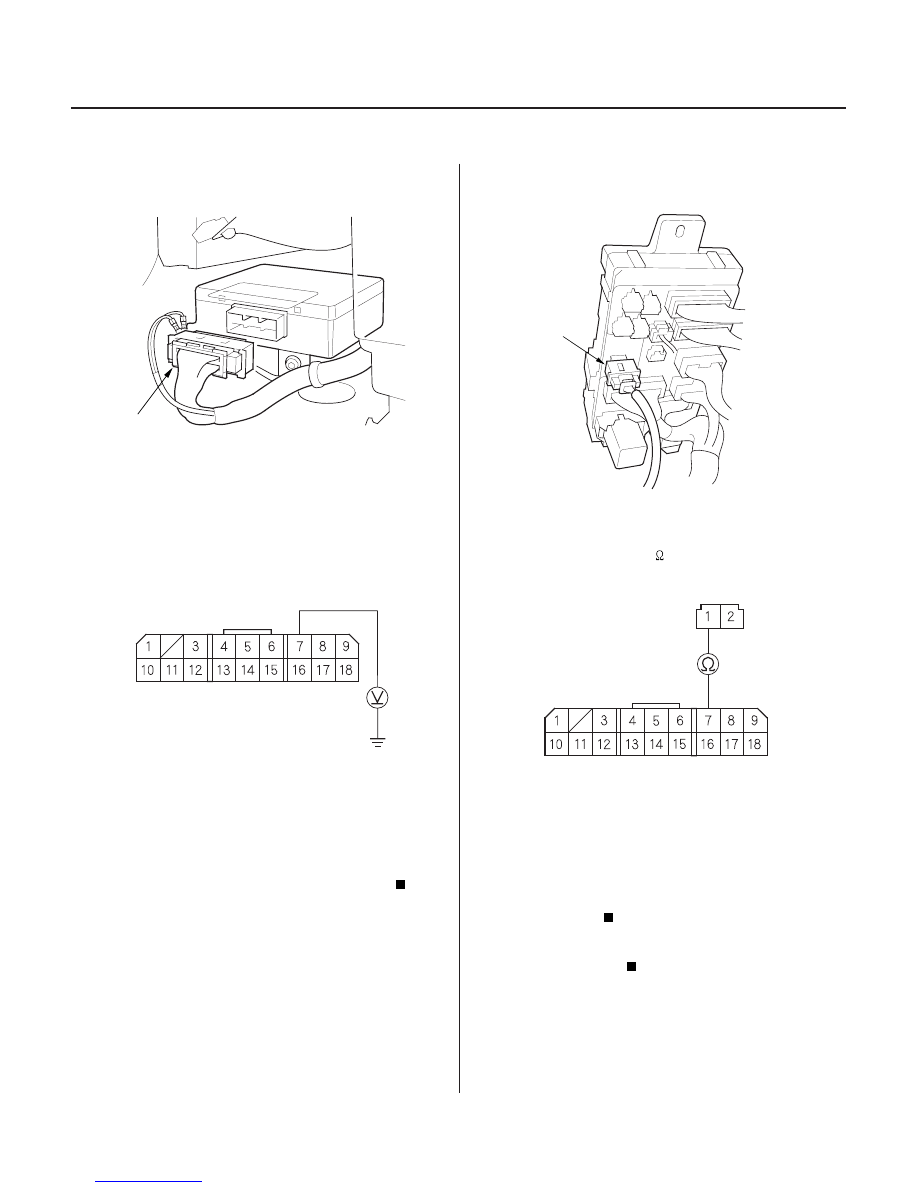

16. Disconnect the SRS main harness 18P connector

(A) from the SRS unit.

17. Reconnect the negative battery cable.

18. Connect a voltmeter between the No. 7 terminal of

the SRS main harness 18P connector and body
ground. Turn the ignition switch ON (II), and
measure the voltage. There should be battery
voltage.

Faulty SRS unit or poor contact at the SRS

main harness 18P connector; check the connection.
If the connection is OK, replace the SRS unit.

Go to step 19.

19. Turn the ignition switch OFF.

20. Disconnect the SRS main harness 2P connector (A)

from the driver’s under-dash fuse/relay box.

21. Check resistance between the No. 7 terminal of the

SRS main harness 18P connector and the No. 1
terminal of the SRS main harness 2P connector.
There should be 0

1.0

.

Open in the driver’s under-dash fuse/relay

box or poor contact at the SRS main harness 2P
connector; check the connection. If the connection
is OK, replace the driver’s under-dash fuse/relay
box or repair it.

Open in the SRS main harness; replace the

SRS main harness.

Wire side of female terminals

Wire side of
female terminals

Is ther e batter y voltage?

Is r esistance as specif ied?

03/07/29 10:41:30 61S0X050_230_0348

01

*03

*04

S0X4AZ3H46400056602FAAT00

’02 Model

SRS indicator doesn’t come on

YES

NO

YES

NO

YES

NO

23-349

B

C

GAUGE ASSEMBLY CONNECTOR B (22P)

BLK

GAUGE ASSEMBLY CONNECTOR C (16P)

BLU

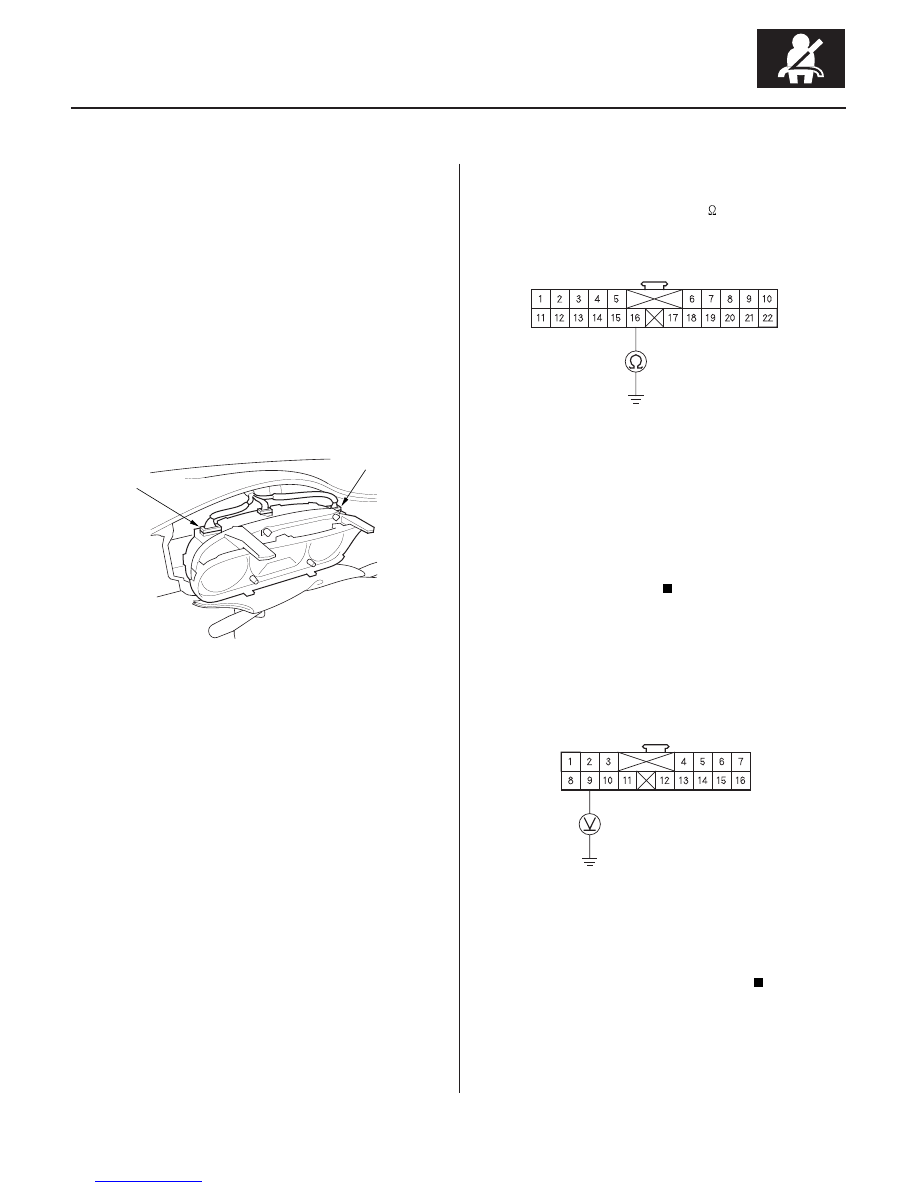

1. Turn the ignition switch ON (II), and see if the other

indicators come on (brake system, etc.).

Go to step 2.

Go to step 8.

2. Turn the ignition switch OFF, then remove the

gauge assembly (see page 22-100). Disconnect
gauge assembly connector B (22P), and C (16P)

3. Check resistance between the No. 16 terminal of

gauge assembly connector B (22P) and body
ground. There should be 0

1.0

.

Go to step 4.

Open in the BLK wire of the dashboard wire

harness or faulty body ground terminal (G503). If
the body ground terminal is OK, replace the
dashboard wire harness.

4. Check for voltage between the No. 9 terminal of

gauge assembly connector C (16P) and body
ground within the first 6 seconds after turning the
ignition switch ON (II). There should be 8.5 V or less.

Faulty SRS indicator circuit in the gauge

assembly; replace the gauge assembly.

Go to step 5.

(cont’d)

Wire side of female terminals

Wire side of female terminals

Do the other indicator s come on?

Is the r esistance as specif ied?

Is the voltage as specif ied?

03/07/29 10:41:31 61S0X050_230_0349

from the gauge assembly.
