’03-04 Models

DTC 71-2x (71-20 to 71-29, 71-2A to 71-2F):

YES

NO

YES

NO

23-298

SRS

DTC Troubleshooting (cont’d)

A

A

Short to ground in the Driver’s Seat Position
Sensor

1. Erase the DTC memory (see page 23-39).

2. Turn the ignition switch ON (II), and check that the

SRS indicator comes on for about 6 seconds and
then goes off.

Go to step 3.

Intermittent failure, system is OK at this time.

Go to Troubleshooting Intermittent Failures (see
page 23-39).

3. Turn the ignition switch OFF. Disconnect the

battery negative cable, and wait for 3 minutes.

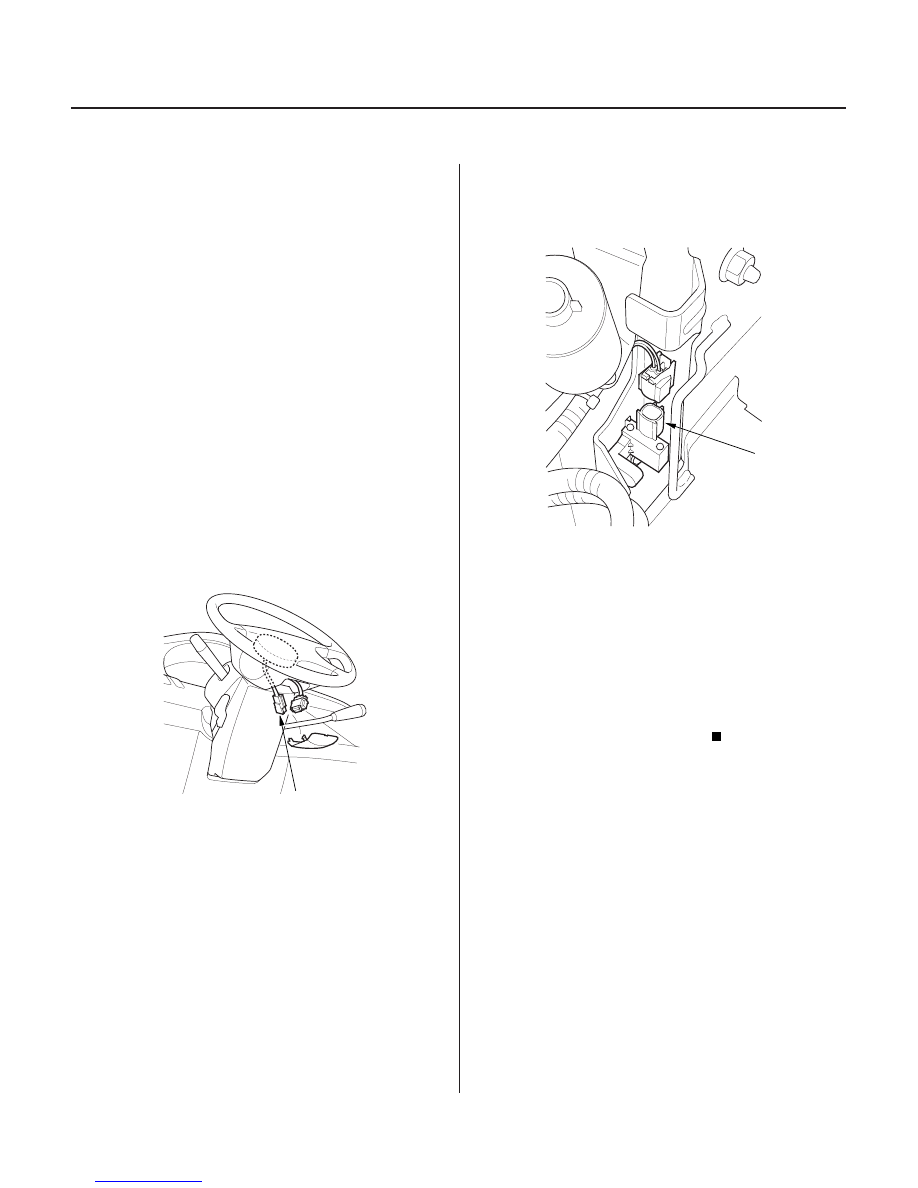

4. Disconnect the driver’s airbag 4P connector (A)

from the cable reel.

5. Disconnect the driver’s seat wire harness 2P

connector (with power seat) or driver’s seat
position sensor 2P connector (without power seat)
from the driver’s seat position sensor (A).

6. Reconnect the battery negative cable.

7. Erase the DTC memory.

8. Read the DTC (see page 23-38).

Go to step 9.

Faulty driver’s seat position sensor; replace

the driver’s seat position sensor.

9. Turn the ignition switch OFF. Disconnect the

battery negative cable, and wait for 3 minutes.

Does the SRS indicator stay on?

Is DT C 7 1-2x indicated?

03/07/29 10:39:56 61S0X050_230_0298

03

04

05

*01

YES

NO

23-299

A

B

SRS UNIT CONNECTOR B (28P)

GRN/RED

GRN/YEL

C852

A

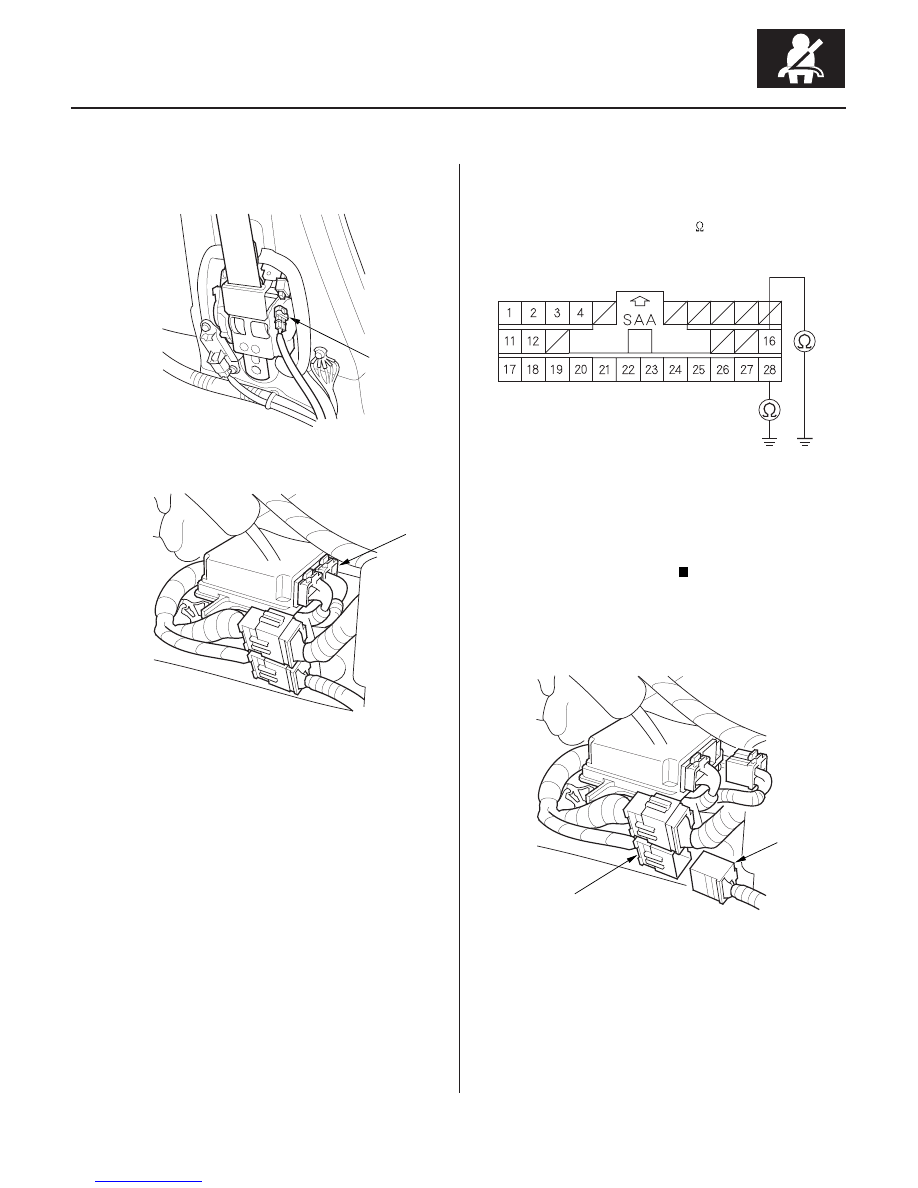

10. Disconnect both seat belt tensioner 2P connectors

from the side wire harness 2P connectors (A).

11. Disconnect SRS unit connector B (28P) from the

SRS unit.

12. Check resistance between the No. 16 terminal of

SRS unit connector B (28P) and body ground, and
the No. 28 terminal and body ground. There should
an open circuit, or at least 1 M

.

Faulty SRS unit, or poor contact at SRS unit

connector B (28P) and the SRS unit. Check the
connection; if the connection is OK, replace the
SRS unit (see page 23-384).

Go to step 13.

13. Disconnect SRS floor subharness 28P connector (A)

from the SRS floor harness connector C852.

(cont’d)

Wire side of female terminals

Is the r esistance as specif ied?

03/07/29 10:39:57 61S0X050_230_0299

*04

*05

*02

*03

YES

NO

YES

NO

YES

NO

23-300

SRS

DTC Troubleshooting (cont’d)

SRS FLOOR SUBHARNESS 28P CONNECTOR C852

GRN/YEL

GRN/
RED

LEFT SIDE WIRE HARNESS 3P CONNECTOR C558

GRN/YEL

GRN/RED

DRIVER’S SEAT WIRE HARNESS 12P CONNECTOR C552
(WITH POWER SEAT)

BLK

WHT

DRIVER’S SEAT POSITION SENSOR SUBHARNESS C559
2P CONNECTOR
(WITHOUT POWER SEAT)

WHT

BLK

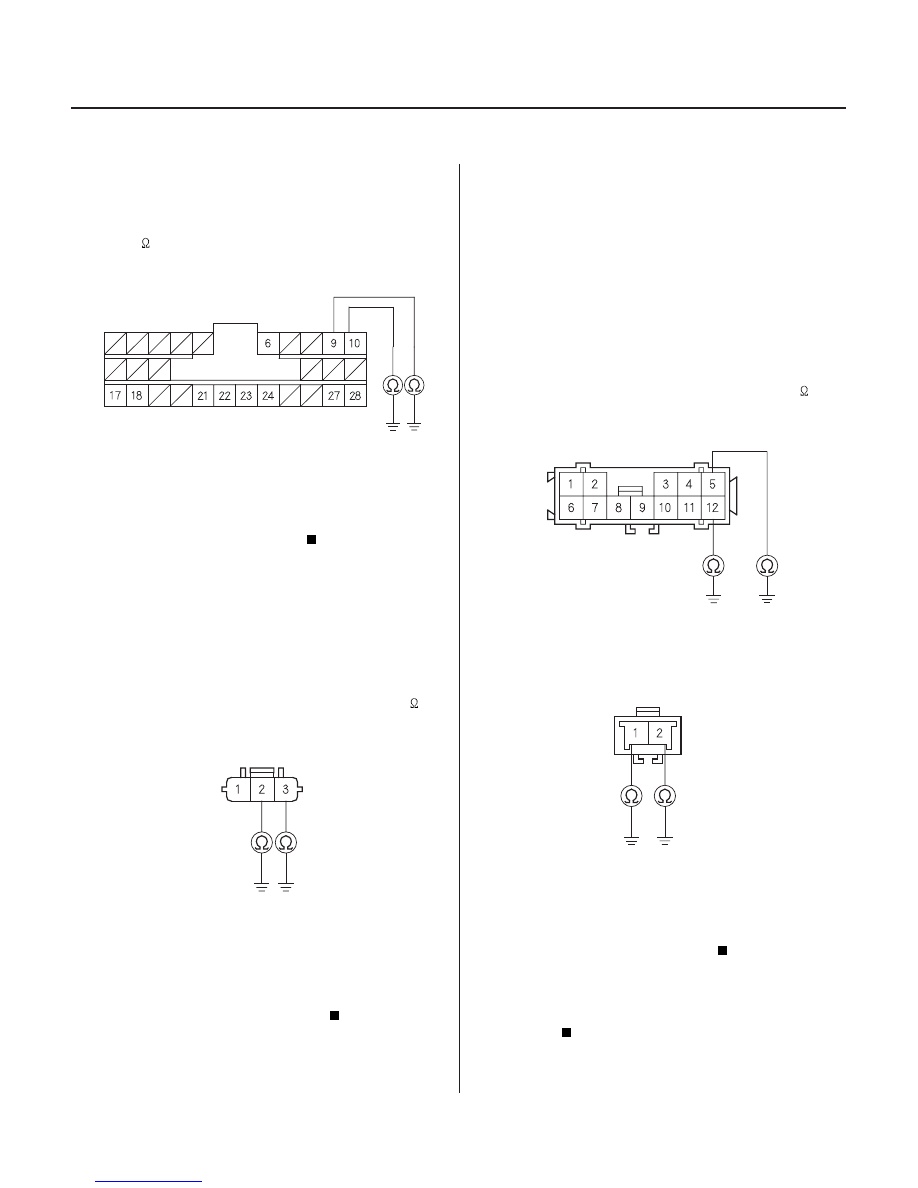

14. Check resistance between the No. 9 terminal of

SRS floor subharness 28P connector C852 and
body ground, and the No. 10 terminal and body
ground. There should be an open circuit, or at least
1 M

.

Short to ground in the SRS floor harness;

replace the SRS floor harness.

Go to step 15.

15. Disconnect SRS floor subharness 3P connector

C558 from the left side wire harness.

16. Check resistance between the No. 2 terminal of left

side wire harness 3P connector C558 and body
ground, and the No. 3 terminal and body ground.
There should be an open circuit, or at least 1 M

.

Short to ground in the SRS floor subharness;

replace the SRS floor subharness.

Go to step 17.

17. Disconnect left side wire harness 12P connector C

552 from driver’s seat wire harness (with power
seat) or left side wire harness 2P connector C559
from the seat position sensor subharness (without
power seat).

18. Check resistance between the No. 5 terminal of

driver’s seat wire harness 12P connector C552 and
body ground, and the No. 12 terminal and body
ground (with power seat) or between the No. 1
terminal of seat position sensor subharness 2P
connector C559 and body ground, and the No. 2
terminal and body ground (without power seat).
There should be an open circuit, or at least 1 M

.

Short to ground in the left side wire harness;

replace the left side wire harness.

Short to ground in the driver’s seat wire

harness (with power seat) or seat position sensor
subharness (without power seat); replace the faulty
harness.

Wire side of female terminals

Wire side of female terminals

Terminal side of male terminals

Terminal side of male terminals

Is the r esistance as specif ied?

Is the r esistance as specif ied?

Is the r esistance as specif ied?

03/07/29 10:39:58 61S0X050_230_0300

*01

*02

S0X4AZBK791000R8161FAAT00

’03-04 Models

DTC 81-61:

DTC 81-62:

YES

NO

YES

NO

YES

NO

YES

NO

23-301

C

RIGHT SIDE WIRE HARNESS 6P CONNECTOR C

YEL/GRN

No Signal from Front Passenger’s

Weight Sensor Unit

Non-stipulated Response Data

1. Make sure nothing is on the front passenger’s seat.

2. Calibrate the front passenger’s weight sensors unit

(see page 23-42).

3. Erase the DTC memory (see page 23-39).

4. Read the DTC (see page 23-38).

Go to step 5.

Intermittent failure, system is OK at this time.

Go to Troubleshooting Intermittent Failures (see
page 23-39).

5. Check the connection between the right side wire

harness 6P connector and the front passenger’s
weight sensor unit.

6. Erase the DTC.

7. Read the DTC.

Go to step 8.

Repair the poor connections and retest. If DTC

81-61 or 81-62 is still present, go to step 8.

8. Turn the ignition switch OFF.

9. Check the No. 11 (10A) fuse in the driver’s under-

dash fuse/relay box.

Go to step 10.

Replace the fuse, then turn the ignition switch

ON (II). If the fuse blows again, check for a short in
the No. 11 (10A) fuse circuit (dashboard wire
harness, right side wire harness).

10. Disconnect the right side wire harness 6P

connector C from the front passenger’s weight
sensor unit.

11. Turn the ignition switch ON (II).

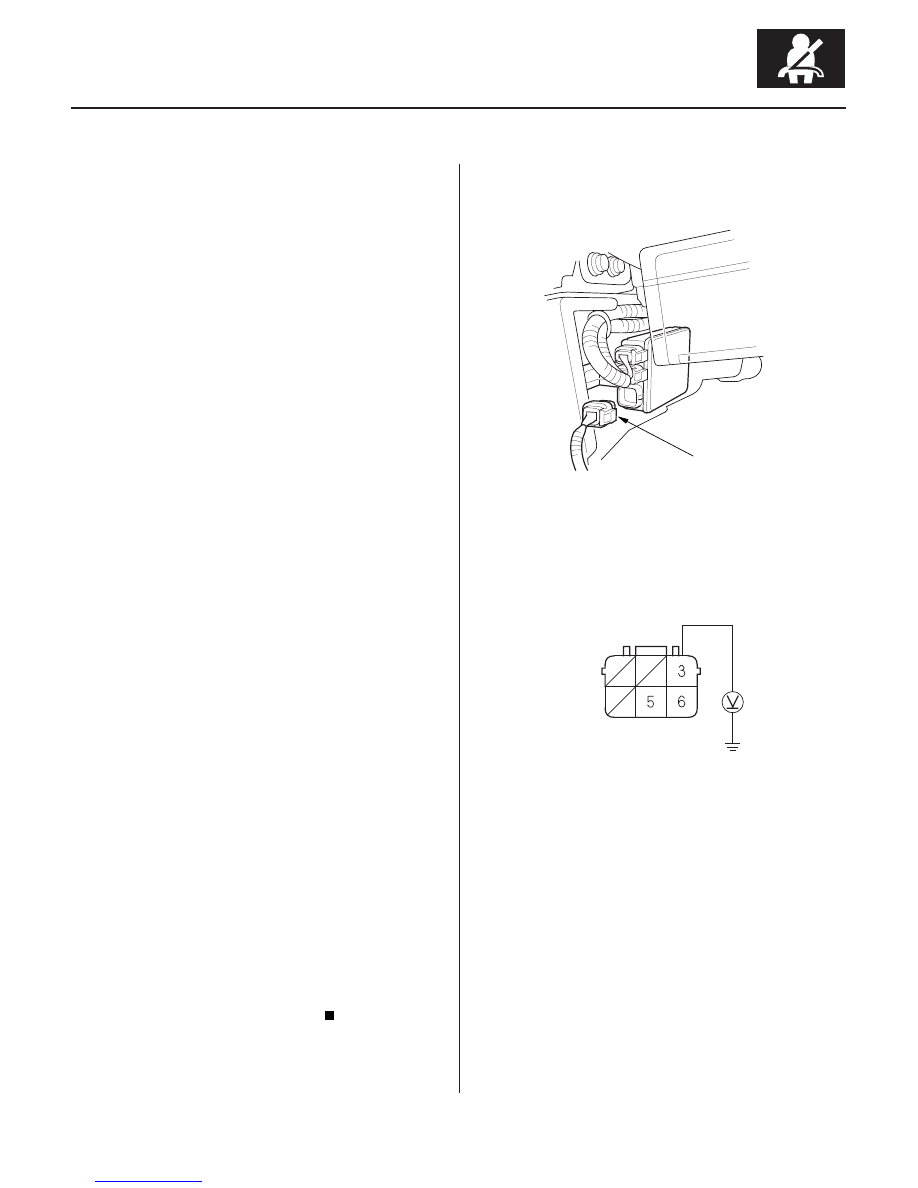

12. Check for voltage between the No. 3 terminal of the

right side wire harness 6P connector C and body
ground. There should be battery voltage.

Go to step 17.

Go to step 13.

13. Turn the ignition switch OFF.

(cont’d)

Wire side of female terminals

Is DT C 81-61 or 81-62 indicated?

Is DT C 81-61 or 81-62 indicated?

Is the f use OK ?

Is ther e batter y voltage?

03/07/29 10:40:59 61S0X050_230_0301
