Honda Odyssey 2004. Manual - part 513





04

*10

*11

05

Unit Check

Disp

System History

GPS Information

When the connection is NG.

When the ROM or RAM is NG.

22-380

Navigation System

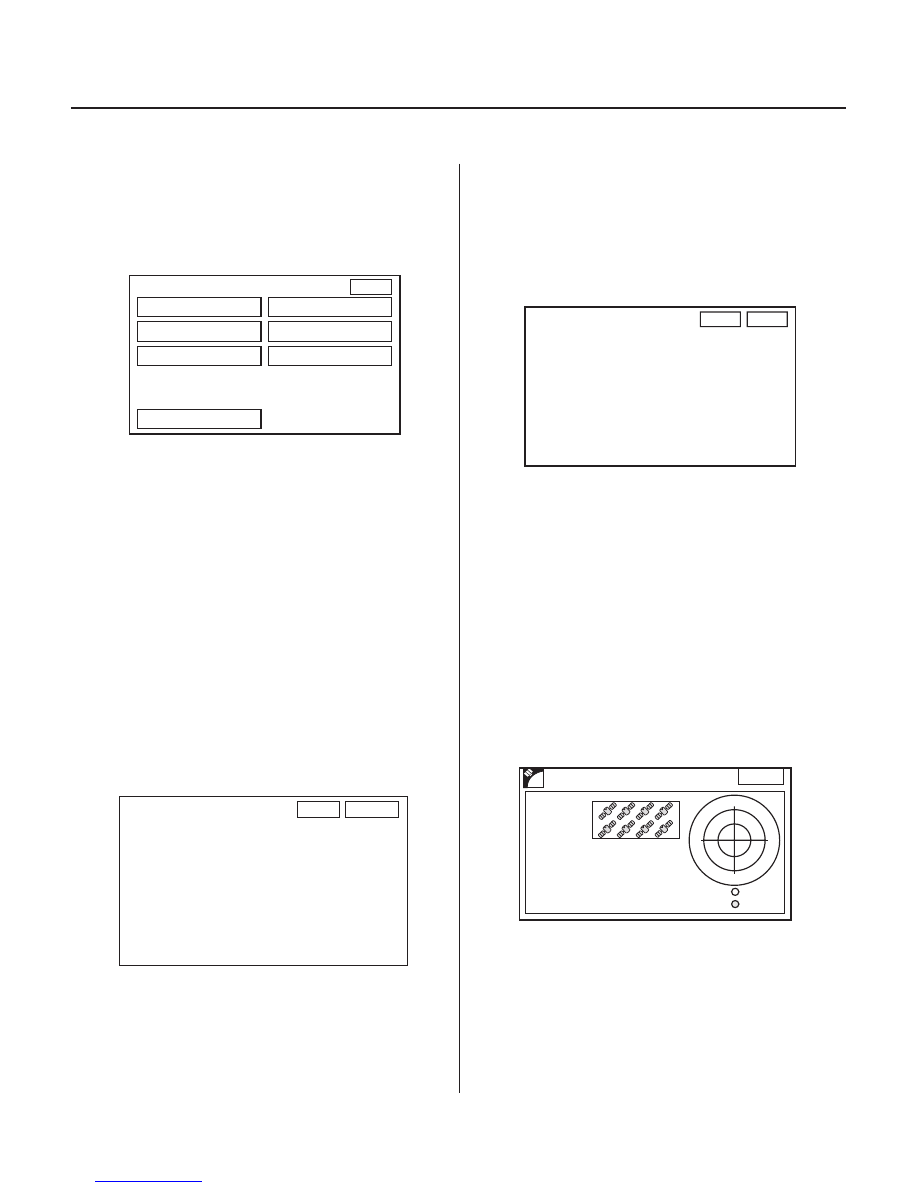

System Diagnosis Test (cont’d)

Return

Unit Check

Disp

System History

GPS

Navi ECU

Car Status

Backup Clear

Force Download

System History

LEVEL0
LEVEL1
LEVEL2
LEVEL3

Return

CLR

Number of

Satellites

Return

GPS Information

Current Position

Latitude XX °XX’XX
Longitude XX °XX’XX
Elevation XXX ft
’99. 01. 01 10:08 00

In Use
Search

Disp

Connection

OK

ROM

OK

RAM

OK

Return

OK

N

S

W

E

Touch the item you want to check, and the check starts.

NOTE: Do not use ‘‘Force Download’’, this is for the
manufacturer’s use only.

First check for loose terminals at the navigation unit
and the display unit connectors.
Next check for an open or short in the communication
line between the navigation unit and the display unit. If
the line is OK, replace the display unit. If the line is
found to have an open or short, replace the affected
shielded harness.

Replace the display unit.

This screen is for the manufacturer’s use only.

NOTE: Do not select the CLR. Selecting CLR will clear
the system history.

This screen shows the condition of the GPS reception
and the vehicle position.
The vehicle should be parked outside away from
buildings, tall trees, high tension lines for 10 minutes
with motor running.
The number of satellites boxs should contain at least
three yellow satellite icons. If not, troubleshoot for
satellite mark in the GPS icon is not indicated (see page
22-369).

03/07/29 10:28:49 61S0X050_220_0382

*12

06

*13

Car Status

Navi ECU

Back-up Clear

22-381

Car Status

VSP
BACK
CHG
ILL

OFF
OFF
ON
OFF

Return

High Tmp

Navi ECU

Low Tmp
Flash IPL

VRAM Overlay

Return

OK

XXXX

Flash Application

OK

XXXX

RAM

OK
OK

VRAM Base

OK

Model

XX

OK

XX °C
XX °C

Return

To clear SRAM and system history,
Push OK button.

(This will Reset the navigation system)

OK

Cancel

Backup Clear

Use the car status screen to check each signal.
If the indication does not match the actual vehicle status,
check the applicable signal line.

• VSP (vehicle speed pulse indication)

– OFF when vehicle is not moving
– ON when vehicle is moving

• BACK (reverse indication)

– OFF when shift lever is in any position other than

reverse

– ON when shift lever is in reverse

• CHG (charging indication)

– ON when engine is running and alternator is

charging

– OFF when engine is off or alternator is not charging

• ILL (illumination indication)

– OFF when parking lights or headlights are off
– ON when parking lights or headlights are on

When any item is NG, replace the navigation unit.

This screen is for manufacturer’s use only.

(cont’d)

03/07/29 10:28:50 61S0X050_220_0383

Error Message Table

Error Message

Solution

22-382

Navigation System

System Diagnosis Test (cont’d)



Navigation system is unable to acquire a proper GPS
signal.

Move vehicle to another location
Turn the ignition switch off
Disconnect the battery for 30 min to clear the GPS
receiver’s memory
Reconnect the battery and follow the screen prompts

No GPS reception. See repair for ‘‘Satellite mark is not
indicated.’’

Navigation unit door is open or No DVD Disc installed.
Please check system.

Check that the DVD disc is installed with the label side
up and the navigation unit door is fully snapped closed.
If OK, replace the navigation unit.

No DVD Disc, please check system.

Check that the DVD disc is installed with the label side
up. If OK, replace the navigation unit.

System is shutting down now to conserve battery.

This error is displayed if there is no operation of the
navigation system in any mode for 5 minutes when the
engine is not running or a loss of the alternator signal
(CHG) input when the engine is running.

Display temp is too high. System will shut down until
display cools down.

The navigation display contains a thermistor that is
placed on the PCB such that the thermistor reaching
105°C corres ponds with the LCD reaching a
temperature of around 90°C. Beyond 90°C the LCD can
be damaged. This message will appear briefly, and then
the display will turn off until the temperature cools
down.

Outside temperature is low, system will take a while to
start up.

The temperature is below

30°C and the navigation

ECU has difficulties reading the DVD. If no DVD reading
error occurs, this error should not occur even if the
temperature is below

30°C.

DVD Disc reading error (unformatted), please consult
your dealer.

Check the DVD disc surface for deep scratches or other
damage. If OK, replace the navigation unit.

Route has not been completed. Please try again from a
difference location.

User tried planning a route from a digitized area to a
non-digitized area.

No alternate route found. Original route will be guided.

User tried to change the route method, but no
alternative route was found.

This destination cannot be found in database.

POI or destination was not found in the database.

Vehicle is out of database coverage area, route cannot
be calculated.

Vehicle was been driven out of the DCA and the system
cannot find origin of route.

Destination is out of database coverage area, route
cannot be calculated.

The destination is out of the DCA, and a route cannot be
calculated.

System cannot define vehicle position please drive for a
while.

Loss of map matching. Confirm GPS, Yaw Rate, and
VSP inputs are working normally. Drive vehicle on a
digitized road until the current road being on is
displayed across the bottom of the screen within the
blue shaded area.

Database old (or outdated), please see your dealer.

Check the DVD disc surface for deep scratchers or other
damage. If OK, replace the navigation unit.

03/07/29 10:28:50 61S0X050_220_0384

*01

*02

S0X4A82J36100000000LBAT01

01

S0X4A82J36100042525KBAT02

Special Tools Required

22-383

22-383

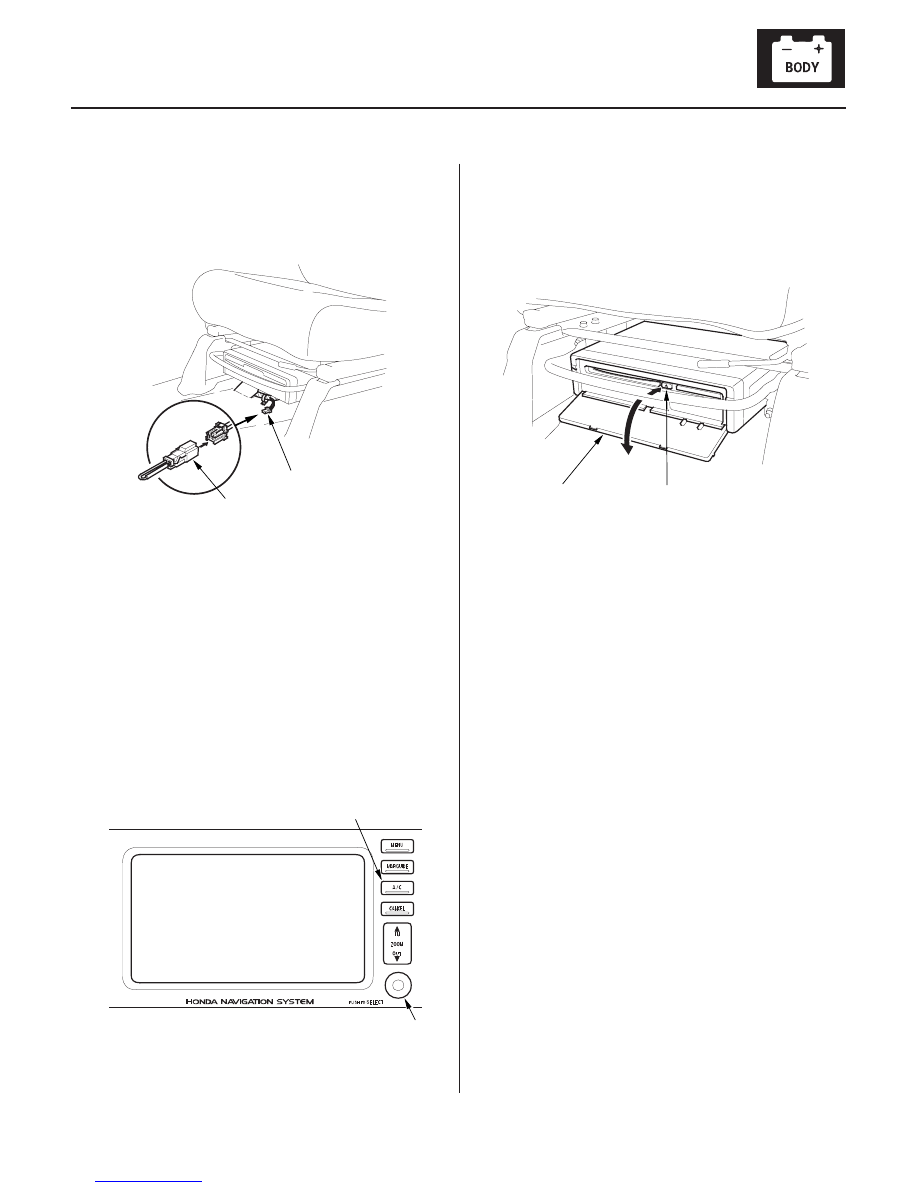

Forced Starting of Display

DVD-ROM Replacement

B
07PAZ-0010100

A

A

B

A

B

SCS service connector 07PAZ-0010100

1. Locate the navigation service check connector (A)

under the front passenger’s seat.

2. Connect the SCS service connector (B) to the

navigation service check conector (A).

3. Check that the diagnosis menu for the picture

diagnosis starts up, and then changes to the
system link menu.

4. If the display does not turn on, turn the ignition

switch OFF, press and hold the SET UP button (A),
press and hold the joystick (B) up, then turn ignition
switch to ACC (I).

NOTE: If the display fails to light or the system link
screen is not displayed, refer to no picture is shown
on the display (see page 22-366).

NOTE: When the DVD-ROM is re-inserted or replaced, a
map match must be done (see page 22-351).

1. Turn the ignition switch ON (II).

2. Open the front cover (A) of navigation unit.

3. Press the EJECT (B) switch.

4. Remove the DVD-ROM.

5. Insert the new DVD-ROM.

6. Close the front cover.

NOTE: After servicing, the front cover must be
closed. If you start up the navigation system with
the front cover open, the display will indicate.
‘‘Navigation unit door is open or No DVD Disk
installed. Please check system.’’
Do not turn the ignition switch OFF, until data is
down loaded to navigation unit.

7. Perform After Servicing Procedures (see page 22-

351).

03/07/29 10:28:51 61S0X050_220_0385
